Technical drawing

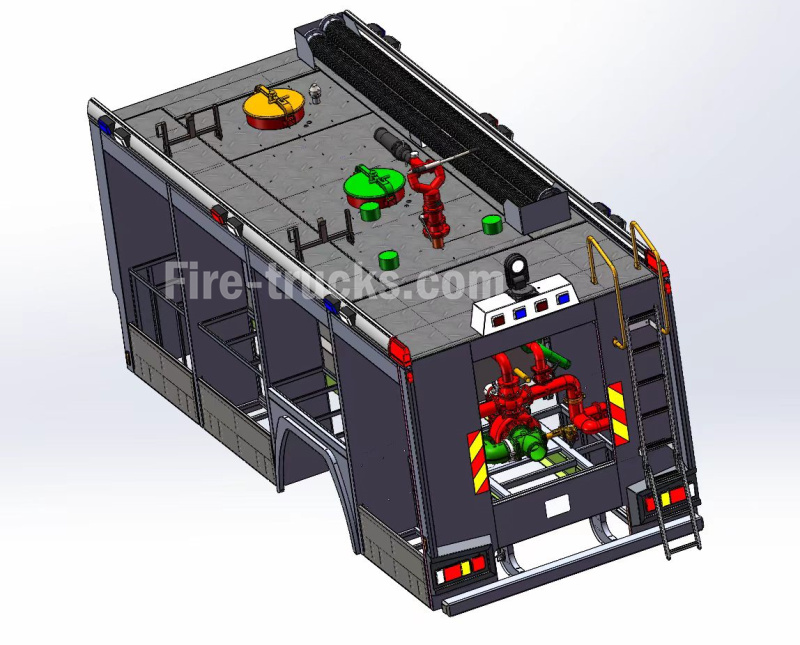

Nigeria Federal Fire Service Truck Isuzu technical drawing

December 02, 2025

FEDERAL FIER SERVICE NIGERIA trust Isuzu Foam fire trucks from Powerstar. This Isuzu Foam trucks with 5,000L water and 1,000L foam, adopt ISUZU 6HK1-TC diesel engine, MLD 6-shift gearbox, 60L/S CB10/60 fire pump and strong fire monitor. Nigeria is the most populous country in Africa, with approximately 227 million people. English is the official language, and Abuja is the capital. The country is rich in oil resources and is Africa's largest oil producer, but its economy is highly diversified, and it relies heavily on food imports. ⇒ Key Features Capacity Engine model Water Foam Fire Pump Fire Monitor 6,000L 6HK1 / 240HP 5,000L 1,000L CB10/60 Fire Pump PL8/48 Nigeria Federal Fire Service Truck Isuzu technical drawing Nigeria has over 250 ethnic groups, with Islam and Christianity being the main religions. Lagos, the largest city, is the economic center and possesses an important port in West Africa. The country has a hot climate, with the Niger River providing abundant water resources, but its security situation is complex, with extremist groups active in the northeast. Nigeria has a diverse culture and great potential for tourism, but attention should be paid to security issues in some areas. Nigeria 6000L Federal Fire rescue vehicle Isuzu technical drawing ⇒ Product Description Model: PST5180GXF Water&Foam Fire Truck2. Dimension: Approx. 8640*2500*3560mm3. Full Load Weight: Approx. 18000kgs4. Number of the Crew: 6 (include driver)5. Max. Speed: 95km/h6. Compartment: Complete Aluminum Material and Never Rust7. Capacity: 5000L Water and 1000L Foam. 8. Fire pump flow rate: 60L/s @ 10bar9. Roof monitor flow rate: 48L/s10. Painting: Red Color or Others Who is Federal Fire Serive Nigeria? Over 119 Years Of Experience The Fire Service in Nigeria was established in 1901 as an arm of the Lagos Police Fire Brigade. In April 1963, an Act of partliament established the Federal Fire Service. Training and Education We provide professional development training for fire and rescue services personnel in the Country. This is in keeping with the Mission Statement of the service as it pertains producing firefighter proficient in the prevention and mitigation of fire and other emergencies. The National Fire Academy (NFA) in affiliation with Nigeria Defence Academy (NDA) is providing post graduate studies in various safety and security discipline. This is to further equip sister personnel with requisite skills in the discharge of their responsibilities. The Federal Government reform of the Federal Fire Service in 2007, redefined the mandate of the service which includes: --Regulation of the state and Private Fire Services --Prescription and Monitoring of standards for the promotion of fire education/enlightenment --Fire prevention, safety, mitigation...

Chile 12,000L Rescue Fire Engine Isuzu Design Drawing

December 01, 2025

Today, we celebrate that Chile's National Fire Service recently procured Powerstar 12,000L rescue fire trucks (Isuzu chassis). This model is specifically designed for large-scale disaster relief. Powerstar trucks focus on Fire fighting equipment around 15 years, Chile is the longest and narrowest country in South America, stretching 4,300 kilometers from north to south. Its terrain ranges from the Atacama Desert in the north to the Patagonian glaciers in the south, resulting in a diverse climate. As the world's largest producer of copper and supplier of lithium, it is rich in mineral resources, and its economy is based on mining and agriculture (such as cherries and wine). Its culture blends Spanish and indigenous traditions, with the Moai statues of Easter Island and the Kueka dance being its unique symbols. The capital, Santiago, combines modern and historical elements, while the starry skies of the Atacama Desert and the glaciers of Torres del Paine National Park are natural wonders. ⇒ Key Features Capacity Engine model Water Foam Fire Pump Fire Monitor 12,000L 6WG1 / 520HP 6,000L 6,000L CB10/140 Fire Pump PL8/64 2026 brand new Chile CB10/140 Fire pump 12,000L Rescue Fire Engine Isuzu Design Drawing Nigeria Federal Fire engine foot pedal technical drawing Nigeria Federal Fire tender Isuzu tank connection technical drawing Nigeria Lagos fire truck foam tank drawing Nigeria Lagos fire truck foam tank bottom drawing This model will enhance Chile's ability to respond to disasters such as earthquakes and wildfires, and is particularly suitable for its long, narrow terrain and volcanic environment. Chile CB10/140 Fire pump Foam Fire engine Isuzu model for export Chile CB10/140 Fire pump Foam Fire engine GIGA model for export ⇒ Product Description 1. Model: PST5250GXF Water&Foam Fire Truck2. Dimension: Approx. 10040*2600*3560mm3. Full Load Weight: Approx. 25000kgs4. Number of the Crew: 6 (include driver)5. Max. Speed: 95km/h6. Compartment: Complete Aluminum Material and Never Rust7. Capacity: 6000L Water and 6000L Foam. 8. Fire pump flow rate: 140L/s @ 10bar9. Roof monitor flow rate: 64L/s10. Painting: Red Color or Others Front right view Chile Fire water truck Isuzu Right side view Chile Foam Fire engine Rear right view Chile Fire rescue vehicle Rear left view Chile Fire tender Isuzu Chassis: Isuzu Giga fire rescue chassis, ISUZU 6WG1-TCG62 engine, FAST 12-shift gearbox. Large Capacity: 6,000-liter water tank and 6,000L Foam, capable of handling forest fires or urban high-rise rescues. High-Performance Configuration: 520-horsepower engine, 75-meter range fire monitor, adaptable to complex terrain. Compliance: Meets China VI emission standards and international safety certificatio...

Dominican Isuzu 5000L water fire truck technical drawing

November 27, 2025

Powerstar Brand Dominican Giga Fire Engine technical drawing, also called as Dominican fire rescue truck drawing or Design drawing for Dominican giga Isuzu Fire fighting vehicle. Powerstar trucks provide full range Fire trucks, including Isuzu Fire truck, Howo fire truck and Foam fire trucks. The Dominican Republic attracts global tourists with its magnificent natural scenery and rich cultural heritage, but it also faces potential risks such as fires and natural disasters. Fire and rescue teams, as guardians of national security, play a vital role in Dominican society. ⇒ Key Features Capacity Engine model Water Foam Fire Pump Fire Monitor 5,000L 6UZ1 / 380HP 4,000L 1,000L CB10/60 Fire Pump PL8/48 2026 New model Dominican Giga Fire Engine Technical drawing Dominican Isuzu Fire Truck tanker design drawing Dominican Isuzu Fire Truck tanker roof design drawing Dominican Isuzu Fire Truck tanker bottom design drawing 4 units Dominican Giga Isuzu Fire engine fighting truck ready for delivery to Seaport ⇒ Product Description 1. Model: PST5180GXF Water&Foam Fire Truck2. Dimension: Approx. 7770*2500*3560mm3. Full Load Weight: Approx. 18000kgs4. Number of the Crew: 6 (include driver)5. Max. Speed: 95km/h6. Compartment: Complete Aluminum Material and Never Rust7. Capacity: 4000L Water and 1000L Foam. 8. Fire pump flow rate: 60L/s @ 10bar9. Roof monitor flow rate: 48L/s10. Painting: Red Color or Others Front left view of ISUZU GIGA Emergency Rescue Fire Trucks Rear left view of ISUZU GIGA series Rescue Fire Engine The Dominican Republic's fire and rescue system comprises professional firefighters and volunteers who undergo rigorous training and are equipped to respond to various emergencies. From urban fires to natural disaster relief, from traffic accidents to medical emergencies, they are always on the front lines, safeguarding the lives and property of the people.
