How an Aerial Ladder Fire Truck Executes High-Rise Rescue

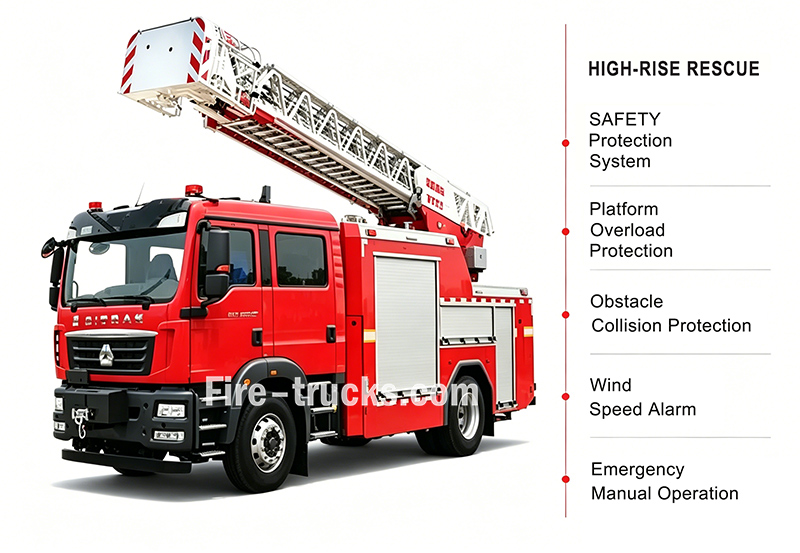

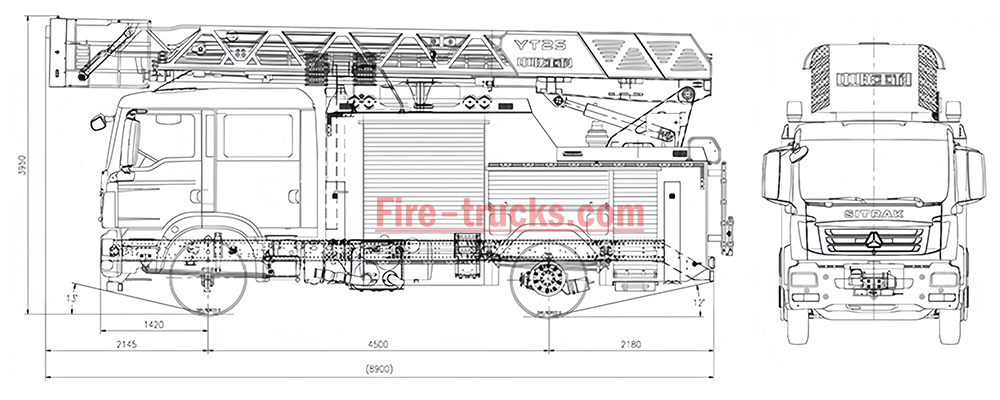

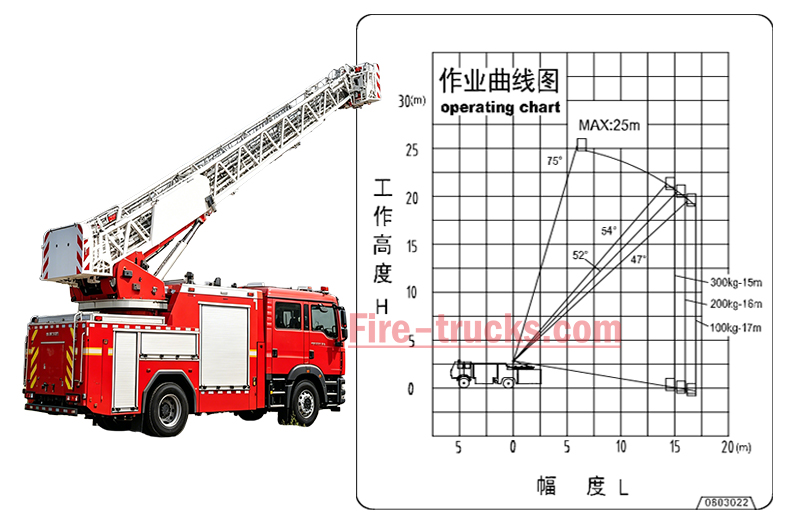

High-rise buildings present unique challenges for firefighting and rescue operations. Traditional ground-based equipment often lacks the reach needed to access upper floors from the outside. This is where aerial ladder fire trucks become indispensable. The YT25 aerial ladder fire truck, with a maximum working height of 25 meters and outreach of 15 meters, is specifically designed for such scenarios. This article explains how aerial ladder trucks perform high-rise rescue operations, using the YT25 as a technical example. » I. What Is an Aerial Ladder Fire Truck? An aerial ladder fire truck is a specialized fire apparatus equipped with a long extendable ladder mounted on a rotating turntable. Unlike standard pumpers, these vehicles are mobile platforms designed to project firefighters, equipment, and water to elevated heights. Key components of the YT25 aerial ladder truck:     Component Specification Ladder 4-section synchronous telescoping truss ladder Max working height 25 m Max outreach 15 m Platform rated load 300 kg Turntable rotation 360° continuous Outriggers K-type with auto leveling » II. How High-Rise Rescue Is Performed High-rise rescue operations follow a structured sequence. Each step requires precise control and reliable equipment. Step 1: Rapid Deployment and Stabilization When a high-rise fire call is received, the aerial ladder truck responds immediately. Positioning: The crew selects a location close to the building but clear of hazards such as power lines or unstable debris. The YT25 requires adequate clearance for safe ladder operation. Outrigger deployment: The K-type outriggers extend to stabilize the truck. The YT25 features intelligent auto-leveling outriggers with a span of approximately 3.5 meters (width) and 4.8 meters (length). This creates a wide, stable base that prevents tipping during ladder extension. Time required: Outrigger leveling takes ≤30 seconds (factory standard) or as fast as 24.5 seconds (tested). Step 2: Accessing Elevated Positions Once stabilized, the aerial device is raised and extended. Reaching upper floors: The 4-section synchronous telescoping ladder can be extended to the desired floor. Full ladder operation takes ≤55 seconds (factory standard) or as fast as 41.8 seconds (tested). This speed is critical when every second counts. 360° rotation: The turntable allows continuous rotation, enabling the ladder to reach any direction around the truck without repositioning the vehicle. Step 3: Rescuing Trapped Occupants Elevated rescues often occur when building occupants cannot evacuate through stairwells or are trapped in smoke-filled areas. Platform evacuation: The YT25 is equipped with a work platform (1.34 m²) rated for 300 kg. Firefighters can guide civilians into the platform and safely lower them to the ground. The platform features: Auto-leveling system (electro-hydraulic intelligent independent leveling) Work lights and safe...

Water pressure is the driving force behind every firefighting operation. Without adequate pressure, water cannot reach the fire, penetrate burning materials, or be effective. Fire fighting trucks must not only generate pressure but also maintain it consistently throughout the entire firefighting operation. This article explains how fire trucks produce, control, and sustain water pressure, covering the key components and principles involved. » I. Where Does Water Pressure Come From? Water pressure in a fire truck comes from the fire pump. The pump is driven by the truck's engine through a power take-off (PTO) system. When the PTO is engaged, engine power is redirected to spin the pump impeller at high speed. The impeller is a rotating disc with curved vanes. As it spins, it throws water outward by centrifugal force. This action creates two effects simultaneously: Low pressure at the center (eye of the impeller): Water is drawn in from the tank or intake hose High pressure at the outer edge: Water is forced out into the discharge piping This is why most fire truck pumps are called centrifugal pumps. Pump size and power must match the vehicle's intended use. Large fire trucks, such as a 25,000-liter water/foam combination truck, require more powerful pumps to maintain high pressure while delivering large volumes of water. These heavy-duty pumps are designed for efficiency and reliability, even under extreme conditions. For smaller trucks, such as a 3,000-liter light foam pumper, a less powerful but still effective pump is used. These trucks do not need to deliver as much water, and the smaller pump is sufficient to maintain the pressure required for their operations. Additionally, the height of the onboard water tank and the position of the pump affect pressure. Water flows by gravity from the tank to the pump, but the pump must still increase the pressure to push water effectively through the hoses. » II. How Is Pressure Controlled? Once pressure is generated, it must be controlled to match the specific firefighting task. Different situations require different pressures. 1. Engine Throttle Control The simplest way to adjust pressure is by changing engine speed. Increasing engine RPM spins the pump impeller faster, which increases pressure. Decreasing RPM lowers pressure. The pump operator controls engine speed from the pump panel using an electronic throttle. 2. Pressure Governor Systems Modern fire trucks are equipped with electronic pressure governors. These devices automatically maintain the set pressure regardless of changes in flow. When a firefighter opens or closes a nozzle, the flow demand changes. Without a governor, pressure would drop when a new hose line is opened or spike when a line is closed. The governor senses these changes and automatically adjusts engine speed to keep pressure constant.     Mode Function Pressure mode Maintains a preset pressure regardless of flow changes RPM mode Maintains a preset eng...

Fire trucks operate in harsh environments — humid climates, chemical spills, coastal salt spray. Without effective corrosion protection, metal components of a fire fighting vehicle rust, structures weaken, and firefighting capability drops. This article explains how rust forms, which tank materials resist corrosion best, and what coatings actually work. I. Three Common Types of Corrosion on Fire Trucks 1. Pitting Corrosion Small holes (pits) form on metal surfaces. Common on coastal fire trucks due to chloride ions in sea air. Pitting is dangerous because it penetrates deep into metal while looking like minor surface damage. 2. Crevice Corrosion Occurs in tight spaces where moisture gets trapped — under gaskets, bolts, rivets, weld seams, or between metal and rubber seals. Sand, dust, and debris accelerate it. 3. Galvanic Corrosion Happens when two different metals contact each other in the presence of moisture. The more active metal corrodes faster. Fire trucks use steel, aluminum, stainless steel, and brass — proper insulation between dissimilar metals is critical. II. Tank Materials: Which One Resists Rust Best?     Material Corrosion Resistance Best For Carbon steel Low (requires coating) Budget trucks Stainless steel 304 Good Standard municipal use Stainless steel 316 Excellent (contains molybdenum) Coastal areas, chemical plants Why 316 stainless steel? The addition of molybdenum provides superior resistance to chlorides (salt water) and chemicals. For fire trucks operating near the ocean or in industrial zones, 316 is the right choice. III. Anti-Corrosion Coatings That Work For Water Tanks (Potable Water Safe) Water tanks often store water from rivers, lakes, or hydrants. This water contains chlorides and impurities that accelerate stainless steel corrosion. Internal coating is necessary. Recommended coating: H52-33 epoxy anti-corrosion paint. It is non-toxic, salt-resistant, alkali-resistant, and water-resistant. Suitable for drinking water systems and fire truck water tanks. For Foam Tanks Foam concentrate reacts chemically with some coatings. Never use epoxy asphalt coating inside foam tanks — it will break down and contaminate the foam. Use proper foam-tank-grade anti-corrosion paint instead. Coating Application Process Surface preparation: Sandblasting removes rust, oil, and dirt Primer application: Improves adhesion Intermediate coat: Builds thickness Top coat: Provides chemical resistance and UV protection Critical: If the weld gap is between 0.025-0.1mm, crevice corrosion sensitivity increases dramatically. Weld spatter destroys the passive layer on stainless steel, leading to pitting. All weld slag and spatter must be removed after welding. IV. Fastener Corrosion Protection Bolts, screws, rivets, and pins are load-bearing components. Surface treatment methods include: Treatment Corrosion Resistance (NSS Test) Application Zinc plating 120 hours no red rust Grade 8...

Foam fire trucks are essential for fighting flammable liquid fires at airports, oil refineries, chemical plants, and fuel storage facilities. Like all specialized equipment, foam fire trucks require regular maintenance to stay ready for emergencies. This article covers common faults and practical solutions. I. Types of Firefighting Foam Before discussing faults, understanding foam types is essential. There are three main categories:     Foam Type Application Class A Foam Ordinary combustibles (wood, paper, cloth) Class B Foam Flammable liquids (gasoline, oil, diesel) AFFF (Aqueous Film Forming Foam) Forms a barrier between fuel and air, prevents re-ignition II. Common Faults and Solutions 1. Pressure System Faults Problem: Insufficient foam discharge or unstable pressure Possible causes: Damaged pressure pump Pump drive system failure Blocked pipelines Solutions: Regularly inspect the pump and drive system Clean and maintain pipelines Repair or replace damaged components 2. Foam Liquid Supply Issues Problem: Insufficient foam liquid or system not working properly Possible causes: Foam liquid pump failure Foam tank problems Blocked foam liquid pipelines Solutions: Check pump, tank, and pipelines Ensure all passages are clear Clean and replace damaged components 3. Control System Faults Problem: Unable to accurately control foam discharge and water flow Possible causes: Circuit failure Damaged control panel Sensor failure Solutions: Check circuit connections Replace damaged control panel or sensors Perform system recalibration 4. Foam Concentration Control Issues Problem: Foam concentration too high or too low, affecting extinguishing performance Possible causes: Concentration control system failure Damaged proportioner Incorrect proportioner settings Solutions: Calibrate the concentration control system Inspect and clean the proportioner Ensure foam concentration is within the correct range 5. Vehicle Power System Faults Problem: Vehicle power system failure affects driving and operation Possible causes: Engine failure Transmission problems Electrical system failure Solutions: Regularly inspect engine, transmission, and electrical system Ensure normal operation Repair or replace faulty components in a timely manner 6. Foam Generator Cannot Produce Foam Problem: Foam generator fails to produce foam or produces poor quality foam Possible causes: Air inlet blocked by foreign objects Foam mixture does not meet requirements (expired foam concentrate, incorrect proportioning ratio) Solutions: Inspect and remove blockages from the air inlet Test and maintain the proportioner Replace expired foam concentrate 7. Proportioner Corrosion or Seizure Problem: The proportioner is rusted or stuck Possible causes: Not rinsed with clean water after use Long-term corrosion from foam concentrate Solutions: Regularly remove and maintain the proportioner Rinse thoroughly with clean water after each test or use 8. Pump Perfor...

A dry powder fire truck is a specialized firefighting vehicle designed to extinguish fires using dry chemical powder instead of water or foam. It is particularly effective for Class B (flammable liquids) and Class C (energized electrical equipment) fires, where water or foam may be ineffective or dangerous. Dry powder works by interrupting the chemical chain reaction of the fire, creating a cloud of fine particles that separates the fuel from oxygen. A dry powder fire truck carries a tank filled with dry chemical powder, typically based on monoammonium phosphate or sodium bicarbonate. It uses a compressed gas system — usually nitrogen or compressed air — to propel the powder through hoses and nozzles onto the fire. Unlike water or foam trucks, dry powder trucks do not require mixing or proportioning systems. The powder is stored ready for immediate discharge. I. Key Components of a Industrial Dry Powder Fire Truck 1. Powder tank: Stores the dry chemical powder, typically made of carbon steel or stainless steel with anti-corrosion coating Tank Design Features:› Bottom: Equipped with an air inlet pipe› Top: Includes pressure gauge connector, outlet connector, and safety valve› Inlet structure: One-way valve prevents backflow› Material: Carbon steel with anti-corrosion treatment 2. Nitrogen Propellant gas cylinders: Store compressed nitrogen or air at high pressure (typically 15-20 MPa) to propel the powder 3. Pressure regulator: Reduces gas pressure from cylinders to a safe operating level 4. Powder discharge valve: Controls the flow of powder from the tank into the discharge line 5. Hoses and nozzles: Deliver the powder to the fire; dry powder nozzles are designed to prevent clogging 6. Control panel: Allows the operator to pressurize the tank, open valves, and control discharge 7. Piping system: Connects the powder tank, gas cylinders, and discharge points II. How Does a Chemical Dry Powder Fire Truck Work? The working principle of a dry powder fire truck can be broken down into several key steps. Step 1: Powder Loading Dry powder is loaded into the tank through the powder fill port. Note that no caked powder should be poured into the tank to avoid pipe blockage. The powder must be kept clean and free-flowing. Step 2: Nitrogen Charging The nitrogen system must be used together with the dry powder system. Appropriate nitrogen cylinders are selected based on the dry powder truck's capacity. Before operation, close the nitrogen inlet valve, open one or both cylinder valves and the nitrogen outlet valve. Check that the high pressure gauge reads 13 MPa and the low pressure gauge reads 1.4 MPa. Step 3: Tank Pressurization When the low pressure gauge shows a stable reading of 1.4 MPa, open the tank feed valve button. Check the tank pressure gauge. When the pressure stabilizes at 1.4 MPa, the dry powder is ready for discharge. At this point, the ...

Water fire trucks fight ordinary fires involving wood, paper, and cloth. Foam fire trucks fight flammable liquid fires like gasoline and oil. Which one is right depends on the hazards present. A water fire truck carries a large tank of water and relies on a high-pressure pump to deliver water through hoses or a deck gun. It is the most common type of fire truck used by municipal fire departments and industrial sites worldwide. A foam fire truck, on the other hand, is specially designed to carry and deliver firefighting foam. When water alone cannot effectively extinguish a fire — such as with flammable liquids, chemicals, or fuel fires — foam is the better choice. Foam works by creating a blanket over the fire, cutting off oxygen and preventing re-ignition. I. What Is a Water Fire Truck? A water fire truck is exactly what it sounds like — a vehicle equipped with a large water tank, a powerful pump, and hoses or monitors to deliver water onto fires. The water tank typically holds between 500 and 3,000 gallons (approximately 2,000 to 12,000 liters). The pump draws water from the tank or from an external source such as a fire hydrant, lake, or pond, then pushes it through hoses under high pressure. Where water fire trucks work best: Water fire trucks are ideal for Class A fires, which involve ordinary combustibles: Wood and lumber Paper and cardboard Cloth and fabric Rubber and plastics Grass, brush, and forest materials If the fire involves materials that burn in a house, warehouse, or field, water will usually put it out.     Limitations of water: Water has one major weakness. When sprayed on burning liquids like gasoline, oil, or chemicals, water sinks because it is heavier than these fuels. The fuel floats on top and continues burning. In some cases, water can even spread the fire to a wider area. That is why water alone is not effective for flammable liquid fires. Water fire truck fire pump specifications: Water fire truck fire monitor specifications: II. What Is a Foam Fire Truck? A foam fire truck is a specialized vehicle designed to transport and deliver firefighting foam. It carries two separate tanks — one for water and one for foam concentrate. A foam proportioning system mixes the two at a specific ratio, typically 1%, 3%, or 6% foam concentrate to water. This mixture then passes through a foam nozzle where air is added, creating an expanded, stable foam blanket. How foam works: The foam forms a layer over the burning liquid or material. This blanket: Cuts off the oxygen supply to the fire Cools the fuel surface Prevents flammable vapors from escaping Stops the fire from re-igniting Where foam fire trucks work best: Foam fire trucks are essential for Class B fires, which involve flammable and combustible liquids: Gasoline and diesel Jet fuel and kerosene Oil and grease Alcohol and ethanol Industrial chemicals Foam is also effective for certain Class A fires where water alone stru...

Fire trucks operate through the coordinated function of multiple systems to achieve water supply, pressure generation, and fire suppression. Understanding these principles helps fire crews operate effectively in emergency situations.   »Ⅰ. How Fire Trucks Work :    ▪         A. Pump System: The Heart of Fire Suppression:   The heart of any fire truck is its pump. This high-powered unit draws water from the onboard tank or an external source—such as a fire hydrant, lake, or pond and delivers it through hoses under high pressure. The most commonly used pump is the centrifugal pump, which relies on a rotating impeller to pressurize and move water.   Firefighters control the water flow using a series of levers and gauges on the pump panel. They can adjust pressure as needed and direct water to multiple hose lines simultaneously.   Pump Type Characteristics Best Application Single-stage centrifugal pump High flow, moderate pressure General municipal firefighting Two-stage centrifugal pump Switchable between volume and pressure High-rise buildings, long hoses lay Multi-stage pump Very high pressure Industrial facilities, foam systems   ▪         Key Pump Parameters:          › Flow rate: 1,200 - 6,000 liters per minute (depending on model)          › Maximum pressure: 1.0 - 2.5 MPa (10-25 bar)          › Priming time: ≤30 seconds    ▪         B. Water Tank and Storage System：          › Tank capacity: 500 - 1,500 gallons (approximately 2,000 to 6,000 liters), depending on vehicle size and type          › Tank material: Corrosion-resistant stainless steel or coated carbon steel          › Internal baffles: Multiple compartments with anti-surge design to control water movement during emergency response          › Filling time: ≤3 minutes via fire hydrant or drafting          › Water level indicator: Visual gauge on tank side; optional cab display   The tank is constructed from corrosion-resistant materials, typically stainless steel or coated carbon steel, with internal baffle plates that control water surge during emergency response driving.          ▪         C. Hose and Nozzle Systems Fire trucks carry various hoses with different functions:          › Attack hose: 1.5 - 2.5 inches diameter — delivers water directly to the fire source          › Supply hose: 4 - 5 inches in diameter — transports water from hydrants or other pumpers          › Booster hose: smal...

As the most professional Isuzu Fire truck factory, the core design of the Isuzu NPR water foam fire truck is to integrate a foam fire extinguishing system into a water tanker fire truck, forming a composite fire extinguishing equipment that can spray both water and foam. It can independently extinguish fires; deliver water or foam mixture to other equipment; and is suitable for operations in arid and water-scarce areas.         ★ Techncial Specification    All fire trucks from CS trucks, 100% based on customer requirements   Capacity  Engine model         Water    Foam      Fire Pump   Fire Monitor 2,500L ISUZU 4HK1 / 190HP 2,500L 500L CB10/40 Fire Pump PL8/32     2026 offical ISUZU Fire truck cab chassis truck   2026 original fire truck chassis drawing   Item Design Details of Isuzu Fire trucks Design Core   Integrates a foam extinguishing system into a water tanker fire truck, forming a dual-capability fire-fighting vehicle capable of discharging both water and foam. Features include:• Independent fire suppression• Water or foam mixture supply to other equipment• Suitable for arid or water-scarce areas, enabling multi-functional use   Overall Design Concept   Designed to meet fire-fighting needs in workshops and surrounding areas, with enhanced capabilities for oil, electrical, and solid material fires; the vehicle consists of a chassis and specialized body equipment, emphasizing reliability, multi-functionality, and ease of operation   Chassis Selection   • Uses proven medium or heavy-duty type-II chassis• All-wheel drive recommended to improve mobility and traction in complex terrain     2026 NEW DESIGN OF ISUZU 700P Water Fire Trucks   Core System Components & Design Key Points 1. Water Tank & Foam Liquid Tank   • Material: Stainless steel, corrosion-resistant• Recommended capacity: Water tank 3000–5000L, foam liquid tank 300–600L• Structural optimization: Internal baffles separate water and foam chambers, switchable via connecting ports to single water tank mode, enabling multi-purpose use   2. Foam Proportioning System   • Uses balanced pressure proportioner (core component) to precisely mix water and foam concentrate at 3% or 6% ratios• Stable output unaffected by flow or pressure fluctuations, suitable for non-specialist operators• Equipped with external foam suction inlet for on-site replenishment   3. Discharge System   • Fire pump: High-efficiency, energy-saving multi-stage centrifugal pump, flow rate ≥40L/S• Fire monitor: Remote-controlled water/foam dual-purpose monitor, range ≥50 meters, adjustable angle• Supports connection to fire hoses and foam nozzles for flexible operations       2026 NEW DESIGN OF ISUZU NPR Foa...
