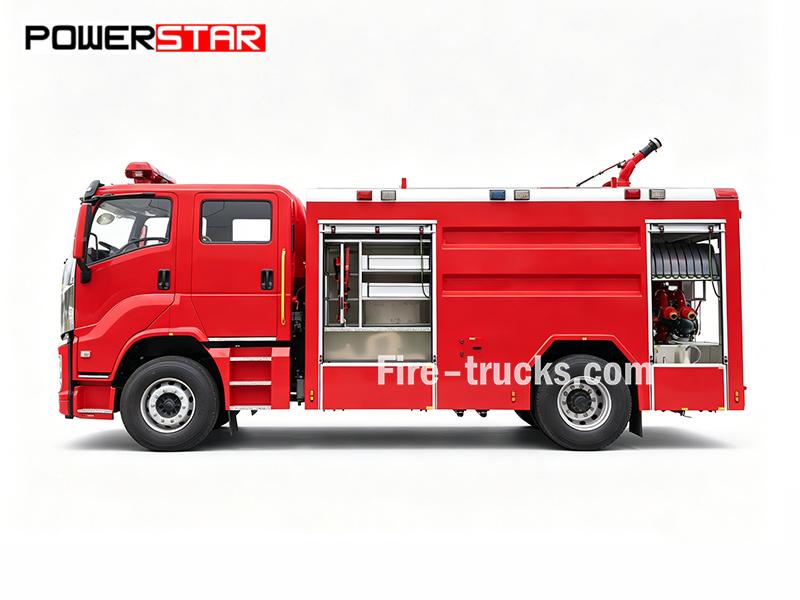

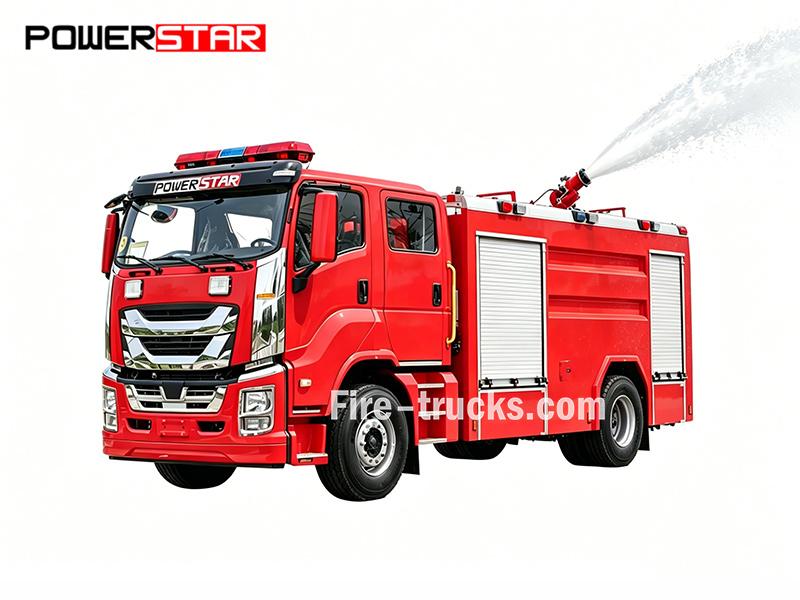

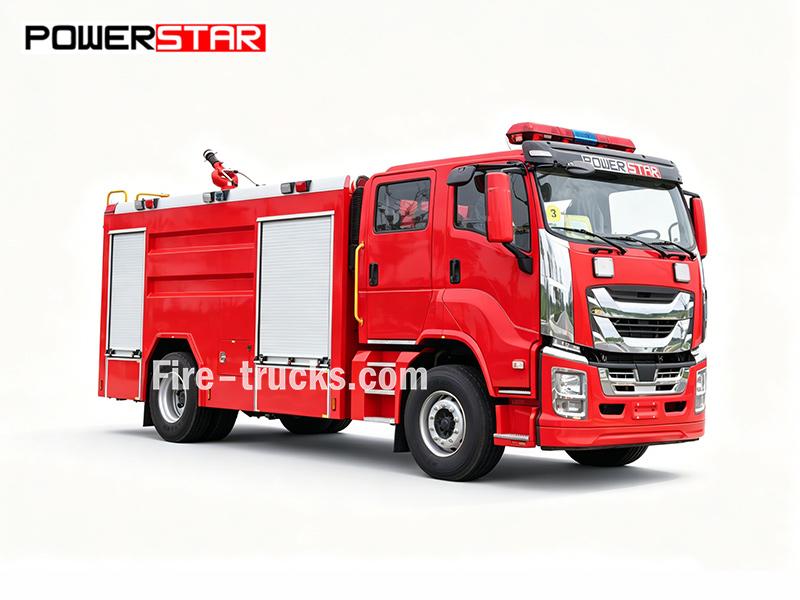

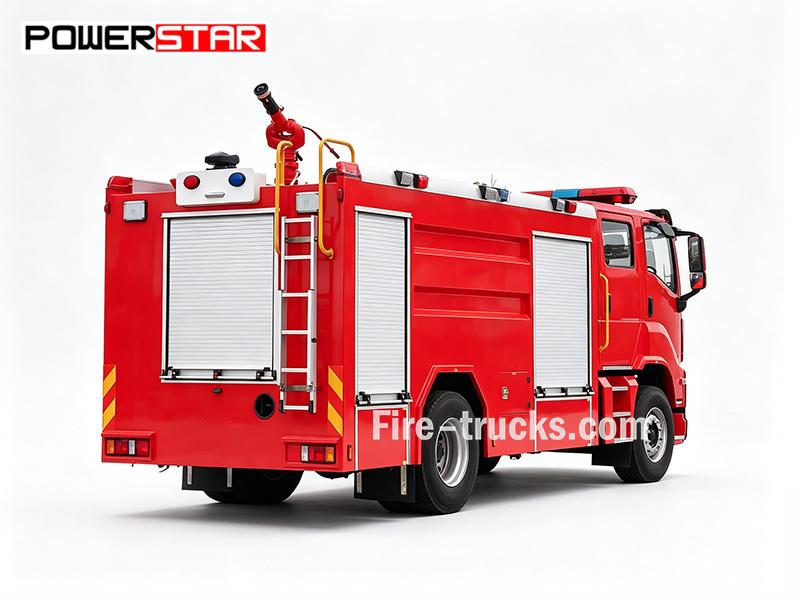

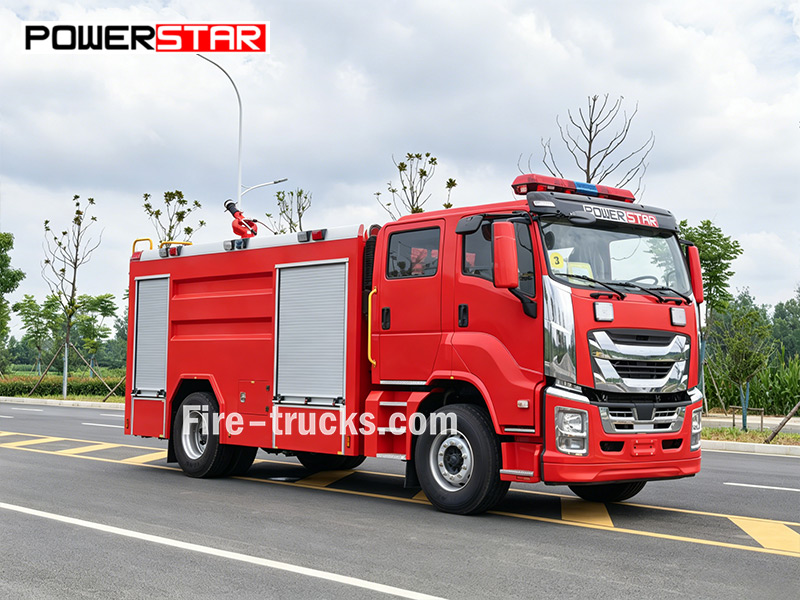

The ISUZU GIGA 240HP emergency fire pumper is powered by a 240 HP 6HK1-TCG61 engine on a 4×2 chassis. It features a 6000L water tank and a 2000L foam tank, a CB10/60 fire pump (60 L/s), and a PL8/48 monitor (48 L/s, water ≥70m, foam ≥65m). Standard gear includes fire hoses, suction tubes, couplings, foam gun, and basic tool kit. Additional equipment includes sandwich PTO, pipeline system, equipment box, pump box, flip pedal, and electric system.
Truck Chassis:
ISUZU GIGA 4×2Tanker Capacity:
6000L water + 2000L foam (8000L total)Engine Power:
240 HP (176 kW) / 6HK1-TCG61Fire Pump:
CB10/60Pump Flow:
60 L/sWork Pressure:
1.0 MPaFire Monitor:
PL8/48Monitor Flow:
48 L/sMonitor Range:
Water ≥70 m , Foam ≥65 mThis ISUZU GIGA emergency fire pumper is built for firefighting and emergency response. This ISUZU 240HP 4x2 foam water fire truck features a 6000L water tank, a 2000L foam tank, a CB10/60 fire pump (60 L/s at 1.0 MPa), and a roof mounted PL8/48 fire monitor with 70m water range and 65m foam range.
This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. It works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
6000L water + 2000L foam |
240 HP / 6HK1-TCG61 |
5600 mm |
★ Tank carbon steel, 8000L capacity ★ CB10/60 fire pump, 60 L/s flow at 1.0 MPa ★ PL8/48 roof monitor, 48 L/s flow with water ≥70 m, foam ≥60 m ★ Sandwich PTO, pipeline system, equipment box, pump box, flip pedal, electric system |
» Ⅰ.Main Features :
★ 6HK1-TCG61 engine rated at 240 HP for foam fire suppression and emergency response
★ ISUZU GIGA 4×2 chassis with 6000L water tank, 2000L foam tank, and CB10/60 fire pump (60 L/s at 1.0 MPa)
★ Roof mounted PL8/48 monitor with 48 L/s flow, water range ≥70 m, and foam range ≥65 m for long distance fire attack
★ Sandwich PTO, pipeline system, equipment box, pump box, flip pedal, and electric system for complete operation support
★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
| Powerstar Isuzu 240 HP Emergency Fire Pumper | |||
| General | Work capacity | 6000L water+2000L Foam | |
| Truck chassis | ISUZU GIGA 4x2 | ||
| Engine Power | 240 HP/ 6HK1-TCG61 | ||
| Fire pump | CB10/60 | ||
| Fire Monitor | PL8/48 | ||
| Overall Dimensions L*W*H | 7800*2500*3500 mm | ||
| Gross Vehicle Weight | 22000 kg | ||
| Curb Weight | 10800 kg | ||
| Engine | Engine Model | 4HK1-TCG61 | |
| Fuel Type | Diesel | ||
| Power | 240 HP(176KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 7800 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x2 | |
| Wheelbase | 5600 mm | ||
| Tire | 235/75R17.5 16PR | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Fire Pump | Model | CB10/60 | |
| Flux | 60L/s | ||
| Pressure | 1MPa | ||
| Max working pressure | 1.251MPa | ||
| Max allowable inlet pressure | 0.4MPa | ||
| Max suction height | 3m | ||
| Rated speed | 3916±50r/min | ||
| Speed ratio | 1:1.4 | ||
| Water diversion time | ≤50s | ||
| Fire Monitor | Model | PL8/48 | |
| Flow | 48L/s | ||
| Rated working pressure | 0.8MPa | ||
| Max working pressure | 1.2MPa | ||
| Range | Water | ≥70m | |
| Foam | ≥65m | ||
| Pitch rotation | - 35~+70° | ||
| Horizontal rotation | 0~360° | ||
| Standard Configuration | Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. Other equipment. |
||


1. Chassis & Powertrain
♦ ISUZU GIGA 4×2 chassis with 5600 mm wheelbase, designed for stable operation on urban roads, industrial sites, and emergency response routes.
♦ 6HK1-TCG61 diesel engine, rated at 240 HP, delivering reliable torque for quick response, continuous pump operation, and long-duration foam fire suppression.
♦Manual transmission for straightforward operation and easy maintenance.

2. Fire Suppression & Safety System
♦ 6000L water tank and 2000L foam tank, carbon steel construction with internal baffles to reduce liquid surge.
♦ CB10/60 fire pump, 60 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.
♦ PL8/48 roof monitor, 48 L/s flow, water range ≥70 m, foam range ≥65 m, horizontal 360° rotation, pitch -35° to +70°.

» Ⅳ.Fire Pump System :
Fire Pump:

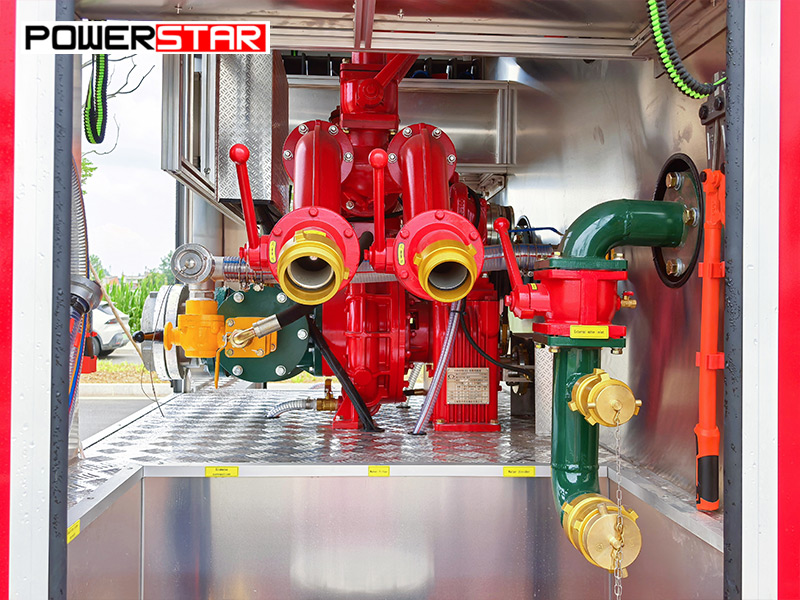

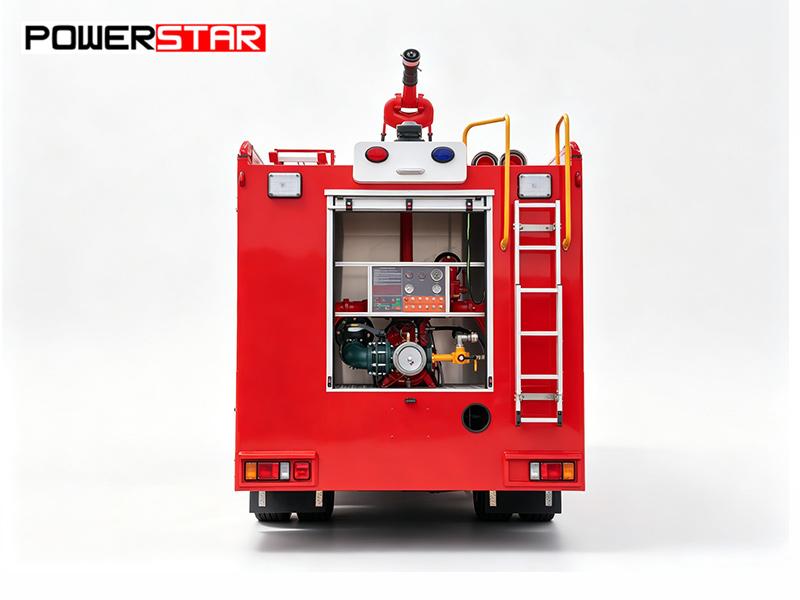

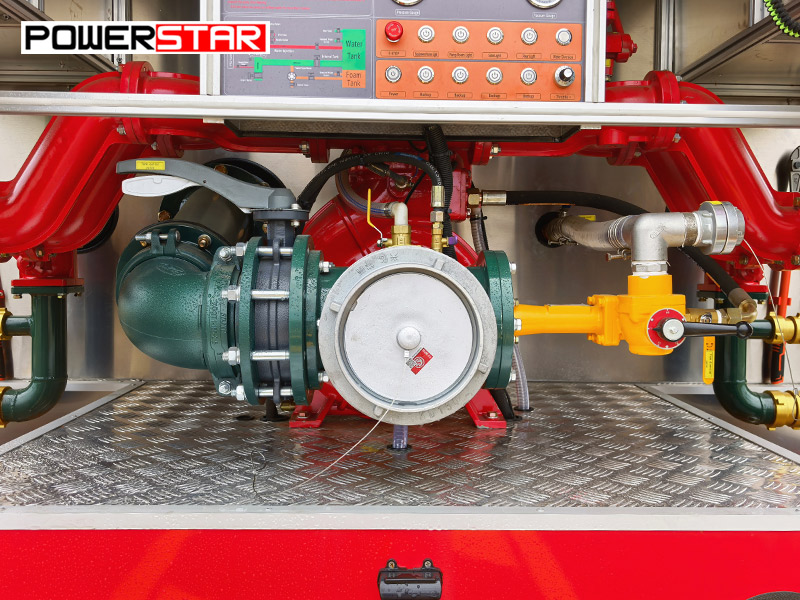

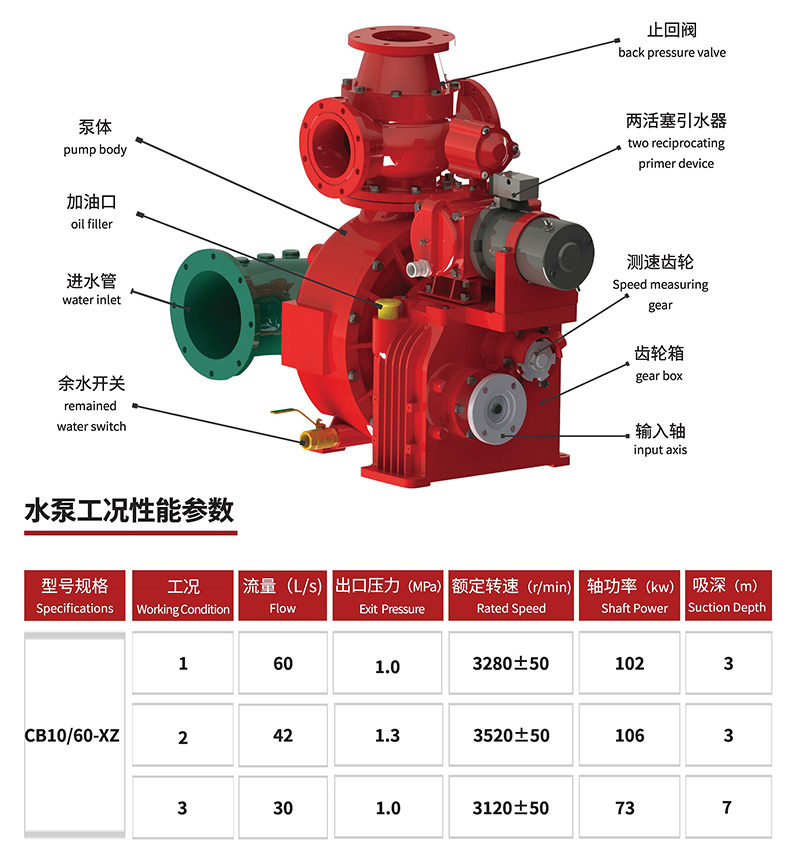

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/60 |
60 L/s |
1.0MPa |
1.251 MPa |
0.4MPa |

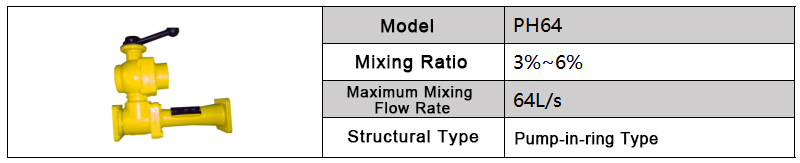

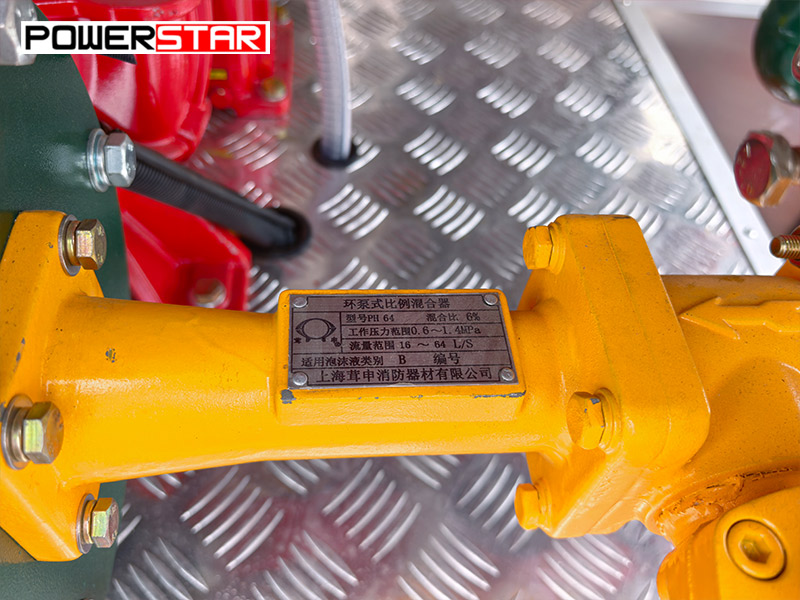

PH64 pump-in-ring type foam proportioner, mixing ratio adjustable from 3% to 6%, max mixing flow rate 64 L/s. Automatically mixes foam concentrate with water for efficient Class B fire suppression. Simple operation with no external power required.

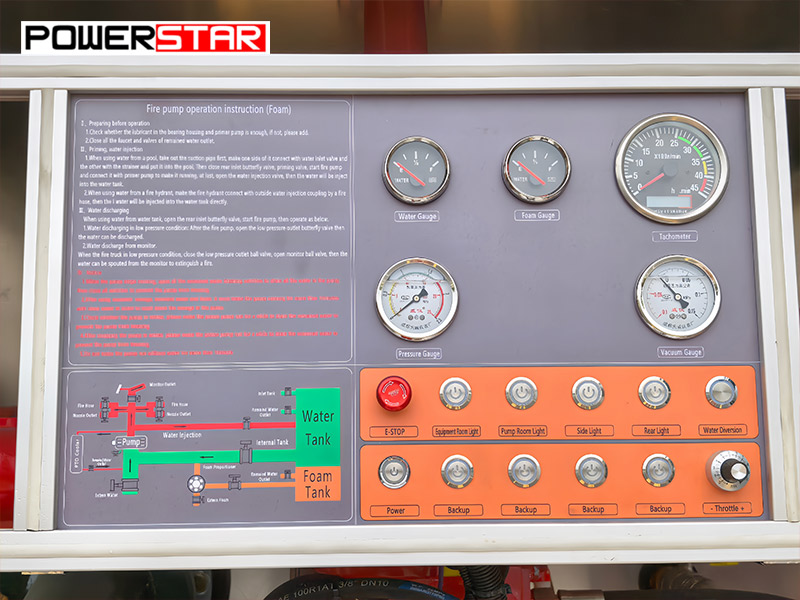

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, monitor controls, and compartment lighting. All controls are clearly marked for straightforward operation.

» Ⅴ.Fire Monitor System :
The PL8/48 fire monitor is mounted on the cab roof. It delivers a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥65 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
| PL8/48 | 48L/s | Water≥70m Foam ≥65 m | 0.8MPa | -35°~+70° |
0~360° |
» Ⅵ.Firefighting Equipment :

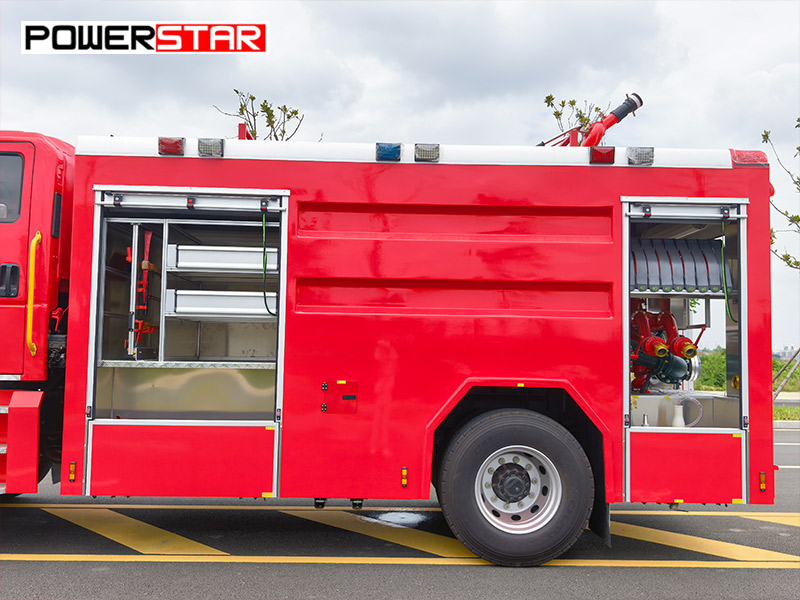

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

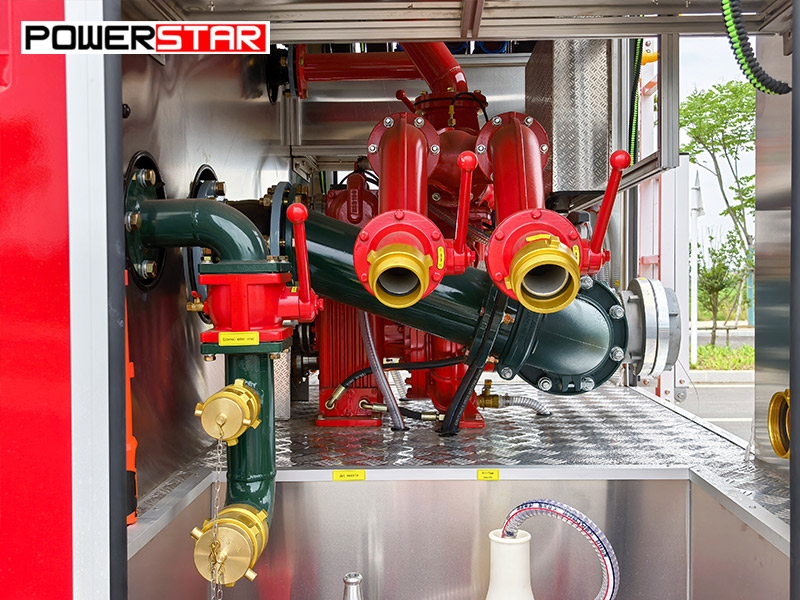

• Pump Room: Equipped with CB10/60 fire pump, control panel, pressure gauge, vacuum gauge, and lighting system. Accessories include fire hoses, suction hoses, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and reducers.

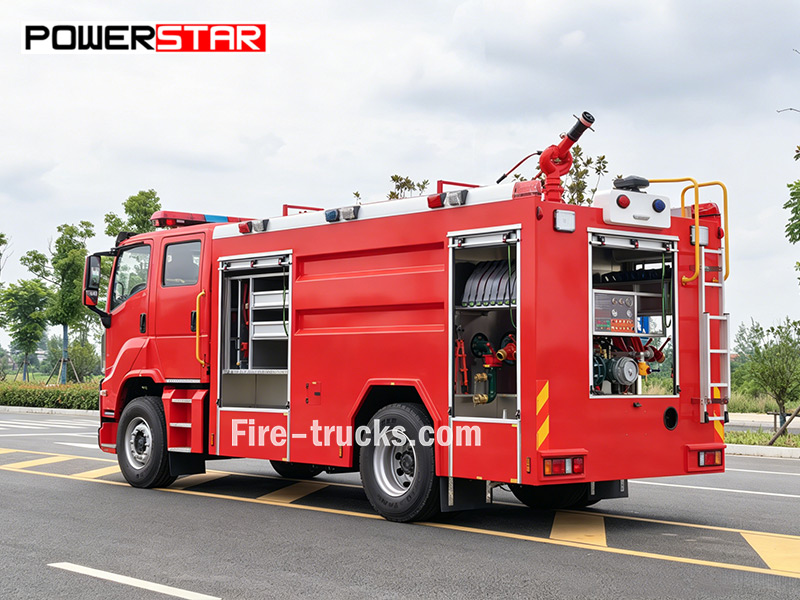

The ISUZU GIGA emergency fire pumper comes with a rear-mounted CB10/60 fire pump and a cab roof mounted PL8/48 monitor. The water tank holds 6,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy ISUZU GIGA 4×2 chassis powered by a 240 HP 6HK1-TCG61 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Additional equipment includes sandwich PTO, pipeline system, equipment box, pump box, flip pedal, and electric system. A PH64 foam proportioner (3%-6% mixing ratio, 64 L/s max flow rate) is also equipped for automatic foam mixing. Full specifications are listed below:

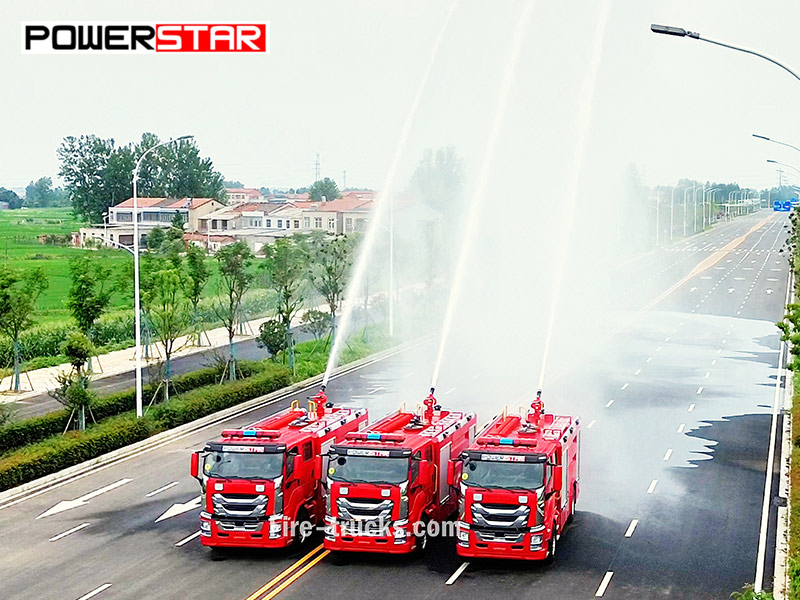

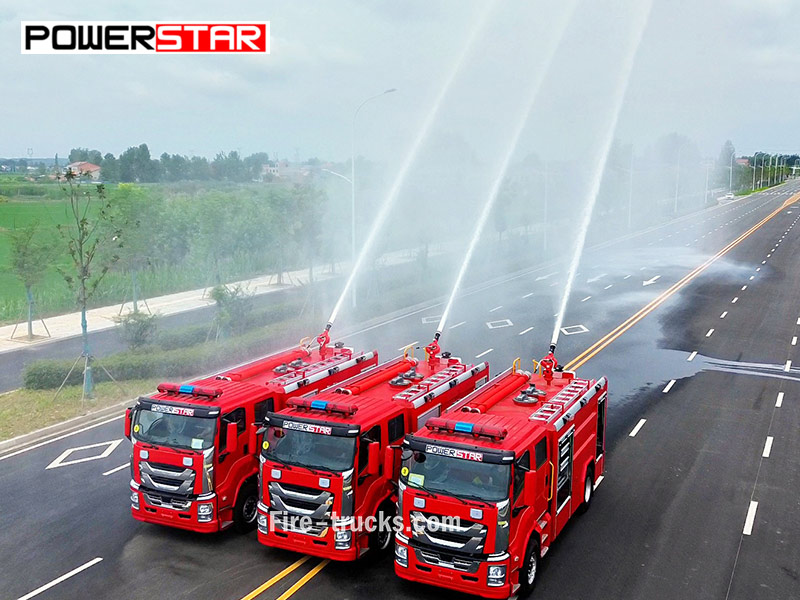

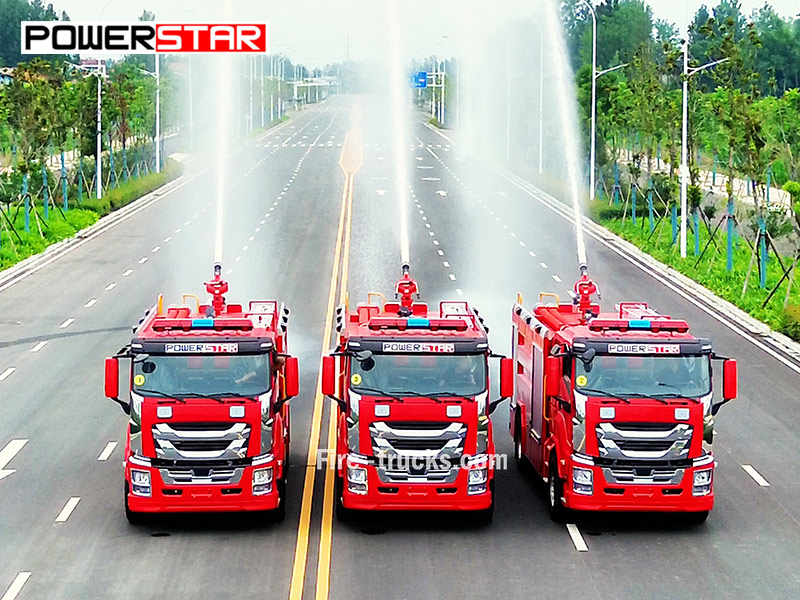

» Ⅶ.Water Flow & Pressure Test :

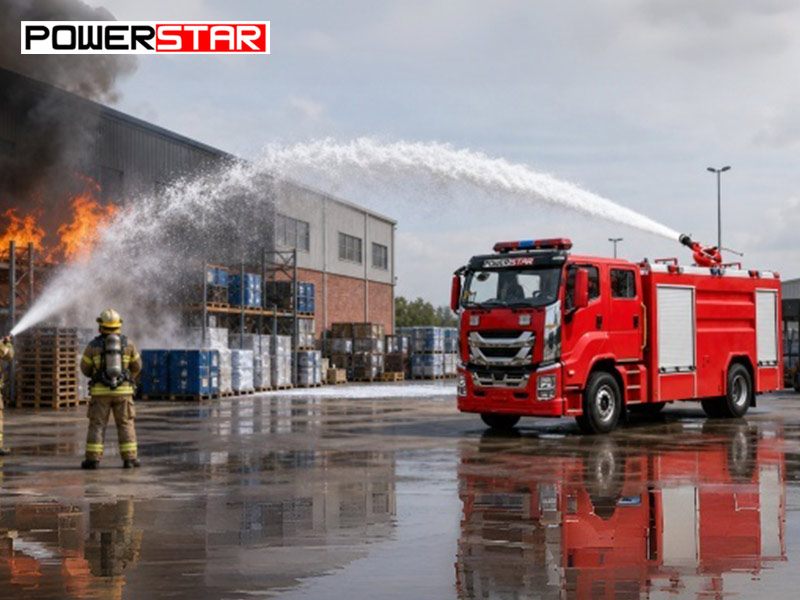

» Ⅷ.Application Scenarios :
