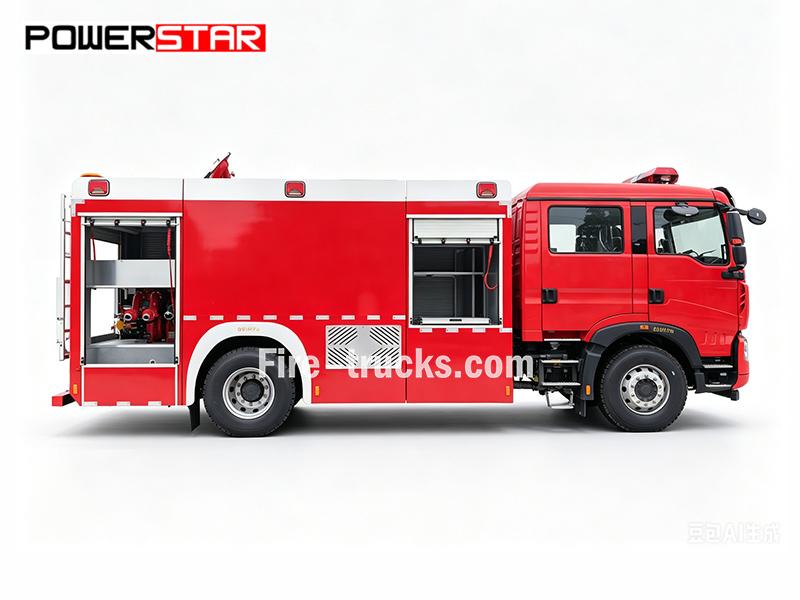

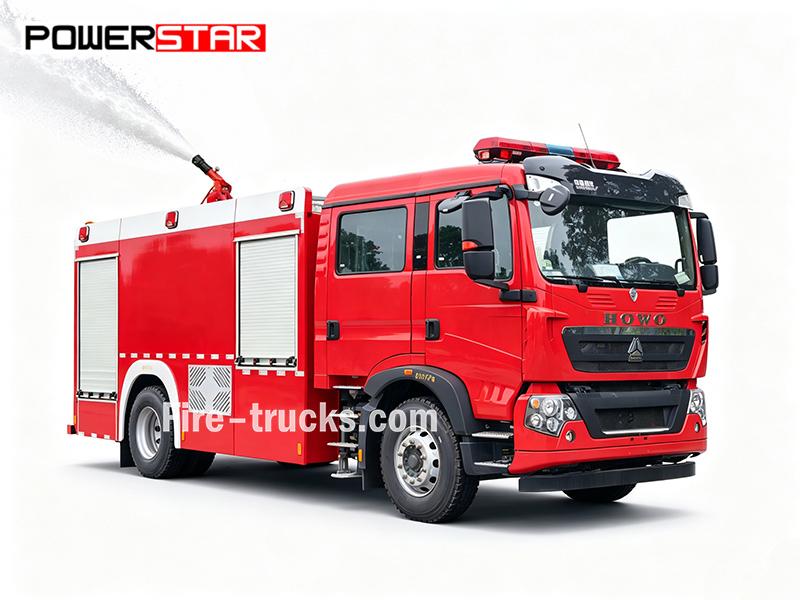

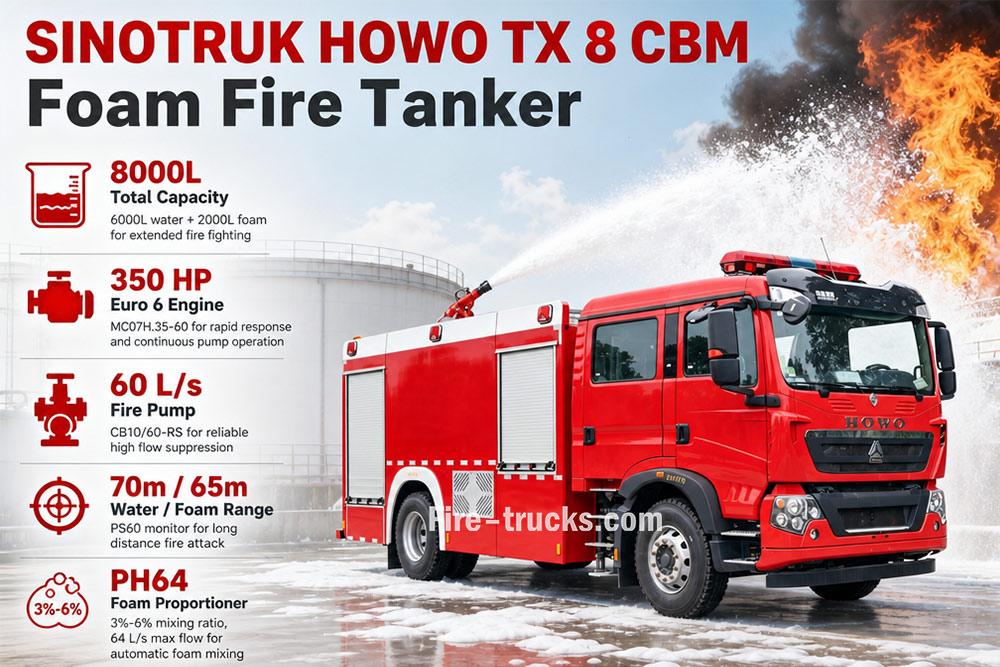

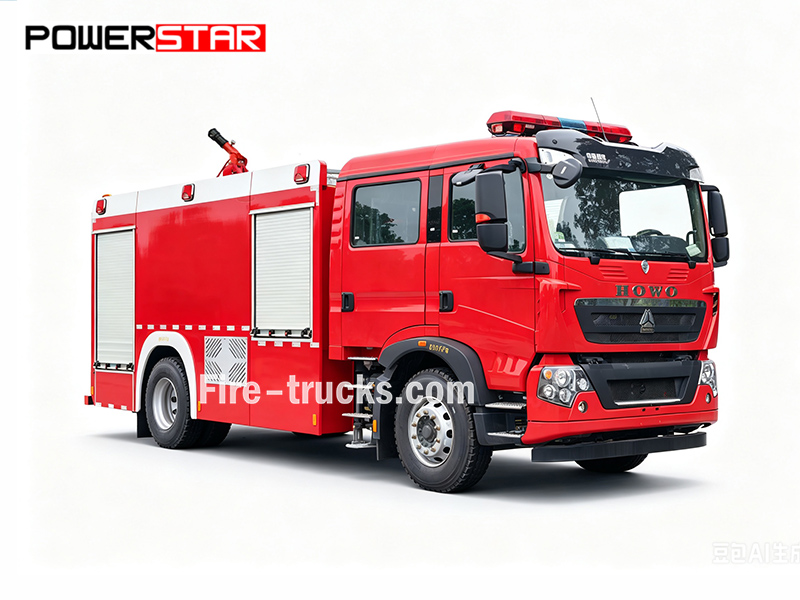

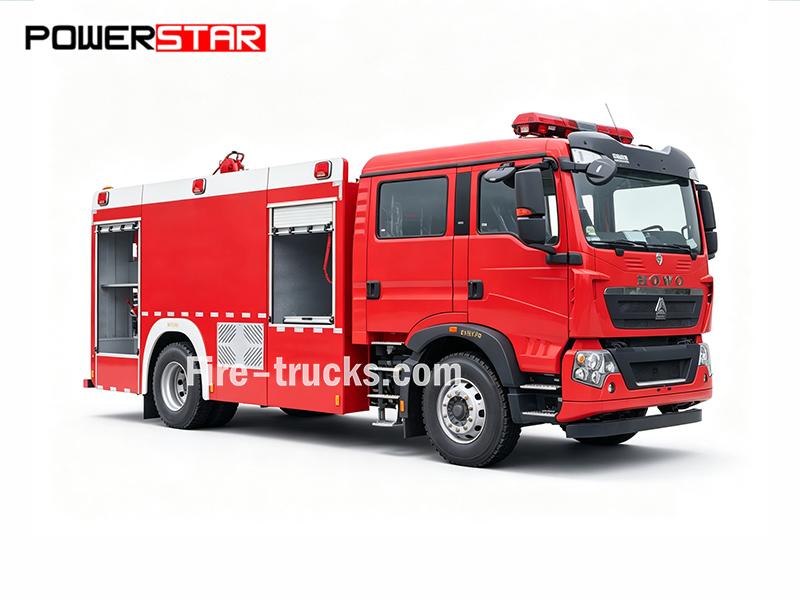

The SINOTRUK HOWO TX foam fire tanker is powered by a 350 HP MC07H.35-60 engine on a 4×2 chassis. It features a 6000L water tank and a 2000L foam tank, a CB10/60-RS fire pump (60 L/s), and a PS60 monitor (60 L/s, water ≥70m, foam ≥65m). Standard gear includes fire hoses, suction tubes, couplings, foam gun, and basic tool kit. A PH64 foam proportioner (3%-6% mixing ratio, 64 L/s max flow) is also equipped for automatic foam mixing.
Truck Chassis:
SINOTRUK HOWO TX 4×2Tanker Capacity:
6000L water + 2000L foam (8000L total)Engine Power:
350 HP (257 kW) / MC07H.35-60Fire Pump:
CB10/60-RSPump Flow:
60 L/sWork Pressure:
1.0 MPaFire Monitor:
PS60Monitor Flow:
60 L/sMonitor Range:
Water ≥70 m , Foam ≥65 mFoam Proportioner:
PH64, 3%-6% mixing ratio, 64 L/s max flowThis SINOTRUK HOWO TX foam fire tanker is built for firefighting and emergency response. This HOWO TX 350HP 4x2 foam water fire truck features a 6000L water tank, a 2000L foam tank, a CB10/60-RS fire pump (60 L/s at 1.0 MPa), and a roof mounted PS60 fire monitor with 70m water range and 65m foam range.

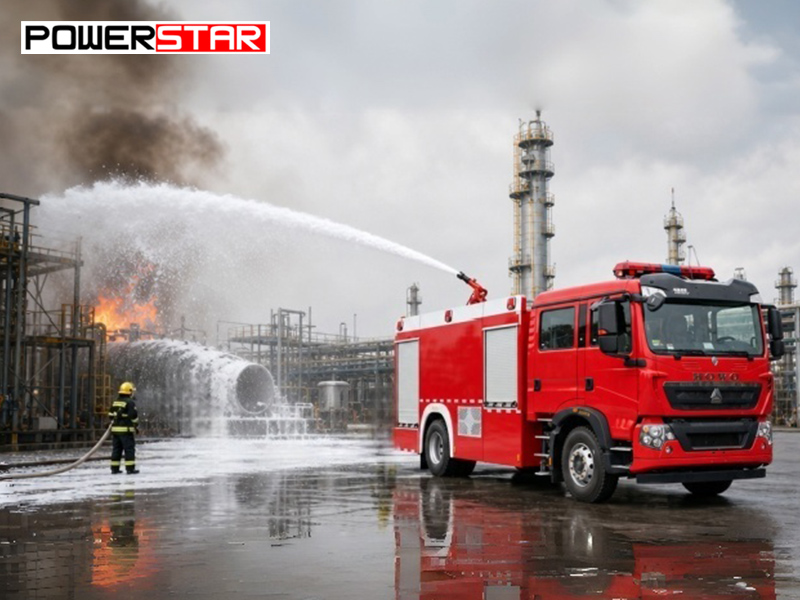

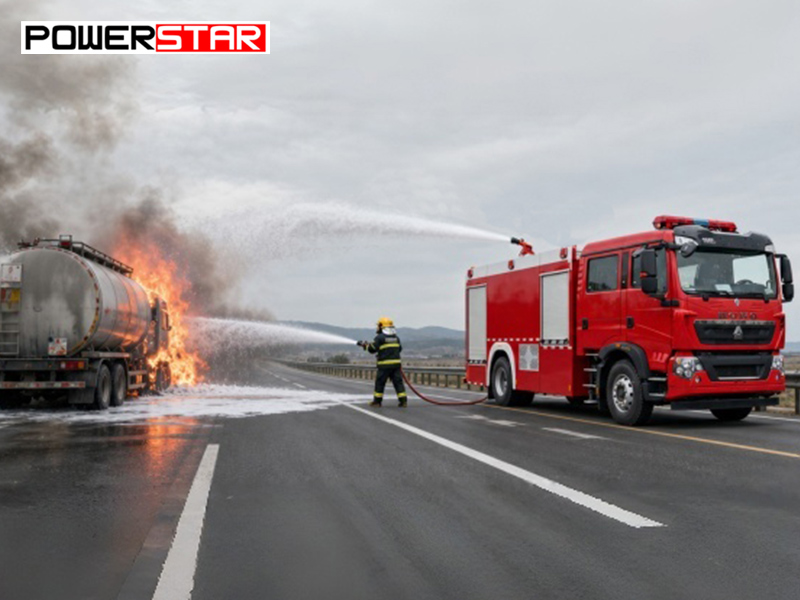

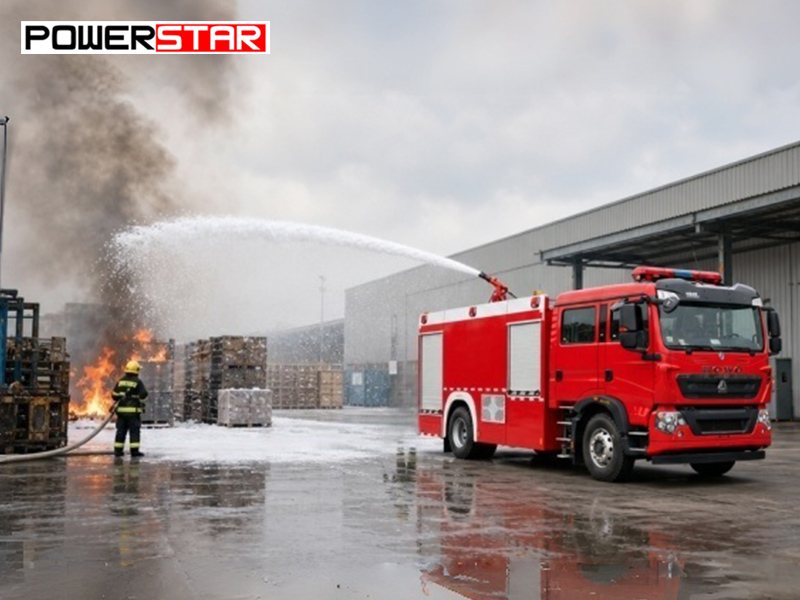

This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. It works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
6000L water + 2000L foam |
350 HP / MC07H.35-60 |
4700 mm |
★ Tank carbon steel, 8000L capacity ★ CB10/60-RS fire pump, 60 L/s flow at 1.0 MPa ★ PS60 roof monitor, 60 L/s flow with water ≥70 m, foam ≥65 m ★ PH64 foam proportioner, 3%-6% mixing ratio, 64 L/s max flow |
» Ⅰ.Main Features :
★ MC07H.35-60 engine rated at 350 HP for foam fire suppression and emergency response
★ SINOTRUK HOWO TX 4×2 chassis with 6000L water tank, 2000L foam tank, and CB10/60-RS fire pump (60 L/s at 1.0 MPa)
★ Roof mounted PS60 monitor with 60 L/s flow, water range ≥70 m, and foam range ≥65 m for long distance fire attack
★ PH64 foam proportioner with 3%-6% mixing ratio and 64 L/s max flow for automatic foam mixing
★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class B fire fighting
» Ⅱ.Product Parameter :
| SINOTRUK HOWO TX Truck Mounted Foam Fire Tanker | |||
| General | Work capacity | 6000L water + 2000L foam | |
| Truck chassis | SINOTRUK HOWO TX 4x2 | ||
| Engine Power | 350 HP/ MC07H.35P-61 | ||
| Fire pump | CB10/60-RS | ||
| Fire Monitor | PS60 | ||
| Foam Proportioner | PH 64 | ||
| Maximum Speed | 95 km/h | ||
| Overall Dimensions L*W*H | 8680*2505*3700 mm | ||
| Gross Vehicle Weight | 20100 kg | ||
| Curb Weight | 6600 kg | ||
| Engine | Engine Model | MC07H.35-60 | |
| Fuel Type | Diesel | ||
| Power | 350 HP(257KW) | ||
| Emission Standard | Euro VI | ||
| Displacement | 7360 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x2 | |
| Wheelbase | 4700 mm | ||
| Tire | 235/75R17.5 16PR | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Fire Pump | Model | CB10/60-RS | |
| Flux | 60L/s | ||
| Pressure | 1MPa | ||
| Max working pressure | 1.251MPa | ||
| Max allowable inlet pressure | 0.4MPa | ||
| Max suction height | 3m | ||
| Rated speed | 3916±50r/min | ||
| Speed ratio | 1:1.4 | ||
| Water diversion time | ≤50s | ||
| Fire Monitor | Model | PS60 | |
| Flow | 60L/s | ||
| Rated working pressure | 0.8MPa | ||
| Max working pressure | 1.2MPa | ||
| Range | Water | ≥70m | |
| Foam | ≥65m | ||
| Pitch rotation | - 35~+70° | ||
| Horizontal rotation | 0~360° | ||
| Standard Configuration | All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… | ||


1. Chassis & Powertrain
♦ SINOTRUK HOWO TX 4×2 chassis with 4700 mm wheelbase, designed for stable operation on urban roads, industrial sites, and emergency response routes.
♦ MC07H.35-60 diesel engine, rated at 350 HP, delivering reliable torque for quick response, continuous pump operation, and long-duration foam fire suppression.
♦ Manual transmission for straightforward operation and easy maintenance.

2. Fire Suppression System
♦ 6000L water tank and 2000L foam tank, carbon steel construction with internal baffles to reduce liquid surge.
♦ CB10/60-RS fire pump, 60 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.
♦ PS60 roof monitor, 60 L/s flow, water range ≥70 m, foam range ≥65 m, horizontal 360° rotation, pitch -35° to +70°.

» Ⅳ.Fire Pump System :
Fire Pump:

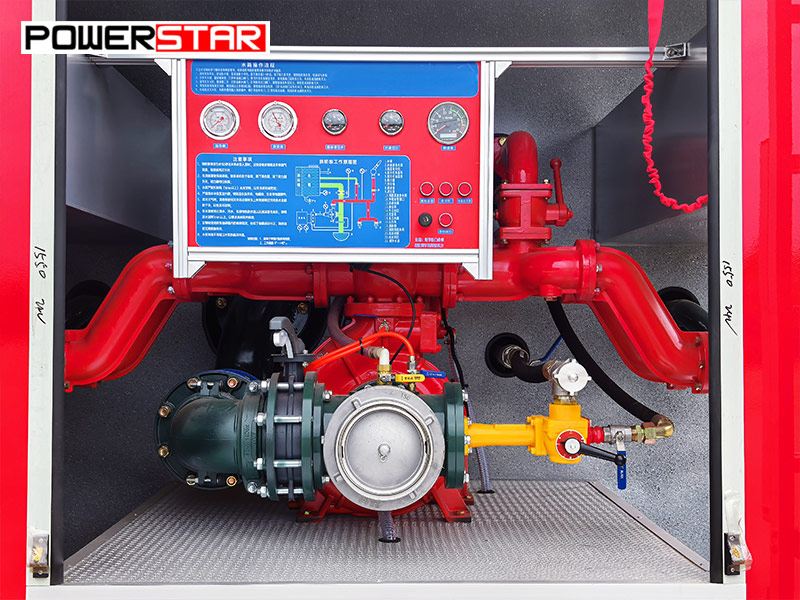

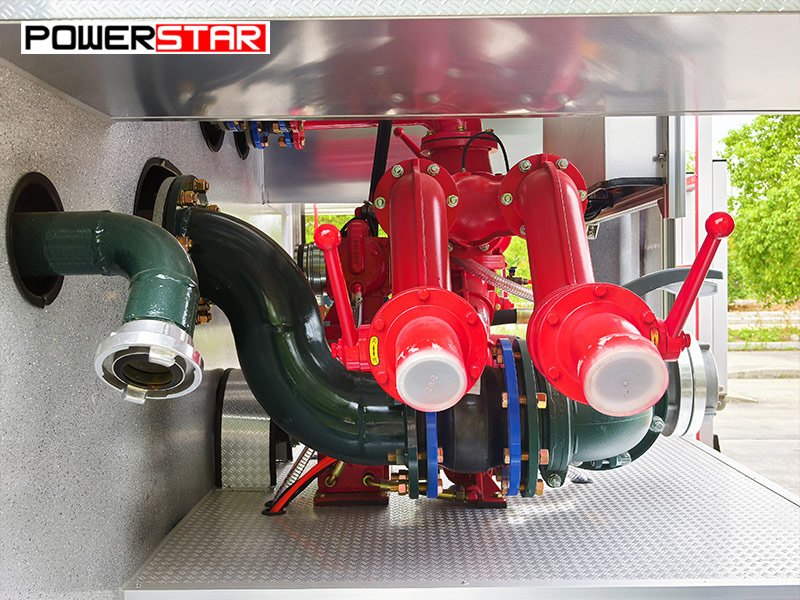

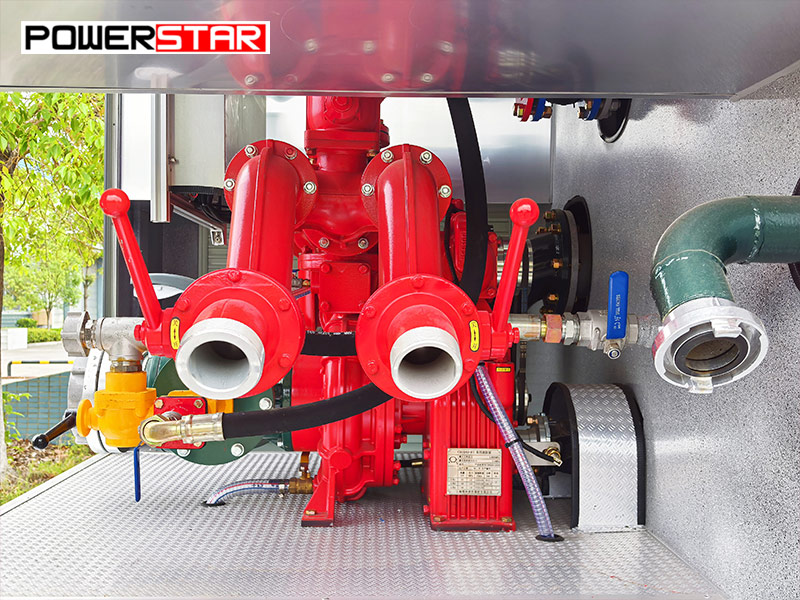

A CB10/60-RS fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/60 |
60 L/s |
1.0MPa |
1.251 MPa |
0.4MPa |

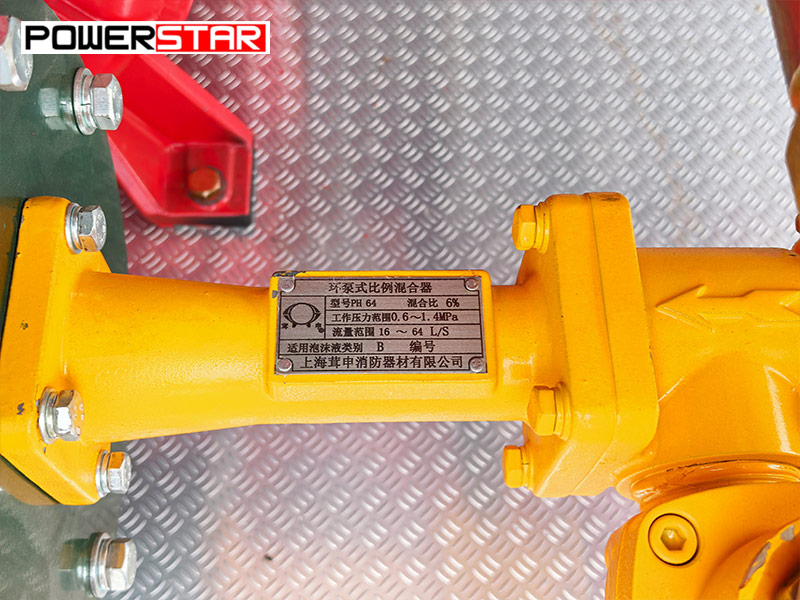

PH64 pump-in-ring type foam proportioner, mixing ratio adjustable from 3% to 6%, max mixing flow rate 64 L/s. Automatically mixes foam concentrate with water for efficient Class B fire suppression. Simple operation with no external power required.

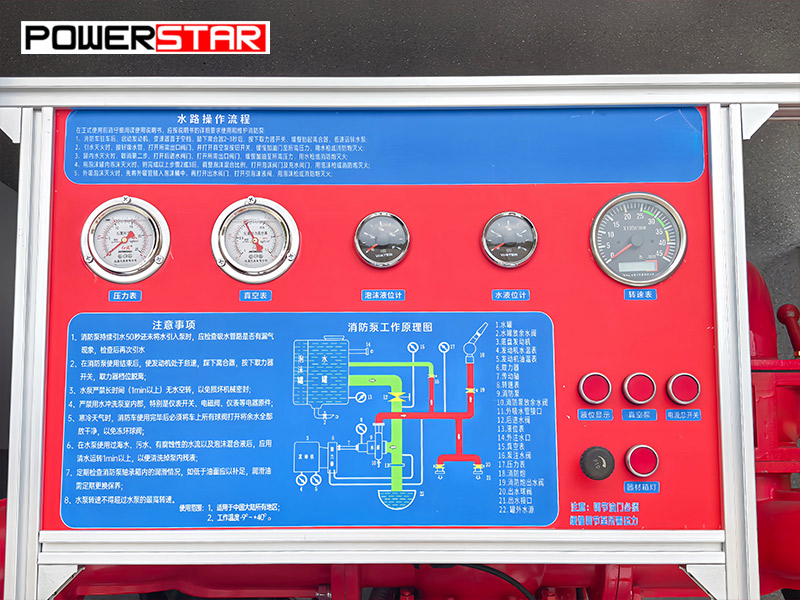

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, foam level gauge, emergency stop, PTO control, main power switch, pump controls, monitor controls, and compartment lighting. All controls are clearly marked for straightforward operation.

» Ⅴ.Fire Monitor System :
The PS60 fire monitor is mounted on the cab roof. It delivers a flow rate of 60 L/s with a water range of ≥70 m and a foam range of ≥65 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
| PS60 | 60L/s | Water≥70m Foam ≥65 m | 0.8MPa | -35°~+70° |
0~360° |

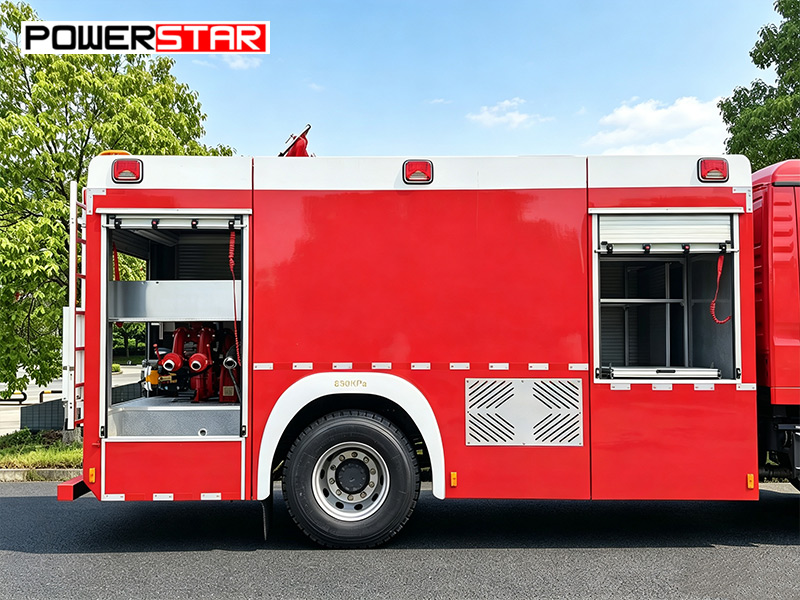

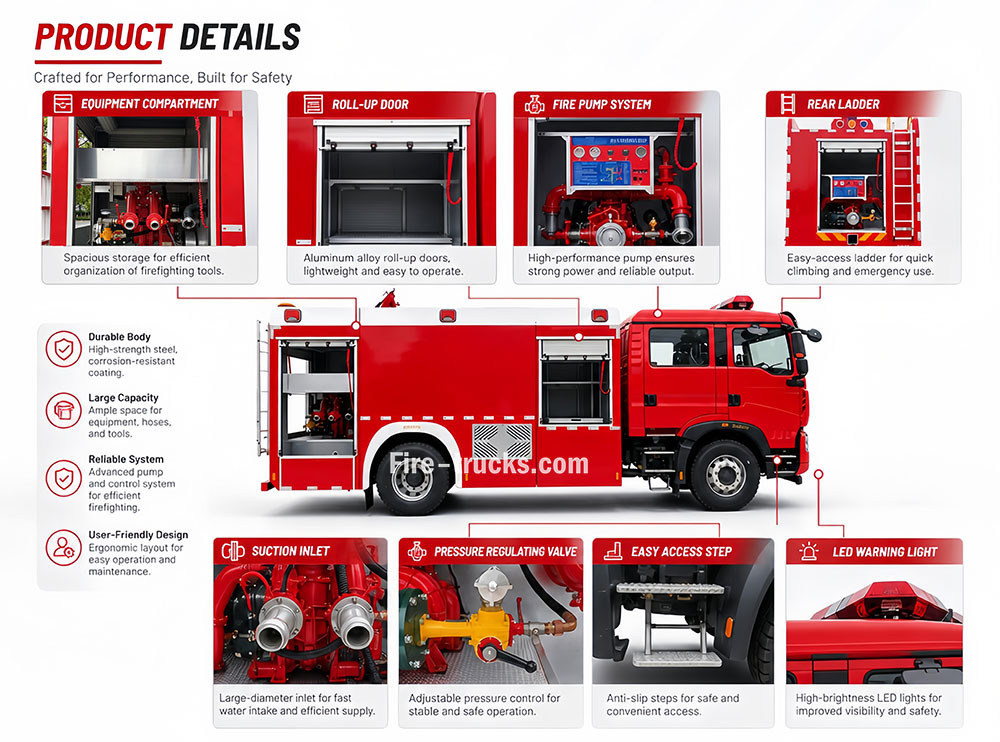

» Ⅵ.Firefighting Equipment :

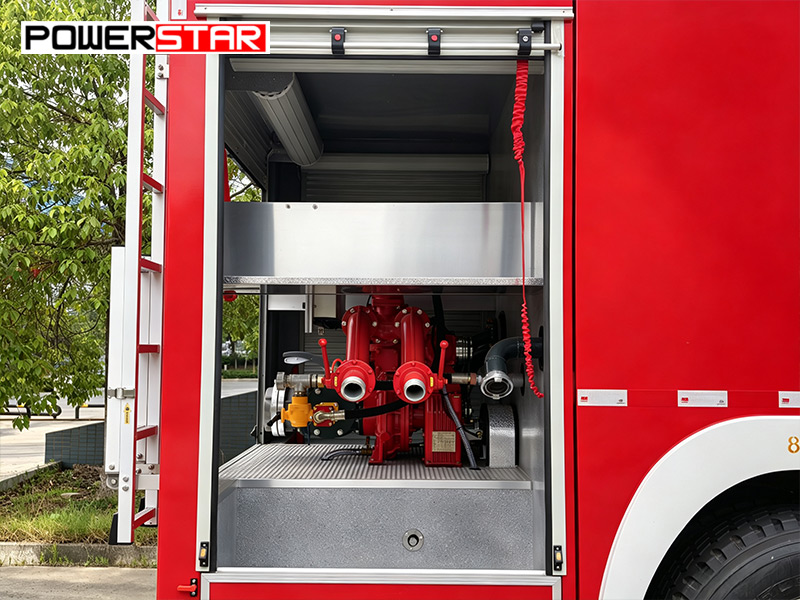

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

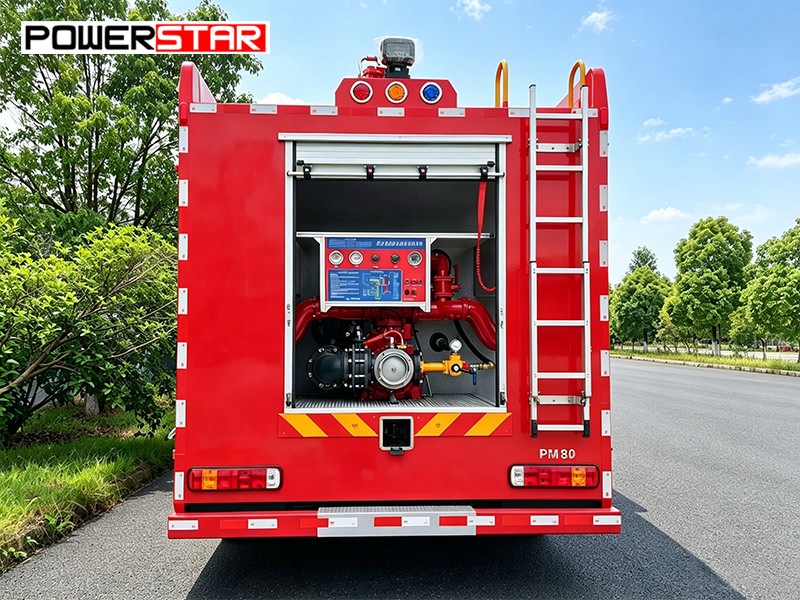

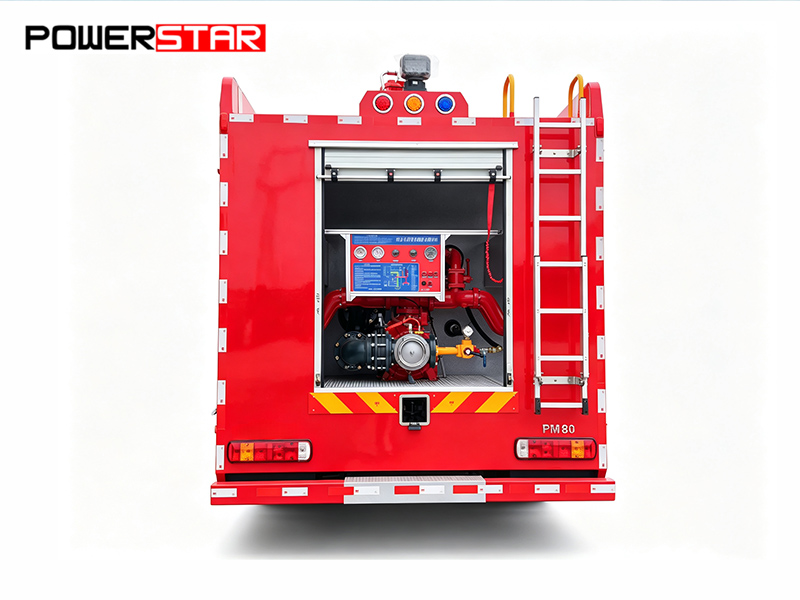

• Pump Room: Equipped with CB10/60 fire pump, control panel, pressure gauge, vacuum gauge, and lighting system. Accessories include fire hoses, suction hoses, collectors, strainers, fire nozzles, foam guns, suction hose wrenches, and reducers.

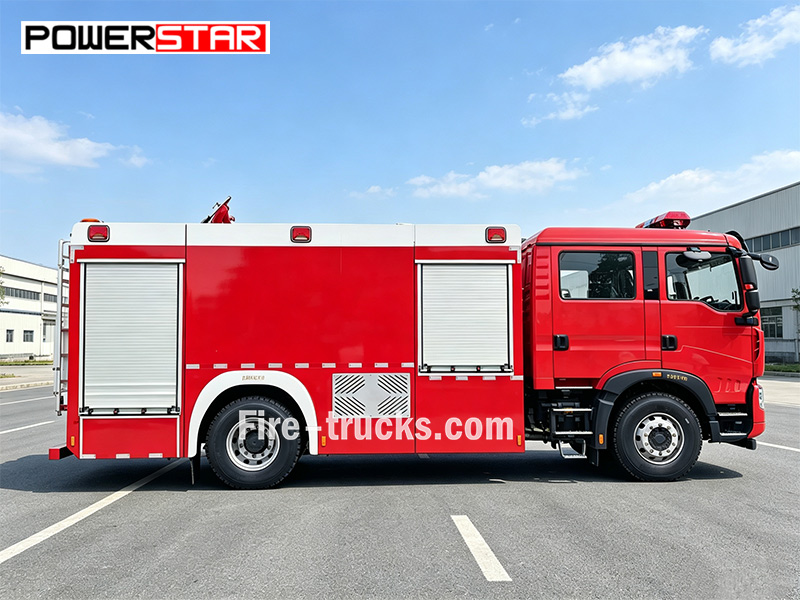

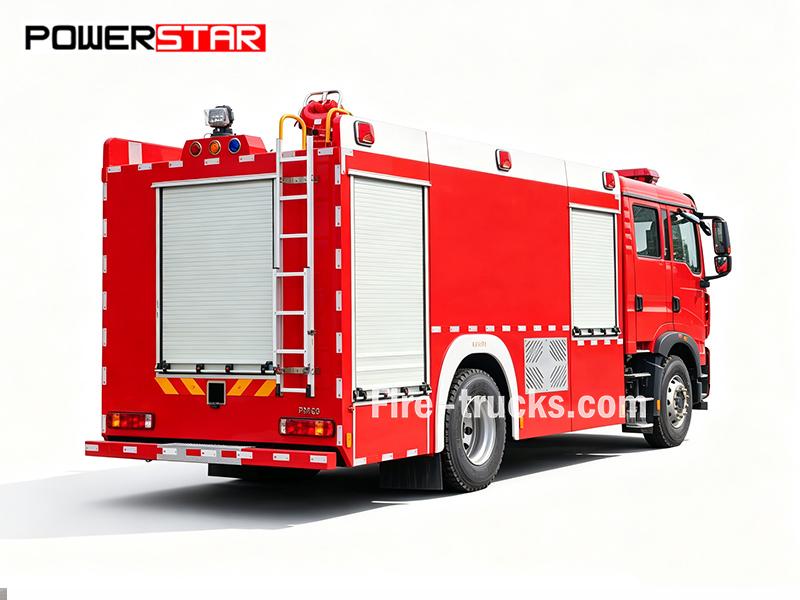

The SINOTRUK HOWO TX foam fire tanker comes with a rear-mounted CB10/60-RS fire pump and a cab roof mounted PS60 monitor. The water tank holds 6,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy HOWO TX 4×2 chassis powered by a 350 HP MC07H.35-60 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. A PH64 foam proportioner (3%-6% mixing ratio, 64 L/s max flow rate) is also equipped for automatic foam mixing. Full specifications are listed below:
