How Does a Fire Truck Fill and Discharge Water? A Complete Guide

A fire monitor—also called a fire truck water cannon or vehicle-mounted monitor—is a core component of modern fire truck apparatus. It discharges high-volume water streams or firefighting foam, helping firefighters suppress fires in high-rise buildings, industrial facilities, and other areas that are difficult to approach directly or present significant safety risks. But choosing the right fire monitor is not simply a matter of picking the model with the longest range or the highest flow rate. Should your fire truck use a manual, electric, or remote-control monitor? How much flow do you actually need? What is the difference between common models like PL8/24, PL8/32, and PL8/48? This article explains the key selection factors and compares three common foam-water fire monitors to help fire departments, apparatus manufacturers, and equipment buyers make informed decisions. Quick Answer Manual fire monitors are operated on-site by handwheel or handle—simple, reliable, and low-cost, suited for attended positions with moderate fire risk. Electric fire monitors use motor-driven actuators controlled from the cab or a wired panel—they keep operators away from heat and smoke. Remote-control fire monitors add wireless operation, preset positions, and automatic detection integration—essential for high-risk, access-prohibited zones. I. Fire Monitor Control Types: Manual vs. Electric vs. Remote 1. Manual Fire Monitor A manual fire monitor relies on a handle, lever, or handwheel to achieve horizontal rotation and vertical elevation. Its structure is simple, and it is widely used on conventional fire trucks. Key characteristics: Simple operation and mechanical structure Operates in power-outage conditions or remote areas Lower purchase and maintenance cost Suitable for fire trucks where the monitor position is easily accessible When to choose: Small to medium warehouses, docks, pump stations, and other attended positions where fire risk is moderate and personnel access is safe. Limitation: The manual monitor has a single point of failure—someone must be at the monitor position. If the area is too dangerous to approach, the monitor cannot be operated. 2. Electric Fire Monitor An electric fire monitor uses motor-driven mechanisms for horizontal and vertical movement. Operators typically adjust the monitor through a wired joystick, control panel, or integrated vehicle control system. Key characteristics: Motor-driven adjustment with faster response and higher precision Operator stays in the cab or at a safe distance Easy integration with vehicle control systems Some models support preset positions and automatic oscillating spray When to choose: Medium to large industrial facilities, chemical plants, and locations where manual operation would expose personnel to heat, smoke, or toxic fumes. Limitations: Requires a dedicated power supply More complex installation and wiring Motors and control...

The top of a fire truck water tank is not a flat cover—it is a working platform that integrates filling, ventilation, overflow protection, firefighting equipment, and crew safety. Every component mounted on the fire truck tank top serves a specific function during water supply and firefighting operations. Understanding this fire truck layout is essential for apparatus specifiers, pump operators, and maintenance personnel.   This article explains the complete top structure of a fire truck water tank, covering the manhole, overflow area, safety rail, fire monitor, hose storage, and other key components. Quick Answer The top structure of a fire truck water tank typically includes: a manhole for internal inspection and cleaning, an overflow area to prevent over-pressurization during filling, a safety rail for crew protection during roof access, a fire monitor for elevated water or foam discharge, hose storage for quick deployment, and a filling connection for tank filling. Each component is positioned to support efficient water supply and safe operation. I. Fire Truck Water Tank Manhole: Primary Inspection and Cleaning Access The manhole is the primary access point for internal tank inspection, cleaning, and maintenance. It is typically a circular opening with a sealed cover, located on the tank top for easy access from the vehicle roof. Key features: • DN500mm standard opening — large enough for personnel entry• Sealed cover with gasket to prevent water leakage and contamination• Hinged or removable design for convenient opening and closing• Locking mechanism to secure the cover during vehicle operation Function: The manhole allows operators to inspect the tank interior for corrosion, sediment buildup, and baffle condition. It also provides access for cleaning and repair. During filling, the manhole can serve as an emergency vent if the normal venting system is blocked. Maintenance note: The manhole gasket should be inspected regularly for aging, cracking, or deformation. A damaged gasket can cause water leakage and allow contaminants to enter the tank. II. Overflow Area: Protection Against Over-Pressurization The overflow area controls the discharge of excess water after the tank reaches full capacity, preventing over-pressurization and tank structural damage. Key features: • Overflow pipe with a diameter sufficient to handle the maximum filling rate• Positioned at the highest point of the tank to ensure complete filling before overflow• Screened or covered to prevent debris and insects from entering• Drainage path directed away from the vehicle body and electrical components Function: During hydrant filling or pump filling, the overflow area prevents water from building up excessive pressure inside the tank. If the tank is overfilled, exce...

Fire truck tank baffles work on the principles of slosh suppression and energy dissipation in fluid mechanics. When a fire truck accelerates, brakes, or turns during driving, the water inside the tank generates severe sloshing forces. By installing perforated partitions inside the tank, baffles divide the large water volume into multiple smaller compartments. The orifice throttling effect dissipates the sloshing kinetic energy, while the rigid support of the partitions strengthens the structural stability of the tank. The structural design and working principle of fire truck tank baffles are a key concern for many customers, especially their impact on driving safety and tank service life. Let's take a closer look today. I. Three Core Functions of Fire Truck Tank Baffles 1. Suppress liquid sloshing: Divide the water inside the tank into multiple independent compartments, limiting the free flow range of water in both longitudinal and transverse directions, and reducing sloshing amplitude. 2. Reduce center of gravity shift: Dissipate sloshing kinetic energy through orifice throttling, slowing the severe shift of the water's center of gravity caused by vehicle movement, and reducing rollover risk. 3. Enhance tank stiffness: Baffles are welded to the tank walls, forming an internal reinforcing structure that improves the tank's resistance to water pressure deformation and mechanical impact. II. Working Principle of Fire Truck Tank Baffles 1. Fluid Segmentation and Compartmentalization Design Segmentation principle: Baffles are arranged longitudinally along the tank, typically at fixed intervals, dividing the internal space into multiple relatively independent compartments. Water flow between compartments must pass through the orifices on the baffles, significantly restricting the flow path. Spacing design: Baffle spacing is typically determined by tank length and water capacity. Excessive spacing results in insufficient slosh suppression; spacing that is too small increases tank weight and reduces effective volume. Reasonable spacing design requires a balance between suppression effectiveness and lightweight construction. 2. Orifice Throttling and Damping Effect Throttling principle: When water flows through the baffle orifices during sloshing, the flow cross-section suddenly narrows, velocity increases, and local resistance loss occurs. Friction and collision between water molecules and between water and orifice edges convert sloshing kinetic energy into heat and dissipate it. Damping effect: Smaller orifices provide stronger throttling and damping, resulting in better slosh suppression, but also greater resistance to water flow, which may affect filling and discharge speed. Therefore, orifice size must be determined based on actual operational requirements. 3. Structural Reinforcement Welded connection: Baffles are welded to the tank inner walls around their perimeter, forming rigid support. When the tank is s...

During fire apparatus procurement, our customers typically prioritize chassis performance, fire pump flow and pressure ratings, and firefighting system configuration. However, the choice of fire truck water tank material is equally important, as it directly affects the vehicle's service life, corrosion resistance, maintenance cost, and long-term operational reliability.     As a professional fire truck manufacturer, we understand that water tank material selection is not merely a price comparison, but a comprehensive engineering decision. This article compares the three most common fire truck water tank materials—carbon steel, stainless steel, and aluminum—based on engineering requirements, real-world performance, and lifecycle cost.   I. Structure of a Fire Truck Water Tank Before comparing materials, it is important to understand that a water tank is not simply a container for water. A modern apparatus water tank is a pressure-bearing and surge-suppressing structure integrated into the vehicle body. It must withstand fill pump pressure, water surge during braking and cornering, road vibration, and chemical attack from firefighting foam and reclaimed water. Typical internal and external features include:   • Internal baffles — welded partitions that suppress water surge and stabilize vehicle handling • Fill tower and vent — top fill opening with vent to prevent vacuum or pressure lock • Manhole / inspection cover — sealed opening for personnel access for internal inspection and cleaning • Pump suction port — connection that delivers water from the tank to the fire pump • Overflow port — prevents over-pressurization during filling • Mounting brackets and support blocks — isolate chassis twisting; slotted mounts allow thermal expansion and contraction   Water tanks are available in rectangular/T-shaped and elliptical configurations. Elliptical tanks have no sharp corners where welding stress concentrates, but they have a higher center of gravity and often require stainless steel cladding for appearance. Tank material is closely related to these features—welds, baffles, and connections—not just the exterior surface. II. Three Key Materials Used in Fire Truck Water Tanks 1. Carbon Steel Typically Q235B or Q345R, with internal epoxy coating. High strength, mature welding processes, low cost, but requires regular coating maintenance and has a shorter service life (5–8 years).   • Lowest initial material and manufacturing cost • Easy to weld, cut, and repair in the workshop • Heaviest option, reducing payload capacity • Requires internal and external coating (epoxy, galvanized, or paint) • Coating damage leads to rapid pitting of bare steel   2. Stainless Steel Typically SUS304 or SUS316L. Excellent corrosion resistance, long service life (15+ years), hygienic surface, but higher initial cost and re...

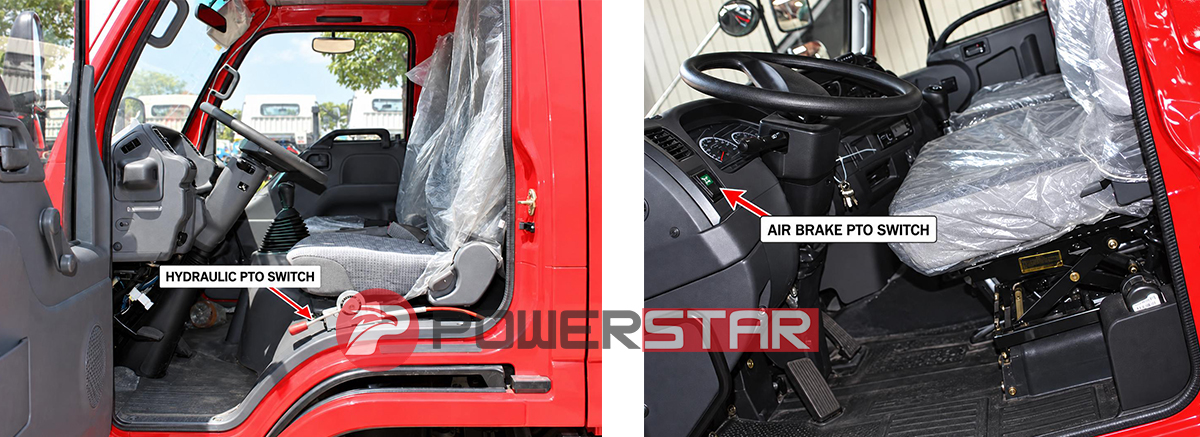

The reliability of a fire truck depends on the maintenance system behind it. Proper operation and responsible use of fire apparatus and specialized firefighting equipment are essential to ensuring that the vehicle performs its function—and directly determine whether a fire truck can complete firefighting and rescue tasks quickly in an emergency. Fire departments worldwide follow structured daily inspection routines to keep vehicles and equipment in a constant state of operational readiness. Based on maintenance practices adopted by fire departments and fire apparatus manufacturers, this article focuses on the key areas that require attention during daily inspection and maintenance—specifically the fire pump, water and foam tanks, vehicle condition, PTO, and fire pump drive shaft. Quick Answer Daily fire truck maintenance focuses on four core areas: the fire pump, the water and foam tanks, the chassis and drivetrain, and the power take-off (PTO) and drive shaft. Key practices include lubricating pump rotating components every 3–6 hours of operation, testing pump performance parameters regularly, flushing tanks and piping after foam use, inspecting chassis fasteners and brake systems, and checking PTO engagement and drive shaft lubrication. Corrosion in tanks and piping is a leading cause of pump impeller damage and foam system failure. I. Fire Pump Inspection and Maintenance The fire pump is one of the most important components of a fire truck, as it is responsible for delivering water or foam solution to the firefighting system. Its maintenance directly affects the effectiveness of firefighting operations. Inspection and maintenance of the fire pump must therefore be performed with particular care—any fault detected should be addressed immediately. Daily fire pump maintenance primarily covers the following areas. 1. Lubrication Rotating components of the fire pump should generally be greased once every 3 to 6 hours of operation. 2. Checking fire pump performance Important operating parameters of the fire pump should be checked regularly, including: • Maximum suction depth• Priming time• Maximum flow rate• Other specified fire pump performance parameters If the measured performance differs significantly from the pump's normal operating condition, the cause should be investigated further. 3. Cleaning the fire pump after using an unclean water source If the fire truck draws water from an unclean or contaminated source, the fire pump, water tank, and piping system should be cleaned after the operation is complete. Contaminants entering the system can affect the normal operation of valves, piping, and internal pump components. This is particularly important for fire trucks that draw from natural sources or other non-municipal water supplies. 4. Flushing the system after foam operations After using foam for firefighting, the fire pump, foam proportioning system, and connected piping should be cleaned promptly...

The PH series around-the-pump foam proportioner is a professional foam concentrate suction and delivery device designed specifically for foam firefighting systems and fire trucks. It is installed within the supporting fire truck fire pump and water supply system and serves as the core device for achieving automatic proportional mixing of foam concentrate and clean water. Unlike traditional manual mixing equipment, this proportioner operates on the principle of water pressure differential: according to the selected flow rate setting, it draws a precise amount of foam concentrate from the foam tank, delivers the foam concentrate to the fire pump inlet, and thoroughly mixes it with pressurized water to form a uniform foam solution. The properly mixed solution is then delivered to foam-generating devices or discharge equipment for efficient firefighting operations. I. Structure of the PH Series Foam Proportioner 1. Adjustment Handle and Indicator Plate The indicator plate is marked with different values corresponding to the mixed solution flow rates required by the connected foam-generating devices. Rotating the adjustment handle to the required flow rate position sets the operating flow rate of the proportioner. 2. Regulating Valve The regulating valve controls the amount of foam concentrate passing through the proportioner based on the handle setting. Once the handle position is determined, the valve opening determines the foam concentrate suction flow rate. 3. Narrowed Flow Passage Section (Negative Pressure Generation Section) This is the core component of the proportioner. As water flows through this narrowed passage, its velocity increases and its pressure drops below atmospheric pressure, creating a negative pressure. This negative pressure is transmitted to the foam concentrate suction port, drawing foam concentrate from the storage tank. 4. Mixing Chamber The mixing chamber is where foam concentrate enters the water stream. The foam concentrate merges with the water here to form foam solution. An arrow cast on the mixing chamber exterior indicates the flow direction—the arrow tail connects to the pump discharge line, and the arrow head connects to the pump inlet line. 5. Diffuser Tube The diffuser tube reduces the velocity of the mixed solution as it exits the proportioner, converting kinetic energy back into pressure energy so that the mixed solution enters the pump inlet line at an appropriate pressure. II. How Does the PH Series Foam Proportioner Work? The PH series around-the-pump foam proportioner uses the water flow and pressure conditions within the fire pump system to draw foam concentrate from the foam tank, introduce it into the fire pump inlet, and mix it with water to form foam solution. The fire pump then pressurizes the mixed solution again and delivers it to downstream foam discharge equipment. Step 1: The fire pump pressurizes the water Water enters the fire pump from the fire truck's water tank or another suitable wate...

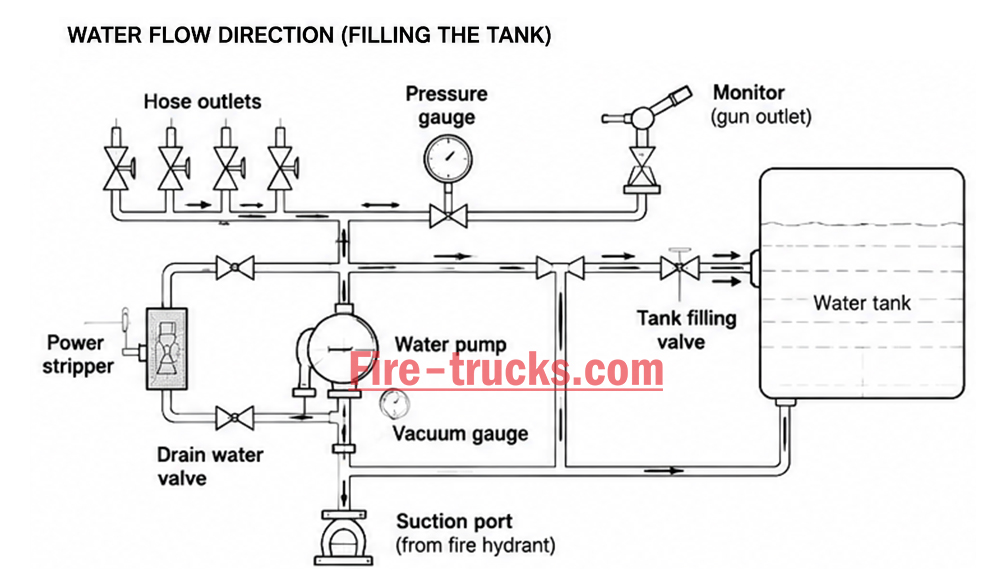

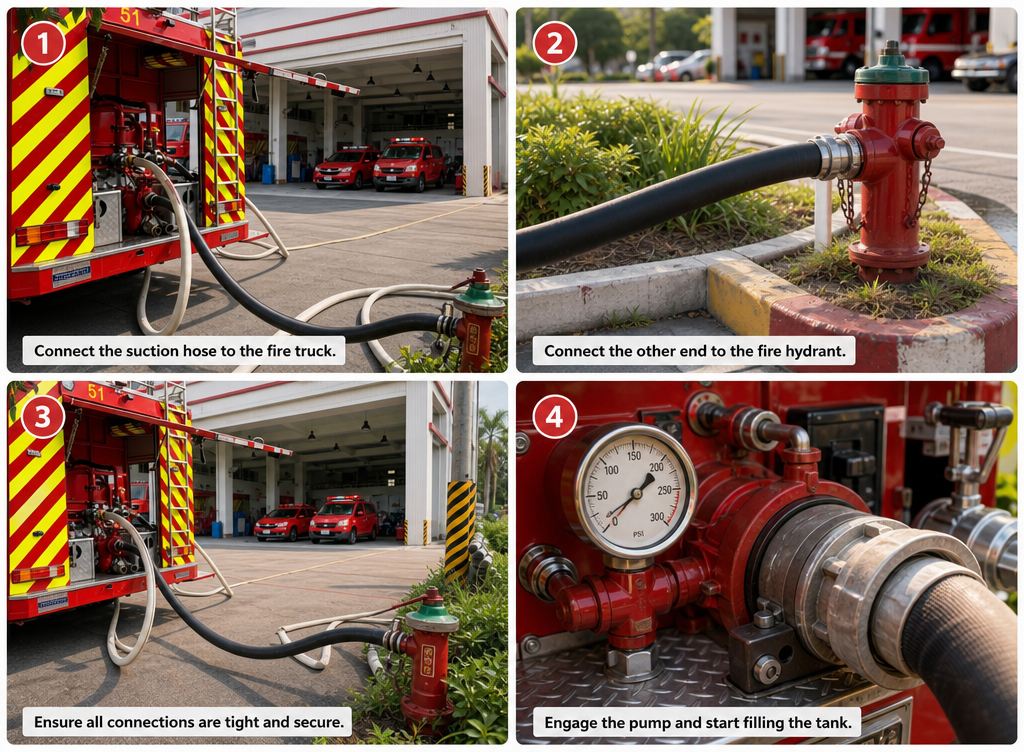

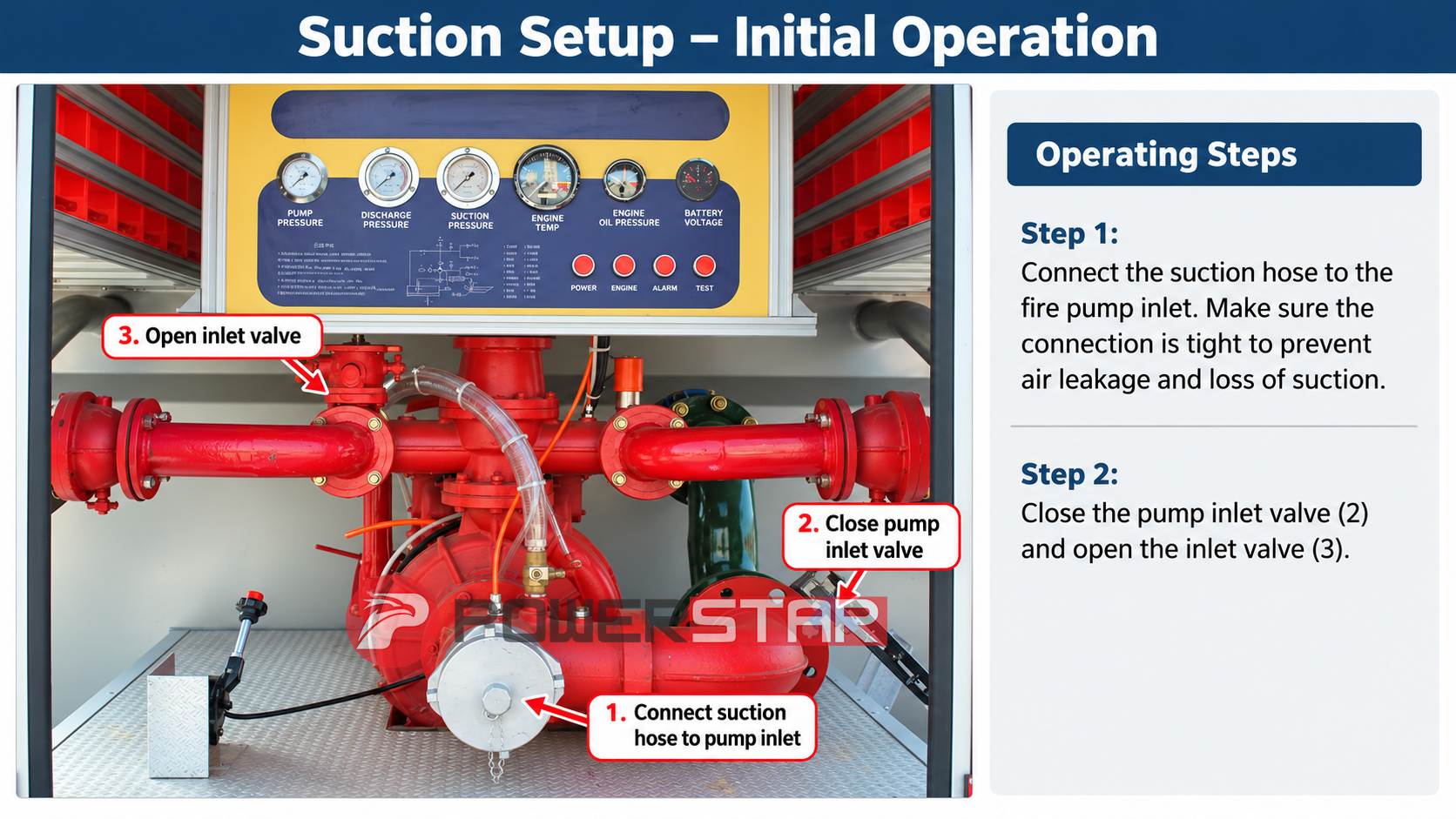

The effectiveness of firefighting operations depends heavily on the reliability and design of a fire truck's water supply system. A properly designed fire truck water system allows the vehicle to fill its water tank from an external water source, draft water from suitable static sources when necessary, and deliver pressurized water through hoses, nozzles, or fire monitors.     This article explains how fire trucks fill their tanks from hydrants or suitable external water sources, how the priming system works during drafting, and how the fire pump pressurizes water for discharge through hoses, nozzles, or fire monitors.   Quick Answer A fire truck normally fills its water tank in two main ways:   1. External water supply: Water is supplied from a hydrant or another pressurized source through the truck's external filling connection. 2. Drafting from a static water source: A suction hose, strainer, fire pump, and priming system are used to draw water from a pond, river, lake, or other suitable source.   Once water is available in the onboard tank, the fire pump draws water from the tank and sends it to hose outlets, nozzles, or a fire monitor at the required pressure and flow rate.   The complete water flow path can be simplified as:   External water source → Intake/Filling system → Water tank → Fire pump → Discharge outlets   I. Filling the Tank from a Fire Hydrant Connecting to a suitable fire hydrant is one of the most direct and commonly used ways to fill a fire truck's water tank when a pressurized water supply is available. It generally requires less equipment and setup than drafting from a static source.   Equipment needed: A suitable filling hose with a coupling compatible with the hydrant and the fire truck's external fill connection. Hose diameter, coupling type, and connection standards vary by vehicle, manufacturer, and region.   Step-by-step procedure:   • Connect one end of the hose to the hydrant outlet and the other end to the external fill port on the fire truck • Open the hydrant gradually and confirm that water is flowing normally through the filling line • Water flows into the onboard tank through the filling line under the available water supply pressure • Monitor the tank level gauge and close the hydrant when the tank is full   Key considerations:   • Ensure the hose connection is tight to prevent leaks • Verify that the external fill valve on the truck is fully open before starting • Do not leave the filling operation unattended. Monitor the tank level and stop filling when the tank reaches its specified capacity to prevent overflow and unnecessary stress on the tank venting system.   II. Drafting Water from a Static Source via the Fire Pump When a hydrant is not available—common in rural areas, forests, or industrial sites—fire trucks must draft water from static sources such as ponds, rive...

Foam fire trucks combine a dedicated foam concentrate tank with a separate water tank and a precision proportioning system. They use a proportioning system to introduce foam concentrate into the water stream at a specified concentration, commonly 1%, 3%, or 6%, depending on the foam concentrate and firefighting application. The dual-tank design allows firefighters to use water alone when foam is not required and introduce foam concentrate only when needed. This improves operational flexibility, helps control foam consumption, and allows the firefighting system to be configured for different fire hazards.   The core working principle and key technology of foam fire trucks, particularly why they have both water and foam tanks—are the focus of many customers. Let's learn about it today.   Quick Answer: Foam fire trucks normally use separate water and foam concentrate tanks because water and foam concentrate are required in different proportions and are intended to be combined during operation rather than stored as a premixed solution for long periods. The water tank provides the main water supply, while the foam tank stores concentrated foam agent. A proportioning system controls how much concentrate is introduced into the water stream, allowing the truck to switch between water-only and foam firefighting modes.   I. What Are the Main Components of a Foam Fire Truck? 1. Water Tank Corrosion-resistant construction (carbon steel with anti-corrosion coating or stainless steel), capacities ranging from 4,000 to 6,000 liters. Equipped with baffles to reduce liquid surging during vehicle movement and flexible mounts to absorb chassis flexing on rough terrain.     2. Foam Concentrate Tank Stainless steel construction to resist chemical attack from active foam concentrates, typically 500-2,000 liters capacity. Depending on the foam concentrate and system design, the tank may incorporate features such as circulation or agitation arrangements to help maintain concentrate condition during storage.   3. Foam Proportioning System A proportioning system that draws foam concentrate from the dedicated foam tank and introduces it into the water stream at a specified concentration. Depending on the foam concentrate and system design, proportioning may use balanced-pressure, pump-driven, or venturi-based technology. 4. Fire Pump The fire pump is the power source of the entire foam system. It draws water from the water tank and pressurizes it to the required flow and pressure for firefighting operations. The pump is typically driven by the vehicle's power take-off (PTO) or an independent engine, and must be compatible with the proportioning system to ensure accurate foam concentrate injection across varying flow rates. Common configurations include single-stage centrifugal pumps for standard operations and multi-stage pumps for high-pressure applications.   5. Foam Monitor   The foam monitor deliver...
