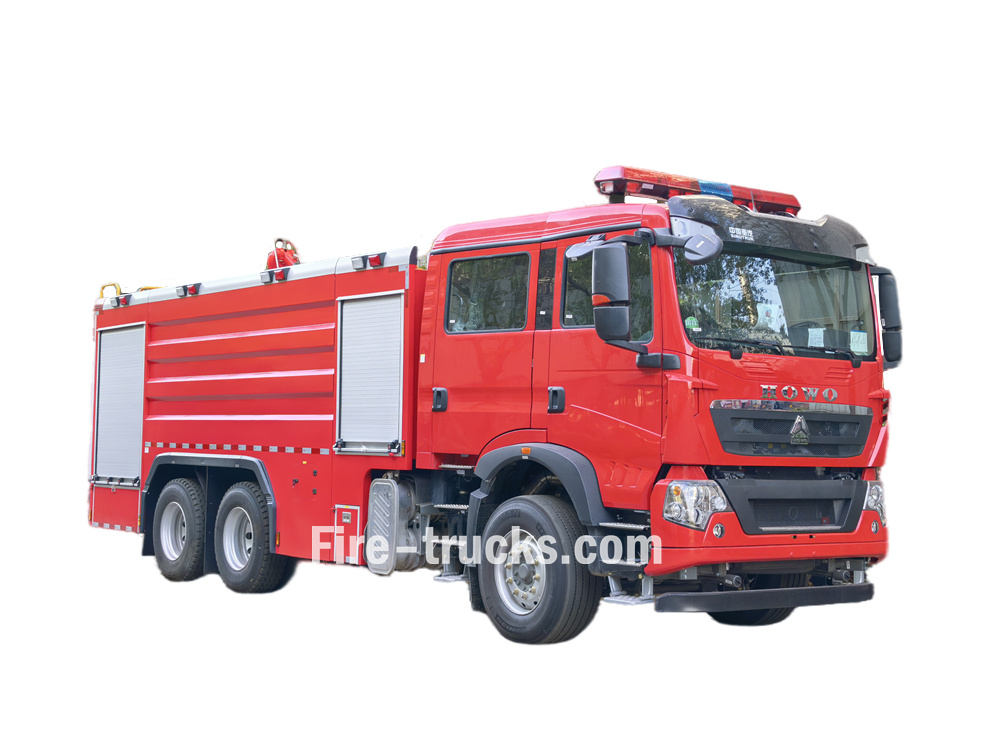

HOWO TX 460HP Model fire rescue truck

HOWO TX 460HP Model fire rescue truck

The Howo TX460 6x4 12 cbm foam fire truck adopts a Sinotruk TX 6x4 cab, with a 4600+1400mm wheelbase, and is equipped with a SINOTRUK MC11.46-61 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment for storing various firefighting equipment, while the middle section contains a 9 cubic meter carbon steel water tank and a 3 cubic meter foam tank. The rear section houses the pump room, equipped with a CB10/60-RS fire pump, a control panel, and some auxiliary firefighting equipment. The water and foam tanks on the roof are equipped with manholes, and a PL8/48 fire monitor is also included.

  • Truck Chassis:

    HOWO TX 6x4
  • Tanker Capacity:

    9000L water +3000L foam
  • Engine Power:

    SINOTRUK MC11.46-61 460 HP
  • Fire Pump:

    China CB10/60-RS
  • Pump Flow Rate:

    60L/s
  • Work Pressure:

    1MPa
  • Fire Monitor:

    China PL8/48
  • Flow Rate:

    48 L/s
  • Monitor Range:

    Water≥70 m,Foam≥60m
  • Remark:

    Tank capacity can be customized
Facebook Linkedin Youtube Twitter Pinterest

The HOWO TX 460HP Model fire rescue truck is a large-to-medium-sized main battle fire truck integrating firefighting and rescue functions. It is equipped with a 460-horsepower MC11 engine and an HW19710 transmission, providing ample power. The superstructure has a scientific layout, with equipment in the equipment compartment that is organized and easily accessible. It features a large-capacity storage system with a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, providing excellent independent operational capabilities. A manhole on the top facilitates maintenance and cleaning.



The rear pump room is equipped with a CB10/60-RS fire pump and a centralized control panel. A PL8/48 fire monitor is mounted on the roof, offering long range, wide coverage, and adjustable angle. This vehicle integrates firefighting and rescue functions, and is particularly adept at extinguishing Class B fires such as oil fires, making it a core piece of equipment for ensuring urban and industrial safety.



» HOWO TX 460HP Model fire rescue truck «

HOWO TX 460HP Model fire rescue truck

»Ⅰ. Main Features

1. Superior Chassis Performance: Utilizes a Sinotruk TX 6x4 cab, a 460hp MC11 series engine paired with a 10-speed transmission, providing unparalleled driving power.

2. Rational Upper Structure Layout: Features a front equipment compartment, a central water and foam tank area, and a rear pump room, conforming to firefighters' operational habits and improving deployment and firefighting efficiency.

3. Large Liquid Capacity: A total liquid capacity of 12 cubic meters provides ample water and foam extinguishing agent for firefighting operations, particularly suitable for extinguishing Class B fires involving oil and chemicals.

4. Powerful Pumping System: Equipped with a CB10/60-RS fire pump, a PL8/48 fire monitor, and a real-time monitoring control panel in the pump room, ensuring more precise, efficient, and safe firefighting operations.
  • HOWO TX 6x4 double row foam water fire truck
  • HOWO 6X4 12000 liters foam fire rescue truck
  • HOWO 6X4 12cbm foam water fire fighting truck

 » Ⅱ.Product Parameter :

HOWO TX 6x4 foam water fire truck

General

Work capacity

9000L water tank,3000L foam tank

Truck chassis

HOWO TX460

Engine Power

SINOTRUK MC11.46-61,460 HP/ 338kW

Fire pump

CB10/60-RS

Chassis

Drive Type

6X4

Transmission

SINOTRUK HW19710, manual, 10 F & 2 R

No. of axle

 3

Tire

12.00R20,12+1wheel





Fire pump

Model

CB10/60-RS

Pressure

1MPa

Max working pressure

1.082MPa

Max allowable inlet pressure

0.4MPa

Flux

60L/s

Max suction height

7m

Rated speed

3200±50r/min

Speed Ratio

1:1.44

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/48

Flow

48L/s

Rated working pressure

0.8MPa

Range

Water

≥70m

Foam

≥60m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

Electronic alarm

Electronic alarm

LY CJB-100-C24 / 1.2 m long

Hose reel

Hose reel

Electric, 50 meters

 Standard  configuration

All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……


-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)


HOWO TX 460HP Fire protection trucks



Tank System: The front part is the equipment room, where various firefighting equipment (such as fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.) are stored for easy access. In the middle, there is a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, both equipped with manholes on top.

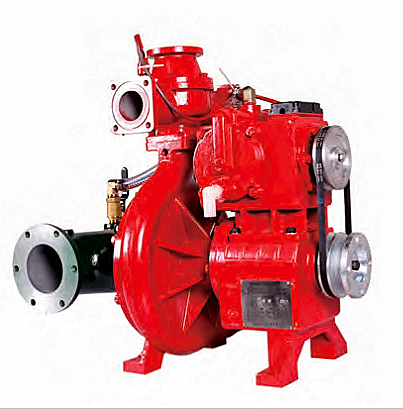

» Ⅲ. Fire Pump system :

CB10/60-RS



Fire pump Model

Pressure

 Max working pressure

 Flux

Rated speed

 Speed Ratio

 Max pressure

Priming Time

Head

CB10/60-RS

1.0MPa

1.082MPa

60L/s

 3200±50r/min

  1:1.44

  ≥0.65MPa

≤10s

60m

  • Howo TX 6X4 12CBM foam fire tender truck
  • CB10/60 fire pump
  • CB10/60 fire pump

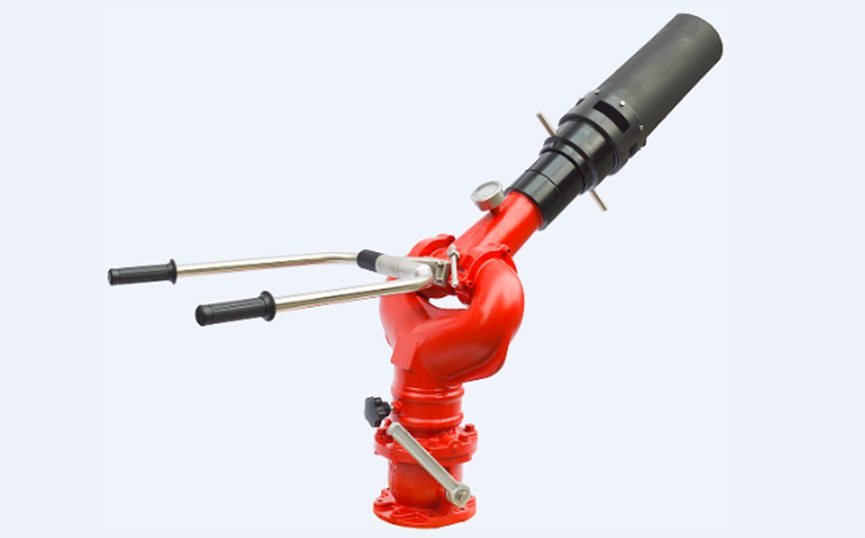

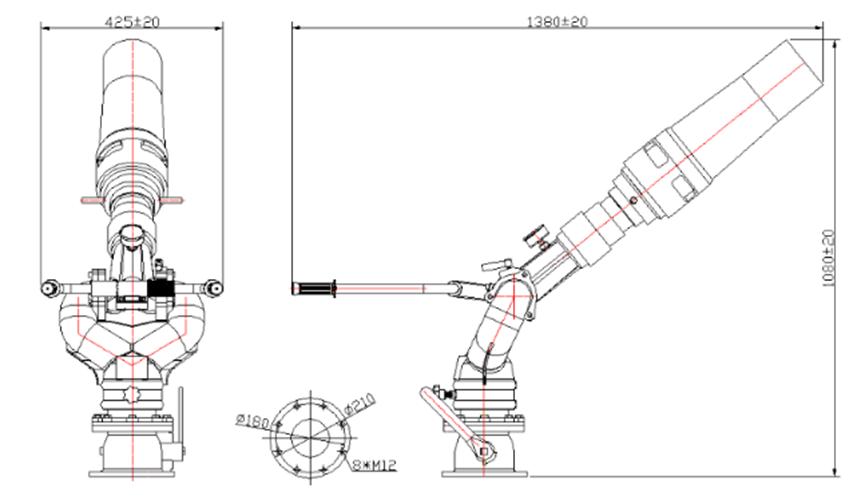

» Ⅲ. Fire Monitor system :

Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/48 48L/s

water ≥70m,

foam ≥60m

0.80MPa -45°~+70°
0~360° 27kg

» .Control panel:



Control panel



Control panel: Includes piping diagrams, fire pump suction operation procedures, precautions, operating instructions, pressure gauges, vacuum gauges, tachometers, water level gauges, foam level gauges, 3% foam ratio and 6% foam ratio buttons, power take-off indicator lights, electronic throttle, emergency stop switch, foam drinking water button, lighting, vacuum pump, and main power switch.



» Ⅴ.Technical Design:



1. POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

HOWO 6X4 12000 liters foam fire rescue truck technical drawing



» .Preshippment Test:

Before deliver HOWO 6X4 12000 liters foam fire rescue truck from our fire truck factory, we will strictly make 30 different kinds of inspection on the fire fighting trucks, range from fire pump, fire monitor, fire gun, fire pipe. All the main components will taken at least 50 working hours.

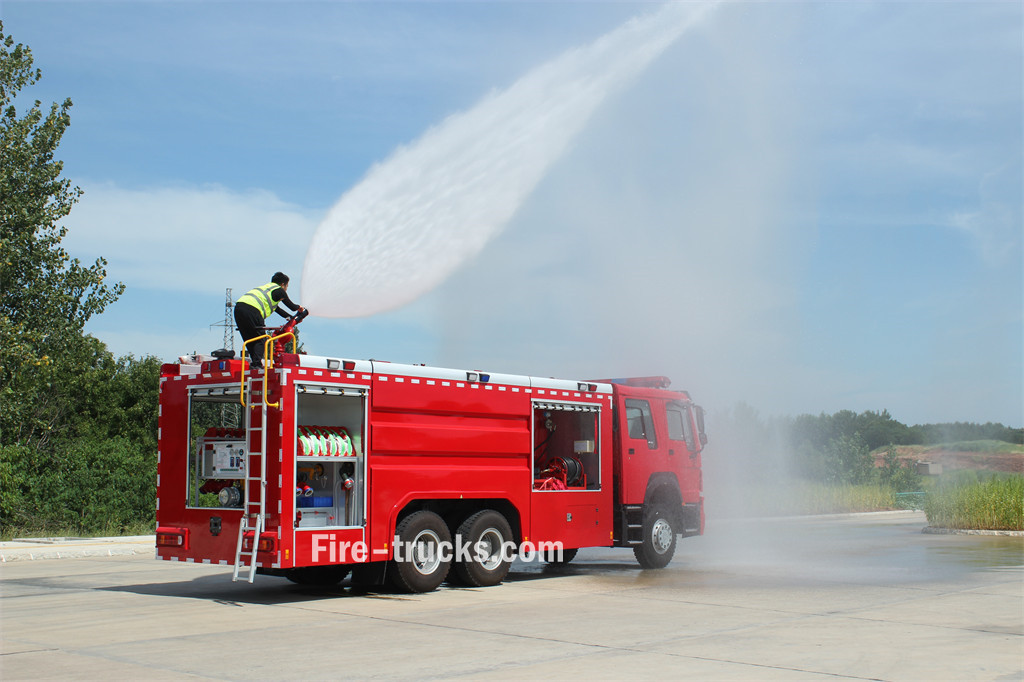

    HOWO 6X4 12cbm foam water fire fighting truck
