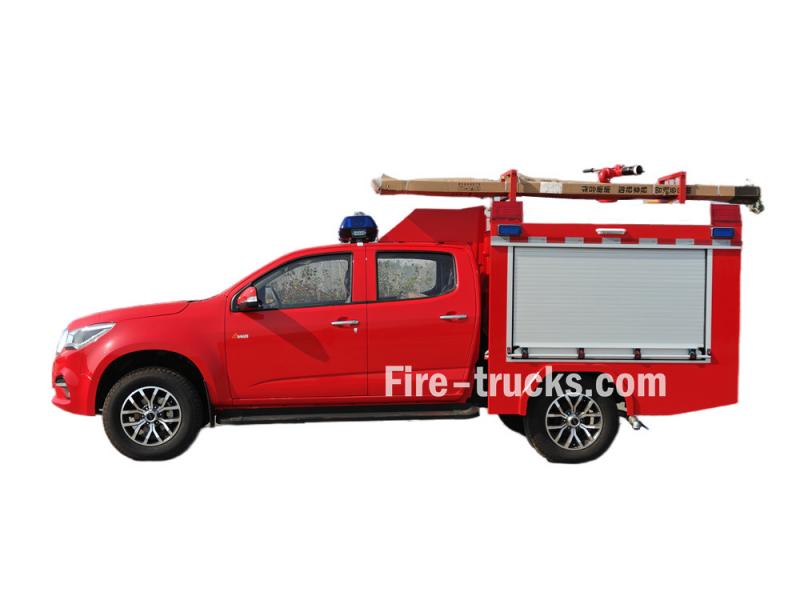

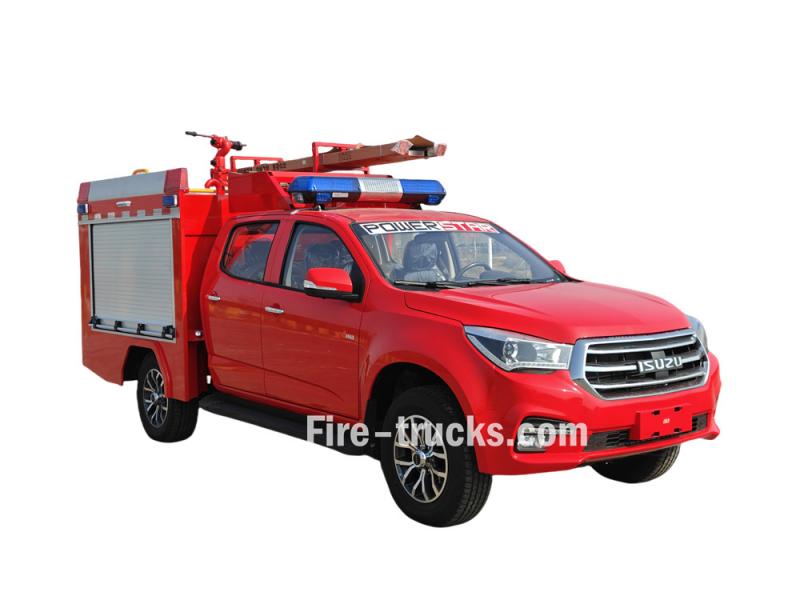

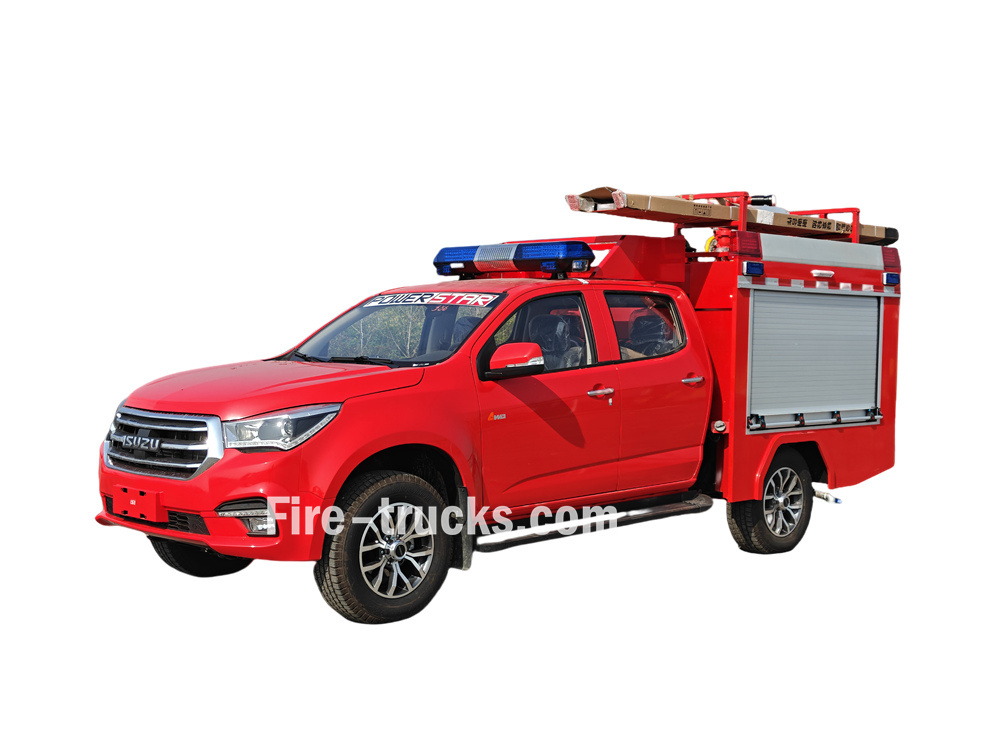

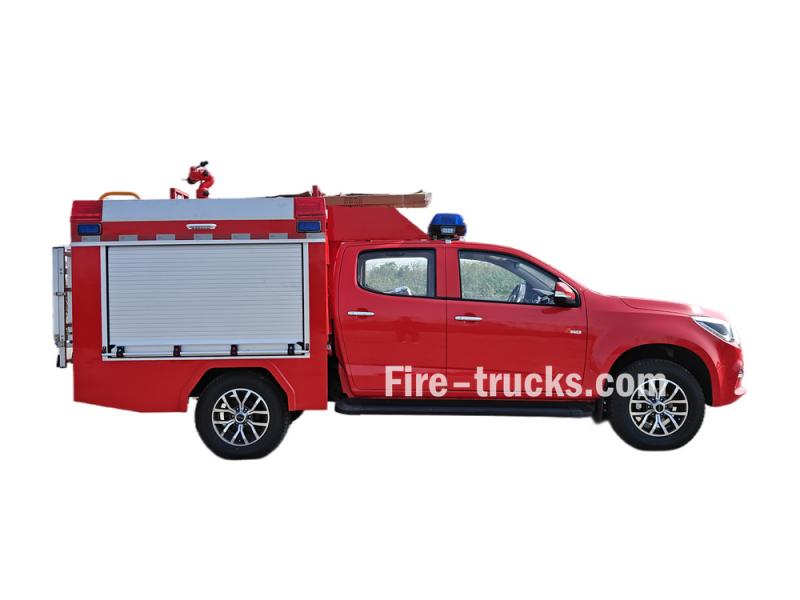

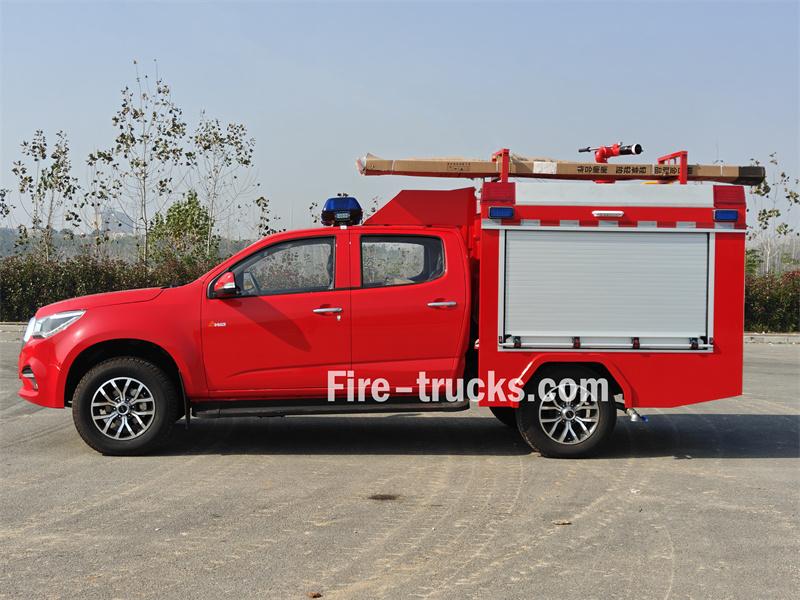

Isuzu 500 liters small foam fire truck

Isuzu 500 liters small foam fire truck

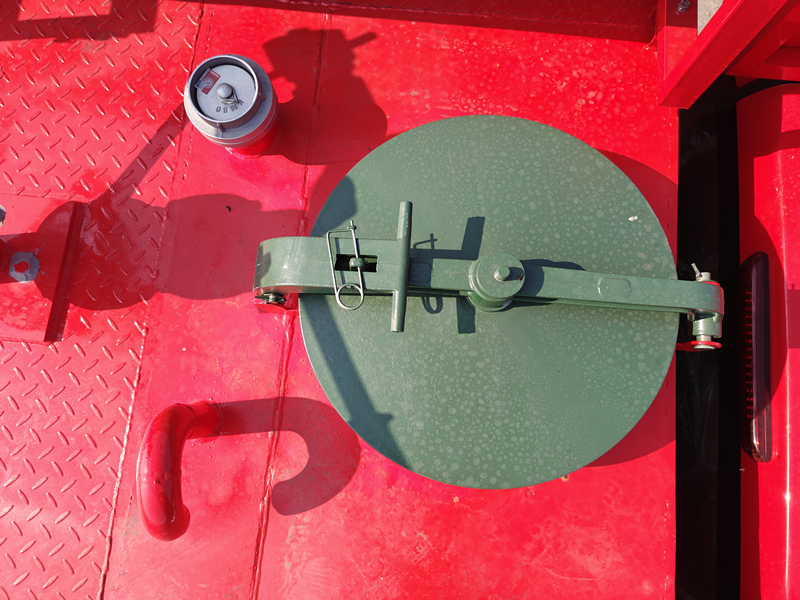

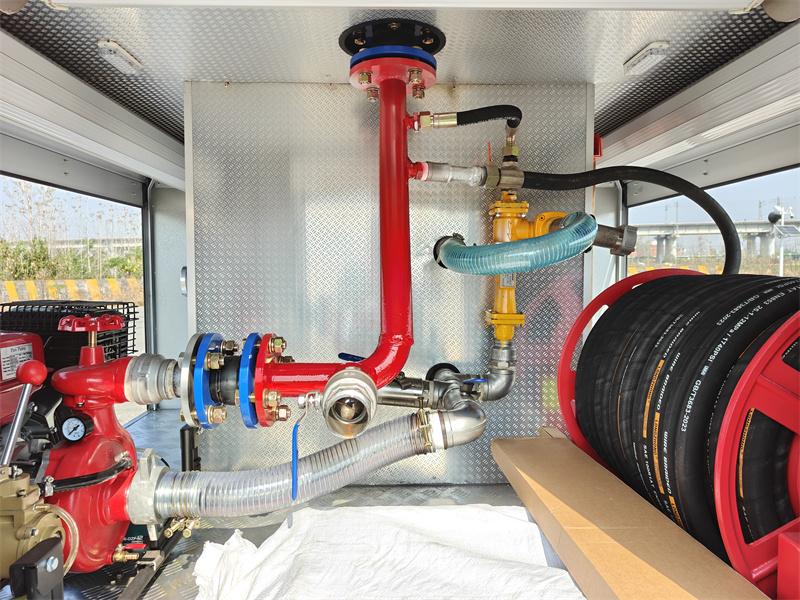

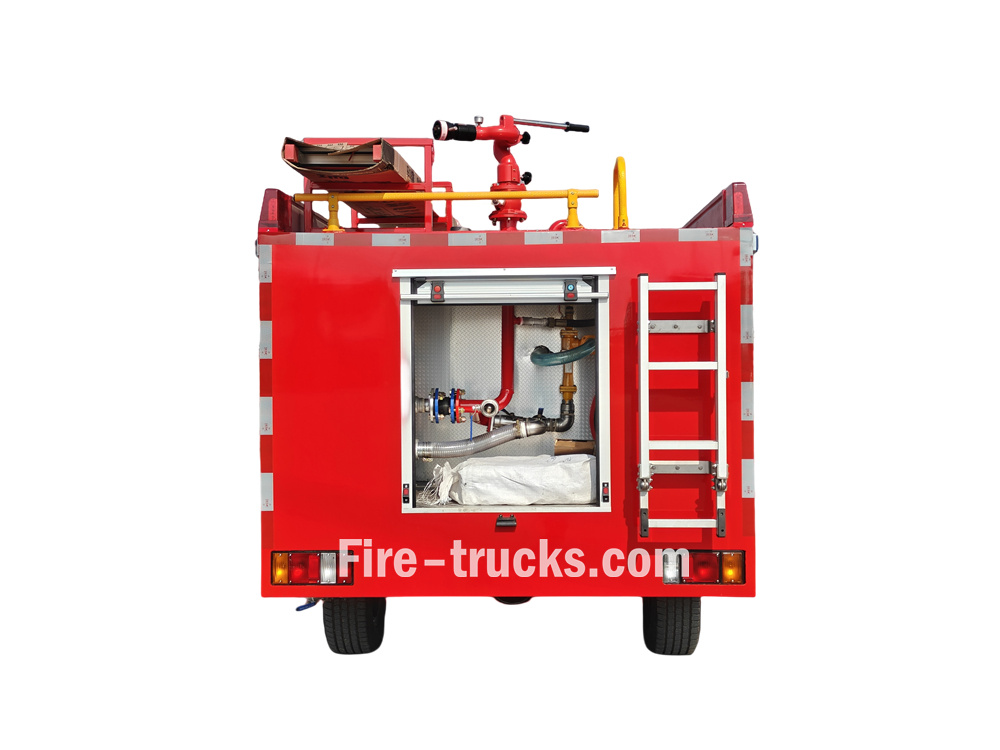

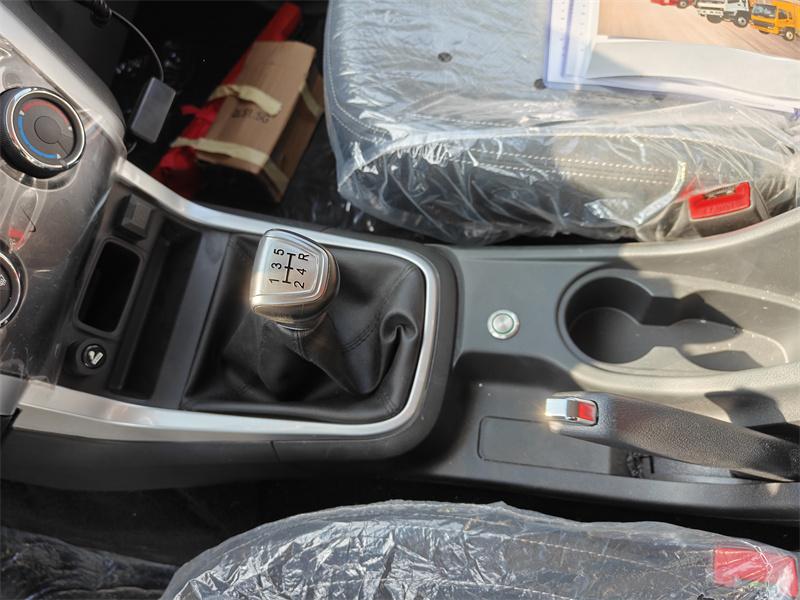

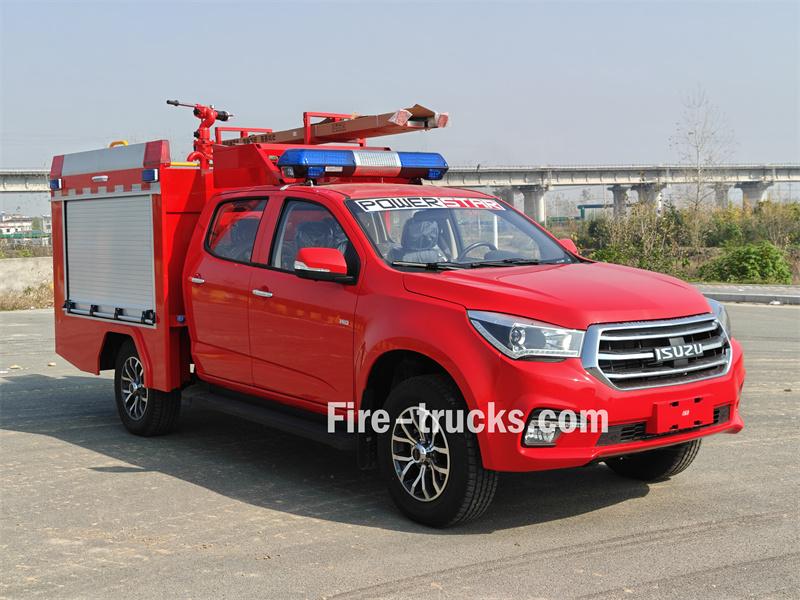

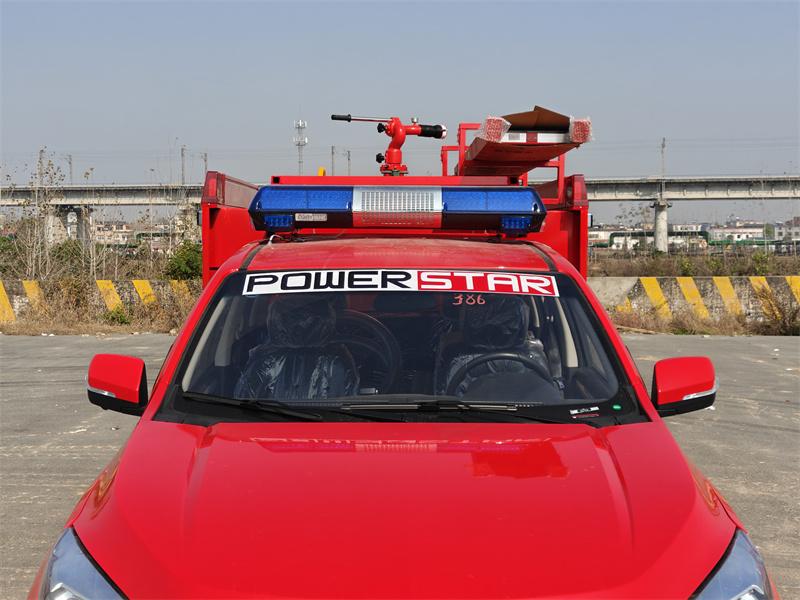

This Isuzu pickup fire truck is based on the Isuzu TAGA QL1030CZHW2 Luxury Edition 3.0T diesel 143hp four-wheel drive double-cab pickup chassis, It is equipped with an Isuzu 4HK1CT6H1 engine and an MLB 5-speed transmission. The front of the superstructure features a 500L carbon steel water tank and a 100L stainless steel foam tank. The rear houses the pump room, equipped with a JBQ4.5/9 hand pump, a 50m electric hose reel, and a PH64 foam-water mixing proportioner. The roof features a PS8/20W fire monitor, ladder, manhole, and fire alarm lights.

  • Truck Chassis:

    Isuzu TAGA, 4x4
  • Tanker Capacity:

    500L water +100L foam
  • Engine Power:

    143 HP
  • Fire Pump:

    China JBQ4.5/9
  • Pump Flow:

    600 L/min
  • Work Pressure:

    ≥0.65MPa
  • Fire Monitor:

    China PS8/20W
  • Monitor Flow:

    20 L/s
  • Monitor Range:

    ≥50 m
Facebook Linkedin Youtube Twitter Pinterest

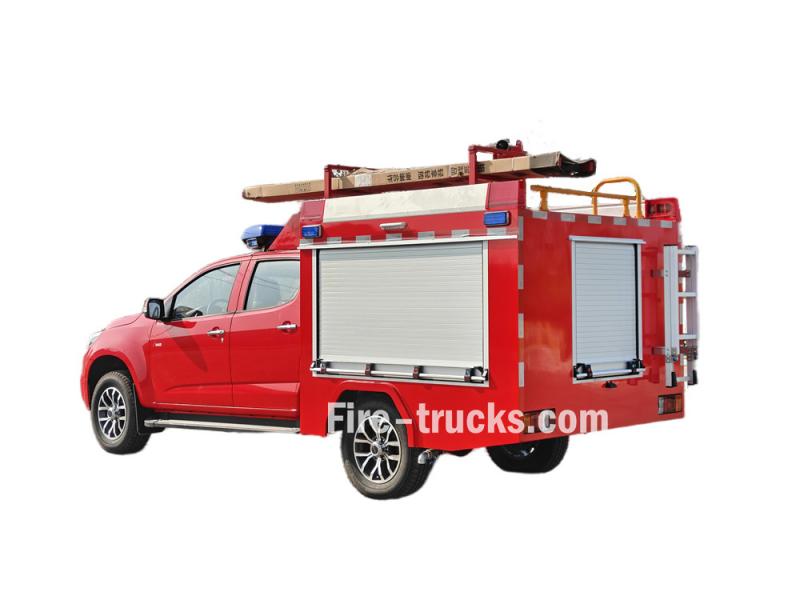

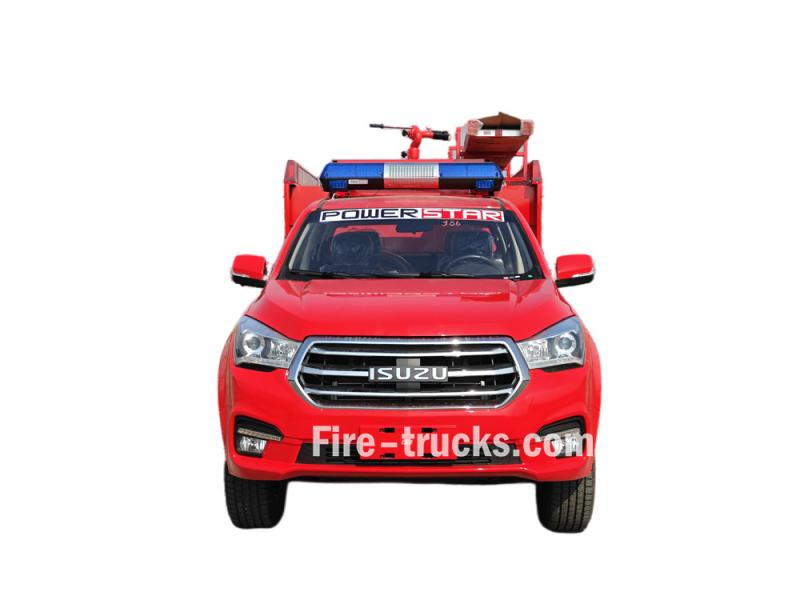

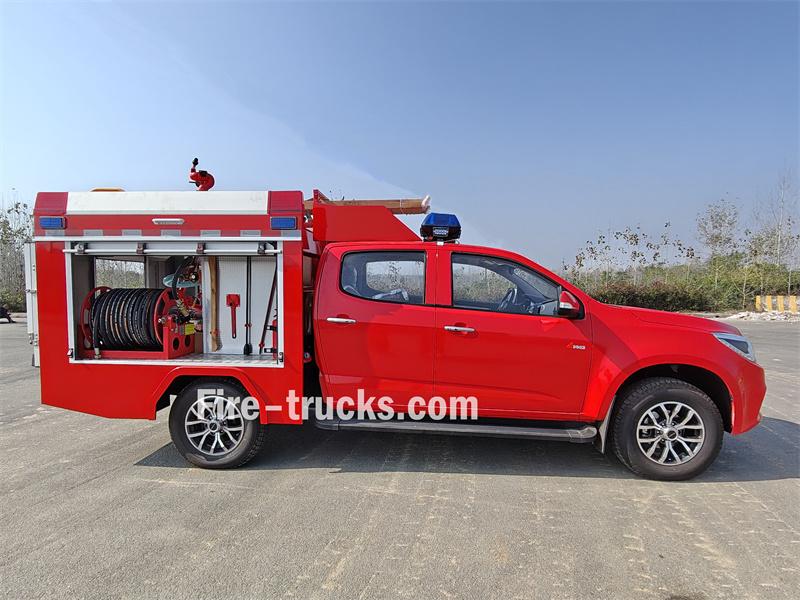

This Isuzu 500 liters small foam fire truck is modified from the Isuzu Taga double-cab pickup truck chassis. It integrates a 500-liter water tank and a 100-liter foam tank, and is equipped with a roof-mounted fire monitor, a portable pump, and an electric hose reel, enabling both long-range fire suppression and close-range firefighting.

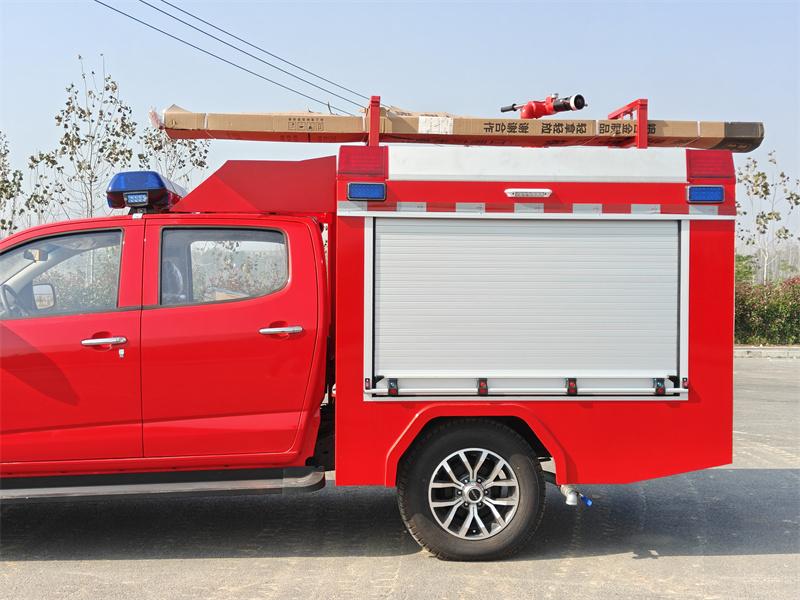

Equipment compartments are cleverly designed on both sides of the vehicle to carry necessary rescue gear. The entire vehicle combines firefighting and rescue functions, offering high mobility and rapid response, making it ideal for initial fire suppression and emergency rescue missions in towns, communities, and narrow road areas.



Isuzu 4x4 drive fire pick up



 Isuzu 500 liters small foam fire truck

»Ⅰ. Key Points

-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

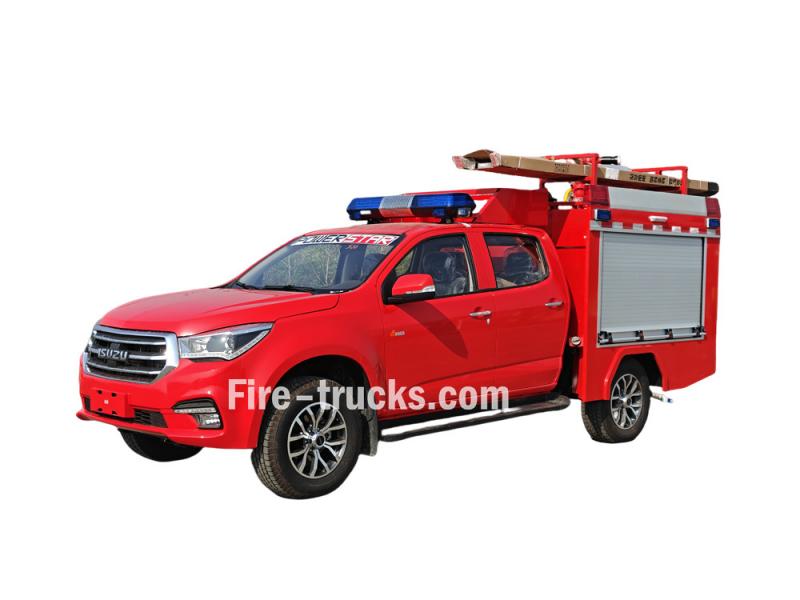

  • Isuzu 4x4 pickup 500L foam fire rescue truck
  • Isuzu 4x4 drive firefighting pick up
  • Isuzu 4x4 all wheel drive foam fire truck

 » Ⅱ.Product Parameter :

Isuzu 4x4 drive firefighting pick up

General

Work capacity

500 L water + 100 L foam

Truck chassis

ISUZU TAGA

Engine Power

143 HP

Fire pump

JBQ4.5/9

Chassis

Drive Type

4X4

Transmission

Isuzu MLB 5-shift

No. of axle

 2

Tire

245/70R17LT 10PR





Fire pump

Pump Model

JBQ4.5/9

Flow Rate

600L/min

Exhaust Rate

390ml

Engine Model

188F/GX390

Engine Max.Power

9.6Kw/13HP

Rotating speed

3600r/min

Max pressure

0.65MPa

Priming Time

≤10s

Range

60m

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PS8/20W

Rated work pressure

0.8MPa

Max work pressure

1.0MPa

Rated flow

20L/s

Range

 ≥50m

Pitch Rotation

-35°+70°

Horizontal rotation

0360°

Electronic alarm

Electronic alarm

LY CJB-100-C24 / 1.2 m long

Hose reel

Hose reel

Electric, 50 meters



All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……







» Ⅲ. Fire Pump system :

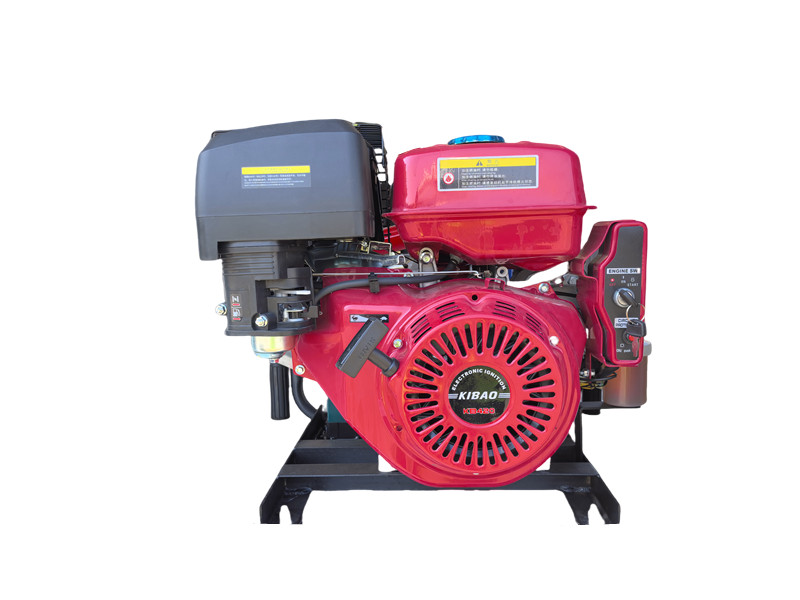

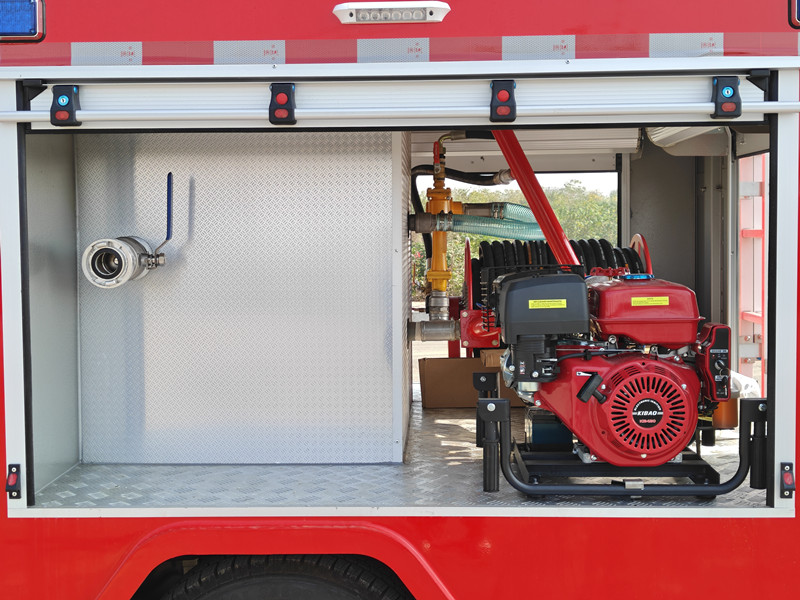

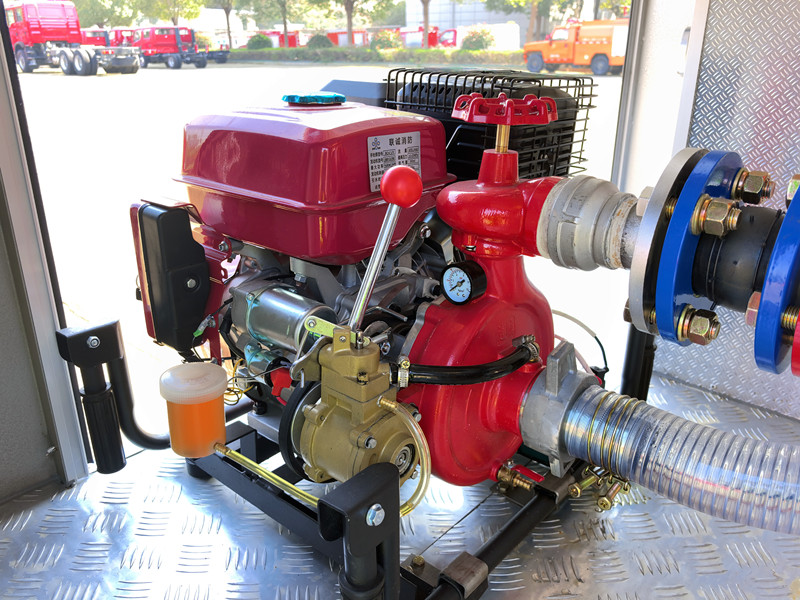

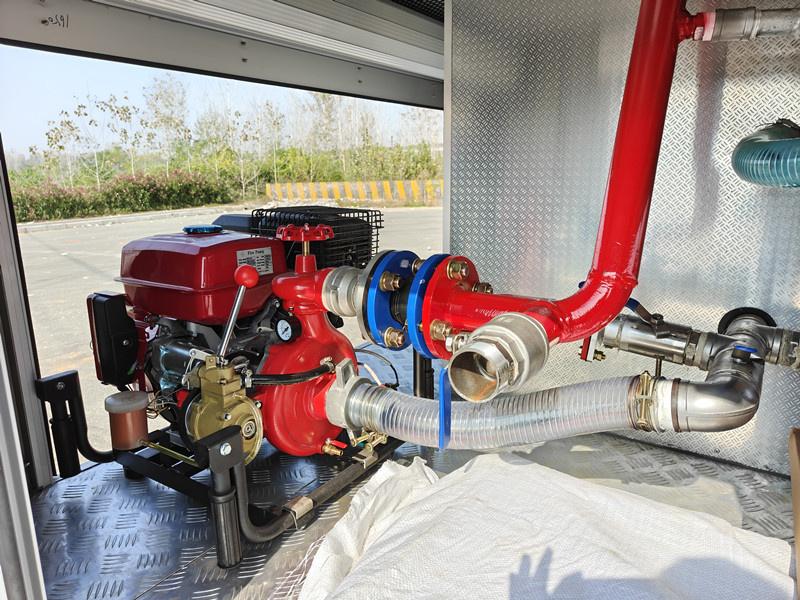

JBQ4.5/9 fire pump



Fire pump Model

Engine model  Flow Rate  Work Pressure  Exhaust Rate  Engine speed  Max pressure Priming Time Head

 JBQ4.5/9

188F/GX390  600L/min  1.0 Mpa  390ml   3600r/min   0.65MPa ≤10s 60m
  • JBQ4.5/9 fire pump
  • JBQ4.5/9 fire pump
  • JBQ4.5/9 fire pump

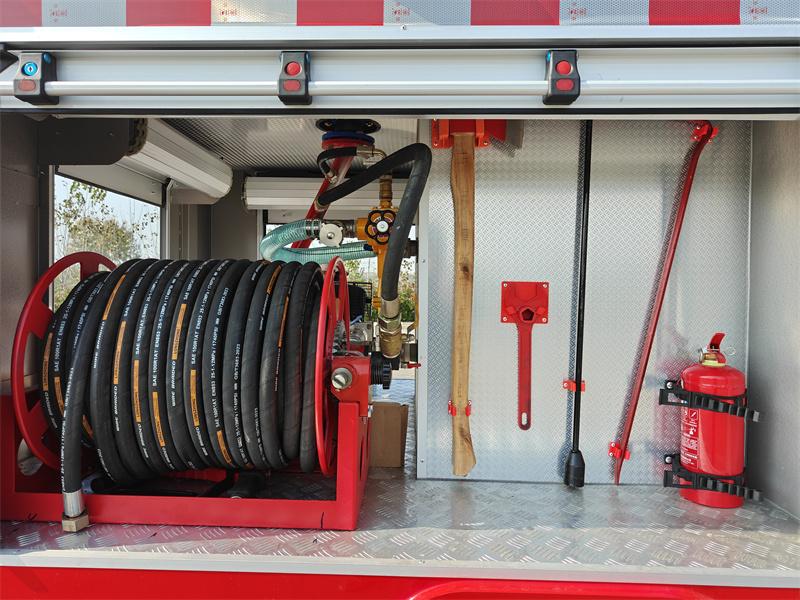

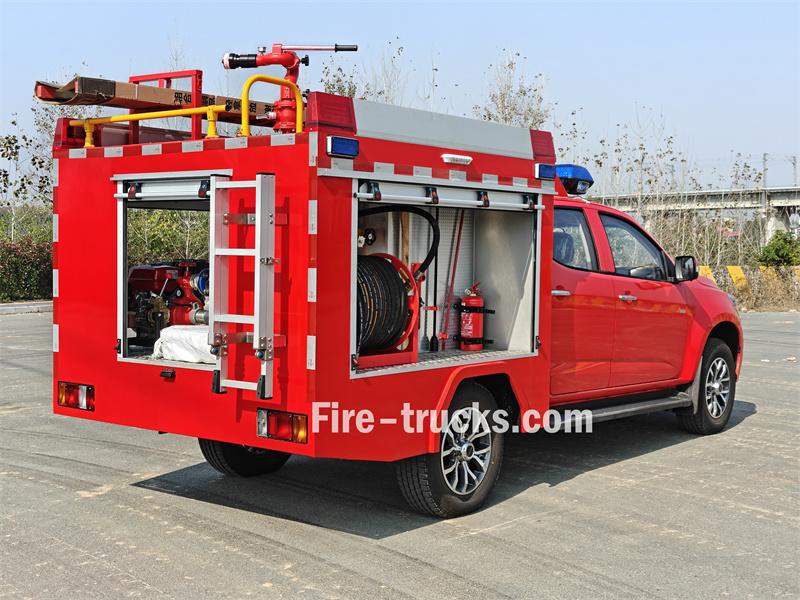

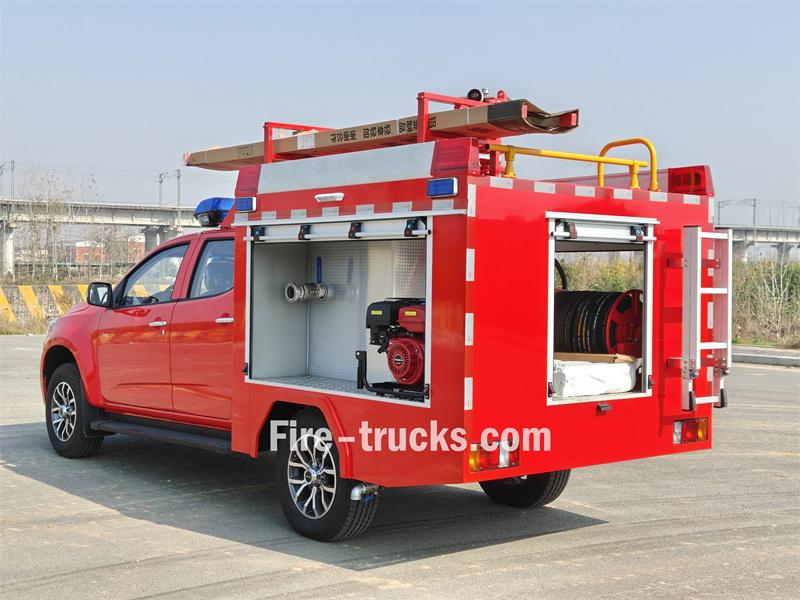

Tank System: The front features a 500L carbon steel water tank, robust and durable; and a 100L stainless steel foam tank, highly corrosion-resistant. The sides are rationally designed for storing various firefighting equipment (fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.), ensuring convenient access.

Isuzu 4x4 AWD 600L foam water tank truck



» Ⅲ. Fire Monitor system :

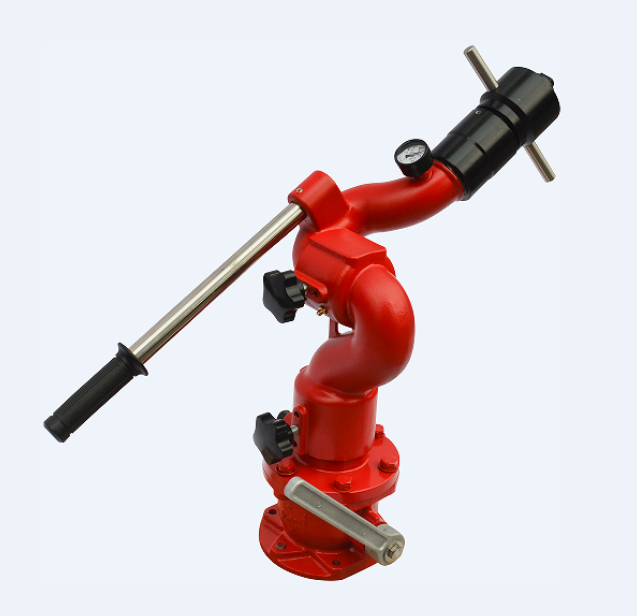

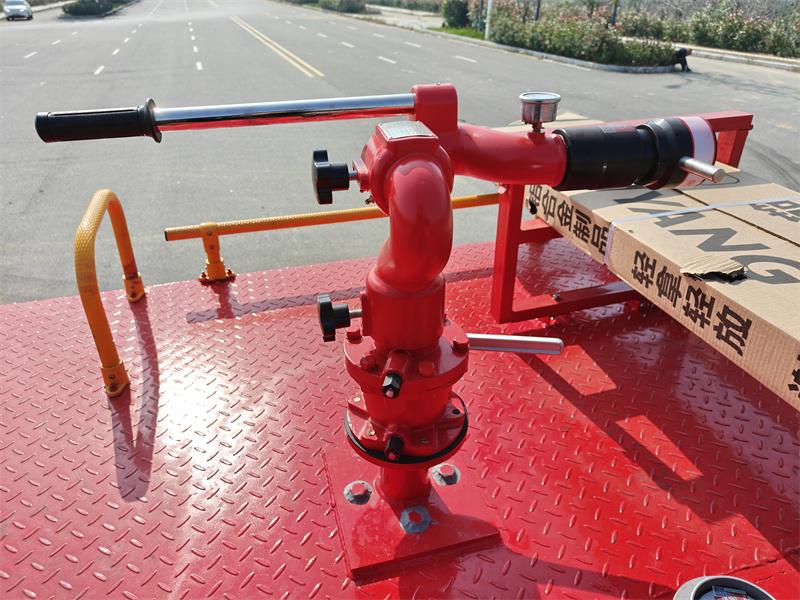

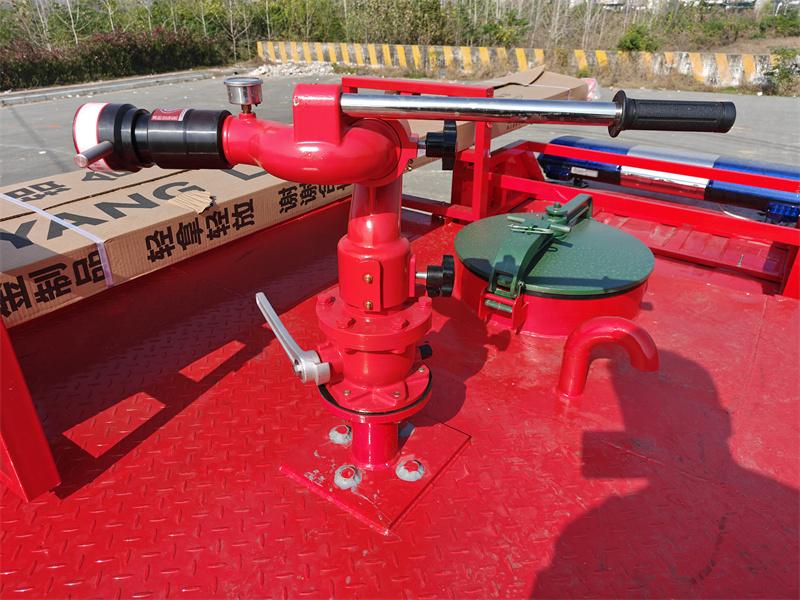

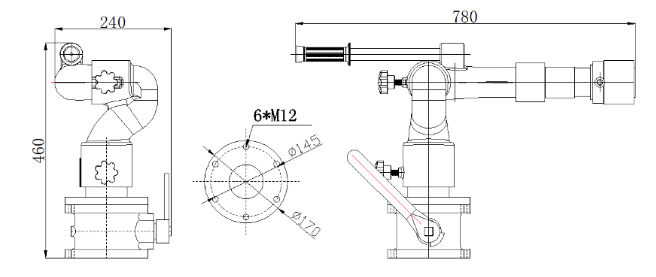

PS8/20W fire monitor

PS8/20W fire monitor

Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PS8/20W 20L/s ≥50m 0.80MPa -35°~+70°
0~360° 11kg

» .Technical Design:



1. POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

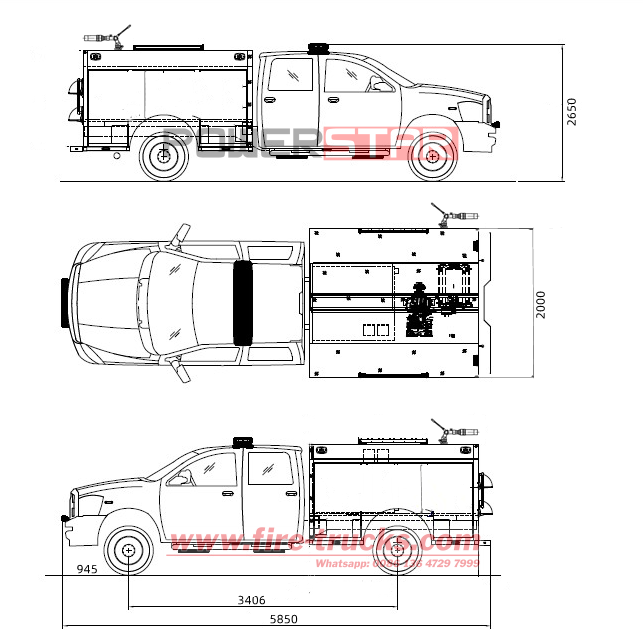

Isuzu 4x4 drive firefighting pick up drawing



» Ⅴ.Preshippment Test:

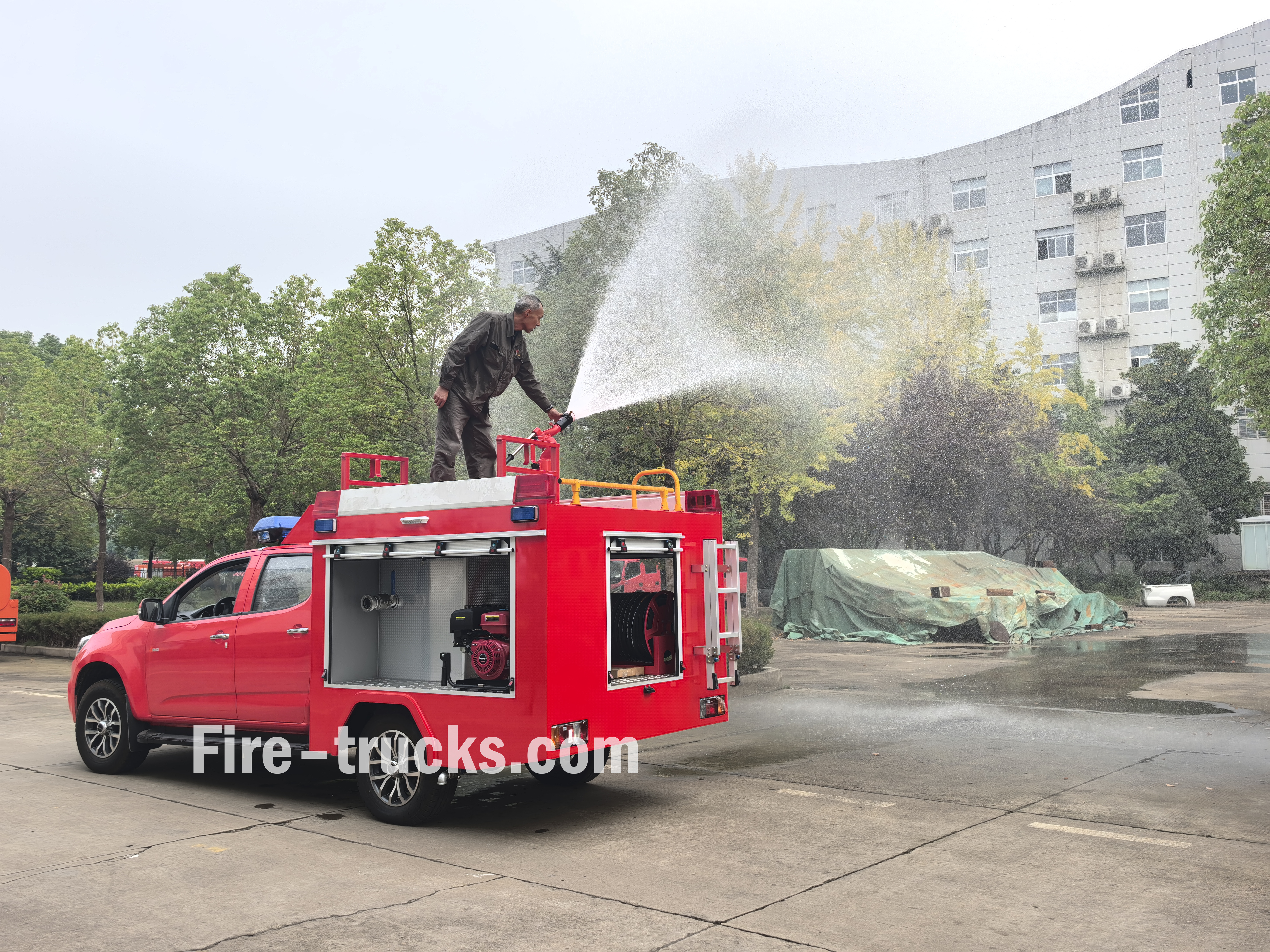

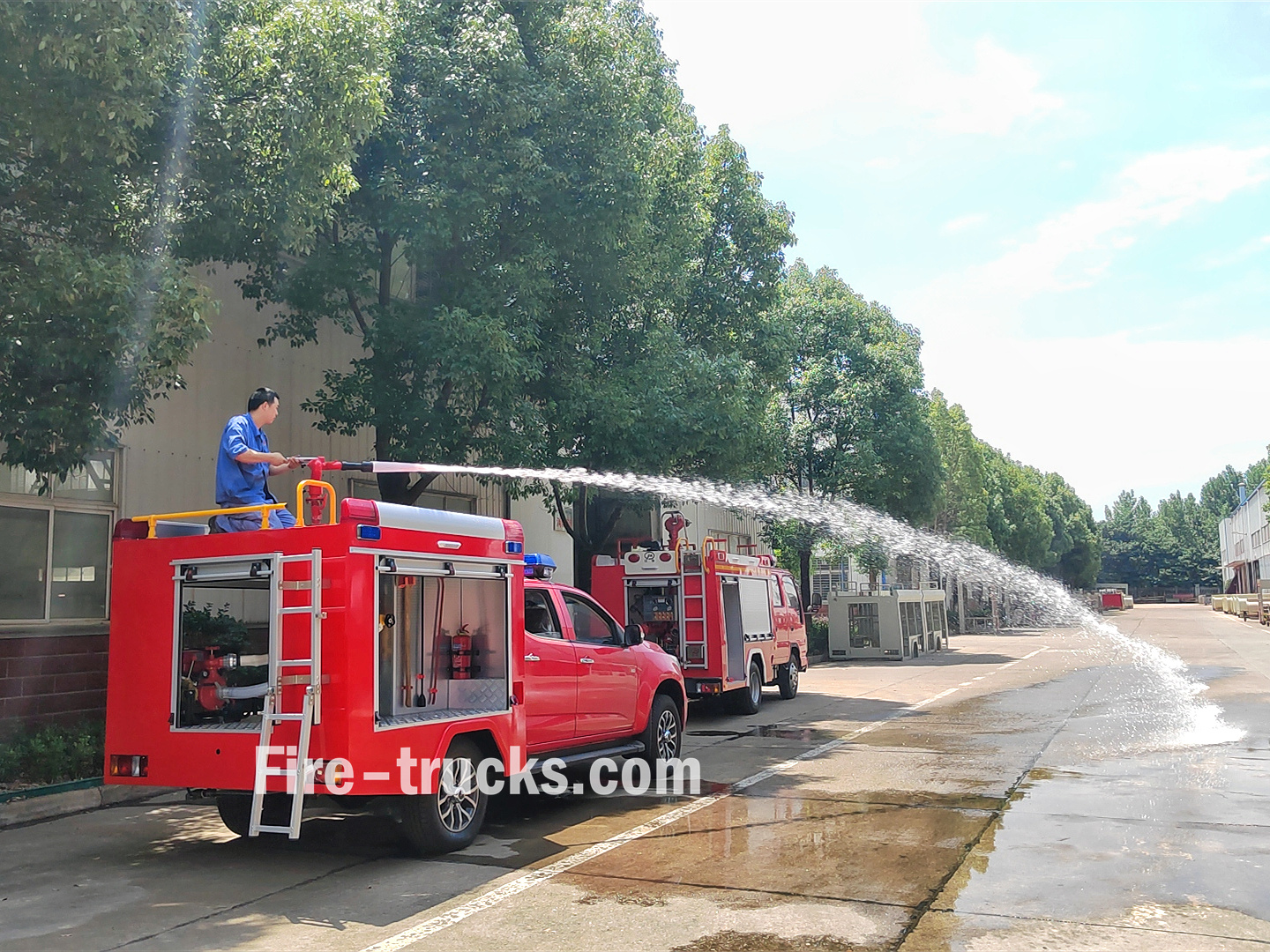

Before deliver isuzu 4x4 off road drive pick up from our fire truck factory, we will strictly make 30 different kinds of inspection on the fire fighting trucks, range from fire pump, fire monitor, fire gun, fire pipe. All the main components will taken at least 50 working hours.

  • Isuzu 4x4 crew cabin pickup foam tanker fire truck
  • Isuzu 4x4 off road 500L foam fire truck
  • Isuzu 4x4 all wheel drive foam fire truck

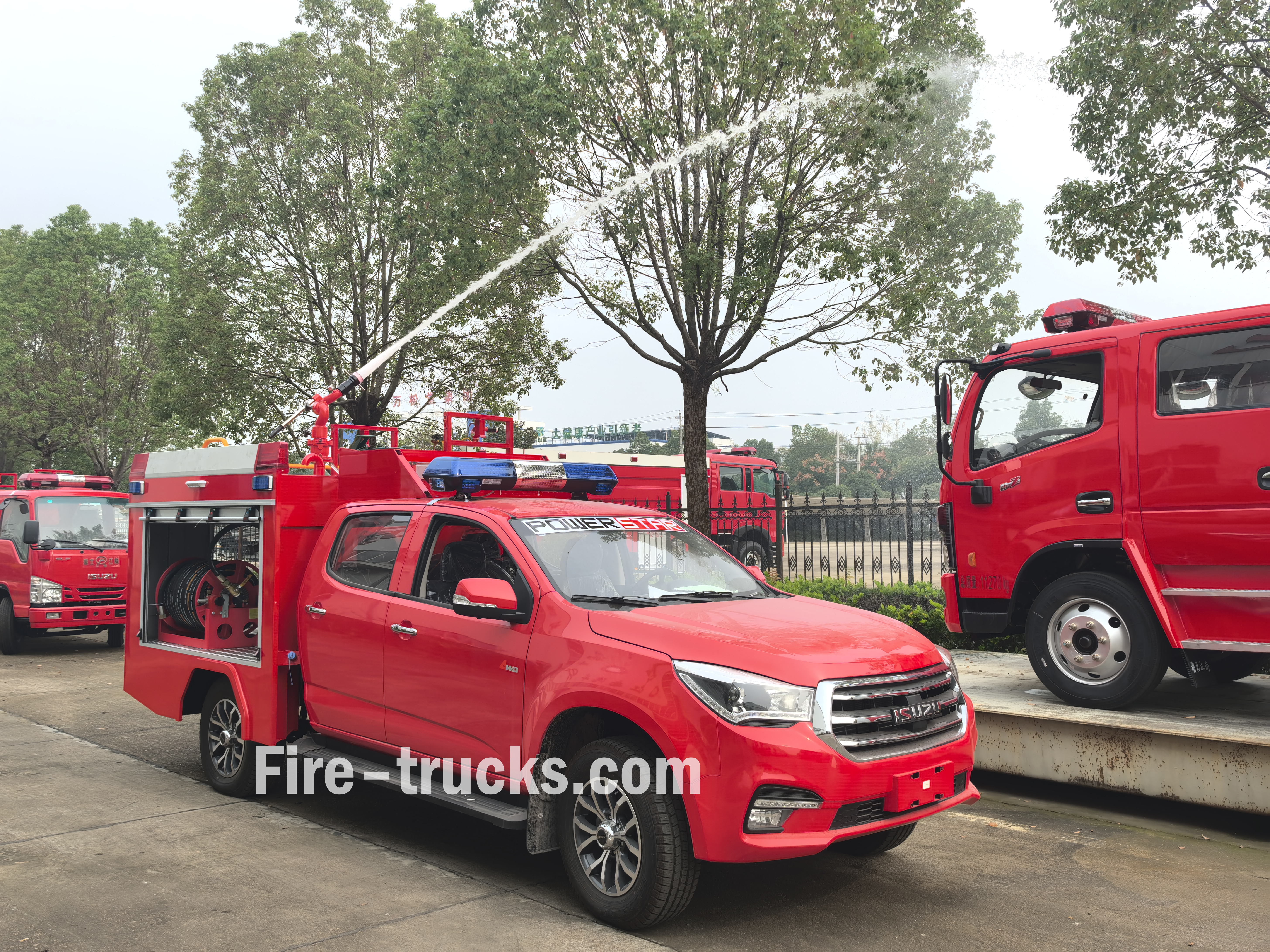

Isuzu pickup fire truck

Isuzu pickup water foam tanker fire truck factory testing before shipment
