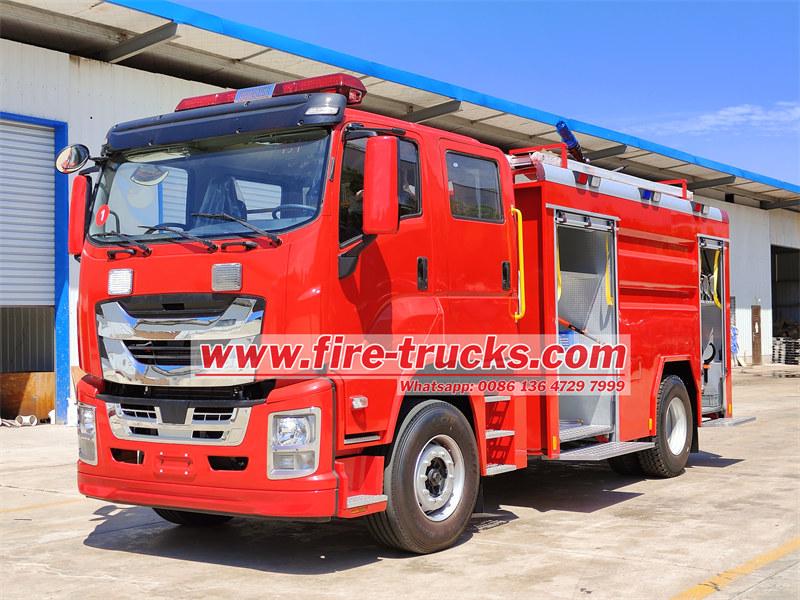

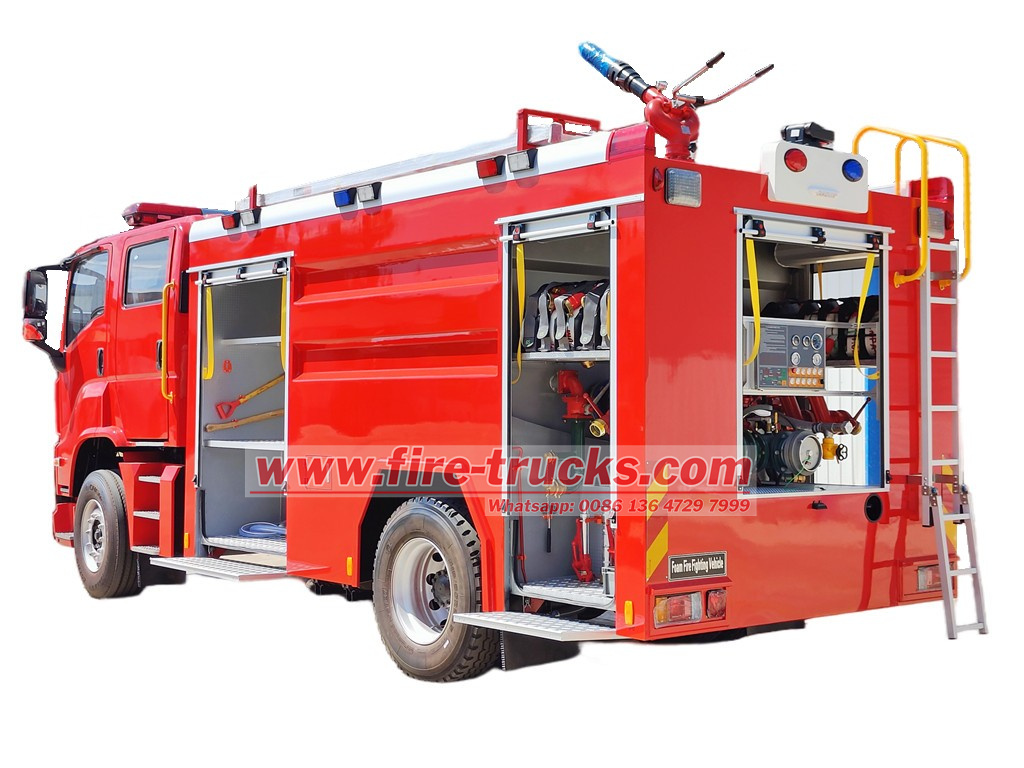

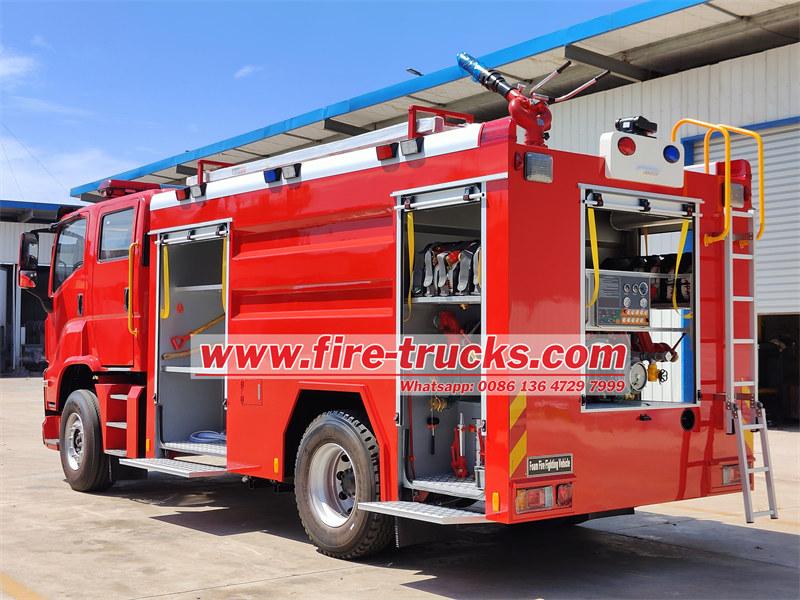

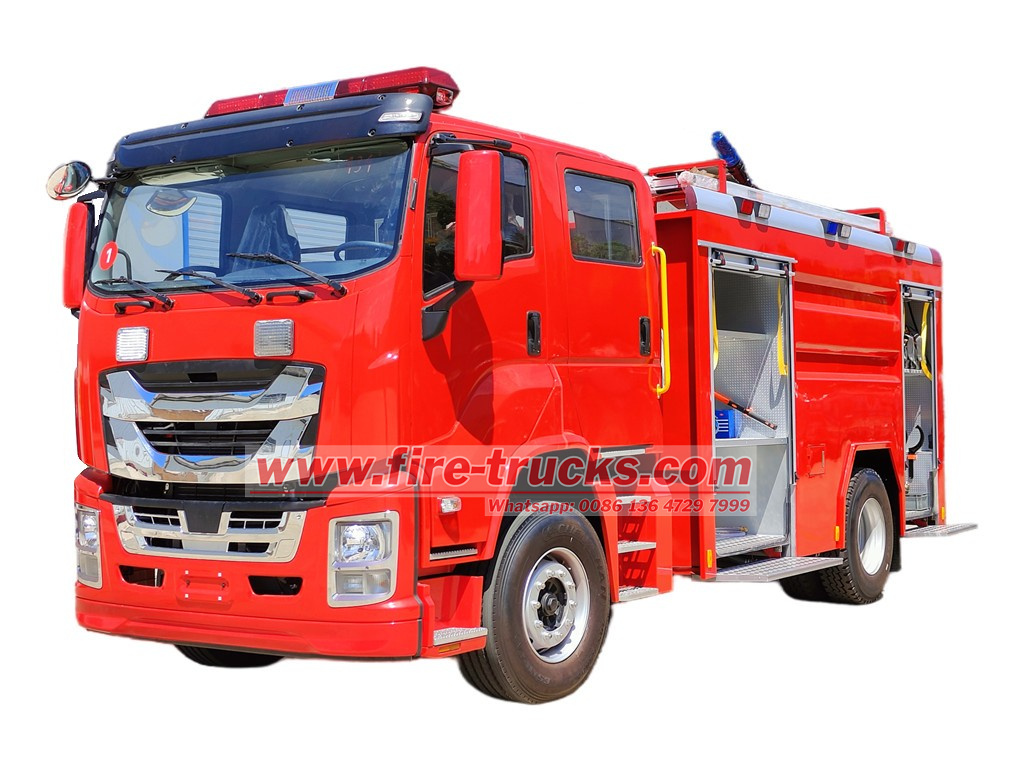

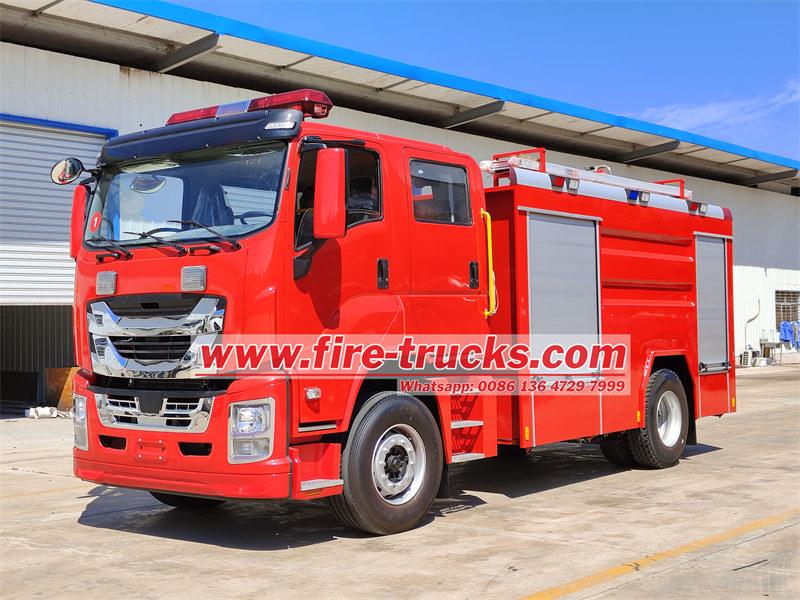

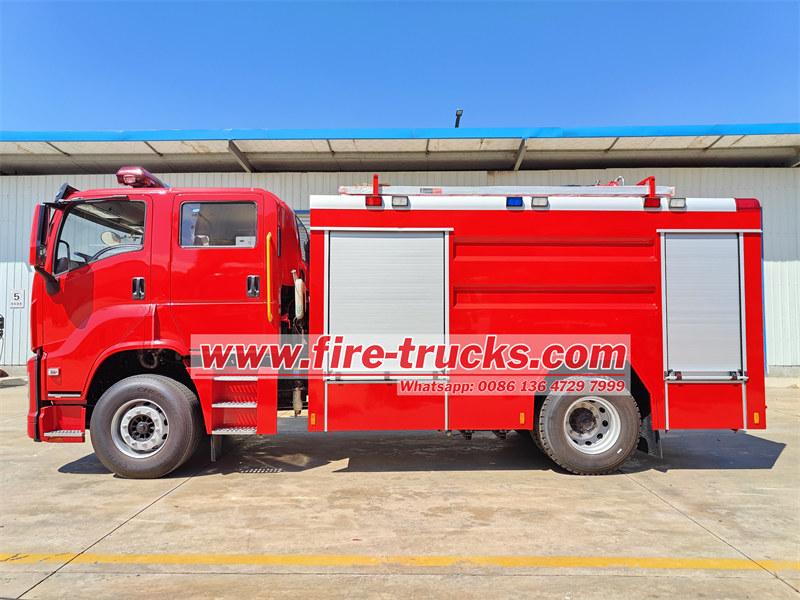

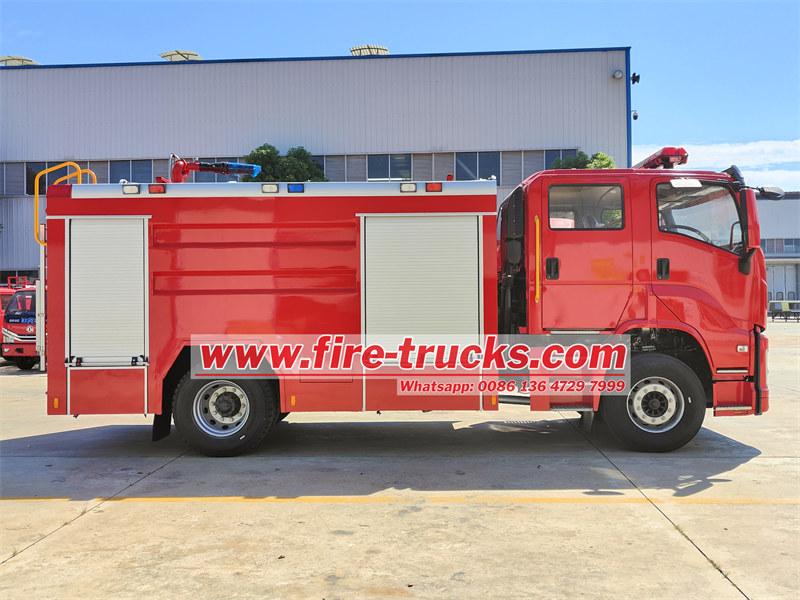

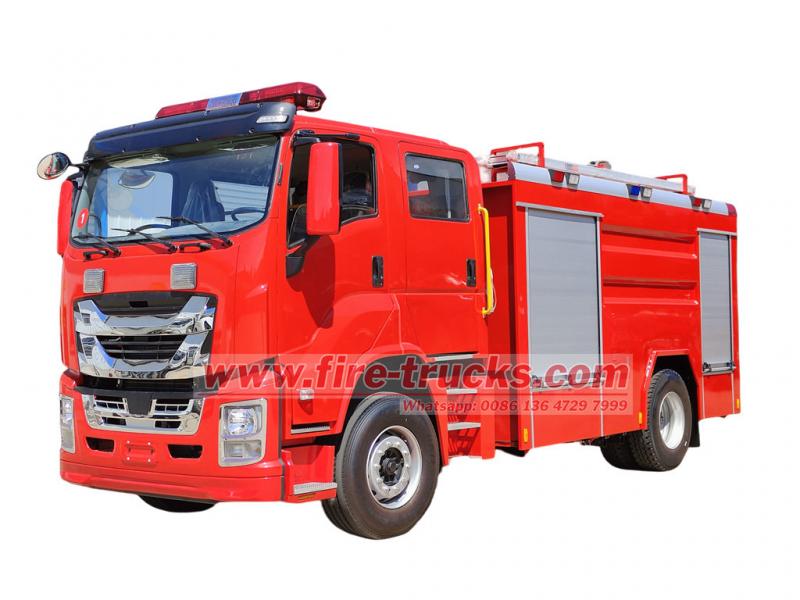

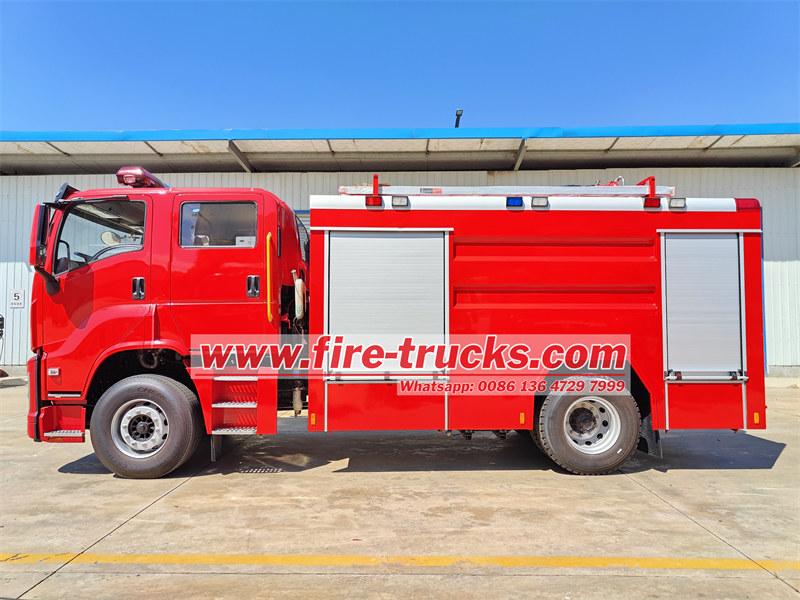

ISUZU GIGA VC66 heavy duty water foam tanker Fire Engine is a professional pumper firefighting vehicle, equipped with 6UZ1-TCG61 diesel engine with 380HP and 9839cc emission. Mounted with 5000L stainless steel tanker device, including 4,000L water tank and 1,000L foam tank. Matched working with a CB10/60 fire pump and a PL8/48 fire monitor on top, with efficiently working distance for water 65 meters and foam 55m. The POWERSTAR foam pumper fire truck is particularly suited for combating complex fires in petrochemical plants, community, ports, and similar environments, offering both high mobility and sustained operational capability.
Manufacturer Origin:
Powerstar TrucksWork capacity :
4000L +1000LUpper Body material:
Stainless steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
380 HPEngine Model:
Isuzu 6UZ1-TCG61Fire Pump:
CB10/60, 60L/sFire Monitor:
PL8/48 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR Foam Tanker Fire Truck is a professional industrial pumper firefighting vehicle, which also can be named as fire pumper truck, fire department truck, fire apparatus, fire service truck, wildland fire truck, pumper firefighting truck. POWERSTAR Pumper Tanker Fire Truck Isuzu built on the ISUZU GIGA VC66 heavy duty truck chassis, customized double row cabin, with from convenient air suspended seats and rear equipped with 4 sets SCBA seats for air apparatus storage and convenient usage. Integrating water and foam agent and multiple fire rescue equipment tools, mainly service for fire extinguishing and people rescue mission. Equipped with a 4000L water tank and 1000L foam tank, all based on stainless steel material, effectively service for complex fires scene to prevent fire spread and reduce the loss during fire.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU GIGA truck chassis, 4x2, 6x4 and 8x4 model
6UZ1 model with 350HP or 380HP and emission 9839cc
6WG1 model with 420HP, 460HP or 520HP with emission 15681cc.
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 60m
Optional CB10/40, CB10/80 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.
» Ⅱ.Product Parameter for Isuzu 5000L foam tanker fire truck:
ISUZU GIGA VC66 4x2 LHD 5000L water foam tanker fire truck Chassis Specification | ||
Truck Model | PST5250GXFPM | |
Chassis Manufacturing Date | Year of 2025-2026 | |
Cab | Double rows cab, adjustable driver's seat and co-driver's seat, rear SCBA seats, multi-function instrument, multi-function steering wheel, central locking, power windows, stereo radio cassette recorder, safety belts, air horn, air conditioner, rear view mirrors, with power assistance | |
Driving Type | 4x2 Left hand driving | |
Max Speed (km/h) | 95 | |
Overall Dimension (mm) | Approx. 8200×2500×3650 | |
GVW (kg) | Approx. 22000 | |
Curb Weight (kg) | Approx. 11500 | |
Wheelbase (mm) | 4600 | |
Clutch | Single-plate dry diaphragm spring clutch φ430 | |
Tire | Type | 315/80R22.5 |
Nos | Total 7 no, including 1 spare tire | |
Gear box | Brand | FAST |
Type | Manual | |
Forward Speeds | 12 | |
Rear Speeds | 2 | |
Axle | Axle Nos | 2 |
Front axle loading capacity (kg) | 9000 | |
Rear axle loading capacity (kg) | 13000 | |
Engine | Brand | lSUZU |
Model | 6UZ1-TCG61 | |
Emission Standard | EURO 6 (Optional to remove the DPF and ADBlue device to make truck working as EURO 4) | |
Fuel Type | Diesel fuel | |
Air Intake Form | In-line 6 cylinders, water cooling, turbocharging and intercooling | |
Cylinder Nos | 6 | |
Output Power (kw) | 279 | |
Exhaust(ml) | 9839 | |
Max output power (hp) | 380 | |
Max torque (N.M) | 1800N.M | |
Braking System | Automatically air-cut brake, with ABS for safety | |
Electric system | 24V |
Special Function | |||
Tank | Water Tank | Capacity | 4000L |
Material | SS #304 stainless steel material | ||
Configuration |
|
||
Foam Tank | Capacity | 1000L | |
Material | SS #304 stainless steel material | ||
Fire Pump | Type | Normal pressure fire pump | |
Model | CB10/60 | ||
Flux | 60l/s@1MPa | ||
Pressure | 1.0Mpa | ||
Suction port | Φ150mm | ||
Outlet | Two Φ80mm outlets, and two Φ65mm outlets | ||
Water Monitor | Model | PL48 | |
Flow | 48L/S | ||
Covering range | ≥ 60m | ||
Working Pressure Range | ≤1 MPA | ||
Pitching Rotation Angle | -35°~ 75° | ||
Horizontal Swing Angle | 0 ~360° | ||
PTO | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
Carriage | Carriage is made of high-quality steel and Aluminum embossed sheet | ||
Pump room | On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||
Rolling Shutter Door | Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||
Color | Red color R03 model | ||
Technical Requirement | 1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle. 2.Tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle. 3.The outside is very beautiful, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle. 4.All operating switch and meter is accord with standard nameplate. |
» Ⅲ.Product Details & Advantages:

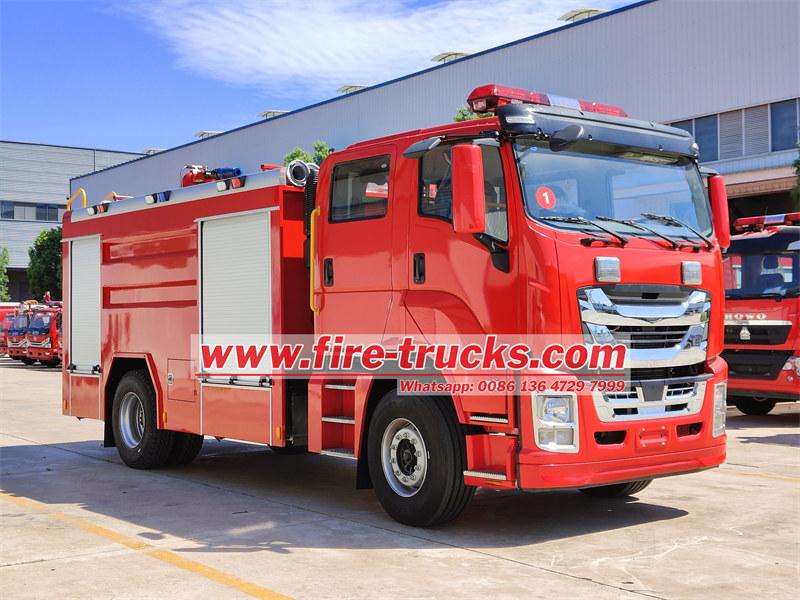

1. ISUZU GIGA Truck

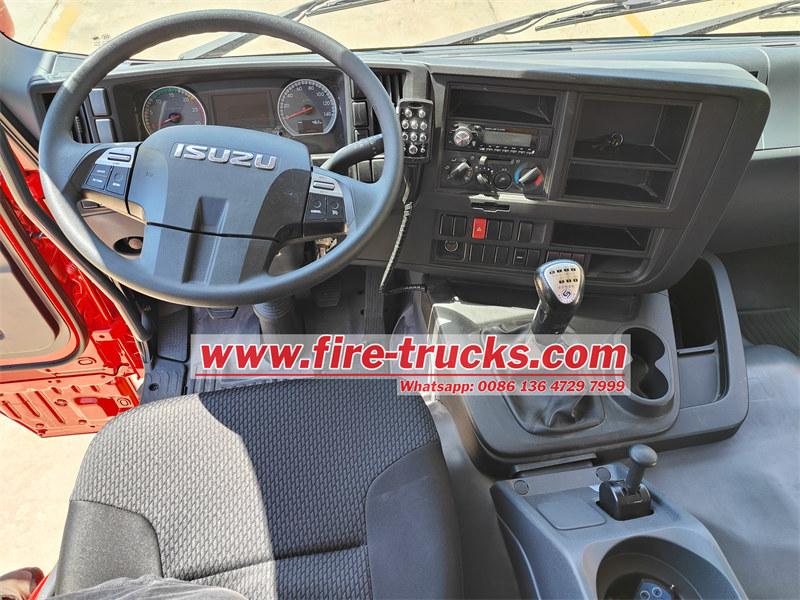

Original Japanese ISUZU GIGA VC66 truck cabinet, very comfortable and quiet, Air conditional, Siren controller, air suspension seat, etc.

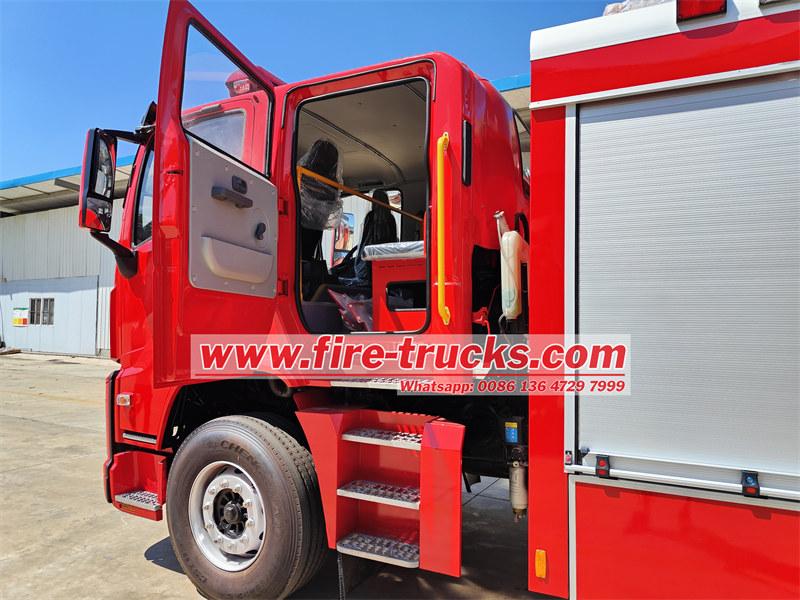

2. Modify double cabin
Skilled engineer design and worker modify ISUZU GIGA truck cabin, double row with front 2 seats and rear 4 seats

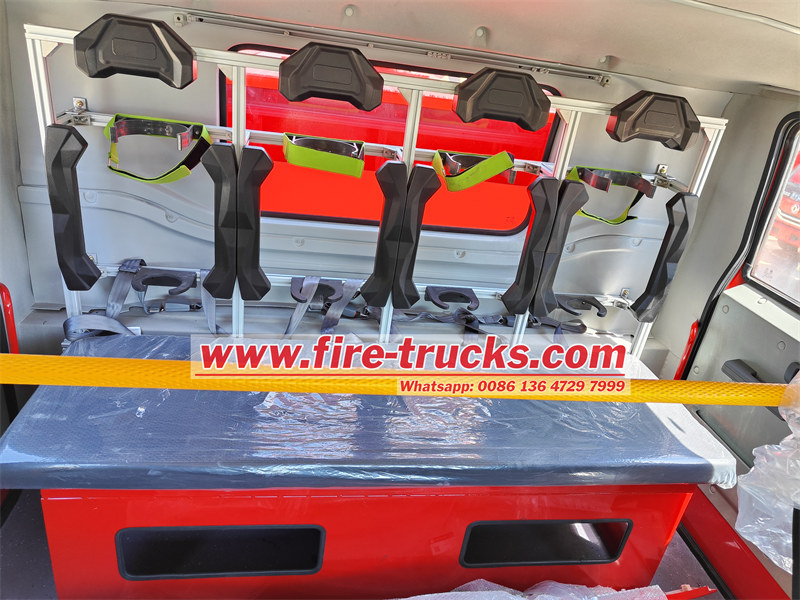

3. Rear SCBA seat
ISUZU GIGA truck cabin rear 4 seats are all SCBA seats, suitable for air apparatus storage and convenient usage, all with safety belt.

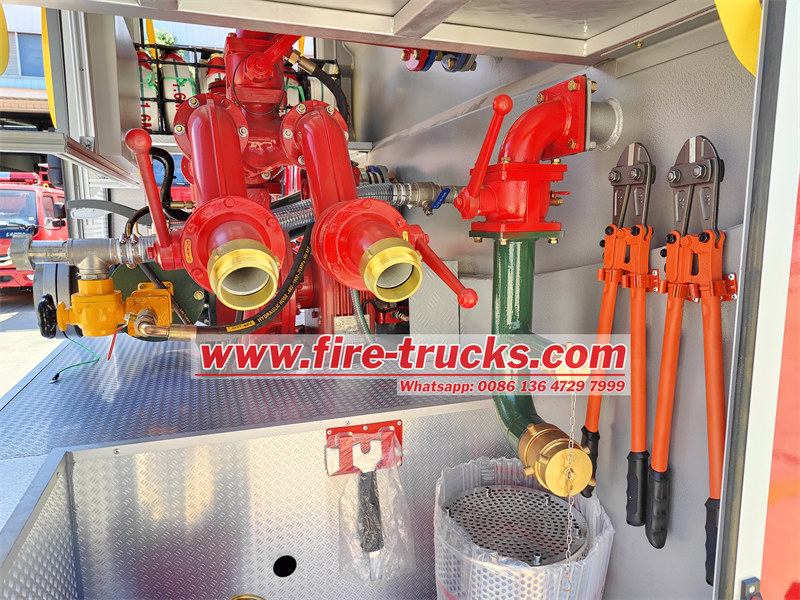

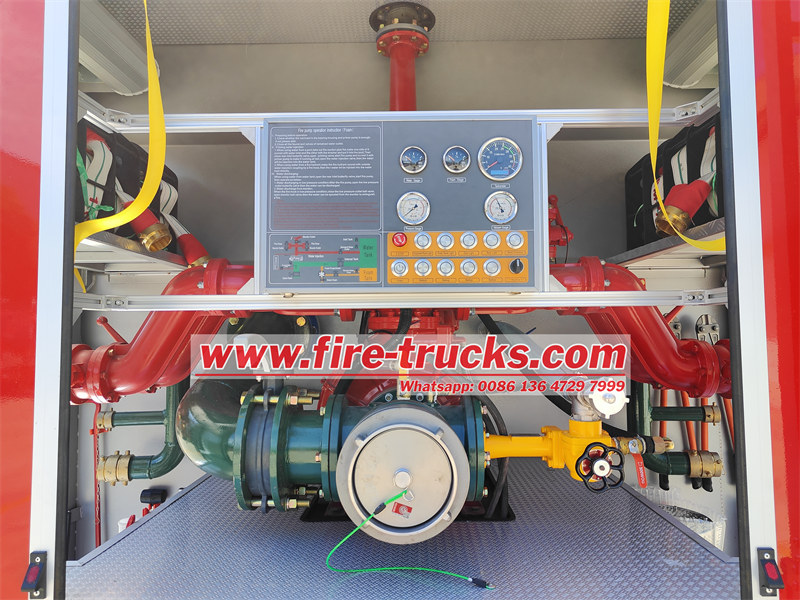

4. Pump room with control panel
Rear mounted, separately and water proof, Pump in and pump out valve, English version control panel for convenient usage

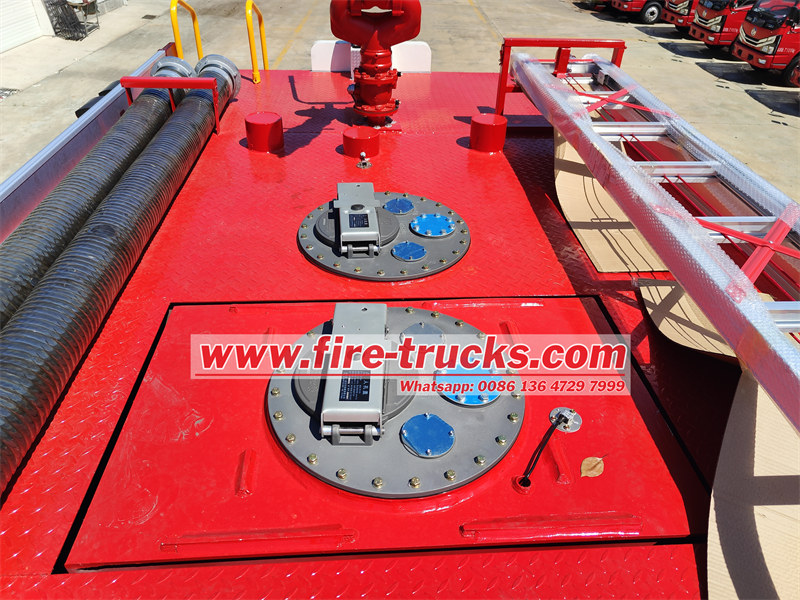

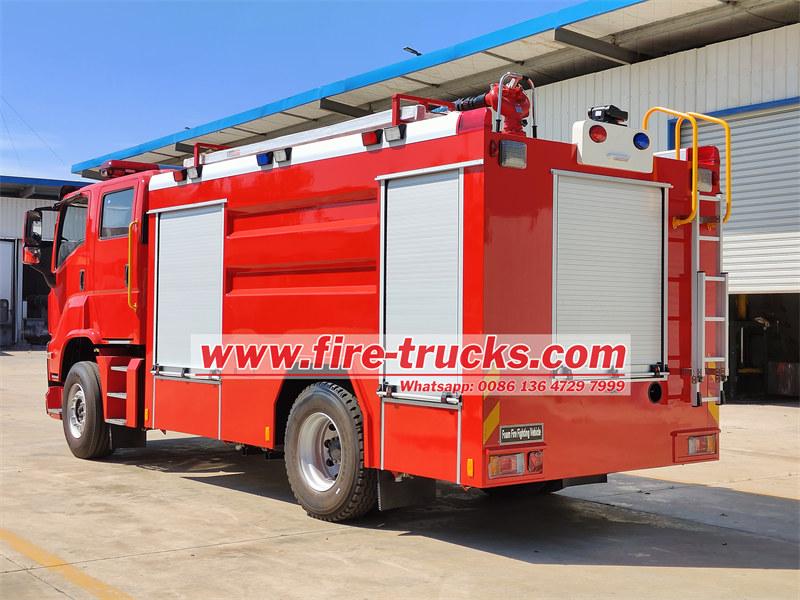

5. Top view of Fire Tender
DN500 manhole cover, 2 units 4m DN125 pipeline, 6-10m aluminium ladder, fire monitor for water foam dry powder, rear searching light

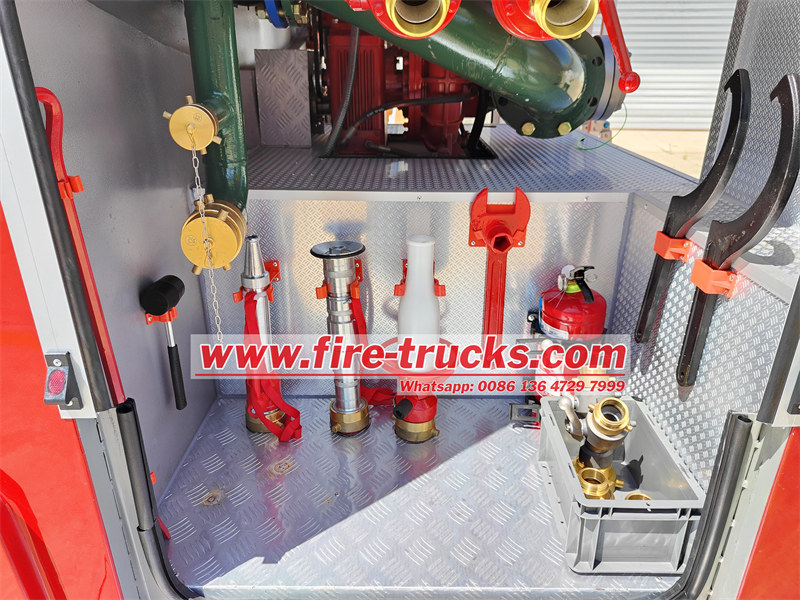

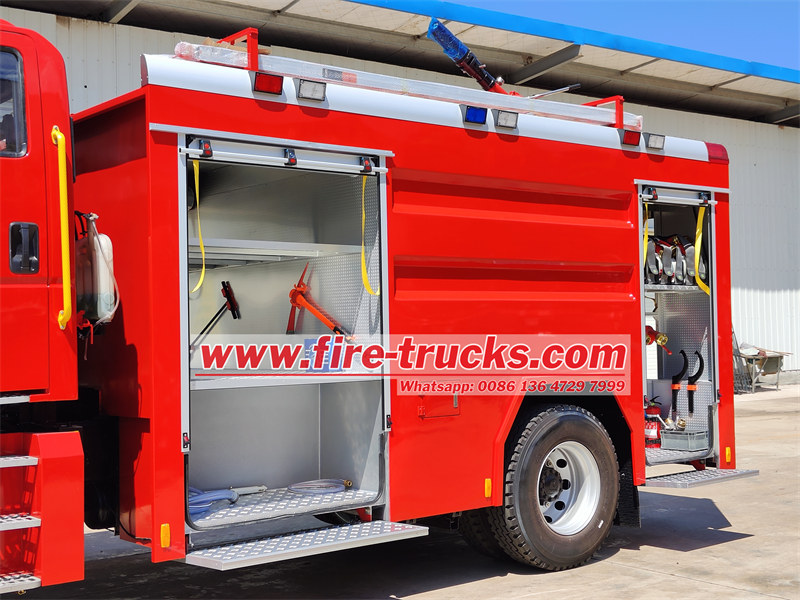

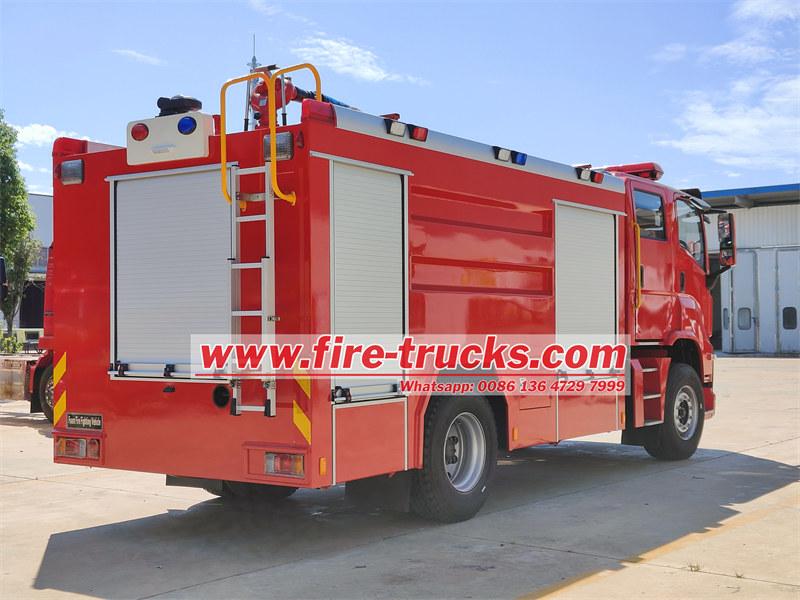

6. Fire truck tanker body with full sets fire fighting tools
R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

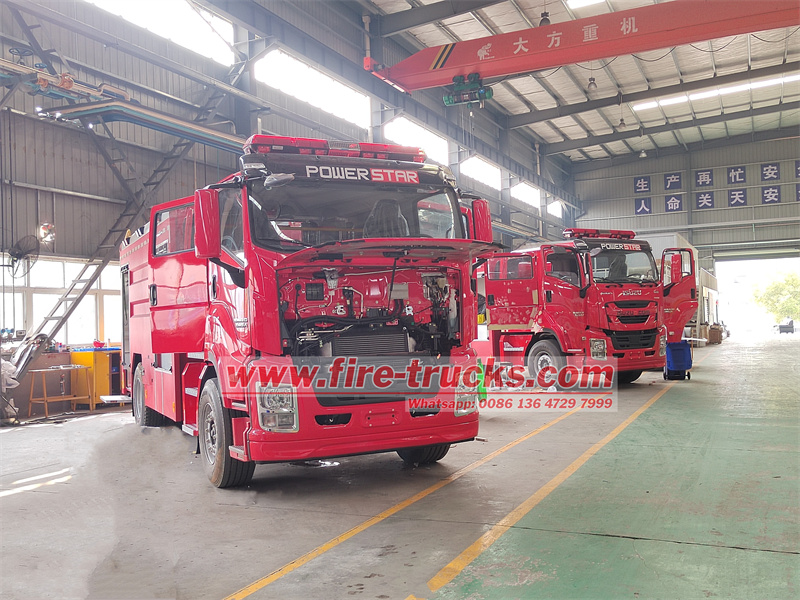

2. Skilled workers for production:

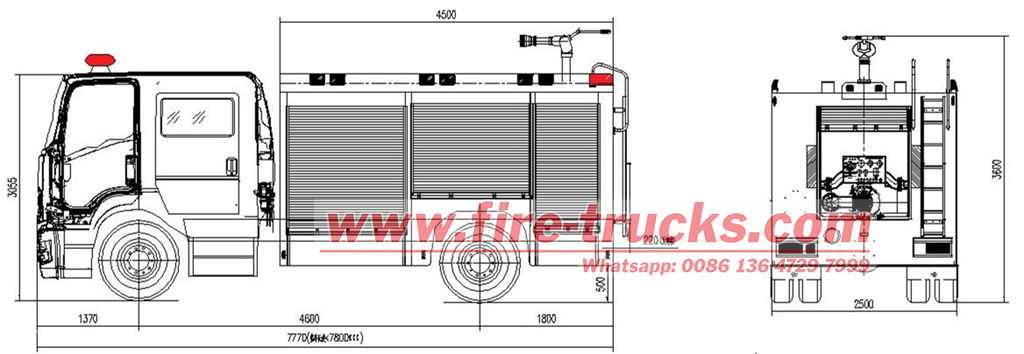

Isuzu fire truck technical drawing help for producing guidance, skilled workers modify to double cabin, installed the Sandwich PTO, CB10/60 fire pump, PL8/48 fire cannon, Pump in and Pump out valves, lighting system, also full Aluminium alloy decoration.
3. Prepare full fire fighting equipment:
Fire truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
» Ⅴ.Factory Testing:

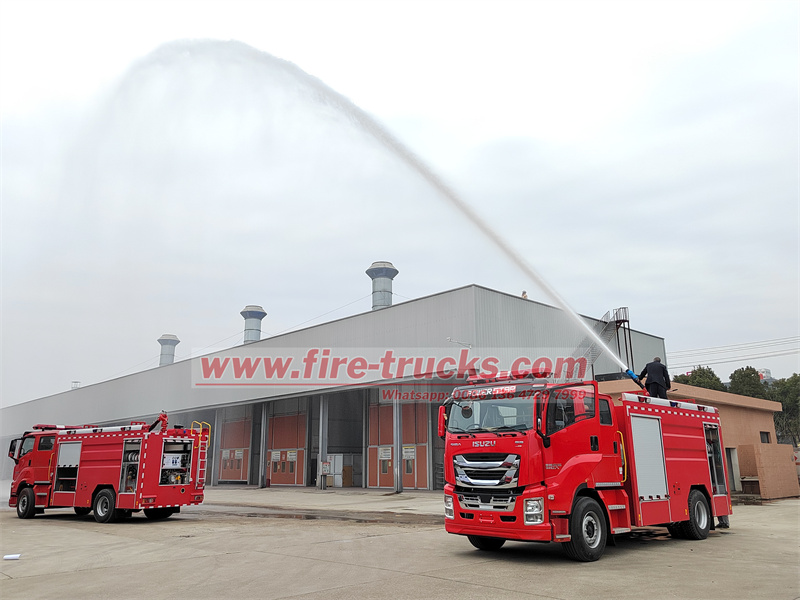

POWERSTAR Engineer testing Isuzu foam fire fighting truck

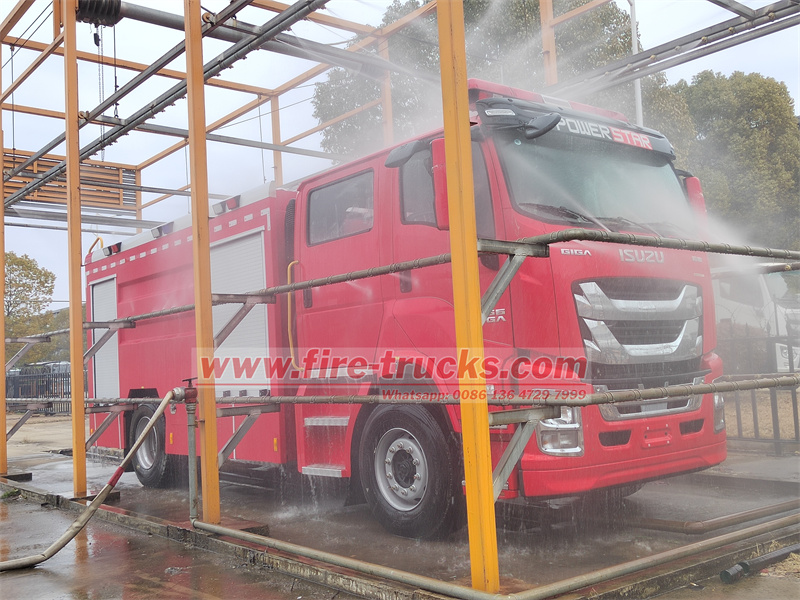

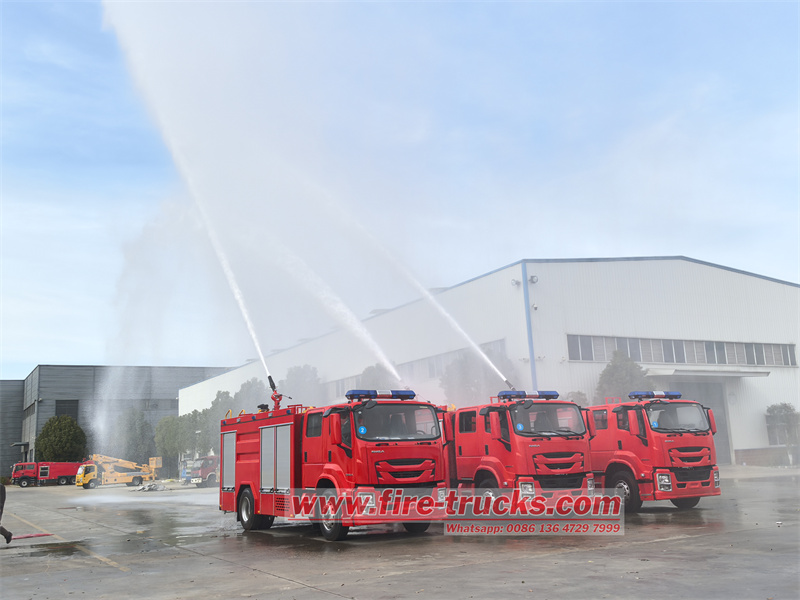

Isuzu water foam tanker fire truck factory testing before shipment
Isuzu fire tanker truck ready for SHANGHAI seaport for delivery

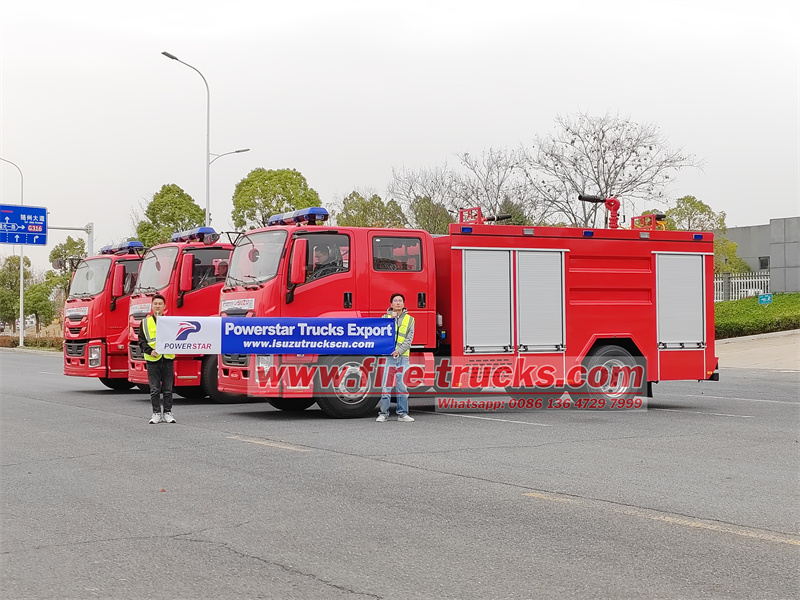

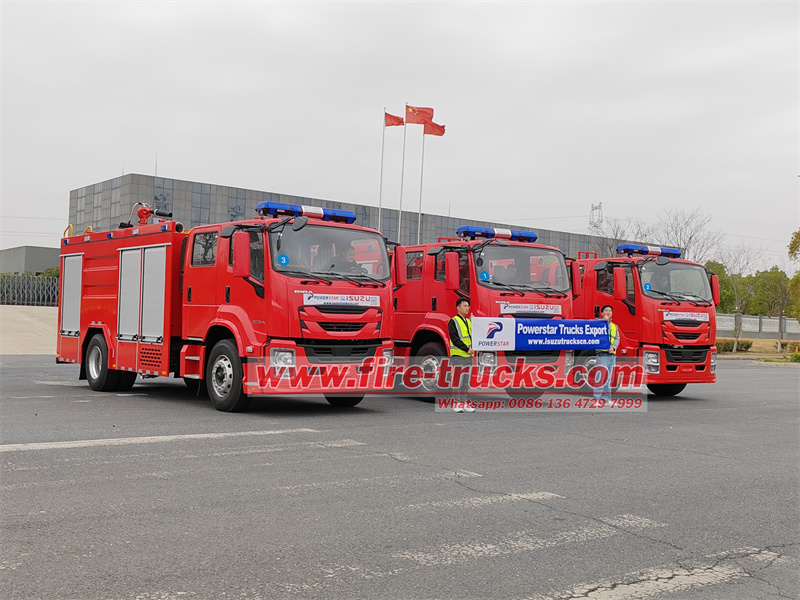

Powerstar Engineer testing and examing Isuzu fire trucks before delivery
» Ⅵ.Fire Trucks For Shipment:
After well tested and examed in our factory, POWERSTAR fire engine will be delivered to China seaport, and the seaport is optional as SHANGHAI, TIANJIN, LIANYUNGANG, QINGDAO, etc based on the latest shipment. And we can choose the Bulk, RORO, Container shipment for delivery, also can wax all trucks to guarantee no rust during long time sea delivery.

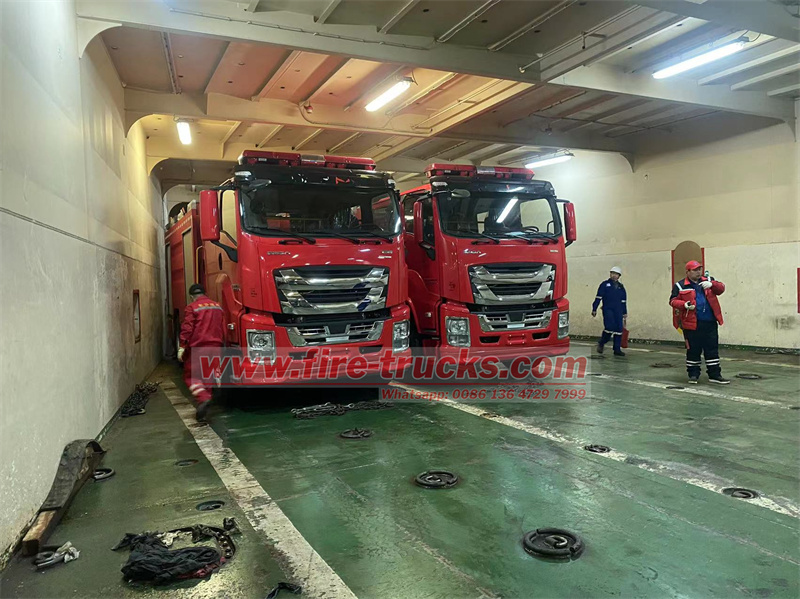

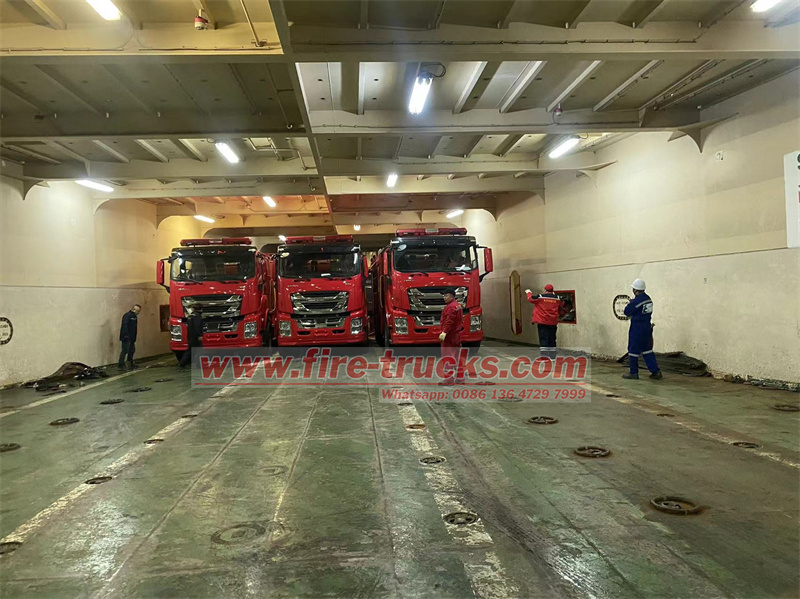

RORO shipmennt for Fire Trucks:

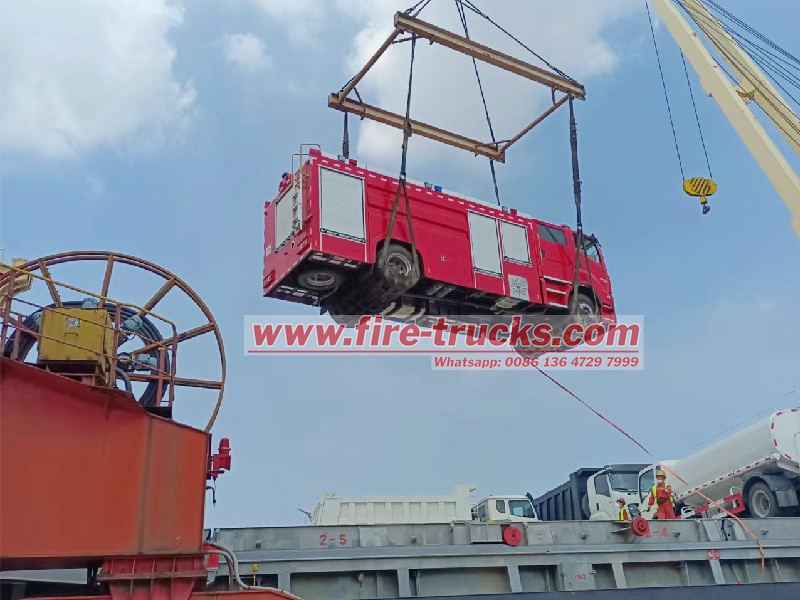

Bulk shipmennt for Fire Trucks:

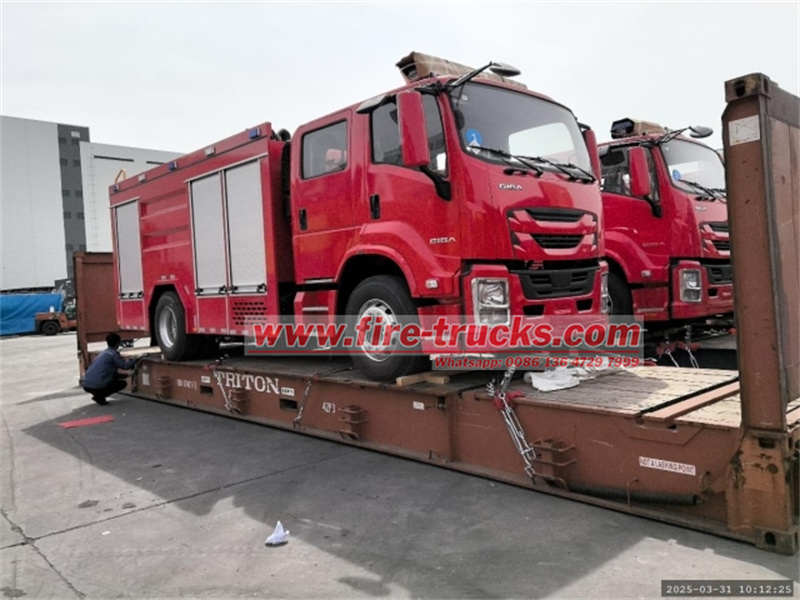

Container shipmennt for Fire Trucks:
