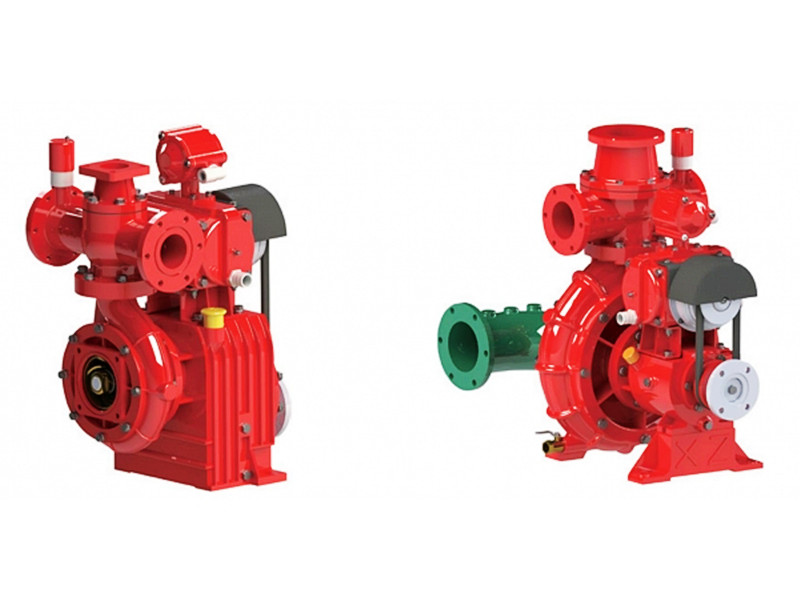

CB10 30 fire pump on promotion

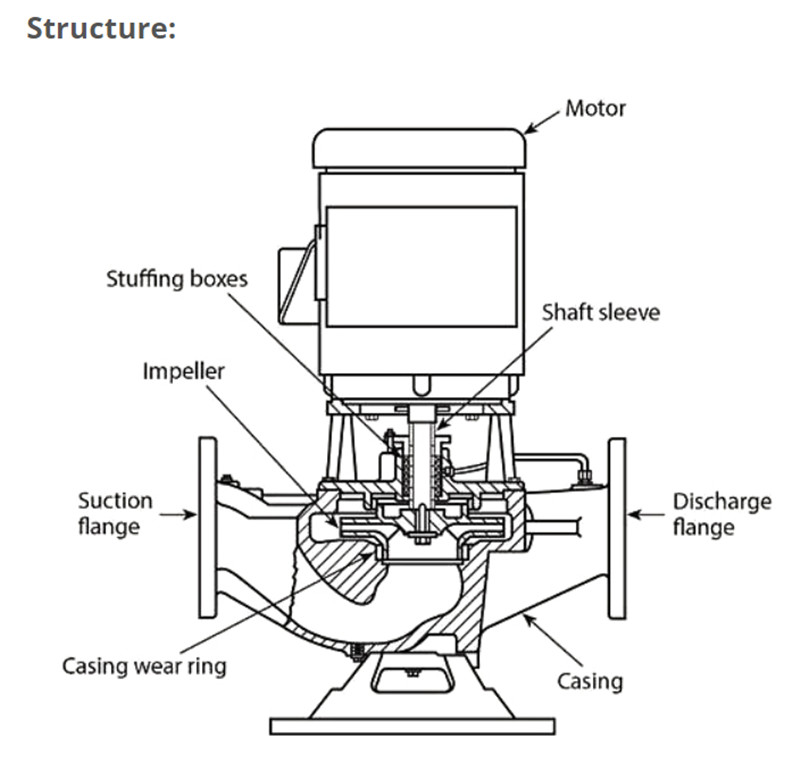

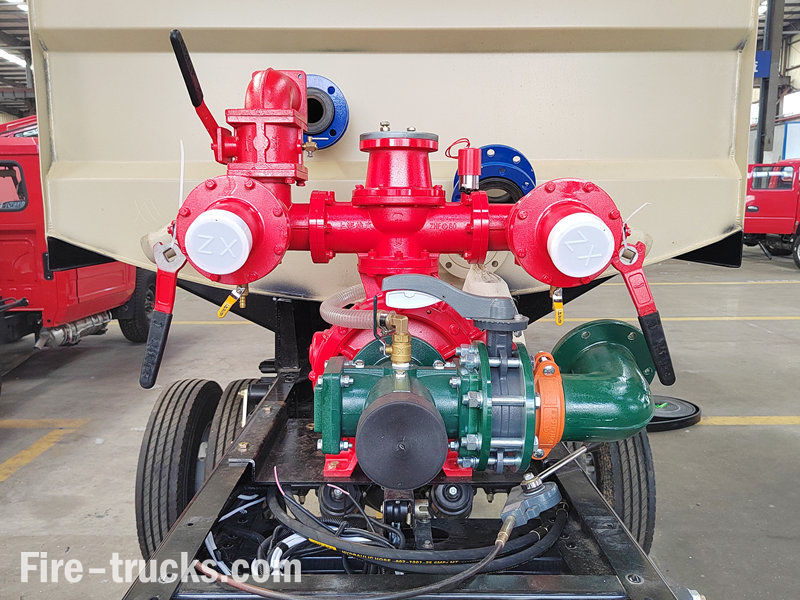

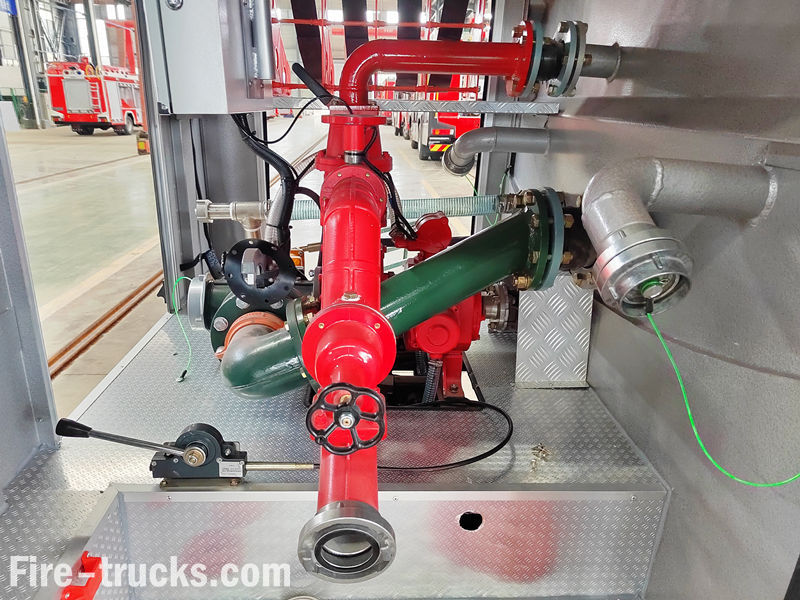

Fire rescue truck fire pump CB10 140 As core equipment in firefighting systems, fire truck centrifugal pumps are widely used for their efficient water delivery and diverse firefighting needs. With their high flow rates and high lift, centrifugal pumps are widely used in conventional firefighting scenarios, such as urban firefighting and building fires.

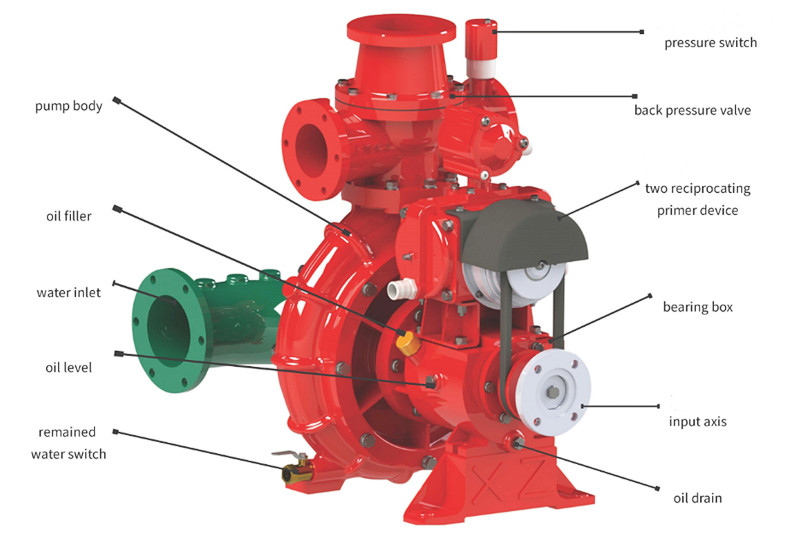

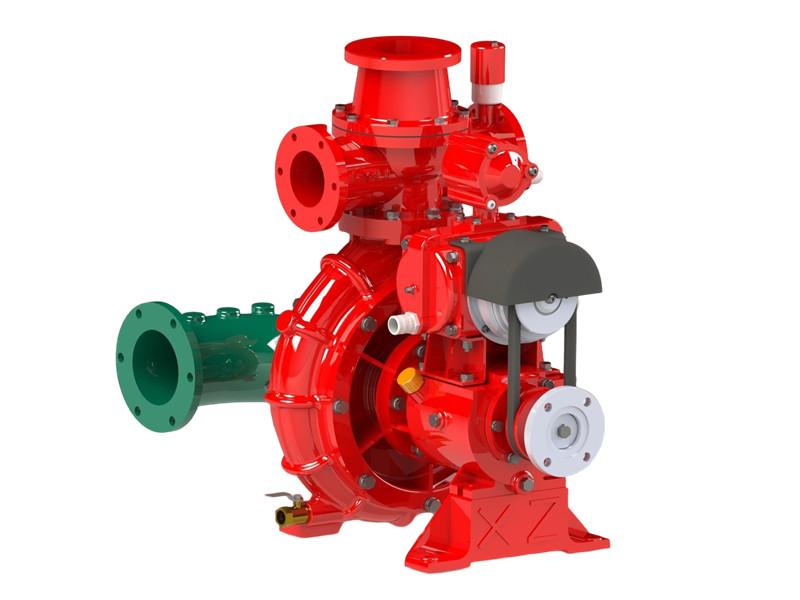

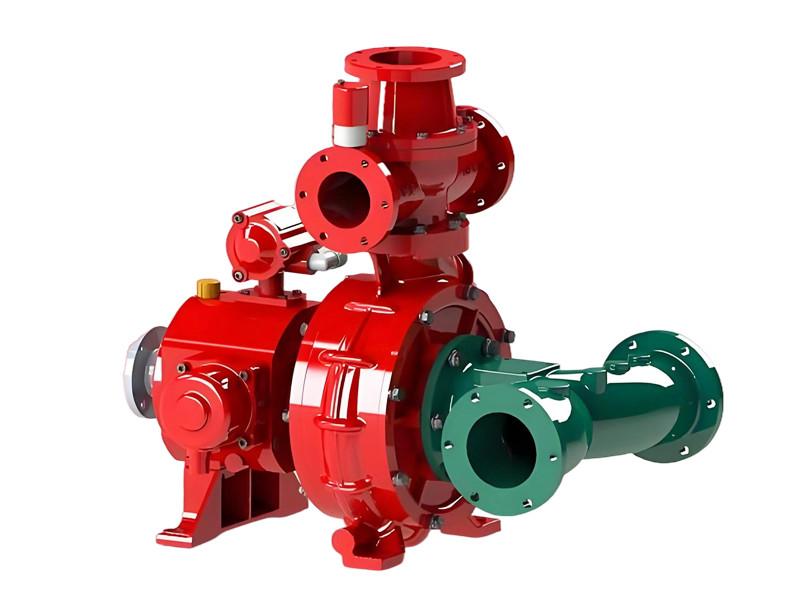

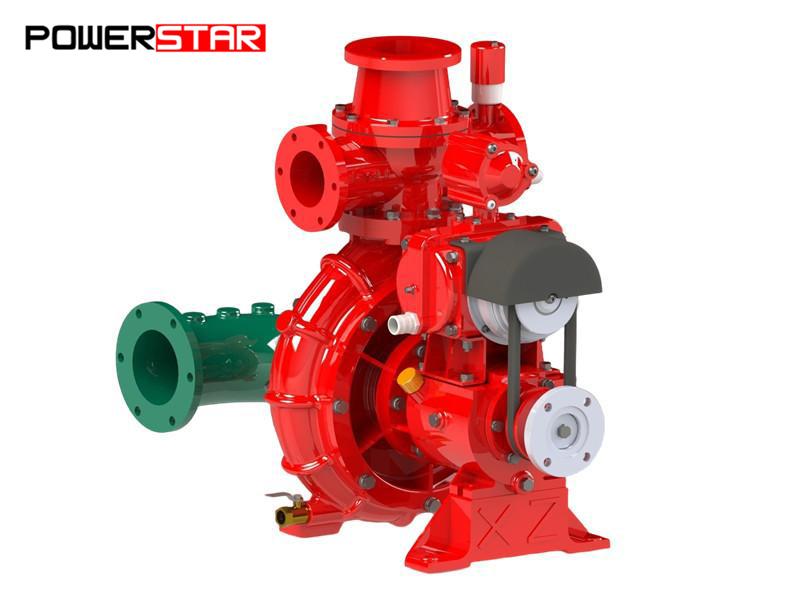

The CB10/60 low-pressure vehicle fire pump is characterized by excellent performance, high efficiency, compact structure, aesthetic design, simple operation, and convenient maintenance. It is suitable for medium and heavy-duty water tank fire trucks, foam fire trucks, and water tower fire trucks, etc.

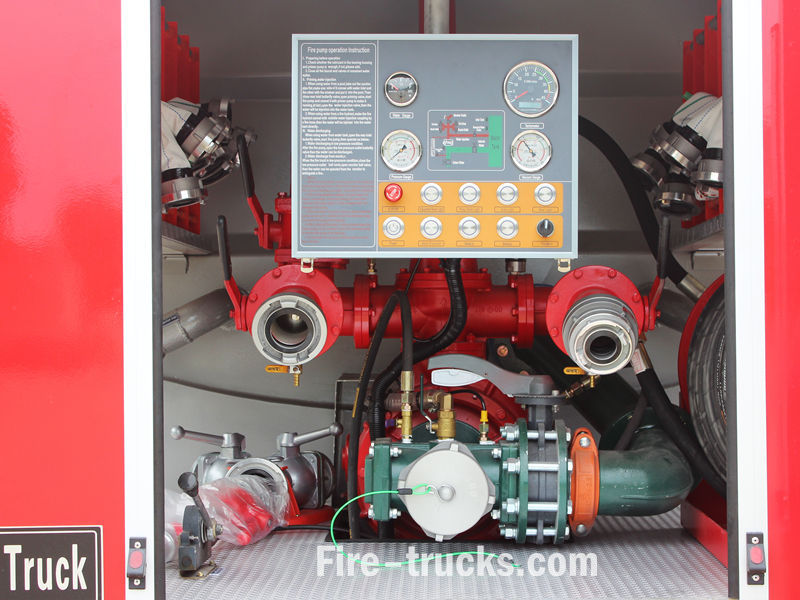

The HOWO 8×4 industrial fire tender runs on an MC11.46-61 engine rated at 463 HP, paired with a heavy-duty 8×4 chassis. Up front, the equipment compartment has aluminum treadplate walls and houses fire hoses, suction tubes, and basic rescue tools. The main body carries a 20,000L water tank and a 5,000L foam tank, both made of carbon steel. At the rear, the pump room holds a CB10/100 fire pump (100L/s at 1.0MPa), control panel, and accessories like filters, couplings, and foam nozzles. A PL8/80 roof-mounted monitor provides 360° rotation and a range of ≥45m.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a wheelbase of 4600mm+1370mm. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8500L carbon steel water tank and a 1500L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/48 fire monitor is located on the roof.

The HOWO 6x4 heavy rescue foam fire truck uses a SINOTRUK HOWO 6x4 chassis with 4600+1400 mm wheelbase. It runs on an MC11.46-61 engine rated at 460 HP with a manual transmission. The truck carries a 14700L water tank and a 3300L foam tank. A CB10/80 fire pump (80 L/s at 1.0 MPa) and a roof mounted PL8/64 monitor (64 L/s, water ≥60 m, foam ≥70 m) handle fire suppression. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.

The Fire Truck Foam Cannon PL48 is a manual fire monitor that can spray both foam and water. It has a rated flow rate of 48 L/s, a rated pressure of 0.8 MPa, a water spray range of ≥70 m, and a foam spray range of ≥60 m. The monitor can rotate 360° horizontally and has an elevation angle of -30° to 70°, offering flexible operation.

The Isuzu FVR 6 cubic meter foam fire truck uses an Isuzu FVR chassis with a 4500mm wheelbase. It is equipped with an Isuzu 6HK1-TCL engine, a Fast 8-speed transmission, a 5-ton carbon steel water tank (with anti-corrosion treatment), a 1-ton 304 stainless steel foam tank, a Shanghai Xiongzhen CB10/40 low-pressure fire pump (rear-mounted pump room), a Chengdu West PL32 fire monitor, and a 30-meter medium-pressure hose reel in the pump house.

The HOWO rescue tender is powered by an MC07H.35-60 engine rated at 350 HP, built on a 4×2 chassis. At the front, a winch with 7000 kg capacity handles vehicle recovery or obstacle clearing. The rear section carries a hydraulic folding crane with a 5-ton lifting capacity and 8.3m reach. The equipment body features roll-up aluminum shutters on both sides, LED lighting, and fold-down steps for easy access. A roof-mounted mast lighting system extends up to 8m, powered by a 15kVA generator for night operations.
