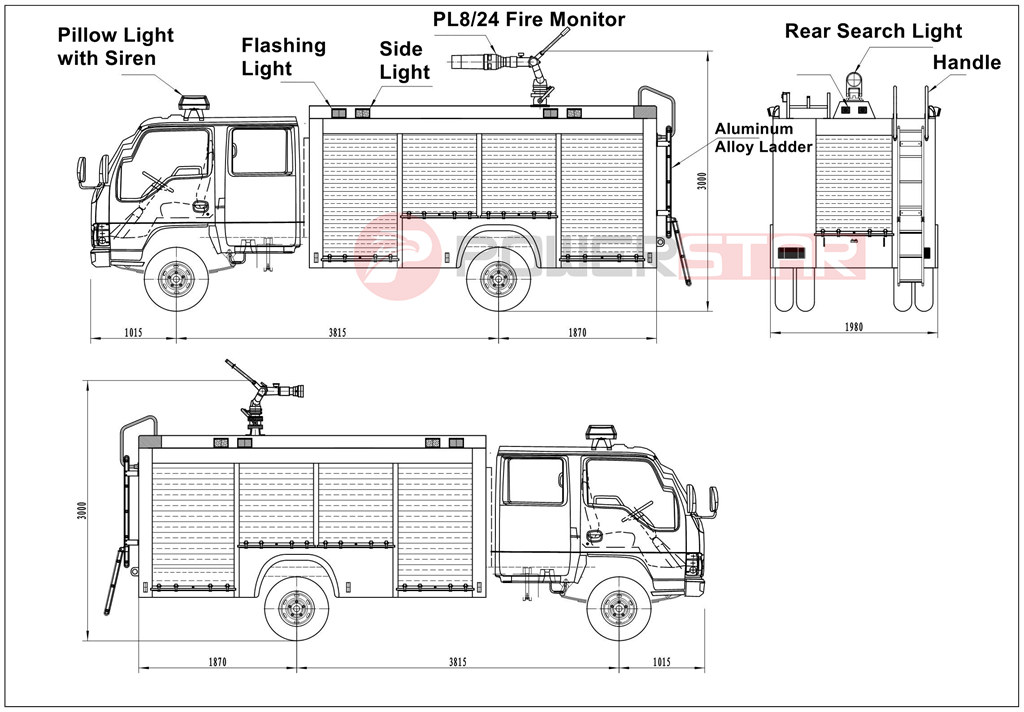

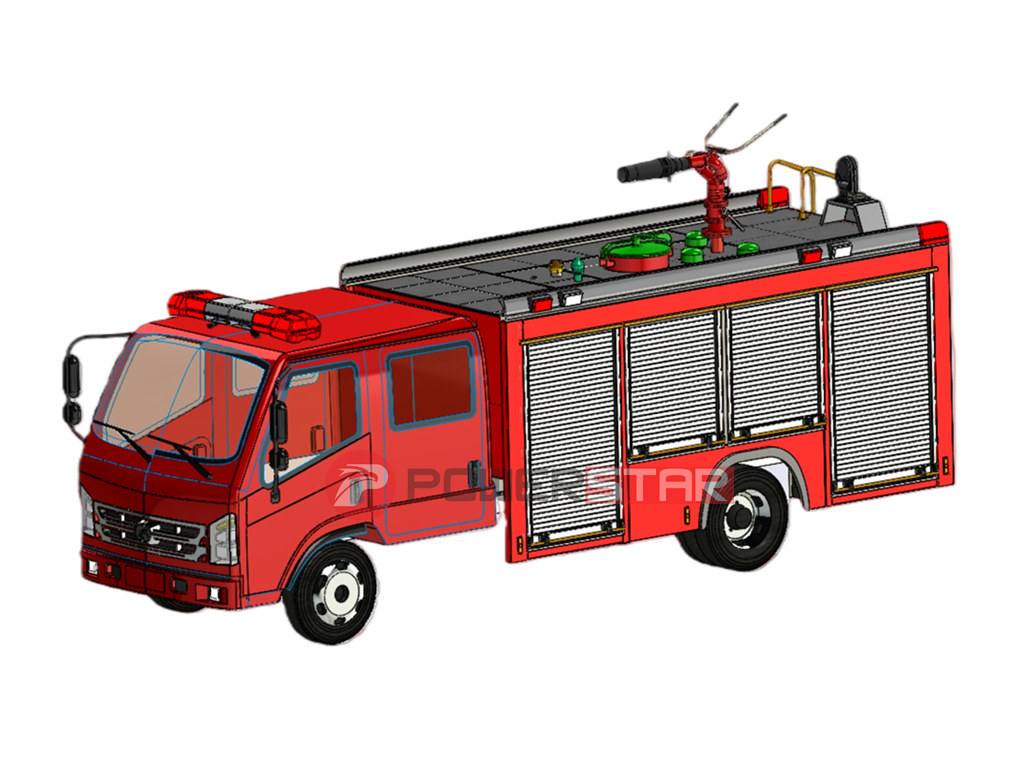

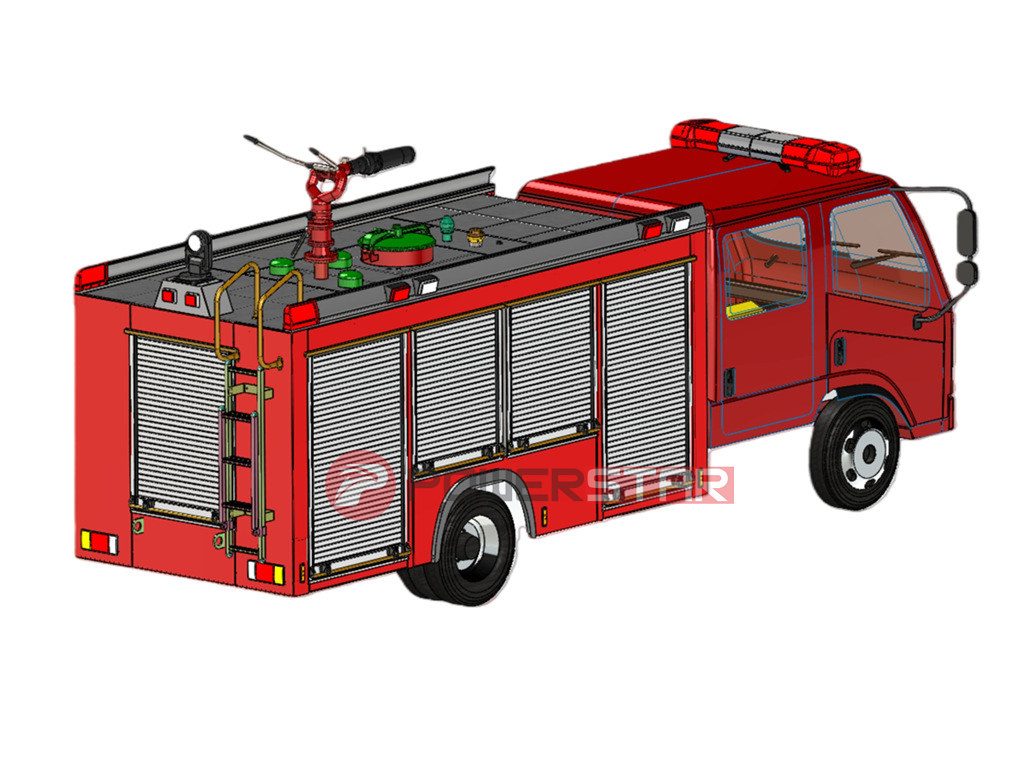

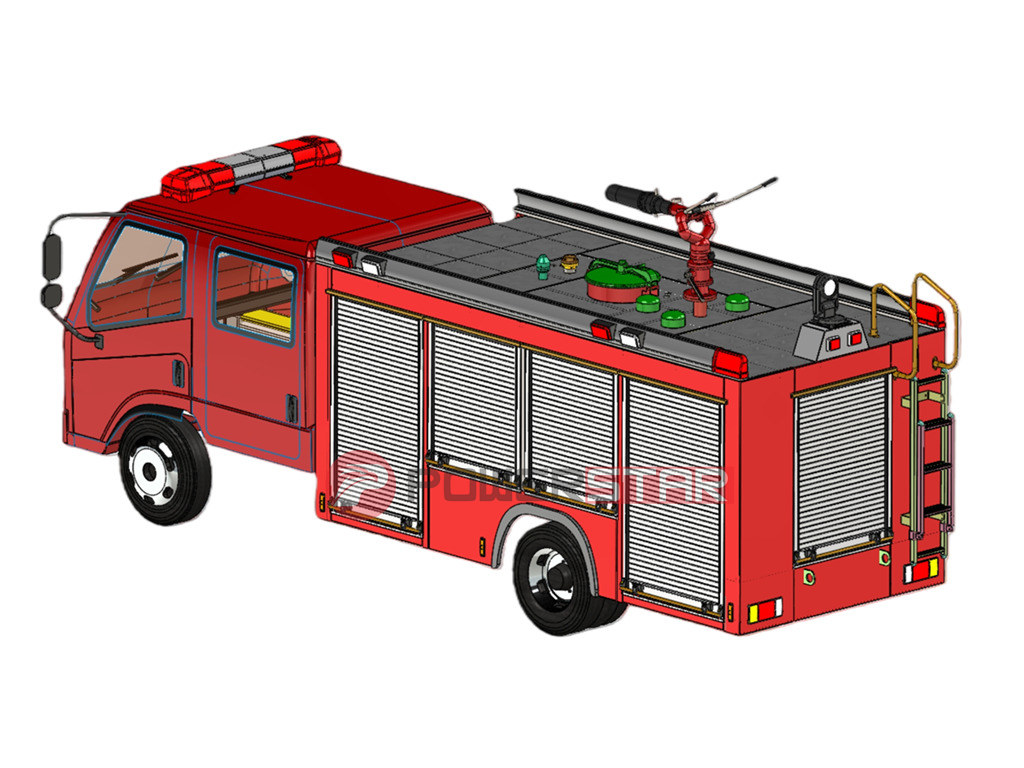

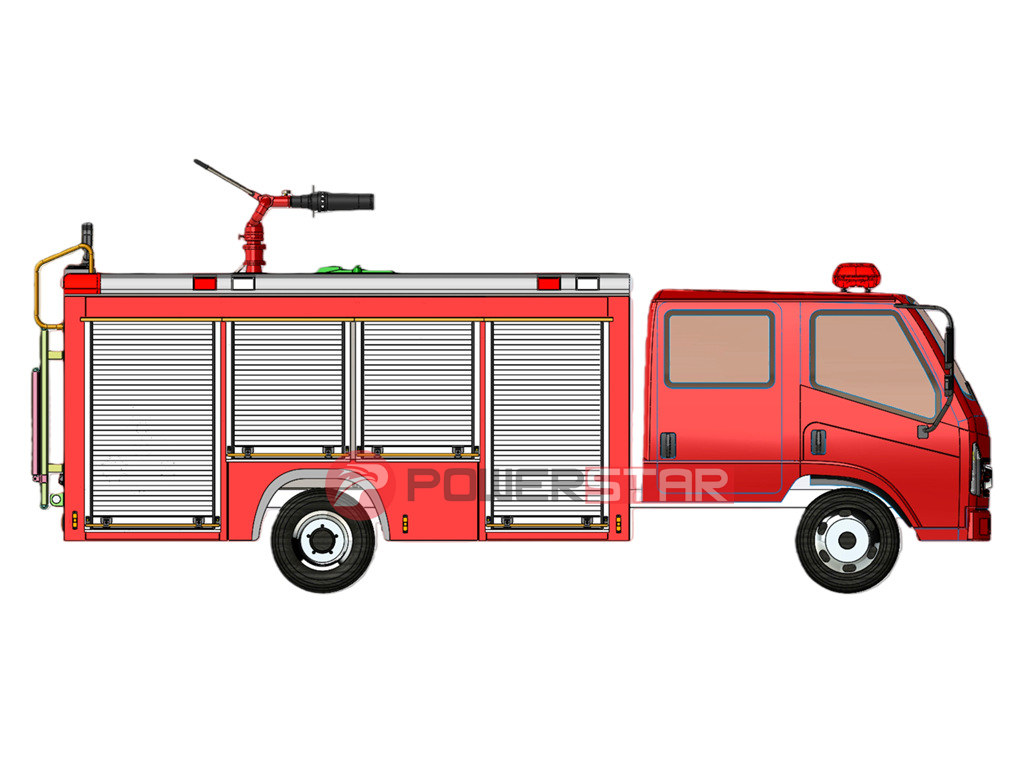

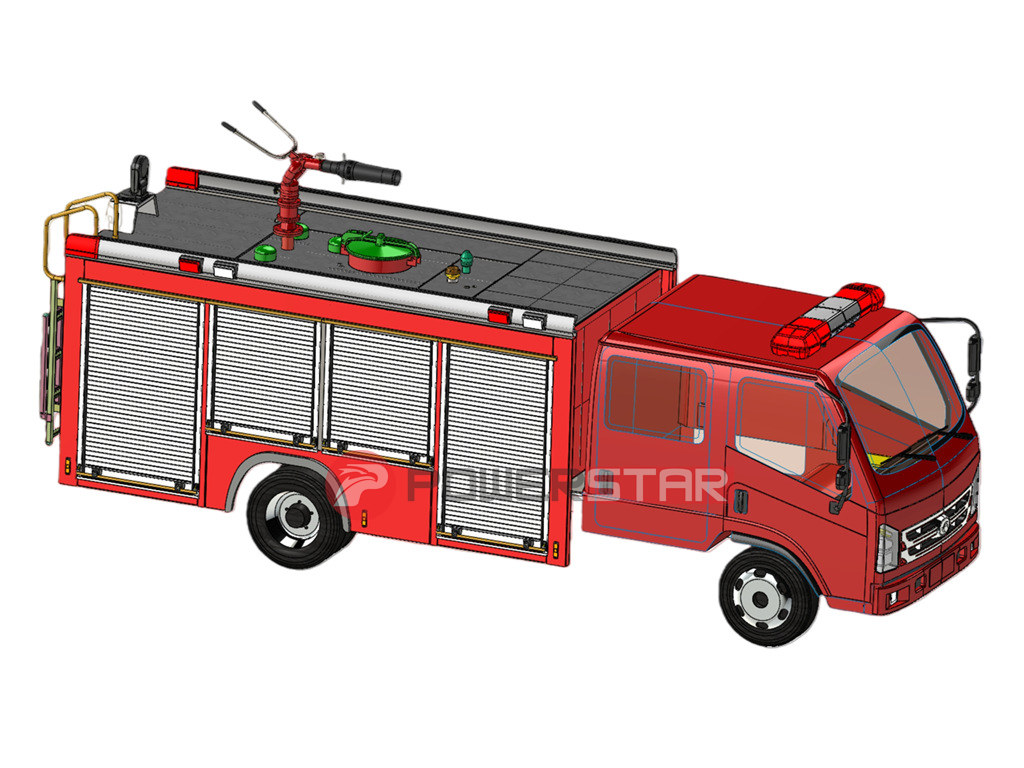

4x4 Off road ISUZU wildland fire truck design drawing

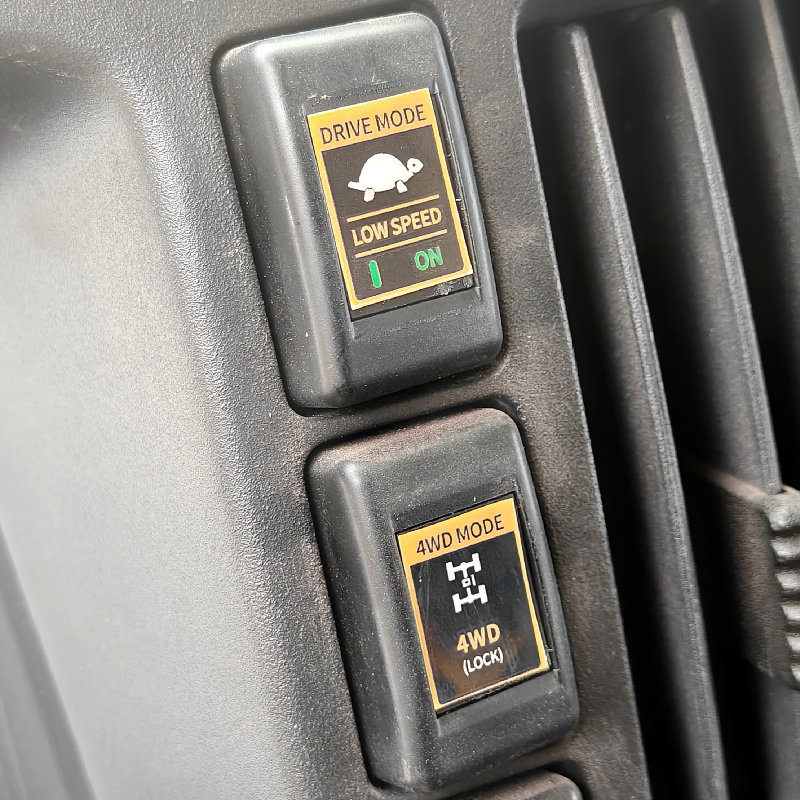

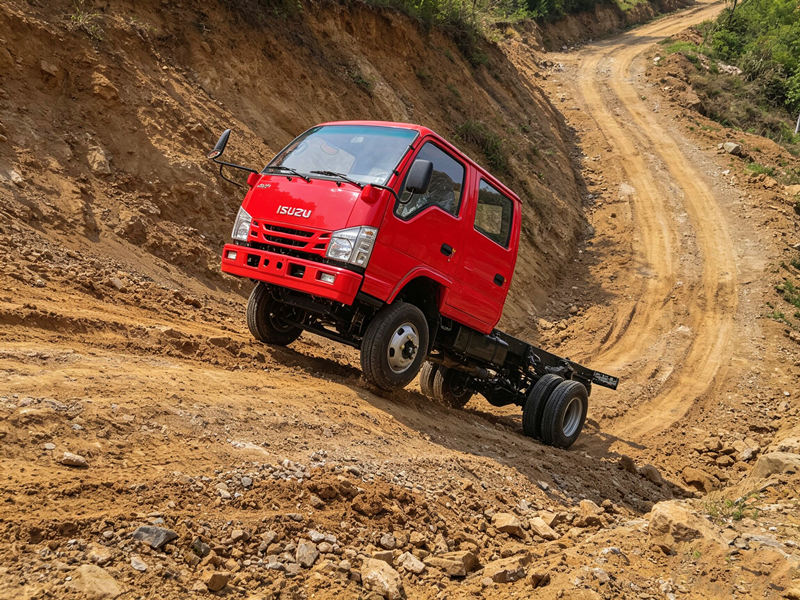

ISUZU 4x4 offroad fire fighting trucks are specialized designed and produced based on original ISUZU technology truck chassis, optional chassis model QL1070BUHWY with wheelbase 3360mm and QL1070BUKWY with wheelbase 3815mm, Equipped 120HP and emission 2999ml, matched MSB 5 shift manual gearbox for efficiently power output and lower fuel comsumption. 4x4 offroad drive model with in cabin control button for wildland working, full sets fire fighting and rescue tools, all guarantee newly designed ISUZU NKR 4x4 AWD fire engine an ideal wildland rescue truck.   PDF Download: ISUZU NKR 4x4 offroad Fire Rescue Truck design drawing   Name Model Engine Agent Pump Monitor Control Tools Isuzu fire truck 4x4 Offroad 4KH1CN6LB 120HP / 2999cc 2000L Water 500L foam CB10/30 PL8/24 Integrated Full Equipped   ISUZU 4x4 offroad fire engine for forest fire extinguishing   How to produce ISUZU NKR 4x4 offroad wildland fire fighting truck? ⇓ ISUZU wildland fire truck is special designed 4x4 offroad fire engine and used for forest fire extinguishing. Which fully relay on the advanced feature of ISUZU NKR 4x4 offroad truck chassis, and each truck chassis modify as 4x4 will do wildland testing, including mountain climbing with slope angle over 40 degree, also escape from the quagmire, the in cabin air way control valve can make the change more conveniently: 4x2 / 4x4 drive model High Speed / Low Speed optional Name ISUZU Fire Truck Cabin NKR, optional color and painting Driving LHD 4x4 offroad Engine 4KH1CN6LB diesel engine, 120HP and emission can be 2999cc Tranmission MSB 5 shift manual type, 5F & 1R Wheelbase 4500 mm Tire 7.00R16, 6+1 units   After wildland testing, ISUZU 4x4 offroad truck will chassis will be in POWERSTAR factory for fire tanker upper body kit design and manufacturer, customized 2000Liters water tanker and 500Liters foam tanker, all based on stainless steel 304 material, inner designed with baffles. Sandwich PTO get power from MSB 5 shift manual gearbox and transfer to rear mounted CB10/30 fire pump via shaft, top mounted with PL8/24 water foam fire monitor, details specification and 3D drawing as below: Capacity 2000L water tank and 500L foam tank Tanker Material Stainless Steel SS304 material, thickness 4mm Fire Pump Top Chinese brand CB10/30 model Flow rate: 30 L/s Pressure: 1.0 Mpa Rotation Speed: 3050±50 rpm Working Power: 49 kW Self Suction Height: 3-7m Fire Monitor Top Chinese brand PL8/24 model Flow rate: 24 L/s Pressure: 0.8-1.0 Mpa Position: Top Mounted Painting 100% customized painting and logos     ISUZU 4x4 fire truck 3D drawing   ISUZU 4x4 offroad wildland rescue fire fighting truck 3D drawing     Isuzu 4x4 Fire Truck with Off-road functions mainly used in tough road conditions, with recommend speed not too high. ⇓ 1.    Off-road Isuzu 4x4 / 6x6 fire truck not allowed driving with speed over 50km/h. If speed at 50km/h, truck should stop for one hour after...

Moldova Emergency Isuzu fire service pickup, also named Isuzu fire rescue pickup or Isuzu RIV pickup, combine high mobility with strong off-road capabilities, adapting to various rescue needs. In cities, they can nimbly navigate narrow streets and underground parking lots, quickly towing broken-down vehicles; in complex terrain, they can penetrate mountains and sandy areas to perform personnel search and rescue and transport supplies.   Furthermore, they can be modularly modified to transform into small fire trucks, emergency power vehicles, drainage and flood control vehicles, participating in initial fire suppression, power supply assurance, and urban flooding management, making them highly efficient equipment for emergency rescue and municipal engineering.     Moldova Emergency Isuzu fire service pickup drawing share   Moldova Emergency Isuzu fire service pickup drawing share     Highspeed road accident Repairs ISUZU Pickup truck rescue vehicles, with their compact and agile bodies, can quickly reach the scene of highway accidents. They can move broken or damaged vehicles by lifting and towing, and with the help of onboard demolition tools, first aid kits, fire extinguishers and other equipment, they can assist in rescuing trapped people, dealing with initial fires, efficiently clearing roads, and ensuring highway traffic order and driver and passenger safety.     Energency Line Repairs ISUZU brand Pickup truck rescue service vehicles, equipped with generators and repair tools, can support emergency line repairs and ensure the rapid restoration of communication networks, making them an important force in emergency communication support.     Earthquake Rescue After the earthquake, ISUZU 4X4 pickup trucks, with their strong off-road capabilities, went deep into the disaster area, carrying demolition and life detection equipment to search for trapped people, transport emergency supplies, and also serve as temporary command and power supply nodes to restore lifelines to the earthquake zone.     Trafic Accident Rescue ISUZU Pickup truck emergency service vehicles quickly rushed to the scene of the traffic accident to carry out on-site warning, rescue of the injured, road clearing and traffic control, cooperate in handling the accident and emergency, quickly restore road traffic, and do everything possible to ensure the safety and efficiency of accident rescue.         Emergency Rescue Equipment List for ISUZU Pickup Fire Service Vehicle   Category Equipment Name Specification Quantity Purpose Configuration Level Fire Fighting & Water Supply System Vehicle-mounted fire pump Medium & low pressure 1.0~2.0MPa 1 set Pressurized water supply at fire scenes Mandatory   Fire hose Φ65 20m per roll 4~6 rolls Water transmission and connection Mandatory   Dual-purpose straight & spray fire nozzle DN65 2~3 pieces Water jet fire fighting & mist prot...

Sinotruk Sitrak urban main fire fighting vehicle, also called as HOWO brand civil defence firefighting vehicle or HOWO chassis city fire department truck, produced by our company is built on the ZZ5206N471GF5 Class 2 truck chassis manufactured by Jinan Truck Co., Ltd. of China National Heavy Duty Truck Group. Equipped with an original double-row cab, the vehicle can carry up to 6 crew members including the driver, providing comfortable and flexible driving experience.   PDF Download: SITRAK Urban Fire Rescue Truck design 3D drawing   SITRAK Urban Fire Rescue Truck design drawing   HOWO brand civil defence firefighting vehicle is fitted with the WIT-CAFS-PRO-60/100 on-board compressed air foam system, which features simple operation and fully automatic real-time precise microcomputer control for foam generation, together with multiple protection and alarm systems. Firefighters can conveniently select different fire extinguishing foam types such as dry foam and wet foam via push buttons in accordance with complex fire scene conditions. This system is pre-charged with both Class A and Class B foam concentrates, enabling efficient extinguishing and control of Class A and Class B fires with excellent environmental performance, which significantly enhances the fire extinguishing efficiency of the fire fighting vehicle.       HOWO chassis Fire Department Truck Main Specifications: Item Specification Model CS5180GXFAP60／S6 Overall Dimensions 9200 × 2520 × 3600 mm Gross Vehicle Mass 18450 kg Liquid Capacity 4500 L (Water); 600 L (Class A Foam); 1000 L (Class B Foam) Maximum Speed 110 km/h Rated Flow of Fire Pump 60 L/s @ 1.0 MPa Rated Flow of Fire Monitor 48 L/s @ 0.8 MPa Fire Monitor Range ≥70 m (Water); ≥60 m (Class B Foam) Front Winch Specification Max. Pulling Force: 75 kN; Drive Type: Electric Lifting Light Specification Max. Ground Clearance Height: ≥8.3 m Approach Angle / Departure Angle 15° / 11°   SINOTRUK HOWO Urban Firefighting Vehicle 3D drawing   SINOTRUK HOWO Urban Firefighting Vehicle 3D drawing     SINOTRUK HOWO Urban Firefighting Vehicle Capacity:  Item Specification Capacity 4500 L water; 600 L Class A foam; 1000 L Class B foam Material Tank body made of 304 stainless steel plates - Tank side and end plates: 3 mm stainless steel plates - Tank top plate: 3 mm stainless steel checkered plate Structure Steel plate welded structure with built-in anti-slosh baffles Equipment - 2 manhole covers with quick-locking and quick-release devices - 3 liquid level indicators - 3 drain outlets controlled by manual valves - 2 breather valve ports - 1 overflow device - 1 Class A foam filling port Technical Requirements Comply with relevant provisions of XF 39 Fire Fighting Vehicles – Requirements and Test Methods   drawing of HOWO brand civil defence firefighting vehicle   drawing of HOWO brand civil defence firefighting vehicle   HOWO Urban Fire Vehic...

Isuzu Chassis Fire Trucks Body Builders User Manual, also known as the Isuzu fire truck chassis body assembly manual, Isuzu fire fighting vehicle body builder handbook, or Isuzu fire engine body fabrication user manual, is a core technical guide designed specifically for fire truck modification manufacturers. Based on Isuzu's mature commercial chassis, it focuses on the entire process of modifying, assembling, and adapting fire truck-specific superstructures, serving as a crucial technical document bridging the gap between the original chassis design and customized fire-fighting functions.   Directly Download: Isuzu chassis Fire Trucks body builders user manual              The core content of the Isuzu Fire Truck Chassis & Body Assembly Manual revolves around chassis compatibility. It first clarifies the structural parameters, frame strength data, power output interfaces, and electrical system specifications of Isuzu fire truck chassis (including light/medium/heavy-duty series such as ELF, FVR, and GIGA), providing precise technical guidance for superstructure modifications.   Secondly, the installation standards for the dedicated fire-fighting superstructure are specified in detail, including the fixing specifications for water tanks/foam tanks, the connection requirements for fire pumps (such as the CB series) and power take-offs, pipeline layout and sealing standards, as well as the installation dimensions and load-bearing standards for equipment boxes, fire monitors, and other equipment, ensuring the structural stability and functional reliability of the modified vehicle.                           Meanwhile, the Isuzu Fire Fighting Vehicle Body Builder Handbook covers safety compliance requirements, clearly defining the emission standards, road safety regulations, and vehicle weight distribution principles that must be followed during the modification process, avoiding any impact on chassis performance and driving safety due to improper modification. Furthermore, it provides guidance on maintenance interface reservations and convenient maintenance design, helping modification manufacturers balance functionality and future maintenance, making it an essential technical manual for building compliant and efficient Isuzu chassis fire trucks.   Take a look at other Fire truck technical drawing that may be of interest to you:   ● ISUZU VC66 heavy fire vehicle user manual ● GIGA ISUZU Water fire engine operation manual ● Techical drawing for Isuzu ELF 700P 2500 liter foam fire truck ● HOWO Rescue Fire Fighting Truck mounted Crane technical drawing

ISUZU QL1070BUKWY foam tender fire service truck drawing, also called as Isuzu foam fire vehicle drawing or Isuzu rescue fire truck drawing, is composed of components such as the Isuzu QL1070BUKWY chassis, water and foam tanks, fire pump, piping system, and instrument & electrical system.   The Isuzu chassis Foam Tank Fire Truck is equipped with a detachable aluminum alloy rear ladder, and the pump room is located at the rear of the truck. The tanks adopt a steel plate welded structure, with a water capacity of 1.36 cubic meters and a foam liquid capacity of 0.5 cubic meters.     ▶Truck Model : ISUZU Foam tender fire service truck  ▶Speficiation : 1500 L water + 500 L foam  ▶Application Area : Fire resuce department / Municipal fire bureau      Truck Item  Speficiation  Project Location ISUZU 4x2 Foam Fire Truck    1500 liters, 500 Liters    Fire rescue department   ISUZU QL1070BUKWY foam tender fire service truck drawing   Item Specification Vehicle Model CS5070GXFPM20/Q6A Overall Dimensions 6800×1990×2990 mm Gross Vehicle Mass 6800 kg Liquid Capacity 1500 L (Water); 500 L (Foam) Max. Speed 95 km/h Rated Flow of Fire Pump 30 L/s @ 1.0 MPa Rated Flow of Fire Monitor 24 L/s @ 0.8 MPa Fire Monitor Range ≥55 m (Water); ≥42 m (Foam) Approach Angle / Departure Angle 24° / 14°   New ISUZU 2000L water foam fire fighting trucks technical drawing share   2026 ISUZU Foam fire vehicle CAD drawing share   2026 ISUZU cab chassis fire truck drawing share   Original technical drawing for Isuzu foam fire engine   Isuzu chassis Foam Tank Fire Truck technical drawing   The water tank of Isuzu foam fire truck is made of high-quality carbon steel plate with anti-corrosion treatment on the inner wall, while the foam tank is made of 304 stainless steel. The fire truck is fitted with a Model CB10/30 fire pump and a Model PL8/24 dual-purpose fire monitor.     Item Specification Chassis Model Isuzu 600P QL1070BUKWY, China National Stage VI Emission Drive Type 4×2 Wheelbase 3815 mm Max. Speed 115 km/h Engine Model 4KH1CN6LB Rated Power 88 KW Gross Mass 7020 kg   ISUZU Fire engine front view   Foam tender Front right view   Foam fire vehicle rear view     Item Specification Capacity 1360 L (Water); 500 L (Foam) Material Water tank: high-quality carbon steel plate with internal anti-corrosion treatment. - Bottom plate: 4 mm carbon steel plate - Side plates & end plates: 3 mm carbon steel plate - Top plate: 3 mm carbon steel checkered plate   Foam tank: high-quality stainless steel plate. - Bottom plate: 4 mm stainless steel plate - Side plates & end plates: 3 mm stainless steel plate - Top plate: 3 mm stainless steel checkered plate Structure Steel plate welded structure with internal anti-slosh baffles Equipments • 1 manhole cover with quick locking and opening device...

The CS5030TXFQC15 Dongfeng Nissan RIV fire pickup Vehicle is modified on the basis of the Dongfeng Nissan ZN1033UCM6A 4WD pickup truck. The complete vehicle mainly consists of a double-cab pickup chassis with high maneuverability, warning lights, interior pull-out equipment trays and other components.   Dongfeng Nissan RIV fire pickup drawing share      ▶Truck Model : Dongfeng Nissan Rescue Fire pickup  ▶Speficiation : Quickly  rescue  ▶Application Area : Fire resuce department / Municipal fire bureau      Truck Item  Speficiation  Project Location DONGFENG NISAN 4x4 Fire pickup   Lighting and fire equipments    Fire rescue department     Core Purpose： 01： Used for the transportation of emergency rescue equipment and materials in sudden natural disasters, safety accidents, fires and other emergencies. 02： Military, public security special service, fire rescue support.     Item Specification Overall Dimensions (mm) 5537 × 1850 × 1950 Curb Weight (kg) 2205 Gross Vehicle Weight (kg) 2580 Engine Power (kW) 122 Number of Occupants 2+3 Maximum Speed (km/h) 155 Approach Angle / Departure Angle (°) 33 / 25 Specific Power (kW/T) 47.29 Emission Standard GB18352.6-2016 China Ⅵ Emergency Repair 03: Inspection and emergency repair of pipelines for petroleum, chemical industry, natural gas, water supply and power supply. 04: Transportation of equipment and materials for emergency repair and maintenance of equipment faults such as high-voltage power transmission and transformation lines, expressways and mines. Nissan fire pickup front view Side view fire pickup Rear view fire pickup       Documents on board Item 01 Vehicle Technical Documents 02 Chassis Operation Manual 03 Chassis Number Rubbing 04 Chassis Maintenance Manual 05 Fire Truck Operation Manual 06 Chassis Quality Warranty Card 07 Fire Truck Certificate of Conformity 08 Chassis Certificate of Conformity 09 Fire Truck After-Sales Tracking Service Card 10 A Set of Chassis Tools 11 Fire Truck Handover List 12 Engine Number Rubbing   Dongfeng Nissan Rescue Fire Pickup Factory Pictuers   Main features of Dongfeng Nissan fire pickup:(1) High maneuverability and strong passability;(2) Equipped with pull-out equipment trays inside the vehicle for convenient and quick access.

FOTON 4x4 1500L Fire Pickup Rapid intervention vehicle, also named FOTON rescue pickup or Foton rapid fire engine, are widely used in various emergency rescue scenarios due to their high mobility, strong off-road capability, and flexible modification, and are especially suitable for complex terrains and narrow areas that are difficult for traditional large fire trucks to reach.   The foton fire pickup is equipped with an aluminum alloy rear ladder (removable), with the pump room located at the rear of the vehicle.The tank is steel plate welded and made of high-quality aluminum alloy plate, with a water capacity of 1.5 cubic meters.The vehicle is equipped with a CB10/30 fire pump and a PS8/30W fire water monitor. FOTON 1500L Fire Pickup Rapid intervention vehicle technical drawing    ▶Truck Model : FOTON 4x4 RIV rescue pickup  ▶Speficiation : 1500 L water   ▶Application Area : Fire resuce department / Municipal fire bureau    Truck Item  Speficiation  Project Location FOTON 4x4 RIV pickup    1500 liters, 190 Hp engine    Fire rescue department   FOTON Rescue fire pickup CAD drawing   FOTON Rescue fire pickup CAD drawing   Foton RIV side view Foton fire pickup side view Foton fire engine rear view   Item Specification Vehicle Model CS5040GXFSG15/B6B Overall Dimensions 5080 × 1940 × 2640 mm Maximum Total Mass 4130 kg Liquid Capacity 150 L (Water) Maximum Speed 135 km/h Rated Flow of Fire Pump 30 L/s @ 1.0 MPa Rated Flow of Fire Monitor 30 L/s @ 0.8 MPa Range of Fire Monitor ≥ 60 m (Water) Approach Angle / Departure Angle 28° / 23°     FOTON RIV equipped fire pickup factory picture   FOTON RIV equipped fire pickup factory picture   FOTON RIV equipped fire pickup factory picture   FOTON Fire pickup on board equipment: Category No. Name Specification Qty Unit Remarks Fire Extinguishing Equipment 1 Suction Hose DN100 8 m Threaded type   2 Strainer FLF100 1 pc Threaded type   3 Water Divider FII80/65×2-1.6 1 pc Instantaneous coupling   4 Water Manifold JII100/65×2-1.6 1 pc Internal thread to instantaneous coupling   5 Fire Hose 13-65-20 6 roll Normal pressure; instantaneous coupling   6 Fire Hose 13-80-20 2 roll Normal pressure; instantaneous coupling   7 Fire Hose 13-65-5 1 roll Instantaneous coupling (for external water filling)   8 Reducing Adapter KJ65/80 1 pc Instantaneous coupling   9 Hose Cloth - 4 pcs -   10 Hose Bridge - 2 pair -   11 Hose Hook - 4 pcs -   12 Above-ground Fire Hydrant Wrench - 1 pc -   13 Underground Fire Hydrant Wrench - 1 pc -   14 Suction Hose Wrench 100 2 pcs -   15 Straight Stream Shut-off Nozzle QZG3.5/7.5; 65 1 pc Instantaneous coupling   16 Straight Stream & Spray Nozzle QLD6.0/6.5I; 65 1 pc Instantaneous coupling Forcible Entry & Rescue Tools 1 Fire Extinguisher 3kg / ABC 1 unit - ...

CS trucks as the most professional Water foam powder firefighting vehicle manufacturer in China, all our Dry powder and foam combined fire trucks are particularly suitable for extinguishing fires involving flammable gases, flammable liquids, organic solvents, electrical equipment, and general materials. They are widely used in high-risk locations such as petrochemical enterprises, oil depots, airports, ports, and urban special service fire stations.    This Isuzu Water foam powder firefighting vehicle technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department.  Upon on different kinds of commands, customer can require wide range of wheelbase ( 3900 mm, 4500mm, 5000mm) and engine horse power ( 240 Hp, 300 Hp)  ▶Truck Model : Isuzu FVR/GIGA  ▶Speficiation : 3000 L water + 1000 L foam + 1000L dry powder  ▶Application Area : Fire resuce department / Municipal fire bureau    Truck Item  Speficiation  Project Location  Isuzu 4x2 foam powder fire truck    5000 liters, 240 Hp engine    Fire rescue department     2026 NEW Water foam powder firefighting vehicle drawing share   2026 NEW Water foam powder firefighting vehicle drawing share   2026 dry powder firefighting vehicle dry powder testing   2026 NEW Water foam powder firefighting vehicle water jetting testing   Design Section Specific design content 1. Design Overview 1. Applicable scenarios: High-risk locations such as petrochemical enterprises, large oil depots, and airports. 2. Functional Features: Integrates dry powder and foam fire extinguishing technologies, suitable for extinguishing fires involving flammable liquids, combustible gases, electrical equipment, and general fires; prevents reignition and provides rapid fire control. 3. Design Standards: Complies with national standards such as GB 7956.4-2019 and GB 7956.2-2014. 2. Vehicle Chassis Design 1. Powertrain Configuration: 6×4 internationally renowned brand chassis, V6 turbocharged diesel engine, power ≥350KW, China VI emission standard, power-to-weight ratio ≥10Kw/t, speed ≥100km/h 2. Basic configuration: ABS+ASR intelligent braking, full- power PTO , front and rear tow hooks, and metal parts resistant to seawater corrosion. 3. Cabin: Flat-front, four-door, double-row seating, accommodating 6 people; equipped with a panoramic recorder, reversing camera, and in-car radio; adjustable seats with air respirator brackets for safety and convenience. 3.1. Upper Structure System Design – Tank System 1. Volumetric structure: Internal compartmentalized design, total volume ≥12m³ (water tank ≥6m³, foam tank ≥3m³, dry powder tank ≥3m³) 2. Material and manufacturing process: 304 stainless steel, bottom plate ≥5mm, side plate ≥4mm; internal anti-sloshing baffle, m...

Isuzu 700P foam fire fighting is emergency quick action fire rescue trucks. It has great advantage on japan isuzu 4x2 and 4x4 drive truck chassis, in terms of dacades of experience on this classic rigid truck chassis, Isuzu 700P water foam truck has become the first choice of many fire departments.     This Isuzu ELF fire rescue truck technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department.  Upon on different kinds of commands, customer can require wide range of wheelbase ( 3360 mm 3815 mm, 4715 mm) and engine horse power ( 190 Hp, 205 Hp)  ▶Truck Model : Isuzu 700P/ELF  ▶Speficiation : 2000 L water + 500 L foam  ▶Application Area : Fire resuce department / Municipal fire bureau    Truck Item  Speficiation  Project Location  Isuzu 4x2 foam fire truck    2500 liters, 190 Hp engine    Fire rescue department   3 options for Isuzu ELF 700P fire rescue trucks

The HOWO emergency rescue fire truck with crane is a multi-functional fire truck integrating demolition, towing, lifting, and lighting capabilities, specifically designed for complex disaster scenes. Its core configuration includes a 5-ton folding boom crane, a 3-ton hydraulic winch, a 500W searchlight, and a generator set, enabling it to perform lifting, towing, and lighting tasks.   It is suitable for natural disaster and traffic accident scenes, performing demolition, rescue, and power generation tasks. Its modular design allows for quick adjustments to equipment layout to adapt to different rescue needs.     ⇒Drawing PDF Download: HOWO Rescue Fire Fighting Truck mounted Crane technical drawing     Front Left view HOWO Rescue Fire Fighting Truck mounted Crane technical drawing   HOWO Emergency Rescue Crane Fire-Fighting Vehicle   Main  specification Cabin  DOUBLE CABIN ,6 PERSON ALLOWABLE Crane Model SQ5ZK2 Lifting capacity 5000kg Arm qty 3 Winch Qty 1 Capacity 3000kg Search light Rotating angle 360° Working height 5m, auto lifting Buble 500w*4pcs Max wind velocity <6 grade Genaral power 5kw Fire truck body Truck body is empty, equipments are optional color The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck   Technical drawing of HOWO Emergency Rescue Crane Fire-Fighting Vehicle Design drawing HOWO Emergency Rescue Fire Engine with Crane   Right side view HOWO heavy rescue fire vehicle   Right side view HOWO service fire trucks     Front right view HOWO emergency rescue fire engine drawing   Right side view HOWO service fire tender technical drawing   Front right view HOWO Emergency Rescue Crane Fire-Fighting Vehicle   Rear left view HOWO Emergency Rescue Crane Fire-Fighting Vehicle   How to Maintain and Repair HOWO Rescue Fire Truck: 1. Power and Hydraulic Systems Engine: Check coolant and oil levels and idle stability. Hydraulic System: Check for oil pipe leaks, change hydraulic oil regularly, and clean the oil tank. Power Take-Off (PTO): Ensure smooth engagement and normal hydraulic pump operation.   2.  Specialized Rescue Equipment Torture System: Check winch wire rope wear and lubricate traction connection components. Mutilation Tools: Test the hydraulic cutter and spreader functions; ensure seals are not aged. Lifting Equipment: Calibrate the outriggers of the truck-mounted crane and check the boom hydraulic locking device. Lighting System: Lubricate the guide rails of the lifting light assembly and test the portable high-intensity flashlight.   Howo brand Fire Rescue Truck with Crane testing   3.  Auxiliary Support Systems Communication and Command: Satellite equipment requires regular calibration; ensure multi-screen display terminals are fault-free. Medical Emergency: Check defibrillator battery power and update first-aid kit medications to the...
