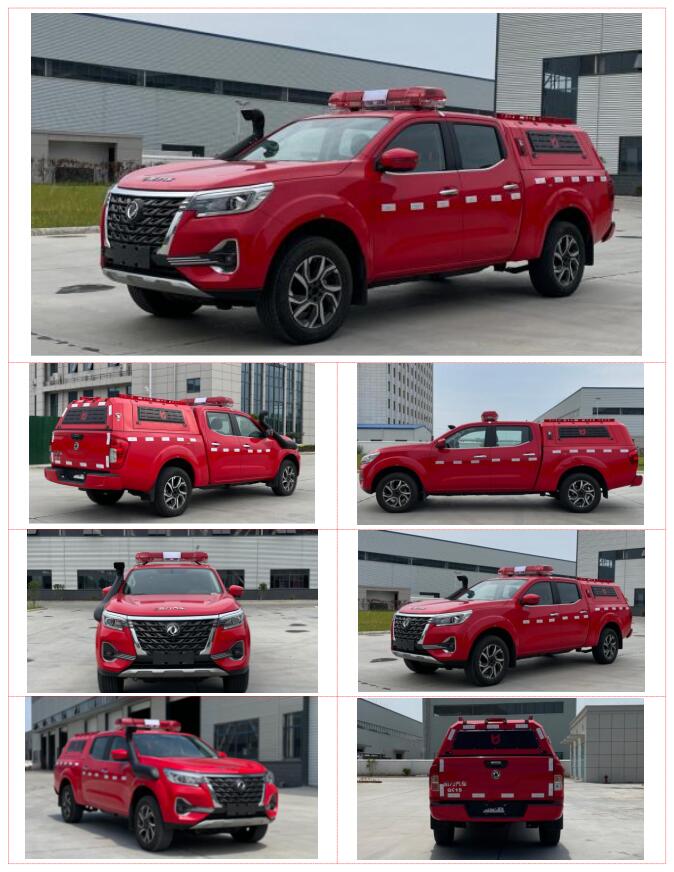

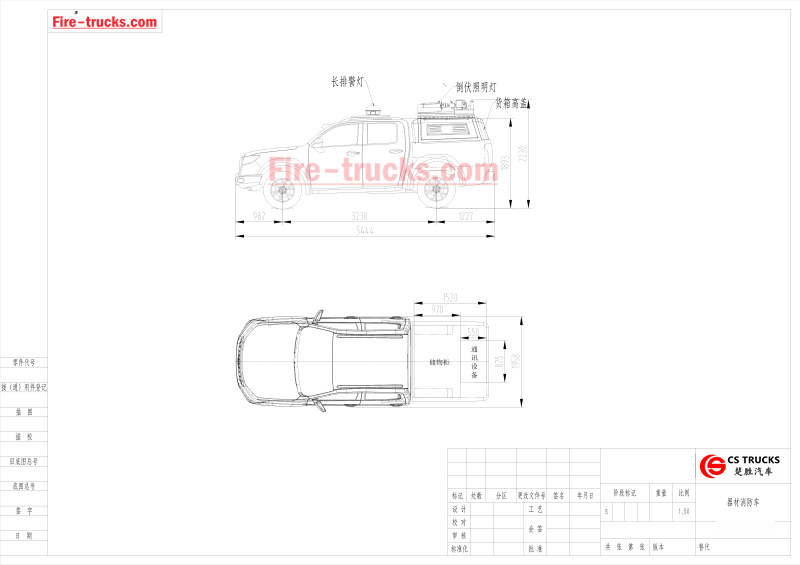

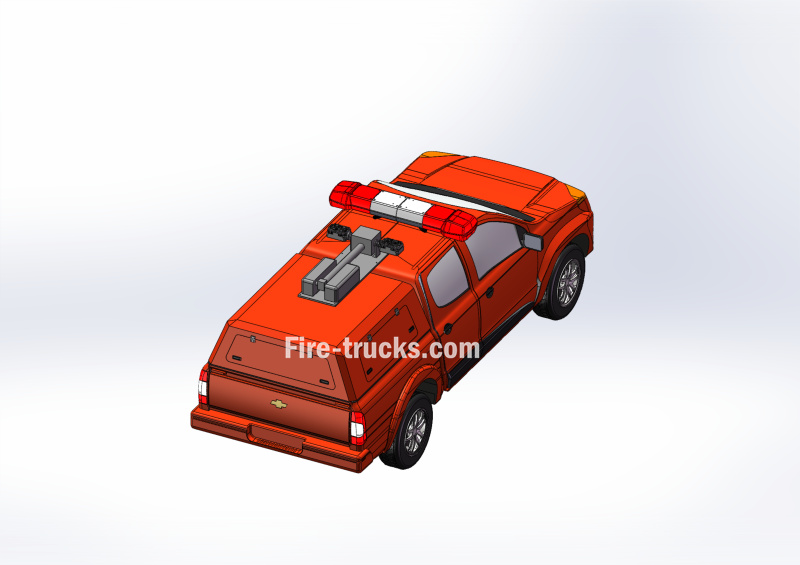

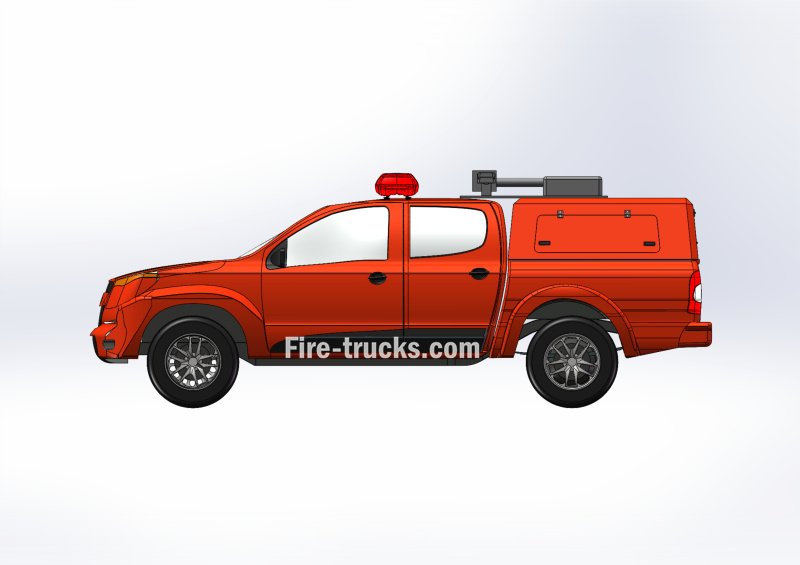

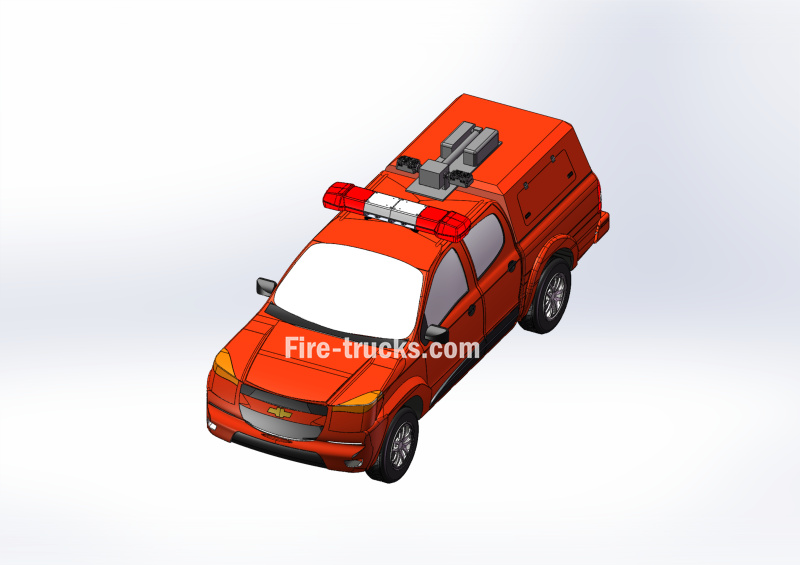

Dongfeng Nissan RIV fire pickup drawing share

The CS5030TXFQC15 Dongfeng Nissan RIV fire pickup Vehicle is modified on the basis of the Dongfeng Nissan ZN1033UCM6A 4WD pickup truck. The complete vehicle mainly consists of a double-cab pickup chassis with high maneuverability, warning lights, interior pull-out equipment trays and other components.   Dongfeng Nissan RIV fire pickup drawing share      ▶Truck Model : Dongfeng Nissan Rescue Fire pickup  ▶Speficiation : Quickly  rescue  ▶Application Area : Fire resuce department / Municipal fire bureau      Truck Item  Speficiation  Project Location DONGFENG NISAN 4x4 Fire pickup   Lighting and fire equipments    Fire rescue department     Core Purpose： 01： Used for the transportation of emergency rescue equipment and materials in sudden natural disasters, safety accidents, fires and other emergencies. 02： Military, public security special service, fire rescue support.     Item Specification Overall Dimensions (mm) 5537 × 1850 × 1950 Curb Weight (kg) 2205 Gross Vehicle Weight (kg) 2580 Engine Power (kW) 122 Number of Occupants 2+3 Maximum Speed (km/h) 155 Approach Angle / Departure Angle (°) 33 / 25 Specific Power (kW/T) 47.29 Emission Standard GB18352.6-2016 China Ⅵ Emergency Repair 03: Inspection and emergency repair of pipelines for petroleum, chemical industry, natural gas, water supply and power supply. 04: Transportation of equipment and materials for emergency repair and maintenance of equipment faults such as high-voltage power transmission and transformation lines, expressways and mines. Nissan fire pickup front view Side view fire pickup Rear view fire pickup       Documents on board Item 01 Vehicle Technical Documents 02 Chassis Operation Manual 03 Chassis Number Rubbing 04 Chassis Maintenance Manual 05 Fire Truck Operation Manual 06 Chassis Quality Warranty Card 07 Fire Truck Certificate of Conformity 08 Chassis Certificate of Conformity 09 Fire Truck After-Sales Tracking Service Card 10 A Set of Chassis Tools 11 Fire Truck Handover List 12 Engine Number Rubbing   Dongfeng Nissan Rescue Fire Pickup Factory Pictuers   Main features of Dongfeng Nissan fire pickup:(1) High maneuverability and strong passability;(2) Equipped with pull-out equipment trays inside the vehicle for convenient and quick access.

FOTON 4x4 1500L Fire Pickup Rapid intervention vehicle, also named FOTON rescue pickup or Foton rapid fire engine, are widely used in various emergency rescue scenarios due to their high mobility, strong off-road capability, and flexible modification, and are especially suitable for complex terrains and narrow areas that are difficult for traditional large fire trucks to reach.   The foton fire pickup is equipped with an aluminum alloy rear ladder (removable), with the pump room located at the rear of the vehicle.The tank is steel plate welded and made of high-quality aluminum alloy plate, with a water capacity of 1.5 cubic meters.The vehicle is equipped with a CB10/30 fire pump and a PS8/30W fire water monitor. FOTON 1500L Fire Pickup Rapid intervention vehicle technical drawing    ▶Truck Model : FOTON 4x4 RIV rescue pickup  ▶Speficiation : 1500 L water   ▶Application Area : Fire resuce department / Municipal fire bureau    Truck Item  Speficiation  Project Location FOTON 4x4 RIV pickup    1500 liters, 190 Hp engine    Fire rescue department   FOTON Rescue fire pickup CAD drawing   FOTON Rescue fire pickup CAD drawing   Foton RIV side view Foton fire pickup side view Foton fire engine rear view   Item Specification Vehicle Model CS5040GXFSG15/B6B Overall Dimensions 5080 × 1940 × 2640 mm Maximum Total Mass 4130 kg Liquid Capacity 150 L (Water) Maximum Speed 135 km/h Rated Flow of Fire Pump 30 L/s @ 1.0 MPa Rated Flow of Fire Monitor 30 L/s @ 0.8 MPa Range of Fire Monitor ≥ 60 m (Water) Approach Angle / Departure Angle 28° / 23°     FOTON RIV equipped fire pickup factory picture   FOTON RIV equipped fire pickup factory picture   FOTON RIV equipped fire pickup factory picture   FOTON Fire pickup on board equipment: Category No. Name Specification Qty Unit Remarks Fire Extinguishing Equipment 1 Suction Hose DN100 8 m Threaded type   2 Strainer FLF100 1 pc Threaded type   3 Water Divider FII80/65×2-1.6 1 pc Instantaneous coupling   4 Water Manifold JII100/65×2-1.6 1 pc Internal thread to instantaneous coupling   5 Fire Hose 13-65-20 6 roll Normal pressure; instantaneous coupling   6 Fire Hose 13-80-20 2 roll Normal pressure; instantaneous coupling   7 Fire Hose 13-65-5 1 roll Instantaneous coupling (for external water filling)   8 Reducing Adapter KJ65/80 1 pc Instantaneous coupling   9 Hose Cloth - 4 pcs -   10 Hose Bridge - 2 pair -   11 Hose Hook - 4 pcs -   12 Above-ground Fire Hydrant Wrench - 1 pc -   13 Underground Fire Hydrant Wrench - 1 pc -   14 Suction Hose Wrench 100 2 pcs -   15 Straight Stream Shut-off Nozzle QZG3.5/7.5; 65 1 pc Instantaneous coupling   16 Straight Stream & Spray Nozzle QLD6.0/6.5I; 65 1 pc Instantaneous coupling Forcible Entry & Rescue Tools 1 Fire Extinguisher 3kg / ABC 1 unit - ...

CS trucks as the most professional Water foam powder firefighting vehicle manufacturer in China, all our Dry powder and foam combined fire trucks are particularly suitable for extinguishing fires involving flammable gases, flammable liquids, organic solvents, electrical equipment, and general materials. They are widely used in high-risk locations such as petrochemical enterprises, oil depots, airports, ports, and urban special service fire stations.    This Isuzu Water foam powder firefighting vehicle technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department.  Upon on different kinds of commands, customer can require wide range of wheelbase ( 3900 mm, 4500mm, 5000mm) and engine horse power ( 240 Hp, 300 Hp)  ▶Truck Model : Isuzu FVR/GIGA  ▶Speficiation : 3000 L water + 1000 L foam + 1000L dry powder  ▶Application Area : Fire resuce department / Municipal fire bureau    Truck Item  Speficiation  Project Location  Isuzu 4x2 foam powder fire truck    5000 liters, 240 Hp engine    Fire rescue department     2026 NEW Water foam powder firefighting vehicle drawing share   2026 NEW Water foam powder firefighting vehicle drawing share   2026 dry powder firefighting vehicle dry powder testing   2026 NEW Water foam powder firefighting vehicle water jetting testing   Design Section Specific design content 1. Design Overview 1. Applicable scenarios: High-risk locations such as petrochemical enterprises, large oil depots, and airports. 2. Functional Features: Integrates dry powder and foam fire extinguishing technologies, suitable for extinguishing fires involving flammable liquids, combustible gases, electrical equipment, and general fires; prevents reignition and provides rapid fire control. 3. Design Standards: Complies with national standards such as GB 7956.4-2019 and GB 7956.2-2014. 2. Vehicle Chassis Design 1. Powertrain Configuration: 6×4 internationally renowned brand chassis, V6 turbocharged diesel engine, power ≥350KW, China VI emission standard, power-to-weight ratio ≥10Kw/t, speed ≥100km/h 2. Basic configuration: ABS+ASR intelligent braking, full- power PTO , front and rear tow hooks, and metal parts resistant to seawater corrosion. 3. Cabin: Flat-front, four-door, double-row seating, accommodating 6 people; equipped with a panoramic recorder, reversing camera, and in-car radio; adjustable seats with air respirator brackets for safety and convenience. 3.1. Upper Structure System Design – Tank System 1. Volumetric structure: Internal compartmentalized design, total volume ≥12m³ (water tank ≥6m³, foam tank ≥3m³, dry powder tank ≥3m³) 2. Material and manufacturing process: 304 stainless steel, bottom plate ≥5mm, side plate ≥4mm; internal anti-sloshing baffle, m...

Isuzu 700P foam fire fighting is emergency quick action fire rescue trucks. It has great advantage on japan isuzu 4x2 and 4x4 drive truck chassis, in terms of dacades of experience on this classic rigid truck chassis, Isuzu 700P water foam truck has become the first choice of many fire departments.     This Isuzu ELF fire rescue truck technical drawing is primarily designed for light and small fire fighting trucks. For example, city narrow road, small oil gas station,chemial area, highway department.  Upon on different kinds of commands, customer can require wide range of wheelbase ( 3360 mm 3815 mm, 4715 mm) and engine horse power ( 190 Hp, 205 Hp)  ▶Truck Model : Isuzu 700P/ELF  ▶Speficiation : 2000 L water + 500 L foam  ▶Application Area : Fire resuce department / Municipal fire bureau    Truck Item  Speficiation  Project Location  Isuzu 4x2 foam fire truck    2500 liters, 190 Hp engine    Fire rescue department   3 options for Isuzu ELF 700P fire rescue trucks

The HOWO emergency rescue fire truck with crane is a multi-functional fire truck integrating demolition, towing, lifting, and lighting capabilities, specifically designed for complex disaster scenes. Its core configuration includes a 5-ton folding boom crane, a 3-ton hydraulic winch, a 500W searchlight, and a generator set, enabling it to perform lifting, towing, and lighting tasks.   It is suitable for natural disaster and traffic accident scenes, performing demolition, rescue, and power generation tasks. Its modular design allows for quick adjustments to equipment layout to adapt to different rescue needs.     ⇒Drawing PDF Download: HOWO Rescue Fire Fighting Truck mounted Crane technical drawing     Front Left view HOWO Rescue Fire Fighting Truck mounted Crane technical drawing   HOWO Emergency Rescue Crane Fire-Fighting Vehicle   Main  specification Cabin  DOUBLE CABIN ,6 PERSON ALLOWABLE Crane Model SQ5ZK2 Lifting capacity 5000kg Arm qty 3 Winch Qty 1 Capacity 3000kg Search light Rotating angle 360° Working height 5m, auto lifting Buble 500w*4pcs Max wind velocity <6 grade Genaral power 5kw Fire truck body Truck body is empty, equipments are optional color The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck   Technical drawing of HOWO Emergency Rescue Crane Fire-Fighting Vehicle Design drawing HOWO Emergency Rescue Fire Engine with Crane   Right side view HOWO heavy rescue fire vehicle   Right side view HOWO service fire trucks     Front right view HOWO emergency rescue fire engine drawing   Right side view HOWO service fire tender technical drawing   Front right view HOWO Emergency Rescue Crane Fire-Fighting Vehicle   Rear left view HOWO Emergency Rescue Crane Fire-Fighting Vehicle   How to Maintain and Repair HOWO Rescue Fire Truck: 1. Power and Hydraulic Systems Engine: Check coolant and oil levels and idle stability. Hydraulic System: Check for oil pipe leaks, change hydraulic oil regularly, and clean the oil tank. Power Take-Off (PTO): Ensure smooth engagement and normal hydraulic pump operation.   2.  Specialized Rescue Equipment Torture System: Check winch wire rope wear and lubricate traction connection components. Mutilation Tools: Test the hydraulic cutter and spreader functions; ensure seals are not aged. Lifting Equipment: Calibrate the outriggers of the truck-mounted crane and check the boom hydraulic locking device. Lighting System: Lubricate the guide rails of the lifting light assembly and test the portable high-intensity flashlight.   Howo brand Fire Rescue Truck with Crane testing   3.  Auxiliary Support Systems Communication and Command: Satellite equipment requires regular calibration; ensure multi-screen display terminals are fault-free. Medical Emergency: Check defibrillator battery power and update first-aid kit medications to the...

Ghana HOWO dry powder fire truck, also named Howo dry chemical fire fighting vehicle or Howo rescue fire engine with powder. Howo chassis Dry powder fire trucks are specialized vehicles designed for extinguishing fires involving flammable liquids, combustible gases, electrical equipment, and general solid materials. They are particularly effective against large chemical pipeline fires and are standard equipment for petrochemical enterprises.   ⇒ Key Features    Capacity  Engine model         Water   Dry Powder  Foam      Fire Pump   Fire Monitor 12,000L  MC11.46 / 460HP 6,000L 2,000L 4,000L CB10/80 Fire Pump PL8/64     Drawing PDF Download:  Ghana HOWO dry powder fire truck technical drawing     Their core equipment consists of a dry powder tank and a spraying device. High-pressure nitrogen propels the dry powder extinguishing agent, utilizing the principles of chemical inhibition and physical coverage to rapidly extinguish the fire. Some models also feature a combined foam-dry powder system, enabling them to handle more complex fire environments.   Ghana's fire safety system is gradually improving, with the National Fire Service of Ghana (GNFS) at its core, responsible for fire prevention, fighting, and rescue operations nationwide. Ghana's fire regulations are based on the *Ghana Fire Service Act*, supplemented by documents such as the *National Fire Policy*, forming a legal framework.       Foam Water Dry powder fire fighting vehicle technical drawing     China Foam Water Dry powder fire trucks technical drawing Foam Dry powder fire engine drawing   Ghana Foam water dry powder fire truck factory   Regarding fire-fighting facilities, Ghana has a limited number of fire stations, mainly concentrated in major cities like Accra and Kumasi, with insufficient coverage in rural areas. Firefighting equipment primarily consists of basic equipment, including fire trucks, pumps, and extinguishers, but advanced equipment such as aerial ladder trucks and thermal imaging cameras is still lacking. Firefighters require professional training, but there is a shortage of personnel, and they face challenges such as harsh working conditions and low pay.   HOWO Foam Dry Powder Fire Truck drawing  Dry Powder fire fighting vehicle drawing     Factory Nitrogen Fire Engine drawing HOWO Dry Powder/Nitrogen Fire Truck drawing   Fire risks are prevalent in Ghana, with electrical faults, gas leaks, and human negligence being the main causes. To raise public awareness, the Ghanaian government promotes fire safety knowledge through media campaigns, community activities, and school education. Furthermore, Ghana actively participates in international fire cooperation, exchanging experiences and providing technical assistance with numerous countries and international organizations. ...

FEDERAL FIER SERVICE NIGERIA trust Isuzu Foam fire trucks from Powerstar. This Isuzu Foam trucks with 5,000L water and 1,000L foam, adopt ISUZU 6HK1-TC diesel engine, MLD 6-shift gearbox, 60L/S CB10/60 fire pump and strong fire monitor.   Nigeria is the most populous country in Africa, with approximately 227 million people. English is the official language, and Abuja is the capital. The country is rich in oil resources and is Africa's largest oil producer, but its economy is highly diversified, and it relies heavily on food imports.   ⇒ Key Features    Capacity  Engine model         Water    Foam      Fire Pump   Fire Monitor 6,000L  6HK1 / 240HP 5,000L 1,000L CB10/60 Fire Pump PL8/48     ⇒ Drawing PDF Download:  Nigeria Federal Single cabin Fire Service Truck Isuzu technical drawing   Nigeria Federal Fire Service Truck Isuzu technical drawing   Nigeria has over 250 ethnic groups, with Islam and Christianity being the main religions. Lagos, the largest city, is the economic center and possesses an important port in West Africa. The country has a hot climate, with the Niger River providing abundant water resources, but its security situation is complex, with extremist groups active in the northeast. Nigeria has a diverse culture and great potential for tourism, but attention should be paid to security issues in some areas.   Nigeria 6000L Federal Fire rescue vehicle Isuzu technical drawing   ⇒ Product Description  Model: PST5180GXF Water&Foam Fire Truck2. Dimension: Approx. 8640*2500*3560mm3. Full Load Weight: Approx. 18000kgs4. Number of the Crew: 6 (include driver)5. Max. Speed: 95km/h6. Compartment: Complete Aluminum Material and Never Rust7. Capacity: 5000L Water and 1000L Foam. 8. Fire pump flow rate: 60L/s @ 10bar9. Roof monitor flow rate: 48L/s10. Painting: Red Color or Others   Who is Federal Fire Serive Nigeria? Over 119 Years Of Experience The Fire Service in Nigeria was established in 1901 as an arm of the Lagos Police Fire Brigade. In April 1963, an Act of partliament established the Federal Fire Service.   Training and Education We provide professional development training for fire and rescue services personnel in the Country. This is in keeping with the Mission Statement of the service as it pertains producing firefighter proficient in the prevention and mitigation of fire and other emergencies. The National Fire Academy (NFA) in affiliation with Nigeria Defence Academy (NDA) is providing post graduate studies in various safety and security discipline. This is to further equip sister personnel with requisite skills in the discharge of their responsibilities.   The Federal Government reform of the Federal Fire Service in 2007, redefined the mandate of the service which includes: --Regulation of the state and Private Fire Services --Pr...

Today, we celebrate that Chile's National Fire Service recently procured Powerstar 12,000L rescue fire trucks (Isuzu chassis). This model is specifically designed for large-scale disaster relief. Powerstar trucks focus on Fire fighting equipment around 15 years,    Chile is the longest and narrowest country in South America, stretching 4,300 kilometers from north to south. Its terrain ranges from the Atacama Desert in the north to the Patagonian glaciers in the south, resulting in a diverse climate. As the world's largest producer of copper and supplier of lithium, it is rich in mineral resources, and its economy is based on mining and agriculture (such as cherries and wine).   Its culture blends Spanish and indigenous traditions, with the Moai statues of Easter Island and the Kueka dance being its unique symbols. The capital, Santiago, combines modern and historical elements, while the starry skies of the Atacama Desert and the glaciers of Torres del Paine National Park are natural wonders.   ⇒ Key Features    Capacity  Engine model         Water    Foam      Fire Pump   Fire Monitor 12,000L  6WG1 / 520HP 6,000L 6,000L CB10/140 Fire Pump PL8/64     ⇒ Drawing PDF Download:  Chile 12,000L Rescue Fire Engine Isuzu Design Drawing   2026 brand new Chile CB10/140 Fire pump 12,000L Rescue Fire Engine Isuzu Design Drawing   Nigeria Federal Fire engine foot pedal technical drawing   Nigeria Federal Fire tender Isuzu tank connection technical drawing Nigeria Lagos fire truck foam tank drawing Nigeria Lagos fire truck foam tank  bottom drawing   This model will enhance Chile's ability to respond to disasters such as earthquakes and wildfires, and is particularly suitable for its long, narrow terrain and volcanic environment.   Chile CB10/140 Fire pump Foam Fire engine Isuzu model for export   Chile CB10/140 Fire pump Foam Fire engine GIGA model for export   ⇒ Product Description  1. Model: PST5250GXF Water&Foam Fire Truck2. Dimension: Approx. 10040*2600*3560mm3. Full Load Weight: Approx. 25000kgs4. Number of the Crew: 6 (include driver)5. Max. Speed: 95km/h6. Compartment: Complete Aluminum Material and Never Rust7. Capacity: 6000L Water and 6000L Foam. 8. Fire pump flow rate: 140L/s @ 10bar9. Roof monitor flow rate: 64L/s10. Painting: Red Color or Others   Front right view Chile Fire water truck Isuzu Right side view Chile Foam Fire engine     Rear right view Chile Fire rescue vehicle Rear left view Chile Fire tender Isuzu   Chassis: Isuzu Giga fire rescue chassis, ISUZU 6WG1-TCG62 engine, FAST 12-shift gearbox. Large Capacity: 6,000-liter water tank and 6,000L Foam, capable of handling forest fires or urban high-rise rescues. High-Performance Configuration: 520-horsepower engine, 75-meter range fire monitor, adaptable to...

Powerstar Brand Dominican Giga Fire Engine technical drawing, also called as Dominican fire rescue truck drawing or Design drawing for Dominican giga Isuzu Fire fighting vehicle. Powerstar trucks provide full range Fire trucks, including Isuzu Fire truck, Howo fire truck and Foam fire trucks.   The Dominican Republic attracts global tourists with its magnificent natural scenery and rich cultural heritage, but it also faces potential risks such as fires and natural disasters. Fire and rescue teams, as guardians of national security, play a vital role in Dominican society.     ⇒ Key Features    Capacity  Engine model         Water    Foam      Fire Pump   Fire Monitor 5,000L  6UZ1 / 380HP 4,000L 1,000L CB10/60 Fire Pump PL8/48       ⇒ Key Features:   Dominican Isuzu 5000L water fire truck technical drawing 2026 New model Dominican Giga Fire Engine Technical drawing   Dominican Isuzu Fire Truck tanker design drawing Dominican Isuzu Fire Truck tanker roof design drawing Dominican Isuzu Fire Truck tanker bottom design drawing   4 units Dominican Giga Isuzu Fire engine fighting truck ready for delivery to Seaport     ⇒ Product Description  1. Model: PST5180GXF Water&Foam Fire Truck2. Dimension: Approx. 7770*2500*3560mm3. Full Load Weight: Approx. 18000kgs4. Number of the Crew: 6 (include driver)5. Max. Speed: 95km/h6. Compartment: Complete Aluminum Material and Never Rust7. Capacity: 4000L Water and 1000L Foam. 8. Fire pump flow rate: 60L/s @ 10bar9. Roof monitor flow rate: 48L/s10. Painting: Red Color or Others   Front left view of ISUZU GIGA Emergency Rescue Fire Trucks    Rear left view of ISUZU GIGA series Rescue Fire Engine    The Dominican Republic's fire and rescue system comprises professional firefighters and volunteers who undergo rigorous training and are equipped to respond to various emergencies. From urban fires to natural disaster relief, from traffic accidents to medical emergencies, they are always on the front lines, safeguarding the lives and property of the people.

Engineering drawing of fire department rescue truck， also named drawing of Isuzu heavy fire engine. Today, as the urbanization process continues to accelerate, the increase in high-rise buildings, underground spaces and complex industrial facilities has put forward higher requirements for firefighting and rescue. Traditional fire trucks often seem to be unable to cope with these complex scenes. Therefore, designing a heavy-duty fire truck that can cope with future challenges has become an important direction for the development of firefighting technology. Based on the technical background of 2025, this article will explore the design drawings of an innovative heavy-duty fire truck and analyze its uniqueness.     1. Design concept: combination of intelligence and modularity The heavy-duty fire truck of the future is not only a "fire-fighting machine", but also a mobile rescue platform that integrates intelligence, modularity and multi-function. The core concept of the design drawing is "intelligent perception, rapid response, and multi-scenario adaptation". Through artificial intelligence, the Internet of Things and modular design, this fire truck can quickly switch functions in different scenarios to maximize rescue efficiency.         2. Appearance design: streamlined and high-strength materials In terms of appearance, this heavy-duty fire truck adopts a streamlined design, which not only reduces wind resistance, but also improves the aerodynamic performance of the vehicle. The body is made of high-strength alloy material, which can maintain structural stability in extreme environments such as high temperature and explosion. The roof is equipped with a retractable drone launch platform, which can quickly deploy drones for fire detection in the early stage of a fire.   3. Power system: hybrid power and all-terrain adaptation The power system adopts a hybrid design, combining the advantages of diesel engines and electric motors. The diesel engine provides strong power output, while the electric motor achieves zero emissions at low speeds and in urban environments. In addition, the vehicle is equipped with an all-terrain adaptation system, including adjustable suspension and tracked drive, which can freely travel in complex terrains such as mountains and swamps.   4. Intelligent equipment: AI fire analysis and automatic fire extinguishing The vehicle is equipped with an artificial intelligence-based fire analysis system, which can collect fire data in real time through sensors and cameras, analyze the trend of fire spread, and automatically generate the optimal fire extinguishing plan. At the same time, the vehicle is equipped with an automatic fire extinguishing device, which can accurately deliver fire extinguishing agents without human operation to reduce the danger of firefighters.   5. Modular design: multi-functional rescue platform The biggest highlight of this heavy-duty fire truck is its modular...
