ISUZU FVR 6000L Fire Fighting Water Foam Truck

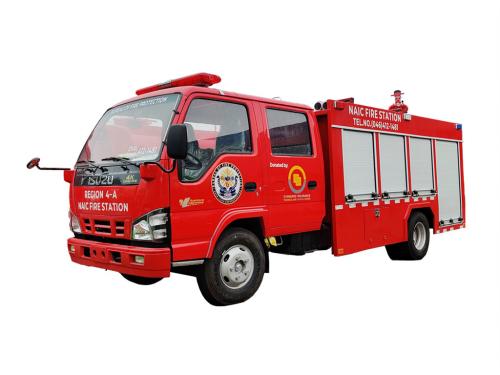

The ISUZU NPR 189HP 4x2 foam water fire tender truck for the Philippines is built on an ISUZU 4×2 chassis with a 3815 mm wheelbase. It runs on a 4HK1-TCG61 engine rated at 189 HP with an Allison automatic transmission. The truck carries a 2500L water tank and a 1000L foam tank. A CB10/40 pump (40 L/s at 1.0 MPa) and a roof mounted PL8/32 monitor (32 L/s, water ≥60 m, foam ≥48 m) handle fire suppression. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.

The ISUZU fire department utility truck for Senegal is built on an ISUZU FVR 4×4 chassis with a 4500 mm wheelbase. It runs on a 4HK1-TC50 engine rated at 205 HP with a manual transmission. The truck carries a 6000L water tank and a 4000L foam tank. A CB10/60 pump (60 L/s at 1.0 MPa) and a roof mounted PS48 monitor (48 L/s, water ≥60 m, foam ≥70 m) handle fire suppression. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.

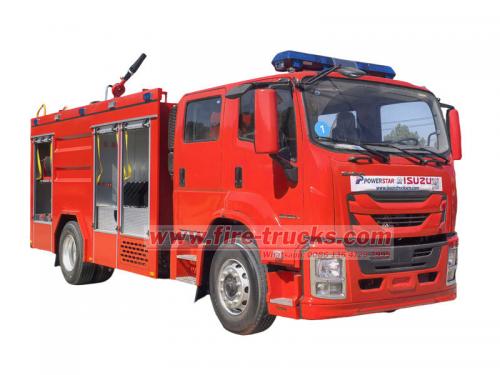

The Isuzu FVZ GIGA 6 cubic meter foam fire truck is based on the Isuzu FVZ GIGA chassis, with a 4500mm wheelbase. It is equipped with an Isuzu 6HK1-TCG60 engine and a Fast 9-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains a 5000L carbon steel water tank and a 1000L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/40-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/32 fire monitor is located on the roof.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a gross vehicle weight of 35 tons and a wheelbase of 4800+1370mm. It is equipped with an Isuzu 6WG1-TCG62 520hp engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8000L carbon steel water tank and a 2000L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/140-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/64 fire monitor is located on the roof.

The Isuzu 12000L fire sprinkler truck uses an Isuzu FVZ GIGA 6X4 chassis with a 4650+1370mm wheelbase. It is equipped with an Isuzu 6HK1-TCG60 engine and a FAST 9-speed transmission. The front of the superstructure houses the pump house, which contains a CB10/60-RS fire pump and a control panel. Behind the pump house is a 12-cubic-meter carbon steel water tank. The rear features a work platform with a toolbox, side sprinklers, a ladder at the rear of the tank, a level gauge, right-side sprinkler heads, a removable top guardrail, and a PS8/50W fire monitor.

This Isuzu 3cbm water tanker fire truck is based on an Isuzu 100P 4x4 double-cab chassis with a 3360mm wheelbase. It is equipped with an Isuzu 4KB1-TCG60 engine and an MSB 5-speed gearbox. The front of the superstructure houses the equipment compartment, the middle section contains a 300L carbon steel water tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PS8/30W fire monitor is mounted on the roof.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a wheelbase of 4600mm+1370mm. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8500L carbon steel water tank and a 1500L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/48 fire monitor is located on the roof.

The Isuzu GIGA 6X4 10 cubic meter foam fire truck is based on the Isuzu GIGA 6X4 chassis, with a wheelbase of 4600mm+1370mm. It is equipped with an Isuzu 6UZ1-TCG61 engine and a Fast 12-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains an 8500L carbon steel water tank and a 1500L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/60-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/48 fire monitor is located on the roof.
