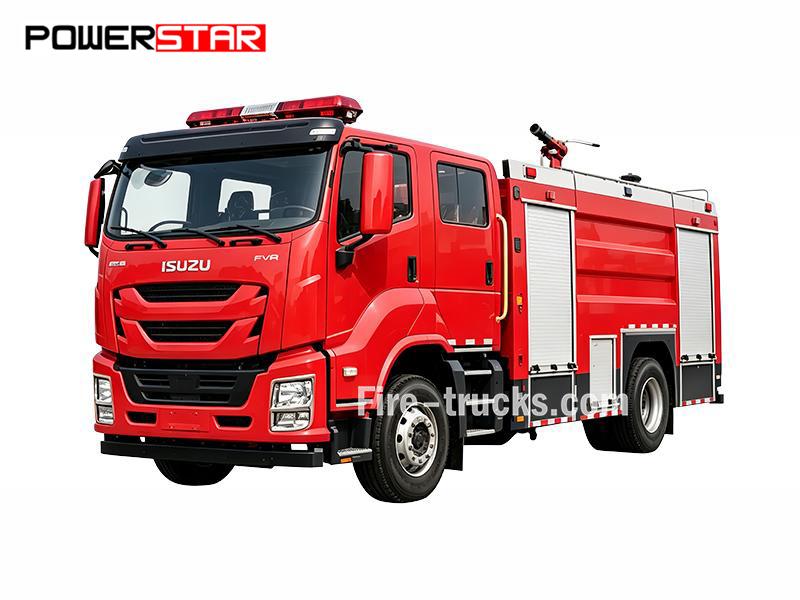

ISUZU Fire Department Utility Truck For Senegal

ISUZU Fire Department Utility Truck For Senegal

The ISUZU fire department utility truck for Senegal is built on an ISUZU FVR 4×4 chassis with a 4500 mm wheelbase. It runs on a 4HK1-TC50 engine rated at 205 HP with a manual transmission. The truck carries a 6000L water tank and a 4000L foam tank. A CB10/60 pump (60 L/s at 1.0 MPa) and a roof mounted PS48 monitor (48 L/s, water ≥60 m, foam ≥70 m) handle fire suppression. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.

  • Truck Chassis:

    ISUZU FVR 4×4
  • Tanker Capacity:

    6000L water + 4000L foam
  • Engine Power:

    205 HP (151 kW) / 4HK1-TC50
  • Fire Pump:

    CB10/60
  • Pump Flow:

    60 L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    PS48
  • Monitor Flow:

    48 L/s
  • Monitor Range:

    Water ≥60 m, Foam ≥70 m
Facebook Linkedin Youtube Twitter Pinterest

The ISUZU fire department utility truck is built for firefighting and emergency response. ISUZU 205HP 4x4 foam water truck features a 6000L water tank, a 4000L foam tank, a CB10/60 fire pump (60 L/s at 1.0 MPa), and a roof mounted PS48 fire monitor with 60m water range and 70m foam range.



This fire truck carries a full set of standard firefighting equipment including hoses, suction tubes, couplings, and a foam gun. This foam water truck works well for Class B fires involving oil, gasoline, and chemicals. It suits firefighting tasks at oil depots, chemical plants, airports, and industrial facilities.



 ♦ ISUZU Fire Department Utility Truck For Senegal ♦



Guatemala ISUZU FVR 205HP 6000L 4000L 4x4 Foam Water Fire Truck





Working Capacity

 Engine Model

 Wheelbase

 Superstructure

6000L water + 4000L foam

205 HP / 4HK1-TC50

4500 mm

★ Tank carbon steel, 10000L capacity

★ CB10/60 fire pump, 60 L/s flow at 1.0 MPa

★ PS48 roof monitor, 48 L/s flow with water ≥60 m, foam ≥70 m

 2026 year brand new

» Ⅰ. Main Features :

★ 4HK1-TC50 engine rated at 205 HP for foam fire suppression and emergency response

★ ISUZU FVR 4×4 chassis with 6000L water tank, 4000L foam tank, and CB10/60 fire pump (60 L/s at 1.0 MPa)

★ Roof mounted PS48 monitor with 48 L/s flow, water range ≥60 m, and foam range ≥70 m for long distance fire attack

★ Complete standard equipment including fire hoses, suction tubes, couplings, and foam gun for Class B fire fighting

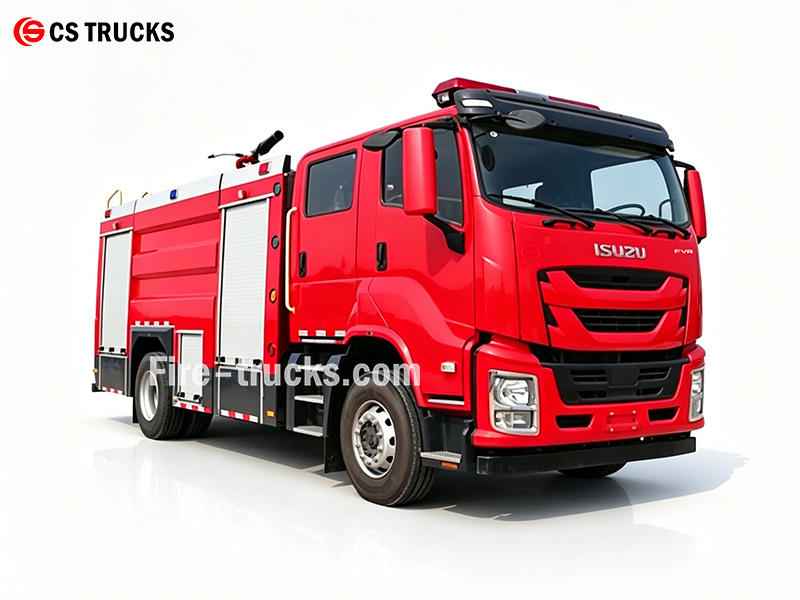

  • ISUZU FVR 4x4 Fire Fighting Foam Truck For Senegal

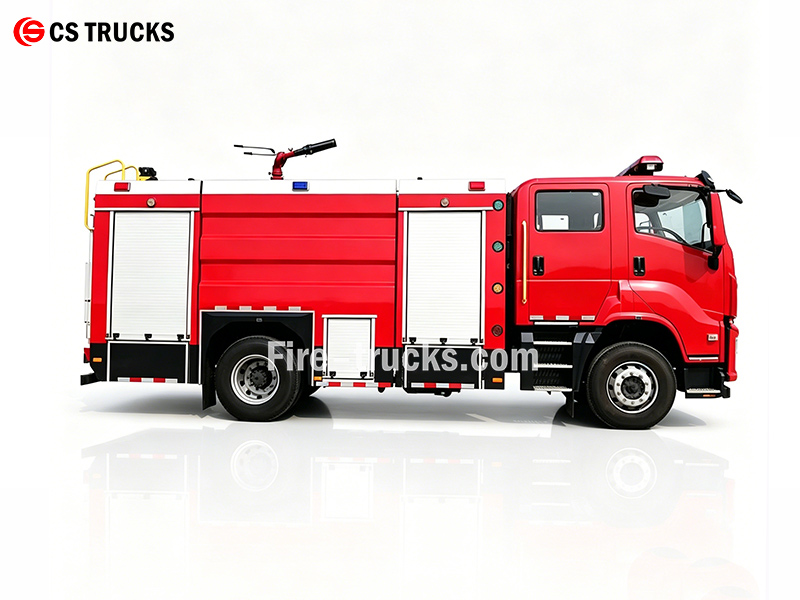

  • ISUZU FVR 4X4 6000L Water 4000L Foam Dual Tank Fire Engine
  • ISUZU FVR 205HP 4x4 Municipal Foam Fire Truck

» Ⅱ.Product Parameter :

ISUZU Fire Department Utility Truck For Senegal
General Work capacity 6000L Water+ 4000L Foam
Truck chassis ISUZU FVR 4x4
Engine Power 205 HP/ 4HK1-TC50
Fire pump CB10/60
Fire Monitor PS48
Maximum Speed 95 km/h
Overall Dimensions L*W*H 8490*2540*3600 mm
Gross Vehicle Weight 19300 kg
Curb Weight 5850 kg
Engine Engine Model 4HK1-TC50
Fuel Type Diesel
Power 205 HP(151KW)
Emission Standard  Euro 5
Displacement 5193 ml
Engine Type 4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis Drive Type 4x4
Wheelbase 4500 mm
Tire 11.00R22.5 16PR
Tire No. 6 tires and 1 spare tire
Model CB10/60
Flux 60L/s
Pressure  1MPa
Fire pump Max working pressure 1.251MPa
Max allowable inlet pressure 0.4MPa
Max suction height 3m
Rated speed 3916±50r/min
Speed ratio 1:1.4
Water diversion time ≤50s
Fire Monitor Model  PS48
Flow 48L/s
Rated working pressure 0.8MPa
Max working pressure 1.2MPa
Range Water ≥60m
Foam ≥70m
Pitch rotation - 35~+70°
Horizontal rotation 0~360°
Standard  Configuration All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……

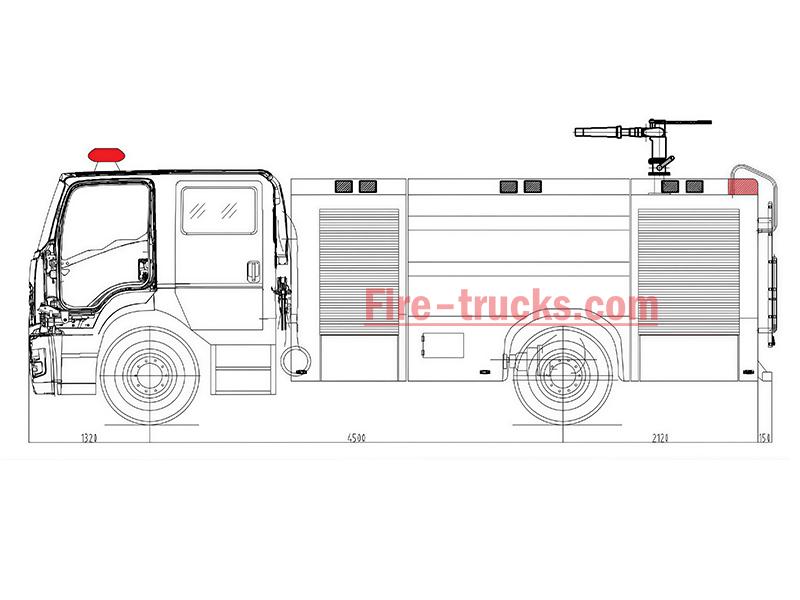

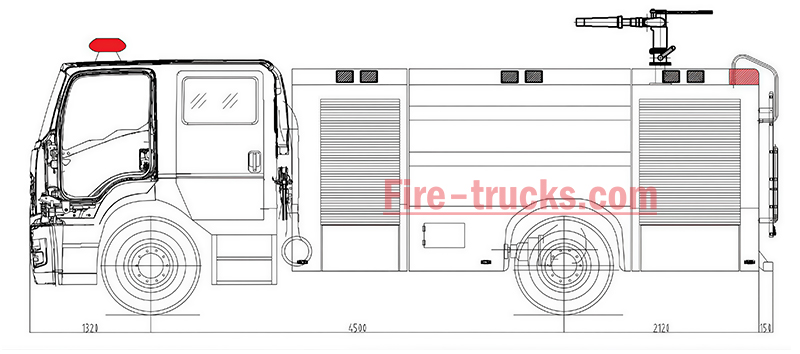

ISUZU CB10/60 Fire Pump Foam Water Tender Structure Drawing
 » Ⅲ.Products Description :

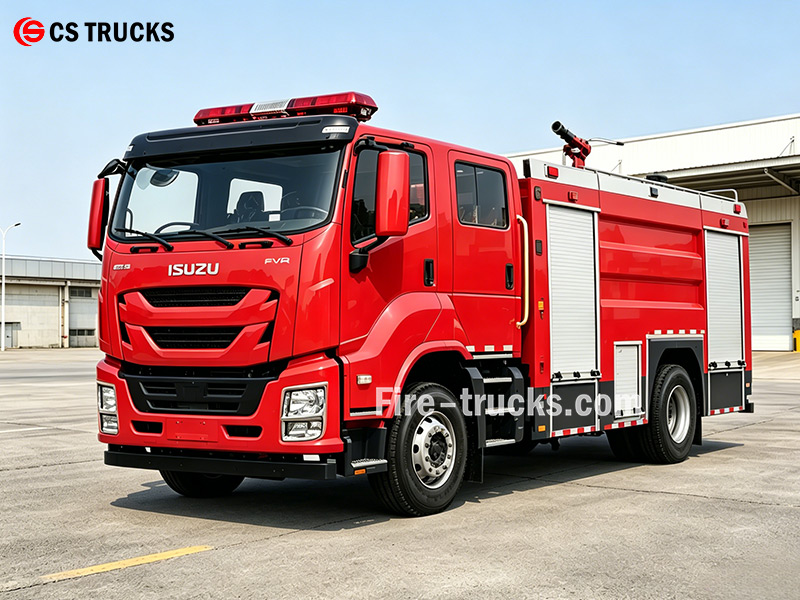

ISUZU FVR 205HP 4x4 Municipal Foam Fire Truck

1. Chassis & Powertrain

 ISUZU FVR 4×4 chassis with 4500 mm wheelbase, built for stable handling on urban roads and off road terrain.



 4HK1-TC50 diesel engine, 205 hp output with high torque, reliable for quick response, continuous pump operation, and foam fire suppression.

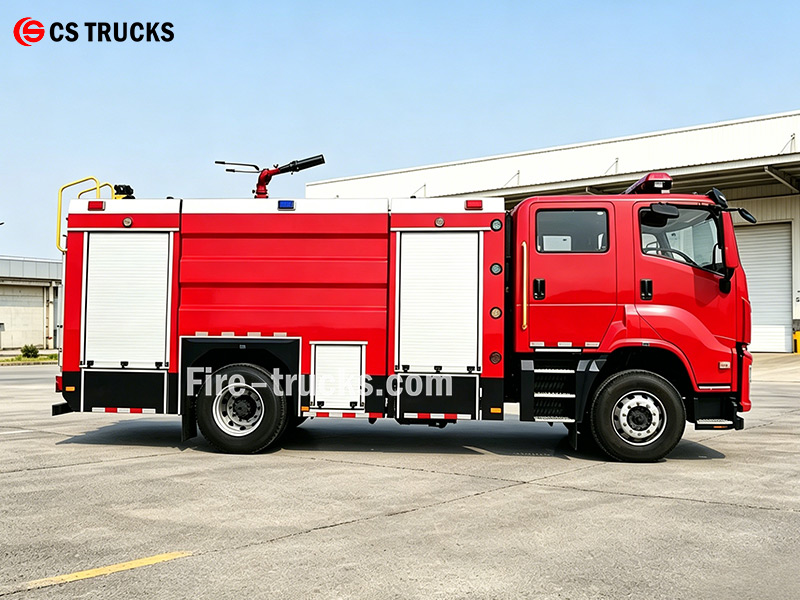

ISUZU FVR 4x4 Industrial Water Foam Fire Fighting Vehicle

2.Fire Suppression System

6000L water tank and 4000L foam tank, carbon steel construction with internal baffles to reduce liquid surge on rough roads.



CB10/60 fire pump, 60 L/s flow at 1.0 MPa, PTO driven, 3m suction height, ≤50s priming time.



PS48 roof monitor, 48 L/s flow, water range ≥60 m, foam range ≥70 m, horizontal 360° rotation, pitch -35° to +70°.



Standard ISUZU FVR cab. Full standard firefighting equipment including hoses, suction tubes, couplings, and foam gun for Class B fire fighting.

» .Fire Pump System

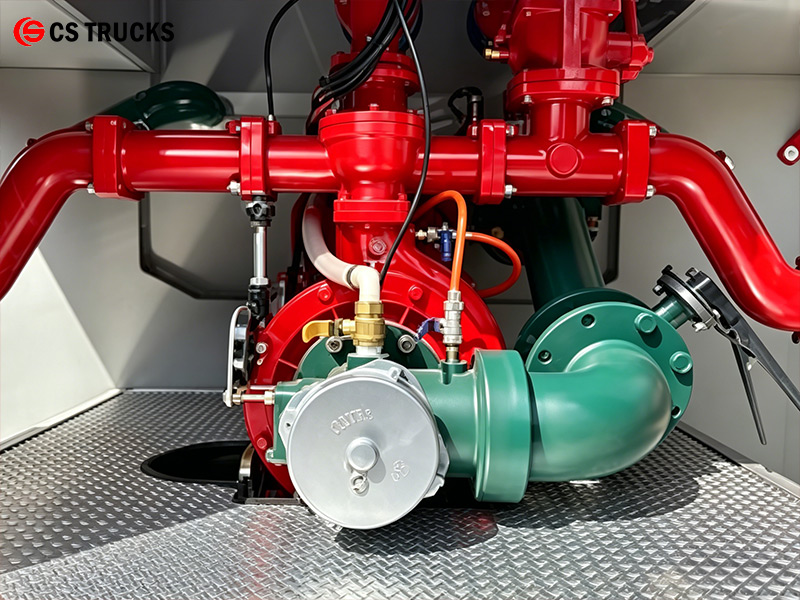

Fire Pump:

A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump is built for reliable performance, providing steady water pressure to ensure fire hoses and monitors can deliver water or foam effectively over long distances for fire suppression.

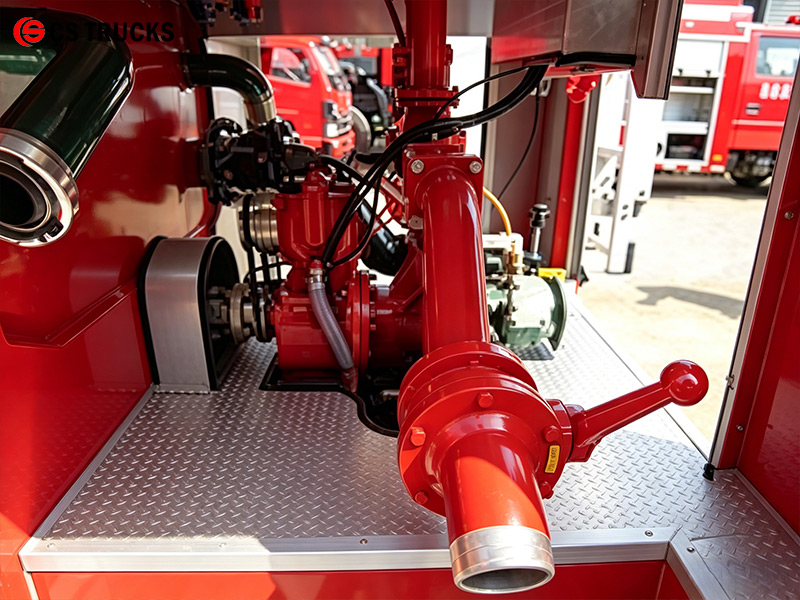

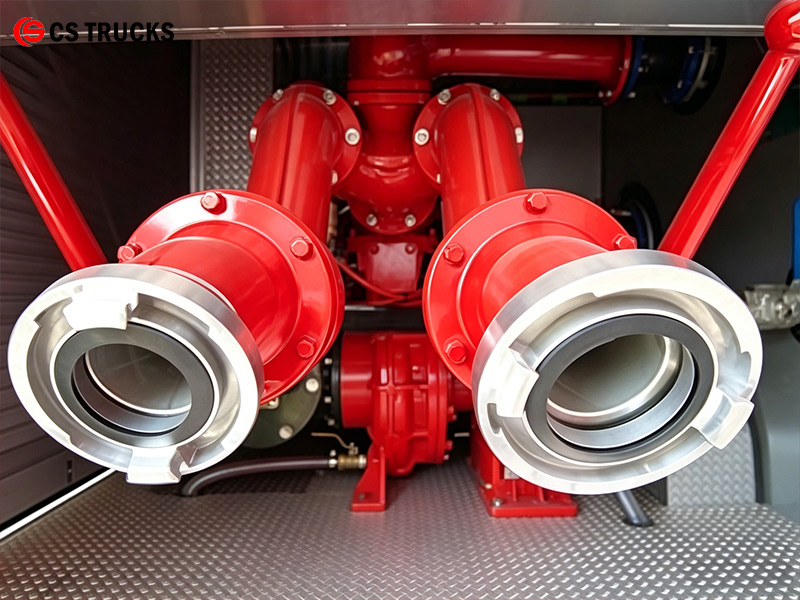

CB10/60-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/60

60L/s

1.0MPa

1.251 MPa

0.4MPa

  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump

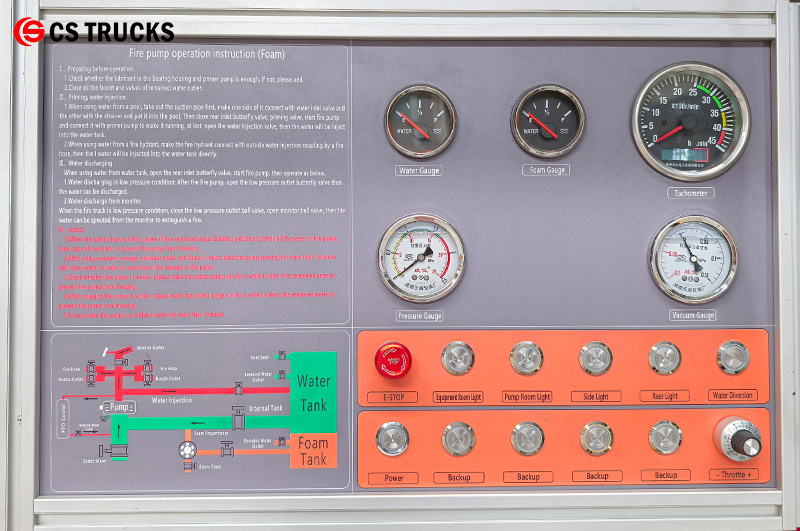

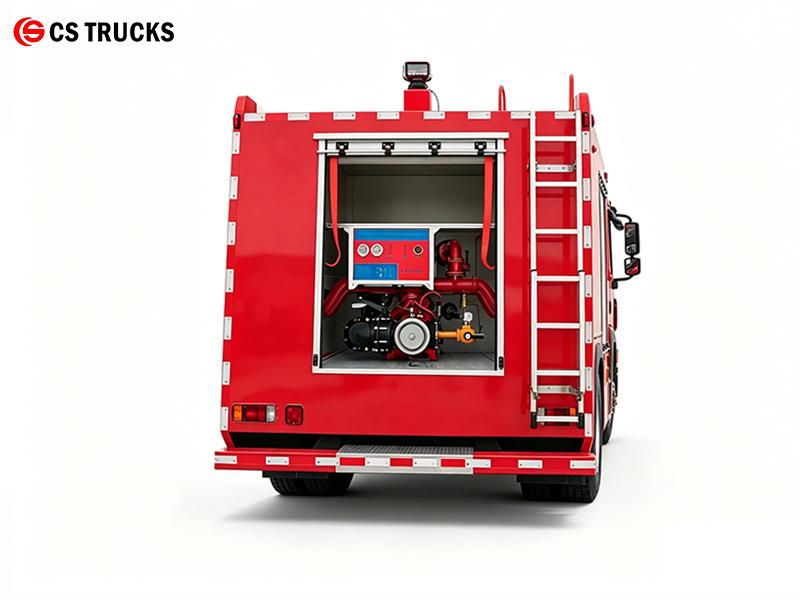

Control panel:

Includes operating instructions, tank piping diagram, pressure gauge, water level gauge, emergency stop, PTO control, main power switch, pump controls, and compartment lighting. All controls are clearly marked for straightforward operation.

foam fire truck control panel



» .Fire Monitor System :

The PS48 fire monitor is mounted on the cab roof. It delivers a flow rate of 48 L/s with a water range of ≥60 m and a foam range of ≥70 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations.

PS48 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation
PS48 48L/s Water≥60m Foam ≥70 m 1.0MPa -35°~+70°
0~360°



» .Firefighting Equipment :

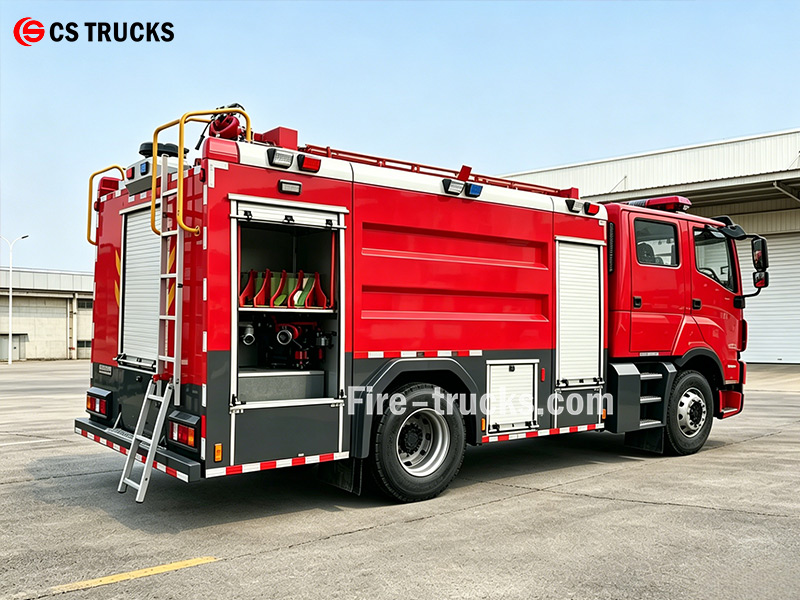

Equipment Room

Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

foam fire tender equipment Room

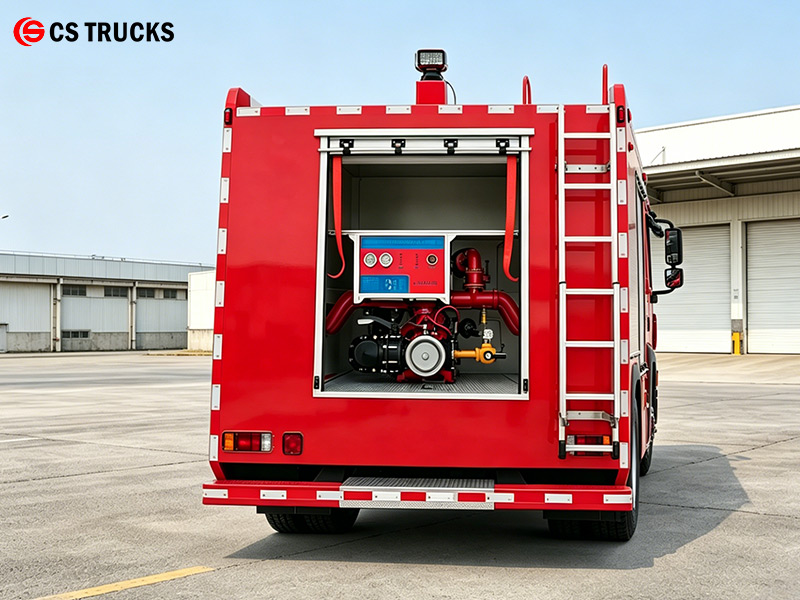

 Pump Room: Equipped with fire hoses, water collectors, filters, fire nozzles, foam guns, suction hose wrenches, reducers, etc.



Foam fire fighting vehicle firefighting equipment



The ISUZU fire department utility truck for comes with a rear-mounted CB10/60 fire pump and a cab top PS48 monitor. The water tank holds 6,000 liters, and the foam tank holds 4,000 liters, sitting on a sturdy ISUZU FVR 4×4 chassis powered by a 205 HP 4HK1-TC50 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. Full specifications are listed below:

fire rescue equipment

fire rescue equipment



» Ⅶ.Pre-shipment Test



Before delivering the ISUZU foam fire department utility truck from our factory, we carried out a full inspection, including a water spray test for sealing, performance testing of the fire pump and monitor, and final checks on welding quality, paint finish, and all installed equipment.

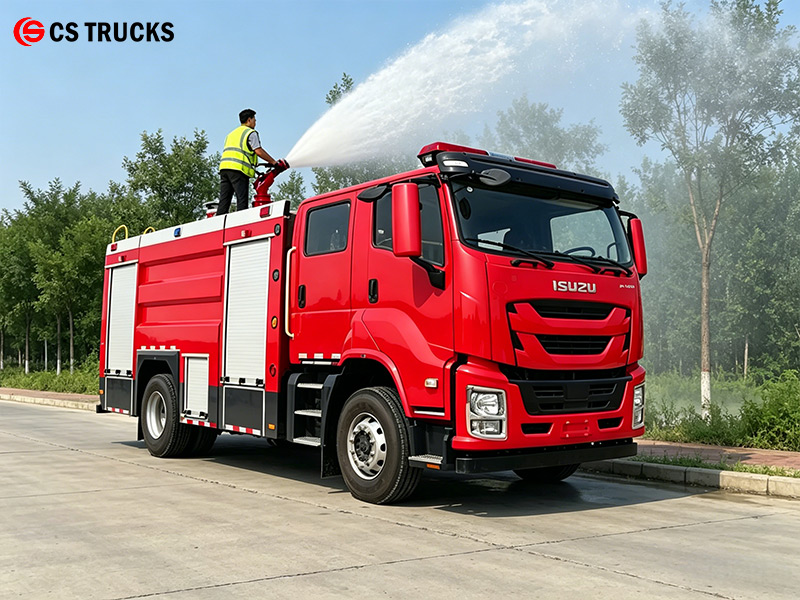

ISUZU FVR Fire Fighting Water Bowser Foam fire vehicle truck With 360° Monitor Rotation

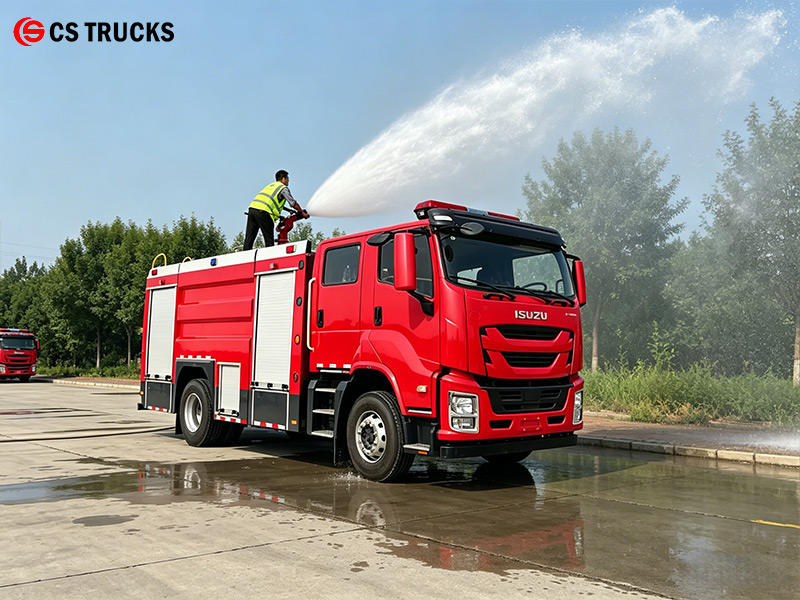

ISUZU FVR 4X4 6000 Liter Foam Fire Fighting Bowser For Factory Applications



» .Application scenarios



ISUZU 205HP 4x4 Wildland Foam Fire Tender

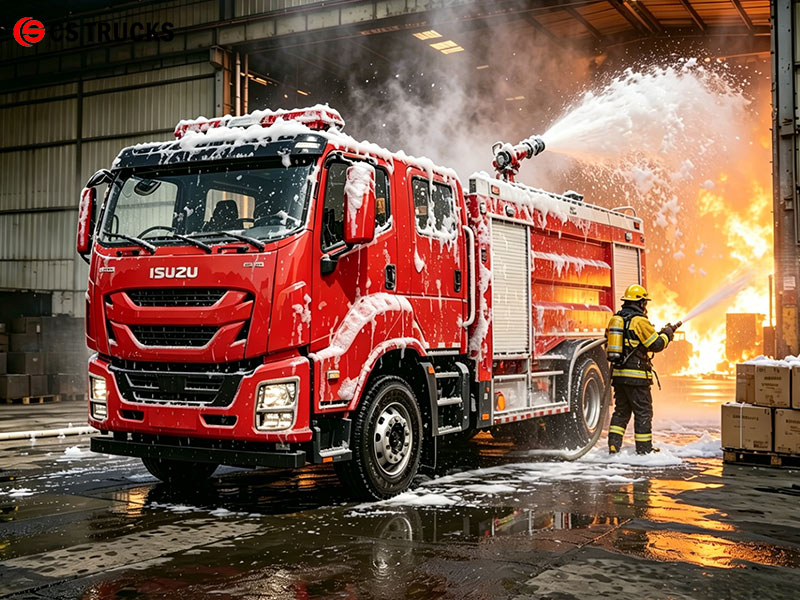

ISUZU 4x4 Industrial Foam Fire Fighting Vehicle
