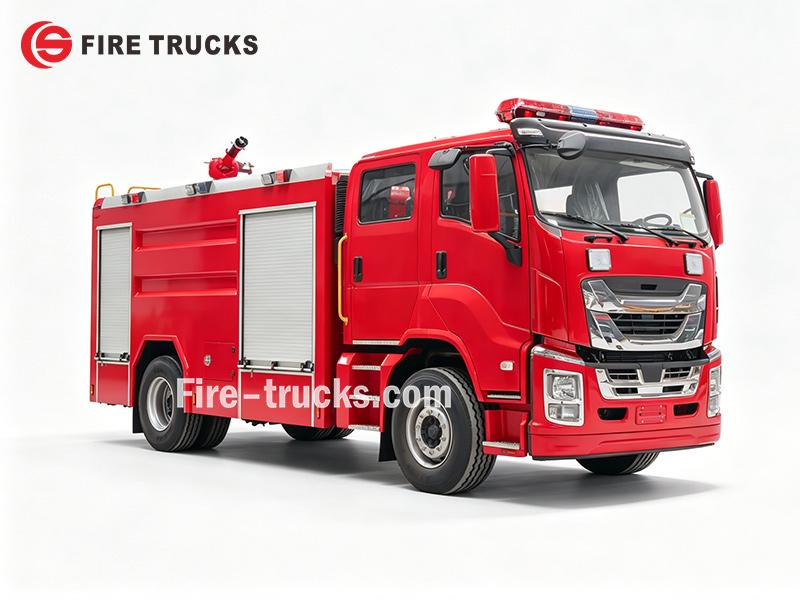

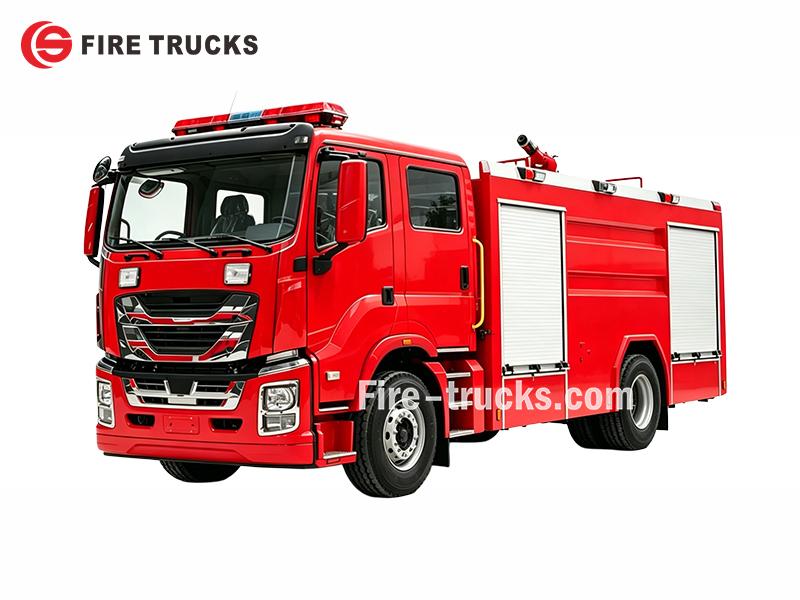

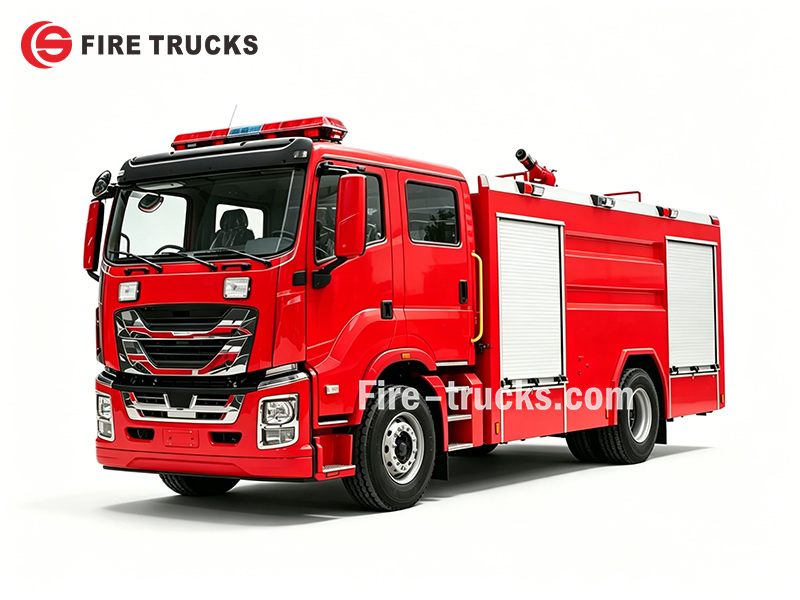

The ISUZU GIGA 8000L fire tender is powered by a 380 HP 6UZ1-TCG50 engine on a 4×2 chassis. It features a 6000L water tank and a 2000L foam tank, a CB10/60 fire pump (60 L/s), and a PL8/48 monitor (48 L/s, water ≥70m, foam ≥60m). This dual agent fire truck handles Class A and B fires, making it a reliable choice for municipal fire protection, industrial facilities, and oil depots.
Truck Chassis:
ISUZU GIGA 4×2Tanker Capacity:
6000L water + 2000L foam (8000L total)Engine Power:
380 HP (279 kW) / 6UZ1-TCG50Fire Pump:
CB10/60Pump Flow:
60 L/sWork Pressure:
1.0 MPaFire Monitor:
PL8/48Monitor Flow:
48 L/sMonitor Range:

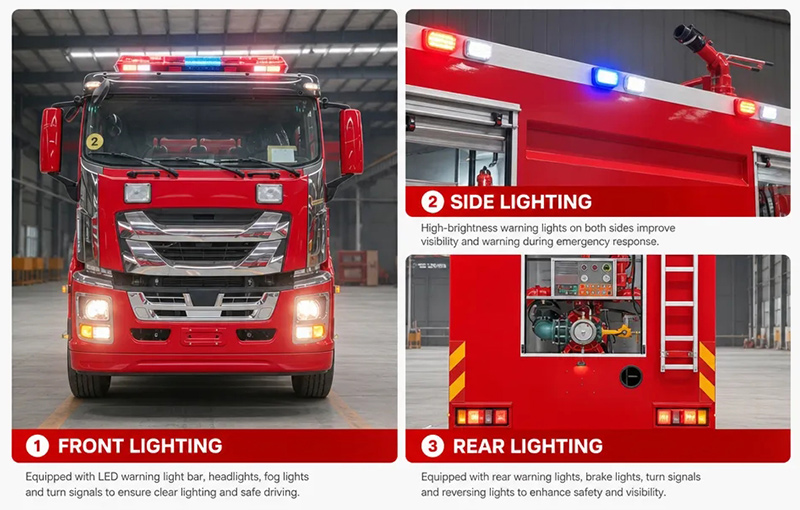

Water ≥70 m , Foam ≥60 mThe ISUZU GIGA 8000L fire tender is built on a 4×2 chassis with a 380HP 6UZ1-TCG50 engine. This ISUZU dual agent fire fighting truck features a 6000L water tank, a 2000L foam tank, a CB10/60 pump (60 L/s), and a PL8/48 monitor (48 L/s, water ≥70m, foam ≥60m). Standard gear includes roll-up aluminum doors, LED lights, flip pedals, and a full set of fire hoses and nozzles—a solid choice for municipal fire protection, oil depot safety, and industrial emergency response across the Philippines.

|
Working Capacity |
Engine Model |
Wheelbase |
Superstructure |
|
6000L water + 2000L foam |
380 HP / 6UZ1-TCG50 |
4600 mm |
★ Tank carbon steel, 8000L capacity ★ CB10/60 fire pump, 60 L/s flow at 1.0 MPa ★ PL8/48 roof monitor, 48 L/s flow with water ≥70 m, foam ≥60 m ★ 2026 year brand new |
»Ⅰ. Main Features :
★ 6UZ1-TCG50 engine, 380 HP for dual agent fire suppression and industrial emergency response
★ ISUZU GIGA 4×2 chassis with 6000L water tank, 2000L foam tank, and CB10/60 fire pump (60 L/s)
★ PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m) for Class A and B fire fighting
★ 7m suction height, ≤50s priming time, and 1.251 MPa max working pressure for reliable water supply
★ Full firefighting equipment including hoses, nozzles, foam gun, and basic tool kit for Class A & B fire fighting
» Ⅱ.Product Parameter :
| 8000L GIGA Fire Tender Philippines | |||
| General | Work Capacity | 6000L water+2000L foam | |
| Truck Chassis | ISUZU GIGA 4x2 | ||
| Engine Power | 380 HP/ 6UZ1-TCG50 | ||
| Fire Pump | CB10/60 | ||
| Fire Monitor | PL8/48 | ||
| Maximum Speed | 100 km/h | ||
| Overall Dimensions L*W*H | 7800*2500*3500 mm | ||
| Gross Vehicle Weight | 22000 kg | ||
| Curb Weight | 10700 kg | ||
| Engine | Engine Model | 6UZ1-TCG50 | |
| Fuel Type | Diesel | ||
| Power | 380 HP(279KW) | ||
| Emission Standard | Euro 6 | ||
| Displacement | 9839 ml | ||
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling | ||
| Chassis | Drive Type | 4x2 | |
| Wheelbase | 4600 mm | ||
| Tire | 295/80R22.5 | ||
| Tire No. | 6 tires and 1 spare tire | ||
| Tanker Capacity Configuration | Water Tanker | 6cbm, carbon steel | |
| Foam Tanker | 2cbm, carbon steel | ||
| 1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual controlled. |
|||
| Fire Pump | Model | CB10/60 | |
| Flux | 60L/s | ||
| Pressure | 1MPa | ||
| Max Working Pressure | 1.251MPa | ||
| Max Allowable Inlet Pressure | 0.4MPa | ||
| Max Suction Height | 7m | ||
| Rated Speed | 3200±50r/min | ||
| Speed Ratio | 1:1.4 | ||
| Water Diversion Time | ≤50s | ||
| Fire Monitor | Model | PL8/48 | |
| Flow | 48L/s | ||
| Rated Working Pressure | 0.8MPa | ||
| Max Working Pressure | 1.2MPa | ||
| Range | Water | ≥70m | |
| Foam | ≥60m | ||
| Pitch Rotation | - 35~+70° | ||
| Horizontal Rotation | 0~360° | ||
| Standard Configuration | Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual…… |
||

» Ⅲ.Mast Lighting System :
★ 15kVA gasoline generator (220V/380V, 50Hz), electric start, V-twin engine for reliable power supply at fire scenes
★ 8m aluminum alloy mast with 4×500W LED lamps, providing high-intensity 360° illumination for night rescue and emergency operations
★ Horizontal rotation ≥420° and tilt rotation ≥420° for flexible lighting positioning; one-key auto-reset function for quick retraction
★ Multiple control options: panel control, wired remote (5m), and wireless remote (≥50m) for convenient operation from safe distance

| Mast Lighting System | |
| Generator: | ≥15 kVA, 50Hz, 220V/380V, electric start, gasoline, V-twin |
| Mast: | Aluminum alloy, max height ≥8 m |
| Lighting: | 4×500W LED |
| Rotation: | Horizontal ≥420°, tilt ≥420° |
| Control: | Panel + wired (5m) + wireless (≥50m), one-key auto-reset |
| Position: | Front of the equipment box |

» Ⅳ.Foam Monitor System :
The PL8/48 fire monitor is mounted on the superstructure. It delivers a flow rate of 48 L/s with a water range of ≥70 m and a foam range of ≥60 m. The monitor supports both straight stream and spray patterns for flexible firefighting operations on Class A and Class B fires.

| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation |
| PL8/48 | 48L/s | Water≥70m Foam ≥60 m | 0.8MPa | -35°~+70° |
0~360° |

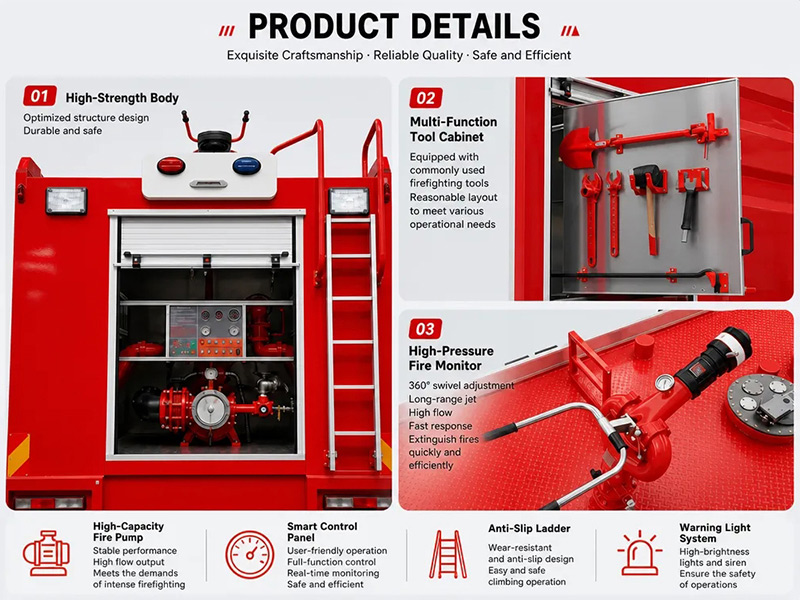

» Ⅴ.Fire Pump System :

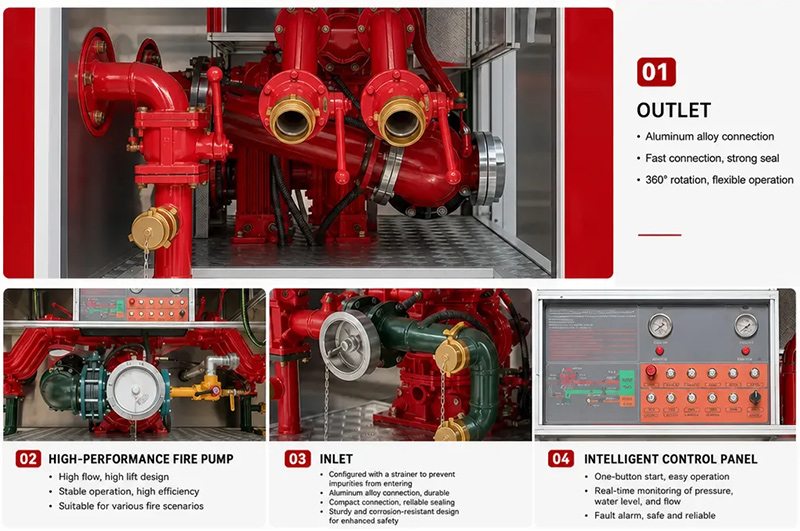

Fire Pump:
A CB10/60 fire pump with a rated flow of 60 L/s at 1.0 MPa is installed in the rear pump room. This pump delivers steady water pressure for both the PL8/48 foam/water monitor and the dry powder system, ensuring effective fire suppression for Class A, B, and C fires.

|
Fire Pump Model |
Flow |
Pressure |
Max Working Pressure |
Max Allowable Inlet Pressure |
|
CB10/60 |
60L/s |
1.0MPa |
1.251 MPa |
0.4MPa |

» Ⅵ.Fire Fighting Equipment :

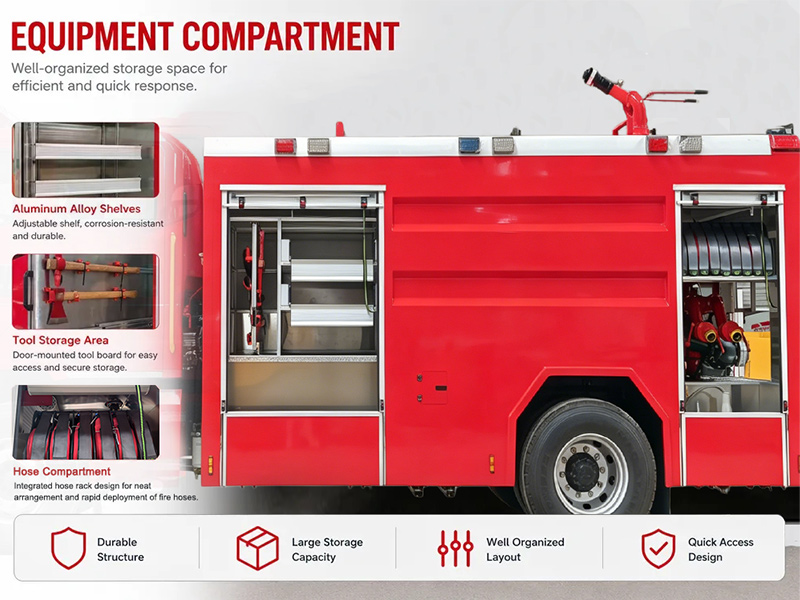

• Equipment Room
Located on both sides of the vehicle, these compartments are equipped with equipment racks and storage trays. The racks keep fire hoses, suction tubes, and foam guns neatly organized. The storage trays provide quick access to tools like wrenches, axes, and crowbars, improving rescue efficiency.

The ISUZU GIGA 8000L fire tender comes with a rear-mounted CB10/60 fire pump and a PL8/48 foam/water monitor. The water tank holds 6,000 liters, and the foam tank holds 2,000 liters, sitting on a sturdy ISUZU GIGA 4×2 chassis powered by a 380 HP 6UZ1-TCG50 engine. Standard gear includes fire hoses, suction tubes, couplings, a foam gun, and a complete tool kit. An 8m mast lighting system with 4×500W LED and a 15kVA generator is also available for night operations. Full specifications are listed below:
