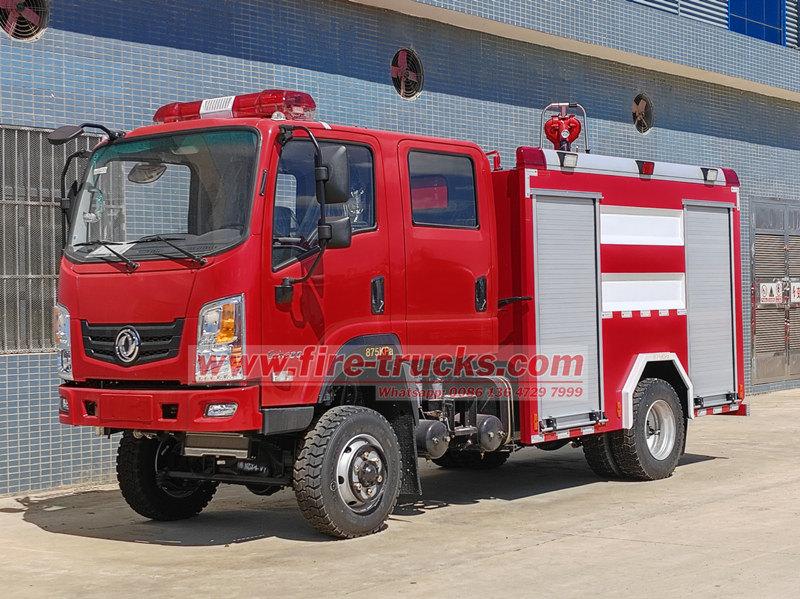

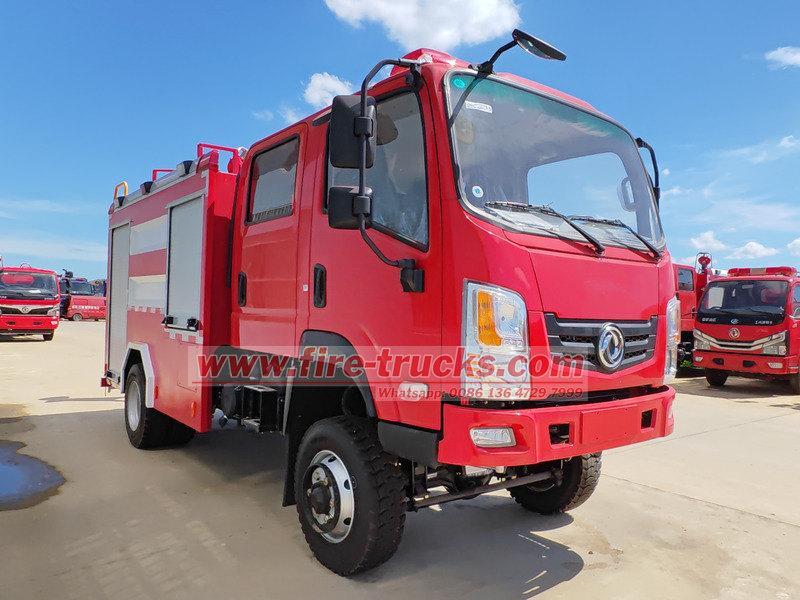

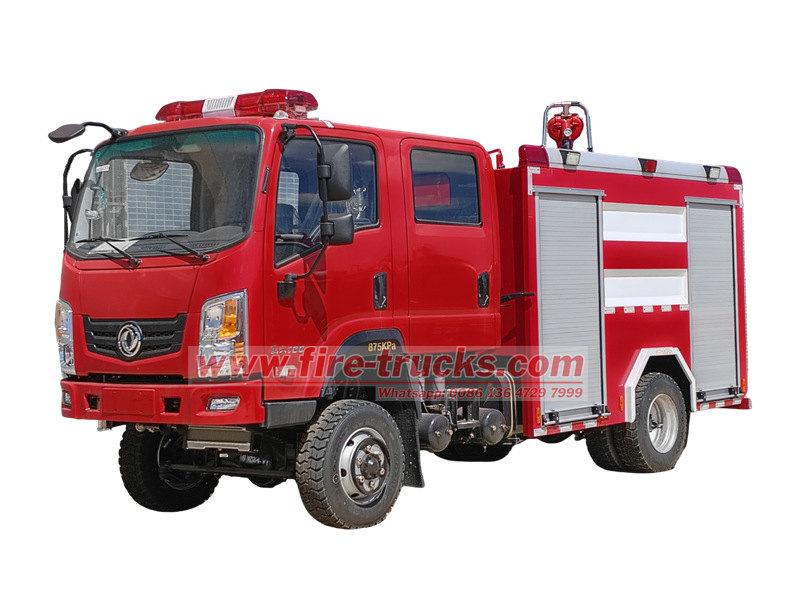

The Dongfeng 4×4 Off-Road Water Tank Fire Truck is a compact rescue vehicle specifically designed for complex terrains. Built on an all-wheel-drive off-road chassis, it is equipped with a 3.5-ton water tank, a high-pressure fire pump, and a long-range water cannon, delivering a 100-meter water lift and a working pressure of 1.0 MPa. With its short 6.18-meter body and large approach angle, it is particularly suited for firefighting in rugged areas such as mountainous regions and rural towns, combining mobility with high-efficiency fire suppression capabilities.
Manufacturer Origin:
POWERSTARWork capacity :
3500 litersUpper Body material:
Carbone steelProduction time:
60 daysWheelbase:
3400 mmAxle drive:
4×4Engine Power:
180HPEngine Model:
H33-180E60Fire Pump:
CB10/30, 30L/sFire Monitor:
PS8/30WRemark:
Stainless steel and PP material is optional

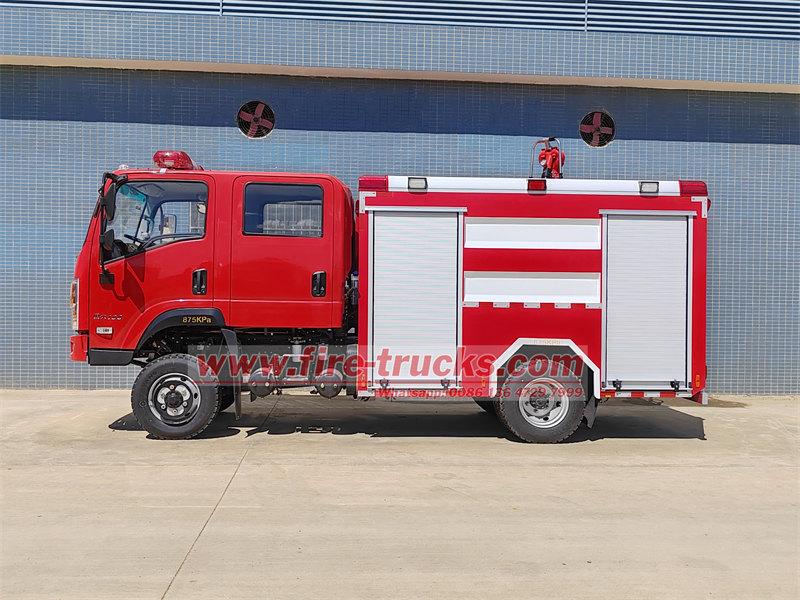

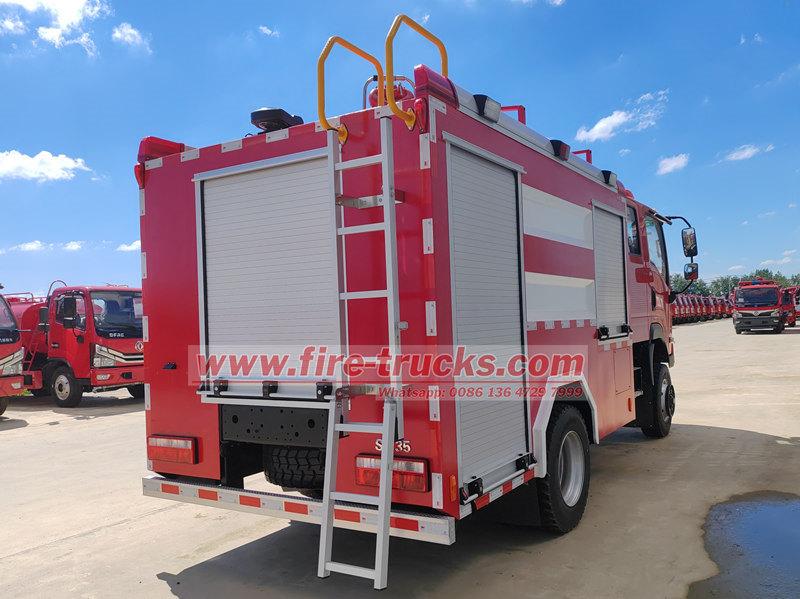

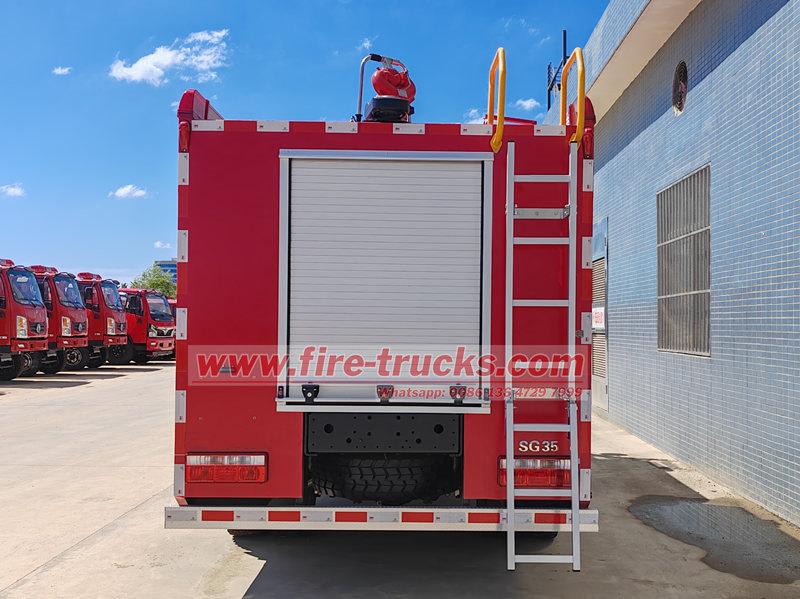

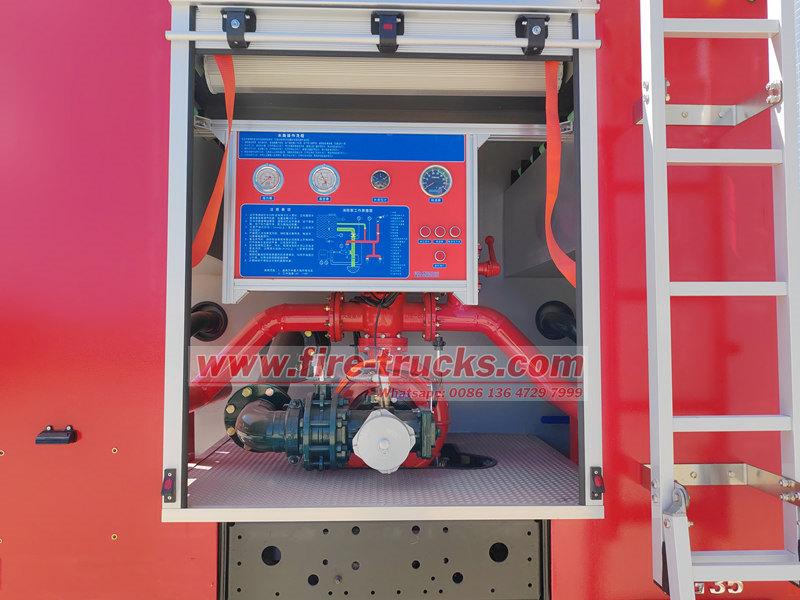

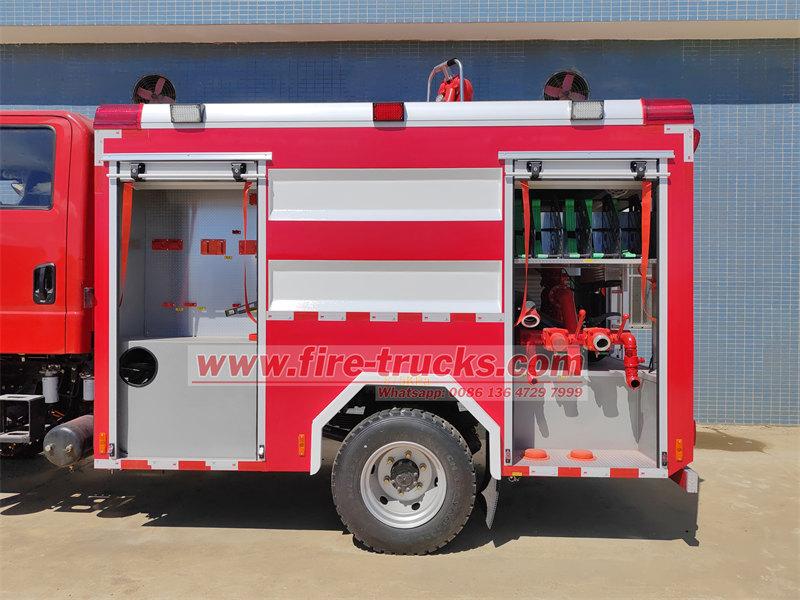

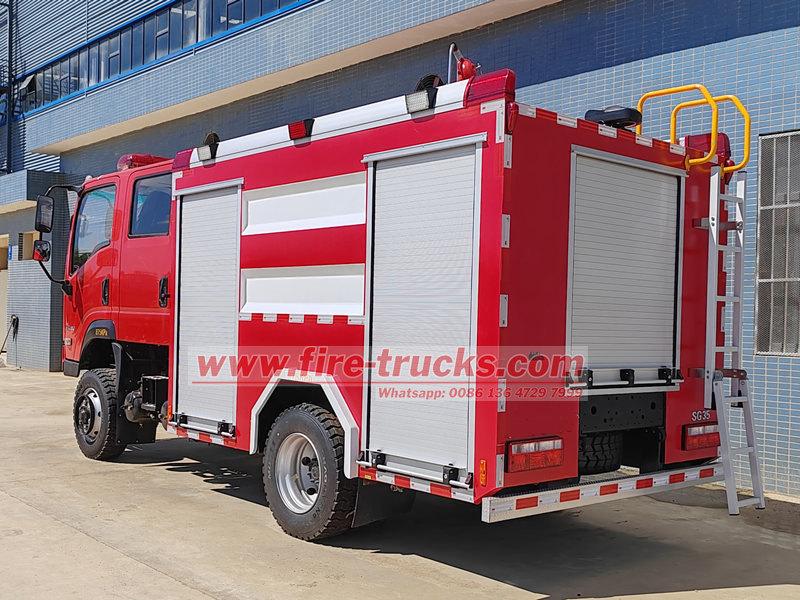

POWERSTAR 4×4 Wildland Tank Fire Truck is a compact fire and rescue vehicle designed for challenging road conditions. It consists of a Dongfeng 4×4 automotive chassis, a water tank, a water pump, piping systems, and instrument circuitry. The vehicle is equipped with a detachable ladder, a pump compartment at the rear, and a liquid tank made from high-strength, anti-corrosion materials, carrying 3.5 tons of water. The Dongfeng 4WD water fire tender is outfitted with a CB10/30 normal-pressure fire pump and a PS8/30W fire cannon. It features excellent off-road performance, long-range water projection, strong power, and high firefighting efficiency, making it particularly suitable for use in rural villages and towns with poor road conditions, where it can effectively suppress small-scale fires in their early stages.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: Dongfeng off-road truck chassis, 4x4 model
QUANCHAI H33-180 diesel engine, 180HP, 3.3L displacement
2. Tank material: 4mm thick carbon steel water tank, anti-corrosion treated inside
stainless steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/30 centrifugal fire pump, flow rate 30L/s, working distance over 60m
Optional CB10/40 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting equipment for convenient working, fire extinguishing and people rescue
An all-wheel-drive (AWD) off-road fire truck is a specialized rescue vehicle featuring a reinforced off-road chassis and a drivetrain system (e.g., 4×4, 6×6, or 8×8). With high ground clearance, large approach/departure angles, and all-terrain tires, it can traverse extreme environments such as mountains, forests, deserts, and swamps. Equipped with a large-capacity water/foam tank, a high-pressure water pump, and a long-range water cannon, it is designed for scenarios like forest fires, oilfield accidents, and disaster relief operations, serving as a critical firefighting asset in areas inaccessible to conventional fire trucks.
» Ⅱ.Product Parameter for Dongfeng 4×4 water fire truck:
|
VEHICLE SPECIFICATION |
|
|
Vehicle type |
Water Tender Fire Truck |
|
Chassis brand |
Dongfeng |
|
Chassis model |
EQ2110GSZ |
|
Traction system |
4*4 |
|
GVW (kg) |
9400 |
|
Curb weight(kg) |
5425 |
|
Rated Load(kg) |
3600 |
|
Overall dimensions (mm) |
6180*2110*3070 |
|
Wheelbase (mm) |
3400 |
|
Allowable passengers in cab |
2+3 |
|
Steering wheel |
LHD |
|
Row |
Double rows |
|
Max speed(km/h) |
95 |
|
Gearbox Model |
Manual, 6-speed |
|
Air conditioner |
Standard |
|
Tires |
235/75R17.5 16PR |
|
Electric system |
24Volts |
|
ENGINE |
|
|
Engine Model |
H33-180E60 |
|
Engine type |
4-cylinder, water cooling, direct injection turbocharged, inter cooled |
|
Engine power (HP) |
180HP (130KW) |
|
Emission standard |
Euro 6 |
|
Displacement (ml) |
3300 |
|
TANKER CAPACITY |
|
|
Water tanker |
3500L |
|
Tanker material |
Carbon steel |
|
Standard configuration |
DN500 manhole with fast locking/opening, automatic pressure relieving device . |
|

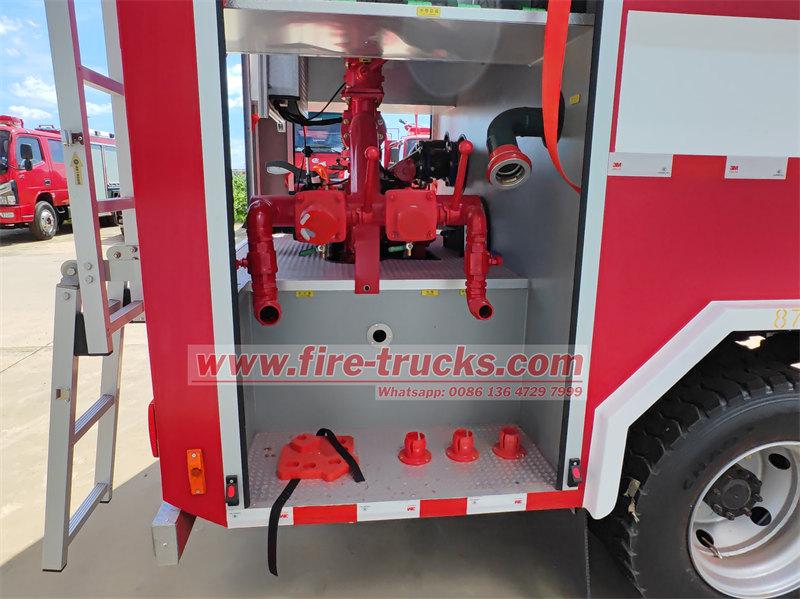

FIRE PUMP |
|
|
Type |
Normal pressure fire pump |
|
Model |
CB10/30 |
|
Pressure |
1.0 Mpa |
|
Flow Rate |
30 L/S |
|
Max Suction Depth |
7m |
|
Water Suction Time |
38 S |
|
FIRE MONITOR |
|
|
Model |
PS8/30W |
|
Rotary Angle |
360°horizontal rotation |
|
Elevation Angle |
≥+70° |
|
Depression Angle |
≤-30° |
|
Flow Rate |
30L/S |
|
Range distances |
Water ≥60m |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.
2. Skilled workers for production:

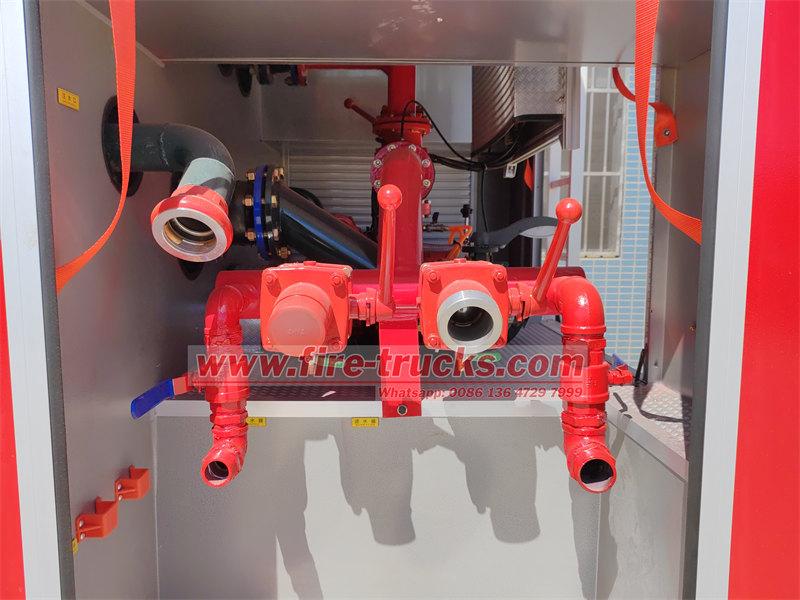

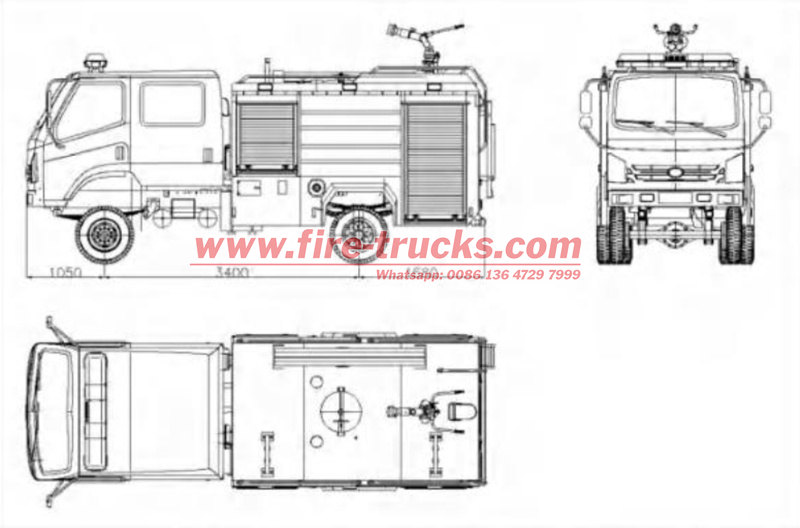

Dongfeng 4WD fire truck technical drawing helps for producing guidance, skilled workers installed the Sandwich PTO, CB10/30 fire pump, PS8/30W fire monitor, pipeline system, lighting system, also full aluminium alloy decoration.
3. Prepare full fire fighting equipment:
Fire truck equipped with all necessary fire extinguishing tools and equipment
 |
 |
