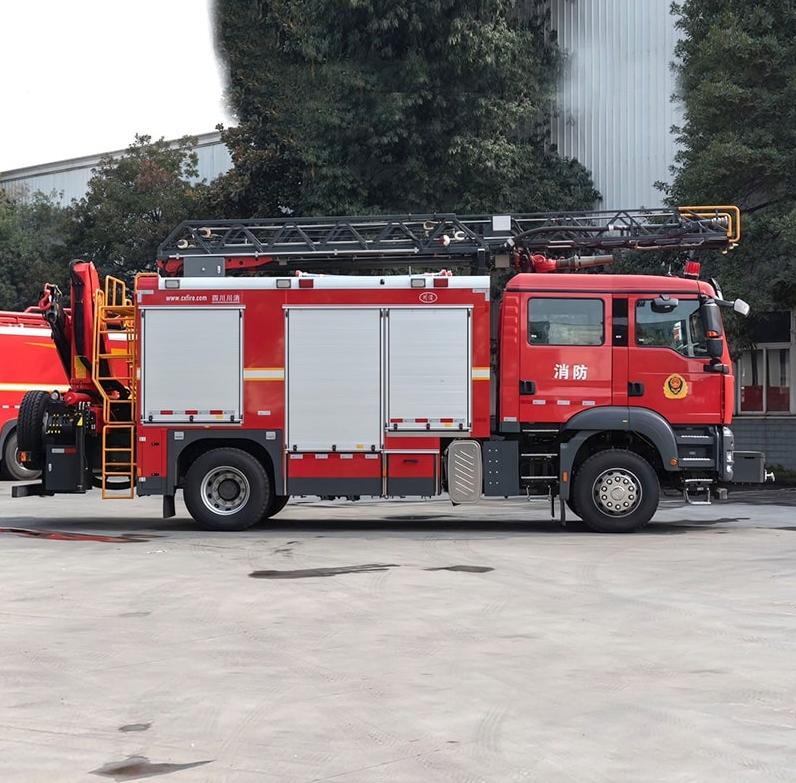

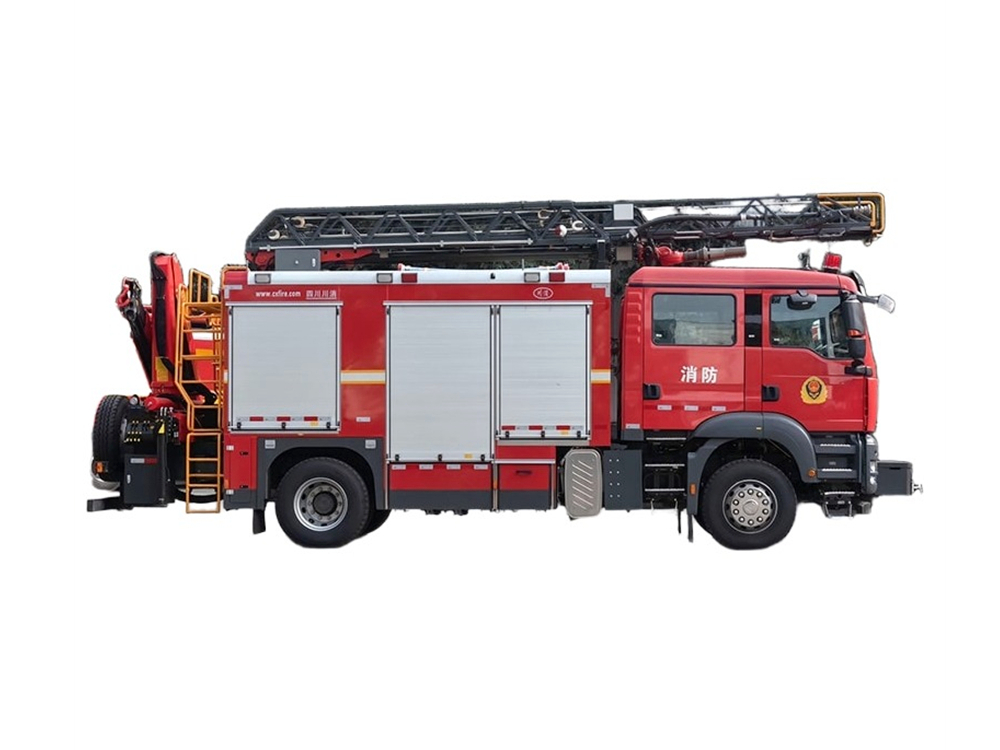

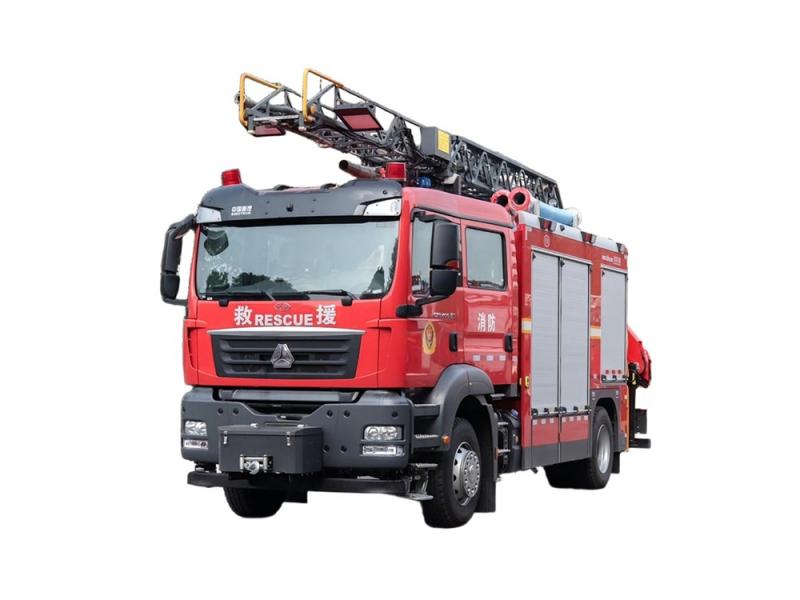

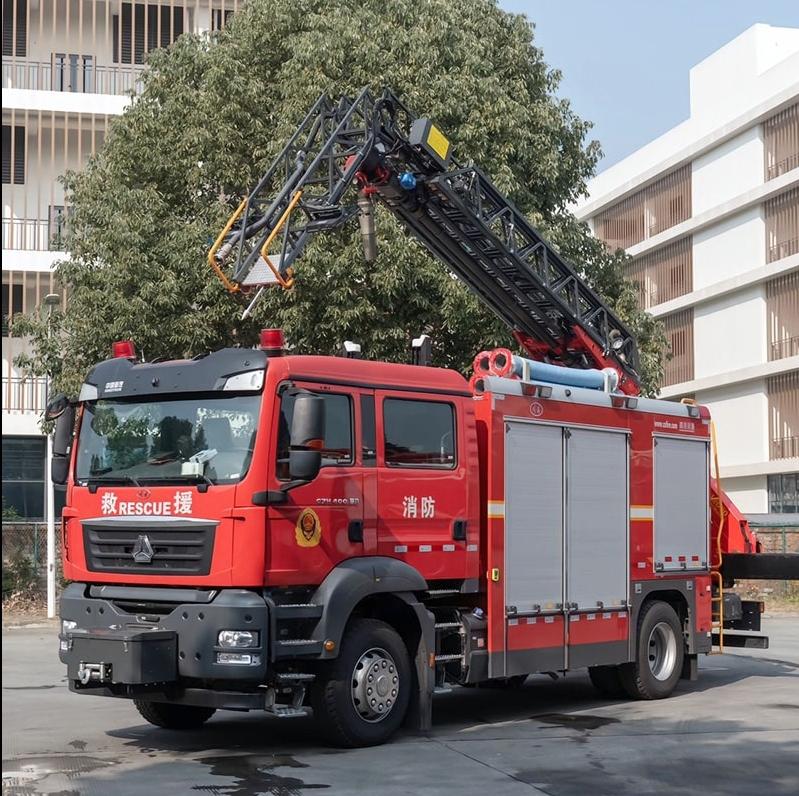

HOWO fire rescue truck with palfinger crane

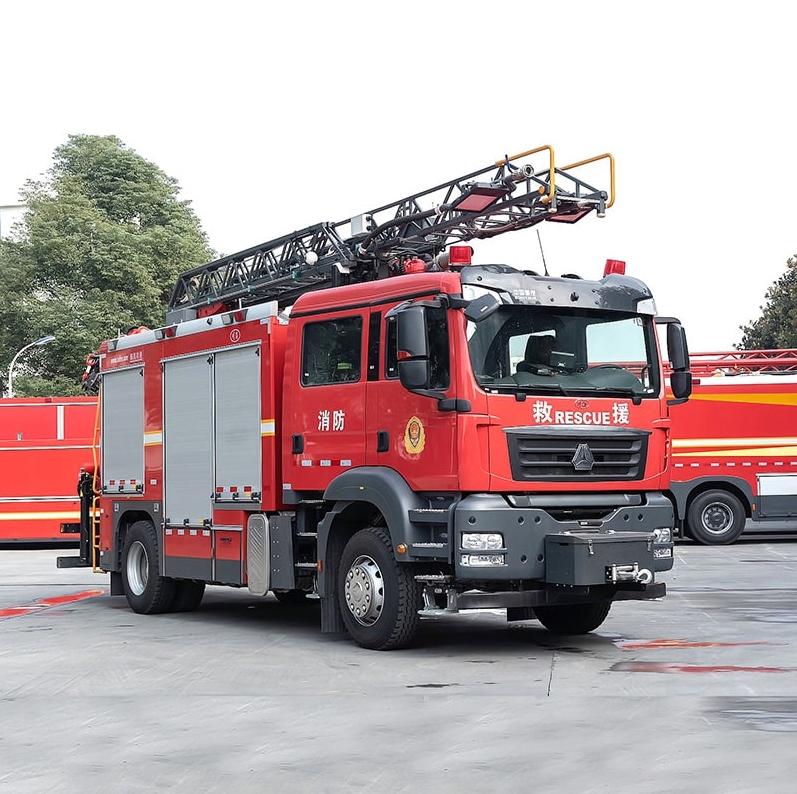

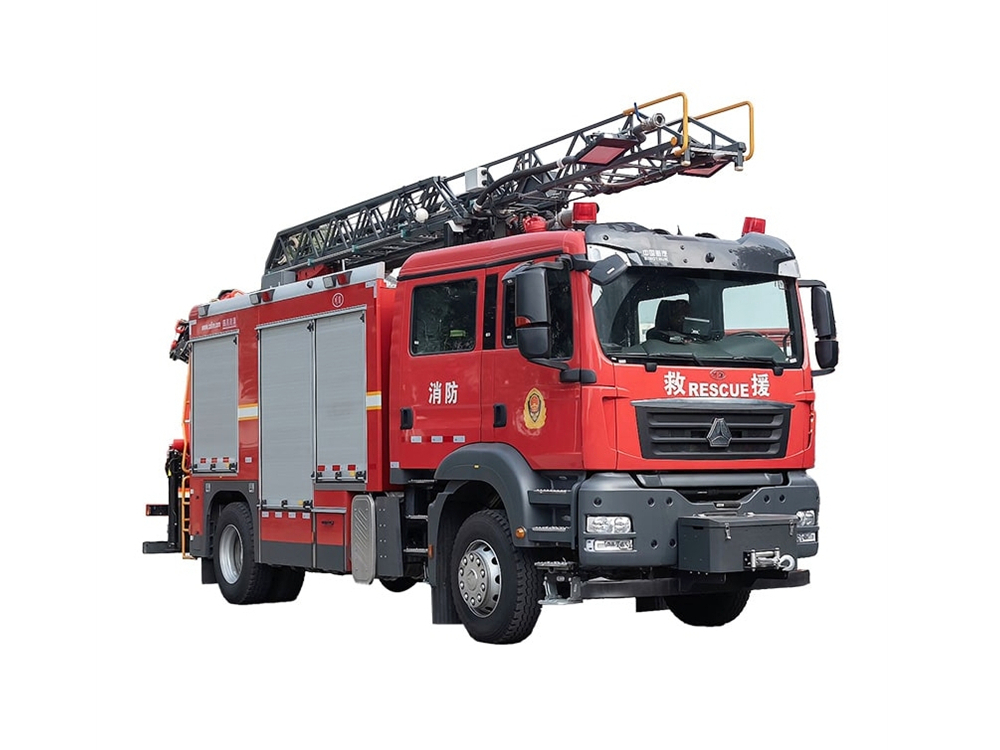

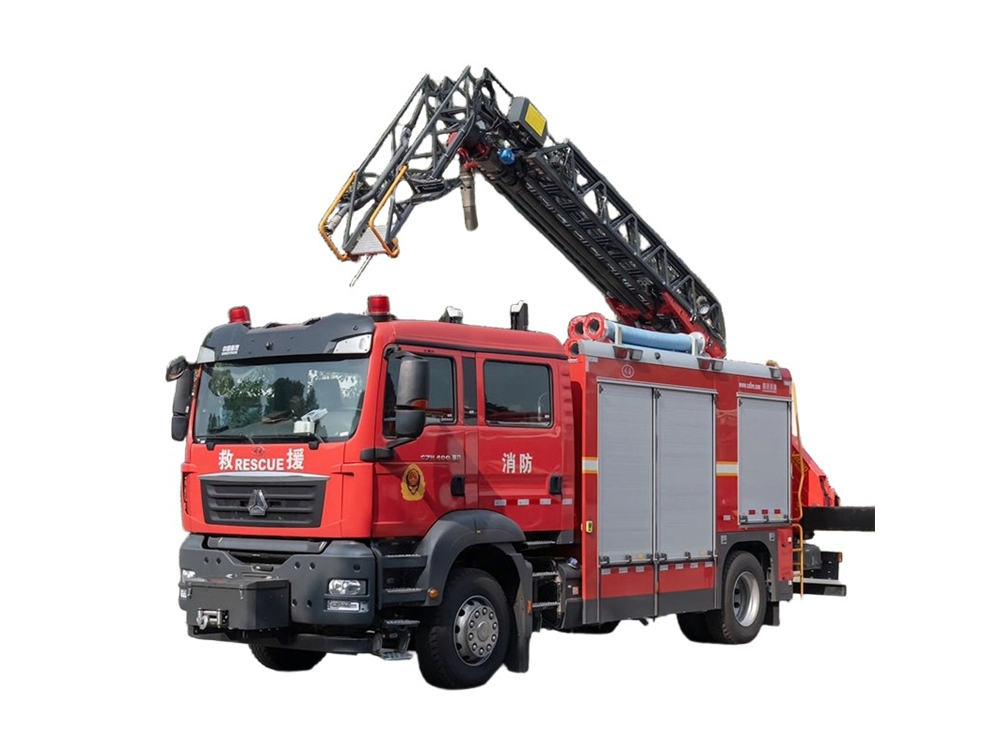

HOWO fire rescue truck with palfinger crane is a multifunctional fire rescue weapon. It adopts the chassis of HOWO 4x2 special fire truck and is equipped with a 350HP National VI engine, which is powerful and environmentally friendly. The upper body is equipped with a 2.5-cubic carbon steel water tank and a 660L 304 stainless steel foam tank, and the equipment boxes on both sides can accommodate a variety of firefighting equipment. The tail pump room integrates a high-performance fire pump, and the roof fire cannon has a long range and flexible angle. The 18-meter ladder can quickly reach high-rise rescue, and the rescue platform at the end of the ladder is safe and stable. The rear of the vehicle is equipped with a Palfinger PK12000 folding arm crane with a maximum lifting weight of 6790kg, which can efficiently lift heavy equipment. The vehicle integrates multiple functions such as fire extinguishing, rescue, and lifting. It is suitable for a variety of rescue scenarios such as high-rise building fires, industrial accidents and natural disasters. It is a powerful equipment for the fire brigade.

● China best SINOTRUK HOWO foam fire truck factory

● 30 years experience on dry powder fire fighting truck designing

● Build strict QC team to guarantee the quality

● OEM customized service, print your company logo

● Promptly delivery. any order is welcome.

★. Chassis system

● Adopting the chassis of HOWO 4x2 special fire truck with a wheelbase of 4500mm, it takes into account flexibility and stability, and is suitable for narrow roads and complex rescue scenes in cities.

● Equipped with Sinotruk MC07H.35-60 engine with a maximum power of 350HP (257kW), it meets the National VI emission standards and is equipped with turbocharging and intercooling technology to ensure power stability under high-load conditions.

● Matching Sinotruk HW series 10-speed transmission and reinforced axles to ensure reliability and passability under high loads.

● Double-row cab, which can accommodate 6 people (including the driver) to meet the needs of teamwork.

★. Upper structure and function

●. Water tank and foam tank system

•  A 2500L carbon steel water tank is configured in the middle, which is treated with anti-corrosion coating, with a quick water filling port on the top and a drain valve reserved at the bottom.

•  660L 304 stainless steel foam tank, with strong corrosion resistance and independent piping system, can be linked with water pump through proportioning mixer, supporting A/B foam fire extinguishing.

•  An isolation layer is set between tanks to prevent liquid mixing, and equipped with liquid level display and pressure monitoring devices.

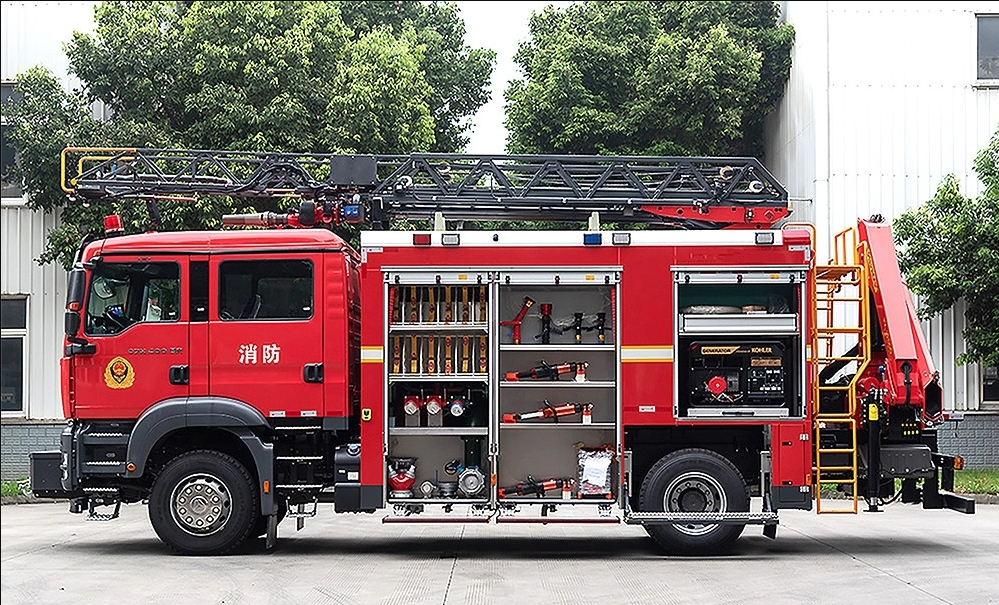

●. Equipment box layout

•  The equipment boxes on both sides adopt aluminum alloy rolling door design, which is lightweight and corrosion-resistant, and equipped with adjustable partitions inside.

•  Standard water collector, water filter, water distributor, fire extinguisher, fire hose, foam gun, fire hose, fire axe, shovel, pickaxe, shears, wrench, fire suit, first aid kit and other rescue equipment, supporting personalized configuration.

•  The equipment box is equipped with lighting system and classification label for quick access.

●. Pump room and fire fighting system

•  The tail pump room integrates CB10/60 fire pump, with a flow rate of 60L/s (at 1.0MPa pressure), a suction depth of 7m, supports self-priming and external water source, and is equipped with vacuum water diversion device.

•  Equipped with hose interface and foam proportioning mixer, it can realize water and foam mixed spraying.

●. Roof fire monitor

• PL8/48 fire monitor has a rated flow of 48L/s, water range ≥70 meters, foam range ≥60m, and pitch angle of -45°~+70°, which can adapt to complex scenes such as high-rise buildings and chemical fires.

★. Ladder and crane system

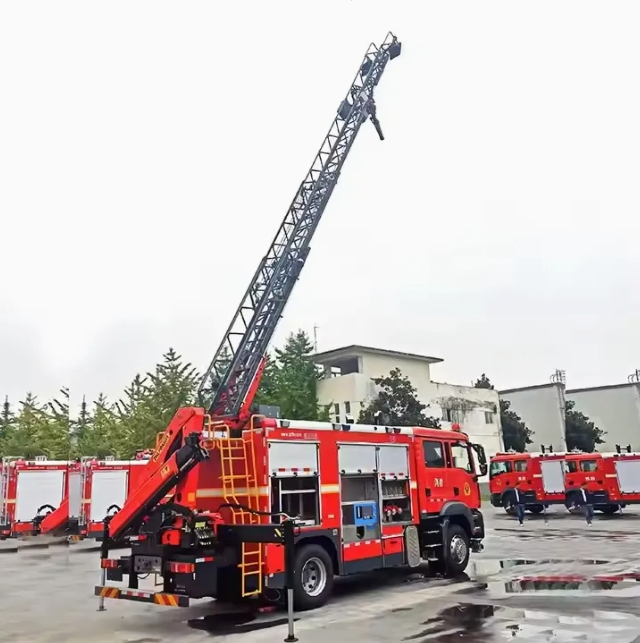

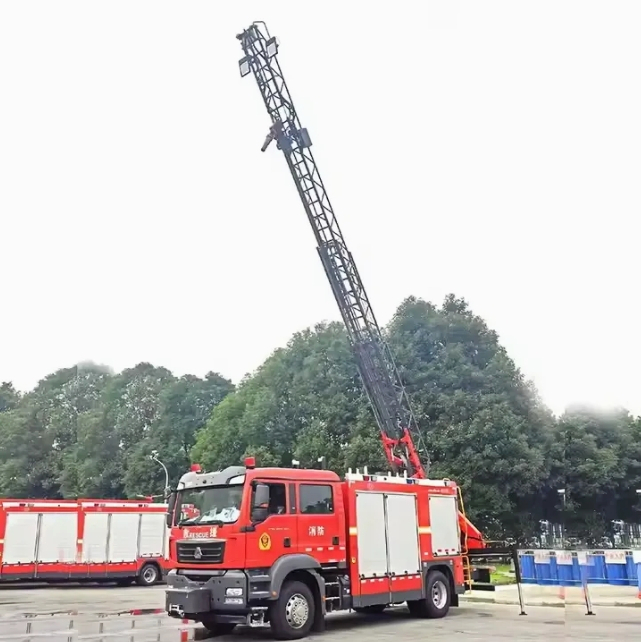

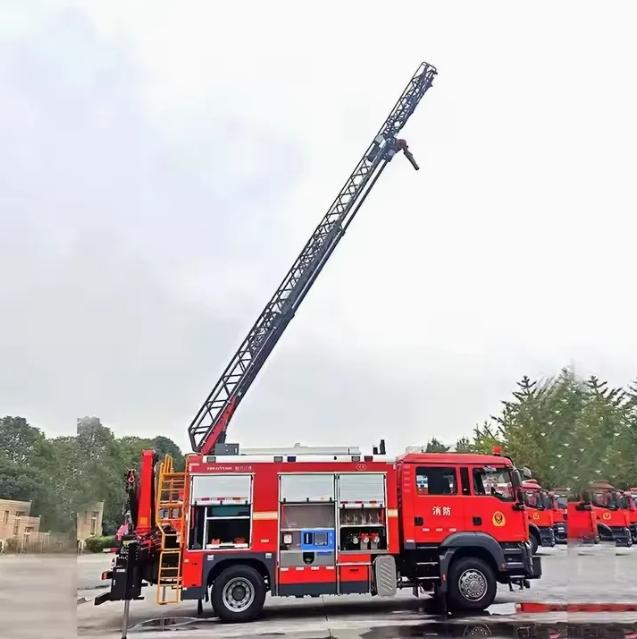

●. 18-meter ladder

• The fully hydraulically driven straight-arm ladder is made of high-strength alloy steel, with a maximum working height of 18 meters and equipped with hydraulic stabilizing legs.

• A rescue platform is set at the end of the ladder, with a load capacity of ≥200kg (at the end), 360° continuous rotation, and supports vertical lifting and horizontal extension.

• The cab is equipped with a platform console + ground wireless remote control ladder control system, which supports two-person collaborative operation.

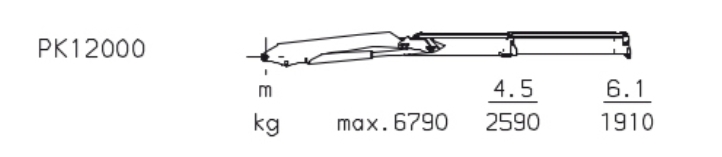

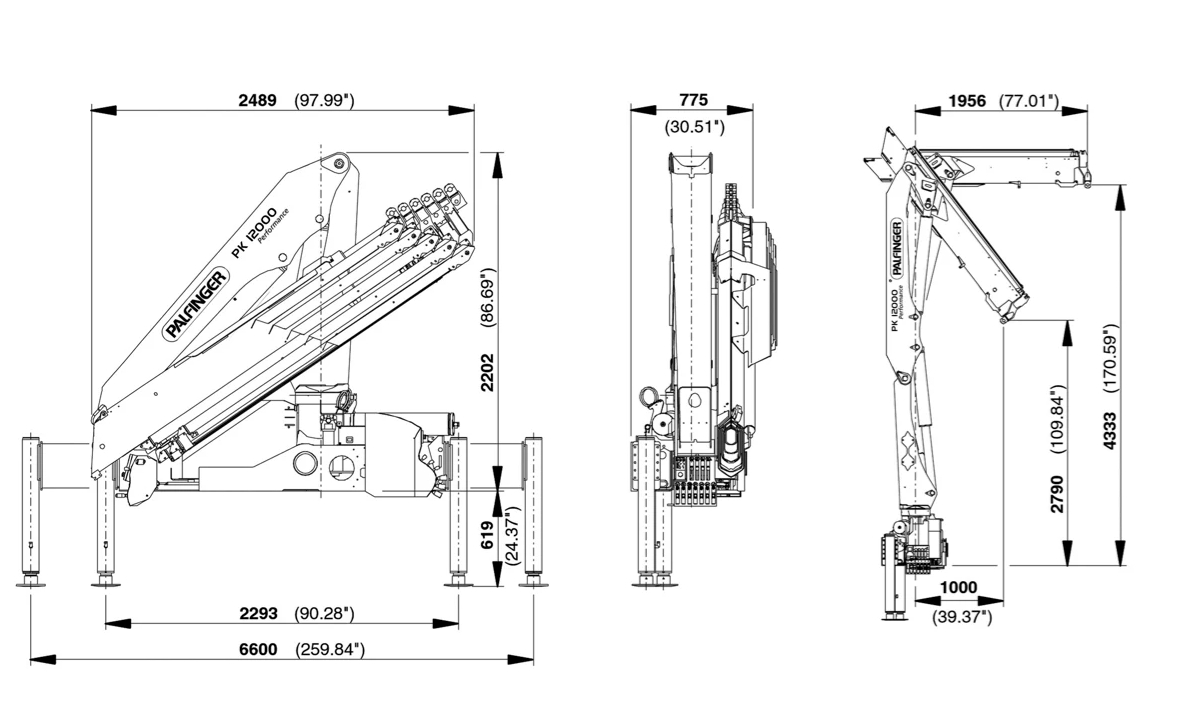

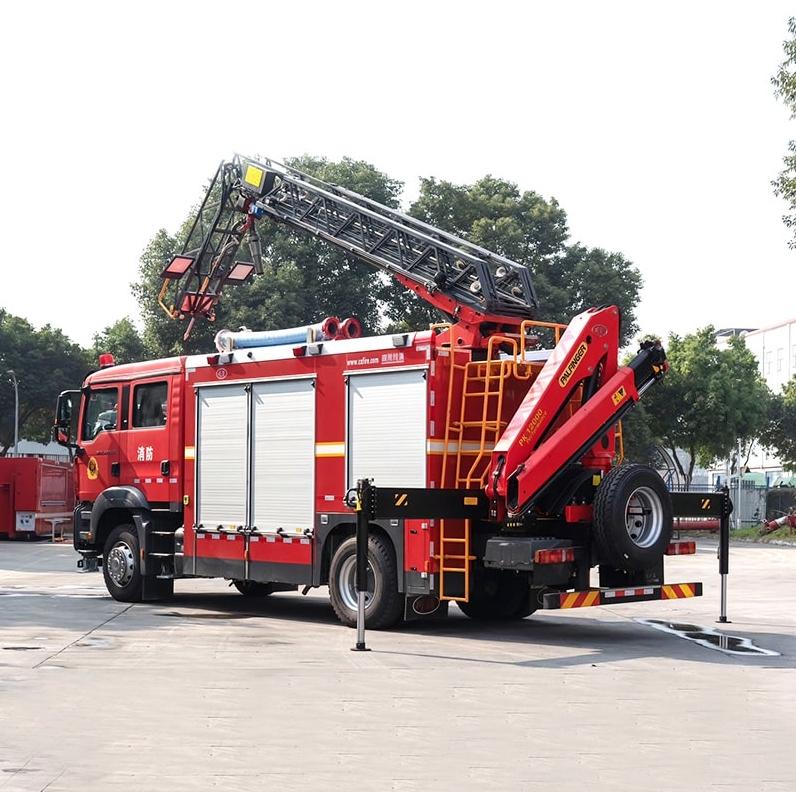

●. Palfinger PK12000 folding arm crane

• Maximum lifting weight 6790kg, extension length 6.1m, maximum lifting torque 11.6t·m.

• The folding arm design supports 420° rotation, hydraulic cylinder drive, with proportional valve precise control.

• The crane is equipped with wireless remote control and emergency brake device to ensure operational safety.

★. Safety and auxiliary systems

●. Warning and lighting system

• The roof is integrated with warning lights, LED flashing lights and tweeters, and a one-button alarm trigger button is set in the cab, which supports sound and light synchronous alarm.

●. Electrical and hydraulic system

• A dual-circuit hydraulic system is adopted, and the cloud ladder and crane are independently controlled without interfering with each other.

• Equipped with an emergency manual pump, the cloud ladder and crane can still be operated when the hydraulic system fails.

●. Humanized design

• The cloud ladder platform is equipped with safety fences and anti-slip pedals to ensure personnel safety.

●. Application Scenarios

• High-rise building rescue: The ladder can quickly reach a height of 18 meters, and cooperate with fire monitors and rescue platforms to implement fire extinguishing and personnel evacuation.

• Industrial accident disposal: The crane can lift heavy equipment or transfer dangerous goods, and the foam system can deal with chemical fires.

• Natural disaster response: Rapid deployment to the disaster-stricken area to provide material lifting and temporary rescue channels.
