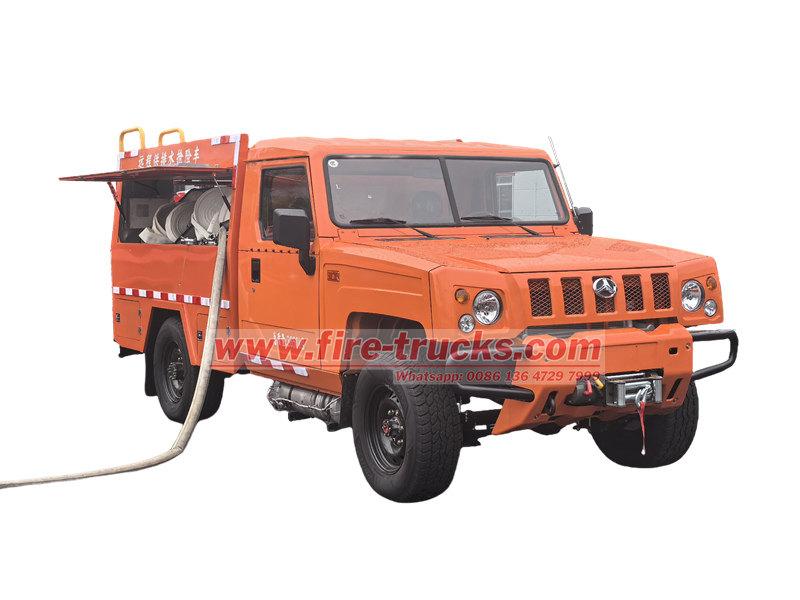

The POWERSTAR 4×4 Pickup Fire Rescue Vehicle is a compact yet highly capable firefighting unit designed for early-stage fire suppression in challenging terrains. Built on a rugged 4WD chassis, it features a 3,000m water hose range, 500m head pressure, and a ≥30m water jet range, ensuring rapid response. With a 0.6m wading depth, 40% side slope capability, and integrated lighting/communication systems, it excels in mountainous, forested, or urban environments. Its high-pressure pump, durable tank (1,400L), and GPS-enabled coordination make it ideal for patrols and small-scale firefighting, combining mobility, power, and reliability for critical rescue missions.
Manufacturer Origin:
Powerstar TrucksWork capacity :
1500LUpper Body material:
Carbon steelProduction time:
40 daysWheelbase:
3695 mmAxle drive:
4×2Engine Power:
140 HPEngine Model:
YCY24140-60AFire Pump:
SJB18/8Fire Monitor:
OptionalRemark:
tanker material PP, 4X4, 6X6 drive, RHD drive is optional

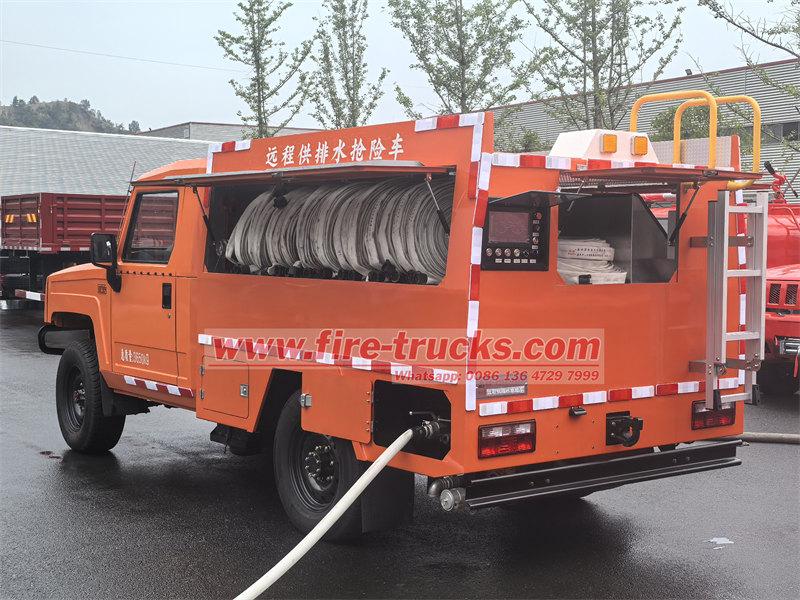

The remote water supply and drainage rescue vehicle is a specialized firefighting and rescue vehicle equipped with long-distance water supply capabilities. It can draw water from distant sources and rapidly transport it to disaster sites such as fires, ensuring the smooth progress of firefighting and rescue operations. The vehicle is suitable for various industrial and mining enterprises, urban construction projects, forest firefighting, and other scenarios, playing a critical role in firefighting and rescue missions.

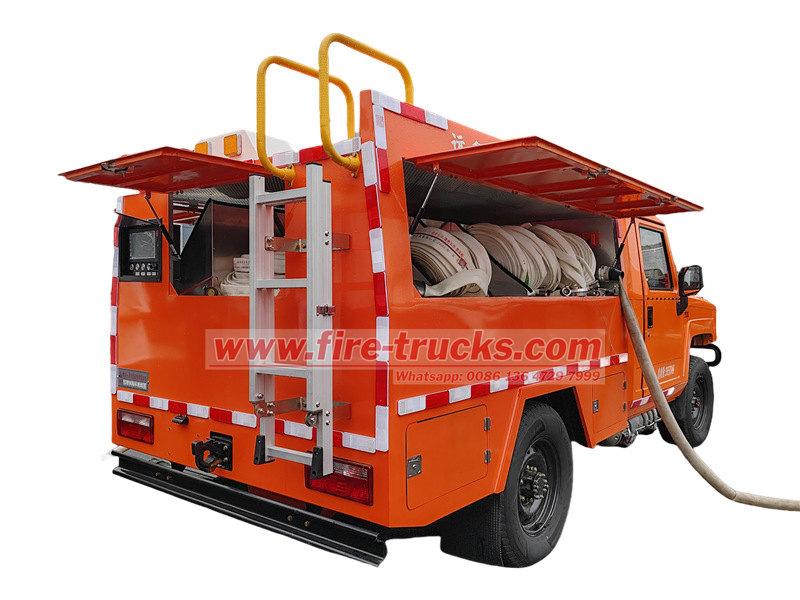

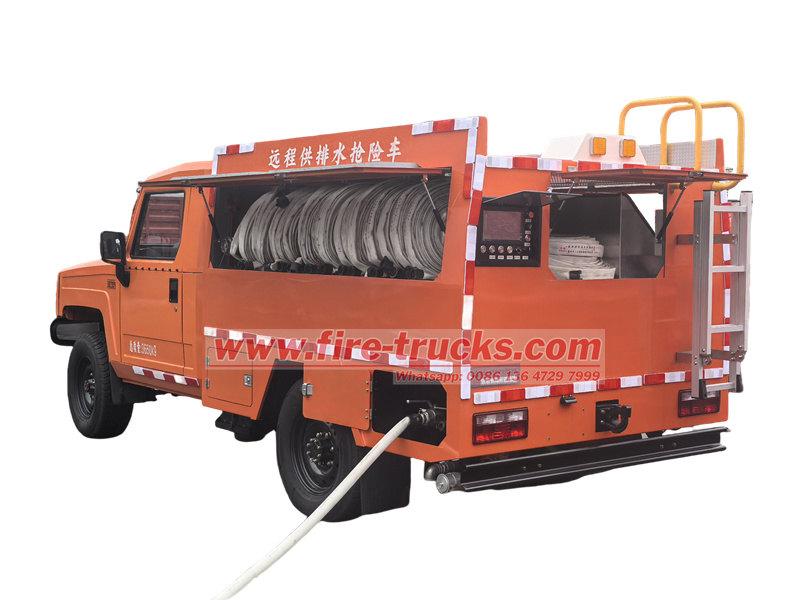

The POWERSTAR 4×4 pickup rescue vehicle is designed for early-stage containment of small-scale fires. It features a four-wheel-drive off-road chassis, with built-in lighting and remote water supply systems, powered by a power take-off (PTO) unit. It can deploy water hoses over 3,000 meters, with a lift head exceeding 500 meters and a water jet range of ≥30 meters. The vehicle boasts strong off-road capabilities, including a wading depth of 0.6 meters, a vertical obstacle clearance of 0.35 meters, a trench-crossing width of 0.55 meters, and a maximum side slope driving angle of 40%. It is widely used for patrolling hilly, mountainous, low-lying, river valley, and forested areas to detect fires early and extinguish small-scale blazes.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: 4×4 pickup chassis with wheelbase 3695 mm
Diesel engine, 4-cylinder in line, turbocharged, intercooled, 103KW
2. Tank material: Made of high quality carbon steel with 4mm thickness
The inner wall is completely treated with anti-corrosion, making it durable
3. Pump system: Equipped with ultra-high pressure remote pump, with flow rate 266L/min@4.0 Mpa

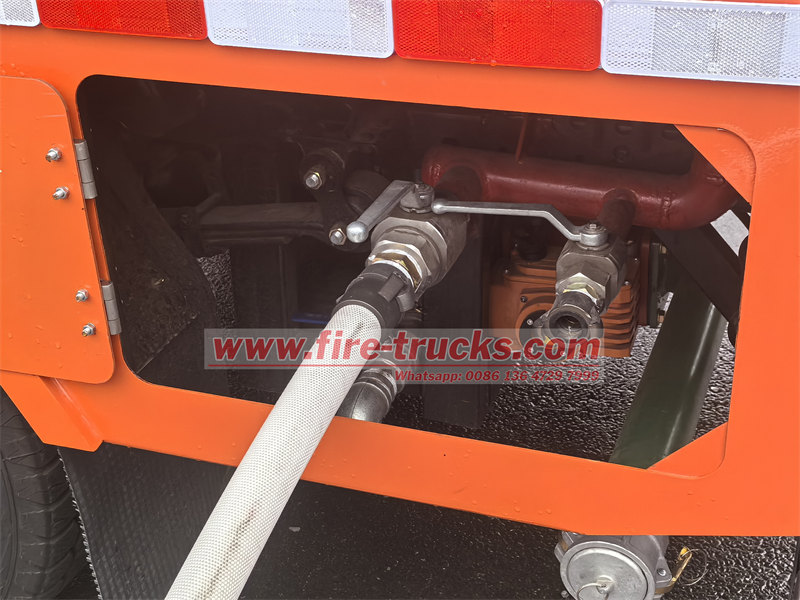

4. Pipeline: DN65 inlet/suction port, multi-size outlet/drain ports, manual ball valve control

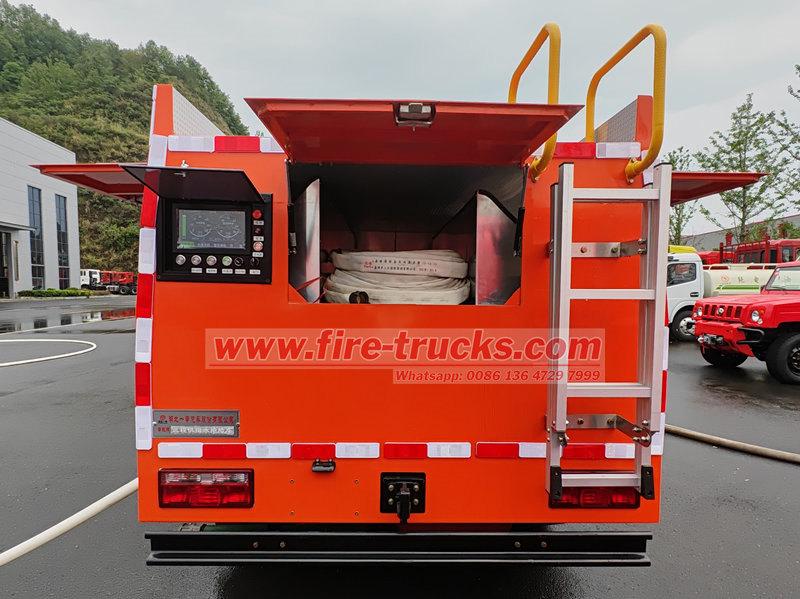

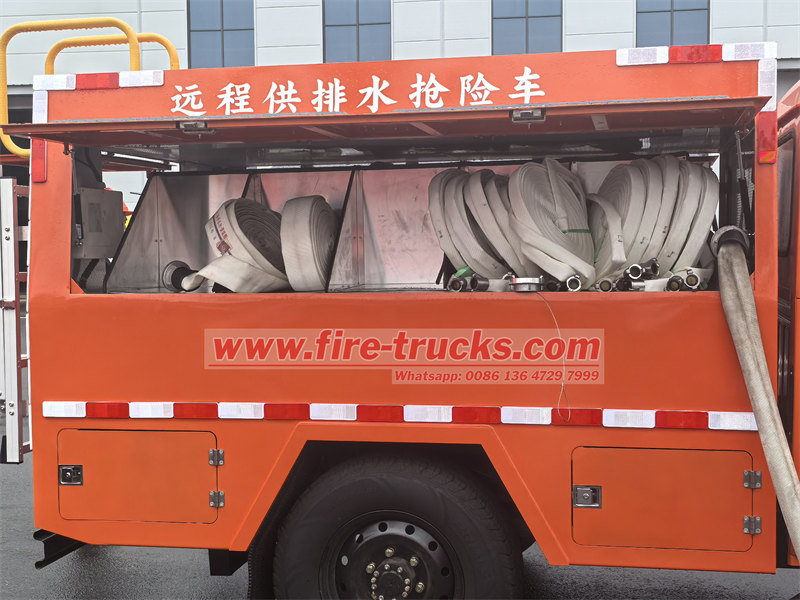

5. Equippment room: Welded frame, zinc-plated patterned lining, aluminum alloy mounting racks, waterproof roll-up door, sealed and corrosion-resistant
» Ⅱ.Product Parameter for POWERSTAR 4WD pickup rescue fire truck:
|
POWERSTAR 4WD pickup fire rescue truck specifications |
|||
|
Chassis |
Model |
BAW2043HMS |
|
|
Engine Model |
YCY24140-60A |
||
|
Fuel Type |
Diesel |
||
|
Engine Power (kW) |
103 kW |
||
|
Wheelbase（mm） |
3695 |
||
|
Seating Capacity (incl. driver) |
2+3 |
||
|
Front/rear overhang (mm) |
750/1515 |
||
|
Approach/departure angle (°) |
42/16 |
||
|
Max. driving speed（km/h） |
120 |
||
|
Tires |
265/70R16 |
||
|
Dimensions |
Overall Dimensions (mm) |
Length |
5960 |
|
Width |
1880 |
||
|
Height |
2260 |
||
|
Weight |
Gross Vehicle Weight（kg） |
3550 |
|
|
Curb Weight（kg） |
3225 |
||
|
Axle Load (Front/Rear) (kg) |
1400/2155 |
||
|
Tank |
Capacity（L） |
Water |
151500 |
|
Dimensions (mm) |
Water Tank |
800×1800×1060 |
|
|
Oscillating Pump |
Model |
SJB18/8 |
|
|
Type |
Oscillating |
||
|
Flow Rate（L/min） |
266 @ 4.0 Mpa |
||
|
Rated Pressure（MPa） |
4.0 |
||
|
Max Pressure（MPa） |
8.0 |
||
|
Max Speed（r.p.m） |
1300 |
||
|
Head（M） |
500 |
||
|
Suction Depth（M） |
8 |
||
|
Horizontal Suction Distance （M） |
200 |
||
|
Delivery Distance（M） |
5000 |
||
|
Water Jet Range（M） |
≥30 |
||
» Ⅲ.Product Features:
1. Chassis Configuration
The POWERSTAR 4WD rescue vehicle utilizes a high-strength off-road chassis, ensuring stability and reliability during high-speed driving and emergencies.
2. Body Structure
Designed with high compression resistance and heat resistance, enabling prolonged operation in harsh environments.
3. Spary System
Equipped with a high-power, high-pressure water pump to deliver large-flow water supply, along with high-pressure water guns and nozzles for rapid fire suppression and rescue.
4. Water Delivery System
Includes intake, outlet, and water source switching systems, enabling long-distance water supply and the ability to connect to water pipelines as needed.
5. Lighting Equipment
The pickup rescue vehicle can be equipped with an optional emergency lighting system to facilitate operations at night and in rainy days.
6. Traction Winch

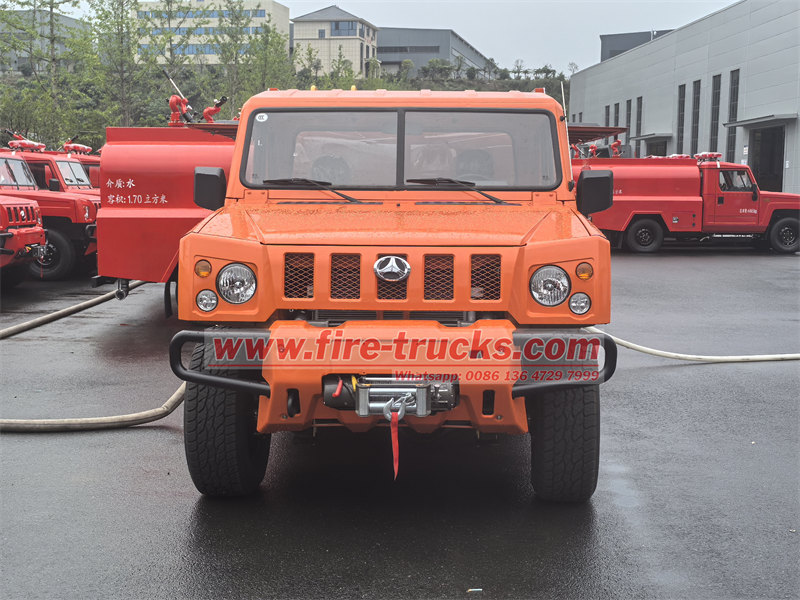

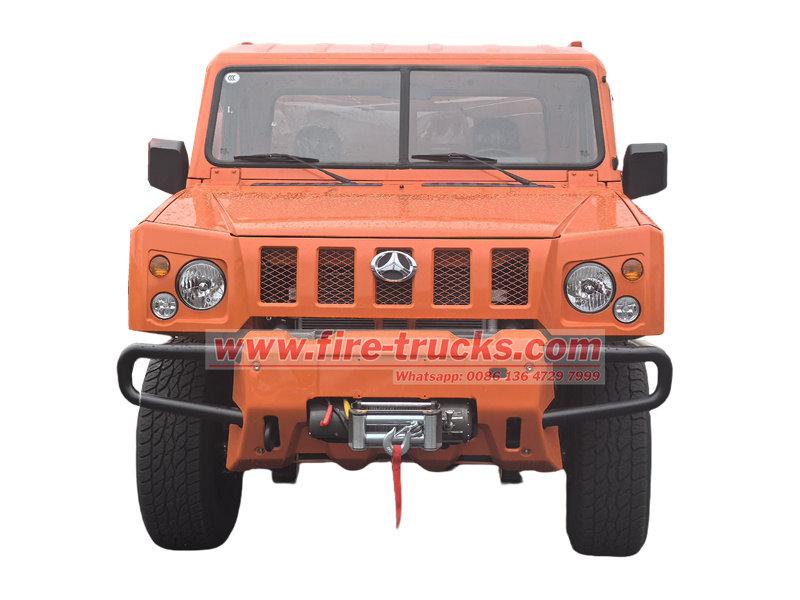

Equipped with a front-mounted winch to provide traction for emergency rescue.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Factory Testing:

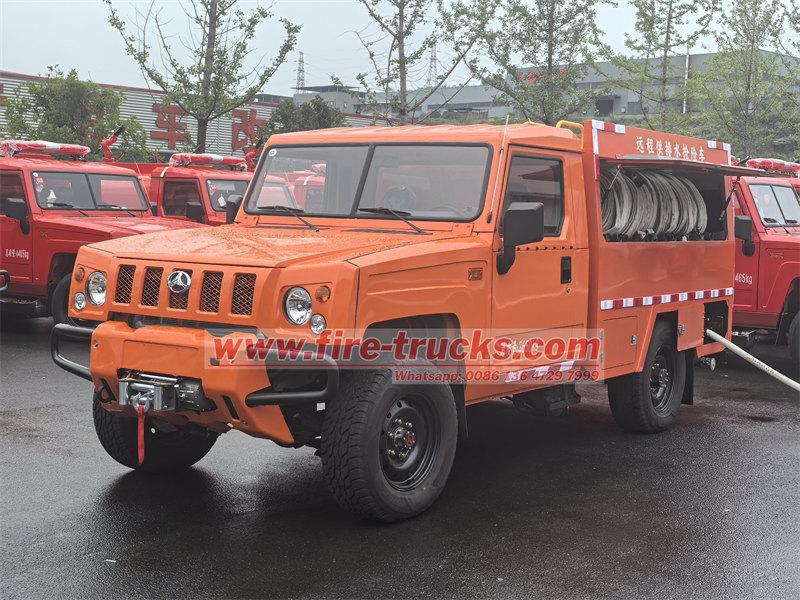

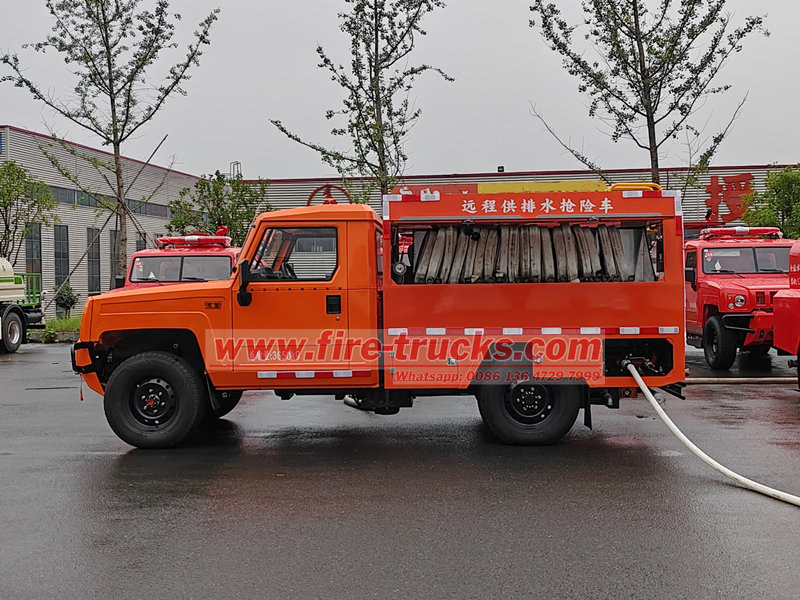

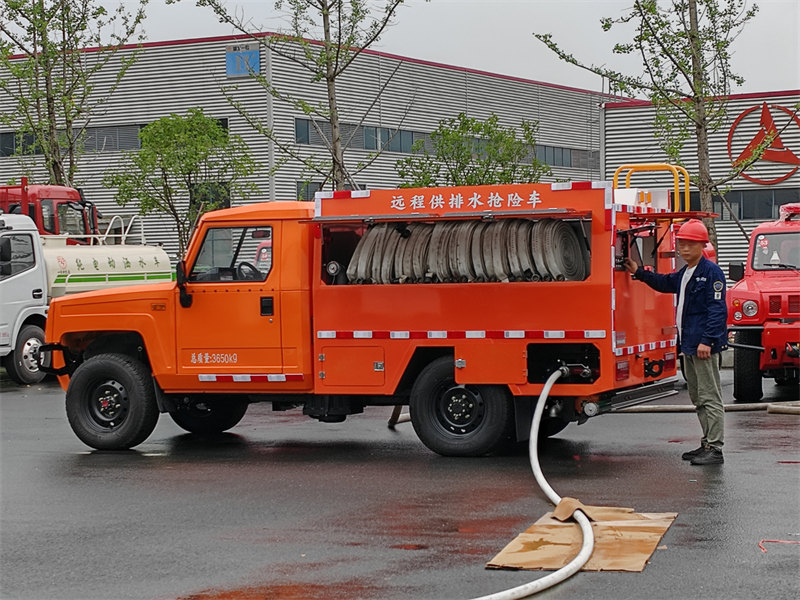

POWERSTAR Pickup Water Tender Rescue Truck

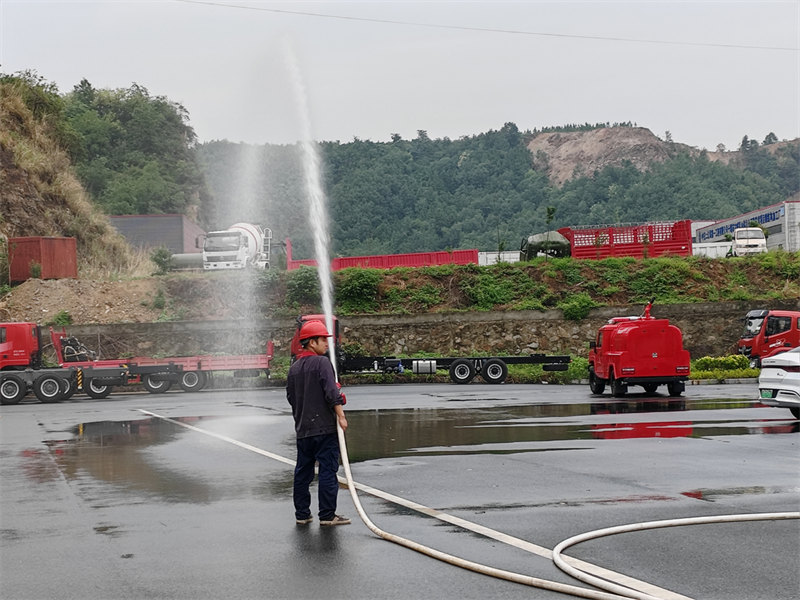

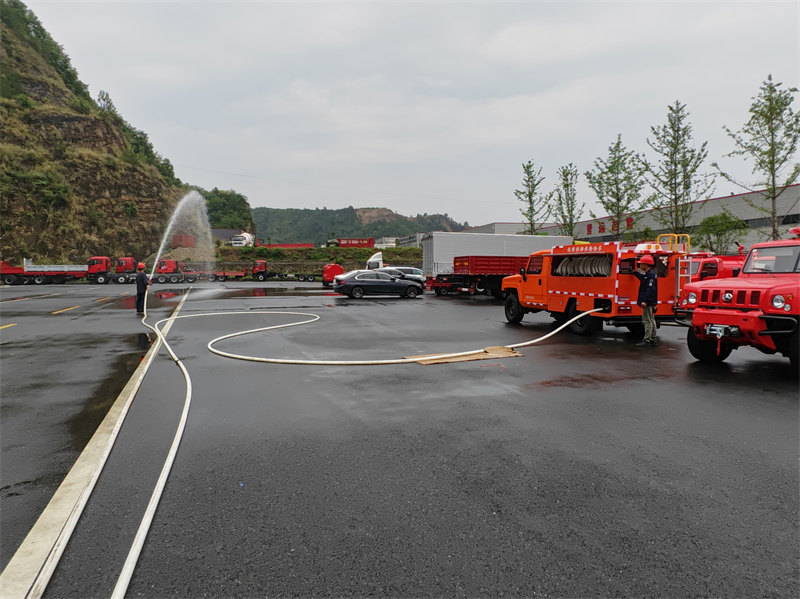

4WD pickup rescue fire truck factory testing before shipment

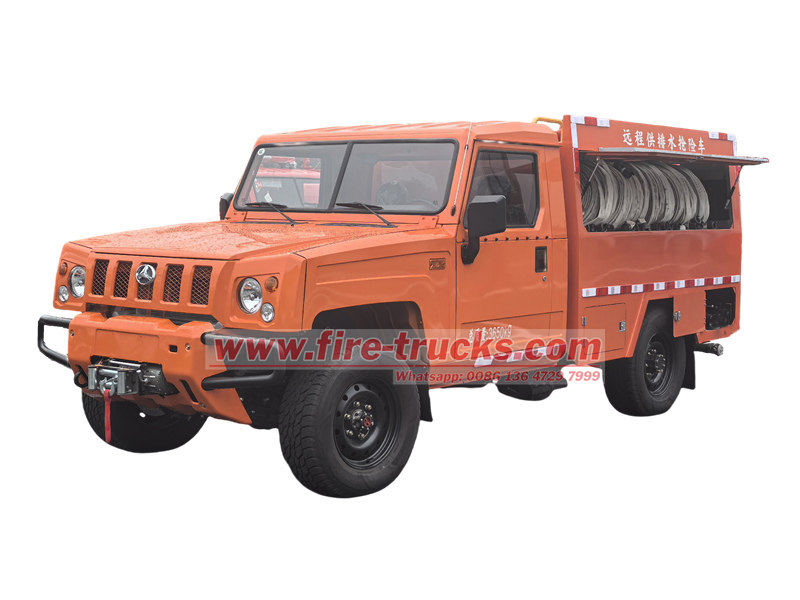

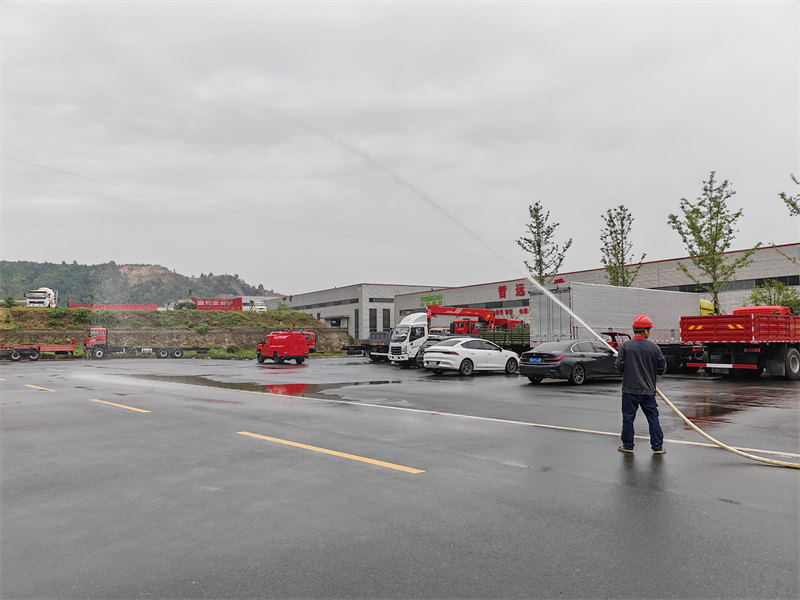

POWERSTAR 4×4 wildland fire rescue vehicle testing before delivery

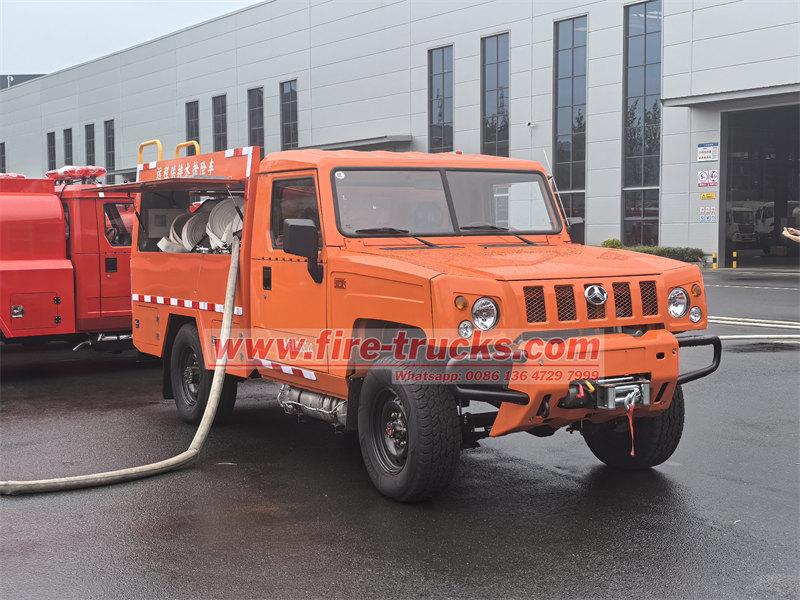

Powerstar Engineer testing and examing pickup fire rescue trucks before delivery
