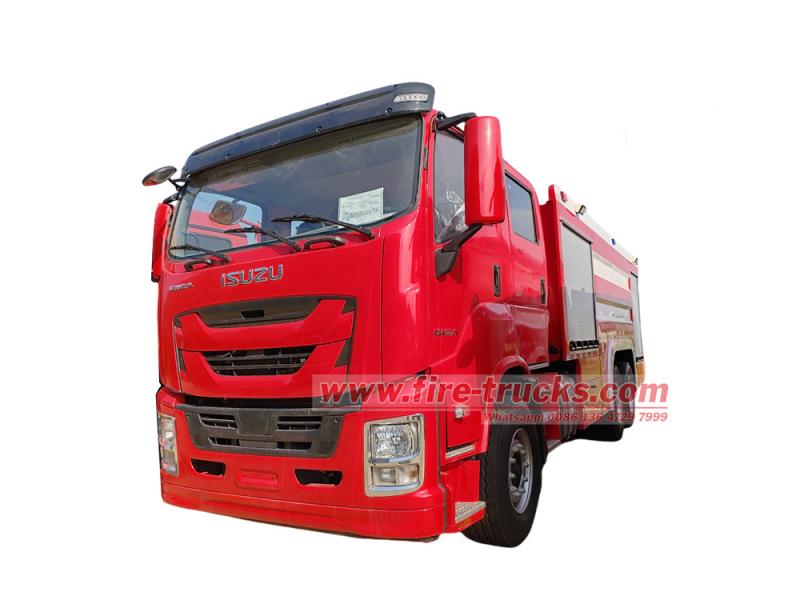

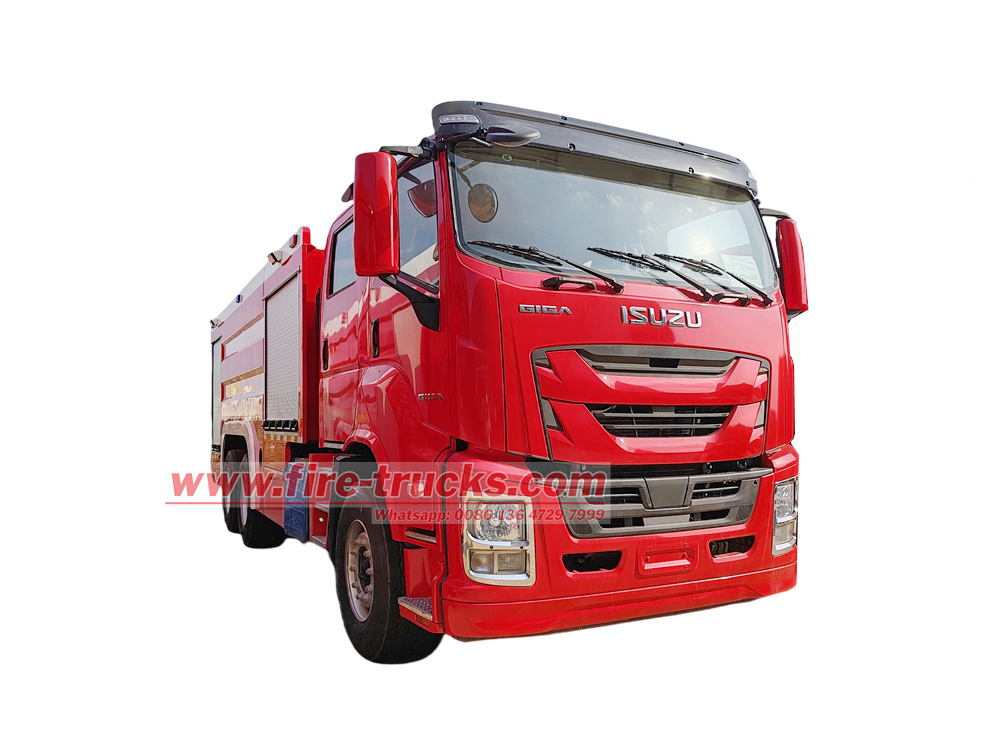

Isuzu 12500 liters dry powder fire tender truck

Isuzu 12500 liters dry powder fire tender truck is a firefighting equipment that combines powerful performance and professional functions, and plays a vital role in firefighting and rescue missions. It is equipped with a 460 horsepower Euro VI engine and a Fast 12-speed gearbox, which is powerful. The upper body is equipped with a 10 cubic water tank, a 2 cubic foam tank and a 500L dry powder tank, an integrated CB10/60-RS fire pump, and a PL48 fire monitor (range ≥ 60m) that can spray water and foam fire extinguishing agents. The dry powder system is driven by high-pressure nitrogen, equipped with a PF30 dry powder monitor (range ≥ 35m), and equipped with a dry powder reel and a handheld dry powder spray gun. The intelligent control panel centrally manages parameters such as pressure, liquid level, and speed, and is easy to operate. The vehicle is equipped with a full set of rescue equipment such as fire hoses, foam guns, and demolition tools, which is suitable for petrochemical, electrical and large-scale storage fire fighting.

● China best Isuzu dry powder foam fire truck factory

● 30 years experience on dry powder fire fighting truck designing

● Build strict QC team to guarantee the quality

● OEM customized service, print your company logo

● Promptly delivery. any order is welcome.

Isuzu dry powder foam fire truck: a cutting-edge weapon for firefighting and rescue

In the tense battlefield of firefighting and rescue, a fire truck with excellent performance and comprehensive functions is undoubtedly the key force to protect the safety of life and property. Isuzu GIGA 6x4 dry powder foam fire fighting truck, with its strong modification foundation, excellent power system and rich and diverse fire equipment configuration, has become an indispensable right-hand man in the fire brigade.

★. Excellent chassis, laying a solid foundation

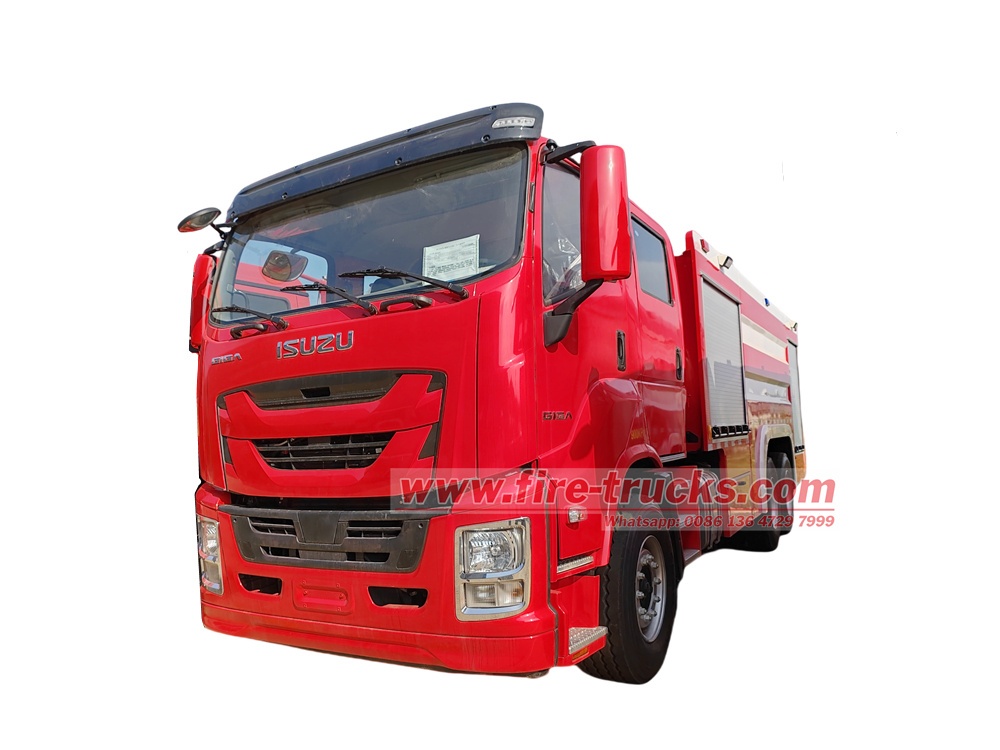

• Brand and type: The vehicle is modified based on the Isuzu GIGA 6X4 heavy truck chassis. As a world-renowned commercial vehicle brand, Isuzu has mature chassis technology and reliable quality, providing a solid operating foundation for fire trucks. The front axle has a load capacity of 9 tons and the rear axle has a load capacity of 13+13 tons, which provides a solid foundation for the modification of fire trucks.

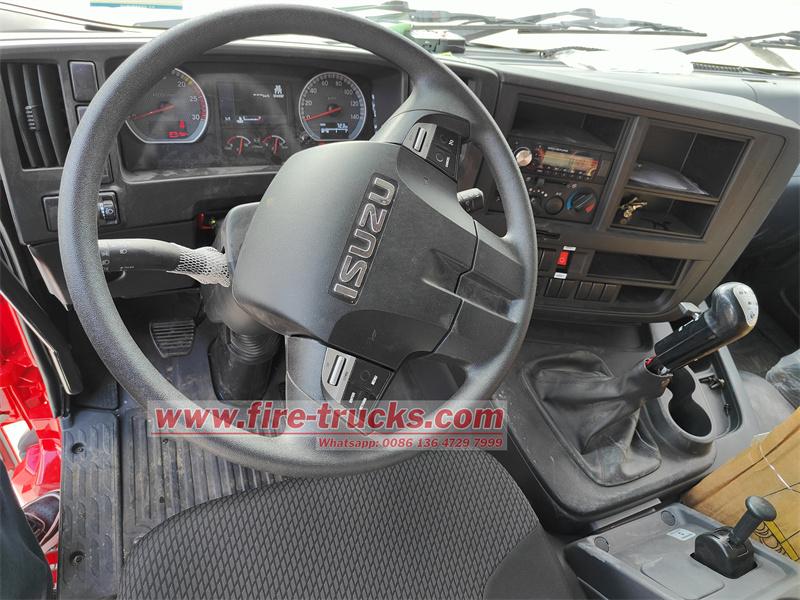

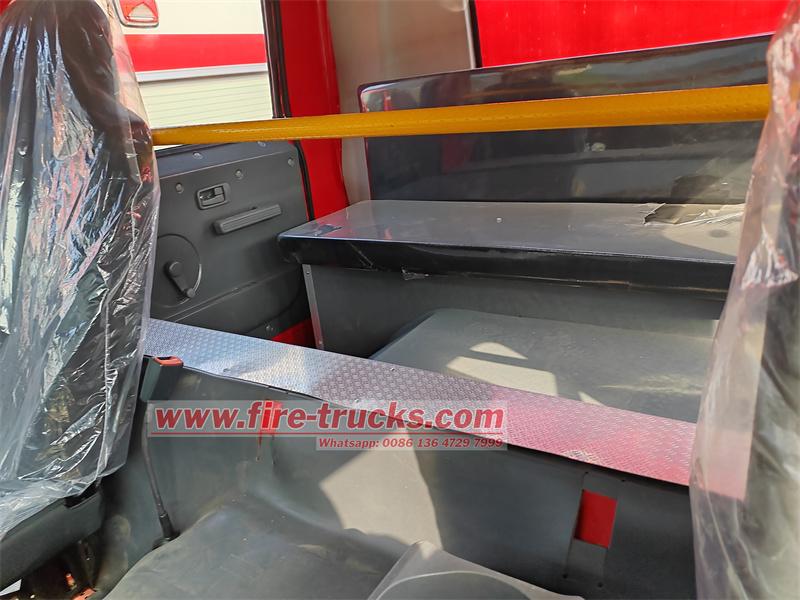

• Cab design: It adopts a double-row cab, which can accommodate 2+4 firefighters and improve rescue efficiency.

• Wheelbase advantage: The wheelbase of 4600+1370mm gives the vehicle excellent stability and handling.

★. Strong power to ensure rapid response

• Engine configuration: Equipped with Isuzu 6WG1 - TCG61 Euro VI engine, the output power is up to 460hp. This inline 6-cylinder engine has a displacement of 15.681L and is powerful, which can provide sufficient power support for fire trucks.

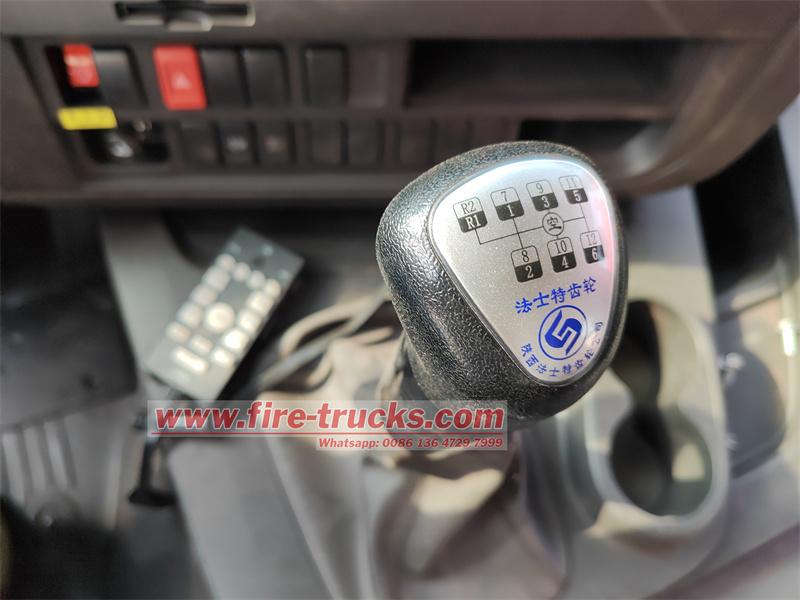

• Torque performance: The engine can burst out a powerful torque of 2250 Nm, and is equipped with Fast 12-speed gearbox, which has smooth gear shifting and efficient power transmission. Whether in congested urban roads or complex and rugged wild roads, it can ensure that the fire truck can drive quickly and stably and arrive at the fire scene in time.

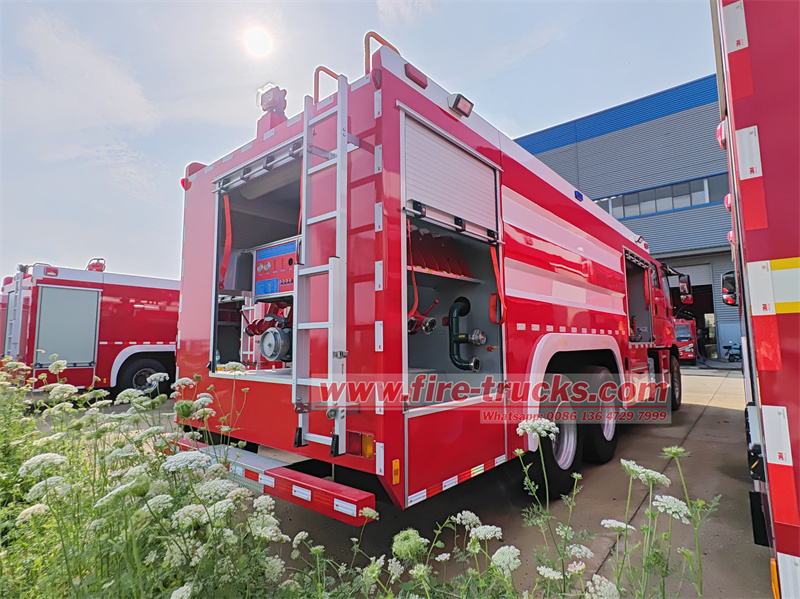

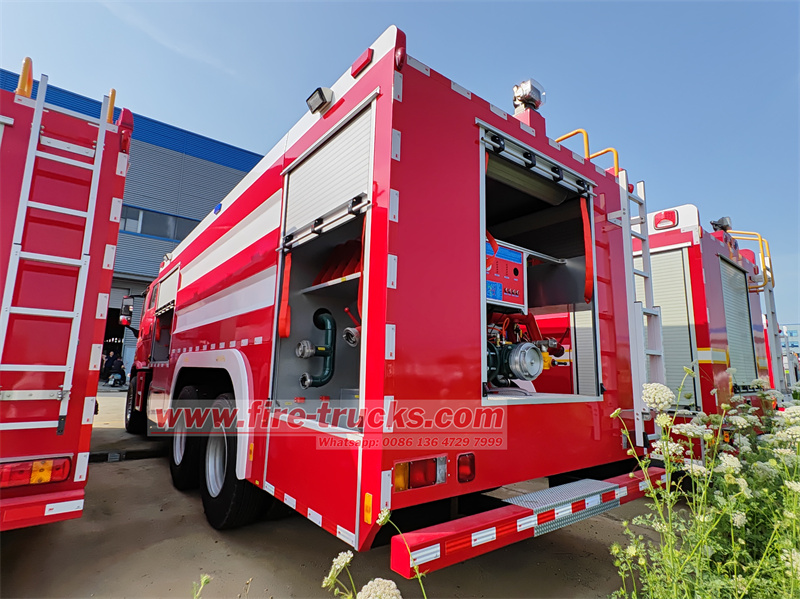

★. Professional upper body to meet diverse needs

• Tank configuration: The upper body is equipped with 10 cubic carbon steel water tanks, 2 cubic 304 stainless steel foam tanks and 500L Q345R dry powder tanks. The carbon steel water tank is sturdy and durable, ensuring a large supply of water; the 304 stainless steel foam tank is corrosion-resistant, ensuring the stable quality of the foam liquid; the Q345R dry powder tank can quickly release dry powder to deal with special fire conditions.

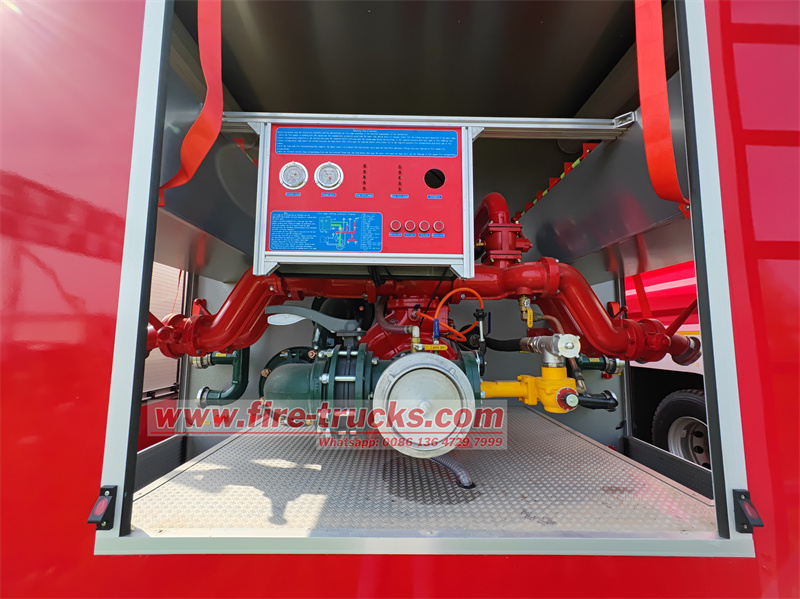

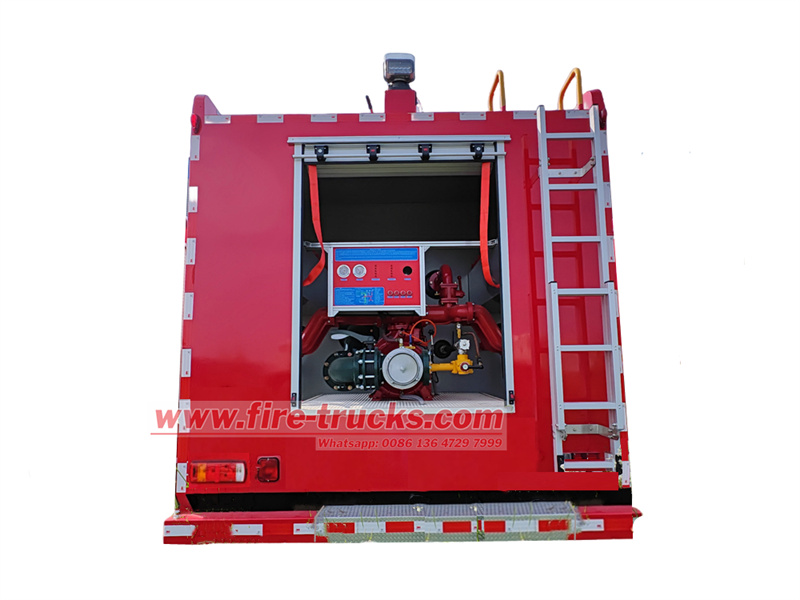

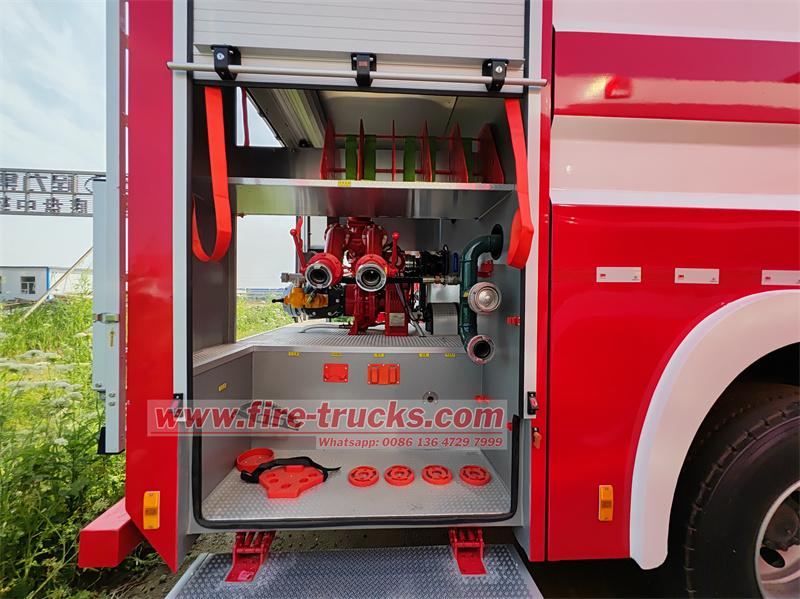

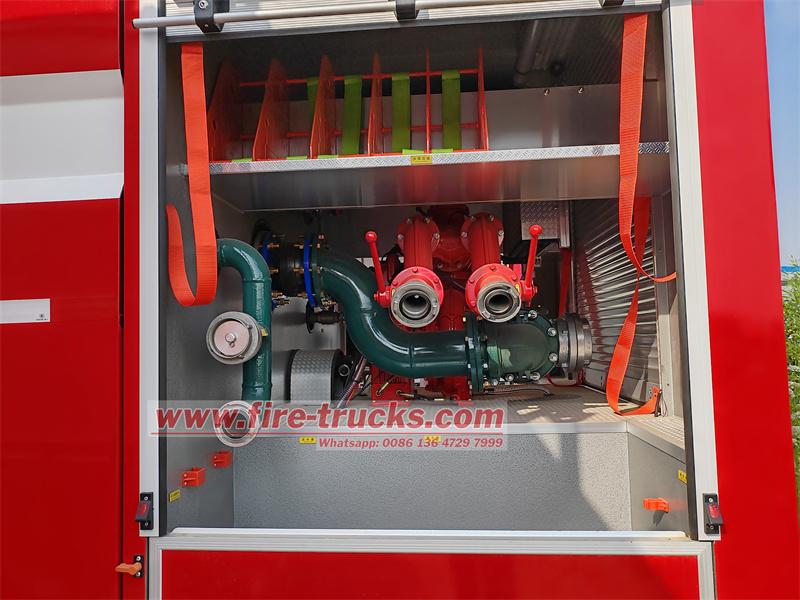

• Pump room equipment: The pump room is equipped with a CB10/60-RS fire pump (rated flow 60L/s@1.0MPa, maximum suction depth 7 meters). The control panel integrates a variety of instruments such as pressure gauge, vacuum gauge, water level gauge, foam level gauge, tachometer, etc. Firefighters can grasp the operating status of the equipment in real time and accurately control the fire extinguishing parameters.

• Fire monitor system: The top of the Isuzu GIGA 460HP engine dry powder foam water fire engine is equipped with a PL48 fire monitor (flow 48L/s, range ≥60m) and a PF30 dry powder monitor (spray rate 30kg/s, range ≥35m). It has a long range and wide coverage, and can effectively suppress the fire at a long distance, improving the efficiency of fire extinguishing.

★. Fine control to ensure accurate operation

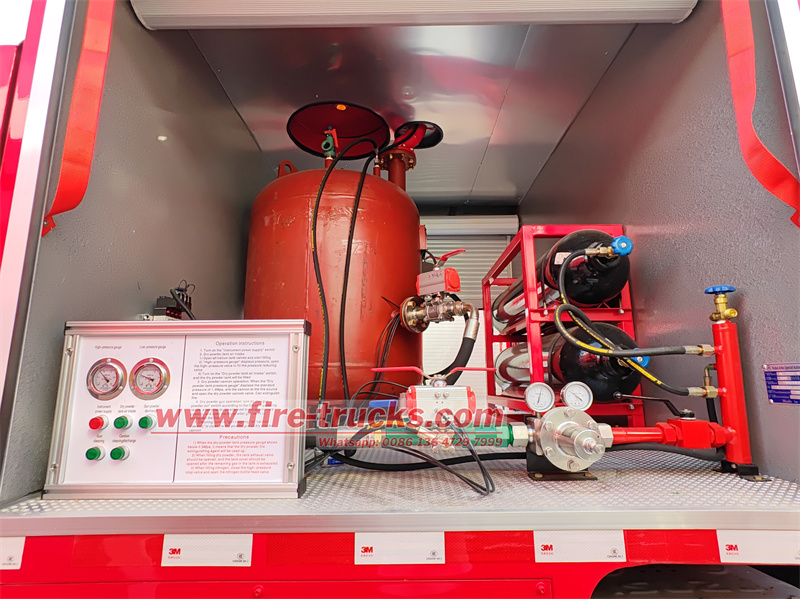

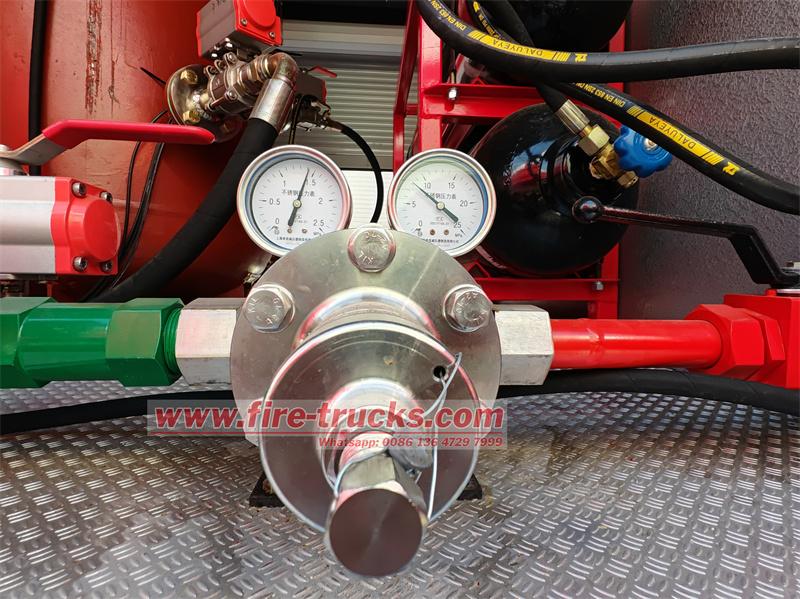

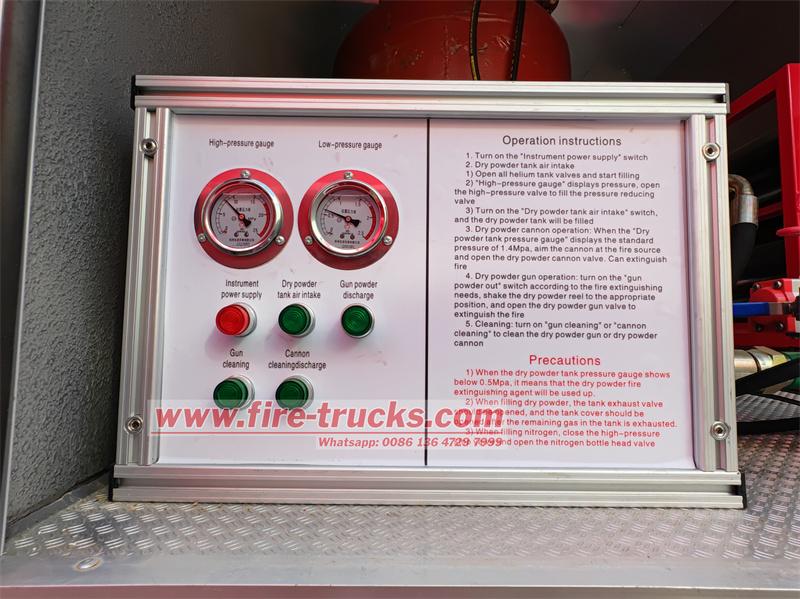

• Dry powder room control panel: The dry powder room is equipped with a professional control panel, including high pressure gauge, low pressure gauge, instrument power supply, dry power tank air intake, gun powder discharge, gun cleaning, cannon cleaning discharge, operation instructions, precautions, etc. The operation instructions are clear, which is convenient for firefighters to operate quickly during intense rescue.

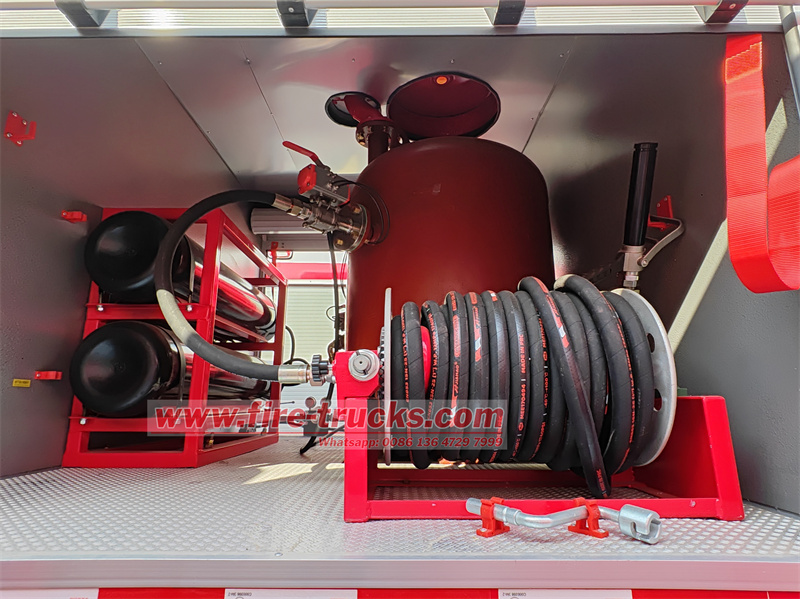

• Dry powder reel and nitrogen cylinder: Equipped with a 30-meter dry powder reel, a dry powder gun and 2 60L nitrogen cylinders, with a range of >12 meters and a spray rate of >2.5 kg/s, which enhances the ability and flexibility of dry powder fire extinguishing, and can flexibly adjust the fire extinguishing method according to different fire conditions.

★. Complete equipment to ensure comprehensive rescue

• Firefighting equipment: The vehicle is equipped with a series of complete firefighting equipment, including fire hoses, water collectors, water filters, water distributors, fire extinguishers, fire hoses, foam guns, etc., to meet the firefighting needs in different scenarios.

• Tool equipment: It is also equipped with fire shovels, pickaxes, hammers, axes and other tools, providing firefighters with all-round support during the firefighting and rescue process, ensuring that they can cope with various complex rescue situations.

Functional advantages of Isuzu dry powder foam fire trucks in firefighting

As professional equipment in the field of firefighting,Isuzu GIGA 6X4 12.5cbm dry powder fire rescue truck have shown significant advantages in firefighting and rescue work with their unique design and powerful performance.

★ Multi-media firefighting to cope with complex fire situations

● Water firefighting is efficient and stable

The 10-cubic-meter carbon steel water tank gives the vehicle a strong water storage capacity, which can meet the needs of long-term and large-scale firefighting. The carbon steel material is sturdy and durable, ensuring that the water tank will not leak or deform under long-term use and complex environments, and ensuring the stability of water supply. When fighting general solid material fires, the fire pump can quickly pressurize water to the fire monitor or water gun to form a strong water flow, effectively cover the fire source, quickly reduce the temperature of the fire scene, and suppress the spread of the fire.

● Foam firefighting is highly targeted

The foam liquid stored in the 2-cubic-meter 304 stainless steel foam tank can produce a large amount of foam after mixing with water in a certain proportion. These foams can adhere to the surface of the burning object, isolate the air, and prevent the combustion reaction from continuing. They are especially suitable for fighting oil fires and flammable liquid fires. 304 stainless steel has good corrosion resistance, which can ensure the stability of the quality of the foam liquid and avoid the deterioration of the foam liquid due to tank corrosion, thereby ensuring the foam fire extinguishing effect.

● Dry powder fire extinguishing is fast and effective

The dry powder fire extinguishing agent stored in the 500L Q345R dry powder tank has the characteristics of fast fire extinguishing speed and high efficiency. The dry powder can cover the fire source in an instant, interrupt the combustion chain reaction, and has a significant fire extinguishing effect on special fires such as electrical fires and gas fires. The dry powder tank made of Q345R material has high strength and good toughness. It can withstand the pressure changes during the storage and release of dry powder, ensuring the reliable operation of the dry powder fire extinguishing system.

★ Flexible fire extinguishing equipment, adaptable to various scenarios

● Fire cannon has a long range and wide coverage

The PL48 water-foam dual-purpose fire cannon and PF30 dry powder cannon installed on the top of the truck have a long range and a wide coverage. At the scene of a large fire, firefighters can operate the fire cannon at a safe distance to suppress the fire from a long distance and reduce the risk of casualties. At the same time, the angle and flow rate of the fire cannon can be adjusted as needed to meet the firefighting needs of different fire scenes.

● The reel and gun are flexible and convenient

The design of the powder reel with dry powder gun makes it more flexible and convenient for firefighters to extinguish fires at close range or in some special parts. The dry powder gun can spray dry powder quickly and accurately to quickly extinguish initial fires or local fire points. In addition, the fire hose, water gun, foam gun and other equipment equipped on the vehicle can also meet the firefighting needs in different scenarios and improve the flexibility and adaptability of rescue.
