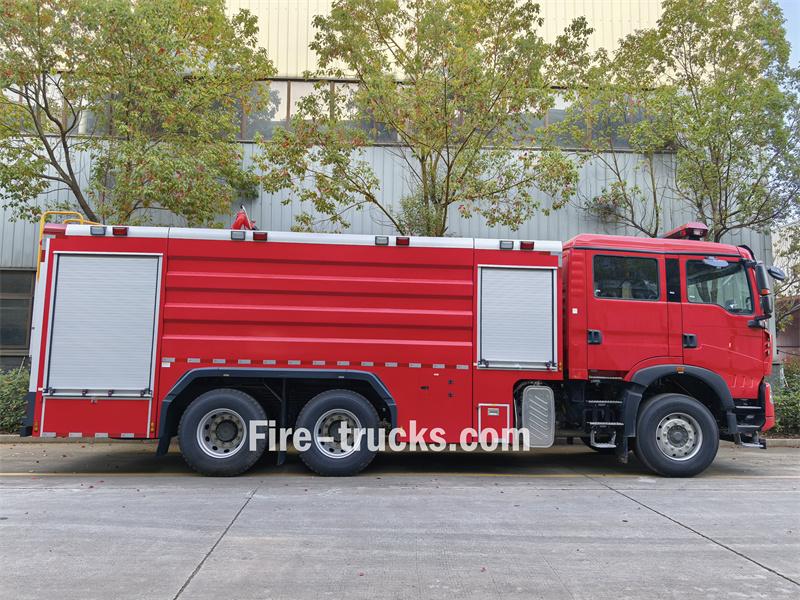

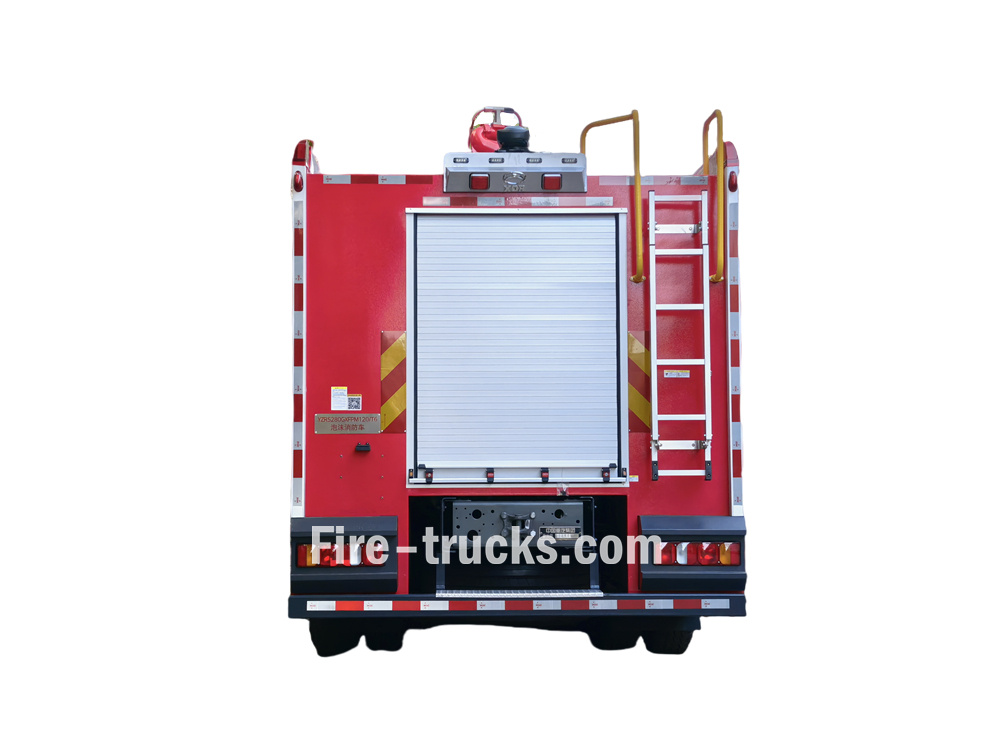

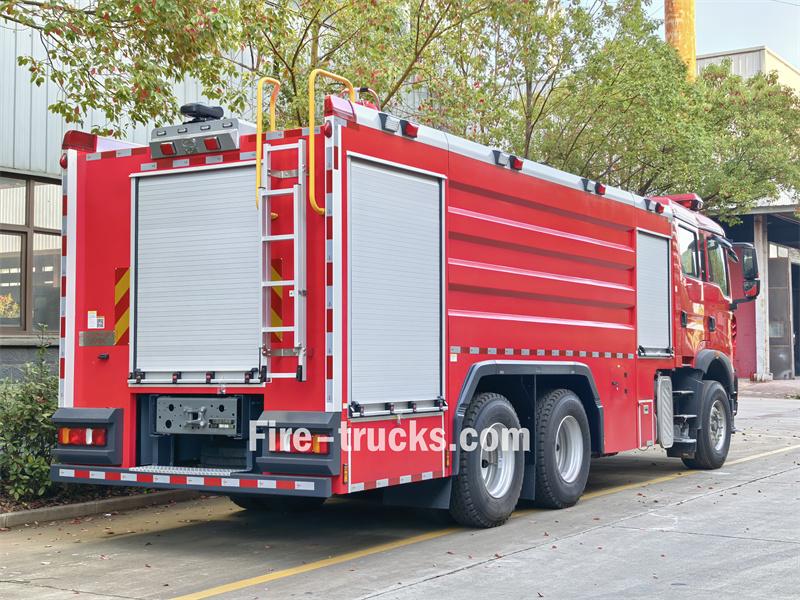

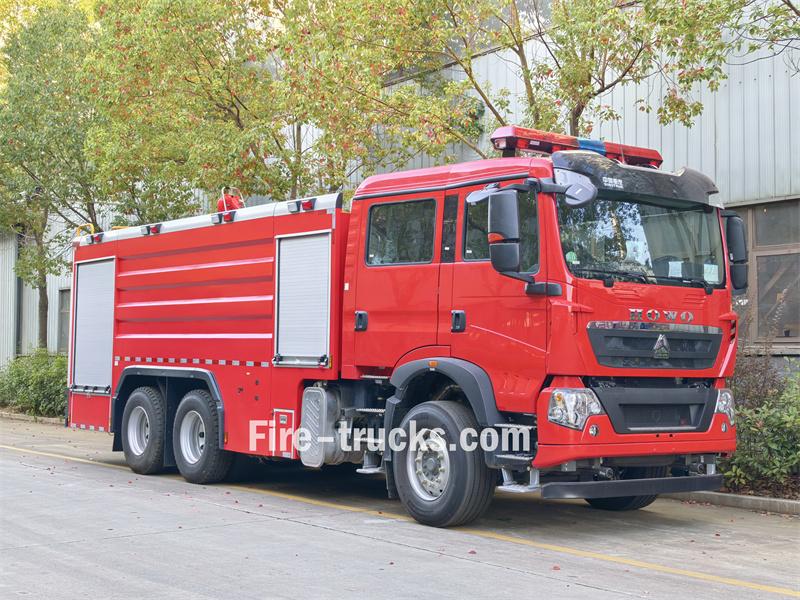

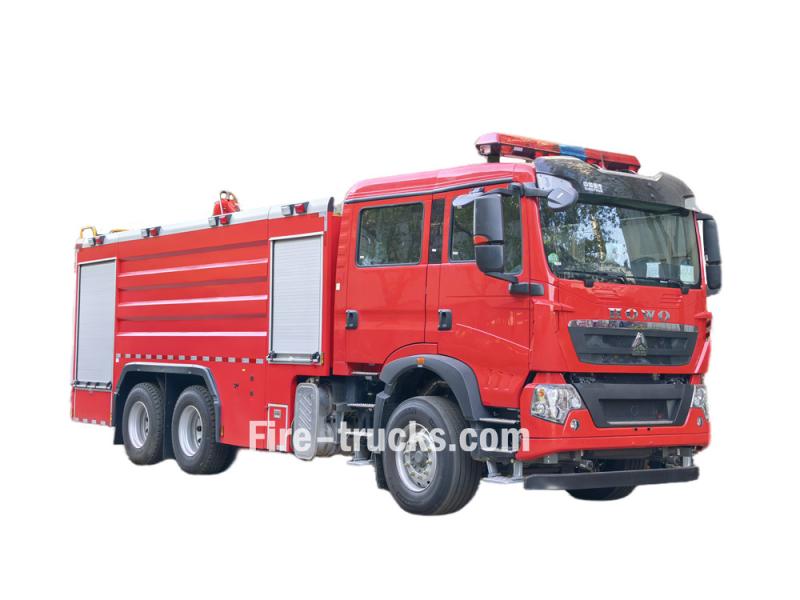

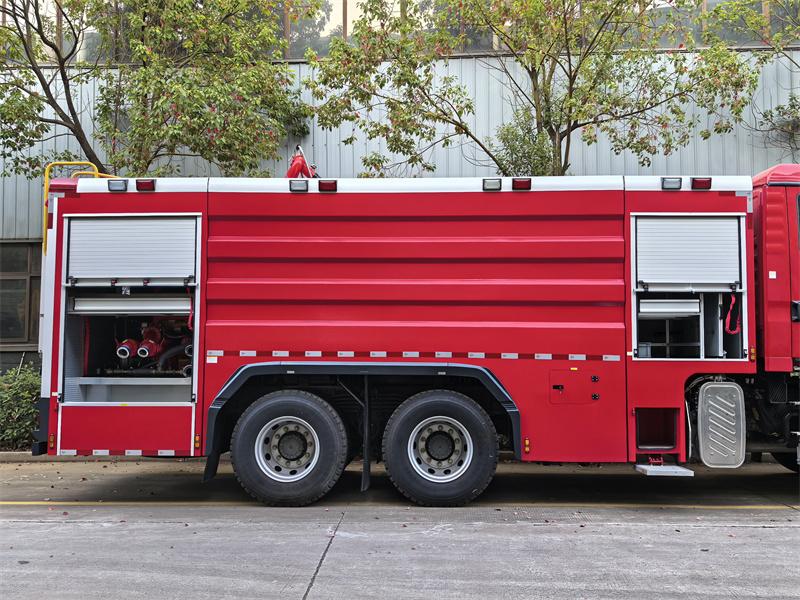

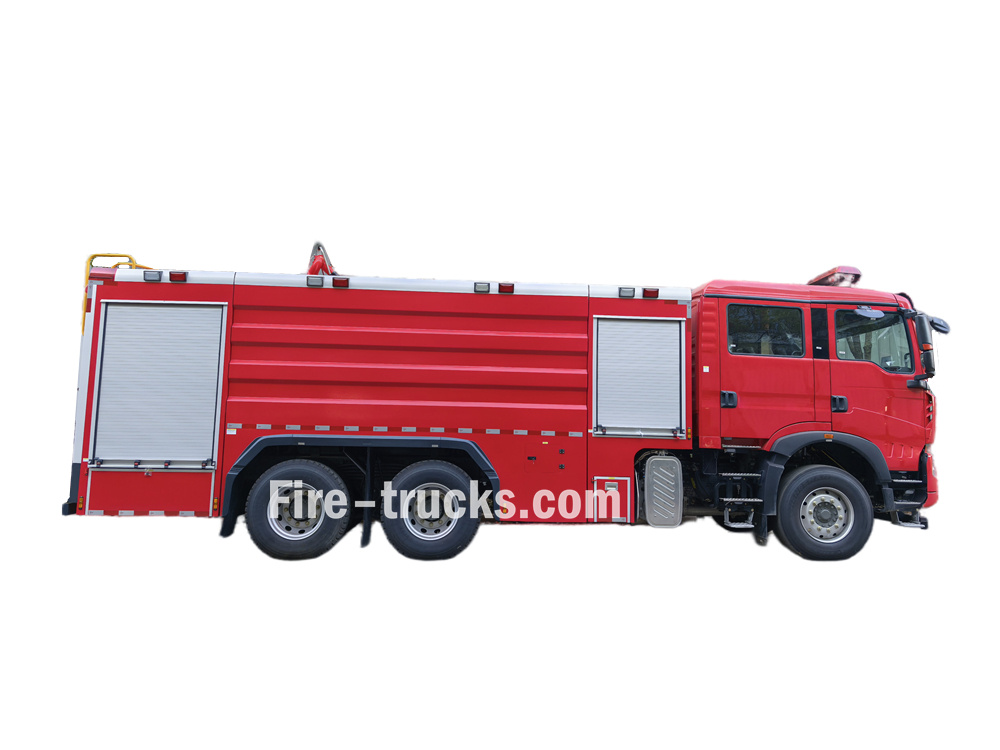

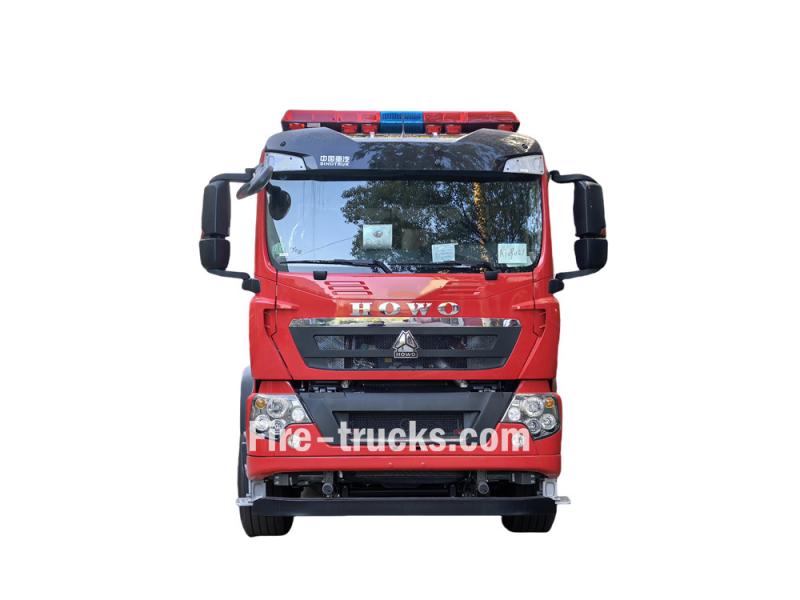

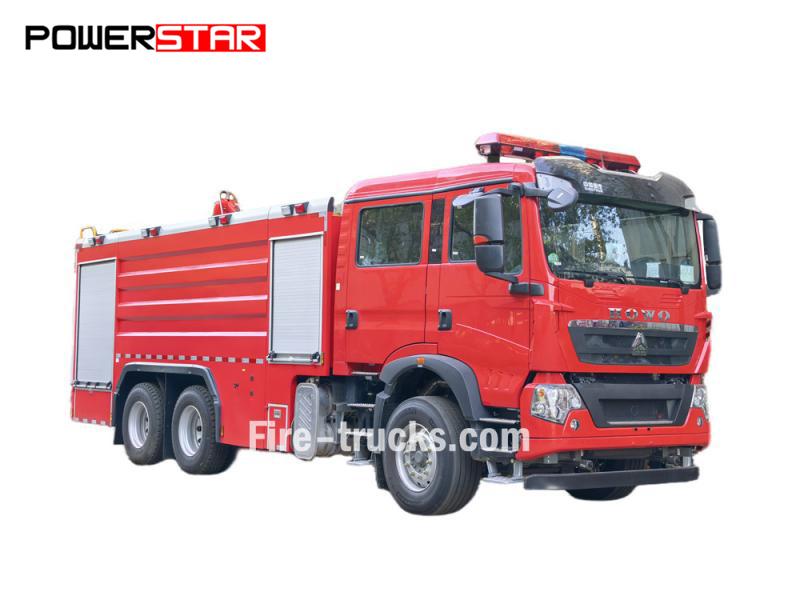

The Howo TX460 6x4 12 cbm foam fire truck adopts a Sinotruk TX 6x4 cab, with a 4600+1400mm wheelbase, and is equipped with a SINOTRUK MC11.46-61 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment for storing various firefighting equipment, while the middle section contains a 9 cubic meter carbon steel water tank and a 3 cubic meter foam tank. The rear section houses the pump room, equipped with a CB10/60-RS fire pump, a control panel, and some auxiliary firefighting equipment. The water and foam tanks on the roof are equipped with manholes, and a PL8/48 fire monitor is also included.
Truck Chassis:
HOWO TX, 6x4Tanker Capacity:
9000L water +3000L foamEngine Power:
MC11.46-61 460 HPFire Pump:
China CB10/60-RSPump Flow:
60L/sWork Pressure:
1.0 MpaFire Monitor:
China PL8/48Monitor Flow:
48 L/sMonitor Range:
Water≥70 m,Foam≥60mThe HOWO TX 460hp model fire rescue vehicle is a large-to-medium-sized main battle fire truck integrating fire and rescue functions. It is equipped with a 460hp MC11 engine and an HW19710 transmission, providing powerful performance. It features a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam liquid tank, giving it excellent independent operating capabilities. An inspection port on the roof facilitates maintenance and cleaning.

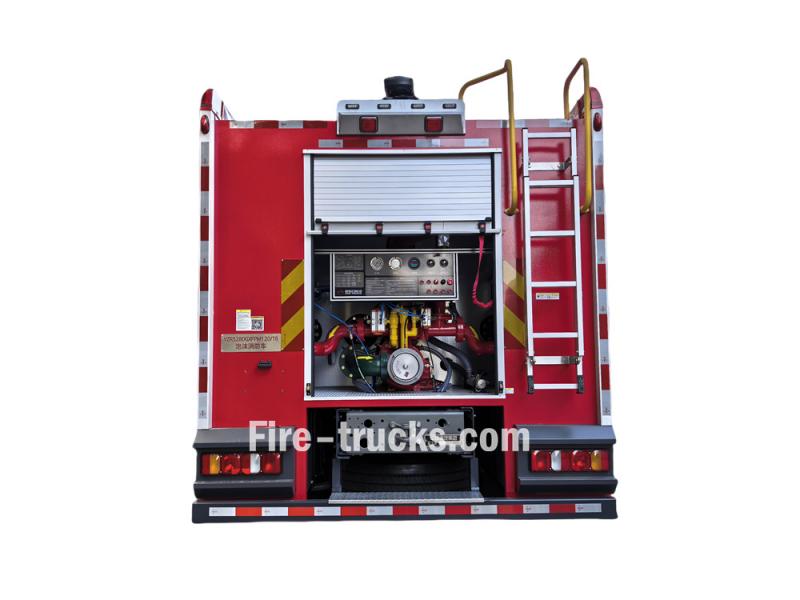

The rear pump room is equipped with a CB10/60-RS fire pump and control panel. A PL8/48 fire monitor is mounted on the roof, offering long range, wide coverage, and adjustable angle. This fire rescue trucks integrates fire and rescue functions, and is particularly adept at extinguishing Class B fires such as oil fires, making it a core piece of equipment for ensuring urban and industrial safety.

»Ⅰ. Main Features :
---ISUZU GIGA chassis, perfect performance
---lSUZU engine & gearbox, super powerful, no overhaul within 100.000 km
---Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
---Easy operation and easy maintenance
---Various types of fire equipment are available
---Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
» Ⅱ.Product Parameter :
|
HOWO TX 6x4 foam water fire truck |
|||
|
General |
Work capacity |
9000L water tank,3000L foam tank |
|
|
Truck chassis |
HOWO TX460 |
||
|
Engine Power |
SINOTRUK MC11.46-61,460 HP/ 338kW |
||
|
Fire pump |
CB10/60-RS |
||
|
Chassis |
Drive Type |
6X4 |
|
|
Transmission |
SINOTRUK HW19710, manual, 10 F & 2 R |
||
|
No. of axle |
3 |
||
|
Tire |
12.00R20,12+1wheel |
||
|
Fire pump |
Model |
CB10/60-RS |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.082MPa |
||
|
Max allowable inlet pressure |
0.4MPa |
||
|
Flux |
60L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
3200±50r/min |
||
|
Speed Ratio |
1:1.44 |
||
|
Foam Water Proportioning Mixer |
Model |
PH64-RS |
|
|
Mixing ratio |
6% |
||
|
Work pressure range |
0.6~1.4MPa |
||
|
Flow range |
16~64L/s |
||
|
Suitable foaming liquid categories |
Category B |
||
|
Fire monitor |
Model |
PL8/48 |
|
|
Flow |
48L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Range |
Water |
≥70m |
|
|
Foam |
≥60m |
||
|
Pitch rotation |
- 45~+70° |
||
|
Horizontal rotation |
0~360° |
||
|
Electronic alarm |
Electronic alarm |
LY CJB-100-C24 / 1.2 m long |
|
|
Hose reel |
Hose reel |
Electric, 50 meters |
|
|
Standard configuration |
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… |
||

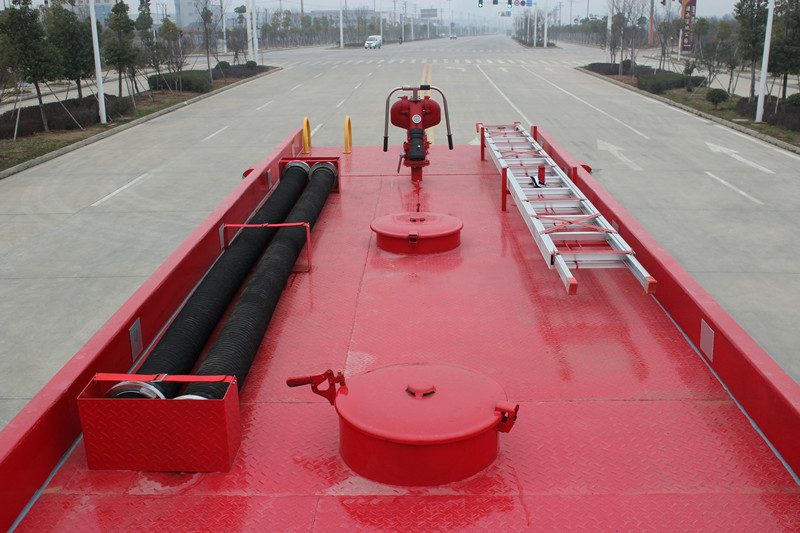

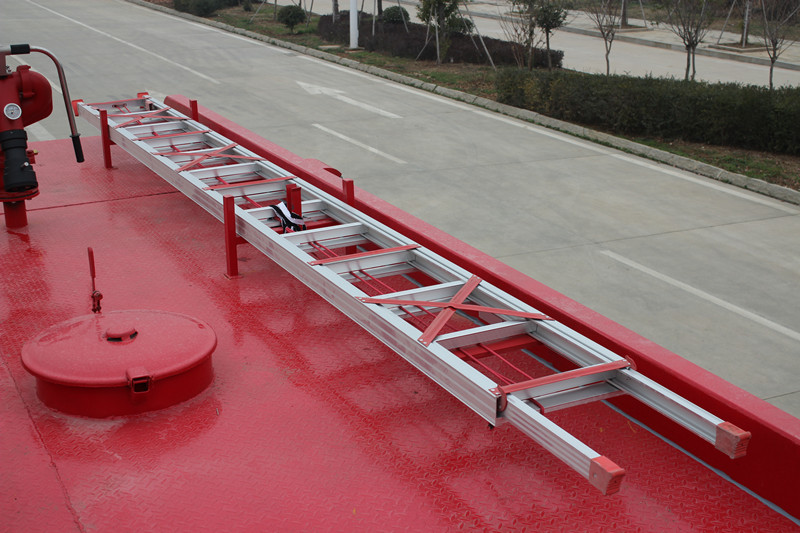

Tank System: The front part is the equipment room, where various firefighting equipment (such as fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.) are stored for easy access. In the middle, there is a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, both equipped with manholes on top.

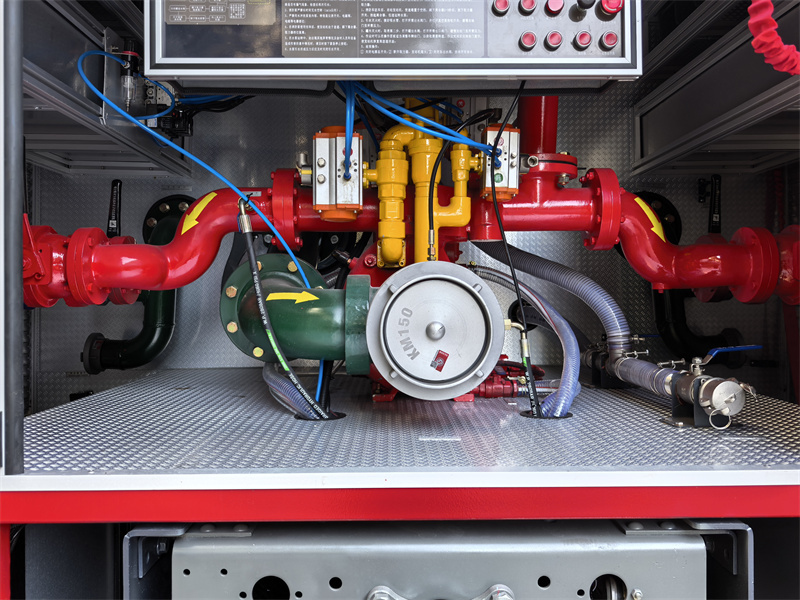

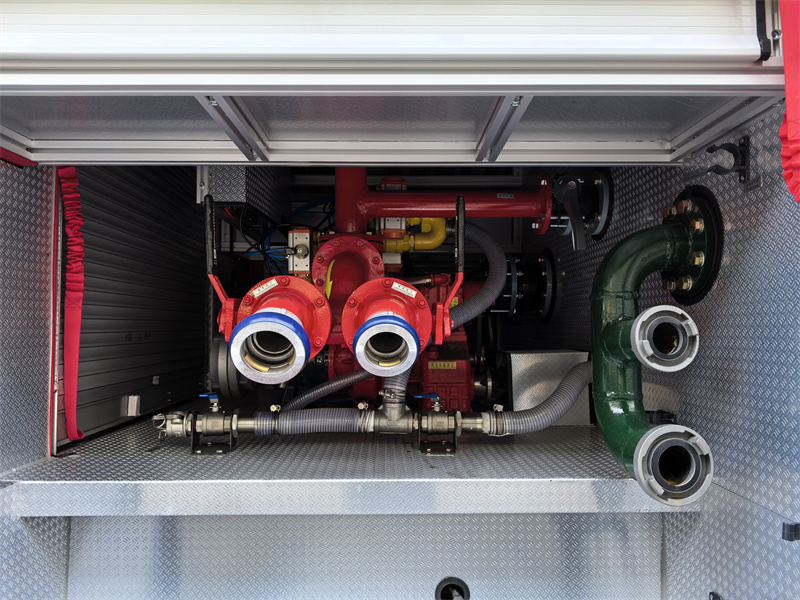

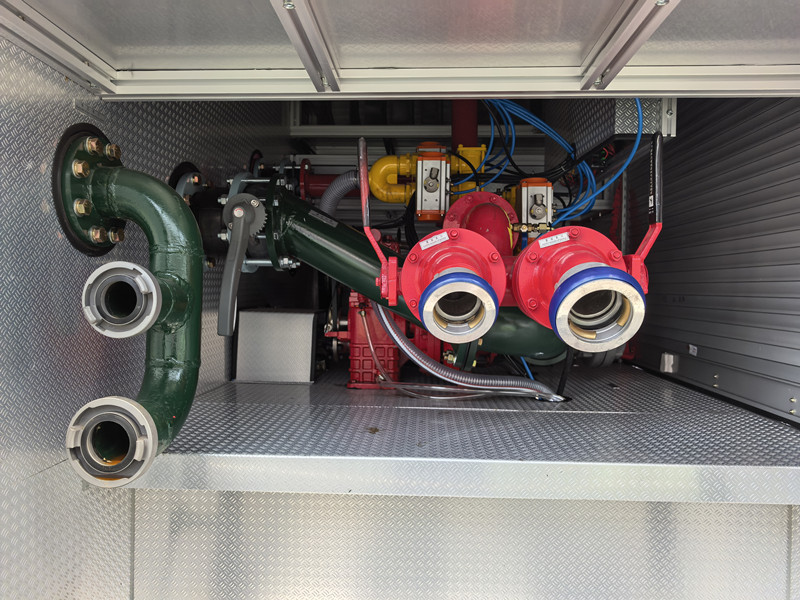

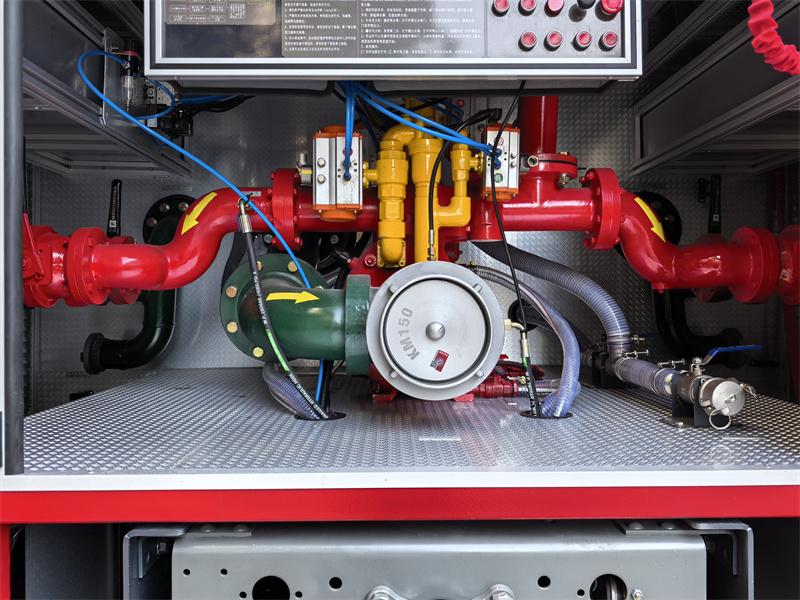

» Ⅲ. Fire Pump system :

|
Fire pump Model |
Pressure |
Max working pressure |
Flux |
Rated speed |
Speed Ratio |
Max pressure |
Priming Time |
Head |
|
CB10/60-RS |
1.0MPa |
1.082MPa |
60L/s |
3200±50r/min |
1:1.44 |
≥0.65MPa |
≤10s |
60m |

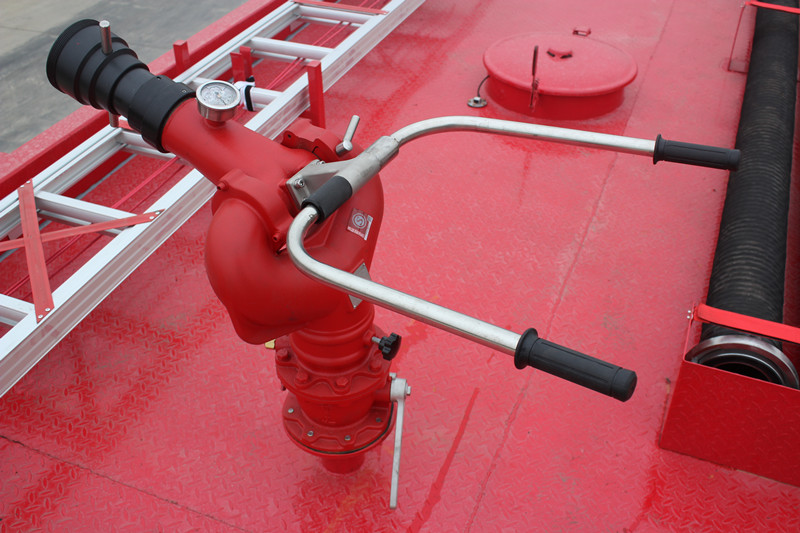

» Ⅲ. Fire Monitor system :


| Fire Monitor Model | Flow | Range | Rated Pressure | Pitch Rotation | Horizontal rotation | Weight |
| PL8/48 | 48L/s |
water ≥70m, foam ≥60m |
0.80MPa | -45°~+70° |
0~360° | 27kg |

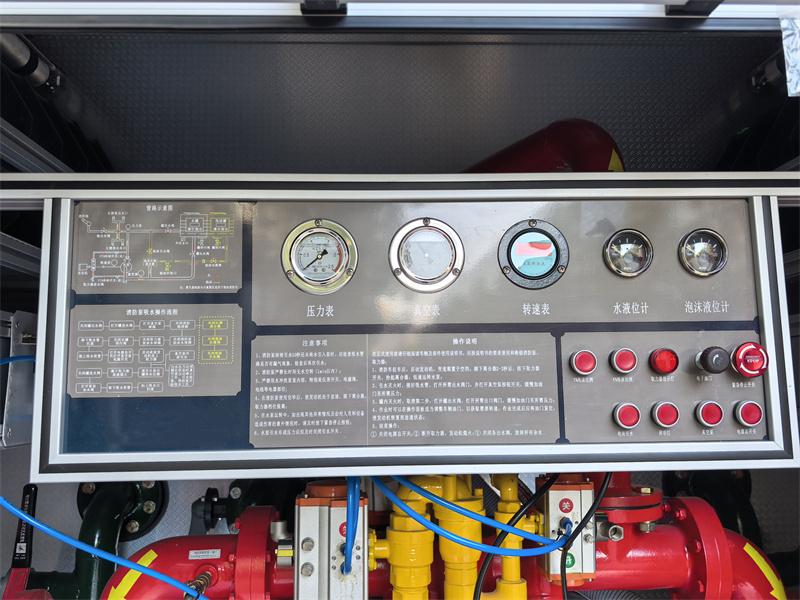

» Ⅳ.Control panel:

Control panel: Includes piping diagrams, fire pump suction operation procedures, precautions, operating instructions, pressure gauges, vacuum gauges, tachometers, water level gauges, foam level gauges, 3% foam ratio and 6% foam ratio buttons, power take-off indicator lights, electronic throttle, emergency stop switch, foam drinking water button, lighting, vacuum pump, and main power switch.
» Ⅴ.Technical Design:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

» Ⅵ.Preshippment Test:

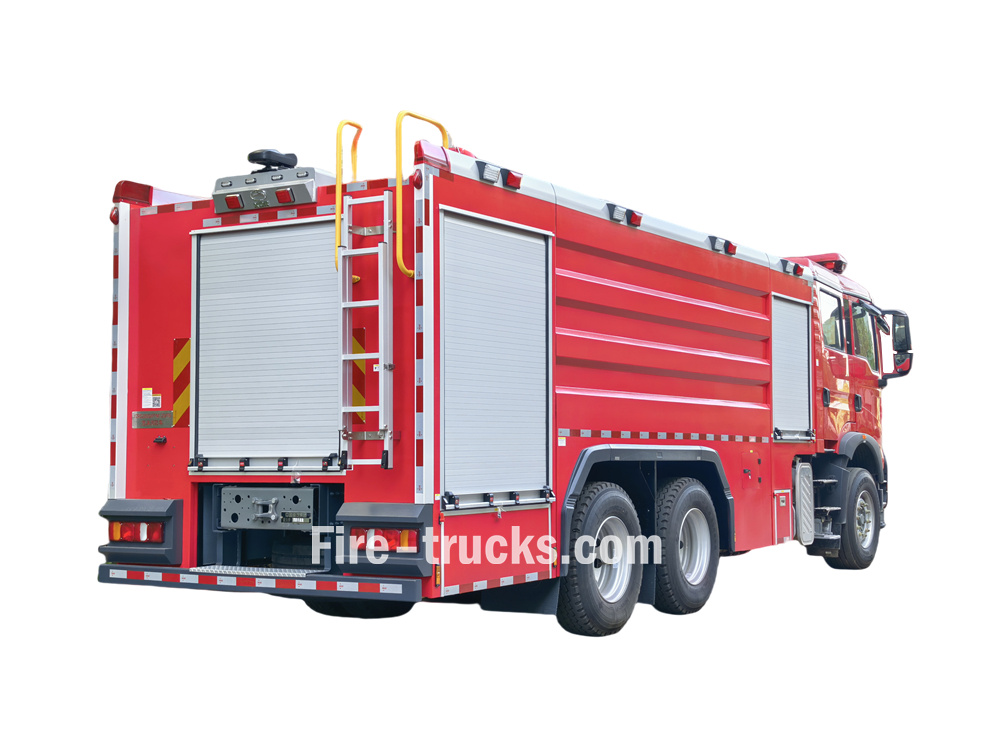

Before deliver HOWO 6X4 12000 liters foam fire rescue truck from our fire truck factory, we will strictly make 30 different kinds of inspection on the fire fighting trucks, range from fire pump, fire monitor, fire gun, fire pipe. All the main components will taken at least 50 working hours.
