5 CBM Pumper Tanker Fire Truck Isuzu

5 CBM Pumper Tanker Fire Truck Isuzu

ISUZU GIGA VC66 heavy duty water foam tanker Fire Engine is a professional pumper firefighting vehicle, equipped with 6UZ1-TCG61 diesel engine with 380HP and 9839cc emission.Matched working with a CB10/60 fire pump and a PL8/48 fire monitor on top, with efficiently working distance for water 65 meters and foam 55m. The POWERSTAR foam pumper fire truck is particularly suited for combating complex fires in petrochemical plants, community, ports, and similar environments

  • Tanker Capacity:

    4000L +1000L
  • Engine Power:

    380 HP
  • Fire Pump:

    CB10/60, 60L/s
  • Fire Monitor:

    PL8/48 for water and foam
Facebook Linkedin Youtube Twitter Pinterest

POWERSTAR Foam Tanker Fire Truck is a professional industrial pumper firefighting vehicle, which also can be named as fire pumper truck, fire department truck, fire apparatus, fire service truck, wildland fire truck, pumper firefighting truck. POWERSTAR Pumper Tanker Fire Truck Isuzu built on the ISUZU GIGA VC66 heavy duty truck chassis, customized double row cabin, with from convenient air suspended seats and rear equipped with 4 sets SCBA seats for air apparatus storage and convenient usage.



ISUZU GIGA fire pumper truck



*ISUZU GIGA  4000L Water 1000L Foam

tank pumper firefighting Truck

-----------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: POWERSTAR TRUCKS

Features:

1. Truck Chassis: ISUZU GIGA truck chassis, 4x2, 6x4 and 8x4 model

                              6UZ1 model with 350HP or 380HP and emission 9839cc

                              6WG1 model with 420HP, 460HP or 520HP with emission 15681cc.



2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose


3. Tanker body: Customized for Water + Foam + Dry Powder fire agent


4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 60m
                        Optional CB10/40, CB10/80 pump. Also available Darley fire pump


5. Special design: Super designed working temperature -41℃ to +48
℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

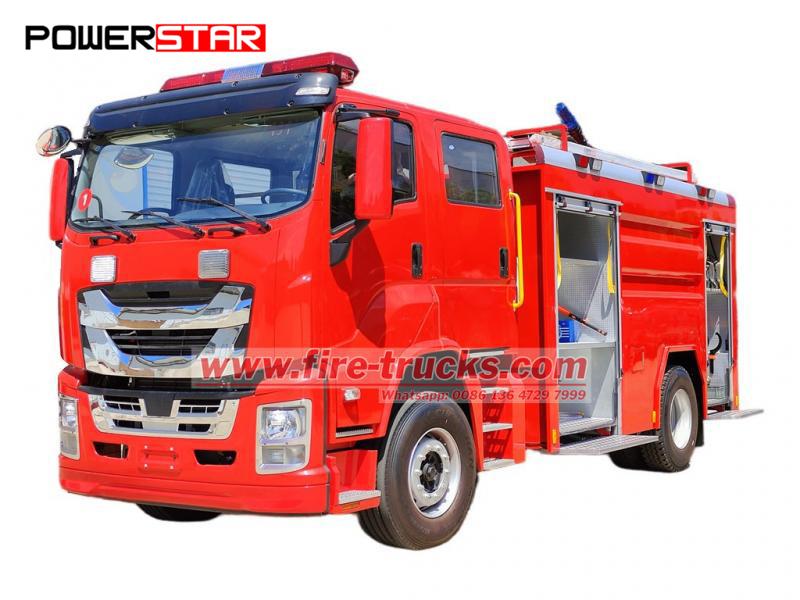

Isuzu GIGA VC66 pumper fire truck



Isuzu GIGA VC66 pumper fire truck



» Ⅱ.Product Parameter :



ISUZU GIGA VC66 4x2 LHD 5000L water foam tanker fire truck Chassis Specification
Truck Model PST5250GXFPM
Cab Double rows cab,with air conditioner,power assistance
Driving Type 4x2 Left hand driving
Overall Dimension (mm) Approx. 8200×2500×3650
GVW (kg) Approx. 22000
Curb Weight (kg) Approx. 11500
Wheelbase (mm) 4600
Tire Type 315/80R22.5
Nos Total 7, including 1 spare tire
Gear box Brand FAST 12-speed,manual
Axle Front axle loading capacity (kg) 9000
Rear axle loading capacity (kg) 13000
Engine Brand lSUZU
Model 6UZ1-TCG61
Emission Standard EURO 6 (Optional to remove the DPF and ADBlue device to make truck working as EURO 4)
Fuel Type Diesel fuel
Air Intake Form In-line 6 cylinders, water cooling, turbocharging and intercooling
Output Power (kw) 279
Exhaust(ml) 9839
Max output power (hp) 380
Max torque (N.M) 1800N.M
Braking System Automatically air-cut brake, with ABS for safety
Electric system 24V

Special Function
Tank Water Tank Capacity 4000L
Material SS #304 stainless steel material
Configuration
  1. Welding, there is clapboard inner.
  2. Water level indicator
  3. One manhole, With quick locking and opening device
  4. One overflow valve device
  5. One drain outlet
  6. One air breather valve
Foam Tank Capacity 1000L
Material SS #304 stainless steel material
Fire Pump Type Normal pressure fire pump
Model CB10/60
Flux 60l/s@1MPa
Pressure 1.0Mpa
Suction port Φ150mm
Outlet Two Φ80mm outlets, and two Φ65mm outlets
Water Monitor Model PL48
Flow 48L/S
Covering range ≥ 60m
Working Pressure Range ≤1 MPA
Pitching Rotation Angle -35°~ 75°
Horizontal Swing Angle 0 ~360°
PTO Use sandwich PTO, splashing-type lubricate, can put out fire when driving.
Carriage Carriage is made of high-quality steel and Aluminum embossed sheet
Pump room On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Rolling Shutter Door Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
Color Red color R03 model
Technical Requirement 1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle.
2.Tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle.
3.The outside is very beautiful, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle.
4.All operating switch and meter is accord with standard nameplate.



-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)





» Ⅲ.Product  Advantages:



4. Pump room with control panel

Rear mounted, separately and water proof, Pump in and pump out valve, English version control panel for convenient usag

5. Top view of Fire Tender

DN500 manhole cover, 2 units 4m DN125 pipeline, 6-10m aluminium ladder, fire monitor for water foam dry powder, rear searching light

6. Fire truck tanker body with full sets fire fighting tools

R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color



» .Professional Design :



1. POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

Isuzu GIGA fire truck foam tanker drawing



2. Skilled workers for production:

Isuzu fire truck technical drawing help for producing guidance, skilled workers modify to double cabin, installed the Sandwich PTO, CB10/60 fire pump, PL8/48 fire cannon, Pump in and Pump out valves, lighting system, also full Aluminium alloy decoration.



3. Prepare full fire fighting equipment:

Fire truck equipped with all necessary fire extinguishing tools and equipment

Isuzu fire truck accessories and tools

» Ⅴ.Factory Testing:

Isuzu water foam tanker fire truck factory testing before shipment

Isuzu water foam tanker fire truck factory testing before shipment

Isuzu fire tanker truck ready for SHANGHAI seaport for delivery

Isuzu fire tanker truck ready for SHANGHAI seaport for delivery

Isuzu fire tanker truck ready for SHANGHAI seaport for delivery

Powerstar Engineer testing and examing Isuzu fire trucks before delivery

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related Products

Foton Auman 6x4 12000L Foam Fire Engine Truck Export to Africa
Foton Auman 12000L Fire truck For Oil Field

The Foton Auman 12000L fire truck is powered by a Foton ISGE3-380 engine and built on a 6×4 chassis. The front compartment features aluminum alloy anti-slip treadplate walls for storing fire hoses, suction tubes, and basic tools. The middle section carries a 10,000L carbon steel water tank and a 2,000L foam tank. The rear pump room houses the CB10/80-LC fire pump (140L/s flow, 1MPa pressure), control panel, and accessories including filters, couplings, and foam guns. A PL8/64 fire monitor is mounted on the cab roof, offering 360° rotation and water/foam range up to 75m and 70m respectively.

Details
TOGO HOWO TX 25,000L Heavy Water Fire Trucks
TOGO HOWO TX 25,000L Heavy Water Fire Trucks

The HOWO 8×4 25000L heavy water fire truck is built on a SINOTRUK HOWO 8×4 chassis with a 1950+4600+1400 mm wheelbase. It is powered by an MC11.46-61 engine rated at 460 HP and paired with a manual transmission. The vehicle carries a 25000L water tank. A CB10/100-TB fire pump (100 L/s at 1.0 MPa) and a roof mounted PS8/80W monitor (80 L/s, water range ≥85 m) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, water gun, and basic tool kit.

Details
MAN TGM 4X4 AMT Fire Fighter Online Distributor
MAN TGM 4X4 AMT Fire Fighter Online Distributor

MAN 5,000L 4×4 foam fire truck runs on a 250 HP D0836LFL89 engine with a 4×4 chassis that handles rough terrain with ease. Total capacity is 5,000L—4,500L water and 500L foam. The CINAR 3000 N pump puts out 3,000 L/min at 10 bar, and the CINAR 2400 LPM front monitor delivers a 50m water reach. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and coastal areas where seawater compatibility matters.

Details
MAN TGM 18.290 BB CH Fire Fighter Truck
MAN TGM 18.290 BB CH Fire Fighter Truck

MAN 5,500L 4×4 foam fire truck is powered by a 290 HP D0836 LFL90 engine with a 4×4 chassis that handles rough terrain with confidence. Total capacity is 5,500L—5,000L water and 500L foam. The JOHSTADT TO 3001 pump delivers 3,000 L/min at both 10 bar and 40 bar, while the CINAR 2400 LPM front monitor reaches 65m with water and 55m with foam. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and demanding fireground operations.

Details
Advanced IVECO 4x4 Fire Pump Vehicles
Advanced IVECO 4x4 Fire Pump Vehicles

IVECO 3850L 4×4 foam fire truck is driven by a 240 HP TECTOR F4EE681B engine with a 4×4 chassis that handles rough terrain with confidence. Total capacity is 3,850L—3,500L water and 350L foam. The Godiva P2 2010 pump delivers 2,000 L/min at 10 bar and 250 L/min at 40 bar, while the roof-mounted Szczesniak monitor reaches 60m with water and 55m with foam. Comes standard with hoses, suction line, fittings, foam gun, and tool kit. Built for industrial sites, rural roads, and demanding fireground operations.

Details

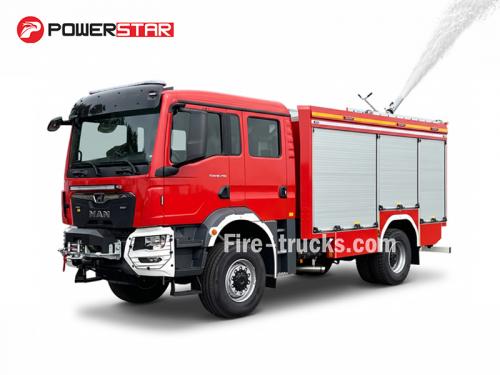

MAN Rescue Fire Pumper Truck 4x4
MAN Rescue Fire Pumper Truck 4x4

MAN 4400L 4×4 foam rescue truck is powered by a 290 HP D0836LFL90 engine and a factory-built 4×4 chassis that takes on rough terrain without hesitation. Total fluid capacity is 4,400L—4,000L water and 400L foam. The Godiva P2A 2010 pump puts out 2,400 L/min at 8 bar and 400 L/min at 40 bar, while the roof-mounted DWP16/24 monitor delivers 60m water reach and 55m foam reach. Standard delivery includes hoses, suction line, fittings, foam gun, and tool kit. A 9,979kg electric winch, 5.4m LED mast, and 6-person crew cab make it a complete package for industrial, rural, and off-road firefighting.

Details

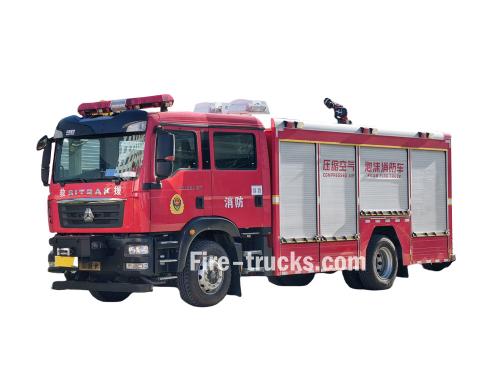

Sinotruk 6 cbm CAFS fire rescue truck
