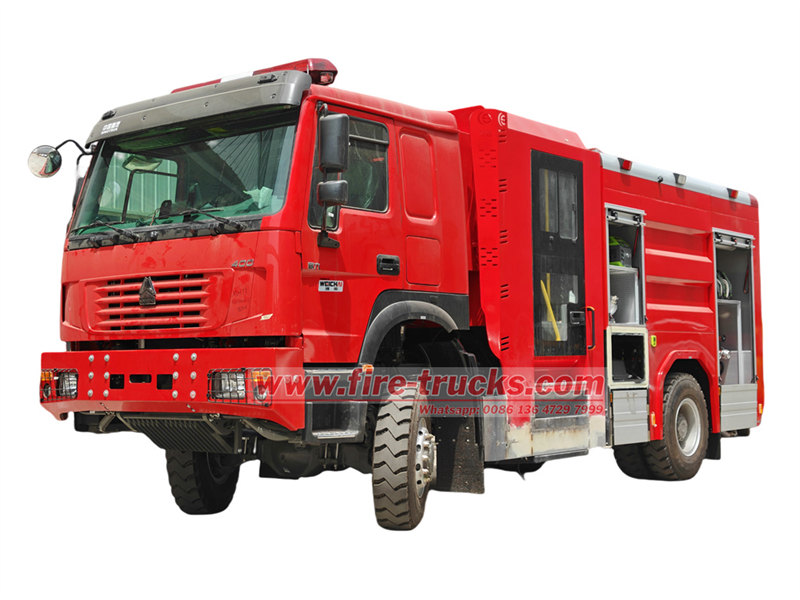

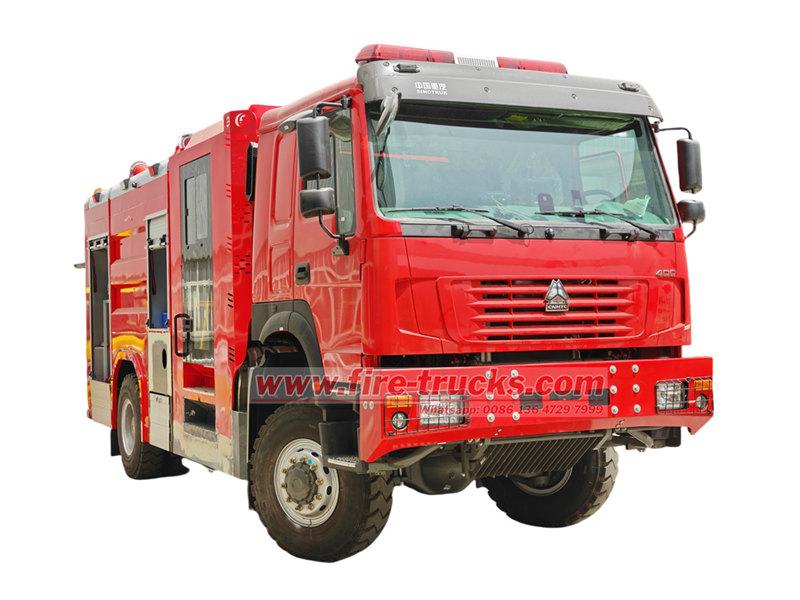

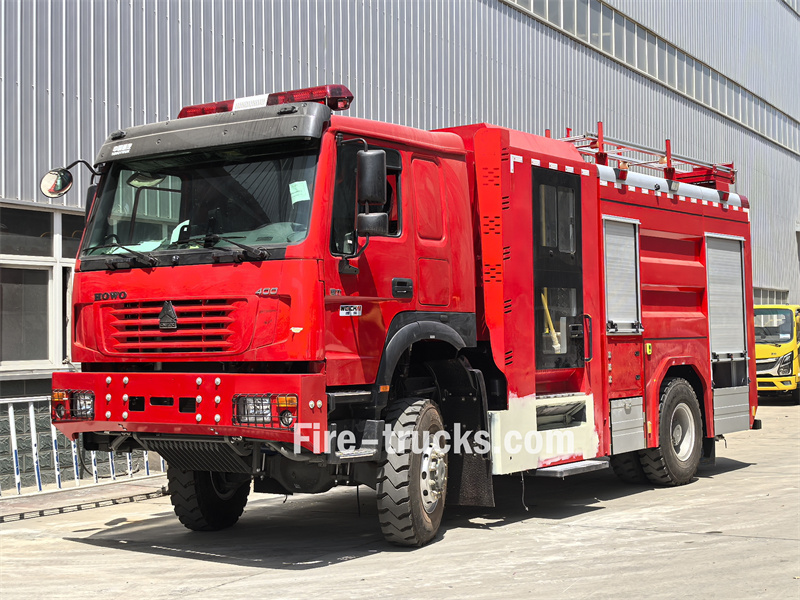

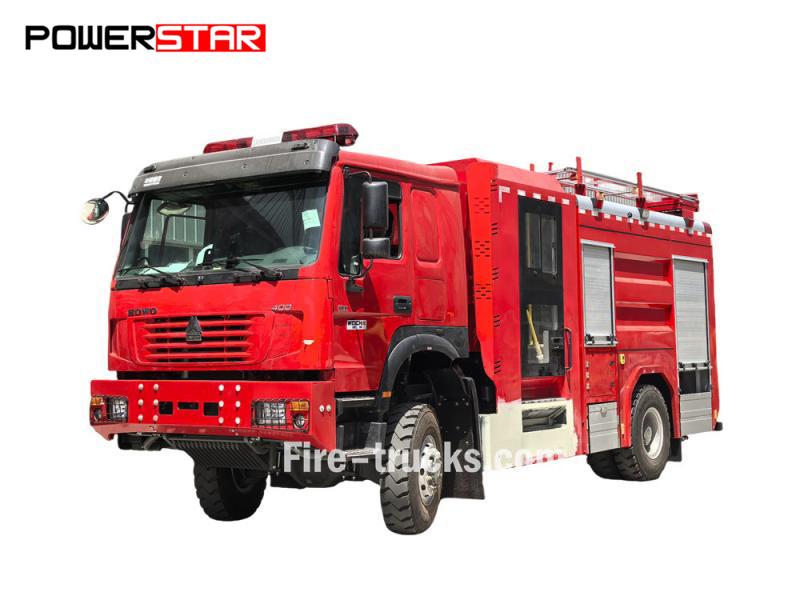

HOWO 4×4 Fire Truck is a professional firefighting vehicle built on the basis of SINOTRUK HOWO 4×4 off-road chassis. It is equipped with a high-quality fire pump, a 6-cubic-meter water tank, and a 2-cubic-meter foam tank, along with a fire monitor capable of jetting water up to 70 meters and a modular equipment compartment. Powered by a 380-horsepower engine, featuring a part-time four-wheel drive system and off-road tires, this vehicle demonstrates outstanding all-terrain mobility. Designed specifically for challenging firefighting scenarios such as forests, petroleum-related fires, geological disasters, and narrow urban areas, it serves as a rapid-response mobile firefighting equipment.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000L water +2000L foamUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
380 HPEngine Model:
WP10.380E32Fire Pump:
CB10/60, 60L/sFire Monitor:
PL8/48 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD driveHOWO 4×4 Fire Tanker Truck is an off-road firefighting vehicle built on SINOTRUK HOWO 4×4 chassis. It consists of several core components: a high-performance chassis, an independent crew cabin, a 6-cubic-meter steel water tank, a 2-cubic-meter stainless steel foam tank, a CB10/60 fire pump, a PL8/48 fire monitor, and a modular equipment compartment. It also features a sandwiched power take-off (PTO) and a professional pipeline system. Powered by a Weichai 380 HP engine and a part-time 4WD system, combined with professional off-road tires, the vehicle delivers strong power and exceptional all-terrain capability along with adaptability to complex environments.
A standout feature of this HOWO 4×4 off-road fire engine is its integration of superior firefighting capabilities and off-road performance. Its fire monitor can jet water over 70 meters and supports firefighting while on the move. It is designed not only to meet the firefighting demands of specialized industries such as forestry, petroleum, and geological exploration but also to serve as an ideal solution for rescue operations in narrow urban and rural roads as well as geological disaster scenarios. It functions as a versatile mobile firefighting platform capable of long-range water supply and rapid emergency response.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:

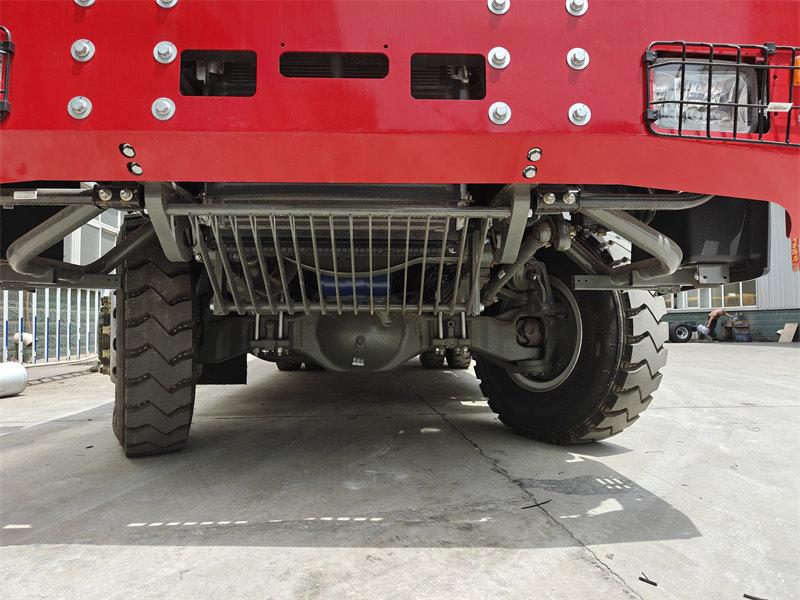

1. Truck Chassis: SINOTRUK HOWO heavy-duty truck chassis, 4×4 drive, with excellent off-road performance
WEICHAI or SINOTRUK engine with 380HP or 400HP and displacement 9726cc
SIONTRUK HW19710 gearbox, 10-speed forward and 2 reverse
2. Tank material: carbon steel water tank and stainless steel foam tank, 4mm thickness
stainless steel water tank, aluminum alloy or PP tank can be customized
3. Tanker body: Tank capacity can be desinged as required, dry powder tank is optional
4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working pressure 1.0Mpa
PL8/48W fire monitor, 360° rotation, water range is up to 70m
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
HOWO 4×4 Firefighting Truck is a specialized fire rescue vehicle with off-road capabilities, built on the SINOTRUK HOWO 4WD chassis. It is equipped with a high-power fire pump, water tank, foam tank, fire monitor, and modular rescue equipment. This vehicle is suitable for various scenarios including forest firefighting, petroleum exploration, geological disaster rescue operations, and fire suppression in narrow urban areas. It can be configured with multiple types of firefighting systems such as water, foam, and dry powder.
» Ⅱ.Product Parameter for HOWO 4WD tender fire truck:
Vehicle description |
||
Overall dimension |
8620×2550×3620(mm) |
|
GVW |
22000kg |
|
Curb weight |
10650kg |
|
Chassis brand |
SINOTRUCK HOWO |
|
Traction type |
4×4, left hand drive |
|
Chassis description |
||
Chassis model |
ZZ2167 |
|
Cab |
Structure: flat-head, single-row; |
|
Wheelbase |
4600mm |
|
Tire specification |
12.00R20 18PR |
|
Tire quantity |
6+1 |
|
Engine |
Engine model |
WP10.380E32 |
Emission level |
Euro 3 |
|
Displacement/output |
9726ml/280kw |
|
Horse power |
380hp |
|
Gear box |
Model |
HW19710 |
Number of gears |
10 forward gears& 2 reverse |
|
Brake system |
Type |
Drum |
Service brake |
Dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting on rear wheel |
|
Auxiliary brake |
WEVB |
|
Axle |
Front |
HF-7T |
Rear |
ST-16T |
|
Suspension |
Front |
Semi-elliptic leaf spring |
Rear |
Trapezoidal leaf spring |
|
Fuel tanker |
Type |
Steel fuel tanker |
Capacity |
400L |
|
Upper-body description |
||
Crew cabin |
Type |
Independent crew cabin at rear |
Number of seats |
6 |
|
Tanker capacity |
Water tanker |
6 CBM (6000 liters), carbon steel |
Foam tanker |
2 CBM (2000 liters), stainless steel |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/60 |
Flow |
60L/S |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Fire monitor |
Model |
PL8/48 |
Flow |
48L/S |
|
Pressure |
0.8Mpa |
|
Range |
Water ≥70m; Foam ≥60m |
|
Rotation angle |
Horizontal 360° |
|
Hose reel |
Model |
JPSC1.6 |
Inner diameter |
32mm |
|
Hose length |
30m |
|
Inlet pressure |
1.6Mpa |
|
Flow of gun |
≥120 L/min |
|
Other configurations |
Equipped with sandwich PTO, pipeline system; |
» Ⅲ.Product Details & Advantages:

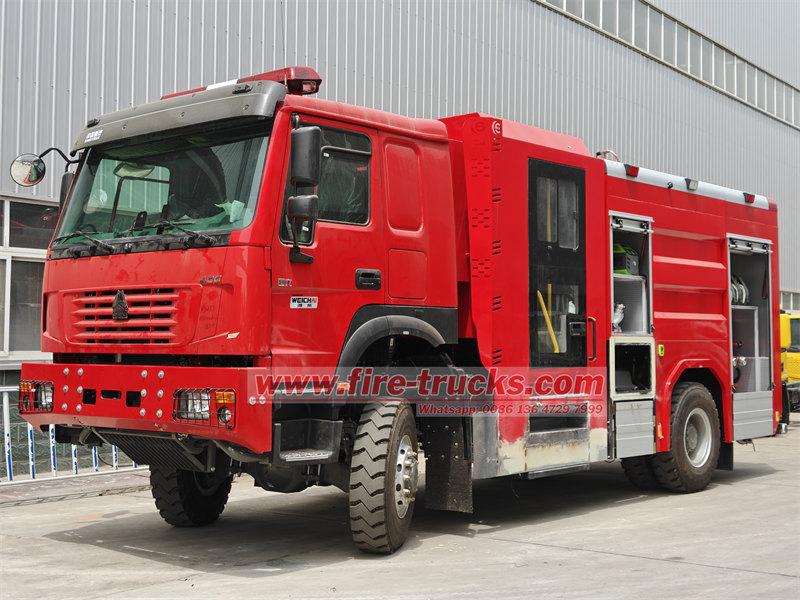

1. SINOTRUK HOWO Chassis

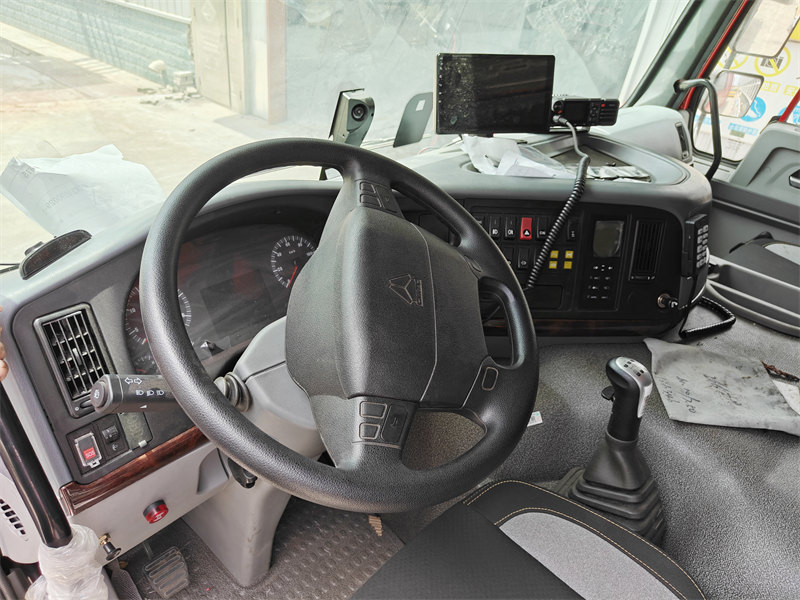

HOWO HW76 cabin, with A/C, power assisted, central lock, power window and doors, multifunctional steel wheel, Multifunctional LCD instrument panel, ect

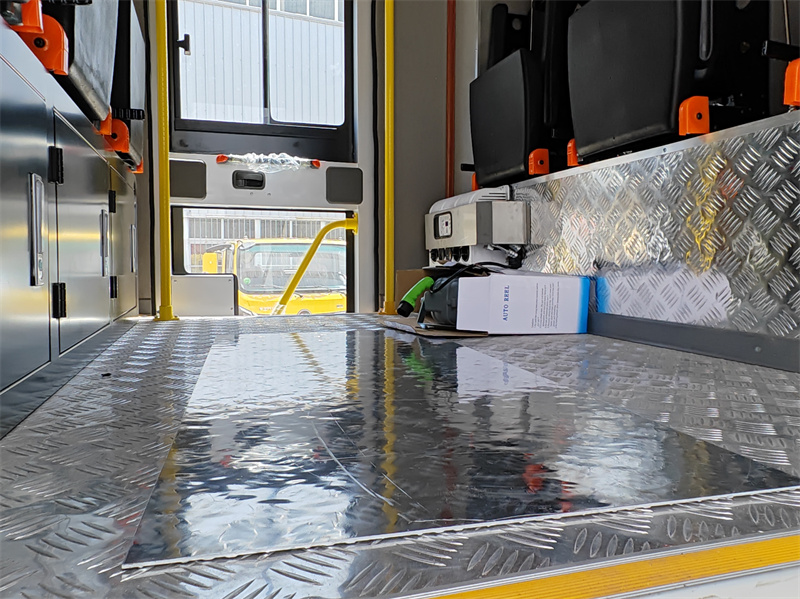

2. Independent crew cabin
With an independent crew cabin, can accommodate up to eight firefighters.

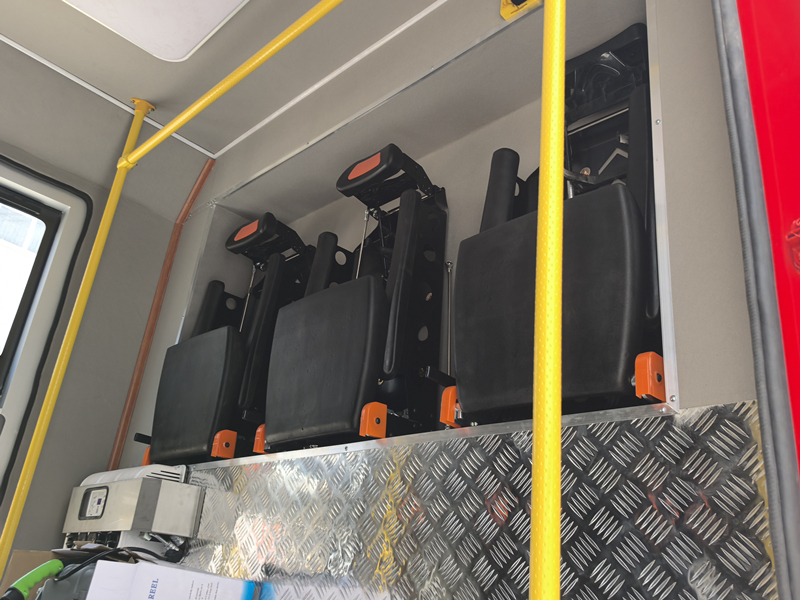

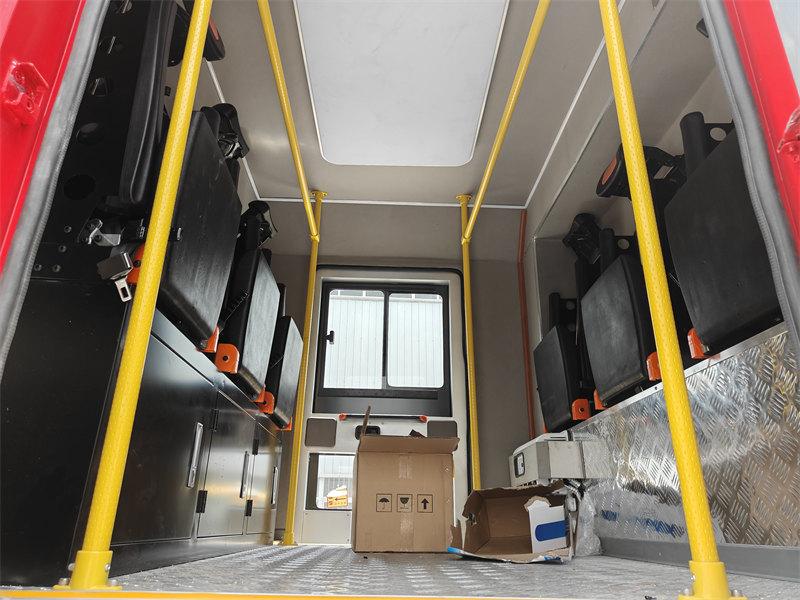

3. Rear SCBA seat
The crew cabin with all seats equipped with seat belts. The rear seats are detachable and include brackets for breathing apparatus.

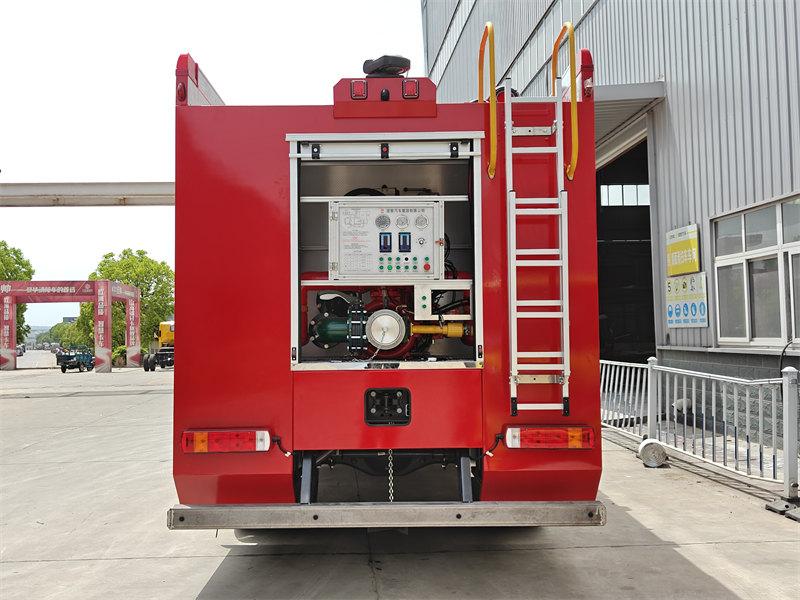

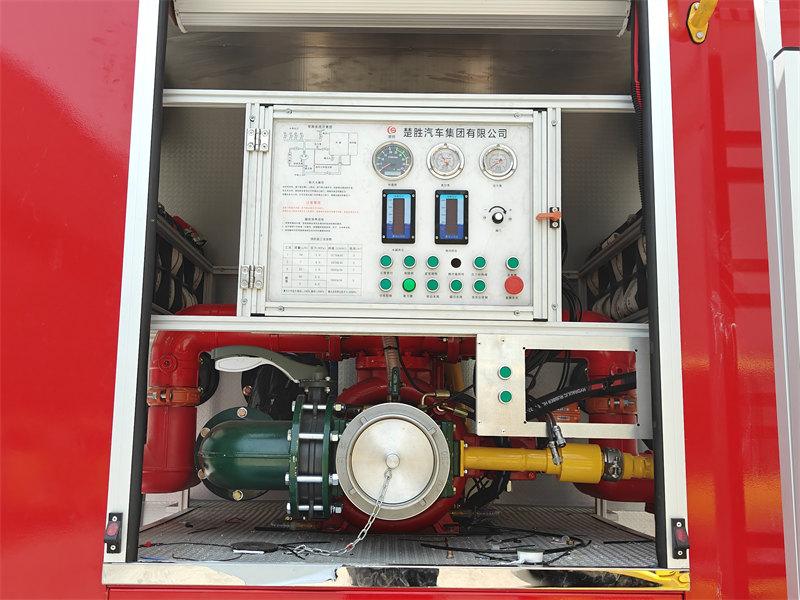

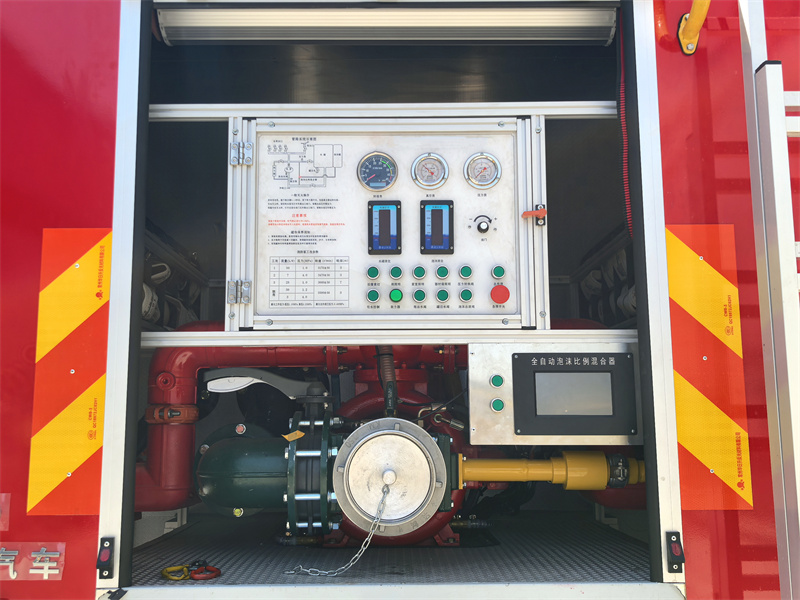

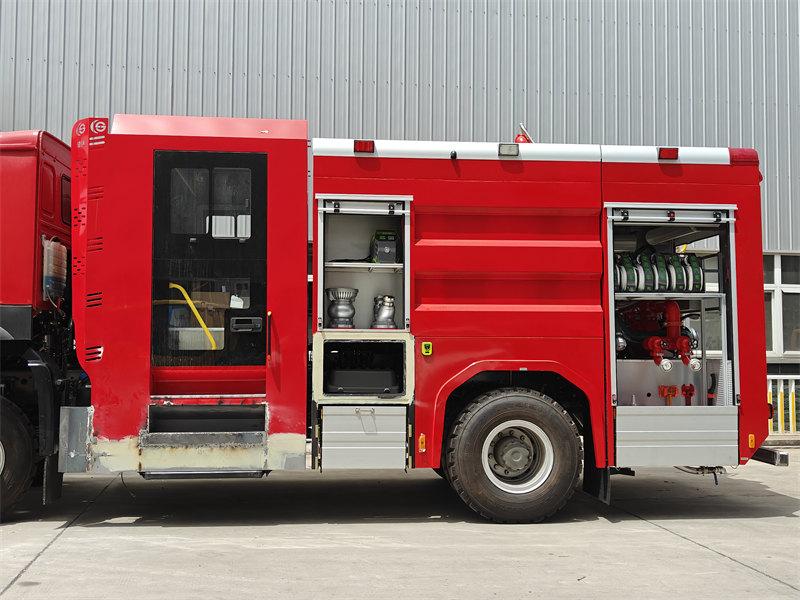

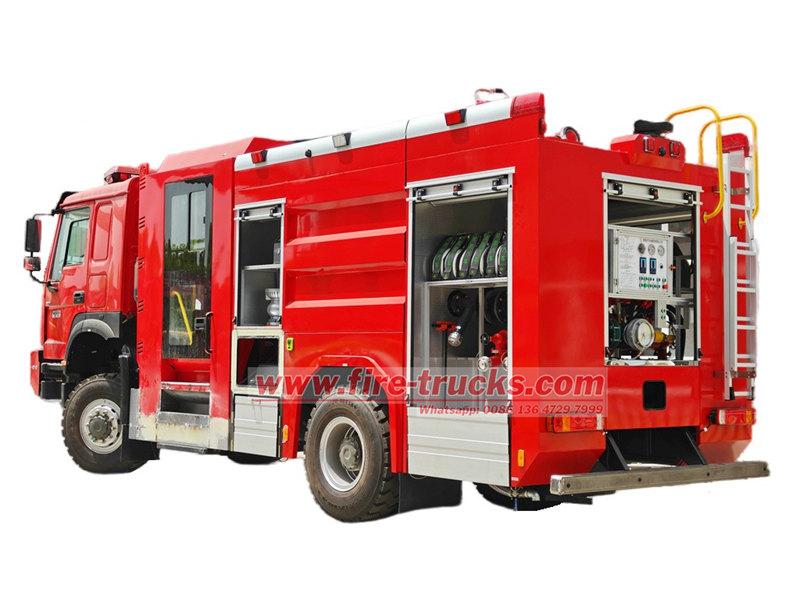

4. Pump room with control panel
Pump room at the rear of the vehicle, with aluminum alloy roller shutters on both sides and the rear. With interior lighting, storage space for commonly used equipment.

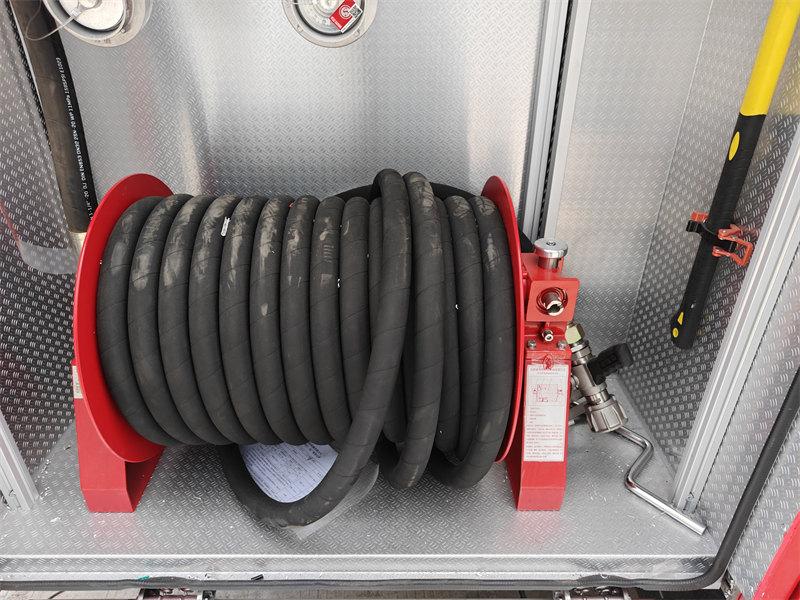

5. Firefighting hose reel
The truck is equipped with hose reel with 30m length and 32mm diameter, and the flow is up to 120L/min.

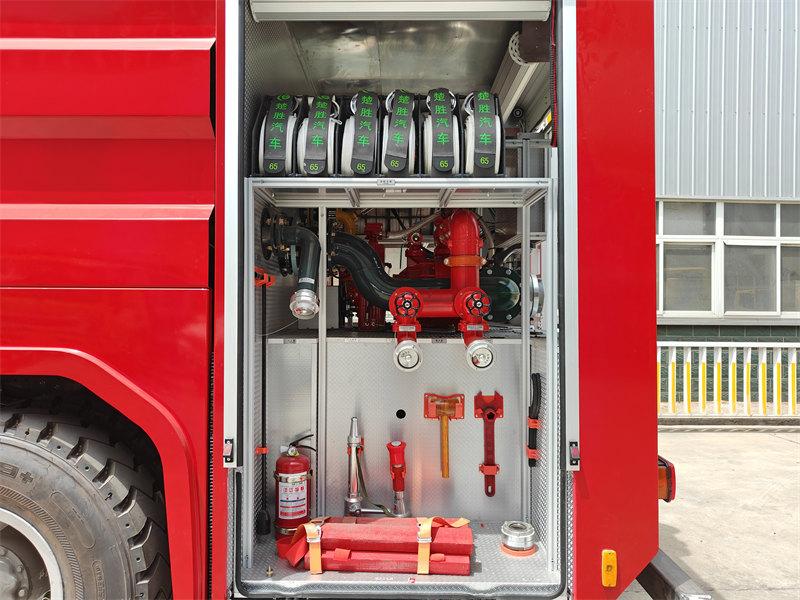

6. Fire truck tanker body with full sets fire fighting tools
R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color
