Xiongzhen Fire Pump Catalogue

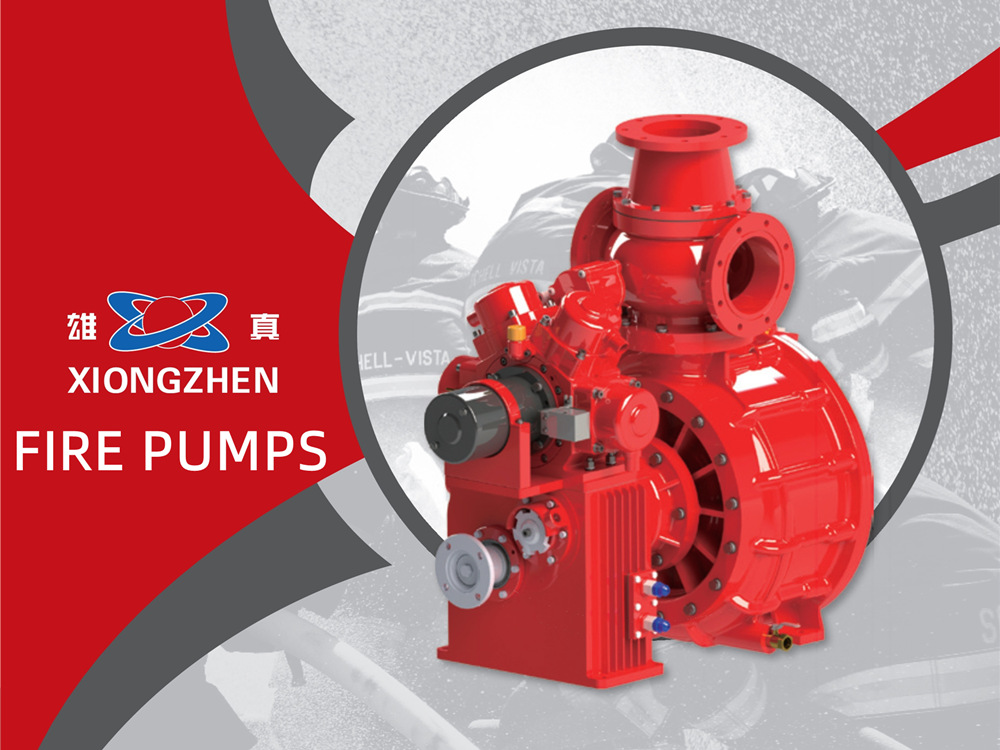

For conventional fire trucks, water is the core medium for fire fighting and rescue. As the core power unit of the complete water supply system on fire trucks, the vehicle-mounted fire pump directly determines the vehicle’s fire suppression efficiency, water supply pressure and sustained operation stability.   Xiongzhen has been engaged in the R&D and manufacturing of fire pumps for many years. By integrating mature pump structures at home and abroad and wear-resistant new materials, we have developed a full range of medium-low pressure and high-low pressure vehicle-mounted fire pumps.All products have passed national 3C fire certification and type inspection. Featuring stable water output, fast priming, compact structure and easy maintenance, they are suitable for refitting and supporting various water tank, foam and emergency rescue fire trucks.     Xiongzhen fire pumps cover a full range of models: low-pressure pumps including CB10/20, CB10/30, CB10/40, CB10/60, CB10/80, CB10/100, CB10/120 and CB10/140; medium-low pressure pumps such as CB20·10/15·30, CB20·10/20·40, CB20·10/30·60 and CB20·10/40·80; the high-low pressure pump CB40·10/7·50, plus medium-pressure pumps CB20/15, CB20/20 and CB20/30. Each model is supplied with complete performance specifications, optional gear ratios and installation dimensions. Capable of meeting water supply requirements for fire truck refitting and emergency rescue both domestically and overseas, they feature stable performance, simple operation and effortless maintenance.   Xiongzhen series fire pumps are mainly assembled from pump body, oil filler, water inlet pipe, check valve, double piston priming device, speed measuring gear, gearbox and input shaft. Medium-low pressure variants are further fitted with pneumatic ball valves for medium-low pressure switching, medium-pressure check valves and low-pressure check valves. The unit adopts an integrally cast aluminum pump casing for even water output. Equipped with a double piston priming mechanism, medium-low pressure pumps offer two drive modes for selection: electric drive and belt pulley drive, delivering fast priming and user-friendly operation. Parameter Comparison of Main Fire Pump Models   With different working condition CB10/40 CB10/60 CB10/100 CB10/140 CB20·10/30·60 CB40·10/7.50 CB20/30       Flow（L/s） 40 60 100 140 60 30 30 28 42 70 98 30 21 60 20 30 50 70 30 15 452 --- 35 （Combined low-pressure） 15 30 --- 15 （Combined medium-pressure） --- ---       Exit Pressure (MPa) 1.0 1.0 1.0 2.0 1.3 2.0 1.3 1.0 1.0 1.0 1.0 1.3 --- 1.0 （Combined low-pressure） 2.0 1.0 --- 2.0 （Combined medium-pressure） --- ---   Rated Speed (rpm) 3135±50 3280±50 2270±50 2600±50 3251±50 2360±50 3145±50 3390±50 3520±50 2320±50 2810±50 3271±50...

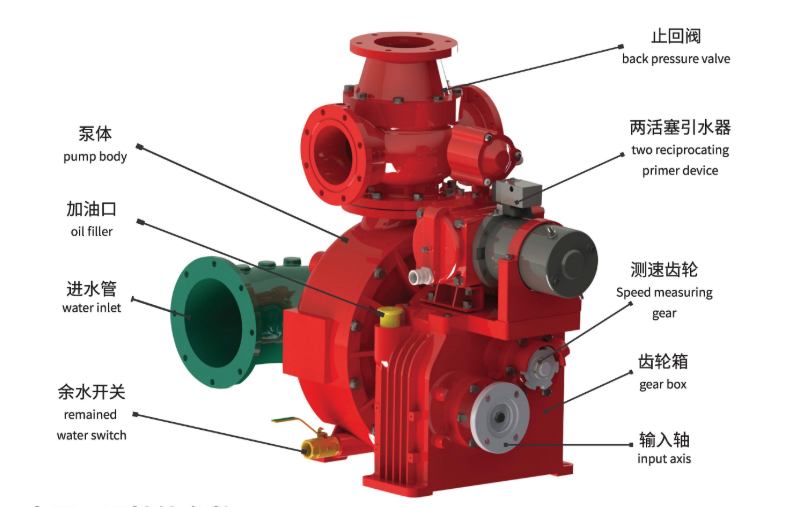

The CB10/60-RS truck-mounted fire pump consists of a single-stage low-pressure centrifugal pump, a double-piston vacuum pump, an electromagnetic clutch automatic disengagement device, a speed increaser, an outlet pipeline and shut-off valve, and an inlet pipeline. ♦ Main Structure and Function (1) Single-stage low-pressure centrifugal pump: Composed of a pump cover, pump casing, first-stage impeller, and pump shaft, it provides rated pressure and rated flow.   (2) Speed increaser: The speed increaser of the CB10/60-RS vehicle-mounted fire pump has a conventional speed increase ratio of 1.440.   (3) Double-piston vacuum pump: Mainly composed of a piston, pump casing, pump shaft, and eccentric wheel. The eccentric wheel is fitted with a piston guide rod and a pump casing steel sleeve. Inlet and outlet valves are installed at both ends of the piston pump. When the electromagnetic clutch engages, the piston pump starts working. During operation, the eccentric action of the eccentric wheel causes the piston to reciprocate, gradually expelling air from the pump and pipeline, thus improving air quality. A vacuum is created inside the cavity to achieve the purpose of water intake.   1. Outlet shut-off valve (4 pieces);  2. Left and right outlet water pipes;  3. Gearbox cooling return water connector;  4. Pressure gauge connector;  5. Outlet check valve;  6. Water cannon flange;  7. Water pressure switch;  8. PTO cooling pressure return water connector;  9. Rear water tank flange;  10. Rear water tank ball valve;  11. Gearbox;  12. Electromagnetic clutch and wiring;  13. Piston priming pump;  14. Vacuum gauge connector;  15. Vacuum priming connector;  16. Inlet pipe interface;  17. Inlet four-way pipe;  18. Water pump drain valve;  19. Gearbox cooling pressure return water pipe;  20. Gearbox cooling pressure inlet water pipe;  21. Gearbox lubricating oil level valve;  22. Coupling flange;  23. Drive belt;  24. Foam proportioner pressure water threaded connector (not available on water tankers);  25. Foam proportioner interface;  26. PTO cooling pressure outlet water connector;  27. CB10/60 vehicle fire pump;  28. Gearbox cooling pressure outlet water connector;  29. Rear inlet butterfly valve   (4) Low-pressure water outlet pipeline and shut-off valve: Consists of a low-pressure water outlet check valve, left and right water outlet pipes, four water outlet pipes, and four water outlet shut-off valves.   (5) Rear-mounted water inlet pipeline: Consists of a four-way inlet pipe, an inlet filter screen, an external inlet connector, and on both sides of the four-way inlet pipe, the right side has an interface for installing a foam proportioner, and the left side is equipped with a rotatable rear inlet elbow, a 150mm butterfly valve, and a weldable flange.   ♦ Specifications Model I...

POWERSTAR is a professional fire truck manufacturer and exporter. Our product range includes water tank fire trucks, foam fire trucks, dry powder fire trucks, and aerial ladder fire trucks, widely used in urban firefighting, petrochemical plants, airports and seaports, forest fire protection, and more. Our fire truck models based on ISUZU, HOWO, and FAW chassis are exported to many countries and regions across Southeast Asia, the Middle East, South America, and Africa. From bulk procurement by the Philippine government to repeat orders from Nigerian clients, POWERSTAR has earned a strong reputation among global customers through reliable quality and professional customization services.   Why does POWERSTAR choose XIONGZHEN fire pumps?The fire pump is often called the "heart" of a fire truck—without a highly efficient and reliable fire pump, a fire truck is merely a vehicle for transporting equipment and personnel, unable to truly accomplish firefighting missions. For this very reason, POWERSTAR adheres to the highest standards when selecting core components.XIONGZHEN is a well-known brand in China's fire pump industry, with its products widely used by many professional fire truck manufacturers across the country. Built upon advanced technologies from Germany, Austria, the United States, and other countries, combined with independent R&D strengths, XIONGZHEN offers vehicle-mounted fire pump series whose performance rivals imported products. Key advantages include:• Excellent performance and high efficiency: The two-stage centrifugal impeller and guide-vane pump casing design balance radial and axial forces on the pump shaft, ensuring smooth and efficient operation.• Compact structure and simple operation: The integrated design of the guide-vane chamber and pressure chamber makes maintenance and servicing convenient.• Innovative priming technology: A four-piston electric priming pump with an electromagnetic clutch delivers greater water intake and superior suction performance compared to traditional two-piston pumps, effectively preventing dry-running damage to mechanical seals under no-water conditions.• Authoritative certification: The entire product line has passed type testing by the National Fire Equipment Quality Supervision and Inspection Center and complies with the GB6245-2006 standard.   POWERSTAR chooses XIONGZHEN fire pumps precisely because of their reliable quality and proven technology, ensuring that every fire truck leaving our factory performs consistently and dependably in firefighting and rescue missions around the world.XIONGZHEN Fire Pump Full Series – Specifications & Selection GuideXIONGZHEN fire pumps offer a complete range of low-pressure and medium-low-pressure products, suited for fire trucks of different tonnages and applications. Below are the technical parameters for some key models:   Model Working Condition Flow (L/s) Outlet Pressure (MPa) Rated RPM (r/min) Shaft...

Top quality ISUZU GIGA fire fighting trucks export to West Africa Burkina Faso, which designed based on ISUZU GIGA VC66 heavy duty 6x4 truck chassis, adopt GIGA VC66 new cabin, standard air suspension seat and AC for comfortable driving. Truck mounted with Japanese ISUZU technology diesel engine 6WG1-TCG62 model, 520HP and emission can be 15681cc, matched working with FAST 12 shift manual gearbox, very lower fuel consumption, standard front 385/80R22.5 and rear 315/80R22.5, totally 10+1 units. Upper body kits including 6000L water tanker and 6000L foam tanker, all based on stainless steel #304 material, durable for long life service. Matched working with customized super powerful CB10/140 fire pump with efficiently flow rate 140L/s, matched with double fire pump on the top of tanker body kit, with model PL8/64 and efficiently flow rate 64L/s. Isuzu GIGA 520HP fire engine matched with all necessary fire fighting equipment, which is an idea fire engine for fire extinguishing and people rescue, and widely used in Burkina Faso market.   ISUZU GIGA 520HP 14,000L Foam Tank Fire Truck     CS TRUCKS factory is professional manufacturer in truck area,guarantee all products Brand-New and High-Quality.   ISUZU Fire Truck Features:  Name ISUZU GIGA 12000L foam pumper fire engine Cabin GIGA VC66 Engine 6WG1-TCG62 with 520HP and 15681cc emission Transmission FAST 12 shift Wheelbase 4600+1370mm Tire Front: 385/80R22.5 (2 pcs) Rear: 315/80R22.5 (8 pcs)     Tanker 6000L foam tanker (Stainless Steel #304) 6000L water tanker (Stainless Steel #304) Fire Pump CB10/140 with flow rate 140L/s Fire Monitor Front One:PL8/64 with flow rate 64L/s Rear One:PL8/64 with flow rate 64L/s Equipment Full sets fire fighting equipment as customized   How to Operate ISUZU Foam Tank Fire Engine:  .

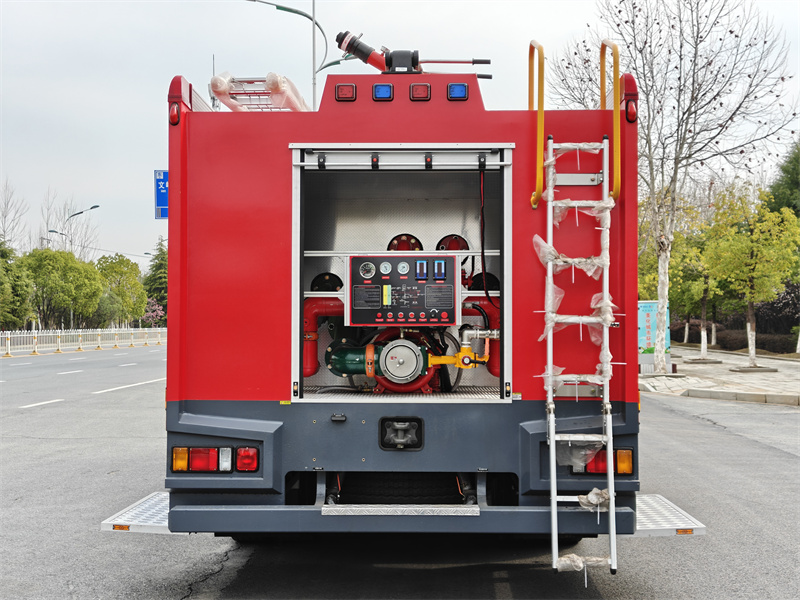

Beiben Fire Truck based on type II Beiben 2638 model 6*4 Left Hand Drive chassis, body capacity could up to 12,000Liters, including 10,000Liters water tanker and 2,000Liters foam tank, Beiben 2638 fire rescue truck equipped with XIONGZHEN CB10/60 fire pump and PL8/48 fire monitor, very convenient for daily use. Mainly used for firefighting project in any areas of need. The vehicle designed to fully rely on the advantages of the original of Beiben brand truck chassis, fully consider the product's convenience and reliability, also the newly designed chassis. The body material is international standard carbon steel with anti-corrosion painting and stainless steel, which can effective to avoid rusting and service for long life. The Beiben 6x4 Fire Truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, dry powder tanker and nitrogen system, matched with pipeline hose reel, English version control box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, and all necessary firefighting equipment. Customized Double-row cabin with 2+4 seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project.

Africa Mauritania client purchased totally 4 units Sinotruk HOWO pumper fire engine from POWERSTAR TRUCKS and used in the the capital Nouakchott. Fire truck also can be called fire engine and fire pumper, which is a vehicle designed and manufactured to meet the needs of multiple fire extinguishing and people rescue project internationally. Customized double cabin row for firefighters carriage, various fire fighting equipment and tools for fire fighting, fire rescue, etc. To guarantee HOWO fire fighting trucks working more efficiently, we have customized to have truck equipped with Aluminum alloy ladders, water foam and dry powder fire agent and storage tankers, efficiently fire pump CB10/60 model matched with PL8/48 fire monitor, and efficiently jetting distance over 70m, fire fighting hose reel with gun for long distance fire extinguishing, breathing apparatus with mask, protective clothing, rescue tools, first-aid kit, etc. All service for HOWO fire trucks for efficiently and reliable working. To guarantee Mauritania clients use HOWO fire engine more easier and efficiently, all truck matched with full sets English version catalogue for service, including User's Manual for operation guidance, Truck Manual and Spare Parts Manual for usage and maintenance.    SINOTRUK HOWO 14,000L Powder Pumper Fire Truck     POWERSTAR factory is professional manufacturer in truck area,guarantee all products Brand-New and High-Quality.         »Ⅰ. HOWO Fire Truck Advantages :    ★ 247KW / 336HP powerful WEICHAI diesel engine, 100,000 Km without prblem. ★ SINOTRUK HOWO classical HW76 cabin,  Europen design ★ Mounted CB10/60 fire pump, 60L/s flow rate, super reliable ★ Top mounted PL8/48 water fire cannon, durable service ★ 500L dry powder with Nitrogen bottole, with air control valves ★ Integrated control system for foam and powder, with panel at rear     » Ⅱ. Howo Rescue Fire Engine Drawing:     To guarantee Mauritania Nouakchott clients purchased satisfy HOWO 6x4 Water & Foam & Powder Fire Truck, so we POWERSTAR Engineer Department do design the truck firstly, then start for production. Howo fire truck equipped with Sandwich PTO, fire pump, fire monitor, crew room, hose box, pump room, English version control box, inlet and outlet pipeline, rear climbing ladder, top pillow lamp, all necessary firefighting equipment, and dry powder system. Customized Double-row cabin with 2+4 seats nice driving feeling. Therefore, the vehicle is an ideal Fire Truck mainly for firefighting project. Below are overview of the Africa Mauritania customer purchased Sinotruk HOWO dry powder fire engine.     HOWO fire fighting truck for sale Left side view of HOWO fire engine Right side view of HOWO fire tanker truck    » Ⅲ. HOWO fire truck factory production:   After POWERSTAR Engineer Dept provide detailed fire truck drawing and confirmed with Maur...

South American customer Mr Joseph from Hondura, who purchased 1 unit Isuzu GIGA VC66 14000L 3700gallons water fire fighting truck from POWERSTAR TRUCKS, which designed based on Japanese ISUZU GIGA 6x4 heavy duty truck chassis, equipped 6UZ1-TCG60 model diesel engine with horse power  280kw / 380HP, which is a 6-cylinder, 4-stroke, water-cooled, turbocharged and intercooled engine, efficiently displacement 9839ml, matched working with international standard FAST 12 shift manual transmission gearbox, 12 shift forward and 2 shift backward, efficiently reduce the fuel consumption, totally installed 13 units steel tires with model 12R22.5 model, including one spare tire, very suitable for multiple kinds of road condition and suitable for mountain climbing. Wheelbase can be multiple optional with 4600+1370mm, suitable and convenient designed service for fire extinguishing project for multiple area.   Isuzu GIGA 3700 gallons water tanker fire engine fully rely on Japanese technology ISUZU truck chassis, original GIGA VC66 cabinet equipped A/C with heating and cooling function for comfortable driving. And truck mounted with full stainless steel SS304 material water tanker body, with efficiently volume 14000Liters, equal to 3700gallons, equipped with one Chinese brand CB10/60 fire pump and PS8/50 fire monitor on the top of tanker body, full sets fire fighting rescue equipment, and customized lemon yellow painting for whole truck, all make truck an ideal vehicle for fire extinguishing project in Honduras street and community. Also truck matched with full sets English version catalogue for service, including User's Manual for operation guidance, Truck Manual for GIGA truck usage, Spare Parts Manual for maintenance.         Isuzu GIGA 14,000L Water Pumper Fire Fighting truck   POWERSTAR factory is professional manufacturer in truck area,guarantee all products Brand-New and High-Quality.     »Ⅰ. Isuzu Water Fire Truck Advantages :    ★ 280KW / 380HP powerful 6WG1 diesel engine, 100,000 Km without prblem. ★ ISUZU VC66 newly GIGA cabin,  Europen design ★ Mounted CB10/60 fire pump, 60L/s flow rate, super reliable ★ Top mounted PS8/50 water fire cannon, durable service ★ Integrated control system, with panel at side ★ Customized lemon yellow painting, shining and beautiful   CB10/60 fire pump Model:     CB10/60Pressure:      1.0MpaMax. Working Pressure:      1.232MpaFlow Rate:      60L/s at 1.0Mpa, speed 3286±50r/min, power 102kW, suction depth 3m42L/s at 1.3Mpa, speed 3519±50r/min, power 106kW, suction depth 3m30L/s at 1.0Mpa, speed 3120±50r/min, power 73kW, suction depth 7mSpeed Ratio:      1:1.44   PS8/50 Fire Monitor   Model:     PS8/50 Pressure:      0.8Mpa Working Range:       Water ≥ 65m Vertical Rotation:      ...

Powerstar Trucks Manufactures Custom Emergency Response Vehicles and Fire Trucks For several years, Powerstar trucks Emergency Response has established its legacy as the leading full-line manufacturer of custom fire apparatus with an expertise in foam water fire trucks and rescue fire vehicle.  Building on the legacies that firefighters trust, Powerstar trucks delivers flexible, strategic, specialized solutions to meet each unique fire department need, putting first responders first.   120 units Rescue fire truck for delivery   65 units Rescue Fire Truck export to Uganda Police   Water Fire trucks Foam fire fighting vehicle   Fire trucks are mainly classified into four categories according to their function: fire-fighting trucks, aerial ladder trucks, special-purpose fire trucks, and logistical support fire trucks.   01, Fire-fighting trucks are the main force for directly extinguishing fires, including: * **Water Tank Fire Trucks:** Equipped with their own water tank and pump, suitable for extinguishing general fires. * **Foam Fire Trucks:** Specifically designed for extinguishing fires involving flammable liquids such as oil. * **Dry Powder Fire Trucks:** Suitable for extinguishing gas and electrical fires. * **Carbon Dioxide Fire Trucks:** Used to protect valuable equipment and precision instruments. * **Foam-Dry Powder Combined Use Trucks:** Can use both extinguishing agents simultaneously, with a wide range of applications.   02, Aerial Ladder Fire Trucks are used for rescue and firefighting in high-rise buildings, mainly including: * **Ladder Fire Trucks:** Equipped with a telescopic ladder, capable of rescuing people and extinguishing fires at heights. * **Aerial Spray Fire Trucks:** Use a remotely controlled boom to spray extinguishing agents over long distances. * **Aerial Platform Fire Trucks:** Provide a hydraulic lifting platform for rescue and firefighting.       Fire truck application   03, Specialized fire trucks are responsible for specific tasks, such as: * **Rescue and Disaster Relief Fire Trucks:** Equipped with demolition tools and lifting equipment, used for accident rescue. * **Lighting Fire Trucks:** Provide high-intensity lighting for nighttime rescue operations. * **Smoke Extraction Fire Trucks:** Used for smoke extraction operations in underground fires.   04, **Logistical Support Fire Trucks:** Primarily provide logistical support to the fire scene, such as: * **Water Supply Fire Trucks:** Provide a continuous water supply to fire trucks at the front lines. **Equipment Fire Trucks:** Transport and replenish various firefighting equipment. Powerstar trucks fire truck factory strong technology

Philippines Manila customers purchased  Isuzu GIGA VC66 heavy duty fire fighting truck from POWERSTAR TRUCKS, which equipped with Japanese ISUZU diesel engine 6WG1-TCG61 with horse power 338kw / 460HP, which is a 6-cylinder, 4-stroke, water-cooled, turbocharged and intercooled engine, designed displacement of 15681cc standard, matched working with international standard FAST 12 shift manual transmission gearbox, 12 shift move forward and 2 shift move back, very lower fuel consumption, totally installed 13 units tubeless tires with model 315/80R22.5 model, including one spare tire, very suitable for multiple kinds of road condition. and service for fire extinguishing project for multiple area. Fully rely on original ISUZU GIGA VC66 truck chassis, modify GIGA double-row cab with front 2+1 normal seats and rear 4 SCBA seats, in cabin equipped A/C with heating and cooling function for comfortable driving. And truck mounted with full stainless steel SS304 material tanker body, equipped Top one Chinese brand XIONGZHEN CB10/60 fire pump on rear pump room, matched working with WESTER PL8/48 fire monitor on the top of tanker body, full sets fire fighting rescue equipment, all make truck an ideal vehicle for fire extinguishing project in Manila street and community. Also truck matched with full sets English version catalogue for service, including User's Manual for operation guidance, Truck Manual for GIGA truck usage, Spare Parts Manual for maintenance.         Isuzu 7,000L Water 3,000L Foam Fire Fighting truck   POWERSTAR factory is professional manufacturer in truck area,guarantee all products Brand-New and High-Quality.     »Ⅰ. Isuzu 6WG1 Fire Truck Main Features :    ★ 338KW / 460HP powerful 6WG1 diesel engine, 100,000 Km without prblem. ★ ISUZU VC66 newly GIGA cabin,  Europen design ★ Double row cabin, with rear 4 SCBA seats ★ Mounted CB10/60-XZ fire pump, 60L/s flow rate, super reliable ★ Top mounted PL8/48 foam fire cannon, durable service ★ Integrated control system, with panel at rear   CB10/60-XZ fire pump Model:     CB10/60-XZPressure:      1.0MpaMax. Working Pressure:      1.232MpaFlow Rate:      60L/s at 1.0Mpa, speed 3286±50r/min, power 102kW, suction depth 3m42L/s at 1.3Mpa, speed 3519±50r/min, power 106kW, suction depth 3m30L/s at 1.0Mpa, speed 3120±50r/min, power 73kW, suction depth 7mSpeed Ratio:      1:1.44   PL8/48 Fire Monitor   Model:     PL8/48 Pressure:      0.8Mpa Working Range:      Foam ≥ 70m and Water ≥ 60m Vertical Rotation:      -45° ~ +70° Horizontal Rotation:      0° ~ 360° Flow Rate:      48L/s       » Ⅱ. Isuzu Fire Rescue Truck technical drawing:     ISUZU GIGA VC66 fire engine mounted wi...

Factory sale ISUZU 4x4 offroad pick up fire truck use ISUZU TAGA all wheel drive chassis, integrates an excellent power system to challenge all kinds of difficult roads. Isuzu pickup fire rescue truck is equipped with full stainless steel SS304 material tanker assembly, including 500 liters water tank and 100 liters foam tank, and a professional independent fire pump JBQ4.5/9 to be mounted at rear pump room, with a long spray distance and optional control panel language. It also provides a variety of optional configurations to meet different needs, and top mounted with PS20 fire monitor for water jetting. This ISUZU Pickup 143HP fire pumper truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The original double-row cab of the Isuzu fire fighting truck provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with air conditioning to ensure that the driver can stay comfortable in any weather conditions. And all guarantee the ISUZU 600L foam fire engine an ideal fire rescue vehicle service for Albania market. And below User Manual are equipped for safety operation and working.     »Ⅰ. Isuzu Pick Up Fire Truck Main Features :    ★ 105KW / 143HP powerful 4KH1 engine, 100,000 Km without prblem. ★ ISUZU TAGA newly pickup cabin,  Europen design ★ Original double cabin, suitable for 5 firefighters ★ Independent JBQ4.5/9 fire pump, super reliable ★ Top mounted PS8/20 fire cannon, durable service    » Ⅱ. Pick up fire tender overview:   ISUZU 4x4 offroad AWD Water Foam Fire Fighting Truck is an all terrain fire rescue trucks, which service for multiple aera, including community, forest, factory, etc. Due to it is offroad ability and narrow appearance, this Isuzu Pickup fire engine can succeed have multiple mission completed. And to make our fire trucks more suitable, below are options for different clients.   -----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material -----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand -----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)               » Ⅲ. Attractive Appearance: ISUZU 4x4 AWD pick up fire truck is powerful and responsive, can quickly reach the fire scene, and can easily pass through complex terrain. The top fire cannon has a long range and a large flow rate, and the longer 50m fire fighting hose reel with gun can accurately strike the fire source and efficiently cover and isolate. And pickup fire pumper vehicles equipped with full set rescue tools. For different fire scenes, such as buildings, forests, oil tanks and hazardous chemical leaks, there are adaptive tactics that can be used for quick battles or precise attacks. And...
