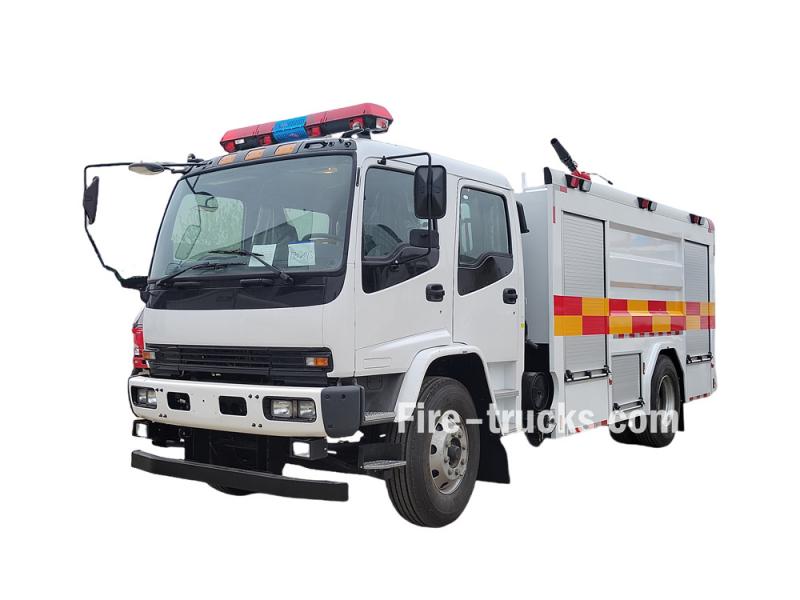

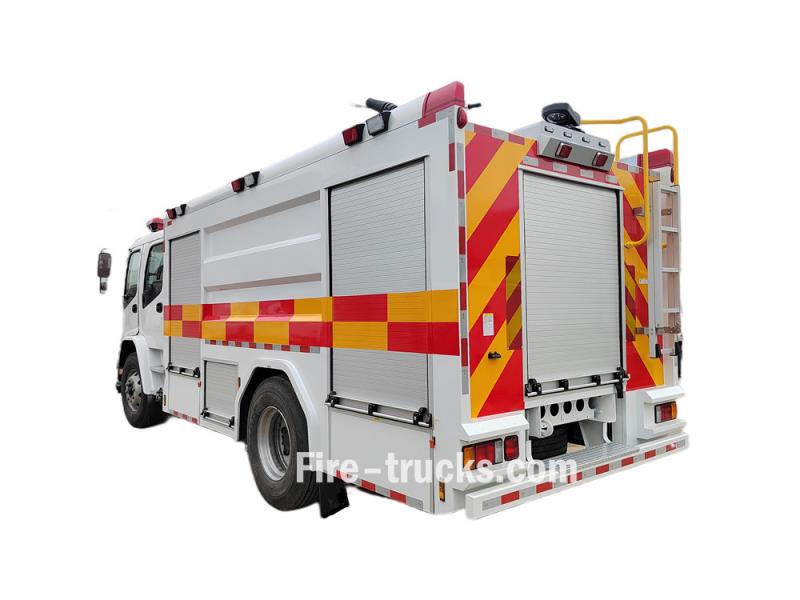

Saudi arabia Isuzu FVR foam fire tender vehicle

Saudi arabia Isuzu FVR foam fire tender vehicle

The Isuzu FVR 6 cubic meter foam fire truck uses an Isuzu FVR chassis with a 4500mm wheelbase. It is equipped with an Isuzu 6HK1-TCL engine, a Fast 8-speed transmission, a 5-ton carbon steel water tank (with anti-corrosion treatment), a 1-ton 304 stainless steel foam tank, a Shanghai Xiongzhen CB10/40 low-pressure fire pump (rear-mounted pump room), a Chengdu West PL32 fire monitor, and a 30-meter medium-pressure hose reel in the pump house.

  • Truck Chassis:

    ISUZU FVR , 4x2
  • Tanker Capacity:

    4000L water +1000L foam
  • Engine Power:

    240 HP/ 6HK1-TCL
  • Fire Pump:

    China CB10/40-XZ
  • Pump Flow:

    40L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    China PL8/32
  • Monitor Flow:

    32 L/s
  • Monitor Range:

    Water≥60 m,Foam≥48m
Facebook Linkedin Youtube Twitter Pinterest

This Saudi arabia Isuzu FVR foam fire tender vehicle is a medium-sized foam fire truck modified from an Isuzu FVR Class II chassis, integrating the functions of a water tanker fire truck and a foam fire truck. It is primarily used for extinguishing Class A and Class B fires, equipped with a CB10/40 low-pressure fire pump, a PL8/32 fire monitor, and a medium-pressure hose reel, providing strong firefighting capabilities. The equipment room and pump room are equipped with auxiliary firefighting equipment, including warning lights, flashing lights, and general lighting, ensuring rapid response and efficient execution of various firefighting and rescue missions.



   ♦ Saudi Arabia Isuzu FVR Foam Fire Rescue Truck ♦

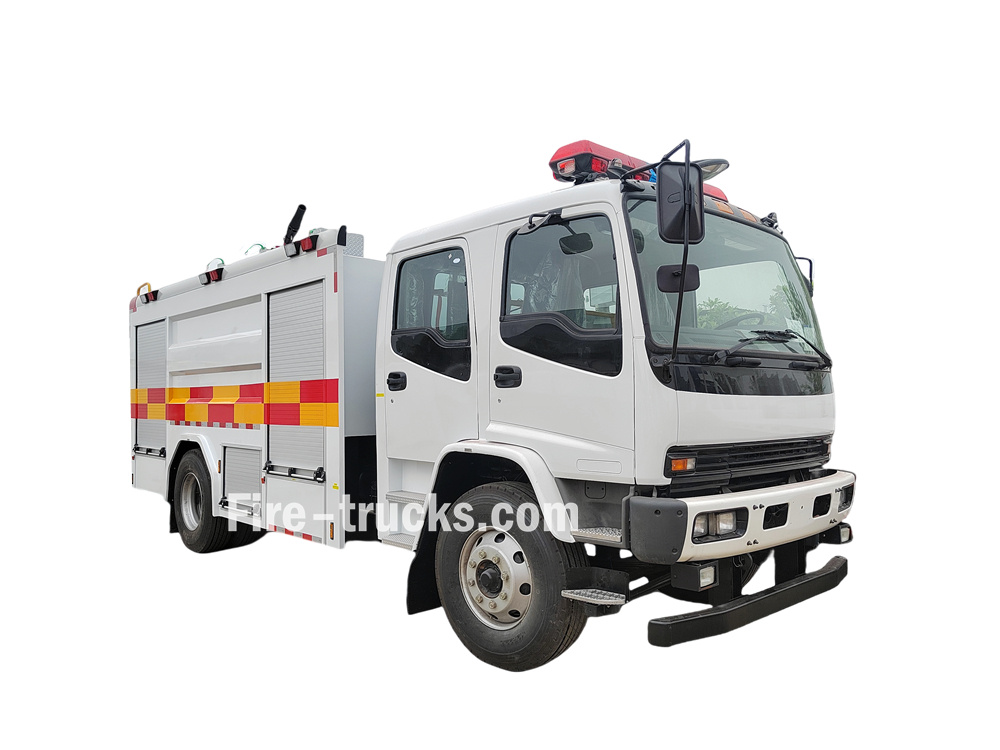

Saudi araba Isuzu FVR foam fire tender vehicle

Working Capacity

 Engine Model

 Wheelbase

 Superstructure

5000L water+1000L foam

 6HK1/ 240HP

4500 mm

★Water tank carbon steel

★Foam tank stainless Steel, SS 304

China famous CB10/40-XZ fire pump

 China famous PL8/32 Fire monitor

2025 year brand new



»Ⅰ. Main Features :



★ Isuzu 240HP powerful engine, 100,000 Km without prblem.

★ Isuzu FVR GIGA cabin,  Europen design

★ China famous CB10/40 fire pump, super reliable

★ Tank capacity can be customized

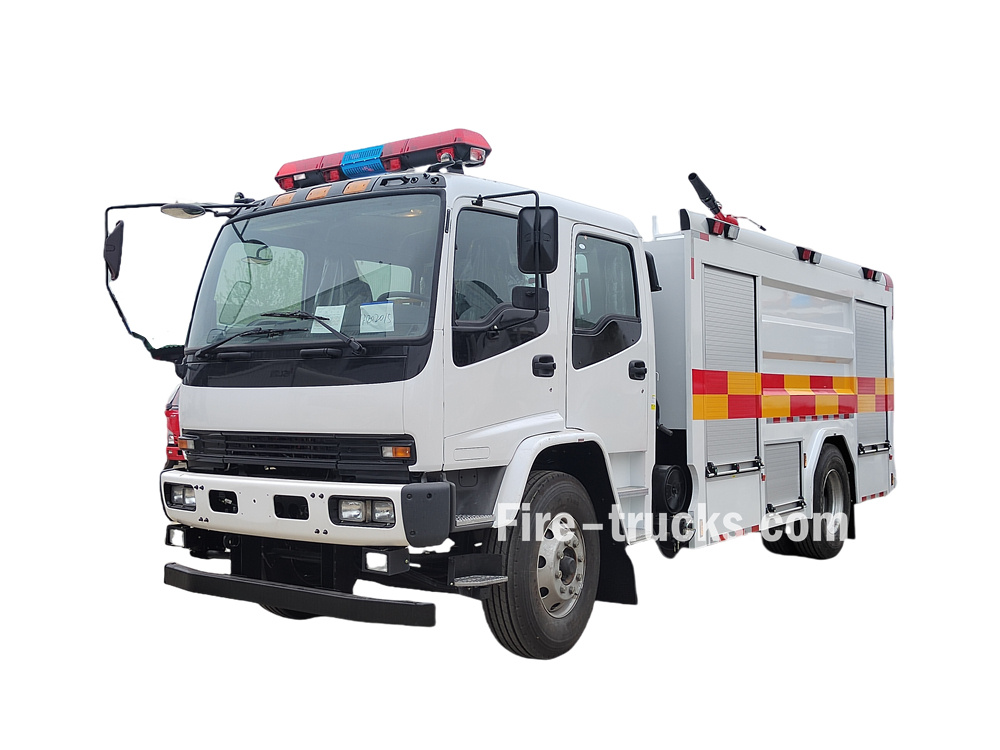

  • Saudi Arabia Isuzu FVR 6cbm foam fire truck

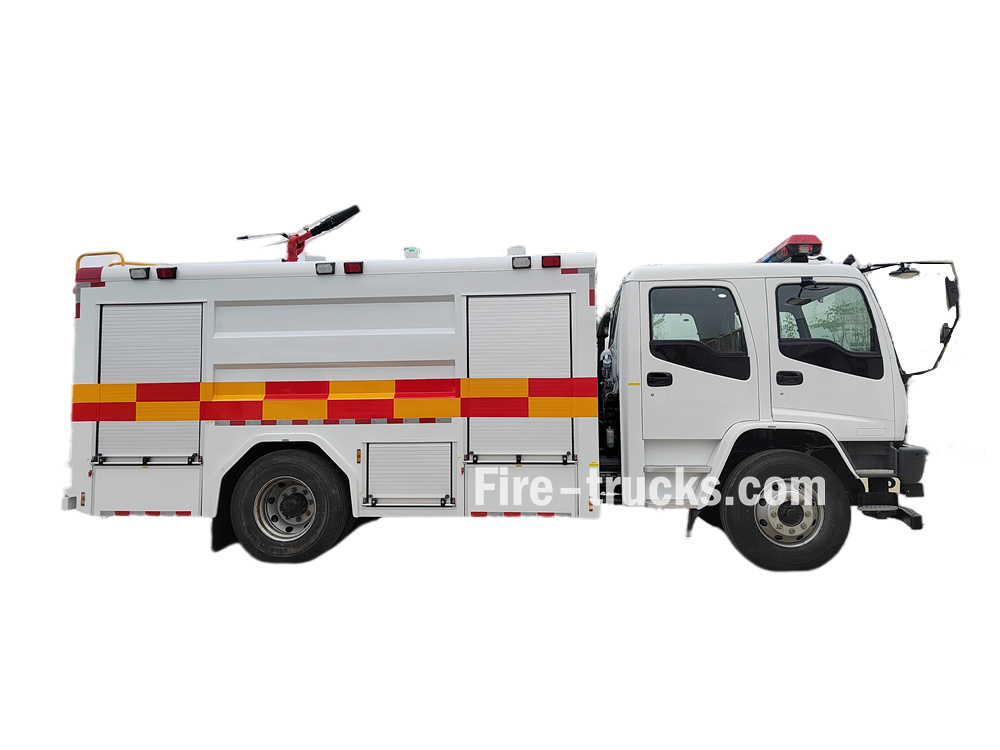

  •  Saudi Araba Isuzu FVR Foam Fire Rescue Truck

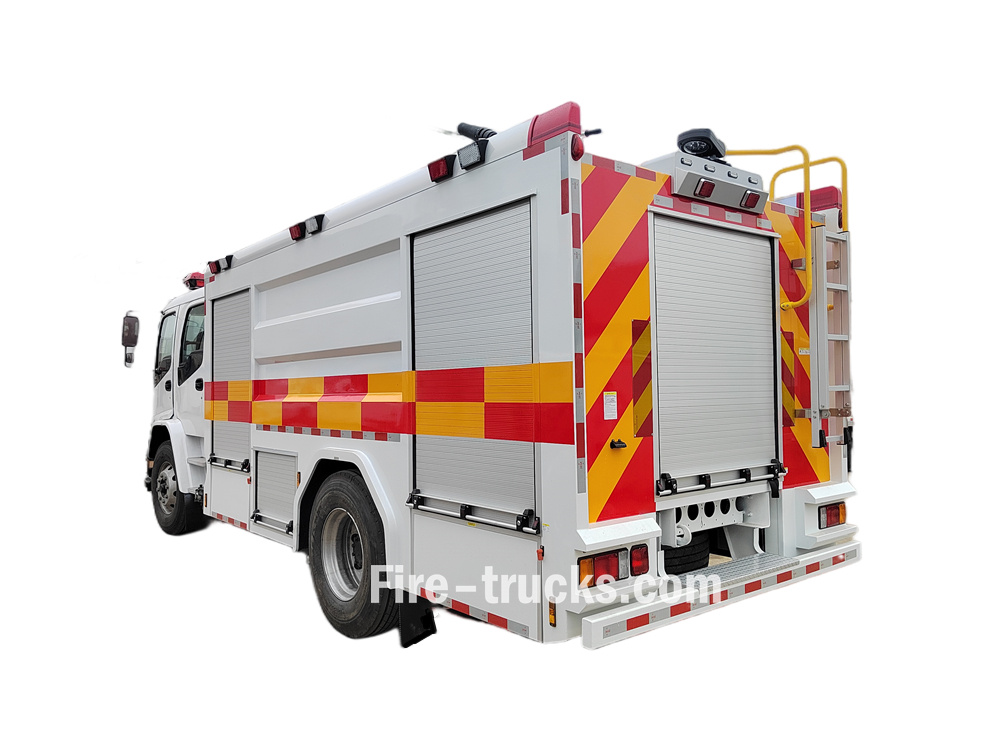

  • Isuzu FVR GIGA 6CBM foam water fire rescue truck

 » Ⅱ.Product Parameter :

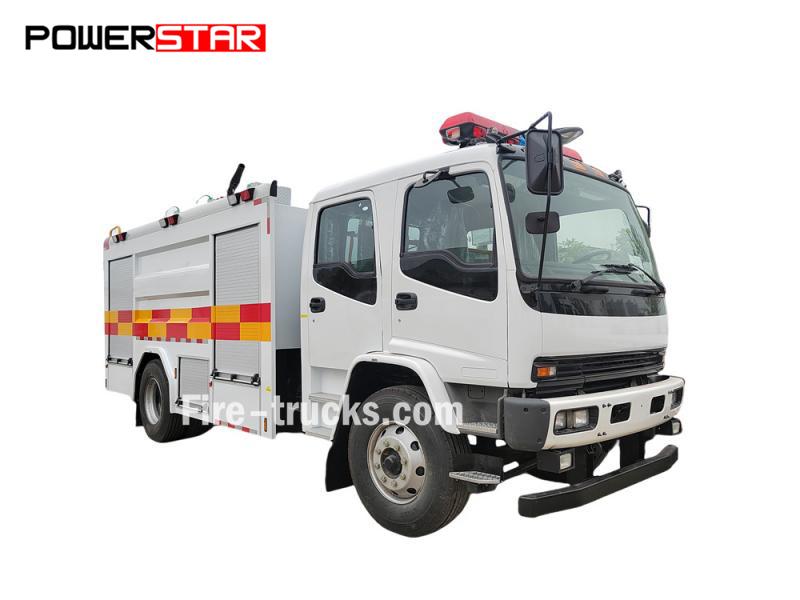

ISUZU GIGA 6000L foam water fire truck

General

Work capacity

5000L water tank,1000L foam tank

Truck chassis

Isuzu FVR GIGA

Engine Power

240 HP/ Isuzu 6HK1-TCL

Fire pump

CB10/40-XZ

Chassis

Drive Type

4X2

Transmission

FAST 8-shift, manual

Wheelbase

 4500mm

Tire

295/80R22.5 18PR,6+1wheel





Fire pump

Model

CB10/40-XZ

Pressure

1MPa

Max working pressure

1.144MPa

Max allowable inlet pressure

0.4MPa

Flux

40L/s

Max suction height

7m

Rated speed

3135±50r/min

Water diversion time

35s

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/32

Flow

32L/s

Rated working pressure

0.8MPa

Max working pressure

1.0MPa

Range

Water

60m

Foam

48m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

Standard configuration

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……



-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)




Chassis:

Type: Isuzu GIGA 4x2 Class II chassis for fire trucks

Wheelbase: 4500mm

Engine:  Isuzu 6HK1-TCL 240hp turbocharged intercooled diesel engine, Euro 5 emission standard



Transmission: Fast 9-speed, manual

Tires: 295/80R22.5, 6+1

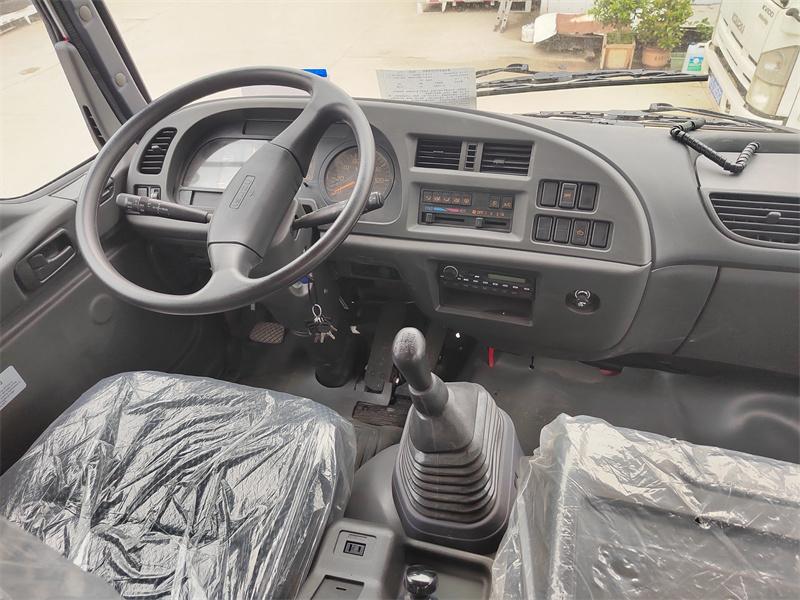

Cabin: Double row, 2+3 seats, with A/C, USB, power steering

Axle loading: Front axle 6500kg, rear axle 11500kg.

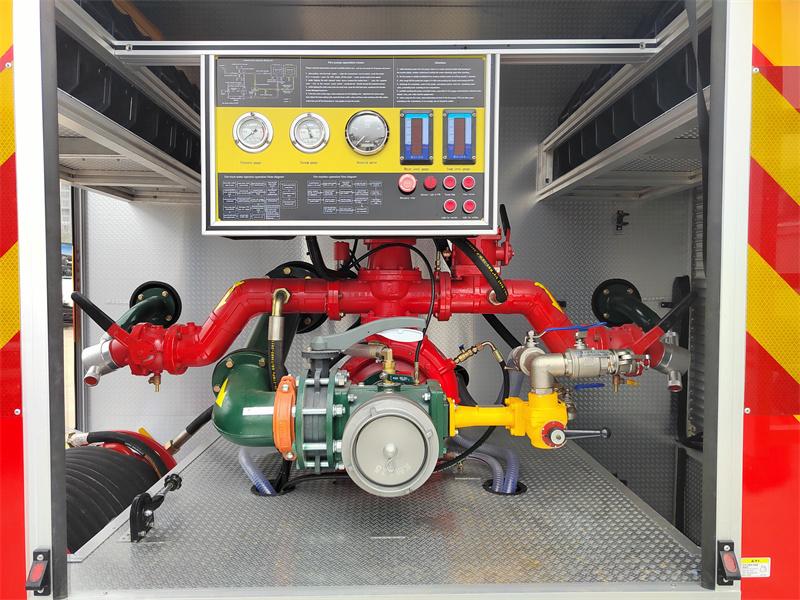

» Ⅲ. Fire Pump system :

Fire Pump: Shanghai Xiongzhen CB10/40 Low-Pressure Vehicle-Mounted Fire Pump



• Type: Low-Pressure Vehicle-Mounted Centrifugal Pump

• Rated Flow/Pressure: 40 L/s @ 1.0 MPa

• Priming Time: 35s

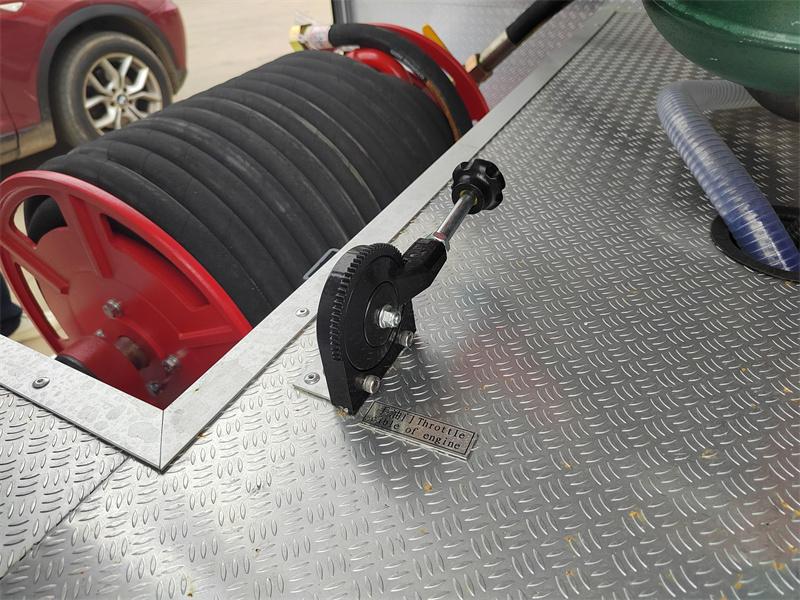

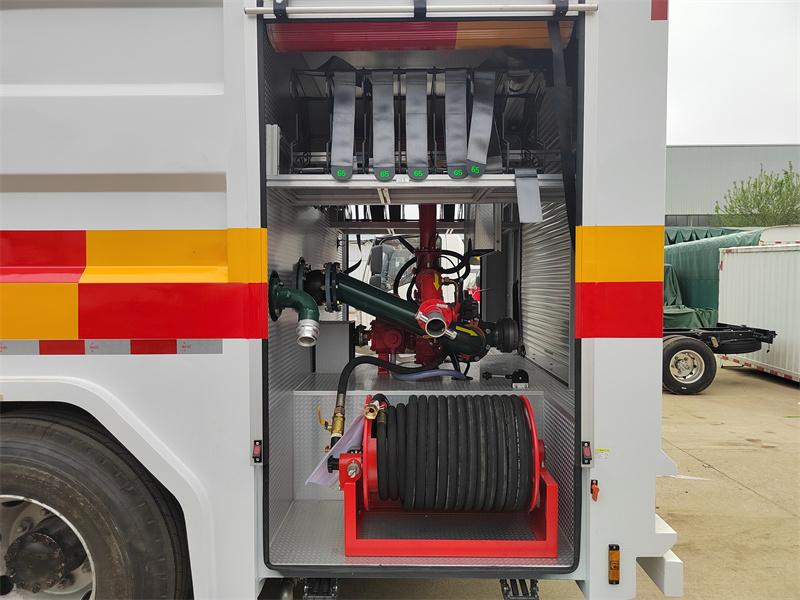

• Auxiliary Configuration: Equipped with one 30-meter medium-pressure fire hose reel in the pump house for rapid deployment and extinguishing of initial fires.

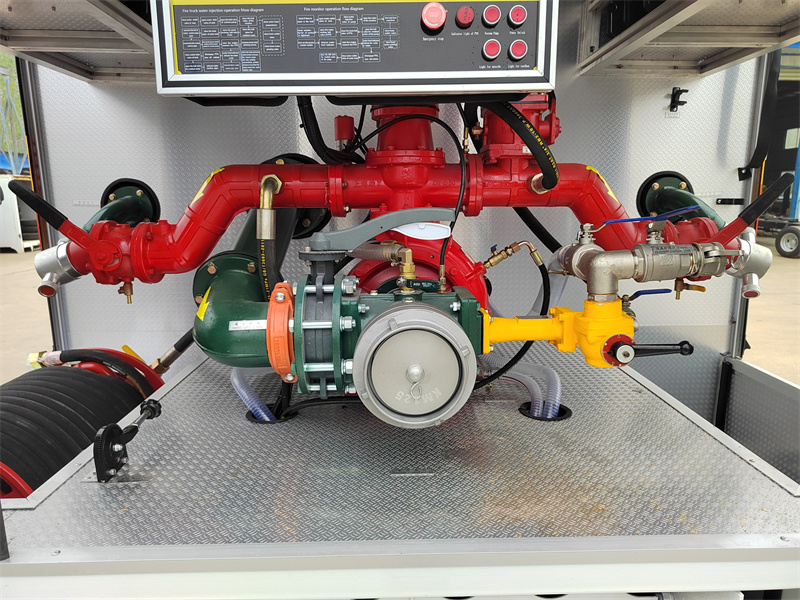

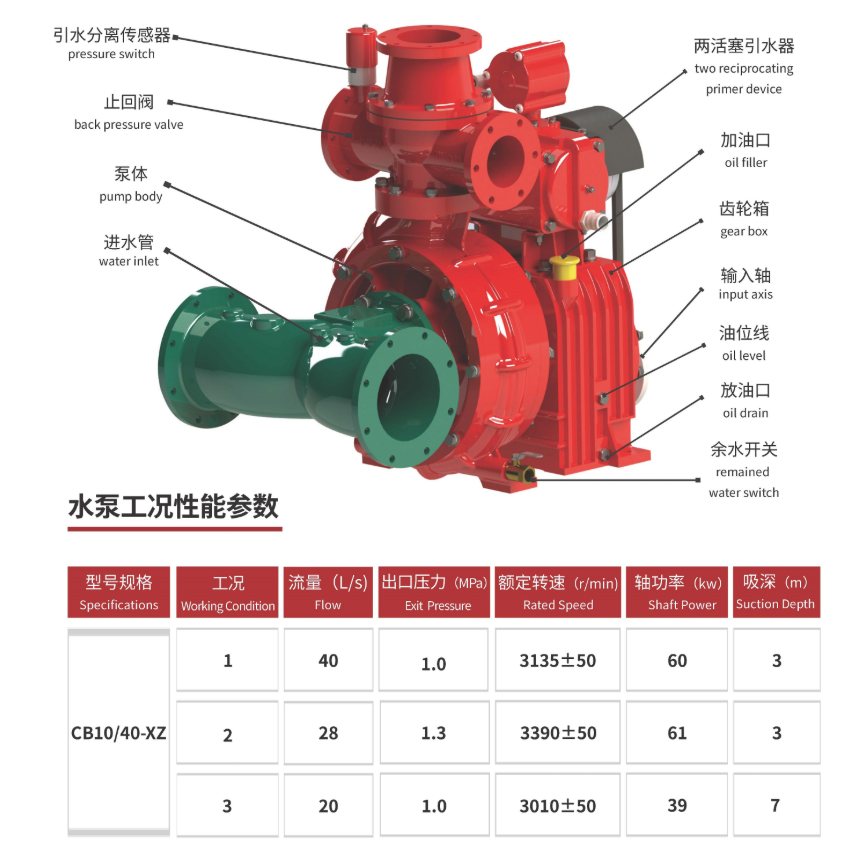

CB10/40-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/40-XZ

40L/s

1.0MPa

1.144MPa

0.4MPa

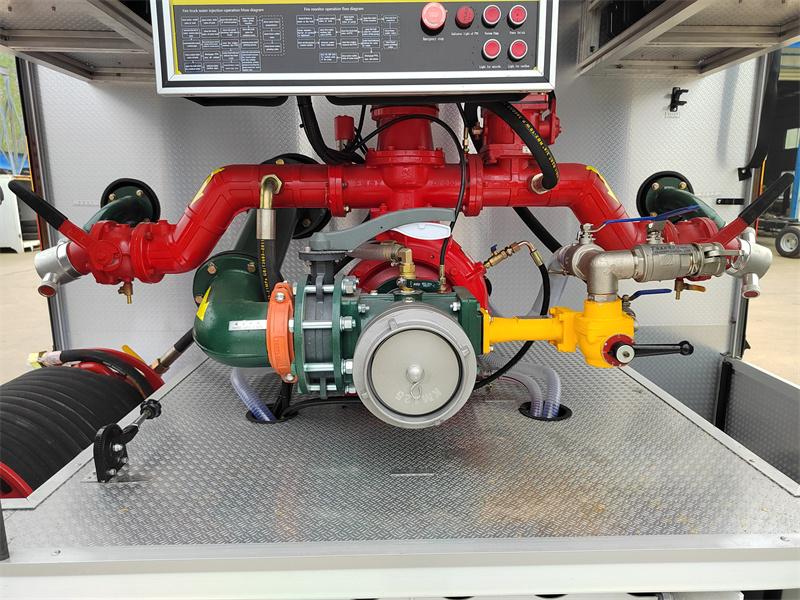

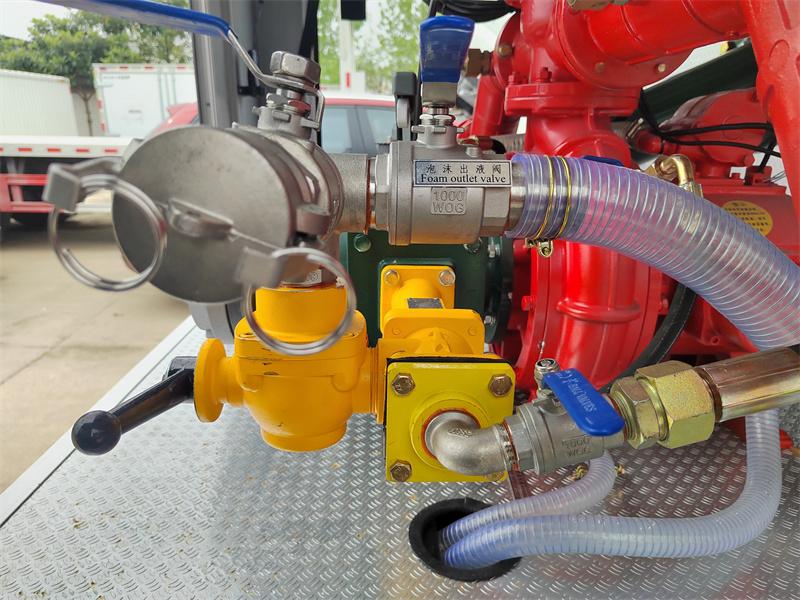

  • CB10/40-XZ fire pump
  • CB10/40-XZ fire pump
  • CB10/40-XZ FIRE PUMP

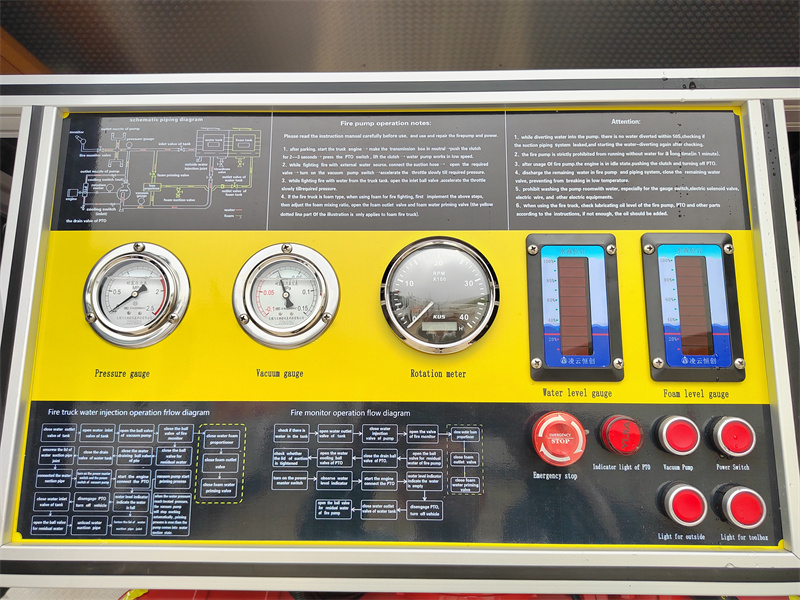

Control panel: Schematic Piping diagram, fire pump operation notes, Attentions, fire truck water injection operation flow diagram, fire monitor operation flow diagram, vacuum gauge, pressure gauge, tachometer, water level gauge, foam level gauge, emergency stop button, PTO, equipment room light, pump room light, etc.





Control panel



» . Fire Monitor system :

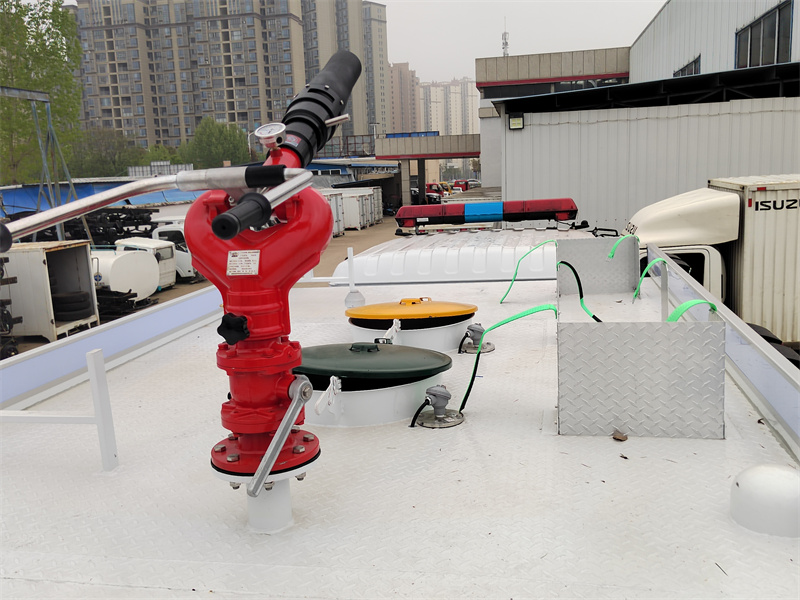

Fire Monitor: Chengdu West PL32 Fire Monitor



•  Type: Detachable electric/manual remote-controlled fire monitor.

•  Rated Flow Rate: 32L/s

•  Range: Water 60 meters, Foam 55 meters.

•  Control Method: Can spray water or foam liquid; can be used as a water cannon by removing the foaming cylinder; also has bloom and direct current functions; adjustable operating handle angle; has horizontal and elevation locking functions;

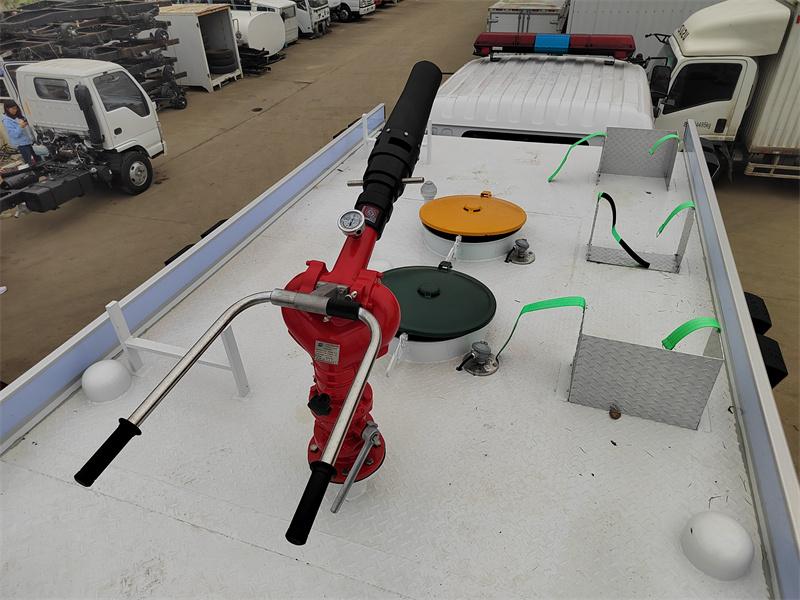

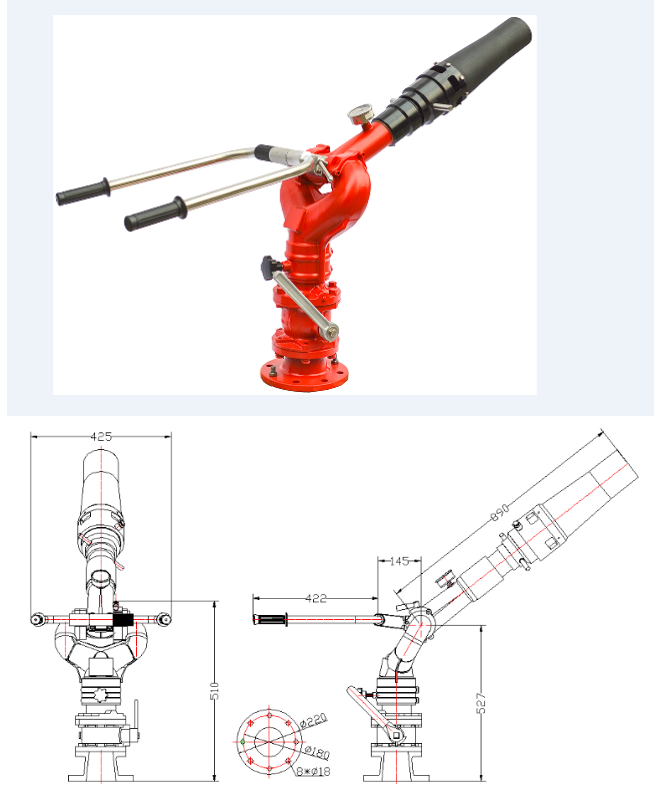

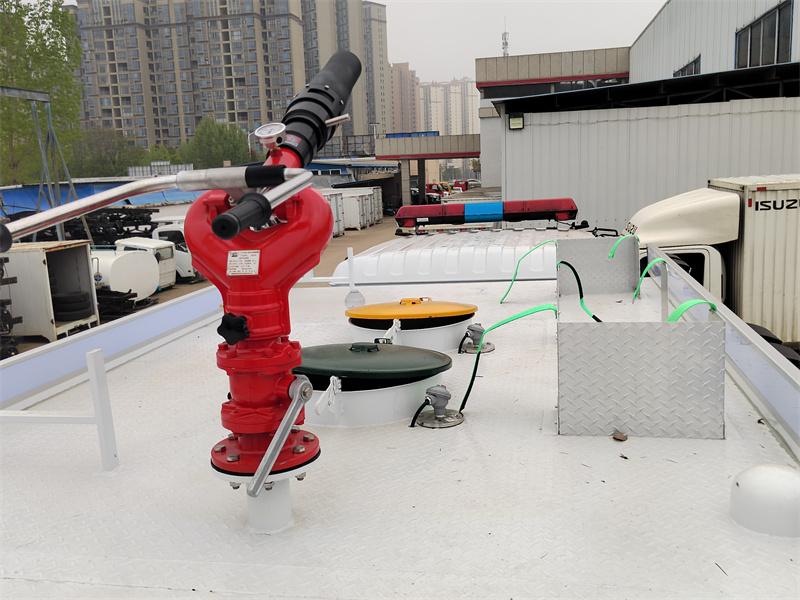

PL8/32 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/32 32L/s

water ≥60m,

foam ≥48m

0.80MPa -45°~+70°
0~360° 23kg

» .Technical Design:



 POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

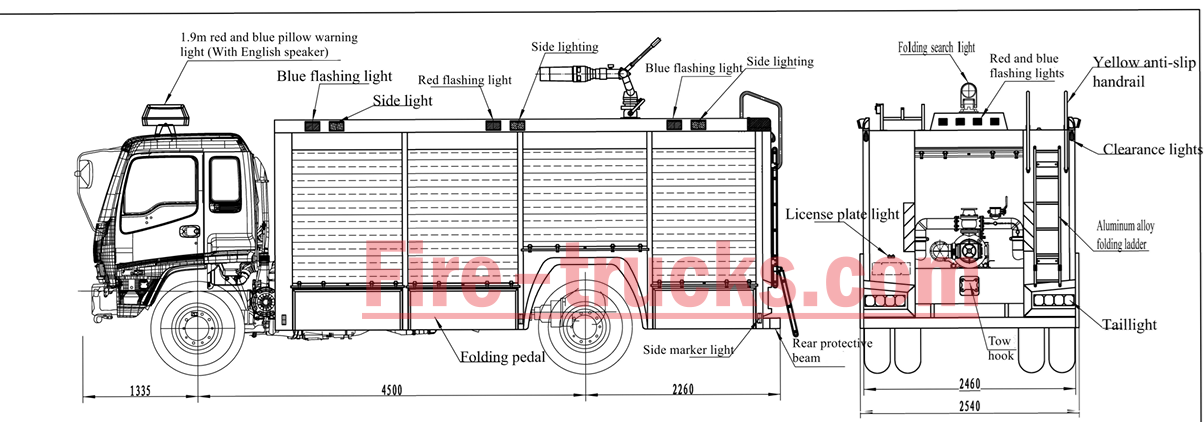

ISUZU GIGA 4x2 6000L foam water fire truck technical drawing



» .Preshippment Test:

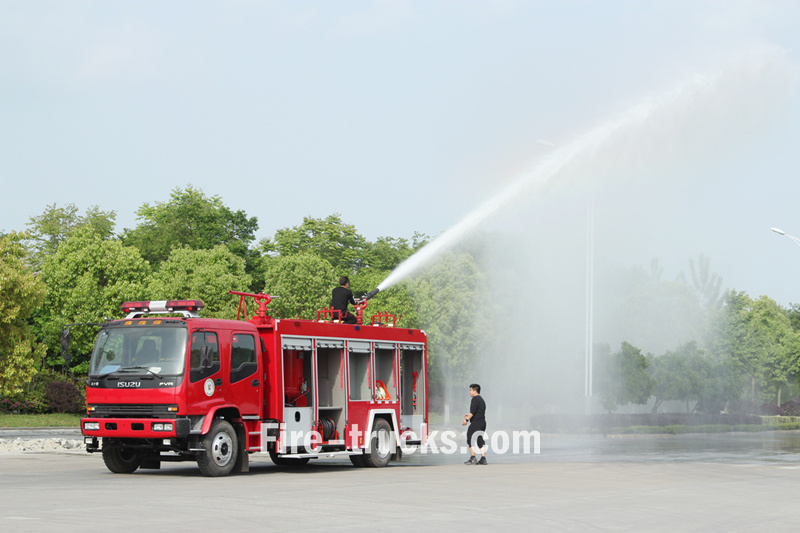

Before delivering the Isuzu GIGA 4X2 6000L foam fire truck from our factory, we conducted a factory inspection of the fire truck, which included rain testing, performance testing of the fire pump and fire monitor, as well as final inspection of welding process, painting and other aspects.

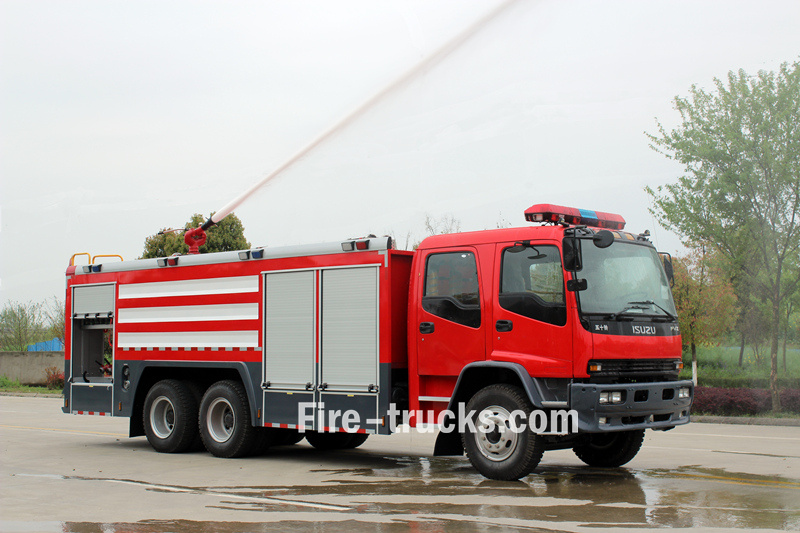

Isuzu GIGA 6000L foam fire fighting truck



Isuzu GIGA 6000L foam fire fighting truck



» . Vehicle Equipment:

• Front Equipment Box: Open-plan design, connected to the driver's cab, equipped with aluminum alloy equipment racks and aluminum alloy checkered plate flooring. Stores fire axes, hammers, shovels, picks, wrenches, crowbars, fire extinguishers, etc.

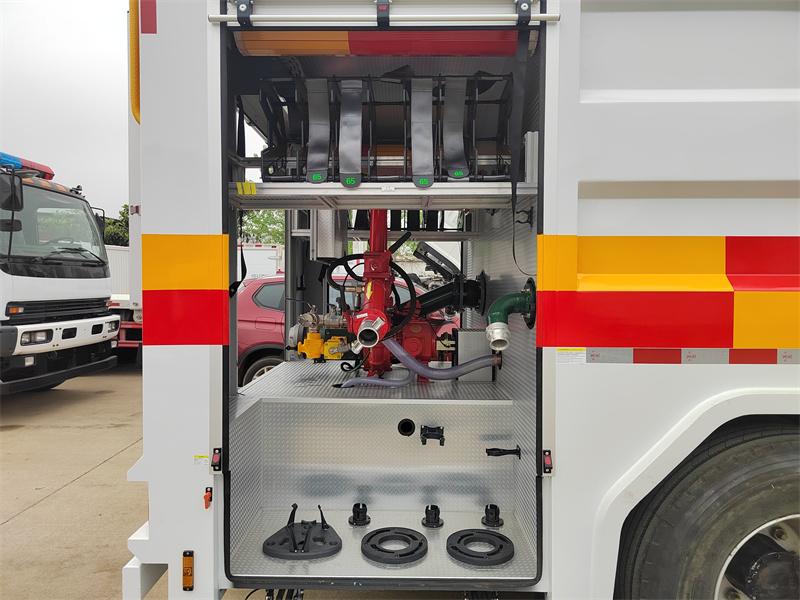

• Pump Room Interior: Also lined with aluminum alloy checkered plates, non-slip and wear-resistant, with a rational layout for storing vehicle tools and accessories. Stores fire hoses, water collectors, water distributors, water filters, fire nozzles, foam guns, etc.

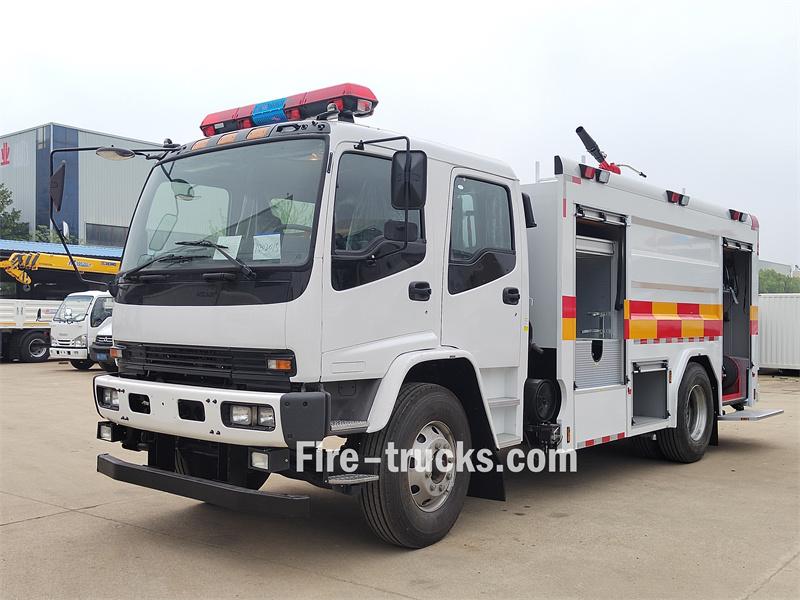

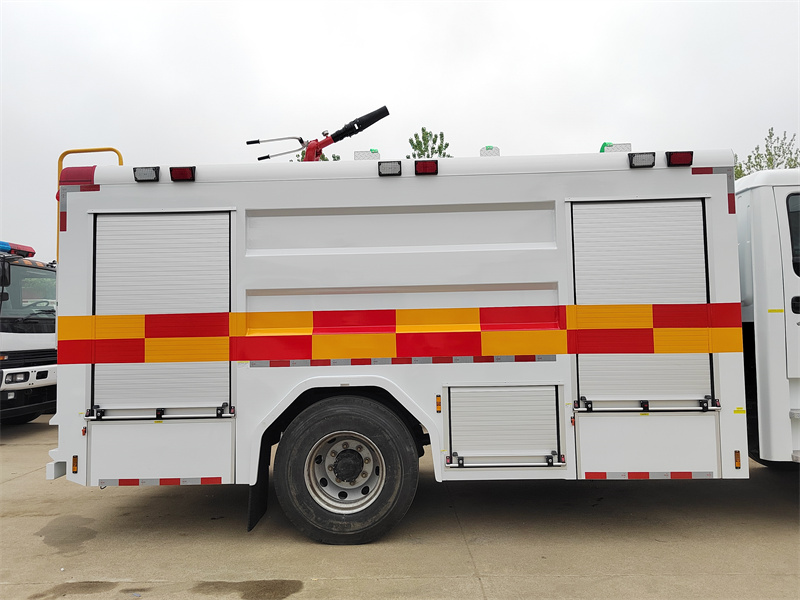

Isuzu FVR GIGA 6CBM foam water fire rescue truck



» . Lighting and Alarm Systems:



Warning Lights:

o Main Warning Lights: A long red bar of warning lights mounted on the roof.



o Auxiliary Lights: Flashing red lights installed around the vehicle to enhance warning effectiveness.



Working Lights: 360-degree rotating lights installed at the rear of the vehicle to provide wide-area illumination for nighttime firefighting operations.

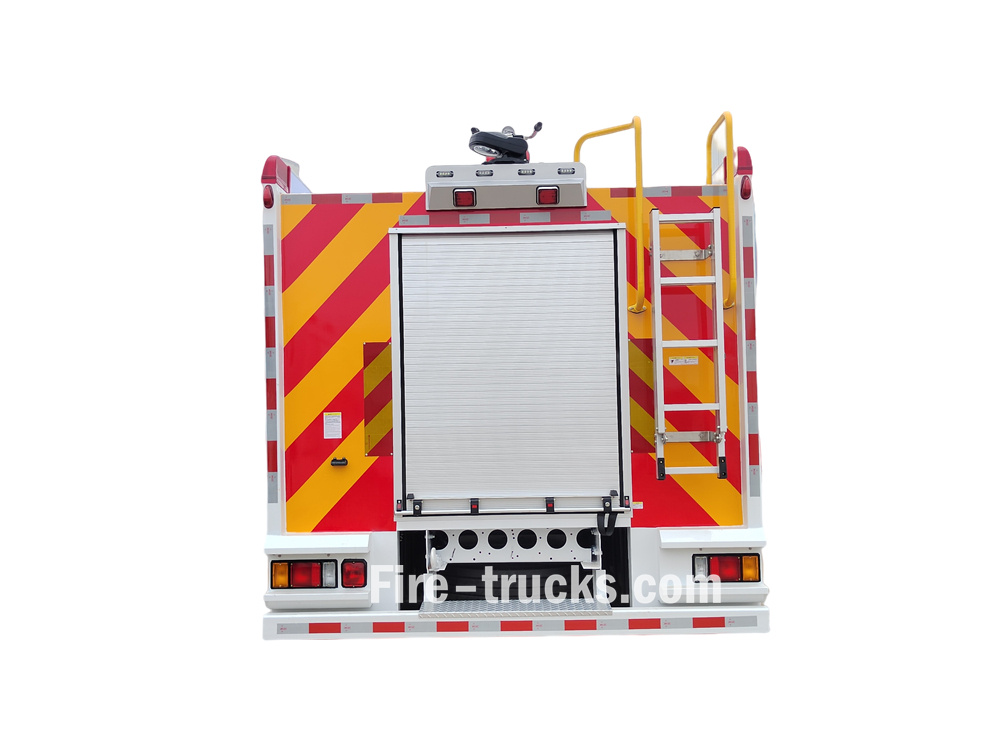

 Isuzu FVR 6 cubic meter foam fire truck
