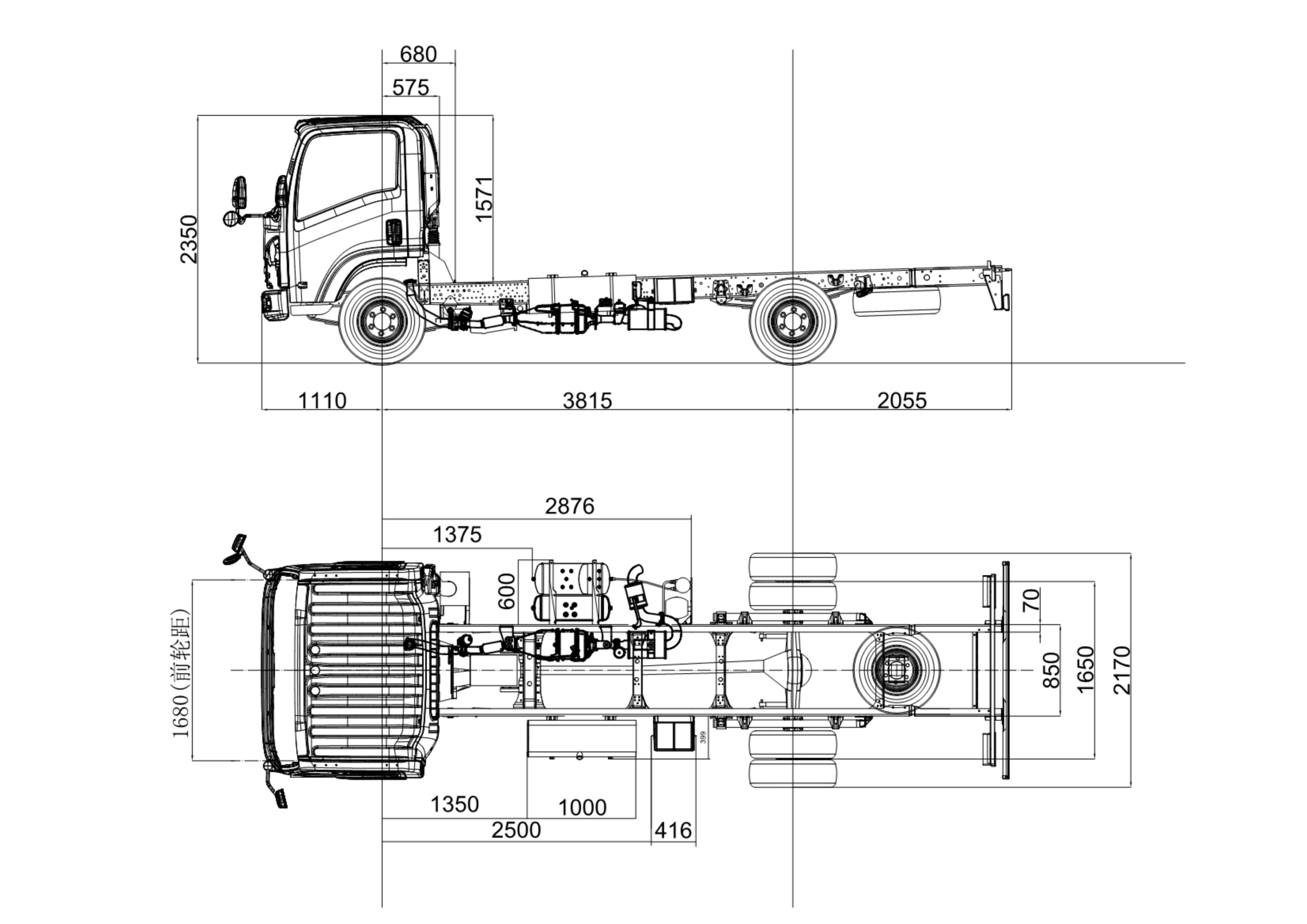

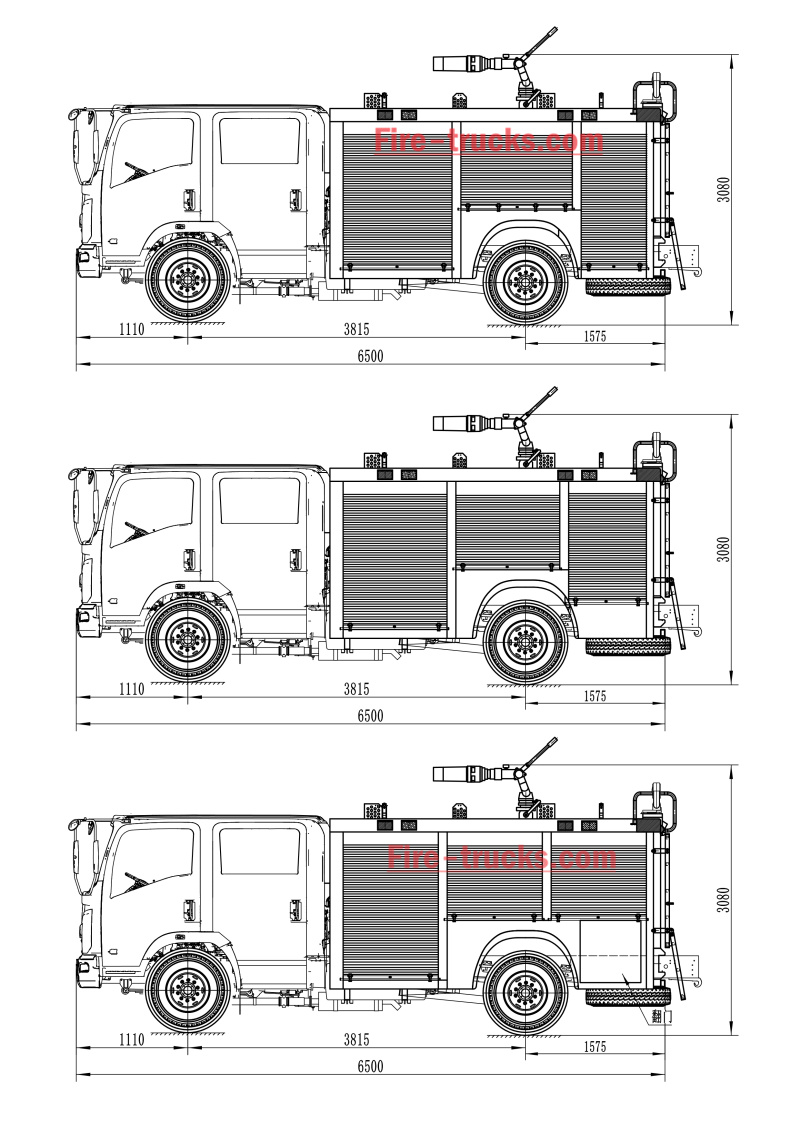

As the most professional Isuzu Fire truck factory, the core design of the Isuzu NPR water foam fire truck is to integrate a foam fire extinguishing system into a water tanker fire truck, forming a composite fire extinguishing equipment that can spray both water and foam. It can independently extinguish fires; deliver water or foam mixture to other equipment; and is suitable for operations in arid and water-scarce areas.         ★ Techncial Specification    All fire trucks from CS trucks, 100% based on customer requirements   Capacity  Engine model         Water    Foam      Fire Pump   Fire Monitor 2,500L ISUZU 4HK1 / 190HP 2,500L 500L CB10/40 Fire Pump PL8/32     2026 offical ISUZU Fire truck cab chassis truck   2026 original fire truck chassis drawing   Item Design Details of Isuzu Fire trucks Design Core   Integrates a foam extinguishing system into a water tanker fire truck, forming a dual-capability fire-fighting vehicle capable of discharging both water and foam. Features include:• Independent fire suppression• Water or foam mixture supply to other equipment• Suitable for arid or water-scarce areas, enabling multi-functional use   Overall Design Concept   Designed to meet fire-fighting needs in workshops and surrounding areas, with enhanced capabilities for oil, electrical, and solid material fires; the vehicle consists of a chassis and specialized body equipment, emphasizing reliability, multi-functionality, and ease of operation   Chassis Selection   • Uses proven medium or heavy-duty type-II chassis• All-wheel drive recommended to improve mobility and traction in complex terrain     2026 NEW DESIGN OF ISUZU 700P Water Fire Trucks   Core System Components & Design Key Points 1. Water Tank & Foam Liquid Tank   • Material: Stainless steel, corrosion-resistant• Recommended capacity: Water tank 3000–5000L, foam liquid tank 300–600L• Structural optimization: Internal baffles separate water and foam chambers, switchable via connecting ports to single water tank mode, enabling multi-purpose use   2. Foam Proportioning System   • Uses balanced pressure proportioner (core component) to precisely mix water and foam concentrate at 3% or 6% ratios• Stable output unaffected by flow or pressure fluctuations, suitable for non-specialist operators• Equipped with external foam suction inlet for on-site replenishment   3. Discharge System   • Fire pump: High-efficiency, energy-saving multi-stage centrifugal pump, flow rate ≥40L/S• Fire monitor: Remote-controlled water/foam dual-purpose monitor, range ≥50 meters, adjustable angle• Supports connection to fire hoses and foam nozzles for flexible operations       2026 NEW DESIGN OF ISUZU NPR Foa...

The PF5-15 fixed dry powder monitor uses dry powder as the medium and relies on a fixed base for stable spraying. It is suitable for chemical and warehouse areas, and can quickly cover the burning surface in the early stages of a fire, improving extinguishing efficiency. The PF5-15 fixed dry powder monitor has a robust structure, is easy to operate, and can be linked with an automatic control system for remote activation and precise spraying. » Ⅰ. PF5-15 fixed dry powder monitor structure:   Features of the PF5-15 fixed dry powder monitor: ● Fully functional; ● Simple and novel structure; ● Stable performance and easy maintenance; ● Low inlet pressure; ● Equipped with an automatic drain valve with horizontal and vertical locking functions; ● Material: Precision cast aluminum alloy; ● Cannon head: Aluminum alloy. » Ⅱ. Foam Cannon PL24 specifications:     Model Flow（kg/s） Range（m） Rated working pressure（Mpa） Pitch rotation（°） Horizontal rotation（°） L×W×H（mm） Weight（Kg） PF5-15/40 40 ≥42 0.80 -45～+70 0～360 980x340x550 28.5       » Ⅲ.Product Applications:     Fire truck with PF5-15 fixed dry powder monitor PF5-15 fixed dry powder monitor testing   The PF5-15 fixed dry powder monitor has a long spray distance and wide coverage, and can quickly form a dry powder fire extinguishing barrier. It is suitable for fixed locations such as chemical plants, oil depots, and storage areas, providing continuous and stable fire extinguishing capabilities for large areas.

Isuzu 6HK1-TC fire trucks, also named Isuzu rescue fire vehicle, Engine Error Code Diagnosis and Solutions.The Isuzu 6HK1-TC engine utilizes the advanced TICS fuel injection pump electronic control system, and the ECU (Engine Control Unit) features self-diagnosis. When the system detects a fault, the "CHECK ENGINE" warning light illuminates and the corresponding fault code is stored. Understanding the interpretation and solutions for these error codes can effectively improve engine maintenance efficiency.   Common Error Codes and Solutions P-Series Trouble Codes P0101 (Mass Air Flow Sensor Circuit Low) Check the engine coolant temperature sensor and its wiring. Verify the sensor power supply voltage and ground connection. Replace the ECU or sensor if necessary.   P0102 (Mass Air Flow Sensor Circuit High) Check fuel quality and filter condition. Clean the fuel system. Check the fuel pressure regulator, fuel pump, and injector circuits.   P0103 (Mass Air Flow Sensor A Circuit High) Check the sensor signal circuit for a short circuit. Test the sensor's operating status. Replace the sensor or ECU if necessary. Digital Trouble Codes   10 (Rack Sensor Error) Check the rack sensor and its wiring. Verify normal signal transmission.   11 (Speed ​​Governor Servo System Error) Check the speed governor servo system's operating status. Test related circuit connections.   14 (Auxiliary Speed ​​Sensor Error) Check the auxiliary speed sensor's installation position. Test the sensor's signal output.   15 (N-TDC Sensor Error) Check N-TDC sensor connection Verify signal accuracy System maintenance and preventive measures     SN Diagnostic items Decision time Backup control data Electronic governor Before you travel 10 Rack sensor error 160ms 　 Off oil or constant speed Normal control 11 Governor servo system error 1s 　 Off oil or constant speed Normal control 14 Secondary speed sensor error 10s 　 Normal control Normal control 15 N-TDC sensor error  — 　 Normal control Normal control 14/15 N-TDC sensor and secondary speed sensor error 2.5s 　 Broken oil Control off 211 Fuel temperature sensor error 3s 20℃ 　 Control off 22 Atmospheric temperature sensor error 1s 25℃ 　 　 23 Engine coolant temperature sensor error 3s 55℃ Normal control 　         Connector Terminal No. Signal Wire cotor/diameter(Injection pump harness) SWP 8-terminals Black 1 Governor actuator drive voltage - 1 RM 2 2 Governor circuit GND-1 W/1.2 3 Target rack position - 1 U1 2 4 Rack position voltage G/1.2 5 Governor circuit 5V-1 Y/1.2 6 Backup N sensor (GND) BR/1.2 7 Backup N sensor (SIG) 0/1.2 8 Pull-down B/1.2 SWP6- terminals Black g Governor actuator drive voltage - 2 R/1.2 10 Target rack position - 2 L/1.2 11 Governor circuit GND-2 W/1.2 12 Governor circuit SIG-GND BR/1.2 13 Governor circuit 5V-2 Y/1.2 SWP 3-terminalsBlack 14 Limp home W1.2 15 Sub-coil (Not used) BY/1.2 Regular maintenance Change engine oil on schedule (base...

Isuzu 6HK1 Fire Rescue Vehicles, also named Isuzu fire service truck, If a Isuzu rescue fire truck engine overheats, the following areas should be checked first:1. Cooling system: Problems such as a damaged fan, clogged radiator, damaged thermostat, or insufficient coolant can all contribute to engine overheating.2. Oil quality and quantity: Poor oil quality or insufficient oil can also cause engine overheating.3. Mechanical failures such as cylinder blowout, cylinder liner cracks, or cylinder liner cracks can also cause this phenomenon.   As a heavy-duty diesel powertrain, the Isuzu 6HK1 engine requires strict adherence to technical specifications for maintenance. Key points are as follows:           1. Structural Understanding and Disassembly and Assembly Specifications Crankshaft-Connecting Rod Mechanism The cylinder liner features a loose-fit design, requiring special tools to prevent it from falling out during disassembly and assembly. The standard clearance is 0.122–0.156mm. The piston outer diameter has a tight tolerance (114.894–114.909mm). During installation, pay attention to the piston ring opening direction and the "three clearances" (end clearance, side clearance, and back clearance) adjustment. The lower crankcase is a one-piece structure and must be hoisted during maintenance to prevent deformation. Timing System Alignment During gearbox assembly, align the crankshaft gear and idler gear marks. The camshaft B mark must be flush with the cylinder head surface. The engine should be at compression top dead center on the first cylinder. When installing the fuel injection pump, align the timing pointer with the S point on the connector, and align the injection advancer mark with the pump body pointer.       •The linear DC motor pushes the coil up and down under the control unit output signal. •The connecting rod installed on the coil assembly transmits the up and down motion of the coil to the connecting block, and the connecting block is installed at the end of the rack. Under the push of the connecting block, the rack moves left and right to change the amount of fuel injected. When the coil assembly moves up, the link pushes the rack to increase the direction of the oil; conversely, when the coil assembly goes down, the rack moves in the direction of reducing the oil, and the function of the column is to convert the vertical motion to the height of the rack. movement.   •The copper block is mounted on the upper part of the connecting block to form a rack sensor. The rack sensor detects the rack stroke and feeds this value back to the control unit so that the actual rack stroke and the target rack stroke can be continuously compared until the difference between the two approaches zero. This process is very important to control accuracy and response.   2. Key System Maintenance Points Lubrication and Cooling System Oil change interval: Mineral oil: ev...
