Dry Powder Fire Truck vs. Foam Fire Truck: Performance Comparison

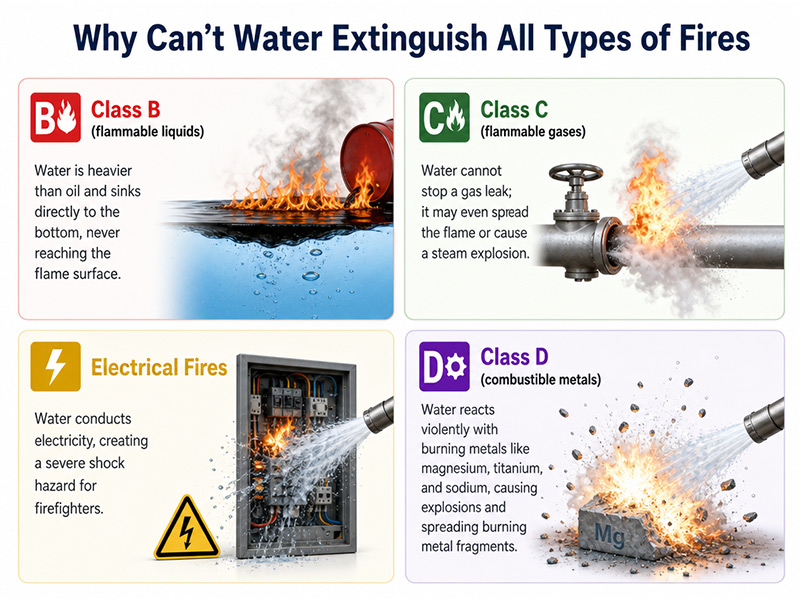

A dry powder fire truck and a compressed air foam system (CAFS) fire truck may both be used for fighting flammable liquid and gas fires. Both are specialized vehicles designed to handle Class B and Class C hazards. However, their extinguishing agents, working principles, and application scenarios are fundamentally different. This article explains the key differences between dry powder fire trucks and CAFS fire trucks from multiple perspectives: extinguishing mechanism, working principle, key components, performance parameters, application scenarios, and cost. » I. How Different Extinguishing Agents Work? 1.Why Can't Water Extinguish All Types of Fires • Class B (flammable liquids): Water is heavier than oil and sinks directly to the bottom, never reaching the flame surface. • Class C (flammable gases): Water cannot stop a gas leak; it may even spread the flame or cause a steam explosion. • Electrical fires: Water conducts electricity, creating a severe shock hazard for firefighters. • Class D (combustible metals): Water reacts violently with burning metals like magnesium, titanium, and sodium, causing explosions and spreading burning metal fragments. 2.How Does Dry Powder Work? • Chemical interruption: Dry powder particles interrupt the combustion chain reaction, stopping the fire almost instantly. • Limited cooling: Unlike water or foam, dry powder provides very little cooling effect. • No blanket: The powder does not form a lasting barrier; once it disperses, the fire may re-ignite if the fuel is still hot. • Non-conductive: Dry powder is electrically non-conductive, making it safe for electrical fires. 3.How Does Compressed Air Foam (CAFS) Work? • Blanketing: The foam covers the fuel surface, forming a dense physical barrier that blocks oxygen supply. • Cooling: The foam contains a large amount of water; water evaporation absorbs heat, continuously carrying heat away from the fuel surface. • Vapor suppression: The foam layer prevents fuel vapors from evaporating into the air, breaking the fuel-air mixing chain. • Adhesion: CAFS foam sticks to vertical surfaces and ceilings, providing protection that water cannot achieve. » II. Main Components of Each System Dry Powder Fire Truck     Component Description Powder tank Stores dry chemical powder (capacity: 2,000 - 10,000 kg) Propellant gas cylinders Store compressed nitrogen or air at high pressure (15-20 MPa) Pressure regulator Reduces gas pressure to safe operating level (1.5-2.5 MPa) Powder discharge valve Controls powder flow from tank to discharge line Hoses and nozzles Deliver powder to the fire; special nozzles prevent clogging Control panel Allows operator to pressurize tank, open valves, and control discharge Compressed Air Foam System (CAFS) Fire Truck     Component Descrip...
