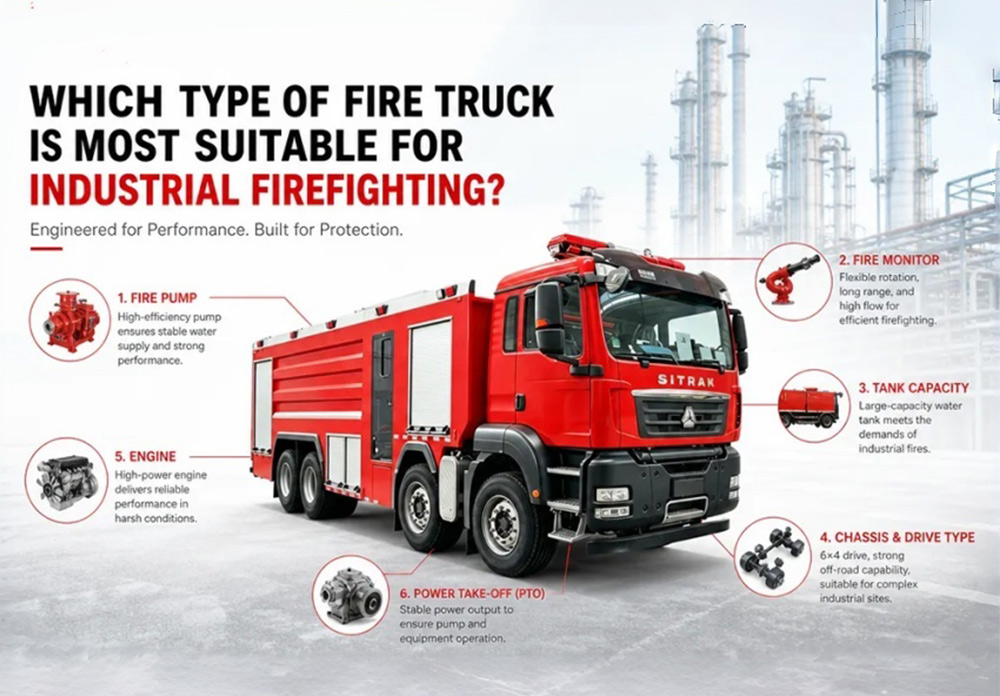

Which Type of Fire Truck Is Most Suitable for Industrial Firefighting?

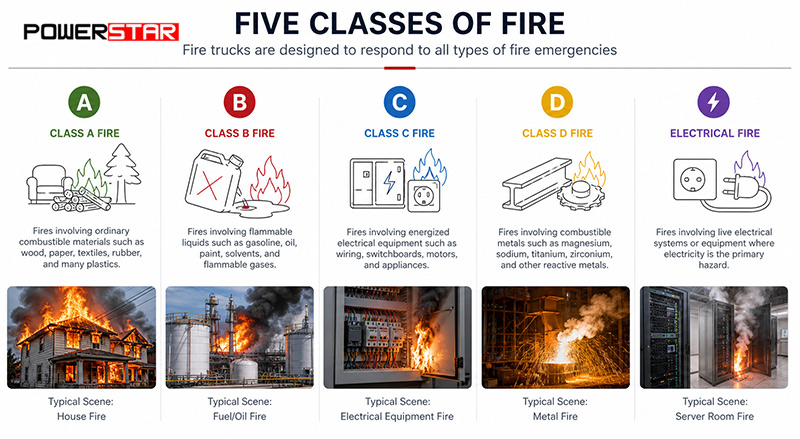

Industrial fires are fundamentally different from ordinary structural fires. Petrochemical plants primarily face flammable liquid and combustible gas fires, while manufacturing facilities and warehousing logistics centers more often deal with ordinary combustible materials — this is why different types of industrial fire trucks are required for different fire risks. This article compares water fire trucks, foam fire trucks, dry powder fire trucks, and combination units. This comprehensive buying guide helps procurement managers, engineers, distributors, and contractors understand the key differences between industrial fire truck types and select the most suitable vehicle for their specific industrial firefighting needs. » I. Quick Answer: Which Fire Truck Is Best for Industrial Firefighting? Selection should be based on fire type, industry characteristics, and extinguishing requirements: Industry Recommended Fire Truck Reason Petrochemical Water + Foam + Dry Powder Combination Unit Covers Class A, B, C, and electrical fires; adapts to complex fire scenarios Natural Gas / LNG Dry Powder Fire Truck Fast knockdown on gas fires; reduces re-ignition risk General Manufacturing Water Fire Truck Lower cost; suitable for Class A fires; simple maintenance Warehousing & Logistics Foam Fire Truck Can handle both ordinary combustibles and some liquid fires Power Plant Dry Powder + Foam Fire Truck Meets both electrical equipment and oil fire suppression needs Mining 6x4 Water Fire Truck High load capacity; good off-road capability; suitable for rough terrain     In simple terms: General industrial facilities: A water fire truck is usually sufficient. Petroleum and chemical industries: A foam fire truck is the first choice. Special industries (natural gas, electrical equipment): A dry powder fire truck is recommended. Large integrated industrial parks: A water + foam + dry powder combination unit provides the most comprehensive firefighting capability and is the most versatile choice. » II. Understanding Industrial Fire Risks Before selecting a fire truck, buyers must understand the fire hazards present at their facility. Industrial fires are classified by the type of fuel involved. Fire Classifications for Industrial Settings Fire Class Fuel Type Examples Extinguishing Agent Required Class A Ordinary combustibles Wood, paper, cloth, rubber, plastics (solid materials) Water, foam, dry powder Class B Flammable liquids Gasoline, oil, diesel, chemicals, solvents Foam, dry powder, CO2 Class C Flammable gases Methane, propane, hydrogen, natural gas Dry powder, gas interruption Class D Combustible metals Magnesium, titanium, sodium, aluminum powder Specialized dry powder only Electrical Energized equipment Transformers, switchgear, power lines Dry powder, CO2 (non-conductive)     Key insight: Most industrial facilities face Class B (flammable liquids) and Class C (gases) as their primary risks. This is why water-only fir...

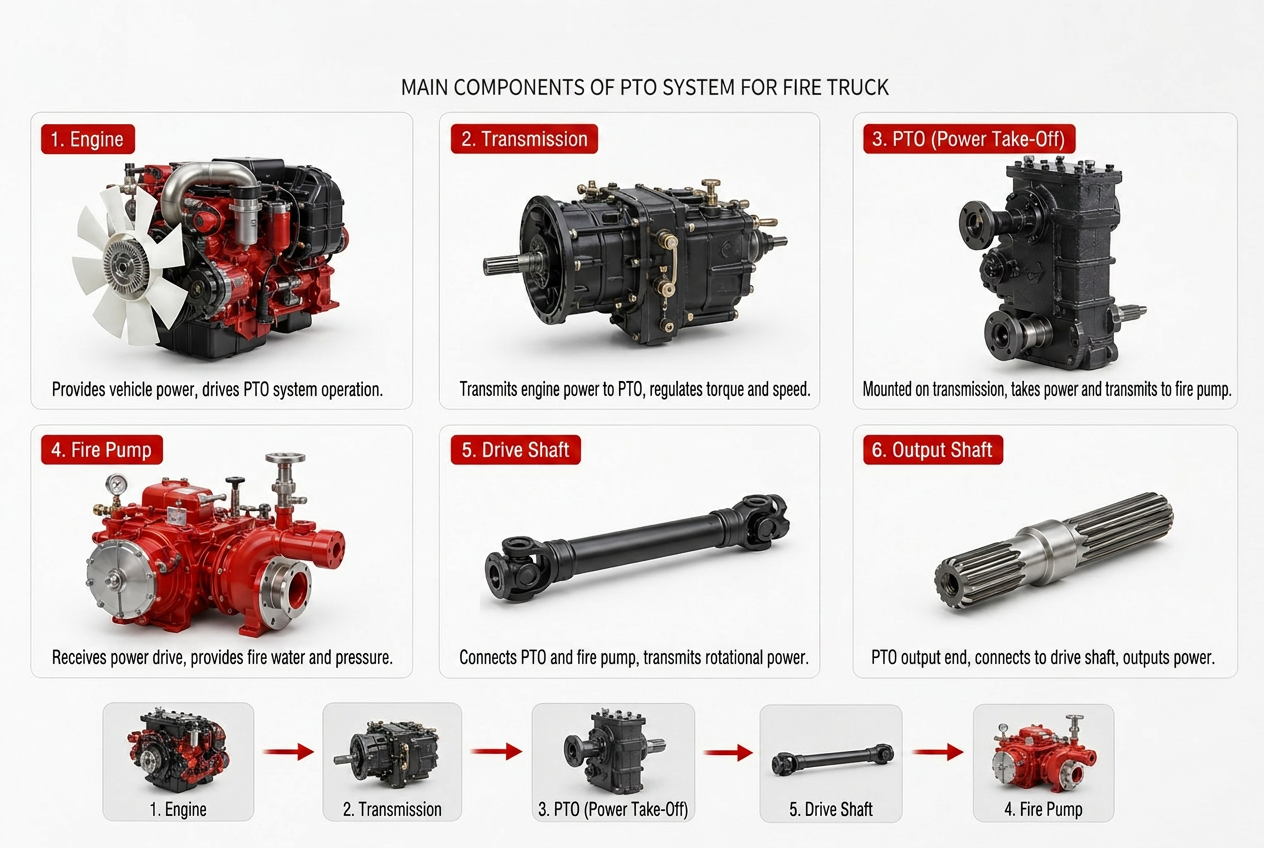

The fire truck PTO (Power Take-Off) is a power transmission device that transfers engine power to the fire pump. When the firefighter activates the PTO, mechanical power from the engine is transmitted through the transmission and PTO to the fire pump — this is the core working principle of how a fire fighting truck PTO system operates — enabling the pump to deliver high-pressure, high-flow water or foam without the need for a separate auxiliary engine. Modern fire trucks typically use side-mounted PTO or full power PTO systems. These offer stable power output, convenient operation, and low maintenance costs, making them an essential component of the fire truck's firefighting system. » I. What Is a Fire Truck PTO? 1. PTO Definition PTO (Power Take-Off) is a critical component in the fire truck's power system. It is a gear transmission device installed between the engine and the transmission, designed to "divert" a portion of mechanical power from the vehicle's engine or transmission to the fire pump or other auxiliary equipment, without affecting the vehicle's normal driving capability. The fire truck engine is originally responsible only for driving the wheels. However, once the fire truck arrives at the fire scene, the wheels no longer need power, while the fire pump requires power to draw and pressurize water. The PTO is the device that accomplishes this "power switch." 2. What Does Power Take-Off Mean? Power Take-Off (PTO) literally means "power output device." On a fire truck, it refers to extracting rotational power from the engine flywheel or transmission gears through gear engagement, and delivering it to the fire pump or other auxiliary equipment. Its name describes its function: Engine = Power source PTO = Power distributor Fire pump = Power consumption end Therefore, the PTO is the bridge connecting the "power source" and the "firefighting system." » II. Why Does a Fire Truck Need a PTO? The core reason fire trucks must be equipped with a PTO is that firefighting operations require continuous, stable, high-power output that cannot rely on the vehicle's driving state. Main reasons: 1. Provides continuous firefighting power The fire pump needs to run for extended periods during firefighting operations. The PTO allows the engine to continuously drive the fire pump at idle or fixed RPM, ensuring stable water pressure and flow. 2. Improves power utilization efficiency Without a PTO, a separate auxiliary engine would be required to drive the fire pump, which would increase: Cost Maintenance complexity Risk of failure Space occupation The PTO directly utilizes the vehicle's engine power, improving overall efficiency. 3. Supports multiple firefighting systems Modern industrial fire trucks may include not only water pumps but also: Foam systems Dry powder systems High-pressure water systems Remote-controlled fire monitors Without a PTO, there are only two solutions: Install a separate engine to drive the pump &r...

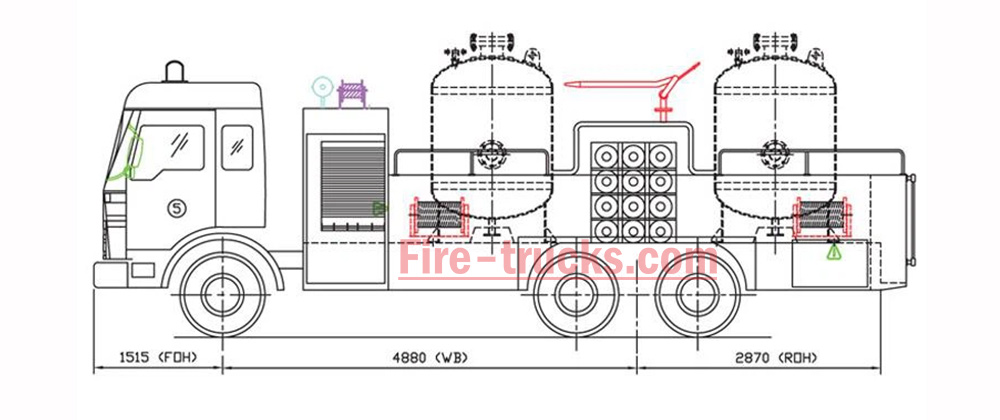

A compressed air foam system (CAFS) fire truck and a dry powder fire truck may both be used for fighting flammable liquid and gas fires. Both are specialized vehicles designed to handle Class B and Class C hazards. However, their extinguishing agents, working principles, and application scenarios are fundamentally different. This article explains the key differences between dry powder fire trucks and CAFS fire trucks from multiple perspectives: extinguishing mechanism, working principle, key components, performance parameters, application scenarios, and cost. » I. How Different Extinguishing Agents Work? 1.Why Can't Water Extinguish All Types of Fires • Class B (flammable liquids): Water is heavier than oil and sinks directly to the bottom, never reaching the flame surface. • Class C (flammable gases): Water cannot stop a gas leak; it may even spread the flame or cause a steam explosion. • Electrical fires: Water conducts electricity, creating a severe shock hazard for firefighters. • Class D (combustible metals): Water reacts violently with burning metals like magnesium, titanium, and sodium, causing explosions and spreading burning metal fragments. 2.How Does Dry Powder Work? • Chemical interruption: Dry powder particles interrupt the combustion chain reaction, stopping the fire almost instantly. • Limited cooling: Unlike water or foam, dry powder provides very little cooling effect. • No blanket: The powder does not form a lasting barrier; once it disperses, the fire may re-ignite if the fuel is still hot. • Non-conductive: Dry powder is electrically non-conductive, making it safe for electrical fires. 3.How Does Compressed Air Foam (CAFS) Work? • Blanketing: The foam covers the fuel surface, forming a dense physical barrier that blocks oxygen supply. • Cooling: The foam contains a large amount of water; water evaporation absorbs heat, continuously carrying heat away from the fuel surface. • Vapor suppression: The foam layer prevents fuel vapors from evaporating into the air, breaking the fuel-air mixing chain. • Adhesion: CAFS foam sticks to vertical surfaces and ceilings, providing protection that water cannot achieve. » II. Main Components of Each System Dry Powder Fire Truck     Component Description Powder tank Stores dry chemical powder (capacity: 2,000 - 10,000 kg) Propellant gas cylinders Store compressed nitrogen or air at high pressure (15-20 MPa) Pressure regulator Reduces gas pressure to safe operating level (1.5-2.5 MPa) Powder discharge valve Controls powder flow from tank to discharge line Hoses and nozzles Deliver powder to the fire; special nozzles prevent clogging Control panel Allows operator to pressurize tank, open valves, and control discharge Compressed Air Foam System (CAFS) Fire Truck     Compone...

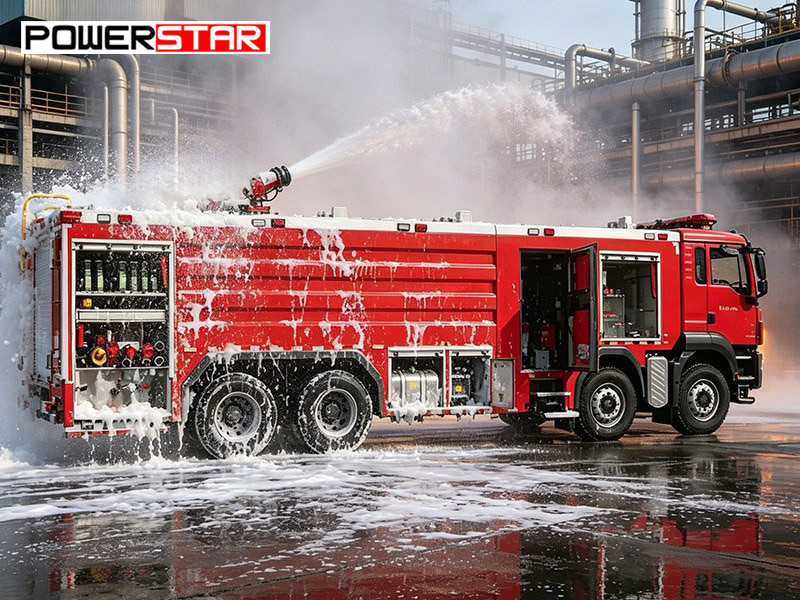

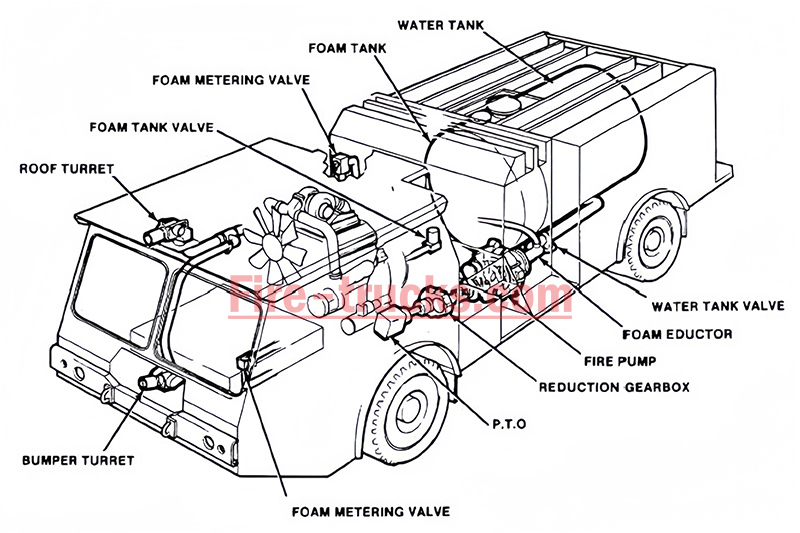

  » The Underlying Logic of Foam Fire Extinguishing   ★. Why can't water extinguish oil fires? • Density difference: Water is heavier than oil and sinks directly to the bottom, never touching the flame.   • Boiling over: The water at the bottom vaporizes instantly upon contact with high temperatures, expanding thousands of times in volume, splattering the oil layer.   • Reignition: A small amount of water evaporating into steam only temporarily isolates the oil from oxygen; once the steam dissipates, the oil surface immediately reignites. ★. How does foam work? • Isolation: The foam covers the oil surface, forming a dense physical barrier that blocks the oxygen supply.   • Cooling: The foam contains a large amount of water; the evaporation of this water absorbs heat, continuously carrying away heat from the oil surface.   • Blocking: The foam layer prevents oil vapor from evaporating into the air, breaking the fuel-air mixing chain.   » Main components of fire extinguishing   1. Water and Liquid Supply – Two Independent Storage system The foam fire truck has two separate tanks: a water tank and a foam liquid tank.   2. Fire pump Fire pumps are the power heart of the entire fire extinguishing system, specifically designed for delivering water or foam solutions. Our fire trucks primarily use fire pumps from two well-known brands: Xiongzhen and Rongshen. Pressures include low, medium, and medium-low pressure; flow rates range from 20L/s to 180L/s; suction depth is 7m.   Among them, we commonly use the CB10/60 fire pump, with a flow rate of 60L/s and a rated pressure of 1.0MPa. 3. Fire monitor Dual-purpose, capable of spraying water to extinguish solid fires and foam to extinguish oil fires; Our fire trucks primarily use Chengdu West fire monitors, which can spray water or foam liquid, and feature both spray pattern and direct current functions; they have long range, concentrated jet, high foaming ratio, and large protection area; they are flexible and convenient to operate, and the monitor body can rotate horizontally and vertically.   Among them, we commonly use the PL8/48 fire monitor, with a flow rate of 48L/s and a rated pressure of 0.8MPa; the range is ≥70m for water and ≥60m for foam.     4. Water guns and foam guns Water or foam is delivered through pipes and fire hoses to the end fire guns/foam guns for fire extinguishing.      5. Fixed foam proportioner vs. fully automatic foam proportioner   Comparison Dimensions Fixed Proportioning (Circulating Pump Type, Negative-Pressure) Variable- Proportioning (Circulating Pump Type, Negative-Pressure) Mixing ratio 6%（example：PH64-RS） 1%～10%，step 0.5% Work pressure range 0.6～1.4MPa 0.6～2.5MPa Flow range 16～64L/s TAF-PH120，120L/s；TAF-PH240，240L/s Proportioning accuracy Highly affected by water pressure and pipeline resistance, resulting in significant erro...

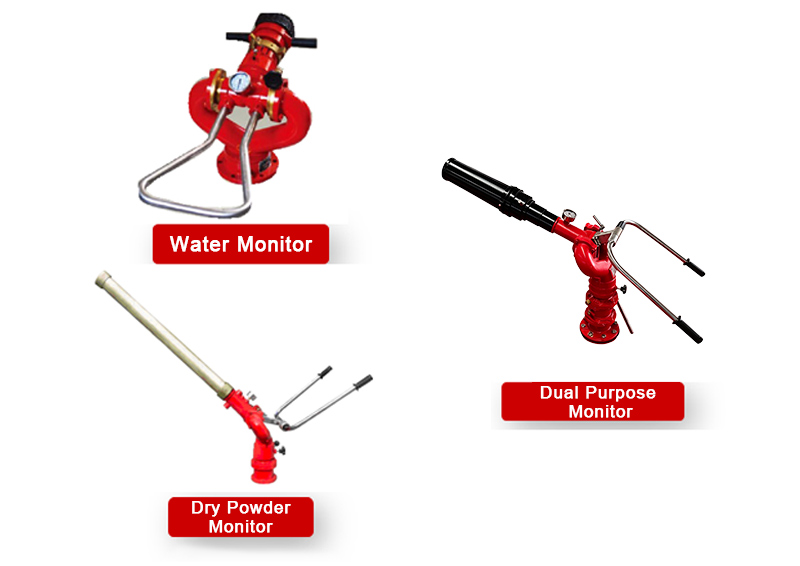

The foam fire truck is the core equipment for fighting flammable liquid fires. By precisely mixing foam concentrate with water at ratios of 1%, 3%, or 6% (accuracy ±0.5%), this foam fire truck delivers a uniform foam blanket for jet fuel fires at airports or tank fires at refineries. Its stainless steel foam tank and intelligent proportioning system ensure zero mixing errors, increasing fire suppression efficiency by over 50% while reducing foam waste by 30%. It is the invisible guardian of industrial fire safety. The core working principle and key testing procedures of the foam fire truck foam system are the focus of many customers. Let's learn about it today. 1. Three Key Components of the Foam Fire Truck Foam System 1.1 Foam tank304 stainless steel construction (4mm bottom plate, 3mm side plates), corrosion-resistant design, equipped with manhole cover, level indicator, drain port, and breather valve. 1.2 Foam proportionerInstalled in the water line, creates a vacuum as water flows through, drawing foam concentrate into the water stream. Common mixing ratios: 1%, 3%, and 6%. 1.3 Foam monitor and nozzlesRoof-mounted or handheld, 360° horizontal rotation, -30° to 80° vertical tilt, capable of producing expanded foam for fire suppression. 2. Core Working Principle of the Foam System 2.1 Proportioning systemWater flows through the proportioner → creates a vacuum → draws foam concentrate from the foam tank → mixes at preset ratio (1%, 3%, or 6%) → foam solution flows to the pump. 2.2 Pump pressurizationFoam solution enters the centrifugal pump → pressurized to 1.0-1.2 MPa → delivered through piping to the discharge outlets or monitor. 2.3 Foam expansionPressurized foam solution passes through foam nozzle → air is entrained → solution expands into finished foam → foam blanket covers fuel surface → cuts off oxygen and suppresses fire. 3. Material and Component Selection To provide customers with a more perfect foam fire truck, Fire TRUCKS selects the best materials and components for the foam system. 3.1 Foam tank system (storage and corrosion protection core)     Structural Layer Material / Process Function Inner tank 304 stainless steel (4mm bottom, 3mm side) Corrosion resistance, foam concentrate compatibility Manhole cover Quick-locking mechanism Easy access for filling and cleaning Level indicator Visual gauge Real-time foam concentrate level monitoring Breather valve Pressure relief Prevents tank vacuum or overpressure 3.2 Proportioning system (mixing actuator) Foam proportioner: Installed in the water line, utilizes venturi effect to draw foam concentrate. Common ratios: 1%, 3%, 6% Control types: Manual, semi-automatic, or fully automatic Pickup line: Stainless steel or reinforced hose with strainer to prevent blockage 3.3 Discharge system (foam delivery) Foam monitor: Roof-mounted, 360° rotation, water range ≥65m, foam range ≥60m Foam ...

A fire fighting water truck and an ordinary water truck may look similar. Both are large vehicles with water tanks, pumps, and hoses. However, their design, components, and intended purposes are fundamentally different. This article explains the key differences between fire fighting water trucks (also known as multi-purpose water trucks or forest fire trucks) and ordinary water trucks from multiple perspectives: appearance, configuration, working principle, application, and more. » I. What Is a Fire Fighting Water Truck? A fire fighting water truck is also known as a multi-purpose water truck, forest fire truck, or fire water supply truck. It belongs to the civil fire truck series. This vehicle combines firefighting and watering functions into one unit. It sits between a professional fire truck and an ordinary water truck. Primary applications: Landscaping and green belt irrigation Firefighting and fire suppression Emergency fire water supply Dust suppression in mines and construction sites Small-scale firefighting in residential communities Pesticide spraying (optional) Key characteristics: Tank capacity: 2,000 – 12,000 liters Pump type: Fire pump driven by sandwich PTO Spray range: 50 meters or more Pump flow rate: Up to 100 cubic meters per hour Color: Fire red or engineering yellow Roof monitor: 360° horizontal rotation, -30° to 80° vertical tilt » II. What Is an Ordinary Water Truck? An ordinary water truck is a type of municipal vehicle built on a two-axle commercial chassis. It consists of an anti-corrosion water tank, a power take-off (PTO), a drive shaft, a dedicated self-priming water pump, a piping network, spray outlets, and a working platform. Primary applications: Landscaping and green belt irrigation Road maintenance and cleaning Dust suppression on construction sites Street washing Agricultural pesticide spraying (optional) Emergency firefighting (limited capability) Key characteristics: Tank capacity: 5,000 – 20,000 liters Pump type: Self-priming water pump (side-mounted PTO) Spray range: 28 meters or less Pump flow rate: Approximately 40 cubic meters per hour Color: Usually matches the chassis cab color (white is common) » III. Key Differences Between Fire Fighting Water Truck and Ordinary Water Truck 1. Appearance and Color     Feature Fire Fighting Water Truck Ordinary Water Truck Body color Fire red or engineering yellow Matches chassis cab (often white) Cab marking "FIRE" or similar "SPRINKLER" or "WATER" or none Tank shape Square or circular tank with compartments Circular or rectangular tank Rear structure Pump house with roll-up doors Working platform for spray gun Top equipment Fire monitor, emergency water pipe, handrails Tank manhole cover only Warning lights Large emergency lights and siren Small clearance lights only 2. Configuration and Components     Component Fire Fighting Water Truck Ordinary Water Truck PTO type Sandwich type (full powe...

High-rise buildings present unique challenges for firefighting and rescue operations. Traditional ground-based equipment often lacks the reach needed to access upper floors from the outside. This is where aerial ladder fire trucks become indispensable. The YT25 aerial ladder fire truck, with a maximum working height of 25 meters and outreach of 15 meters, is specifically designed for such scenarios. This article explains how aerial ladder trucks perform high-rise rescue operations, using the YT25 as a technical example. » I. What Is an Aerial Ladder Fire Truck? An aerial ladder fire truck is a specialized fire apparatus equipped with a long extendable ladder mounted on a rotating turntable. Unlike standard pumpers, these vehicles are mobile platforms designed to project firefighters, equipment, and water to elevated heights. Key components of the YT25 aerial ladder truck:     Component Specification Ladder 4-section synchronous telescoping truss ladder Max working height 25 m Max outreach 15 m Platform rated load 300 kg Turntable rotation 360° continuous Outriggers K-type with auto leveling » II. How High-Rise Rescue Is Performed High-rise rescue operations follow a structured sequence. Each step requires precise control and reliable equipment. Step 1: Rapid Deployment and Stabilization When a high-rise fire call is received, the aerial ladder truck responds immediately. Positioning: The crew selects a location close to the building but clear of hazards such as power lines or unstable debris. The YT25 requires adequate clearance for safe ladder operation. Outrigger deployment: The K-type outriggers extend to stabilize the truck. The YT25 features intelligent auto-leveling outriggers with a span of approximately 3.5 meters (width) and 4.8 meters (length). This creates a wide, stable base that prevents tipping during ladder extension. Time required: Outrigger leveling takes ≤30 seconds (factory standard) or as fast as 24.5 seconds (tested). Step 2: Accessing Elevated Positions Once stabilized, the aerial device is raised and extended. Reaching upper floors: The 4-section synchronous telescoping ladder can be extended to the desired floor. Full ladder operation takes ≤55 seconds (factory standard) or as fast as 41.8 seconds (tested). This speed is critical when every second counts. 360° rotation: The turntable allows continuous rotation, enabling the ladder to reach any direction around the truck without repositioning the vehicle. Step 3: Rescuing Trapped Occupants Elevated rescues often occur when building occupants cannot evacuate through stairwells or are trapped in smoke-filled areas. Platform evacuation: The YT25 is equipped with a work platform (1.34 m²) rated for 300 kg. Firefighters can guide civilians into the platform and safely lower them to the ground. The platform features: Auto-leveling system (electro-hydraulic intelligent independent leveling) Work lights and safe...

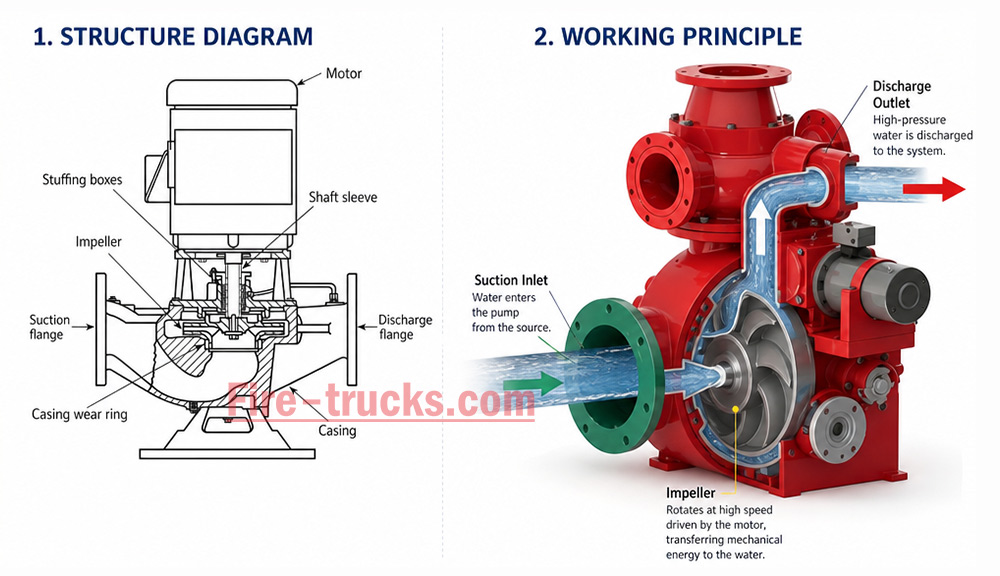

Water pressure is the driving force behind every firefighting operation. Without adequate pressure, water cannot reach the fire, penetrate burning materials, or be effective. Fire fighting trucks must not only generate pressure but also maintain it consistently throughout the entire firefighting operation. This article explains how fire trucks produce, control, and sustain water pressure, covering the key components and principles involved. » I. Where Does Water Pressure Come From? Water pressure in a fire truck comes from the fire pump. The pump is driven by the truck's engine through a power take-off (PTO) system. When the PTO is engaged, engine power is redirected to spin the pump impeller at high speed. The impeller is a rotating disc with curved vanes. As it spins, it throws water outward by centrifugal force. This action creates two effects simultaneously: Low pressure at the center (eye of the impeller): Water is drawn in from the tank or intake hose High pressure at the outer edge: Water is forced out into the discharge piping This is why most fire truck pumps are called centrifugal pumps. Pump size and power must match the vehicle's intended use. Large fire trucks, such as a 25,000-liter water/foam combination truck, require more powerful pumps to maintain high pressure while delivering large volumes of water. These heavy-duty pumps are designed for efficiency and reliability, even under extreme conditions. For smaller trucks, such as a 3,000-liter light foam pumper, a less powerful but still effective pump is used. These trucks do not need to deliver as much water, and the smaller pump is sufficient to maintain the pressure required for their operations. Additionally, the height of the onboard water tank and the position of the pump affect pressure. Water flows by gravity from the tank to the pump, but the pump must still increase the pressure to push water effectively through the hoses. » II. How Is Pressure Controlled? Once pressure is generated, it must be controlled to match the specific firefighting task. Different situations require different pressures. 1. Engine Throttle Control The simplest way to adjust pressure is by changing engine speed. Increasing engine RPM spins the pump impeller faster, which increases pressure. Decreasing RPM lowers pressure. The pump operator controls engine speed from the pump panel using an electronic throttle. 2. Pressure Governor Systems Modern fire trucks are equipped with electronic pressure governors. These devices automatically maintain the set pressure regardless of changes in flow. When a firefighter opens or closes a nozzle, the flow demand changes. Without a governor, pressure would drop when a new hose line is opened or spike when a line is closed. The governor senses these changes and automatically adjusts engine speed to keep pressure constant.     Mode Function Pressure mode Maintains a preset pressure regardless of flow changes RPM mode Maintains a preset eng...
