How Does a Fire Truck PTO (Power Take-Off) Work?

How Does a Fire Truck PTO (Power Take-Off) Work?

July 03, 2026

The fire truck PTO (Power Take-Off) is a power transmission device that transfers engine power to the fire pump. When the firefighter activates the PTO, mechanical power from the engine is transmitted through the transmission and PTO to the fire pump — this is the core working principle of how a fire fighting truck PTO system operates — enabling the pump to deliver high-pressure, high-flow water or foam without the need for a separate auxiliary engine.

Modern fire trucks typically use side-mounted PTO or full power PTO systems. These offer stable power output, convenient operation, and low maintenance costs, making them an essential component of the fire truck's firefighting system.

How Does a Fire Truck PTO(Power Take Off) Work

» I. What Is a Fire Truck PTO?

1. PTO Definition

PTO (Power Take-Off) is a critical component in the fire truck's power system. It is a gear transmission device installed between the engine and the transmission, designed to "divert" a portion of mechanical power from the vehicle's engine or transmission to the fire pump or other auxiliary equipment, without affecting the vehicle's normal driving capability.

The fire truck engine is originally responsible only for driving the wheels. However, once the fire truck arrives at the fire scene, the wheels no longer need power, while the fire pump requires power to draw and pressurize water. The PTO is the device that accomplishes this "power switch."

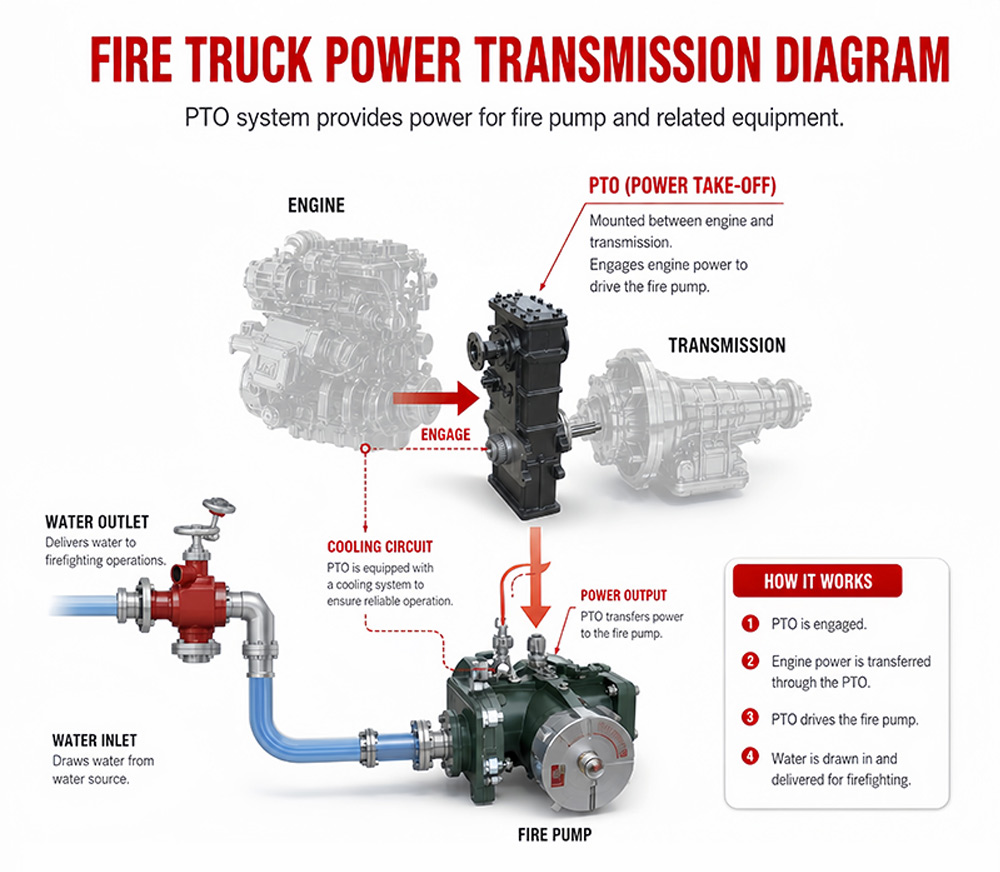

fire truck power transmission diagram

2. What Does Power Take-Off Mean?

Power Take-Off (PTO) literally means "power output device."

On a fire truck, it refers to extracting rotational power from the engine flywheel or transmission gears through gear engagement, and delivering it to the fire pump or other auxiliary equipment.

Its name describes its function:

  • Engine = Power source

  • PTO = Power distributor

  • Fire pump = Power consumption end

Therefore, the PTO is the bridge connecting the "power source" and the "firefighting system."

» II. Why Does a Fire Truck Need a PTO?

The core reason fire trucks must be equipped with a PTO is that firefighting operations require continuous, stable, high-power output that cannot rely on the vehicle's driving state.

Main reasons:

1. Provides continuous firefighting power

The fire pump needs to run for extended periods during firefighting operations. The PTO allows the engine to continuously drive the fire pump at idle or fixed RPM, ensuring stable water pressure and flow.

2. Improves power utilization efficiency

Without a PTO, a separate auxiliary engine would be required to drive the fire pump, which would increase:

  • Cost

  • Maintenance complexity

  • Risk of failure

  • Space occupation

The PTO directly utilizes the vehicle's engine power, improving overall efficiency.

3. Supports multiple firefighting systems

Modern industrial fire trucks may include not only water pumps but also:

  • Foam systems

  • Dry powder systems

  • High-pressure water systems

  • Remote-controlled fire monitors

Without a PTO, there are only two solutions:

  • Install a separate engine to drive the pump → increases weight, cost, maintenance points, and occupies space

  • Keep the pump permanently connected to the transmission → pump stops when vehicle stops, unable to pump water on site

The PTO solves both problems at once:

Mode PTO Status Power Destination Result
Driving mode Disengaged All to wheels Normal driving
Firefighting mode Engaged All to fire pump Pumping while stationary

» III. How Does a Fire Truck PTO Work?

The PTO is essentially a "power distribution and conversion system" that transforms vehicle driving power into firefighting operational power.

From an engineering perspective, the complete power path is:

Engine → Transmission → PTO → Drive Shaft → Fire Pump → Fire Monitor/Hose System

The PTO's working principle can be summarized in three key stages: power take-off, engagement, and transmission.

1. Power Take-Off — Where Does the Power Come From?

The PTO draws power from the engine. Depending on the installation position, the power take-off method differs:

PTO Type Installation Position Power Source Characteristics
Side-mounted PTO Transmission side Transmission countershaft gear Simple structure, lower power (≤50% engine power)
Sandwich PTO Between engine and transmission Engine flywheel Full power output, mainstream configuration
Split-shaft PTO Between transmission and driveshaft Transmission output shaft High power, allows pumping while driving



2. Engagement — How Is Power Connected?

After the driver presses the PTO switch in the cab, the engagement mechanism activates:

Engagement Method Working Principle Common On
Electric solenoid control Electrical signal activates solenoid, pushing shift fork Mainstream on modern fire trucks
Pneumatic control Compressed air pushes piston, actuating fork Large fire trucks
Manual cable Mechanical cable directly pulls fork Older vehicles

Operation sequence:

Press PTO switch → Solenoid/cylinder actuates → Shift fork pushes sliding gear → Meshes with flywheel or transmission gear → Power connected

3. Transmission — How Does Power Reach the Pump?

After the PTO output shaft begins rotating, power is transmitted through the drive shaft to the fire pump:

PTO output shaft rotates → Drive shaft → Fire pump input shaft → Pump impeller rotates → Water is pressurized and discharged

4. Complete Working Sequence



Step Action Result
Step 1 Engine starts, vehicle idling or driving Engine running, PTO disengaged
Step 2 Arrive at scene, driver presses PTO switch Driving power disengaged (on some models), PTO gear activated
Step 3 PTO establishes power connection with transmission Transmission power is diverted to PTO output shaft
Step 4 Drive shaft transmits power to fire pump Fire pump begins receiving continuous mechanical power
Step 5 Fire pump impeller rotates at high speed Suction → Pressurization → Delivery to discharge lines → Firefighting
Step 6 System reaches balanced RPM Stable output, adjustable pressure, flow, and spray pattern

» IV. Main Components of the PTO System

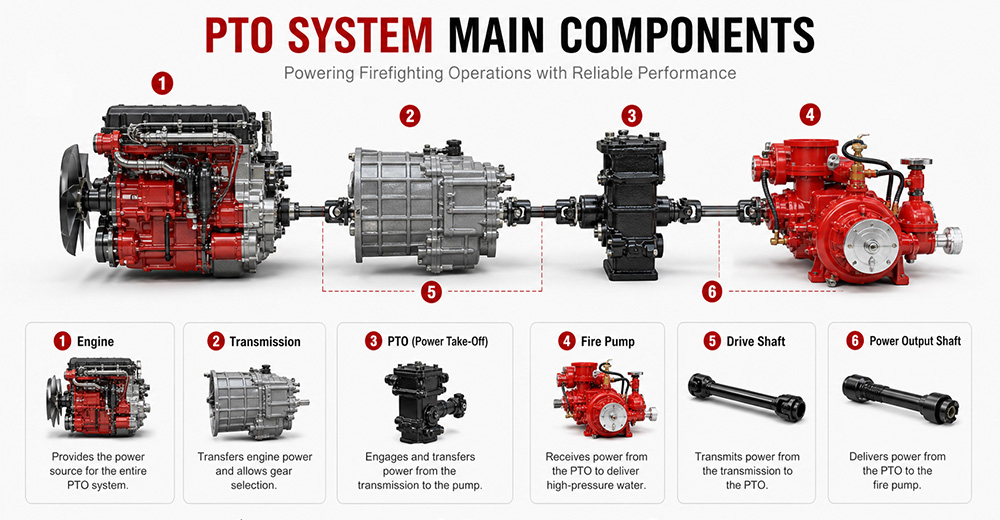

The fire truck PTO system is a complete power transmission chain, with multiple components working together to transfer engine power to the fire pump. The system can be broken down into six core components:

1. Engine

The engine is the power source of the PTO system and the heart of the entire fire truck.

  • Function: Generates raw rotational power, driving the flywheel or crankshaft.

  • Power output: Typically 300–600 HP (depending on chassis model and configuration).

  • Relationship with PTO: The PTO draws power from the engine flywheel or crankshaft — it is the starting point of power.

  • Key characteristic: Engine RPM directly affects PTO output speed and the fire pump's water discharge capability. Fire trucks are typically equipped with high-power diesel engines, which not only drive the vehicle but also provide ample power reserve for the fire pump. After PTO engagement, the operator can control pump discharge pressure by adjusting engine RPM.

2. Transmission

The transmission is responsible for power delivery and speed matching.

  • Function: Receives engine power and adjusts speed and torque through different gear combinations.

  • Relationship with PTO: Side-mounted PTO draws power from internal transmission gears; sandwich PTO is installed at the front of the transmission.

  • Key characteristic: Transmission gear position does not affect PTO output speed — PTO operates independently of gear selection.

  • Two power take-off positions:

    • Transmission side window take-off: PTO mounted on transmission side, drawing power from countershaft or intermediate shaft gears; common on medium-duty fire trucks.

    • Transmission rear-end take-off (sandwich): PTO installed between engine and transmission, drawing power directly from the flywheel, enabling full power output.

3. PTO Unit

The PTO is the core of the entire system, responsible for "extracting" power from the engine and delivering it to the fire pump.

  • Function: Extracts power from the engine or transmission and converts it to the speed and torque suitable for the fire pump.

  • Installation position: Transmission side (side-mounted) or between engine and transmission (sandwich).

  • Key characteristic: Determines power transmission efficiency, speed matching, and operational convenience.

4. Drive Shaft

The drive shaft is the "power bridge" connecting the PTO and the fire pump.

  • Function: Transmits rotational power from the PTO output shaft to the fire pump input.

  • Structure: Typically consists of a metal shaft tube, universal joints, and splined connections.

  • Key characteristic: Must be precisely aligned to avoid vibration; universal joints allow angular compensation.



5. Fire Pump

The fire pump is the final load of the PTO system, responsible for converting mechanical energy into water pressure energy.

  • Function: Receives rotational power from the PTO, drives the impeller to rotate, draws water in, and discharges it under high pressure.

  • Type: Centrifugal pump (single-stage, two-stage, or multi-stage).

  • Typical flow rate: 20 L/s – 180 L/s (1,200 – 6,000 L/min).

  • Typical pressure: 1.0 – 2.5 MPa (10 – 25 bar).

6. PTO Control System

The PTO control system is the "command center" between the driver and the PTO system, responsible for engagement, disengagement, safety protection, and status indication.

  • Function: Controls PTO engagement and disengagement, monitors system status, and provides safety protection.

  • Operating location: Cab interior (primary control) and pump panel (auxiliary control).

  • Control methods: Manual cable, electric solenoid, pneumatic.

Specific control functions:

(1) PTO Engagement Control

The operator presses the PTO switch (electric solenoid/pneumatic) or pulls the lever (manual) in the cab. The control system sends a signal to engage the PTO's internal gears with the power source. After successful engagement is confirmed, an indicator light illuminates, allowing the operator to increase engine RPM.

(2) PTO Disengagement Control

The operator presses the switch again or resets the lever. The control system cuts the signal, and the PTO gears disengage. After disengagement is confirmed, the indicator light turns off.

» V. Different Types of Fire Truck PTO

1. Comparison of Three PTO Types

PTO Type Installation Position Power Source Power Output Typical Application
Sandwich PTO Between engine and transmission Engine flywheel Full power (≥90%) Fire pumpers, aerial trucks
Split-shaft PTO Middle of chassis driveshaft Transmission output shaft Full power Large vacuum trucks, airport fire trucks
Side-mounted PTO Transmission side Transmission gears Partial power (lower) Sprinkler trucks, small vacuum trucks



2. Advantages and Disadvantages of Each PTO Type

Sandwich PTO

  • Advantages: Full power output (≥90%), supports "pumping while driving" (dual-function), high transmission efficiency, easy lubrication.

  • Disadvantages: Higher cost, complex installation, requires modification to the engine-transmission connection.

Split-shaft PTO

  • Advantages: Full power output, no additional space required, high reliability, good dynamic balance, can replace auxiliary engine to drive large pumps.

  • Disadvantages: Requires cutting the original driveshaft, installation position selection must consider driveshaft angle and length compensation.

Side-mounted PTO

  • Advantages: Low cost, simple installation, can draw power directly from the transmission side.

  • Disadvantages: Only partial power available, lower output torque, cannot drive high-power fire pumps, mainly used for low-speed, low-power equipment.

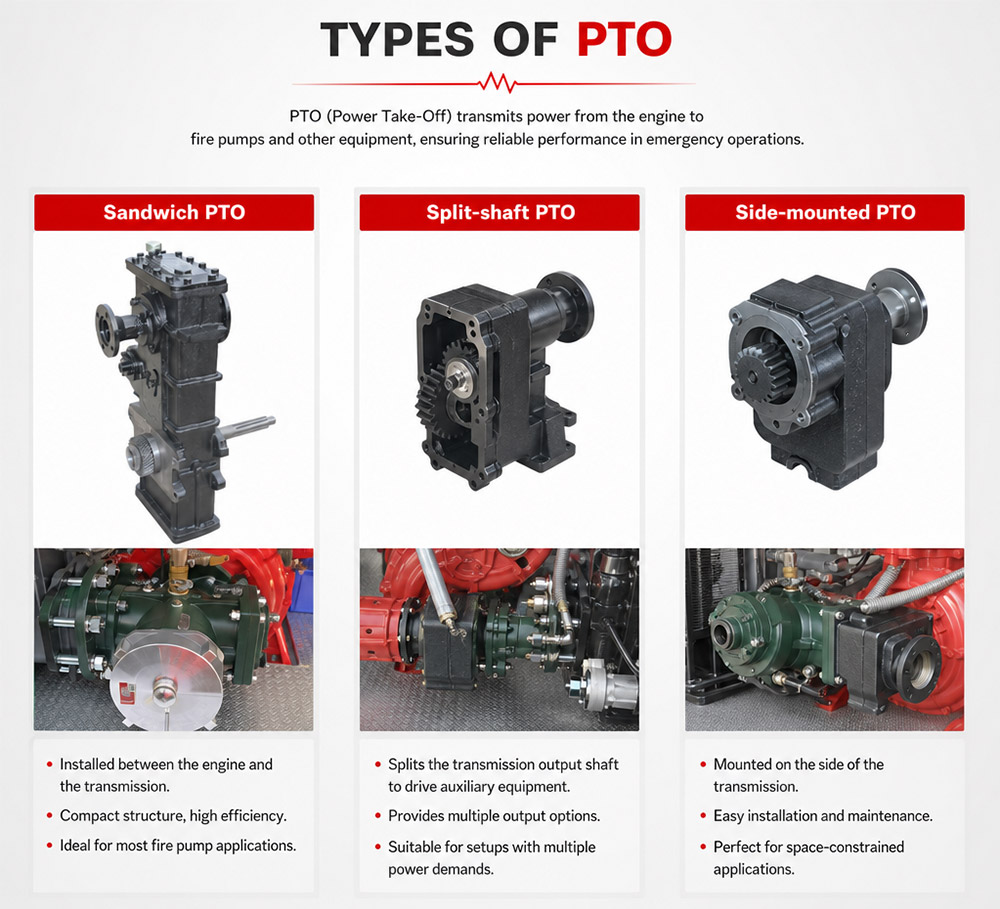

Types of Power Take-off (PTO) for Fire Trucks

» VI. How Does the PTO Drive the Fire Pump?

1. Power Transmission Chain

The process follows a clear mechanical transmission chain:

Engine → PTO → Drive Shaft → Fire Pump → Impeller Rotation → Suction → Pressurization → Fire Monitor

2. Why Is Fire Pump Pressure Stable?



Factor Role
Centrifugal pump characteristic When impeller speed is constant, discharge pressure remains naturally stable
PTO rigid connection No slippage or power loss, ensuring continuous stable power input
Pressure governor Automatically detects flow changes and adjusts engine RPM to maintain set pressure
Relief valve Automatically bypasses when pressure exceeds limit, preventing equipment damage

3. Why Does Engine RPM Affect Pump Pressure?

① Pump speed is determined by engine RPM

Fire pump impeller speed = Engine RPM × PTO ratio. The PTO ratio is fixed (e.g., 1.75:1), so pump speed changes directly with engine RPM.

Calculation formula:

Engine RPM × PTO ratio = Pump speed (RPM)

② Physical relationship between pressure and speed

The pressure generated by a centrifugal pump is proportional to the square of the impeller speed. This physical law means that small changes in RPM cause significant pressure fluctuations.

  • Speed increases → Centrifugal force increases → Discharge pressure rises

  • Speed decreases → Centrifugal force decreases → Discharge pressure drops

How Does a Isuzu Fire Truck PTO Work

» VII. Common PTO Faults and Solutions

1. PTO will not engage

  • Possible causes: Low air pressure (pneumatic type), faulty solenoid, damaged or stuck cable, interlock conditions not met (parking brake not applied, transmission not in neutral).

  • Solutions: Check air system pressure (must be ≥0.6 MPa); test solenoid; inspect cable; confirm parking brake is applied and transmission is in neutral.

2. PTO engages but pump does not work

  • Possible causes: PTO clutch failure, broken drive shaft or worn splines, damaged internal gears.

  • Solutions: Check PTO clutch engagement; inspect drive shaft for breakage or loose connections; disassemble and inspect internal gears.

3. PTO unusual noise

  • Possible causes: Poor gear meshing or wear, worn bearings, insufficient or degraded lubrication, PTO not fully disengaged.

  • Solutions: Check gear clearance and tooth wear; inspect bearings; replace with qualified lubricant; confirm PTO is fully disengaged.

4. PTO oil leakage

  • Possible causes: Worn or deteriorated seals, cracked housing, loose mounting bolts.

  • Solutions: Replace seals (O-rings, oil seals); inspect housing for cracks; tighten mounting bolts.

5. PTO overheating

  • Possible causes: Prolonged high-load operation, insufficient or degraded lubricating oil, cooling system failure.

  • Solutions: Reduce load or shut down for cooling; replace with qualified lubricant; inspect cooling lines.

6. PTO insufficient power

  • Possible causes: Improper PTO ratio selection, engine RPM set too low, clutch slippage.

  • Solutions: Confirm PTO ratio matches the fire pump; increase engine RPM to rated operating range; inspect clutch for slippage.

» VIII. FAQ

Q1. What does PTO stand for on a fire truck?

PTO stands for Power Take-Off. It is a mechanical system that transfers engine power from the truck's transmission to the fire pump. In simple terms, PTO allows the fire truck's engine to power the pumping system so it can deliver high-pressure water or foam for firefighting operations without needing a separate engine. It is a critical component in industrial and municipal fire trucks.

Q2. Why do fire trucks need a PTO?

Fire trucks need a PTO because it enables the vehicle's main engine to drive the fire pump efficiently. Without a PTO, the fire pump would require a separate engine, which increases cost, weight, and maintenance complexity. PTO systems provide a compact, reliable, and fuel-efficient way to ensure continuous water or foam supply during firefighting operations.

Q3. Can a fire truck operate without a PTO?

Most modern fire trucks cannot operate their pumping system without a PTO because the PTO is responsible for transferring engine power to the fire pump. However, some specialized fire vehicles may use an independent auxiliary engine to drive the pump. These designs are less common due to higher cost, increased maintenance, and lower efficiency compared to PTO-based systems.

Q4. What is the difference between PTO and a fire pump?

The PTO is a power transmission device, while the fire pump is a water or foam pumping system. The PTO delivers mechanical power from the engine to the pump, and the fire pump converts that power into hydraulic pressure to move water or foam. In short, PTO is the "power source connector," and the fire pump is the "firefighting output device."

Q5. How much power can a fire truck PTO provide?

The power output of a fire truck PTO depends on the vehicle design and transmission system. Typically, PTO systems can provide between 50 kW to over 300 kW of mechanical power. Heavy-duty industrial and airport fire trucks often use high-capacity PTO systems capable of supporting large-flow fire pumps and continuous high-pressure operations.

Q6. What are the different types of fire truck PTOs?

There are several types of fire truck PTO systems, including side-mounted PTO, rear-mounted PTO, split shaft PTO, and full power PTO. Side-mounted PTO is commonly used in standard fire trucks, while split shaft and full power PTO systems are used in industrial and airport fire trucks where higher power output and continuous operation are required.

Q7. How do you maintain a fire truck PTO?

PTO maintenance includes regular inspection of lubrication oil levels, checking for leaks, tightening mounting bolts, and ensuring proper alignment of the drive shaft. Operators should also test engagement and disengagement functions regularly. Preventive maintenance is essential to avoid overheating, mechanical wear, and unexpected failure during emergency operations.

Q8. What causes a fire truck PTO to fail?

Common causes of PTO failure include insufficient lubrication, worn gears, misalignment of the drive shaft, overheating, and improper operation by the driver. Electrical or hydraulic control system failures can also prevent PTO engagement. Regular maintenance and correct operating procedures significantly reduce the risk of PTO failure.

Q9. Which PTO is best for industrial fire trucks?

For industrial fire trucks, the best option is usually a split shaft PTO or full power PTO system. These systems can handle high power output, continuous operation, and large-capacity fire pumps. They are widely used in petrochemical plants, refineries, airports, and large industrial facilities where reliable and long-duration firefighting performance is required.

Q10. What should buyers consider when choosing a fire truck PTO?

Buyers should consider engine power compatibility, required fire pump flow rate, vehicle type, and working environment. It is also important to evaluate PTO durability, cooling performance, maintenance accessibility, and compatibility with the chassis. For export projects, compliance with international standards and local regulations should also be taken into account to ensure approval and operational reliability.

» IX. Key Takeaways

  • PTO (Power Take-Off) is the core system that transfers engine power to the fire pump — it determines whether the entire firefighting system can operate properly.

  • The fire truck power chain is: Engine → Transmission → PTO → Drive Shaft → Fire Pump → Fire Monitor. Any weak link in this chain affects final firefighting performance.

  • The primary function of the PTO is to provide stable, continuous mechanical power output, enabling the fire truck to deliver efficient water or foam supply without requiring a separate engine.

  • Different PTO types (Side-mounted, Rear-mounted, Split shaft, Full power) are suited to different fire truck classes. Industrial fire trucks typically prioritize high-power PTO systems.

  • PTO performance must match the fire pump flow rate and vehicle chassis, otherwise issues such as insufficient power, unstable pressure, or system overload may occur.

  • Regular PTO system maintenance (lubrication, tightening, alignment inspection) is key to ensuring reliable fire truck operation, especially in high-intensity industrial applications.

  • When purchasing industrial fire trucks, buyers should not focus solely on price. PTO power, stability, compatibility, and after-sales support are equally critical factors to evaluate.

  • For high-risk scenarios such as petrochemical plants, airports, and large industrial parks, Full Power PTO or Split Shaft PTO systems are recommended to ensure continuous operational capability.



Facebook Linkedin Youtube Twitter Pinterest

RELATED INFO

You may be interested in the following information

How Does a Fire Truck PTO (Power Take-Off) Work?
How Does a Fire Truck PTO (Power Take-Off) Work?

The fire truck PTO (Power Take-Off) is a power transmission device that transfers engine power to the fire pump. When the firefighter activates the PTO, mechanical power from the engine is transmitted through the transmission and PTO to the fire pump — this is the core working principle of how a fire fighting truck PTO system operates — enabling the pump to deliver high-pressure, high-flow water or foam without the need for a separate auxiliary engine. Modern fire trucks typically use side-mounted PTO or full power PTO systems. These offer stable power output, convenient operation, and low maintenance costs, making them an essential component of the fire truck's firefighting system. » I. What Is a Fire Truck PTO? 1. PTO Definition PTO (Power Take-Off) is a critical component in the fire truck's power system. It is a gear transmission device installed between the engine and the transmission, designed to "divert" a portion of mechanical power from the vehicle's engine or transmission to the fire pump or other auxiliary equipment, without affecting the vehicle's normal driving capability. The fire truck engine is originally responsible only for driving the wheels. However, once the fire truck arrives at the fire scene, the wheels no longer need power, while the fire pump requires power to draw and pressurize water. The PTO is the device that accomplishes this "power switch." 2. What Does Power Take-Off Mean? Power Take-Off (PTO) literally means "power output device." On a fire truck, it refers to extracting rotational power from the engine flywheel or transmission gears through gear engagement, and delivering it to the fire pump or other auxiliary equipment. Its name describes its function: Engine = Power source PTO = Power distributor Fire pump = Power consumption end Therefore, the PTO is the bridge connecting the "power source" and the "firefighting system." » II. Why Does a Fire Truck Need a PTO? The core reason fire trucks must be equipped with a PTO is that firefighting operations require continuous, stable, high-power output that cannot rely on the vehicle's driving state. Main reasons: 1. Provides continuous firefighting power The fire pump needs to run for extended periods during firefighting operations. The PTO allows the engine to continuously drive the fire pump at idle or fixed RPM, ensuring stable water pressure and flow. 2. Improves power utilization efficiency Without a PTO, a separate auxiliary engine would be required to drive the fire pump, which would increase: Cost Maintenance complexity Risk of failure Space occupation The PTO directly utilizes the vehicle's engine power, improving overall efficiency. 3. Supports multiple firefighting systems Modern industrial fire trucks may include not only water pumps but also: Foam systems Dry powder systems High-pressure water systems Remote-controlled fire monitors Without a PTO, there are only two solutions: Install a separate engine to drive the pump &r...

Details
Dry Powder Fire Truck vs. Foam Fire Truck: Performance Comparison
Dry Powder Fire Truck vs. Foam Fire Truck: Performance Comparison

A compressed air foam system (CAFS) fire truck and a dry powder fire truck may both be used for fighting flammable liquid and gas fires. Both are specialized vehicles designed to handle Class B and Class C hazards. However, their extinguishing agents, working principles, and application scenarios are fundamentally different. This article explains the key differences between dry powder fire trucks and CAFS fire trucks from multiple perspectives: extinguishing mechanism, working principle, key components, performance parameters, application scenarios, and cost. » I. How Different Extinguishing Agents Work? 1.Why Can't Water Extinguish All Types of Fires • Class B (flammable liquids): Water is heavier than oil and sinks directly to the bottom, never reaching the flame surface. • Class C (flammable gases): Water cannot stop a gas leak; it may even spread the flame or cause a steam explosion. • Electrical fires: Water conducts electricity, creating a severe shock hazard for firefighters. • Class D (combustible metals): Water reacts violently with burning metals like magnesium, titanium, and sodium, causing explosions and spreading burning metal fragments. 2.How Does Dry Powder Work? • Chemical interruption: Dry powder particles interrupt the combustion chain reaction, stopping the fire almost instantly. • Limited cooling: Unlike water or foam, dry powder provides very little cooling effect. • No blanket: The powder does not form a lasting barrier; once it disperses, the fire may re-ignite if the fuel is still hot. • Non-conductive: Dry powder is electrically non-conductive, making it safe for electrical fires. 3.How Does Compressed Air Foam (CAFS) Work? • Blanketing: The foam covers the fuel surface, forming a dense physical barrier that blocks oxygen supply. • Cooling: The foam contains a large amount of water; water evaporation absorbs heat, continuously carrying heat away from the fuel surface. • Vapor suppression: The foam layer prevents fuel vapors from evaporating into the air, breaking the fuel-air mixing chain. • Adhesion: CAFS foam sticks to vertical surfaces and ceilings, providing protection that water cannot achieve. » II. Main Components of Each System Dry Powder Fire Truck     Component Description Powder tank Stores dry chemical powder (capacity: 2,000 - 10,000 kg) Propellant gas cylinders Store compressed nitrogen or air at high pressure (15-20 MPa) Pressure regulator Reduces gas pressure to safe operating level (1.5-2.5 MPa) Powder discharge valve Controls powder flow from tank to discharge line Hoses and nozzles Deliver powder to the fire; special nozzles prevent clogging Control panel Allows operator to pressurize tank, open valves, and control discharge Compressed Air Foam System (CAFS) Fire Truck     Compone...

Details
How does foam fire truck's fire extinguishing system work
How does foam fire truck's fire extinguishing system work

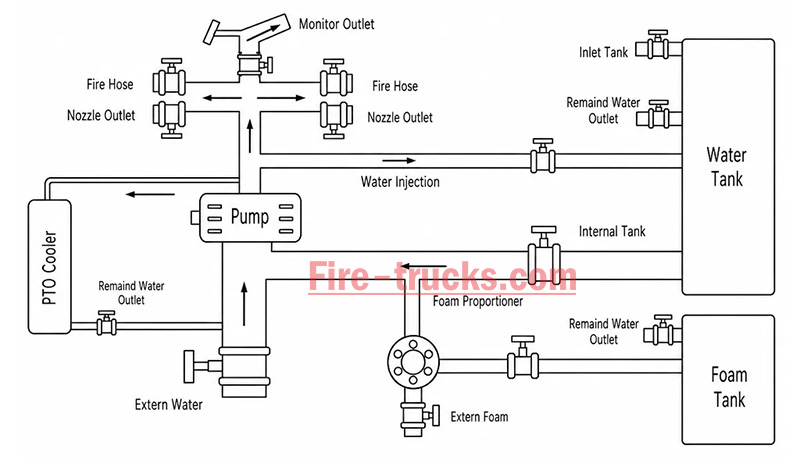

  » The Underlying Logic of Foam Fire Extinguishing   ★. Why can't water extinguish oil fires? • Density difference: Water is heavier than oil and sinks directly to the bottom, never touching the flame.   • Boiling over: The water at the bottom vaporizes instantly upon contact with high temperatures, expanding thousands of times in volume, splattering the oil layer.   • Reignition: A small amount of water evaporating into steam only temporarily isolates the oil from oxygen; once the steam dissipates, the oil surface immediately reignites. ★. How does foam work? • Isolation: The foam covers the oil surface, forming a dense physical barrier that blocks the oxygen supply.   • Cooling: The foam contains a large amount of water; the evaporation of this water absorbs heat, continuously carrying away heat from the oil surface.   • Blocking: The foam layer prevents oil vapor from evaporating into the air, breaking the fuel-air mixing chain.   » Main components of fire extinguishing   1. Water and Liquid Supply – Two Independent Storage system The foam fire truck has two separate tanks: a water tank and a foam liquid tank.   2. Fire pump Fire pumps are the power heart of the entire fire extinguishing system, specifically designed for delivering water or foam solutions. Our fire trucks primarily use fire pumps from two well-known brands: Xiongzhen and Rongshen. Pressures include low, medium, and medium-low pressure; flow rates range from 20L/s to 180L/s; suction depth is 7m.   Among them, we commonly use the CB10/60 fire pump, with a flow rate of 60L/s and a rated pressure of 1.0MPa. 3. Fire monitor Dual-purpose, capable of spraying water to extinguish solid fires and foam to extinguish oil fires; Our fire trucks primarily use Chengdu West fire monitors, which can spray water or foam liquid, and feature both spray pattern and direct current functions; they have long range, concentrated jet, high foaming ratio, and large protection area; they are flexible and convenient to operate, and the monitor body can rotate horizontally and vertically.   Among them, we commonly use the PL8/48 fire monitor, with a flow rate of 48L/s and a rated pressure of 0.8MPa; the range is ≥70m for water and ≥60m for foam.     4. Water guns and foam guns Water or foam is delivered through pipes and fire hoses to the end fire guns/foam guns for fire extinguishing.      5. Fixed foam proportioner vs. fully automatic foam proportioner   Comparison Dimensions Fixed Proportioning (Circulating Pump Type, Negative-Pressure) Variable- Proportioning (Circulating Pump Type, Negative-Pressure) Mixing ratio 6%(example:PH64-RS) 1%~10%,step 0.5% Work pressure range 0.6~1.4MPa 0.6~2.5MPa Flow range 16~64L/s TAF-PH120,120L/s;TAF-PH240,240L/s Proportioning accuracy Highly affected by water pressure and pipeline resistance, resulting in significant erro...

Details
How to Test the Foam System on a Foam Fire Truck?
How to Test the Foam System on a Foam Fire Truck?

The foam fire truck is the core equipment for fighting flammable liquid fires. By precisely mixing foam concentrate with water at ratios of 1%, 3%, or 6% (accuracy ±0.5%), this foam fire truck delivers a uniform foam blanket for jet fuel fires at airports or tank fires at refineries. Its stainless steel foam tank and intelligent proportioning system ensure zero mixing errors, increasing fire suppression efficiency by over 50% while reducing foam waste by 30%. It is the invisible guardian of industrial fire safety. The core working principle and key testing procedures of the foam fire truck foam system are the focus of many customers. Let's learn about it today. 1. Three Key Components of the Foam Fire Truck Foam System 1.1 Foam tank304 stainless steel construction (4mm bottom plate, 3mm side plates), corrosion-resistant design, equipped with manhole cover, level indicator, drain port, and breather valve. 1.2 Foam proportionerInstalled in the water line, creates a vacuum as water flows through, drawing foam concentrate into the water stream. Common mixing ratios: 1%, 3%, and 6%. 1.3 Foam monitor and nozzlesRoof-mounted or handheld, 360° horizontal rotation, -30° to 80° vertical tilt, capable of producing expanded foam for fire suppression. 2. Core Working Principle of the Foam System 2.1 Proportioning systemWater flows through the proportioner → creates a vacuum → draws foam concentrate from the foam tank → mixes at preset ratio (1%, 3%, or 6%) → foam solution flows to the pump. 2.2 Pump pressurizationFoam solution enters the centrifugal pump → pressurized to 1.0-1.2 MPa → delivered through piping to the discharge outlets or monitor. 2.3 Foam expansionPressurized foam solution passes through foam nozzle → air is entrained → solution expands into finished foam → foam blanket covers fuel surface → cuts off oxygen and suppresses fire. 3. Material and Component Selection To provide customers with a more perfect foam fire truck, Fire TRUCKS selects the best materials and components for the foam system. 3.1 Foam tank system (storage and corrosion protection core)     Structural Layer Material / Process Function Inner tank 304 stainless steel (4mm bottom, 3mm side) Corrosion resistance, foam concentrate compatibility Manhole cover Quick-locking mechanism Easy access for filling and cleaning Level indicator Visual gauge Real-time foam concentrate level monitoring Breather valve Pressure relief Prevents tank vacuum or overpressure 3.2 Proportioning system (mixing actuator) Foam proportioner: Installed in the water line, utilizes venturi effect to draw foam concentrate. Common ratios: 1%, 3%, 6% Control types: Manual, semi-automatic, or fully automatic Pickup line: Stainless steel or reinforced hose with strainer to prevent blockage 3.3 Discharge system (foam delivery) Foam monitor: Roof-mounted, 360° rotation, water range ≥65m, foam range ≥60m Foam ...

Details
Fire Fighting Water Truck vs. Ordinary Water sprinkler Truck: What's the Difference?
Fire Fighting Water Truck vs. Ordinary Water sprinkler Truck: What's the Difference?

A fire fighting water truck and an ordinary water truck may look similar. Both are large vehicles with water tanks, pumps, and hoses. However, their design, components, and intended purposes are fundamentally different. This article explains the key differences between fire fighting water trucks (also known as multi-purpose water trucks or forest fire trucks) and ordinary water trucks from multiple perspectives: appearance, configuration, working principle, application, and more. » I. What Is a Fire Fighting Water Truck? A fire fighting water truck is also known as a multi-purpose water truck, forest fire truck, or fire water supply truck. It belongs to the civil fire truck series. This vehicle combines firefighting and watering functions into one unit. It sits between a professional fire truck and an ordinary water truck. Primary applications: Landscaping and green belt irrigation Firefighting and fire suppression Emergency fire water supply Dust suppression in mines and construction sites Small-scale firefighting in residential communities Pesticide spraying (optional) Key characteristics: Tank capacity: 2,000 – 12,000 liters Pump type: Fire pump driven by sandwich PTO Spray range: 50 meters or more Pump flow rate: Up to 100 cubic meters per hour Color: Fire red or engineering yellow Roof monitor: 360° horizontal rotation, -30° to 80° vertical tilt » II. What Is an Ordinary Water Truck? An ordinary water truck is a type of municipal vehicle built on a two-axle commercial chassis. It consists of an anti-corrosion water tank, a power take-off (PTO), a drive shaft, a dedicated self-priming water pump, a piping network, spray outlets, and a working platform. Primary applications: Landscaping and green belt irrigation Road maintenance and cleaning Dust suppression on construction sites Street washing Agricultural pesticide spraying (optional) Emergency firefighting (limited capability) Key characteristics: Tank capacity: 5,000 – 20,000 liters Pump type: Self-priming water pump (side-mounted PTO) Spray range: 28 meters or less Pump flow rate: Approximately 40 cubic meters per hour Color: Usually matches the chassis cab color (white is common) » III. Key Differences Between Fire Fighting Water Truck and Ordinary Water Truck 1. Appearance and Color     Feature Fire Fighting Water Truck Ordinary Water Truck Body color Fire red or engineering yellow Matches chassis cab (often white) Cab marking "FIRE" or similar "SPRINKLER" or "WATER" or none Tank shape Square or circular tank with compartments Circular or rectangular tank Rear structure Pump house with roll-up doors Working platform for spray gun Top equipment Fire monitor, emergency water pipe, handrails Tank manhole cover only Warning lights Large emergency lights and siren Small clearance lights only 2. Configuration and Components     Component Fire Fighting Water Truck Ordinary Water Truck PTO type Sandwich type (full powe...

Details
How an Aerial Ladder Fire Truck Executes High-Rise Rescue
How an Aerial Ladder Fire Truck Executes High-Rise Rescue

High-rise buildings present unique challenges for firefighting and rescue operations. Traditional ground-based equipment often lacks the reach needed to access upper floors from the outside. This is where aerial ladder fire trucks become indispensable. The YT25 aerial ladder fire truck, with a maximum working height of 25 meters and outreach of 15 meters, is specifically designed for such scenarios. This article explains how aerial ladder trucks perform high-rise rescue operations, using the YT25 as a technical example. » I. What Is an Aerial Ladder Fire Truck? An aerial ladder fire truck is a specialized fire apparatus equipped with a long extendable ladder mounted on a rotating turntable. Unlike standard pumpers, these vehicles are mobile platforms designed to project firefighters, equipment, and water to elevated heights. Key components of the YT25 aerial ladder truck:     Component Specification Ladder 4-section synchronous telescoping truss ladder Max working height 25 m Max outreach 15 m Platform rated load 300 kg Turntable rotation 360° continuous Outriggers K-type with auto leveling » II. How High-Rise Rescue Is Performed High-rise rescue operations follow a structured sequence. Each step requires precise control and reliable equipment. Step 1: Rapid Deployment and Stabilization When a high-rise fire call is received, the aerial ladder truck responds immediately. Positioning: The crew selects a location close to the building but clear of hazards such as power lines or unstable debris. The YT25 requires adequate clearance for safe ladder operation. Outrigger deployment: The K-type outriggers extend to stabilize the truck. The YT25 features intelligent auto-leveling outriggers with a span of approximately 3.5 meters (width) and 4.8 meters (length). This creates a wide, stable base that prevents tipping during ladder extension. Time required: Outrigger leveling takes ≤30 seconds (factory standard) or as fast as 24.5 seconds (tested). Step 2: Accessing Elevated Positions Once stabilized, the aerial device is raised and extended. Reaching upper floors: The 4-section synchronous telescoping ladder can be extended to the desired floor. Full ladder operation takes ≤55 seconds (factory standard) or as fast as 41.8 seconds (tested). This speed is critical when every second counts. 360° rotation: The turntable allows continuous rotation, enabling the ladder to reach any direction around the truck without repositioning the vehicle. Step 3: Rescuing Trapped Occupants Elevated rescues often occur when building occupants cannot evacuate through stairwells or are trapped in smoke-filled areas. Platform evacuation: The YT25 is equipped with a work platform (1.34 m²) rated for 300 kg. Firefighters can guide civilians into the platform and safely lower them to the ground. The platform features: Auto-leveling system (electro-hydraulic intelligent independent leveling) Work lights and safe...

Details
How Do Fire Trucks Maintain Water Pressure?
How Do Fire Trucks Maintain Water Pressure?

Water pressure is the driving force behind every firefighting operation. Without adequate pressure, water cannot reach the fire, penetrate burning materials, or be effective. Fire fighting trucks must not only generate pressure but also maintain it consistently throughout the entire firefighting operation. This article explains how fire trucks produce, control, and sustain water pressure, covering the key components and principles involved. » I. Where Does Water Pressure Come From? Water pressure in a fire truck comes from the fire pump. The pump is driven by the truck's engine through a power take-off (PTO) system. When the PTO is engaged, engine power is redirected to spin the pump impeller at high speed. The impeller is a rotating disc with curved vanes. As it spins, it throws water outward by centrifugal force. This action creates two effects simultaneously: Low pressure at the center (eye of the impeller): Water is drawn in from the tank or intake hose High pressure at the outer edge: Water is forced out into the discharge piping This is why most fire truck pumps are called centrifugal pumps. Pump size and power must match the vehicle's intended use. Large fire trucks, such as a 25,000-liter water/foam combination truck, require more powerful pumps to maintain high pressure while delivering large volumes of water. These heavy-duty pumps are designed for efficiency and reliability, even under extreme conditions. For smaller trucks, such as a 3,000-liter light foam pumper, a less powerful but still effective pump is used. These trucks do not need to deliver as much water, and the smaller pump is sufficient to maintain the pressure required for their operations. Additionally, the height of the onboard water tank and the position of the pump affect pressure. Water flows by gravity from the tank to the pump, but the pump must still increase the pressure to push water effectively through the hoses. » II. How Is Pressure Controlled? Once pressure is generated, it must be controlled to match the specific firefighting task. Different situations require different pressures. 1. Engine Throttle Control The simplest way to adjust pressure is by changing engine speed. Increasing engine RPM spins the pump impeller faster, which increases pressure. Decreasing RPM lowers pressure. The pump operator controls engine speed from the pump panel using an electronic throttle. 2. Pressure Governor Systems Modern fire trucks are equipped with electronic pressure governors. These devices automatically maintain the set pressure regardless of changes in flow. When a firefighter opens or closes a nozzle, the flow demand changes. Without a governor, pressure would drop when a new hose line is opened or spike when a line is closed. The governor senses these changes and automatically adjusts engine speed to keep pressure constant.     Mode Function Pressure mode Maintains a preset pressure regardless of flow changes RPM mode Maintains a preset eng...

Details
Fire Truck Tank Rusting? Anti-Corrosion Coating and Tank Material Explained
Fire Truck Tank Rusting? Anti-Corrosion Coating and Tank Material Explained

Fire trucks operate in harsh environments — humid climates, chemical spills, coastal salt spray. Without effective corrosion protection, metal components of a fire fighting vehicle rust, structures weaken, and firefighting capability drops. This article explains how rust forms, which tank materials resist corrosion best, and what coatings actually work. I. Three Common Types of Corrosion on Fire Trucks 1. Pitting Corrosion Small holes (pits) form on metal surfaces. Common on coastal fire trucks due to chloride ions in sea air. Pitting is dangerous because it penetrates deep into metal while looking like minor surface damage. 2. Crevice Corrosion Occurs in tight spaces where moisture gets trapped — under gaskets, bolts, rivets, weld seams, or between metal and rubber seals. Sand, dust, and debris accelerate it. 3. Galvanic Corrosion Happens when two different metals contact each other in the presence of moisture. The more active metal corrodes faster. Fire trucks use steel, aluminum, stainless steel, and brass — proper insulation between dissimilar metals is critical. II. Tank Materials: Which One Resists Rust Best?     Material Corrosion Resistance Best For Carbon steel Low (requires coating) Budget trucks Stainless steel 304 Good Standard municipal use Stainless steel 316 Excellent (contains molybdenum) Coastal areas, chemical plants Why 316 stainless steel? The addition of molybdenum provides superior resistance to chlorides (salt water) and chemicals. For fire trucks operating near the ocean or in industrial zones, 316 is the right choice. III. Anti-Corrosion Coatings That Work For Water Tanks (Potable Water Safe) Water tanks often store water from rivers, lakes, or hydrants. This water contains chlorides and impurities that accelerate stainless steel corrosion. Internal coating is necessary. Recommended coating: H52-33 epoxy anti-corrosion paint. It is non-toxic, salt-resistant, alkali-resistant, and water-resistant. Suitable for drinking water systems and fire truck water tanks. For Foam Tanks Foam concentrate reacts chemically with some coatings. Never use epoxy asphalt coating inside foam tanks — it will break down and contaminate the foam. Use proper foam-tank-grade anti-corrosion paint instead. Coating Application Process Surface preparation: Sandblasting removes rust, oil, and dirt Primer application: Improves adhesion Intermediate coat: Builds thickness Top coat: Provides chemical resistance and UV protection Critical: If the weld gap is between 0.025-0.1mm, crevice corrosion sensitivity increases dramatically. Weld spatter destroys the passive layer on stainless steel, leading to pitting. All weld slag and spatter must be removed after welding. IV. Fastener Corrosion Protection Bolts, screws, rivets, and pins are load-bearing components. Surface treatment methods include: Treatment Corrosion Resistance (NSS Test) Application Zinc plating 120 hours no red rust Grade 8...

Details

Leave A Message

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Contact Us:info@fire-trucks.com

Home

Products

whatsapp

contact
