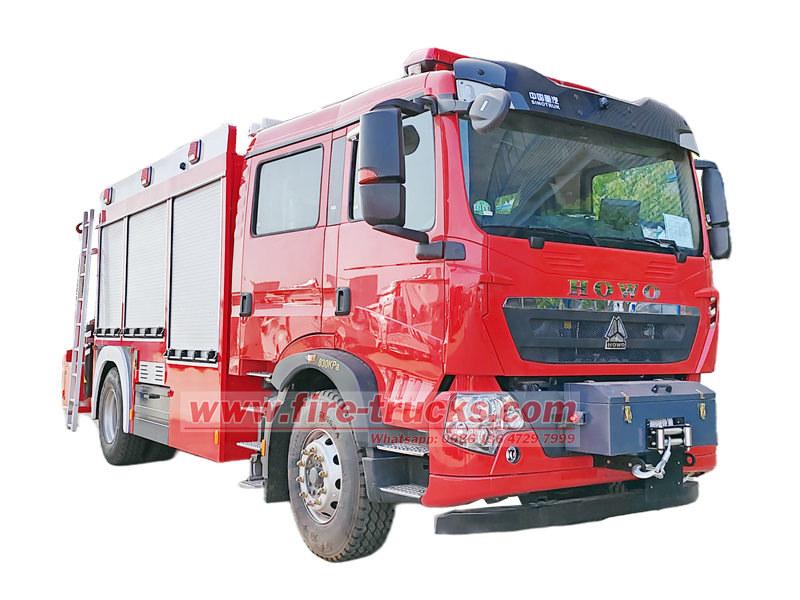

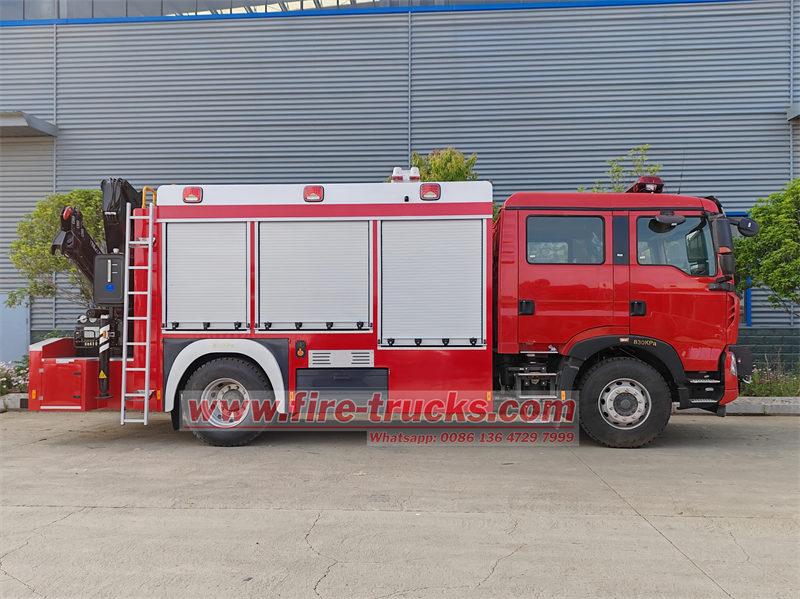

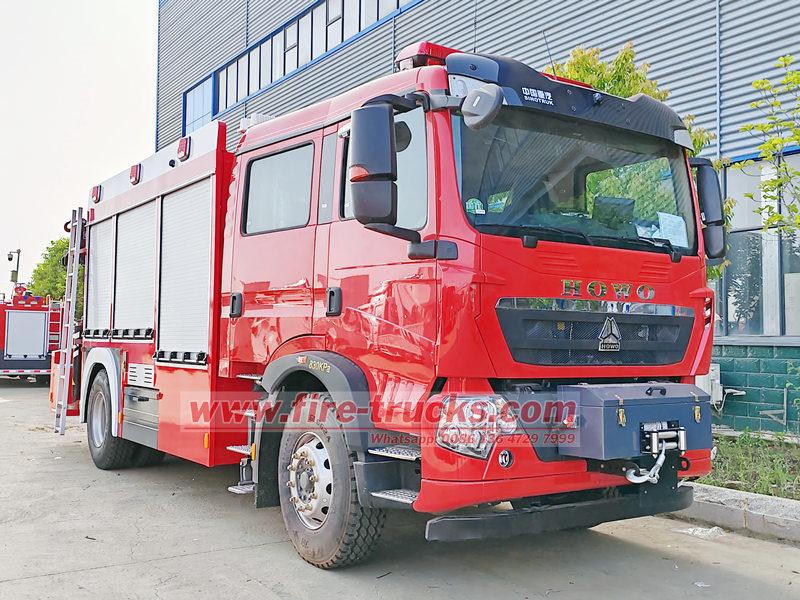

The HOWO 4×2 Medium Rescue Fire Truck is built on a SINOTRUK HOWO special firefighting chassis, equipped with a 350HP MC07H.35 diesel engine and a 10-speed transmission, achieving a top speed of 95 km/h. The vehicle measures 9,100 mm in length with a GVW of 14 tons and features a double-row cab accommodating six personnel. Professional configurations include a 5-ton XCMG folding arm crane, a 12-ton electric winch, 4×1000W lifting lighting lamps, and a 12kW generator set. The equipment compartment adopts a modular aluminum alloy structure for storing various rescue tools, making it suitable for emergency scenarios such as traffic accidents and natural disasters. It serves as a professional rescue asset for firefighting units.
Truck Model:
PT5140TXFJYTanker Structure:
No tankWork capacity :
OptioanWheelbase:
4700 mmAxle drive:
4×2, left hand driveEngine Power:
350HPEngine Model:
MC07H.35Fire Pump:
No pumpFire Monitor:
No monitorRemark:
4×4 is optionalThe HOWO 4×2 Emergency Fire Rescue Truck is a multifunctional rescue vehicle integrating towing, lifting, lighting, and power supply capabilities. Built on a dedicated HOWO firefighting chassis, it is powered by a Sinotruk MC07H.35 diesel engine delivering 350 horsepower, paired with a 10-speed transmission for robust performance and excellent fuel efficiency. The vehicle dimensions are 9,100×2,550×3,550 mm, with a GVW of 14 tons. Its 4,700 mm wheelbase and 315/80R22.5 radial tires ensure stability at high speeds and off-road capability. The double-row cab, equipped with air conditioning and hydraulic power steering, seats 6–8 rescue personnel, making it an ideal choice for emergencies like traffic accidents and natural disasters.

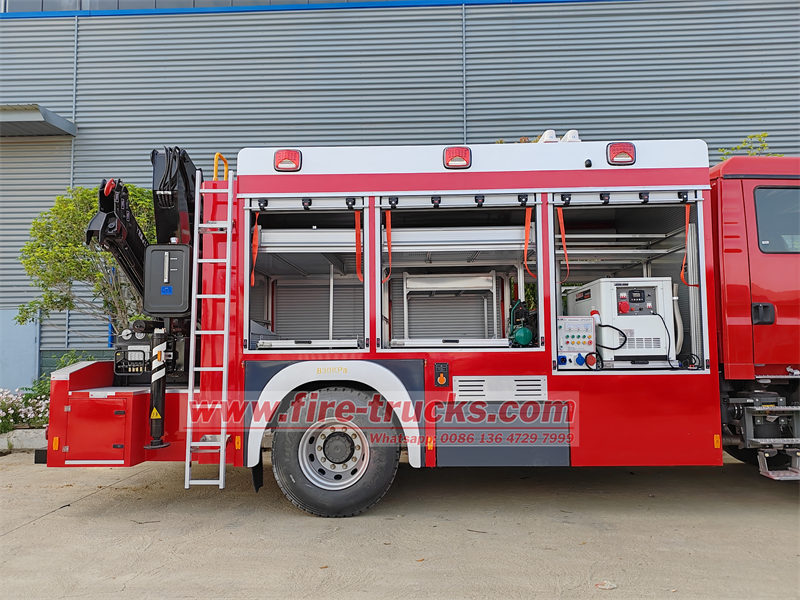

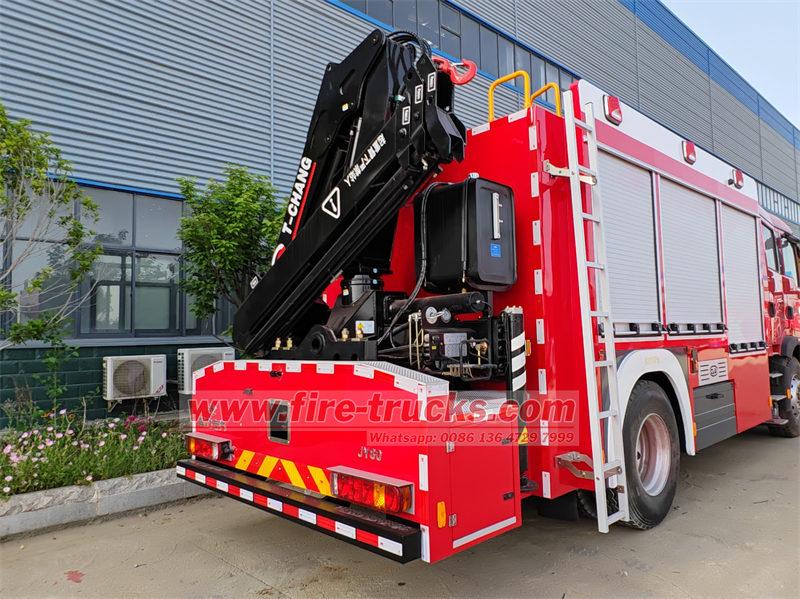

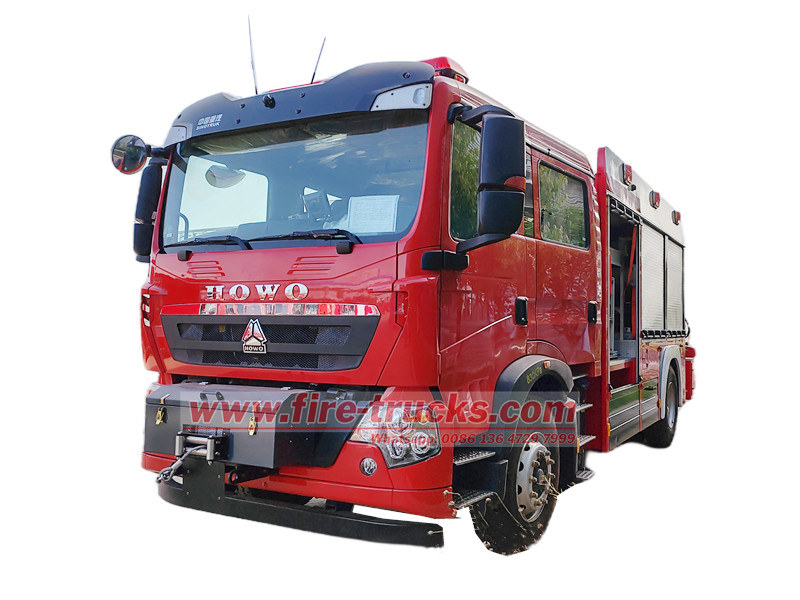

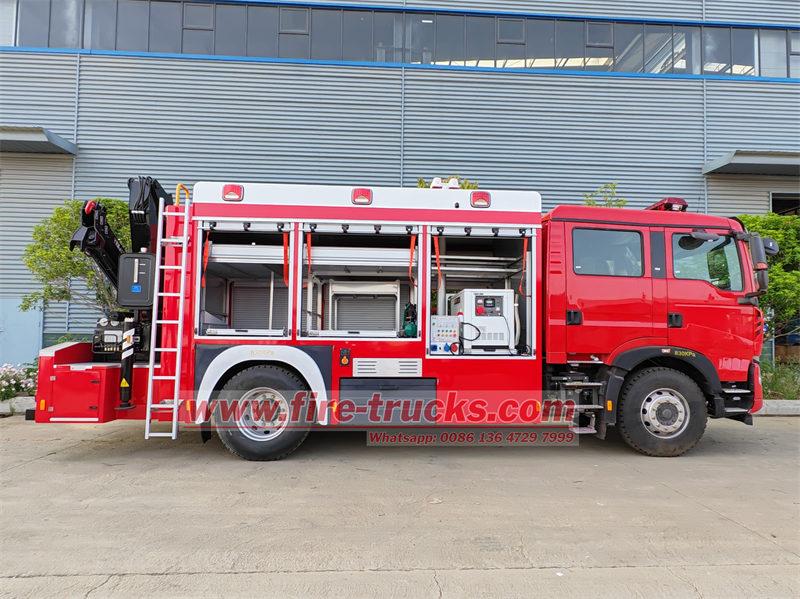

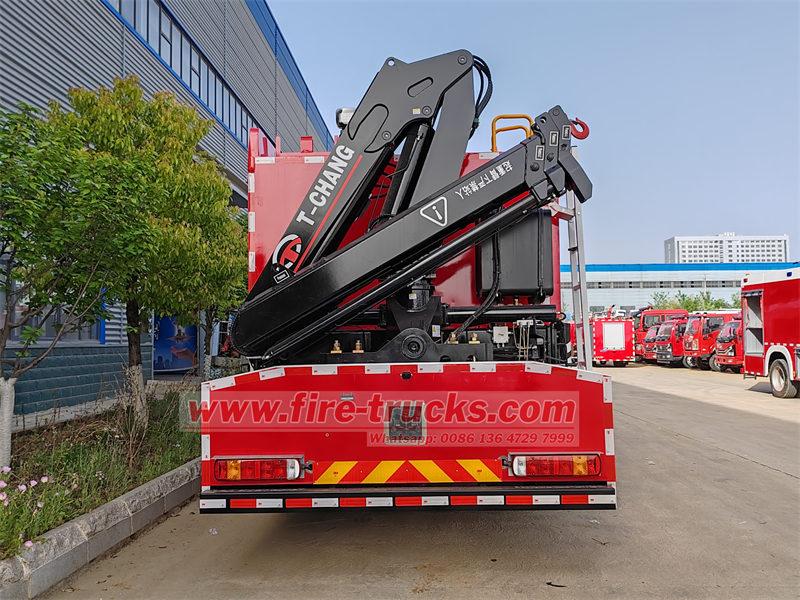

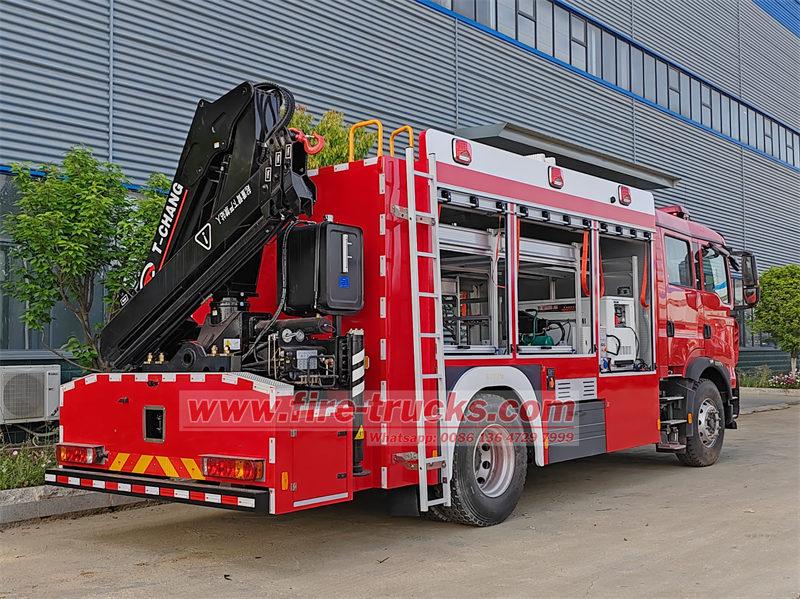

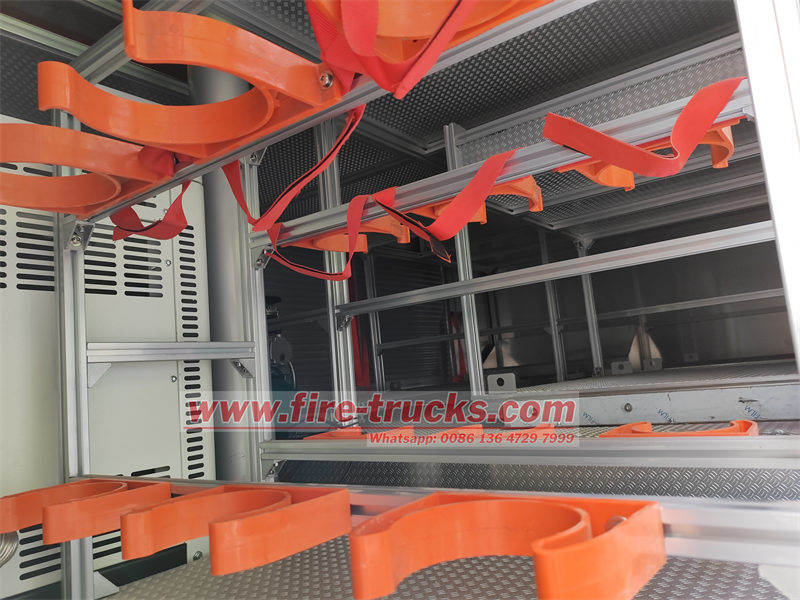

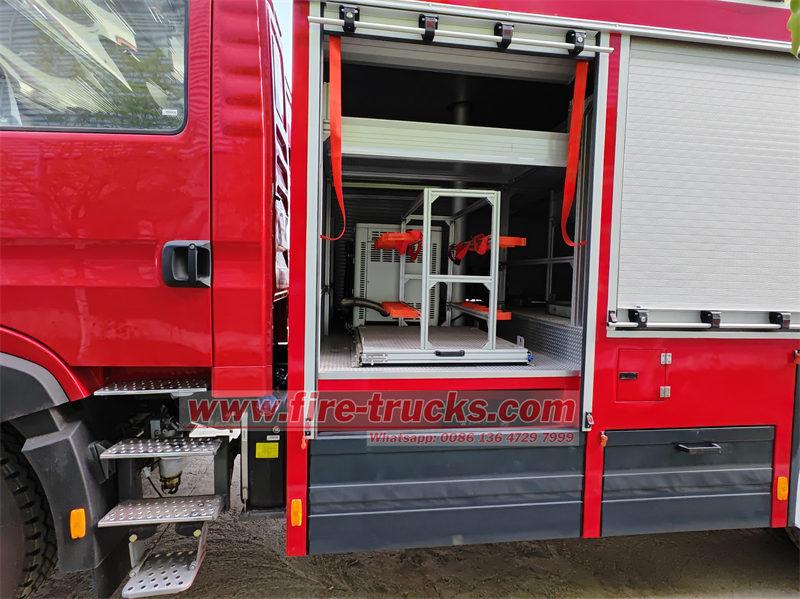

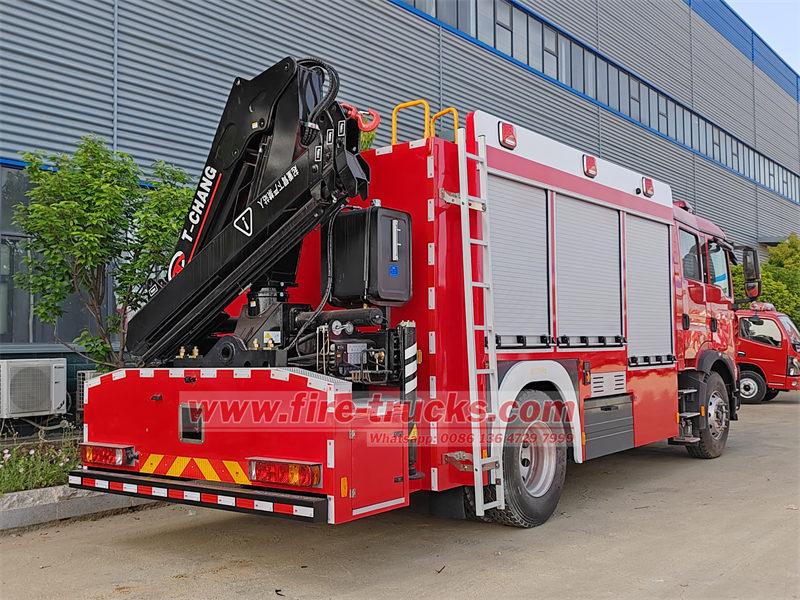

The standout feature of this HOWO rescue fire vehicle lies in its highly integrated superstructure. The rear is fitted with an XCMG SQZ105D folding arm crane, offering a maximum lifting capacity of 5 tons, a working radius of 8.3 meters, and 420° full rotation for rapid obstacle clearance. The front houses a 12-ton electric winch with a 10 mm diameter steel cable and a 35.2-meter towing range, capable of easily hauling wrecked vehicles or heavy equipment. The equipment compartment features a bilateral pull-out expansion design with six aluminum roller shutters for quick access, storing specialized tools such as hydraulic breakers, support struts, and life detectors. Four 1,000W lifting lamps, raised to 13 meters via a pneumatic system, provide 360° horizontal illumination for nighttime operations, supported by a 12kW Honda generator for prolonged power supply.
The HOWO rescue fire engine incorporates intelligent operational designs. The lighting system supports manual/remote dual-mode control with an auto-reset function, while the folding arm crane is equipped with a moment limiter and overload protection to prevent misuse. The equipment compartment includes preset 220V/380V dual-voltage output interfaces to directly power devices like electric cutters and drainage pumps.
With its versatility, the HOWO emergency rescue fire truck effectively handles various incidents. At accident scenes, it swiftly clears obstacles and tows damaged vehicles. During natural disasters, it provides power and lighting support for demolition work. In daily firefighting operations, it carries specialized equipment for diverse tasks. Its reliable performance and optimized layout make it an ideal choice for firefighting units to enhance rescue capabilities.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality
● Professional sales team which will help you to choose suitable truck.
Product Specifications
HOWO 4×2 Medium Rescue Fire Truck Specifications |
||
Chassis model |
SINOTRUK HOWO |
|
Cab |
HOWO double row cab, with power steering. Electronic flameout, with a/c |
|
Driving Type |
4*2 Left hand driving |
|
Max Speed (km/h) |
95 |
|
Overall dimension(mm) |
9100×2550×3550mm |
|
GVW ( kg) |
14000 |
|
Curb weight ( kg) |
13550 |
|
Wheelbase(mm) |
4700 |
|
Tire |
315/80R22.5 (6+1) |
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
Steering |
Hydraulic steering with power assistance |
|
Front/rear overhang |
1430/2550 mm |
|
Number of leaf springs |
11/9+8 |
|
Gear box |
10-speed |
|
Axles |
Front axle |
5250 kg |
Rear axle |
8750 kg |
|
Engine |
Model |
MC07H.35 |
Fuel Type |
Diesel fuel |
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
|
Displacement (ml) |
7360 ml |
|
Max output power |
350HP/257kW |
|
Rated speed (rpm) |
2200 rpm |
|
Braking system |
Service Brake |
Compressed air brake |
Park Brake |
Spring energy |
|
Auxiliary brake |
engine exhaust brake |
|
Upper-Body Specifications |
||
Crane |
Brand |
XCMG |
Model |
SQZ105D |
|
Lifting capacity |
5000kg |
|
Max. lifting moment |
10.5 T.M |
|
Max. working radius |
8.3 m |
|
Max. lifting height |
8 m |
|
Rotation angle |
420° |
|
Installation position |
Rear-mounted |
|
Hydraulic system pressure |
28 Mpa |
|
Hydraulic system flow |
25 L/min |
|
Hydraulic oil tank capacity |
75 L |
|
Winch |
Brand |
China famous brand |
Max. traction force |
12 ton |
|
Drive type |
Electric |
|
Steel rope diameter |
10mm |
|
Max. traction length |
35.2 m |
|
Installation position |
Front-mounted |
|
Lighting system |
Type |
Pneumatic lifting type |
Lighting power |
4×1000W (4KW) |
|
Lighting |
Halogen lamp |
|
Height from ground |
13 m |
|
Rotation angle |
Horizontal 360°, pitch angle total 406° |
|
Control method |
Can be controlled manually or remotely, with automatic reset function |
|

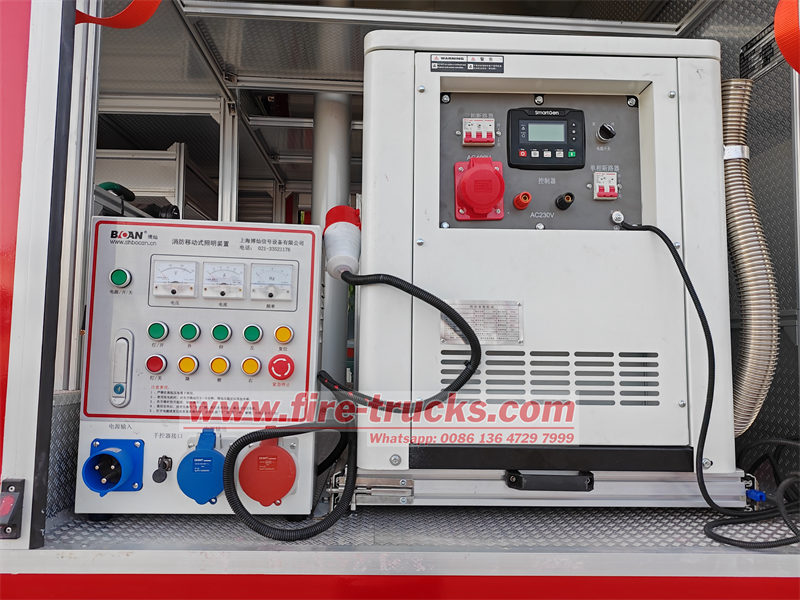

Generator |
Rated output power |
12 kW |
Rated frequency |
50 HZ |
|
Rated voltage |
220V/380V |
|
Starting method |
electric start/manual start |

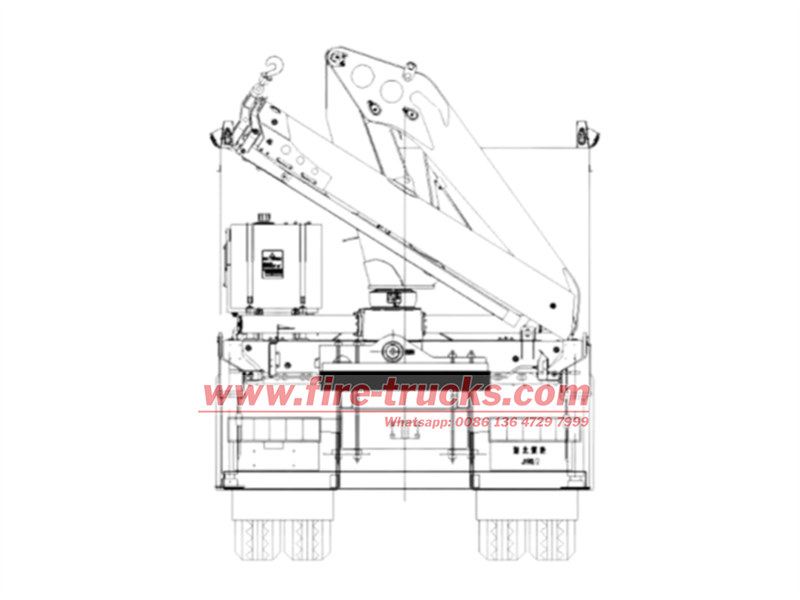

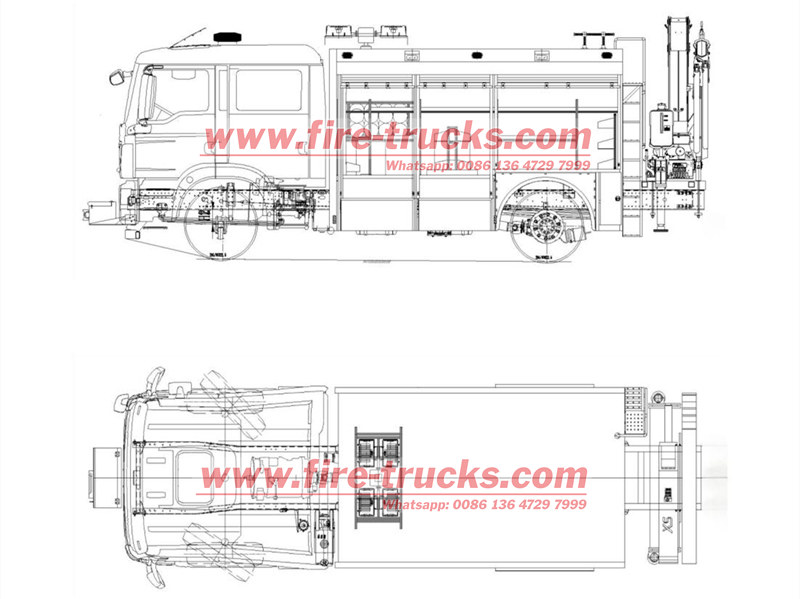

Product Drawing
