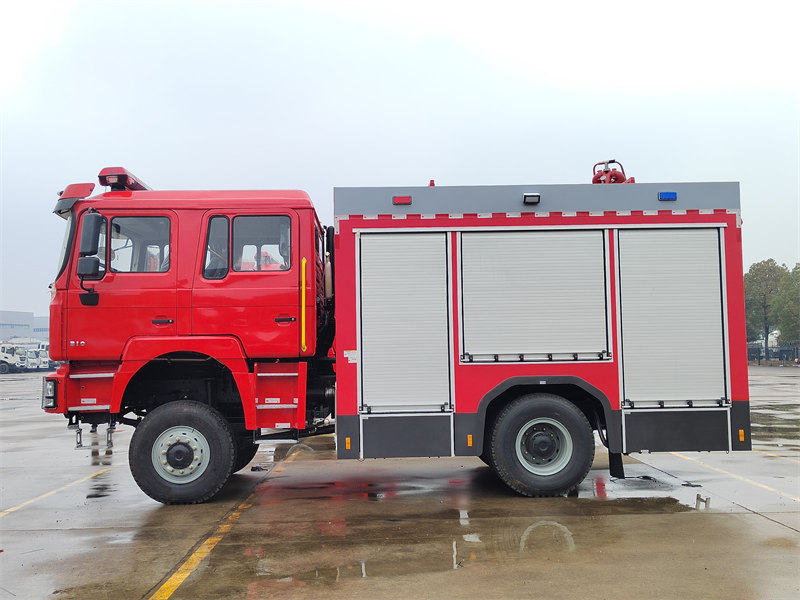

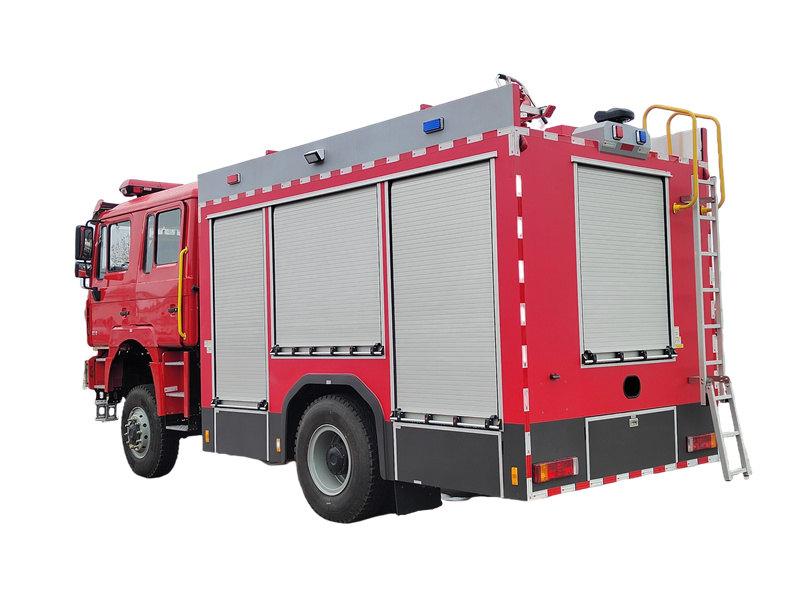

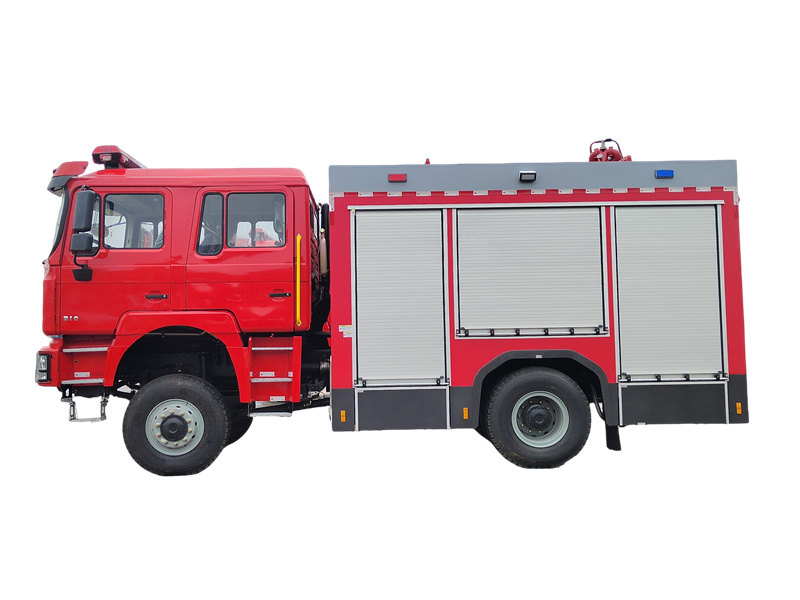

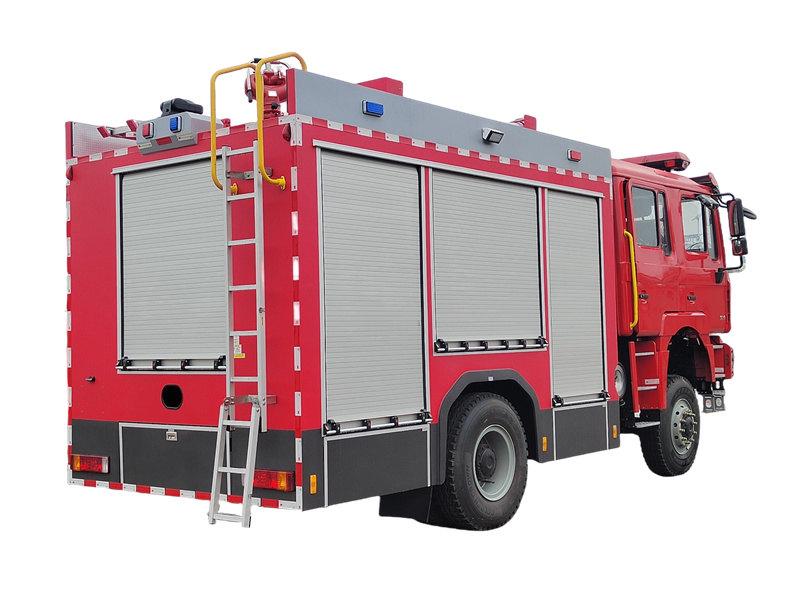

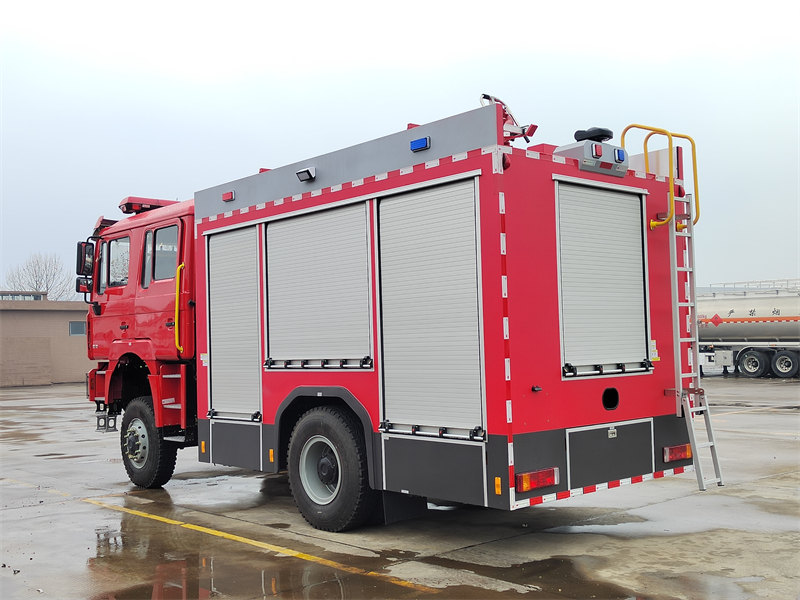

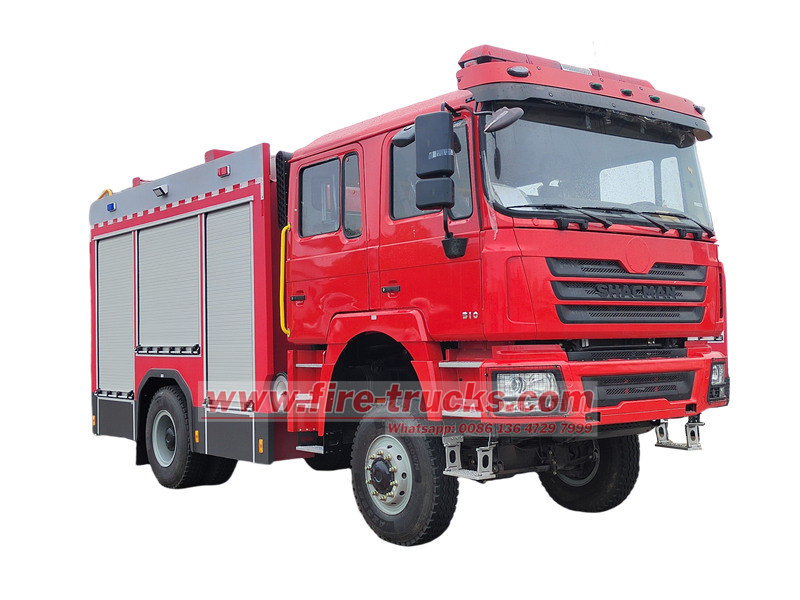

SHACMAN 4×4 water tanker fire truck is a high-performance specialized vehicle designed for fire and rescue operations. It features a 4×4 drive system, powered by a 310-horsepower engine and a 9-speed transmission, delivering excellent off-road capability. Equipped with a 6,000-liter water tank, a fire pump with a flow rate of 60L/s, and a fire monitor with a range of 70 meters, it uses water as the primary extinguishing agent. It is suitable for fighting fires involving general solid materials, making it a reliable firefighting equipment in urban, rural, and wildland firefighting and rescue scenarios.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000 litersUpper Body material:
Carbon steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×4Engine Power:
310 HPEngine Model:
WP10.310E32Fire Pump:
CB10/60, 60L/sFire Monitor:
PS8/60 for waterRemark:
tanker material PP, 4X4, 6X6 drive, RHD drive is optional

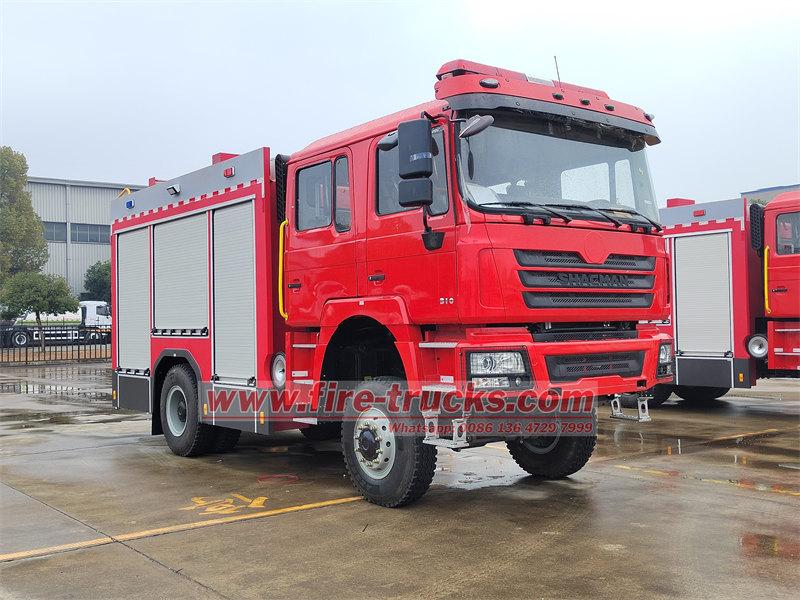

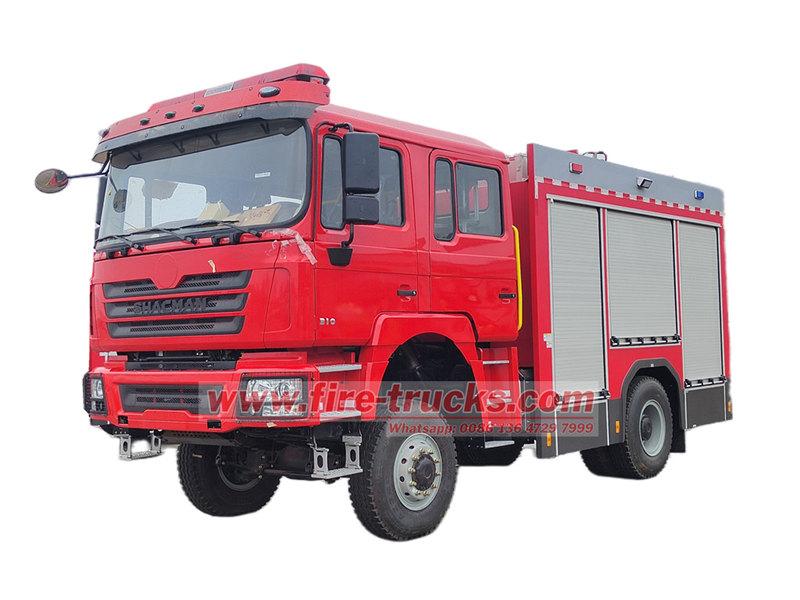

POWERSTAR 4×4 off-road fire truck SHACMAN is a high-performance model specifically designed for fire and rescue missions, engineered and manufactured by POWERSTAR TRUCKS. Built on a SHACMAN 4×4 off-road chassis and fitted with all-terrain tires, it can swiftly navigate complex terrains, providing robust technical support for firefighting and rescue operations. This Shacman all-wheel-drive fire truck is mainly equipped with a 6,000L water tank, a CB10/60 fire pump, a PS8/60W fire monitor, and firefighting tools. Using water as the main extinguishing agent, it delivers water streams through fire hoses and monitors, achieving a range of up to 70 meters. It is ideal for extinguishing fires involving general solid materials.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. All-Terrain Adaptability: The SHACMAN off-road fire engine is equipped with a four-wheel drive system and high ground clearance, enabling it to handle various terrains with ease, including mountainous areas, forests, muddy zones, and urban roads.
2. Powerful Firefighting Capability: The vehicle is equipped with a series of firefighting equipment, such as fire monitor, fire pump, and fire extinguishing tools, allowing it to quickly suppress fire sources. It also has a large-capacity water tank to ensure the ability to operate for a long time.
3. Versatility: The SHACMAN 4×4 firefighting truck is equipped with various firefighting and rescue devices, including aluminum ladders, ropes, and rescue tools, enable it to cope with various emergency tasks.
4. Comfort: The cabin features an ergonomic design, providing firefighters with a comfortable working environment.
» Ⅱ.Product Parameter for Shacman 4×4 fire tanker truck:
|
Product Name |
SHACMAN 4×4 water tanker fire truck |
|
Driving Type |
4×4, left hand drive |
|
WEIGHT |
|
|
Gross Vehicle Weight |
18000 kg |
|
Curb Weight |
11000kg |
|
Dimensions |
|
|
Wheelbase |
4600 mm |
|
Overall Size |
8500x2500x3650 mm |
|
Front/rear overhang |
1765/1890 mm |
|
ENGINE |
|
|
Engine Model |
WP10.310E32 |
|
No of Cylinder |
6 |
|
Displacement |
9726ml |
|
Max Output |
310HP (228KW) |
|
Emission Standard |
EURO 3 |
|
Rated Speed |
2200 rpm |
|
Max. torque |
1250 N.m |
|
DRIVE TYPE |
|
|
Transmission |
FAST 9 speeds, 9 forwards,1 reverse |
|
Steering |
With power steering |
|
Brake |
Air brake |
|
Front axle/rear axle |
6.3T/13T |
|
CAB |
|
|
Cabin |
SHACMAN F3000 |
|
Configuration |
With A/C |
|
Seat quantity |
Double row, 2+3 seats |
|
TIRE |
|
|
Tire specification |
12.00R20, 6+1 pcs |
|
Upper body |
|
|
Water Tank Capacity |
6000 liters |
|
Tank Material |
Q235 carbon steel, stainless steel is optional |
|
Pipe Material |
Q235 carbon steel |
|

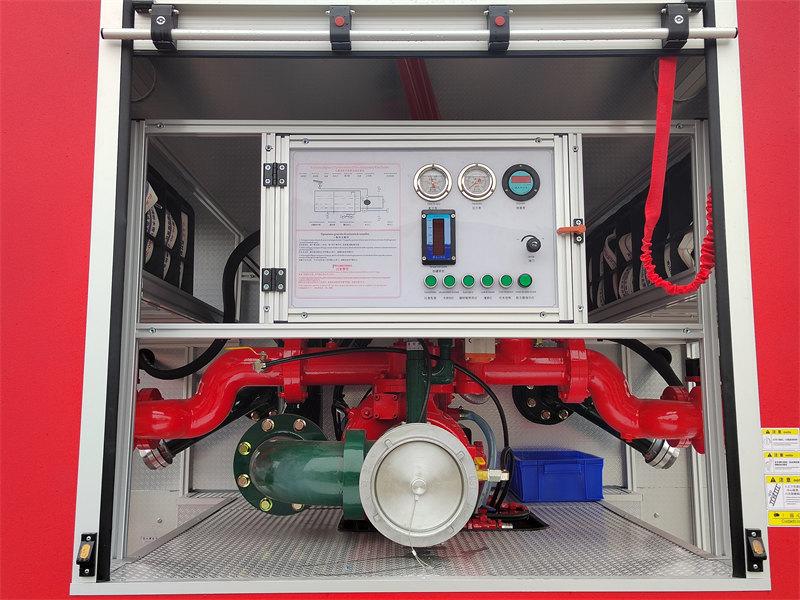

Fire Pump |
Model: CB10/60 |
|
Type: Centrifugal fire pump |
|
|
Rated flow: 60L/s @1.0MPa |
|
|
Rated outlet pressure: 1.0 Mpa |
|
|
Max. suction depth: 7m |
|
|
Fire Monitor |
Model: PS8/60W |
|
Rated flow: 60L/s |
|
|
Rated pressure: 0.8 Mpa |
|
|
Elevation angle: ≥70° |
|
|
Depression angle: ≤-30° |
|
|
Range: ≥70 m |
|
» Ⅲ. Product Advantages:
★ Compact Structure
Featuring a streamlined design, the fire pump is powered by a sandwich power take-off (PTO) system, allowing it to operate while driving, ensuring high mobility and flexibility.
★ Outstanding Performance
Capable of reaching work sites quickly and promptly, the fire monitor delivers long-range water streams with high flow and lift, supporting multiple spray pattern options.
★ Large-Capacity Water Tank
Equipped with a high-volume water tank to reduce the need for frequent refilling.
★ Complete Set of Equipment

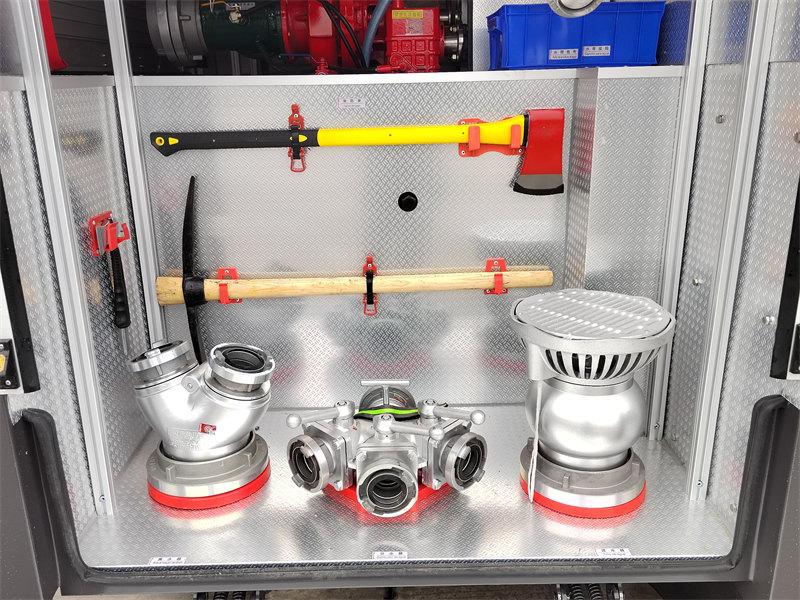

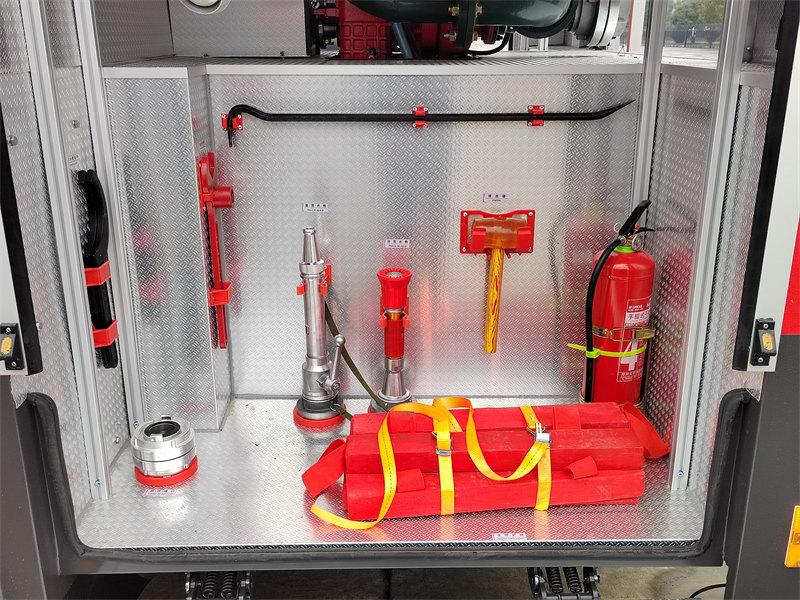

Includes aluminum ladders, water guns, portable fire extinguishers, self-contained breathing apparatus (SCBA), and rescue tools for comprehensive emergency response.
