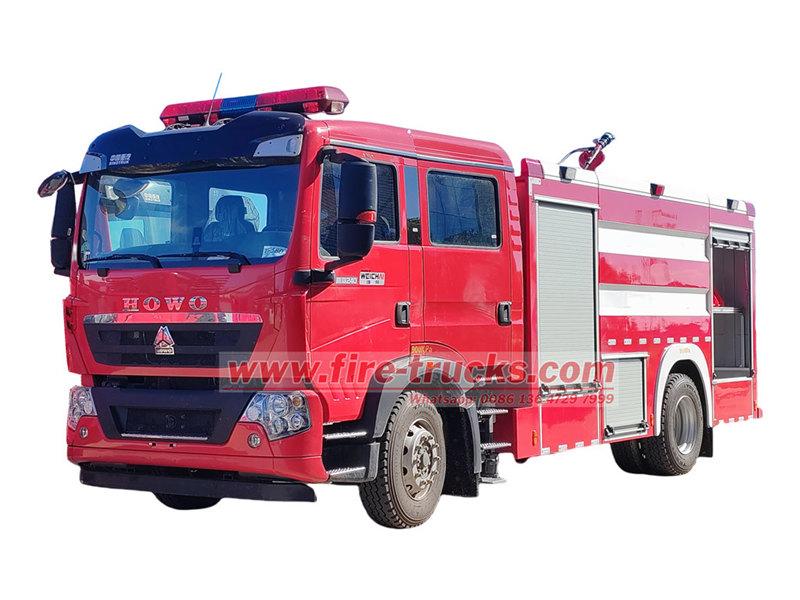

The HOWO Foam Fire Truck is a high-efficiency, multi-functional firefighting vehicle featuring a 4×2 drive configuration. It is powered by a Weichai WP4.6NQ240 diesel engine (240 HP/177 KW) and equipped with a 5000L carbon steel water tank and a 2000L stainless steel foam tank to meet combined firefighting needs. The firefighting system includes a CB10/40 fire pump (flow rate of 40L/s) and a PL8/32 fire monitor, with a range of ≥60 meters for water and ≥48 meters for foam, capable of 360° rotation. With a top speed of 95 km/h and a crew capacity of 6, it is suitable for extinguishing oil, chemical, and other types of fires, combining high-efficiency firefighting with excellent mobility.
Manufacturer Origin:
POWERSTARWork capacity :
7000 litersUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
4500 mmAxle drive:
4×2, left hand driveEngine Power:
240 HPEngine Model:
WP4.6NQ240Fire Pump:
CB10/40, 40L/sFire Monitor:
PL8/32 for water and foamRemark:

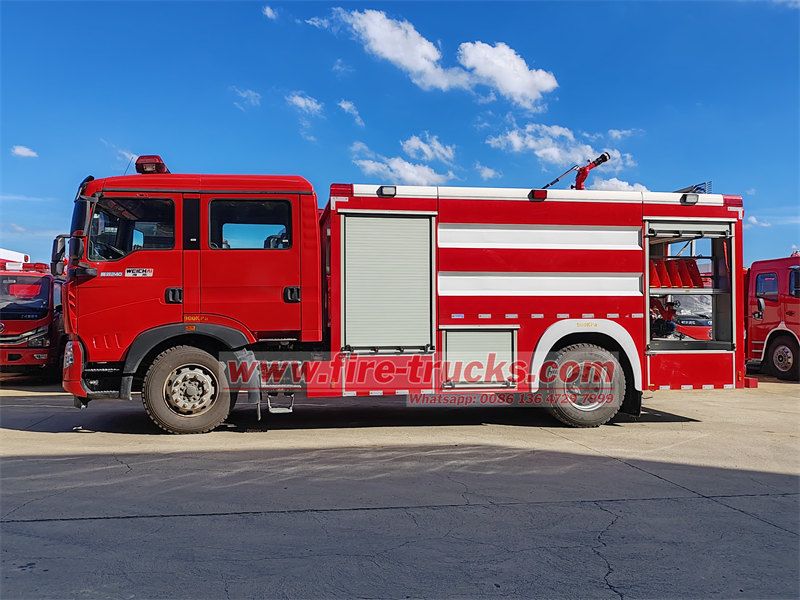

4×4, RHD, PP tank is optionalThe POWERSTAR 7000L Foam Fire Truck is modified on the basis of a HOWO 4×2 double-row chassis, featuring a compact structure. The specialized section consists of a liquid tank, pump compartment, equipment compartment, power take-off and transmission system, piping system, and electrical system. This HOWO foam fire truck is widely used by urban public fire brigades, petrochemical plants, industrial and mining enterprises, forests, ports, docks, and other departments. It can quickly approach fire scenes to initiate firefighting operations and extinguish various types of fires, making it an outstanding firefighting apparatus.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: SINOTRUK HOWO truck chassis, 4x2, 6x4 and 8x4 model is optional
WEICHAI WP4.6N2240 diesel engine, 240HP and 4.58L displacement
SINOTRUK engine with 270HP, 290HP, 330HP is optional
2. Tank material: Factory standard carbon steel for water tank and stainless steel for foam tank
stainless steel water tank is optioanl, aluminum alloy or PP material also available
3. Tanker body: Water tank and foam tank capacity is customized, dry powder tank is optional

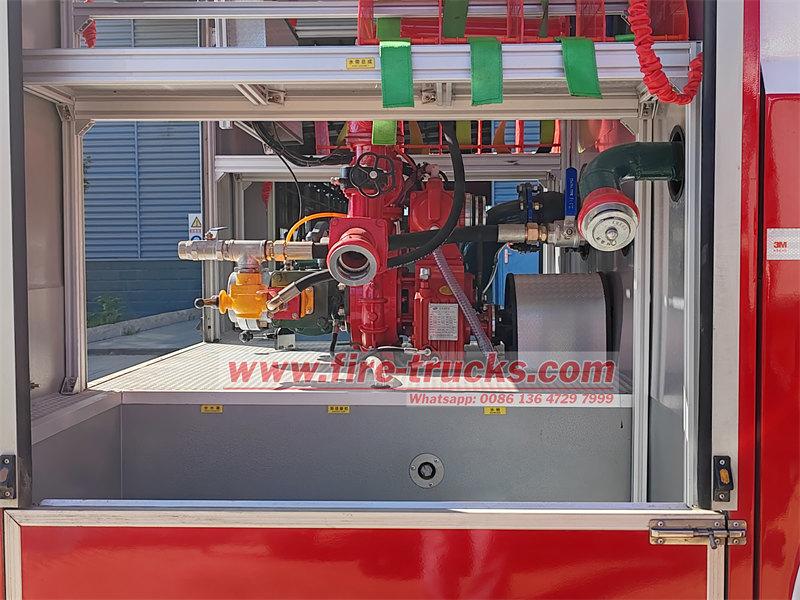

4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 60m
Optional CB10/60, CB10/80 pump. Also available Darley fire pump
5. Special design: Working temperature -9℃ to +40℃ , engine and pump room heating system is optional for working at cold areas
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting and rescue tools equipped for convenient working, fire extinguishing and people rescue
Water-Foam Fire Truck, also known as Foam Tanker Fire Truck,Foam Fire Tender, is a dual-purpose firefighting vehicle capable of both water and foam extinguishing functions, primarily used to combat liquid fires (Class B) such as oil and chemical fires, as well as conventional fires (Class A). Its working principle involves the fire pump drawing water from the tank and mixing it with foam concentrate in a set ratio to form a foam solution, which is then discharged through a fire monitor or foam nozzle. The foam blankets the burning surface, cutting off oxygen and cooling the material for efficient fire suppression. Equipped with its own water tank, the vehicle can operate independently, making it ideal for locations such as petrochemical facilities and airports.
» Ⅱ.Product Parameter for HOWO 7000L water foam fire engine:
Items |
Descriptions |
Parameters |
Fundamental Information |
Drive Type |
4x2, LHD |
Transmission |
Manual |
|
Brand |
HOWO |
|
Overall Dimensions L*W*H (mm) |
8450*2510*3560 |
|
Tank Capacity (L) |
7000 |
|
Wheel Base (mm) |
4500 |
|
Gross Weight (kg) |
17300 |
|
Curb Weight (kg) |
9360 |
|
Tire |
Tire Model |
295/80R22.5 |
No. of Tires |
6 |
|
Engine |
Brand |
WEICHAI |
Fuel type |
Diesel |
|
Model |
WP4.6NQ240 |
|
Emission Standard |
Euro 2, 3, 5 or 6 |
|
Displacement (ml) |
4580 |
|
Power (HP/KW) |
240HP/177KW |
|
Rated speed (RPM) |
2300 rpm |
|
Others |
Max. Driving Speed (km/h) |
95 |
No. of Passengers |
6 |
|
Tank |
Water Tank Capacity (L) |
5000 L |
Material |
High quality carbon steel, 4mm thickness |
|
Foam Tank Capacity (L) |
2000 L |
|
Material |
Stainless steel, 4mm thickness |
|
Inside Devices |
Ingate, overflow valve, fluid level gage, |
|
Sewage outfall (Manual) |
||

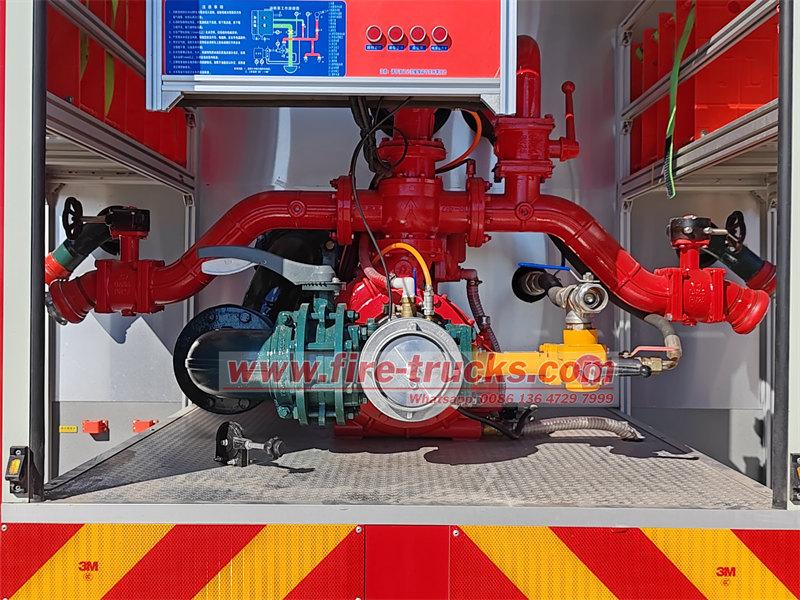

Fire Pump |
Model |
CB10/40 |
Flow (L/s) |
40 |
|
Working Pressure (MPa) |
1.0 |
|
Water suction time (s) |
50 |
|
Position |
Rear mounted |
|
Fire Monitor |
Model |
PL8/32 |
Rated Working Pressure (MPa) |
0.8 |
|
Flow (L/s) |
32 |
|
Range (m) |
Water: ≥60; Foam: ≥48 |
|
Working Angle (°) |
360 (horizontal); -45~70 (elevation) |
|
Operation Mode |
Manual |
|
Power Takeoff |
Type |
Sandwich and full power |
Operation Mode |
Dominated by solenoid valve |
|
Cooling Mode |
Mandatory and adjustable water cooling |
|
Lubrication Mode |
Splash oil lubricating |
» Ⅲ.Factory Testing:

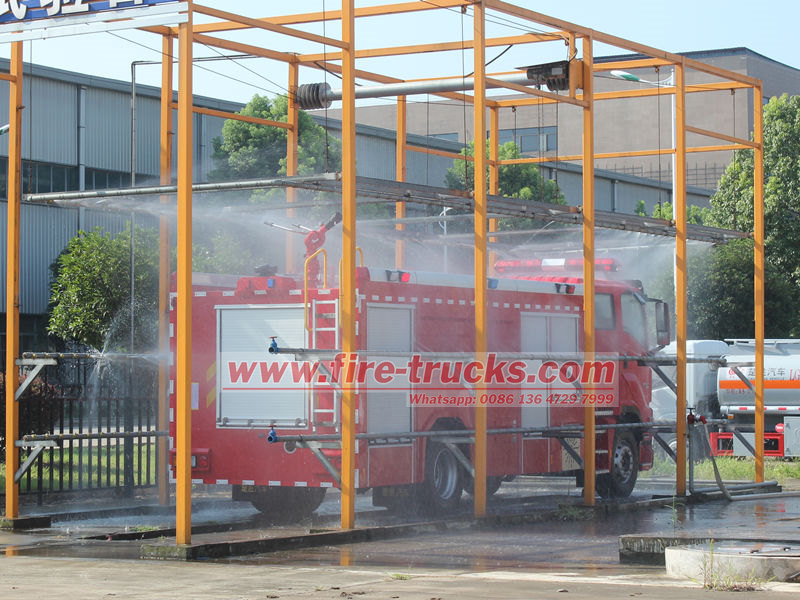

HOWO foam tanker fire truck rain test at POWERSTAR factory

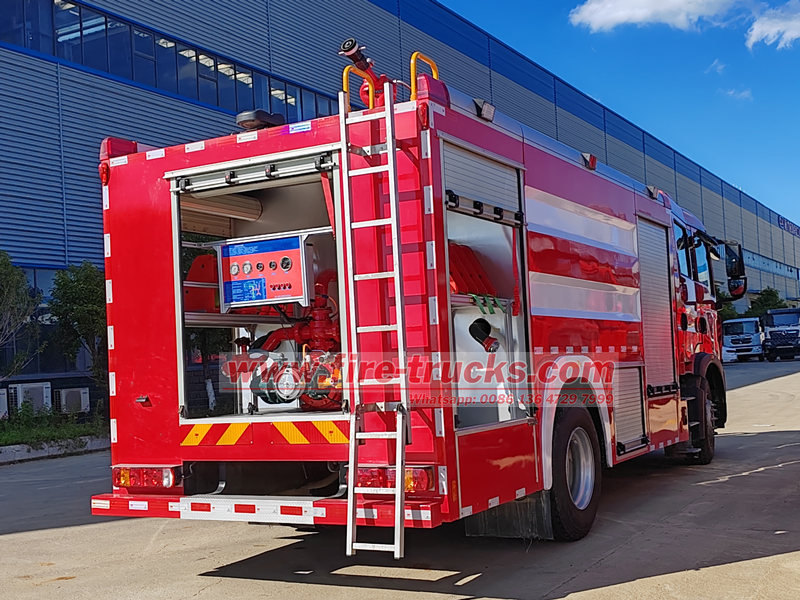

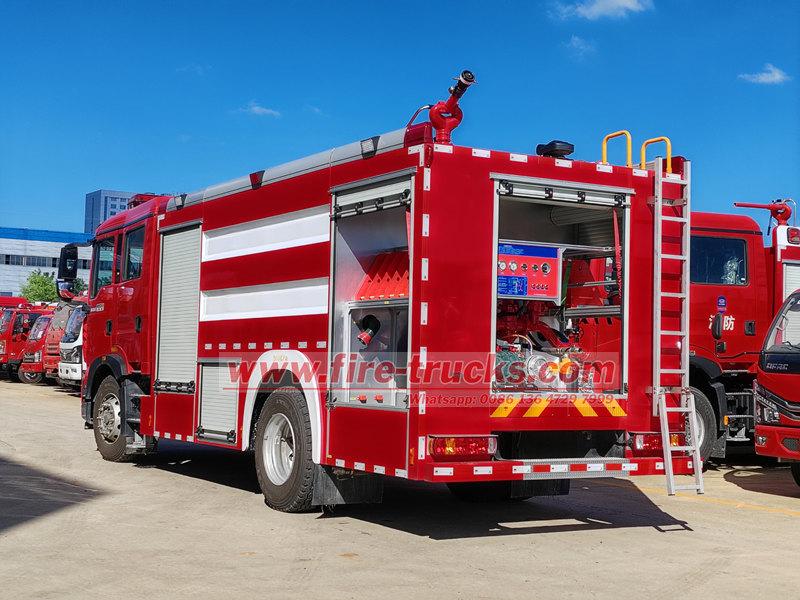

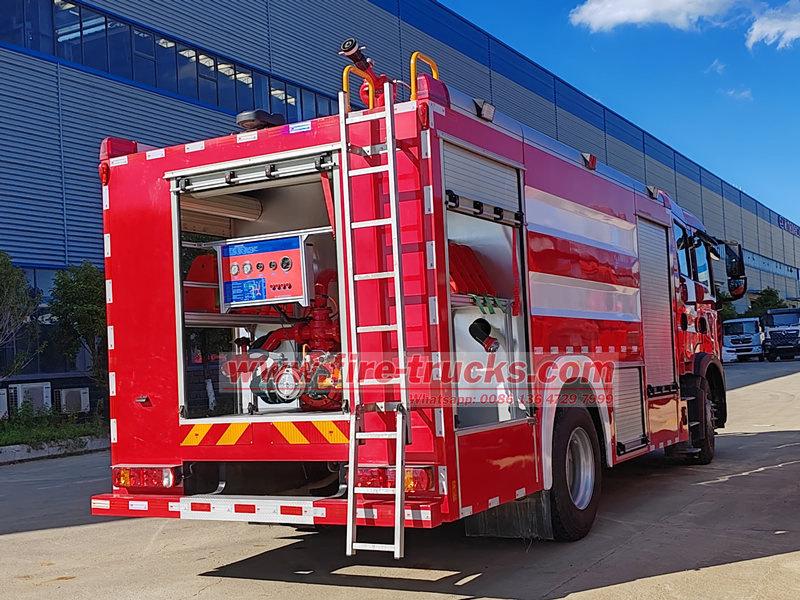

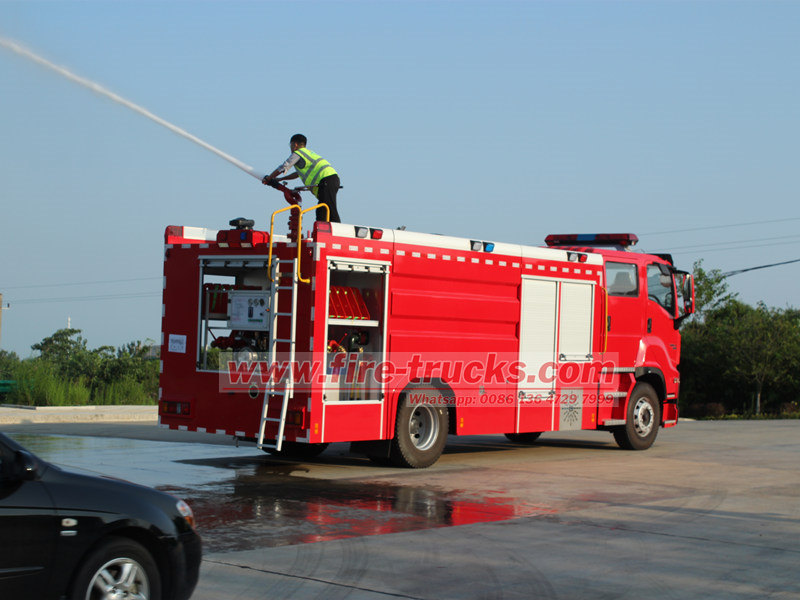

HOWO water foam firefighting truck factory testing before shipment

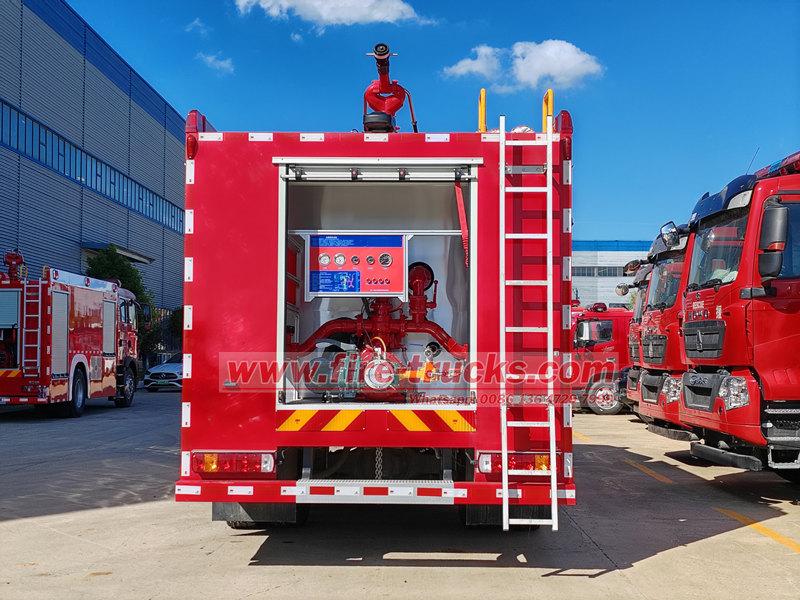

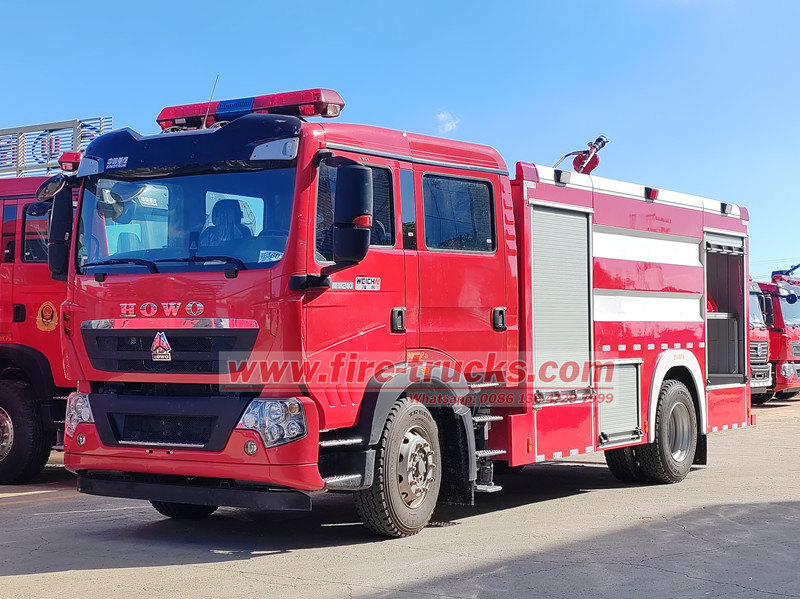

HOWO fire pumper truck ready for delivery
