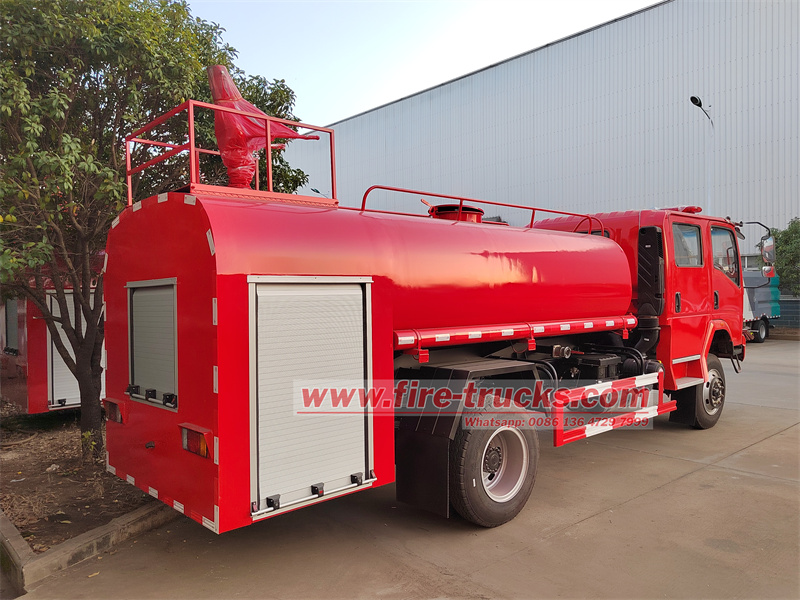

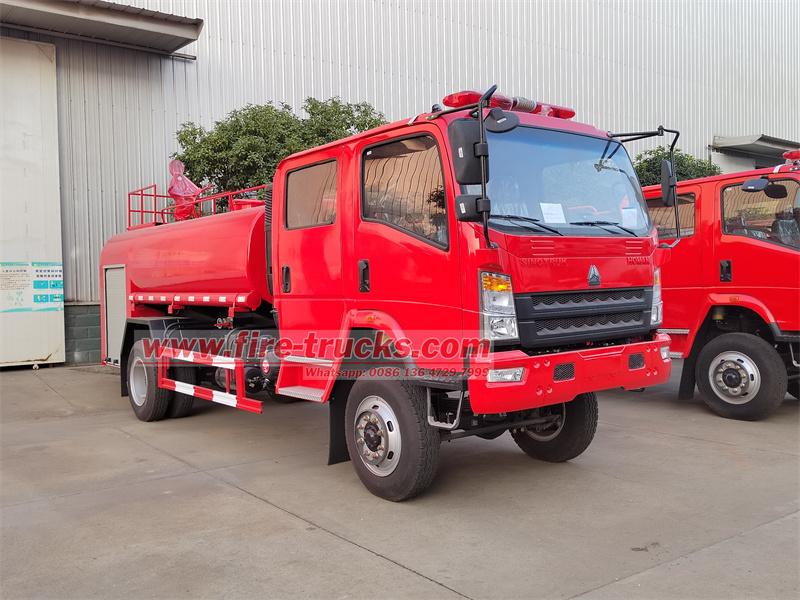

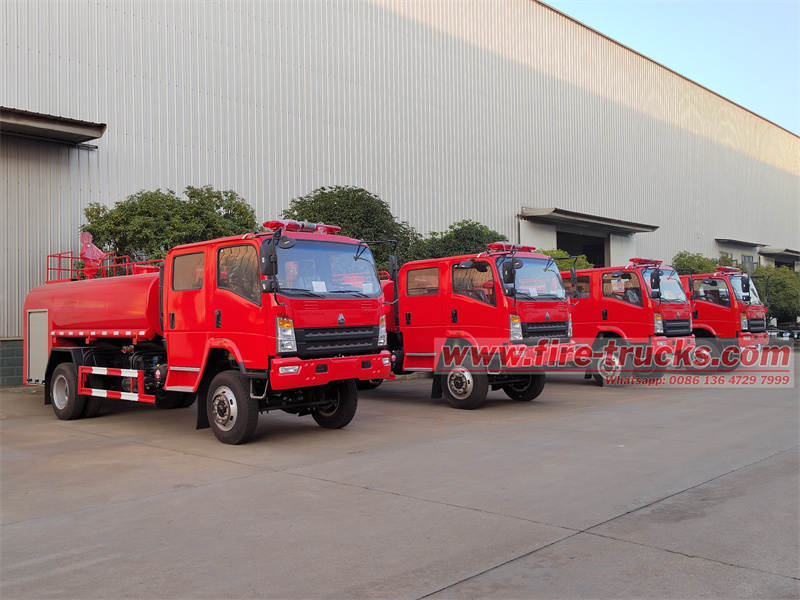

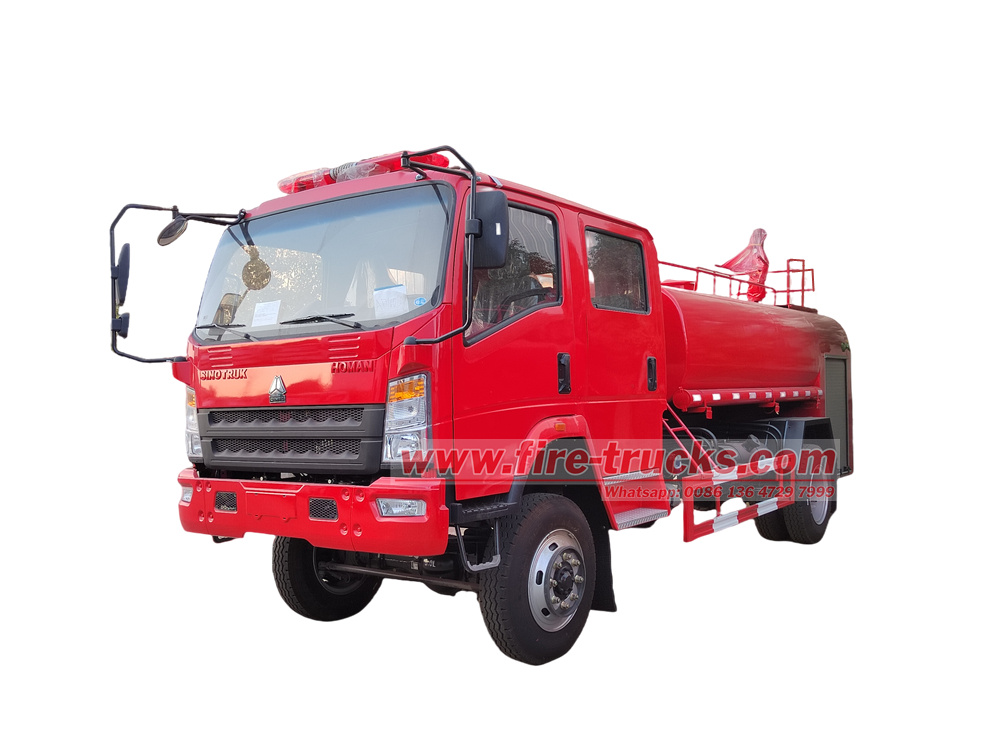

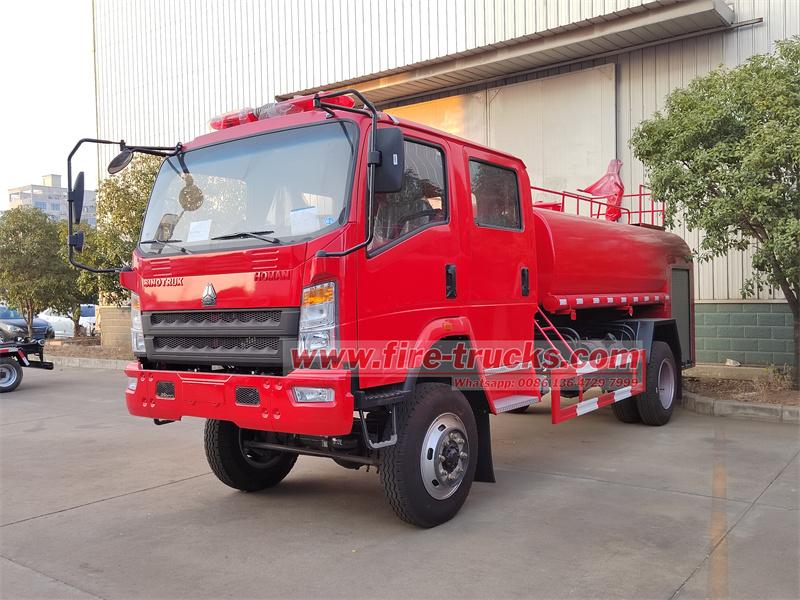

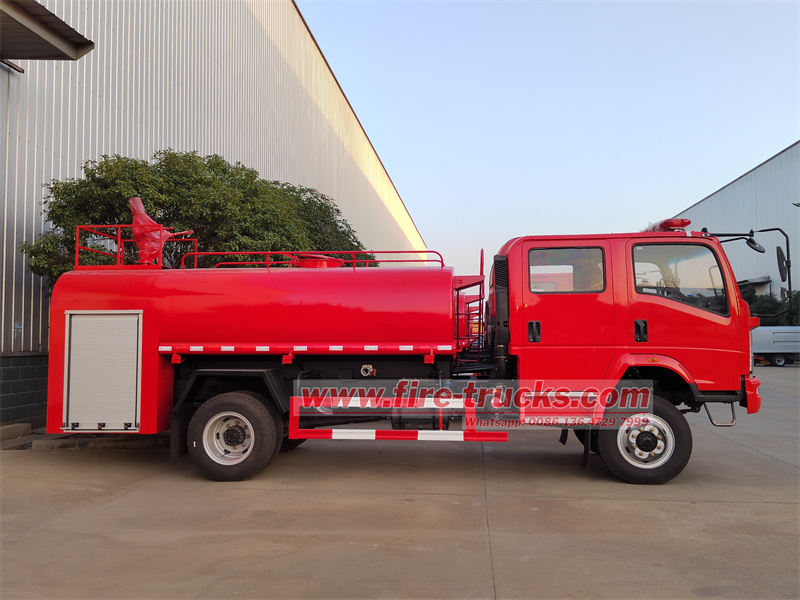

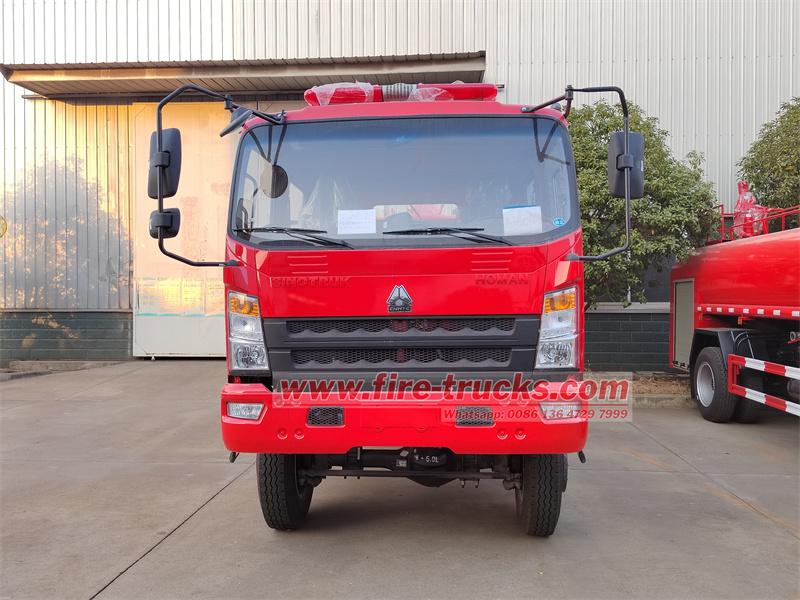

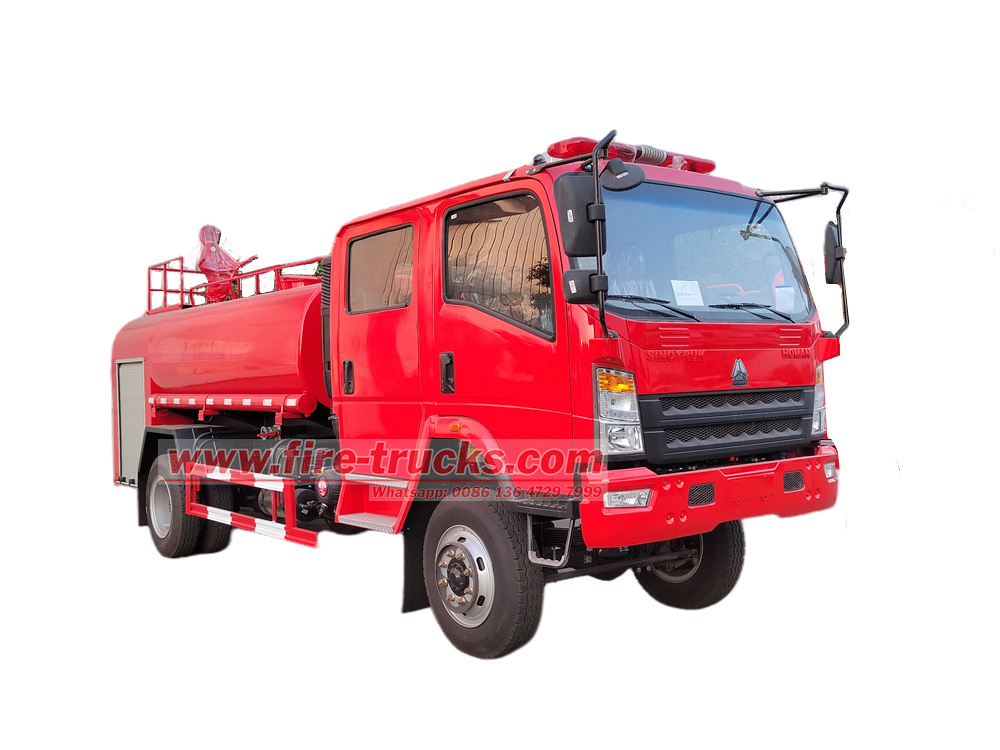

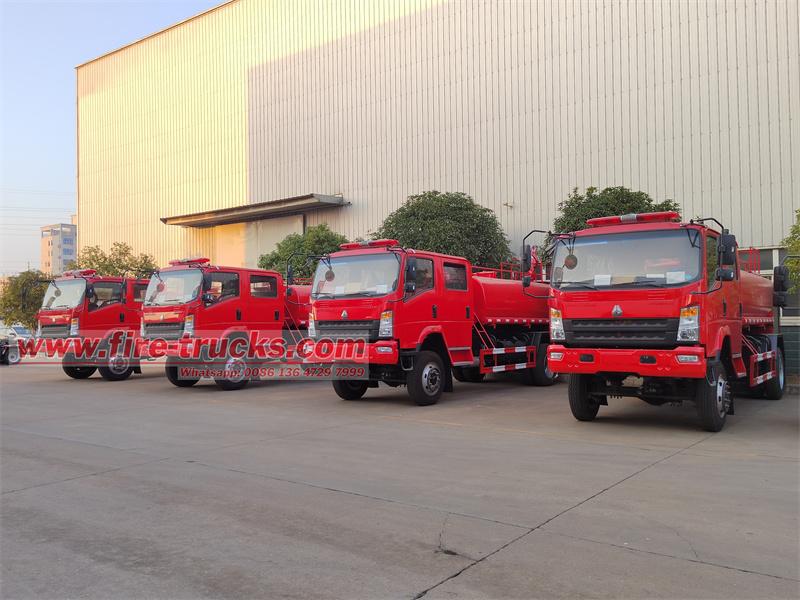

HOWO 4x4 fire sprinkler truck, it is modified on the basis of HOWO commander medium truck, double row 2080mm wide body cab, 4200mm wheelbase, all-wheel drive, front axle 2.7 tons, rear axle 7.2 tons, equipped with Cummins ISF3.8S3154 154HP engine, Euro III 3.8L emission, WLY6TS55 6-speed gearbox, the vehicle is equipped with a carbon steel arc water tank, the tail is a pump room, equipped with CB10/30 fire pump (30L/s), the roof of the pump room is equipped with PS8/20W fire water cannon (20L/s).
Manufacturer Origin:
Powerstar TrucksWork capacity :
5000LUpper Body material:
High-quality Q235B carbon steelWheelbase:
4200mmAxle drive:
4X4,LHDEngine Power:
154HP/115KwEngine Model:
Cummins ISF3.8S3154Fire Pump:
CB10/30, 30L/sFire Monitor:
PS8/20W, 20L/sRemark:
Combines both fire-fighting and water-sprinkling functions.
HOWO 4x4 drive forest firefighting truck is a special vehicle with both fire extinguishing and water sprinkling functions. It is modified based on HOWO medium truck and has reliable performance. The vehicle is equipped with a CB10/30 fire pump with a flow rate of 30L/s. The PS8/20W fire water cannon on the top of the pump has a flow rate of 20L/s. It has a long range and can achieve long-distance accurate fire extinguishing. It also supports a variety of spraying methods such as mist and direct injection. With an all-wheel drive system and a time-sharing four-wheel drive chassis, it has excellent off-road performance and can easily cope with complex terrains such as mountains and forests. Its carbon steel arc water tank has a large volume to ensure continuous water supply. In addition, it also has a water sprinkling function, which can be used for greening sprinkler irrigation, road watering and dust reduction, etc. The vehicle can not only efficiently complete firefighting tasks, but also meet the needs of urban environmental maintenance. It is a powerful equipment for multiple uses in the field of fire emergency and environmental operations.
● China best Isuzu water sprinkler fire truck factory
● Professional sales team which will help you to choose suitable truck.
● Be designed according to your requirements
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
|
HOWO 4x4 road sprinkler fire truck |
||||
|
General |
Cab |
HOWO 2080 4x4 chassis,one double row,allowable 3 passengers,A/C,USB... |
||
|
Overall Dimensions(mm) |
7540*2350*2650mm |
|||
|
Wheelbase |
4200mm |
|||
|
GVW/curb weight |
9.9/4.25tons |
|||
|
Water tank capacity |
5000L |
|||
|
Steering |
Power steering |
|||
|
Chassis |
Brand |
HOWO |
||
|
Tire specifications |
6+1 pcs,8.25R16 |
|||
|
Transmission |
WLY6TS55 6-speed,manual |
|||
|
Front Axle |
2.7T |
|||
|
Rear Axle |
7.2T |
|||
|
Max speed |
95Km/h |
|||
|
Engine |
Model |
Cummins ISF3.8S3154 |
||
|
Horsepower |
154HP |
|||
|
Rated speed |
2600rpm |
|||
|
Maximum output |
115Kw |
|||
|
Maximum torque |
500N.m |
|||
|
Maximum torque speed |
1200-1900rpm |
|||
|
Type |
4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine |
|||
|
Displacement |
3.8L |
|||
|
Minimum fuel consumption at full load |
195g/kW.h |
|||
|
Emission standard |
Euro 3 |
|||
|
Brake System |
Air brake |
|||
|
Color |
Red |
|||
|
Electric system |
24V |
|||
|
Tank |
Material |
Carbon steel |
||
|
Capacity |
5000L |
|||
|
Shape |
Ellipse as standard |
|||
|
Water fire pump |
Model |
CB10/30 |
||
|
Rated working pressure |
1.0MPa |
|||
|
Working conditions 1 |
30L/s/1MPa |
3045±50r/min |
3m Suction head |
|
|
Working conditions 2 |
21L/s/1.3MPa |
3365±50r/min |
||
|
Working conditions 3 |
15L/s/1MPa |
2992±50r/min |
7m Suction head |
|
|
Fire monitor |
Model |
PS8/20W |
||
|
Rated working pressure |
0.8MPa |
|||
|
Rated flow |
20L/s |
|||
|
Range |
≥50m |
|||
|
Horizontal rotation angle |
360° |
|||
|
Pitch rotation angle |
-30～+70° |
|||
|
Standard configuration |

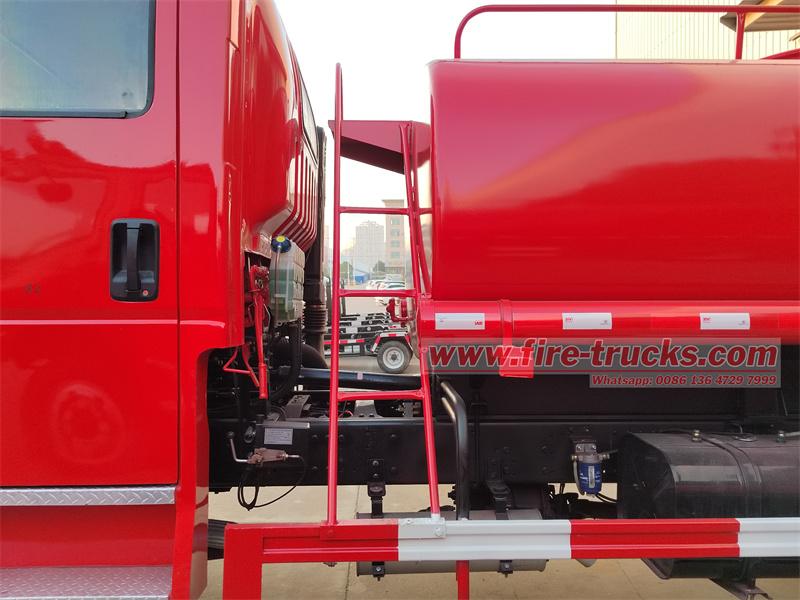

carbon steel water tank, manhole, water pump, fire monitor, fire valve, water valve, filter gauze, water hose, climbing ladder. |
|||
★ Chassis configuration
● Basic platform: Sinotruk HOWO medium-duty truck double-row chassis, specially designed for firefighting and emergency rescue, with high load-bearing and high passability.
● Cab: 2080mm wide double-row cab (can accommodate 6 people), all-steel frame structure, in line with the impact resistance standard of fire trucks
● Drive type: 4×4 all-wheel drive, adapt to complex road conditions (mountains, mud, urban roads, etc.)
● Wheelbase: 4200mm, taking into account both passability and stability
● Load capacity:

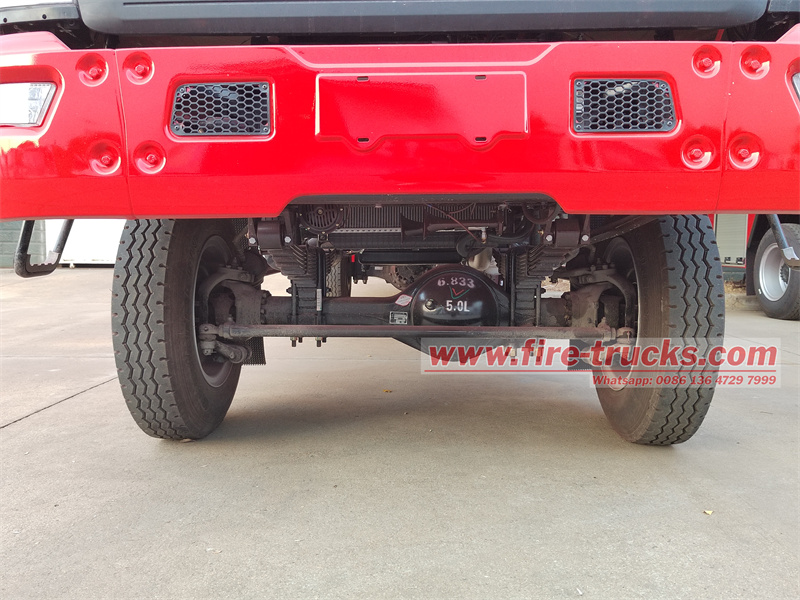

- Front axle: 2.7 tons, reinforced I-beam structure, with hydraulic shock absorption.
- Rear axle: 7.2 tons, adapt to heavy-load climbing needs.
★ Power system:
● Engine: Cummins ISF3.8S3154 diesel engine
● Displacement: 3.8L
● Power: 154 horsepower (113kW) @2600rpm
● Peak torque: 500N.m @1200-1900rpm
● Fuel system: high-pressure common rail + EGR exhaust gas recirculation, meeting Euro III emission standards.
● Emission standard: Euro III
● Transmission: Wanliyang WLY6TS55 6-speed manual transmission, with synchronizer, smooth shifting
★ Upper system

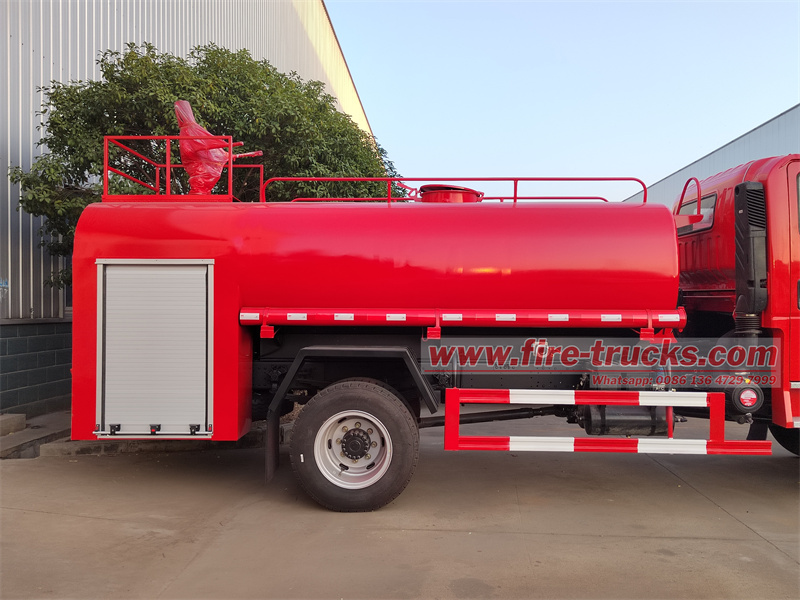

● Water tank
- Material: high-quality Q235B carbon steel arc structure (wave plate design),
- Capacity: 5 cubic meters, internal anti-corrosion treatment
- Water injection port: Top quick-opening manhole (DN500), supports fire hydrant/natural water source dual-mode water injection.
● Fire pump room
- Location: Independent cabin at the rear of the vehicle
- Core equipment: CB10/30 fire pump
- Flow rate: 30L/s
- Pressure: 1.0MPa
- Suction depth: 7m (with vacuum water diversion device)
- Pipeline system:
Water inlet: DN125 water suction pipe (with filter) + tank self-priming double channel.
Water outlet: 2×DN80 fire hose interface + 1×DN65 foam mixing port.
● Fire water monitor
- Model: PS8/20W vehicle-mounted water cannon, installed on the top of the pump room
- Range: ≥50m (water), long range, wide coverage, can achieve long-distance, high-precision fire extinguishing and water sprinkling operations.
- Pitch angle: -30° to +70°, horizontal rotation 360°
- Control mode: manual
★ Functional features
1. Multi-mode spraying: supports multiple spraying modes such as mist spray, direct spray and jet, and can flexibly adjust the water flow pattern according to the needs of the fire scene to improve the efficiency of fire extinguishing.
2. All-terrain adaptability: equipped with a full-wheel drive system and a part-time four-wheel drive chassis, it has excellent off-road performance and is suitable for complex terrains such as mountains and forests to ensure rapid arrival at the fire scene.
3. Multi-functional integration: In addition to the fire extinguishing function, it also has the function of a sprinkler truck, which can be used for greening sprinkler irrigation, road watering, dust reduction and other scenes, realizing multiple uses of one car.
4. Safety devices: tank overflow prevention sensor, pump room pressure alarm.
