The HOWO 4×4 Water Tender is a versatile emergency rescue vehicle built on the SINOTRUK HOWO chassis, combining dual functions of firefighting and dust suppression. Equipped with a Yuchai 160-horsepower diesel engine, a 8000L carbon steel water tank, a high-pressure fire pump with a flow rate of 30L/s, and a fire monitor with a range of 55 meters, it is suitable for urban firefighting, road sprinkling, and construction site dust control. The 4×4 drive system, 3400mm wheelbase, and 8.25R20 tires ensure excellent off-road performance, while the double-row cab accommodates up to five personnel, making it an ideal choice for small and medium-sized firefighting and municipal operations.
Truck Model:
PT5110GSSTanker Structure:
Carbon steel water tankWork capacity :
8000 litersWheelbase:
3400 mmAxle drive:
4×4Engine Power:
160HPEngine Model:
YC4E160-33Fire Pump:
CB10/30Fire Monitor:
PS30Remark:
Right hand drive is optional
The HOWO 4×4 Fire Tender is a multifunctional emergency rescue vehicle modified on the SINOTRUK HOWO chassis, seamlessly integrating the capabilities of both a fire truck and a water tanker. Featuring a 4×4 drive system, it delivers outstanding off-road performance and robust operational efficiency. With overall dimensions of 7200×2350×2900mm and a 3400mm wheelbase, the vehicle ensures stability while maintaining excellent urban maneuverability. As a medium-duty special-purpose vehicle with a GVW of 11,200kg, its 4,800kg curb weight reflects a well-balanced distribution, supported by a 4,000kg front axle and a 7,200kg rear axle, ensuring reliability across various operational scenarios.
Exceptional Power and Chassis Configuration
Powered by a Yuchai YC4E160-33 diesel engine, this HOWO 4×4 Water Tender delivers a robust output of 118kW (160 horsepower). Paired with a WLY 6-speed forward + 1 reverse gear transmission, it ensures smooth and efficient power delivery, achieving a top speed of 85km/h for rapid emergency response. The chassis features a 9/11+8 multi-leaf spring suspension system and 8.25R20 tires, guaranteeing stability on challenging terrain. A large 150L fuel tank supports extended operations, while the double-row cab design enhances comfort and accommodates more personnel for coordinated tasks.
Professional Firefighting System and Large-Capacity Water Tank
As a specialized firefighting apparatus, the HOWO 4×4 water fire tender is equipped with a massive 8,000L carbon steel water tank, treated with advanced anti-corrosion technology and reinforced with anti-slosh baffles to ensure water quality and driving safety. The core of its firefighting system is the CB10/30 centrifugal fire pump, boasting an impressive flow rate of 30L/s and a working pressure of 1MPa. With a suction depth of ≥7 meters and a priming time under 45 seconds, it enables rapid fire suppression deployment. The PS30 fire monitor achieves a range exceeding 55 meters, featuring 360° horizontal rotation and -30° to 80° elevation adjustment for extensive coverage. These professional configurations allow the vehicle to handle daily tasks like road sprinkling and dust control while serving as a critical emergency response tool for firefighting.
Versatile Applications and Structural Features

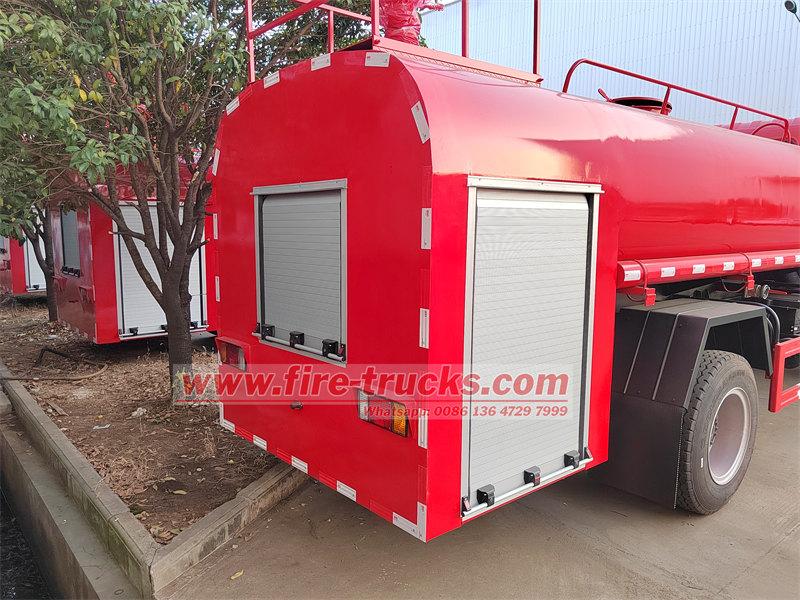

The HOWO 4×4 Firefighting Water Tanker is designed for diverse applications, making it ideal for industrial parks, forest protection, and urban firefighting. Its welded tank structure is available in optional stainless steel for enhanced durability, while the equipment compartment features aluminum roll-up doors for both aesthetics and practicality. Compact yet fully functional, the vehicle integrates three core components: the water tank, fire pump, and fire monitor. For daily use, it performs tasks such as road cleaning, greenery irrigation, and construction site dust suppression. In emergencies, it transforms into a professional firefighting unit, capable of initial fire suppression and fire scene water supply. This "multi-purpose" design significantly improves equipment utilization while reducing procurement and maintenance costs.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Speicifications
|
HOWO 4×4 Water Tender Fire Truck Parameters |
|||
|
General |
Vehicle Model |
PT5110GSS |
|
|
Vehicle Brand |
POWERSTAR |
||
|
Chassis Brand |
SINOTRUK HOWO |
||
|
Overall Dimension (mm) |
7200×2350×2900 |
||
|
GVW (kg) |
11200 |
||
|
Curb Weight (kg) |
4800 |
||
|
Chassis Parameters |
|||
|
Cab |
Type |
Double row cabin |
|
|
Number of seats |
2+3 |
||
|
Engine |
Fuel Type |
diesel |
|
|
Engie Model |
YC4E160-33 |
||
|
Engine Brand |
YUCHAI |
||
|
Power(kw/hp) |
118/160 |
||
|
Displacement (cc) |
4257 |
||
|
Emission Standard |
Euro 3 |
||
|
Gearbox |
Model |
WLY |
|
|
Number of gears |
6-speed forwards, 1 speed reverse |
||
|
Chassis |
Drive Type |
4*4 |
|
|
Wheelbase(mm) |
3400 |
||
|
Front/rear axle load (kg) |
4000/7200 |
||
|
Number of leaf springs (pcs) |
9/11+8 |
||
|
Tyre Specification |
8.25R20 |
||
|
Tyre No. (pcs) |
6+1 |
||
|
Max Speed(km/h) |
85 |
||
|
Fuel tank (L) |
150 |
||
|
Superstructure Parameters |
|||
|
Water tank |
Capacity |
8000 liters |
|
|
Material |
Carbon steel |
||
|
Fire pump |
Type |
Centrifugal pump |
|
|
Model |
CB10/30 |
||
|
Flow (L/s) |
30 |
||
|
Pressure (Mpa) |
1 |
||
|
Suction depth |
≥ 7 m |
||
|
Water Suction Time |
≤45 s |
||
|
Fire monitor |
Model |
PS30 |
|
|
Flow(L/s) |
30 L/s |
||
|
Range(m) |
≥55 m |
||
|
Swing angle |
Horizontal |
360 ° |
|
|
Pitch angle |
-30°~80° |
||

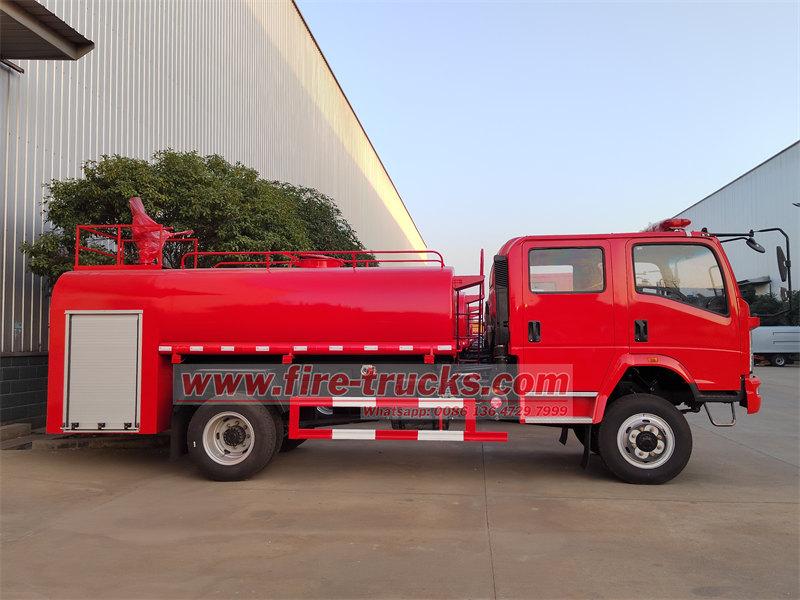

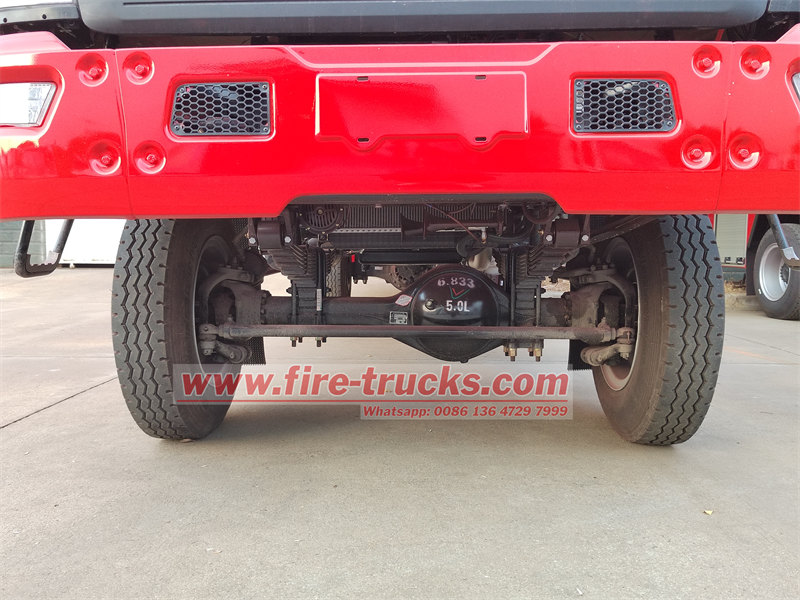

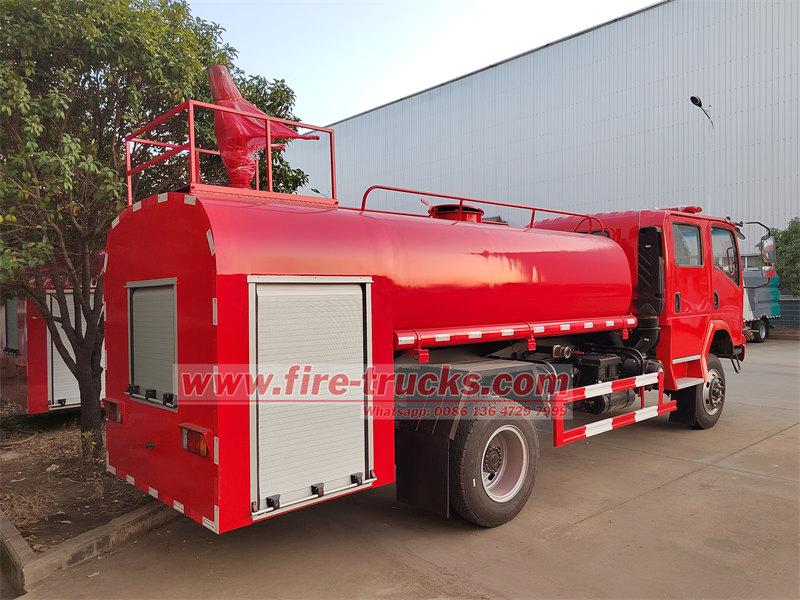

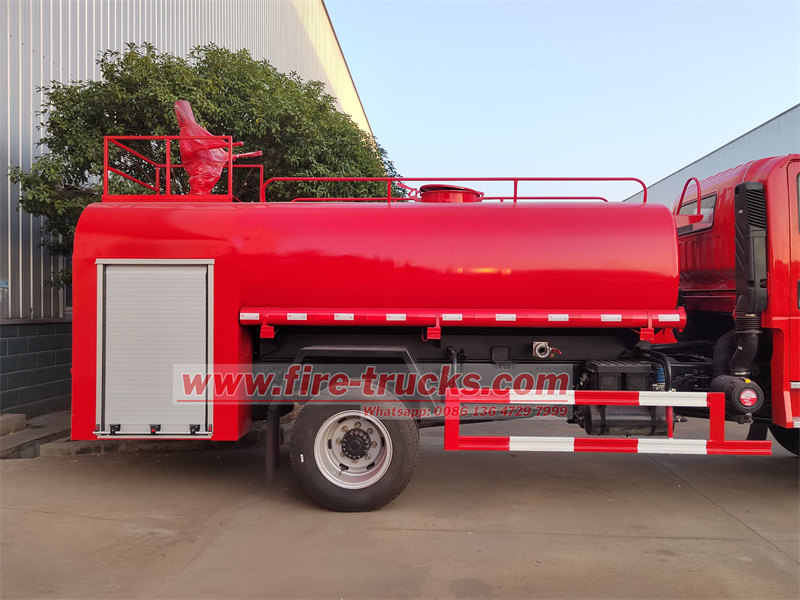

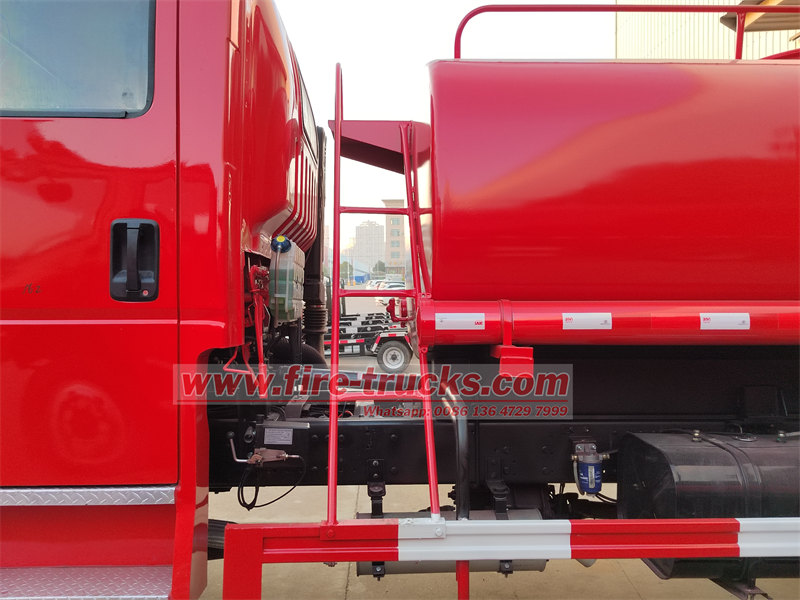

Product Pictures
