HOWO heavy fire truck with Darley pump

HOWO heavy fire truck with Darley pump

The HOWO 8×4 Heavy-duty Foam Fire Truck is a professional-grade firefighting apparatus built on the SINOTRUK HOWO special chassis, powered by a 380-horsepower Weichai engine with a top speed of 90 km/h. It features a 20m³ water tank (made of anti-corrosion carbon steel) and a 4m³ foam tank (constructed with 304 stainless steel). Core components include an American Darley fire pump and an AKRON fire monitor. The tank is equipped with anti-slosh structures, a liquid level display, and quick-access maintenance ports. Designed for extinguishing large-scale fires in petroleum, chemical, and other industrial facilities, it is a reliable choice for professional firefighting teams.

  • Truck Model:

    PT5420GFXPMZ6
  • Tanker Structure:

    Carbon steel and stainless steel
  • Work capacity :

    20000L water tank and 4000L foam tank
  • Wheelbase:

    1950+4600+1350 mm
  • Axle drive:

    8×4
  • Engine Power:

    380 HP
  • Engine Model:

    WP10.380E32
  • Fire Pump:

    Darley KSP1000
  • Fire Monitor:

    AKRON 3626
  • Remark:

    Stainless steel water tank is optional
Facebook Linkedin Youtube Twitter Pinterest

The HOWO 8×4 Heavy-duty Fire Truck is a specialized firefighting apparatus designed for large-scale fire suppression, integrating high-capacity firefighting agent storage with an efficient discharge system. Built on the SINOTRUK HOWO special chassis, the vehicle measures 11,850 × 2,550 × 3,630 mm and adopts an 8×4 drivetrain configuration. Powered by a 380 HP Weichai WP10 engine paired with a 10-speed transmission, it achieves a maximum speed of 90 km/h. The front axle (7.5-ton capacity) and rear axle (13-ton capacity) load distribution, combined with 12.00R20 large tires, ensures stable operation under heavy loads. The single-row cab is equipped with air conditioning, providing a comfortable working environment for firefighters.

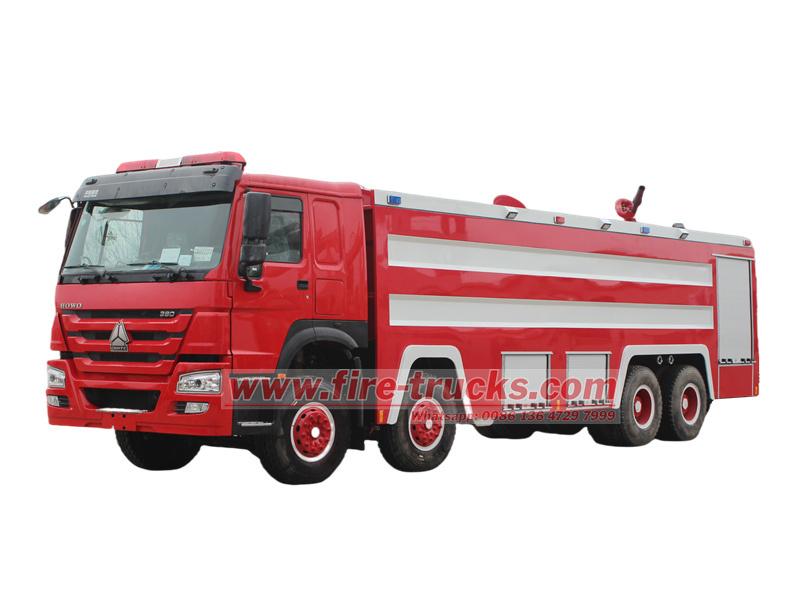

HOWO 8×4 24000L fire tanker truck

The HOWO heavy-duty fire tender truck boasts a total tank capacity of 24 cubic meters, including a 20m³ water tank and a 4m³ foam tank. The water tank is constructed from high-quality Q235 carbon steel plate with advanced anti-corrosion treatment, ensuring durability and extended service life. The foam tank is made of 304 stainless steel plate, also treated with anti-corrosion technology to maintain foam stability. The tank adopts a welded frame structure with internal longitudinal and transverse anti-slosh baffles, minimizing liquid impact during movement and enhancing driving safety. The front and rear walls feature trapezoidal reinforcement ribs for added strength and rigidity. A quick-opening manhole on the tank roof facilitates maintenance and inspection. Inside, a vortex prevention device and filter screen optimize pump efficiency, while a stainless-steel float-type level indicator allows real-time monitoring of firefighting agent volume via the dashboard. A ball-valve-equipped drain port at the bottom enables periodic cleaning.

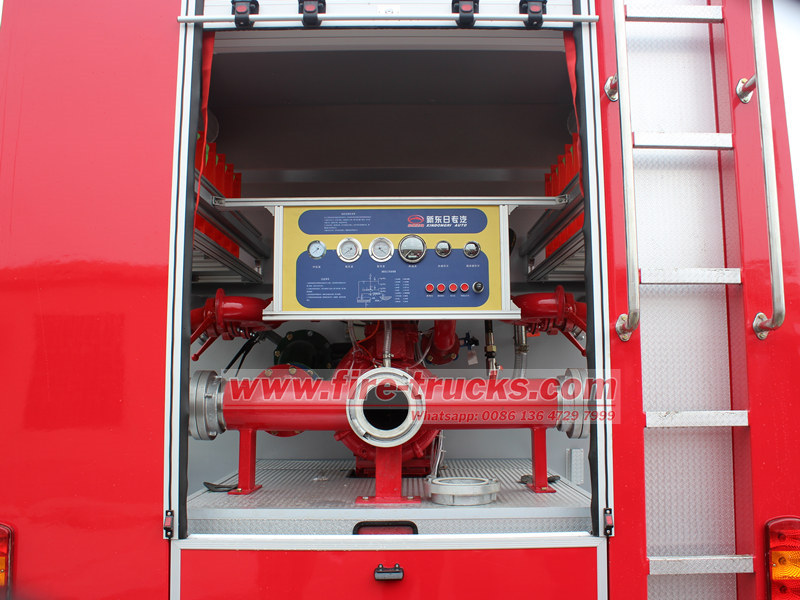

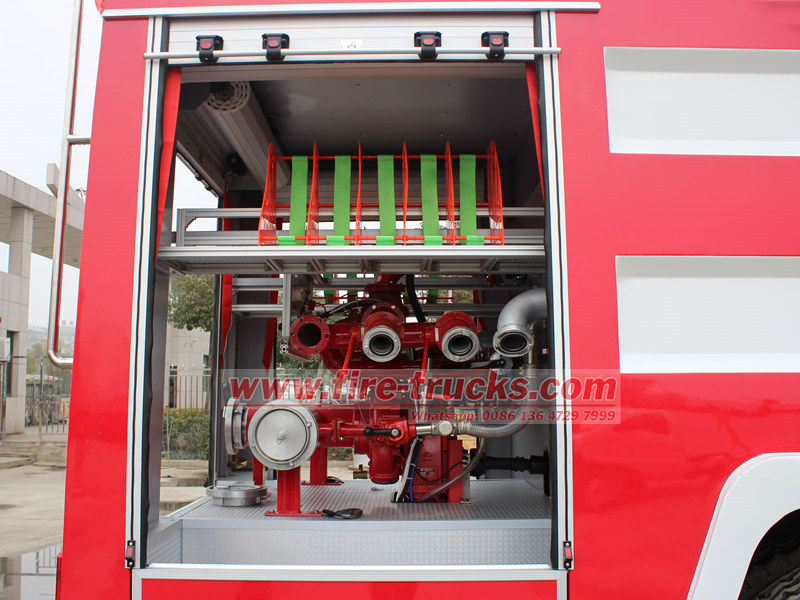

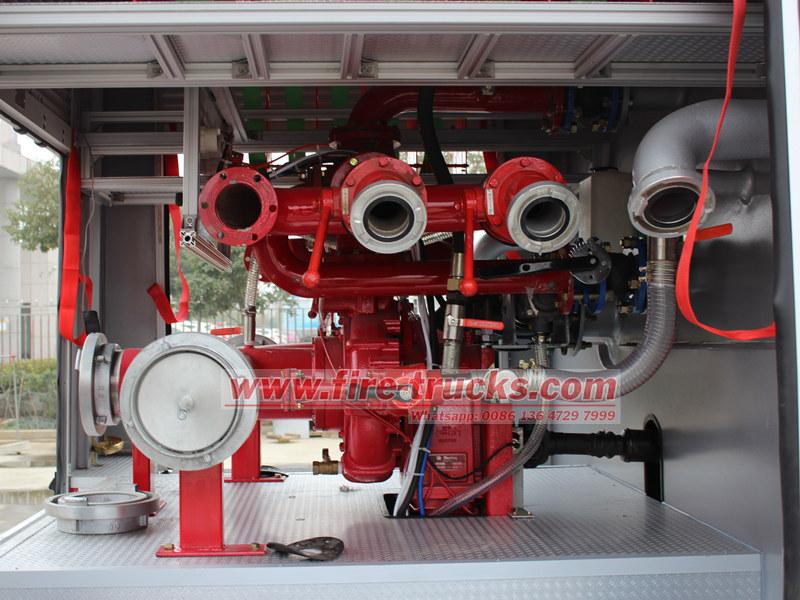

The fire pump and monitor are critical components of the firefighting system. This HOWO 8×4 foam fire engine is equipped with an American Darley KSP1000 fire pump, a single-stage centrifugal pump driven by PTO, delivering outstanding performance. It achieves a flow rate of 65L/S at 1.0MPa and 32.5L/S at 2.0MPa, providing robust water supply for firefighting operations. The AKRON Model 3626 fire monitor delivers a flow rate of up to 3,800 LPM, with a water jet range exceeding 75 meters and a foam jet range of over 70 meters. Its 360° horizontal rotation and -30° to 80° vertical elevation allow flexible firefighting coverage from various angles and distances, ensuring effective suppression of large-scale fires.



● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service



HOWO 24000L heavy duty fire tender



Product Specifications



Product name

HOWO 8×4 heavy tanker fire truck

Chassis

Brand

SINOTRUK

Model

HOWO

Curb weight(kg)

17750

Wheelbase(mm)

1950+4600+1350 mm

Dimensions(mm)

11850*2550*3630 mm

Overhang (front/rear) (mm)

1500/2420 mm

Wheel track (front/rear) (mm)

2110/2110; 1830/1830 mm

Approach/Departure angle(°)

19/11°

Axle Load(kg)

7500/7500;13000/13000

Max. driving speed(km/h)

90 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake;
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels;

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Number

10pcs with one spare tire

Specifications

12.00R20

Gear box

HW13710, Manual type, 10 Forwards & 2 Reverses

Cabin

Single row, with Air conditioner

Engine

Brand

WEICHAI

Model

WP10.380E32

Fuel type

Diesel

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Displacement(ml)

9726 ml

Power(kw)

280kw

Horsepower(HP)

380 HP

Emission standard

Euro 3

Rated speed (rpm)

2200

Max. torque (N.m)

1600 N.m

Superstructure

Water tank

Volume

20000 liters

Tank Material

Q235 Carbon steel

Foam tank

Volume

4000 liters

Tank Material

Stainless steel

Proportion control system

Foam vessel, proportioned equipment, water - entering pipe and liquid - out pipe etc

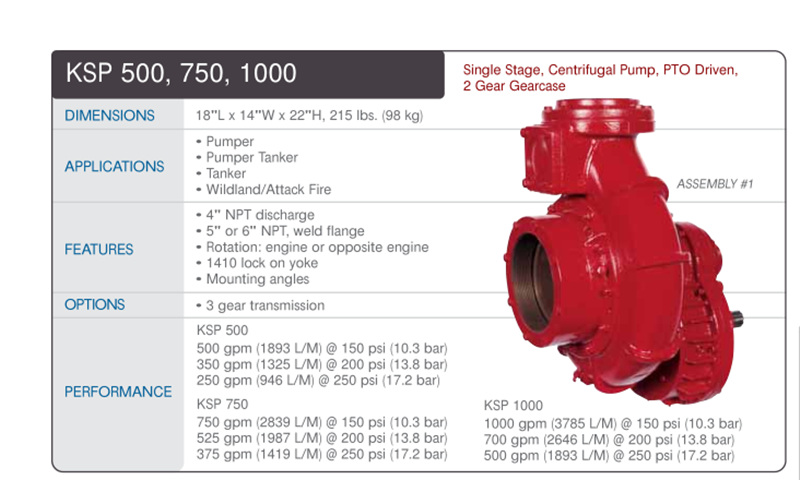

Fire pump

Type

Single stage, Centrifugal pump, PTO driven

Brand

Darley (American imported)

Model

KSP1000

Flow(L/s)

65L/S @1.0 MPa

32.5L/S@2.0 Mpa

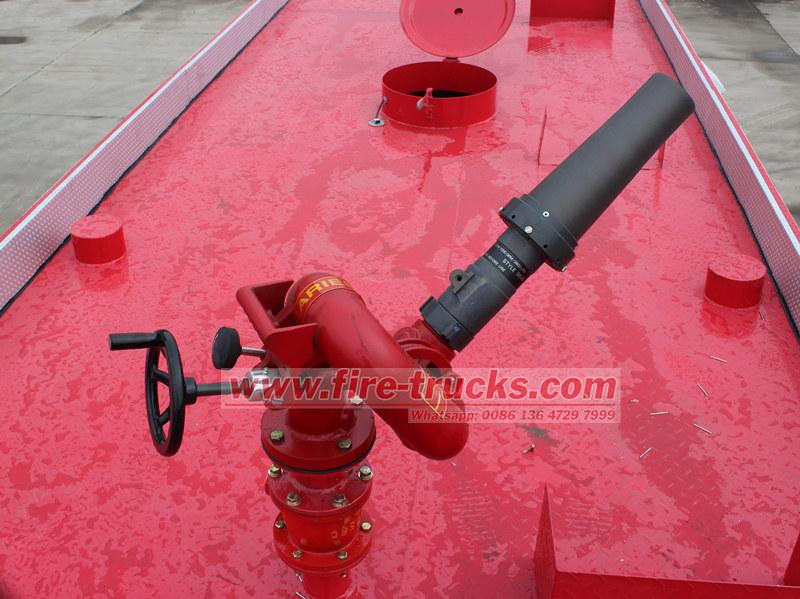

Fire monitor

Brand

AKRON

Model

3626

Flow

3800 LPM

Water Range(m)

≥75 m

Foam Range(m)

≥70 m

Swing angle

Horizontal

360 °

Tilt angle

-30°~80°





HOWO fire truck with Darley pump



Product Advantages



Compared with similar products, the HOWO 8×4 tanker fire truck has the following advantages:

1. Based on HOWO Special Chassis - Superior load capacity and off-road performance
2. Internationally Renowned Firefighting Components - Darley pumps and AKRON monitors ensure reliable performance
3. Optimized Tank Structure - Durable construction with extended service life
4. Ergonomic Control Interface - Designed based on firefighters' operational habits
5. Efficient Maintenance Design - Reduced upkeep costs with user-friendly service points



HOWO 24000L multipurpose fire tender



Product Pictures

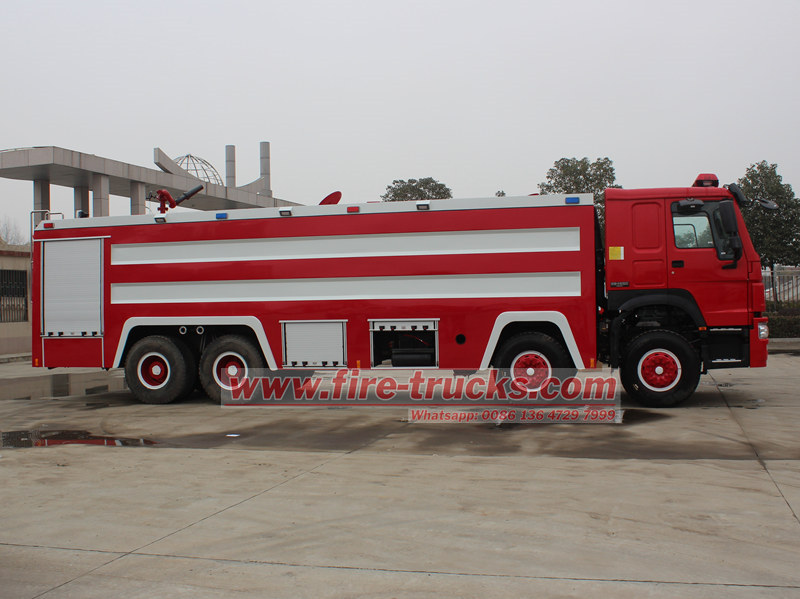

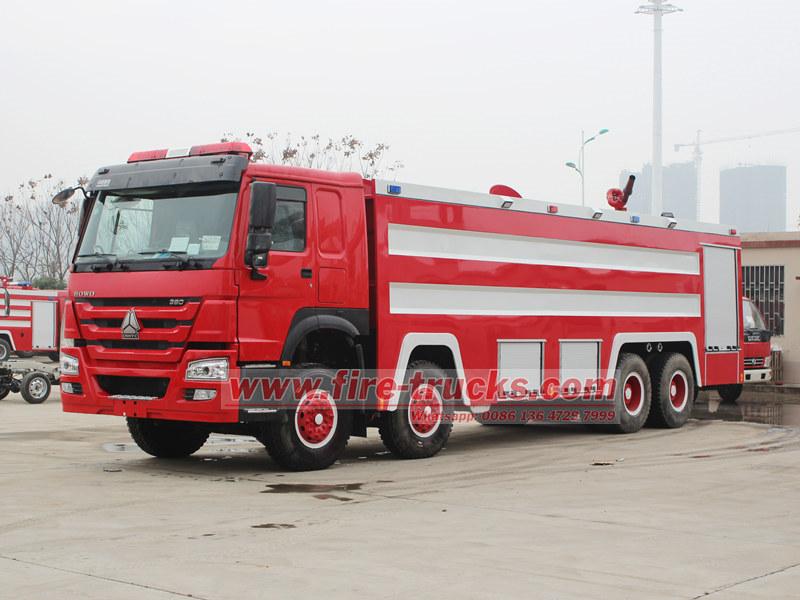

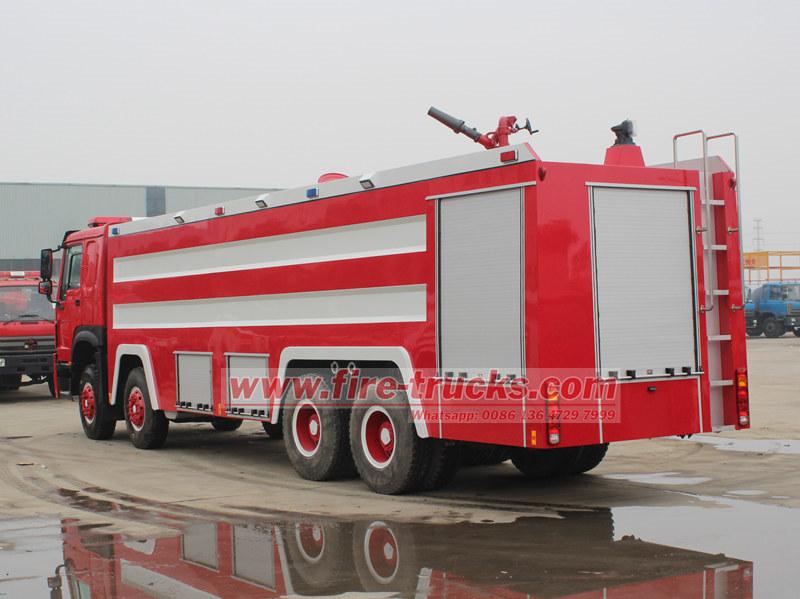

  • HOWO 24 ton tanker fire truck

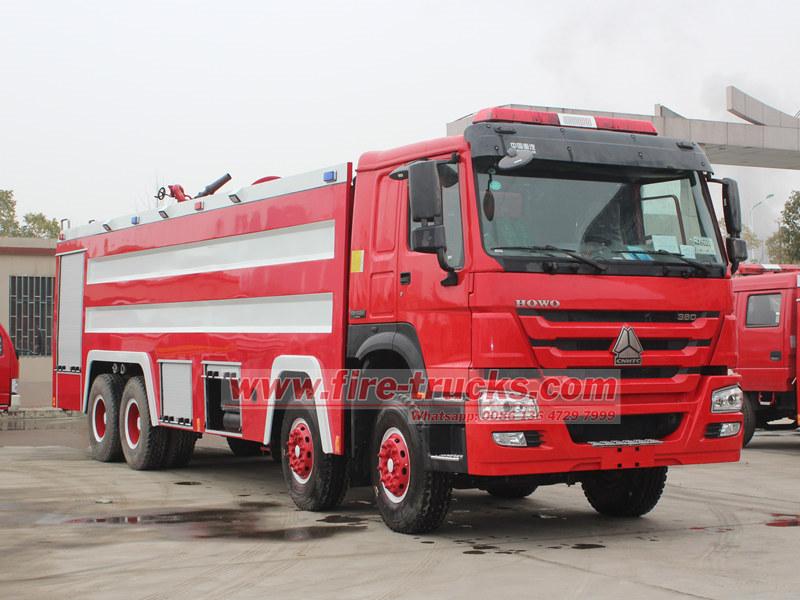

  • HOWO 12 wheeler fire tanker truck
  • HOWO 24000L pumper fire truck
