ISUZU 8000L foam fire fighting truck

The Isuzu GIGA 5cbm fire truck foam tanker is a foam fire truck built on an Isuzu chassis. Equipped with a high-efficiency foam generation system and a large-capacity water/foam tank, it is suitable for scenarios with high firefighting demands, such as industrial parks and airports. Its powerful engine, agile handling, rapid response, strong spray, and reliable durability provide strong support for major fire fighting, improving rescue efficiency and safety.   »Ⅰ. General Parameter :    Working Capacity Engine Model Wheelbase Superstructure 5 CBM 6UZ1, 380 Hp 4600mm ★Stainless Steel tanker body ★China famous CB10/60 water fire pump ★Automatic control fire monitor system     ▪         Chassis:          › Type: ISUZU 5X GIGA chassis for Fire application          › Drive system: 4x2 Left hand drive          › Engine: 380HP 6UZ1-TC (ISUZU) Euro 6          › Gearbox: Fast 12 gears manual 12F and 2R          › Tyre: 295/80R22.5          › Crew cabin: Twin cabin with A/C          › Seats capacity: 2+3 person   ▪         Extinguishing agent tank:          › Foam tank:  5,000L          › Tank material: High quality carbon stell plate          › Tank Manhole:   DN500mm   ▪         Extinguishing system:          › Fire pump:  CB10/60 with 600L/s at 1.0MPa, normal pressure centrifugal pump             › Fire monitor: PL48          › Monitor throw: Water throw≥55meter,  Foam throw ≥48m          › Rotation: 360º rotation; elevation: 0-80°, depression -10°          › Water Pumper Inlet Diameter   1*125 mm          › Water Pumper Outlet Diameter  2*65 mm   ▪         Equipment compartment: › LED lighting in equipment compartment › Each compartment closed by light aluminum roller shutter. › Including customer-specific additional equipment › According to human body engineering principle design all kinds of equipment frames › 1-2 action can take any equipment standing on the ground or pedal   ▪         Painting: › Fire Red: R03 Fire Red › Logo: According to customer wish › Operation Manual:   English or Appointed langauge &nbs...

The Isuzu 4X GIGA 6000L foam fire truck is designed for extinguishing fires involving flammable liquids such as oil and chemicals. Equipped with foam tanks, a fire pump, and a spraying system, it can rapidly form a foam covering to isolate air and suppress reignition. The vehicle is highly mobile and suitable for emergency rescue operations in factories, docks, and urban roads.   »Ⅰ. General Parameter :      Working Capacity Engine Model Wheelbase Superstructure 6 CBM 4HK1, 205 Hp 4500mm ★Stainless Steel tanker body ★China famous CB10/140 water fire pump ★Automatic control fire monitor system     ▪         Chassis:          › Type: ISUZU FTR chassis for Fire application          › Drive system: 4x2 Left hand drive          › Engine: 205HP 4HK1-TC (ISUZU) Euro 6          › Gearbox: MLD 6 gears manual 6F and 1R          › Tyre: 295/80R22.5          › Crew cabin: Twin cabin with A/C          › Seats capacity: 2+3 person   ▪         Extinguishing agent tank:          › Water tank:  5,000 L          › Foam tank:  1,000L          › Tank material: High quality carbon stell plate          › Tank Manhole:   DN500mm   ▪         Extinguishing system:          › Fire pump:  CB10/40 with 40L/s at 1.0MPa, normal pressure centrifugal pump             › Fire monitor: PL32          › Monitor throw: Water throw≥55meter,  Foam throw ≥48m          › Rotation: 360º rotation; elevation: 0-80°, depression -10°          › Water Pumper Inlet Diameter   1*125 mm          › Water Pumper Outlet Diameter  2*65 mm   ▪         Equipment compartment: › LED lighting in equipment compartment › Each compartment closed by light aluminum roller shutter. › Including customer-specific additional equipment › According to human body engineering principle design all kinds of equipment frames › 1-2 action can take any equipment standing on the ground or pedal   ▪         Painting: › Fire Red: R03 Fire Red › Logo: According to customer wish › Operation Manual:   English or Appointed l...

The Isuzu GIGA 6x4 police foam fire truck is a specialized fire truck primarily used for foam firefighting. It is equipped with a foam concentrate tank, a proportioning system, and a high-efficiency fire pump, enabling rapid mixing and spraying of water and foam concentrate in the correct proportions. It supports various nozzle and pipeline operations, and is safe, reliable, and durable.   »Ⅰ. General Parameter :      Working Capacity Engine Model Wheelbase Superstructure 12 CBM 6WG1 , 420 Hp 4800+1370 mm ★Stainless Steel tanker body, SS 306 ★China famous CB10/140 water fire pump ★Automatic control fire monitor system       ▪         Chassis:           › Type: ISUZU 5X GIGA chassis for Fire application           › Drive system: 6x4 Left hand drive           › Engine: 420HP 6WG1-TCG (ISUZU) Euro 6           › Gearbox: 12-speed (Fast technology)           › Tyre: 295/80R22.5           › Crew cabin: Twin cabin with A/C           › Seats capacity: 2+3 person   ▪         Extinguishing agent tank: › Water tank:  8,000 L › Foam tank:  8,000 L › Tank material: High quality carbon stell plate › Tank Manhole:   DN500mm   ▪         Extinguishing system: › Fire pump:  CB10/140 with 140L/s at 1.0MPa, normal pressure centrifugal pump    › Fire monitor: PL64 › Monitor throw: Water throw≥75meter,  Foam throw ≥70m › Rotation: 360º rotation; elevation: 0-80°, depression -10° › Water Pumper Inlet Diameter   1*125 mm › Water Pumper Outlet Diameter  2*65 mm   ▪         Equipment compartment: › LED lighting in equipment compartment › Each compartment closed by light aluminum roller shutter. › Including customer-specific additional equipment › According to human body engineering principle design all kinds of equipment frames › 1-2 action can take any equipment standing on the ground or pedal   ▪         Painting: › Fire Red: R03 Fire Red › Logo: According to customer wish › Operation Manual:   English or Appointed langauge   ▪         Dimensions & weight: › L × ...

The Isuzu mini 600L fire water pickup is a small fire truck based on a pickup truck, combining flexibility and versatility. Equipped with basic firefighting equipment such as a small water tank, fire extinguisher, fire pump, and hoses, it is suitable for areas difficult for large fire trucks to access, such as narrow streets, rural areas, or mountainous regions.   »Ⅰ. General Parameter :      Working Capacity Engine Model Wheelbase Superstructure 600L 4KH1CT6H1, 143Hp 3406 mm ★Stainless Steel tanker body ★JBQ4.5/9 fire pump ★Automatic control fire monitor system     ▪         Chassis:          › Type: ISUZU pick up chassis for Fire application          › Drive system: 4x4 Left hand drive          › Engine: 143HP 4KH1CT6H1 (ISUZU) Euro 6          › Gearbox: MLB 5 gears manual 5F and 1R          › Tyre: 245/70R17LT          › Crew cabin: Twin cabin with A/C          › Seats capacity: 2+3 person   ▪         Extinguishing agent tank:          › Water tank:  500 L          › Foam tank:  100L          › Tank material: High quality carbon stell plate          › Tank Manhole:   DN500mm   ▪         Extinguishing system:          › Fire pump:  JBQ4.5/9           › Fire monitor: PS8/20W          › Rotation: 360º rotation; elevation: 0-80°, depression -10°          › Water Pumper Inlet Diameter   1*100 mm          › Water Pumper Outlet Diameter  2*55 mm   ▪         Equipment compartment: › LED lighting in equipment compartment › Each compartment closed by light aluminum roller shutter. › Including customer-specific additional equipment › According to human body engineering principle design all kinds of equipment frames › 1-2 action can take any equipment standing on the ground or pedal   ▪         Painting: › Fire Red: R03 Fire Red › Logo: According to customer wish › Operation Manual:   English or Appointed langauge   ▪         Dimensions & weight: › L ×  W ×  H =5850*2050*2850 mm › Permissible total ...

The Isuzu 4X GIGA dry powder fire truck is a specialized fire truck designed for extinguishing fires involving flammable liquids, gases, and electrical equipment. Equipped with a large-capacity dry powder tank, a high-efficiency spraying system, and a fire pump, it can rapidly spray dry powder extinguishing agent to suppress combustion reactions, resulting in quick fire suppression.    »Ⅰ. General Parameter :      Working Capacity Engine Model Wheelbase Superstructure 5 CBM 4HK1-TC, 205Hp 4500 mm ★Stainless Steel tanker body, SS 306 ★China famous CB10/40 water fire pump ★Automatic control fire monitor system     ▪         Chassis:          › Type: ISUZU FTR chassis for Fire application          › Drive system: 4x2 Left hand drive          › Engine: 205HP 4HK1-TC (ISUZU) Euro 6          › Gearbox: MLD 6 gears manual 6F and 1R          › Tyre: 295/80R22.5          › Crew cabin: Twin cabin with A/C          › Seats capacity: 2+3 person   ▪         Extinguishing agent tank:          › Water tank:  3,000 L          › Foam tank:  1,000L          › Dry powder tank：1,000L          › Tank material: High quality carbon stell plate          › Tank Manhole:   DN500mm   ▪         Extinguishing system:          › Fire pump:  CB10/40 with 40L/s at 1.0MPa, normal pressure centrifugal pump             › Fire monitor: PL32          › Monitor throw: Water throw≥55meter,  Foam throw ≥48m          › Rotation: 360º rotation; elevation: 0-80°, depression -10°          › Water Pumper Inlet Diameter   1*125 mm          › Water Pumper Outlet Diameter  2*65 mm   ▪         Equipment compartment: › LED lighting in equipment compartment › Each compartment closed by light aluminum roller shutter. › Including customer-specific additional equipment › According to human body engineering principle design all kinds of equipment frames › 1-2 action can take any equipment standing on the ground or pedal   ▪         Painting: › Fire Red: R03 Fire Red › Logo: According to customer wish › Operation ...

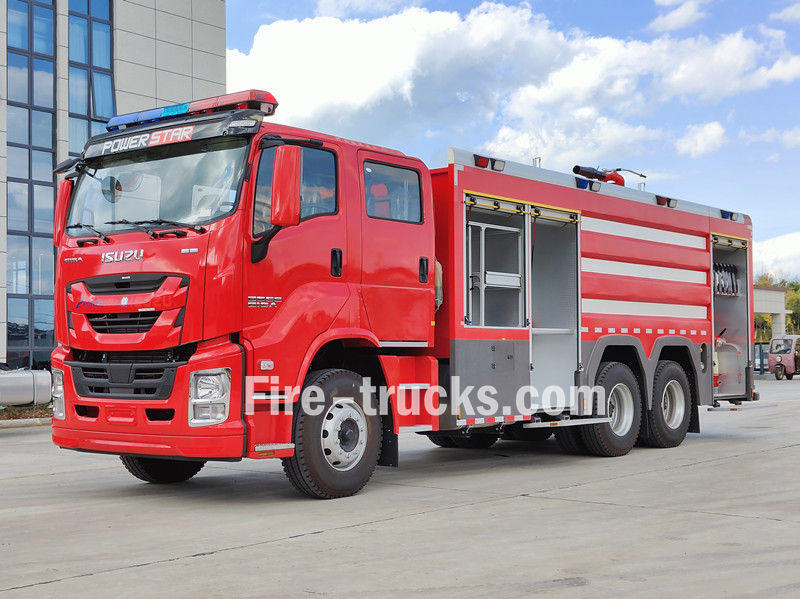

ISUZU FVZ 16 cbm water fire truck, also named as isuzu FVZ water pump fire truck. It plays important role in firefighting and rescue, mainly used for water supply, firefighting and rescue tasks at the fire scene.With 6WG1-TCG60 diesel engine and fast 9 shift transmission,  ISUZU FVZ cabn 16,000 liters fire water tank truck is equipped with carbon steel mateial water tank , which can store almost 16 cbm water to ensure sufficient water supply in fire fighting emergency.   »Ⅰ. General Parameter :    Working Capacity  Engine Model  Wheelbase  Superstructure   16 CBM  6WG1 , 420 Hp     4800+1370 mm  ★Stainless Steel tanker body, SS 306   ★China famous CB10/60 water fire pump  ★China famous Fire monitor  ★2025 year brand new     ▪         Chassis: ▪         › Type: ISUZU FTR chassis for Fire application ▪         › Drive system: 6x4 Left hand drive ▪         › Engine: 420 HP 6WG1-TCG (ISUZU) Euro 6 ▪         › Gearbox: 12-speed (Fast technology) ▪         › Tyre: 295/80R22.5 ▪         › Crew cabin: Twin cabin with A/C ▪         › Seats capacity: 2+3 person   ▪         Extinguishing agent tank: › Water tank:  16,000 L › Foam tank:  NIL › Tank material: High quality carbon stell plate › Tank Manhole:   DN500mm   ▪         Extinguishing system: › Fire pump:  CB10/60 with 60L/s at 1.0MPa, normal pressure centrifugal pump    › Fire monitor: PL48 › Monitor throw: Water throw≥55meter,  Foam throw ≥50m › Rotation: 360º rotation; elevation: 0-80°, depression -10° › Water Pumper Inlet Diameter   1*125 mm › Water Pumper Outlet Diameter  2*65 mm   ▪         Proportioning system: › Type:  PH48 › Normal pressure proportioning ratio:  6%   ▪         Equipment compartment: › LED lighting in equipment compartment › Each compartment closed by light aluminum roller shutter. › Including customer-specific additional equipment › According to human body engineering principle design all kinds of equipment frames › 1-2 action can take any equipment standing on the ground or pedal   ▪         Painting: › Fire Red: R03 Fire Red › Logo: According to customer wish › Op...

Isuzu 5X cabin 8000L foam fire fighting truck is a special vehicle designed for fire fighting and emergency rescue, with multiple functions and features. Its main uses include extinguishing fires, rescuing trapped people, dealing with dangerous chemical leaks and other emergency situations. It is equipped with Isuzu 5X cabin heavy duty truck chassis, with Powerstar updated PP material fire tanker compartment, large capacity fire pump and automatic control fire monitor system, can be widely used in oil field and airport. »Ⅰ. General Parameter :    Working Capacity  Engine Model  Wheelbase  Superstructure   8 CBM  6WG1 , 420 Hp     4800+1370 mm  ★Stainless Steel tanker body, SS 306   ★China famous CB10/60 water fire pump  ★Automatic control fire monitor system     ▪         Chassis: ▪         › Type: ISUZU FTR chassis for Fire application ▪         › Drive system: 6x4 Left hand drive ▪         › Engine: 420 HP 6WG1-TCG (ISUZU) Euro 6 ▪         › Gearbox: 12-speed (Fast technology) ▪         › Tyre: 295/80R22.5 ▪         › Crew cabin: Twin cabin with A/C ▪         › Seats capacity: 2+3 person   ▪         Extinguishing agent tank: › Water tank:  8,000 L › Foam tank:  NIL › Tank material: High quality carbon stell plate › Tank Manhole:   DN500mm   ▪         Extinguishing system: › Fire pump:  CB10/60 with 60L/s at 1.0MPa, normal pressure centrifugal pump    › Fire monitor: PL48 › Monitor throw: Water throw≥55meter,  Foam throw ≥50m › Rotation: 360º rotation; elevation: 0-80°, depression -10° › Water Pumper Inlet Diameter   1*125 mm › Water Pumper Outlet Diameter  2*65 mm   ▪         Proportioning system: › Type:  PH48 › Normal pressure proportioning ratio:  6%   ▪         Equipment compartment: › LED lighting in equipment compartment › Each compartment closed by light aluminum roller shutter. › Including customer-specific additional equipment › According to human body engineering principle design all kinds of equipment frames › 1-2 action can take any equipment standing on the ground or pedal   ▪         Painting: › Fire Red: R03 Fire Red › Logo: According to cu...
