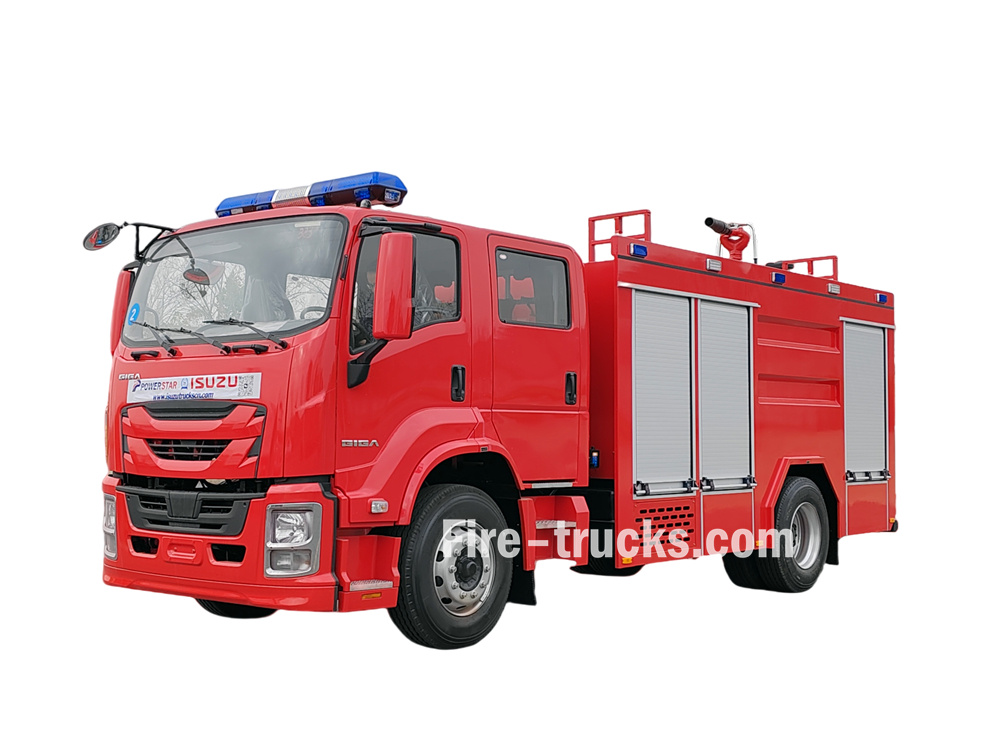

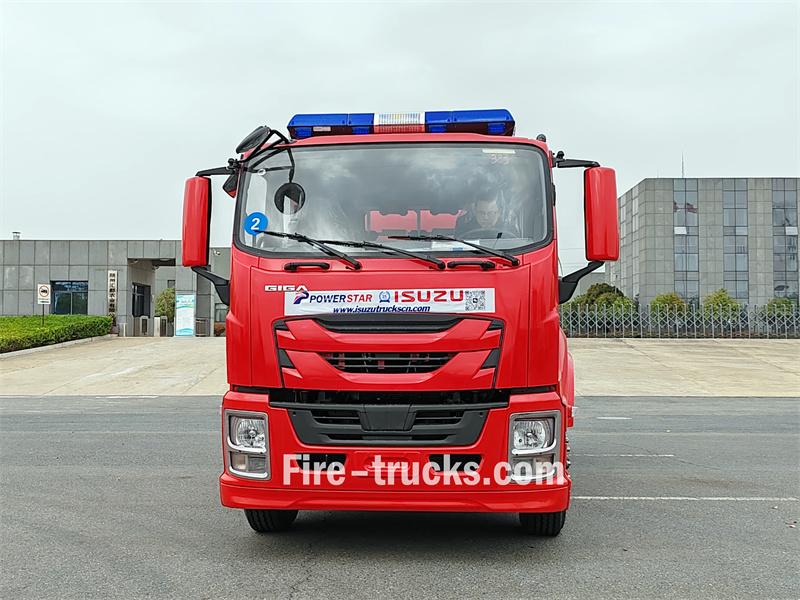

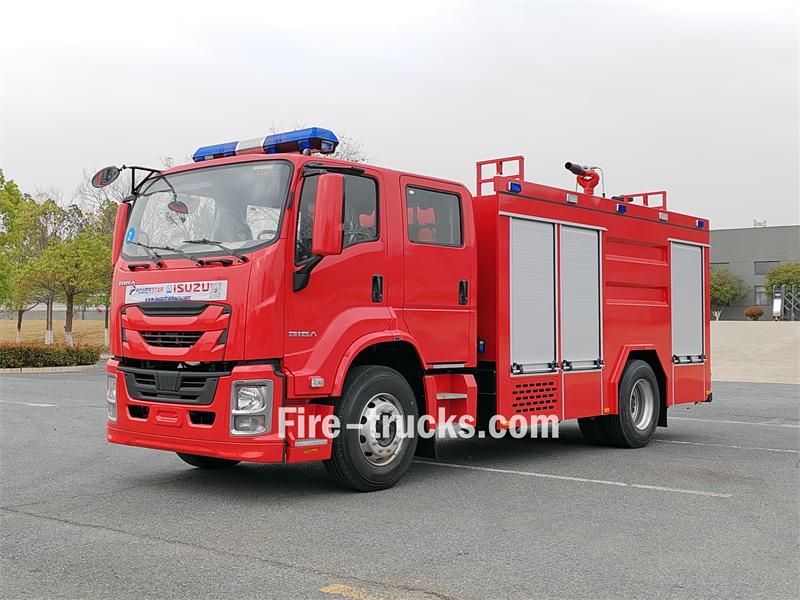

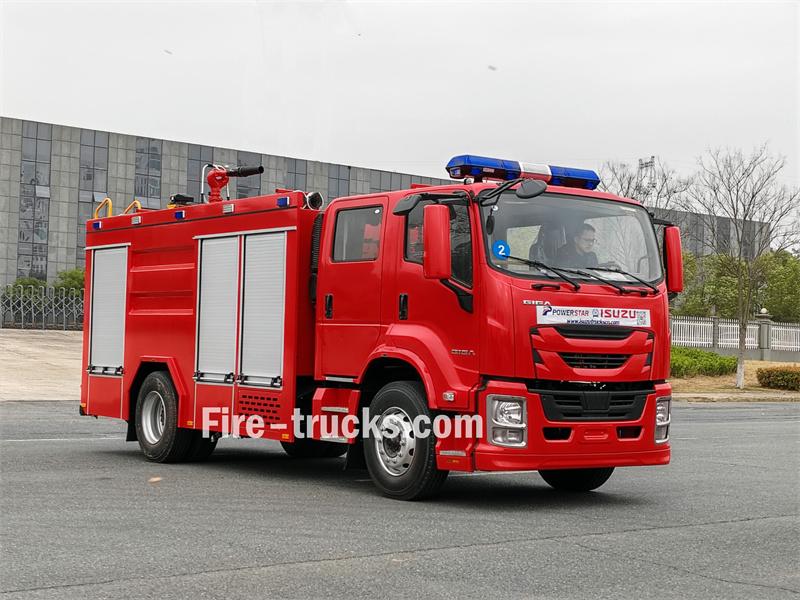

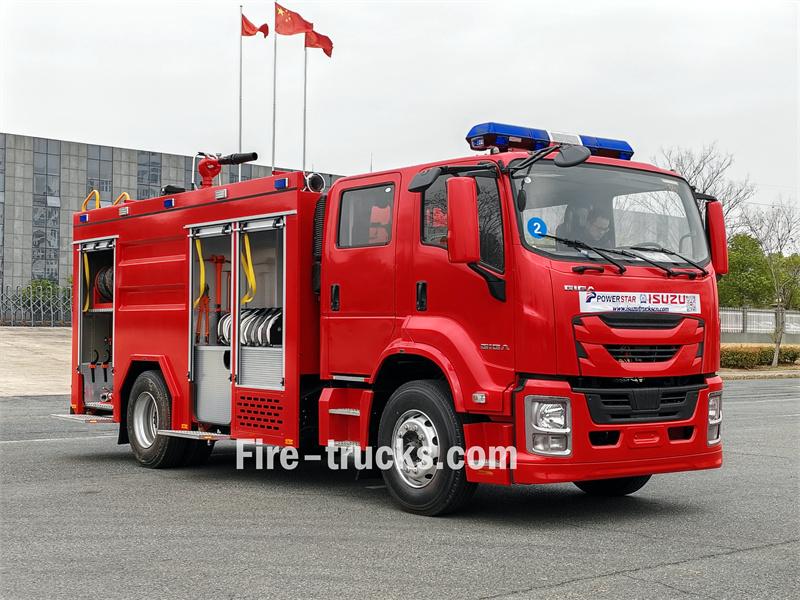

Banama Isuzu FVZ fire truck mounted foam tanker

Banama Isuzu FVZ fire truck mounted foam tanker

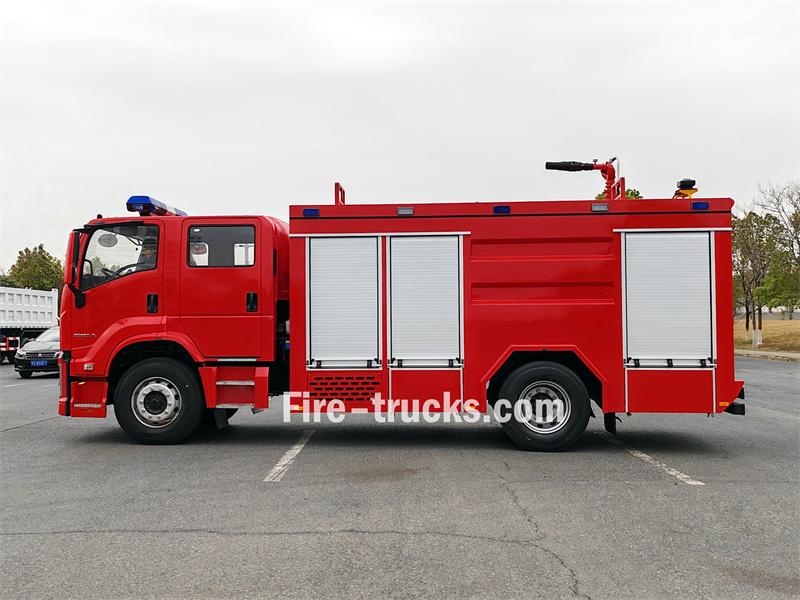

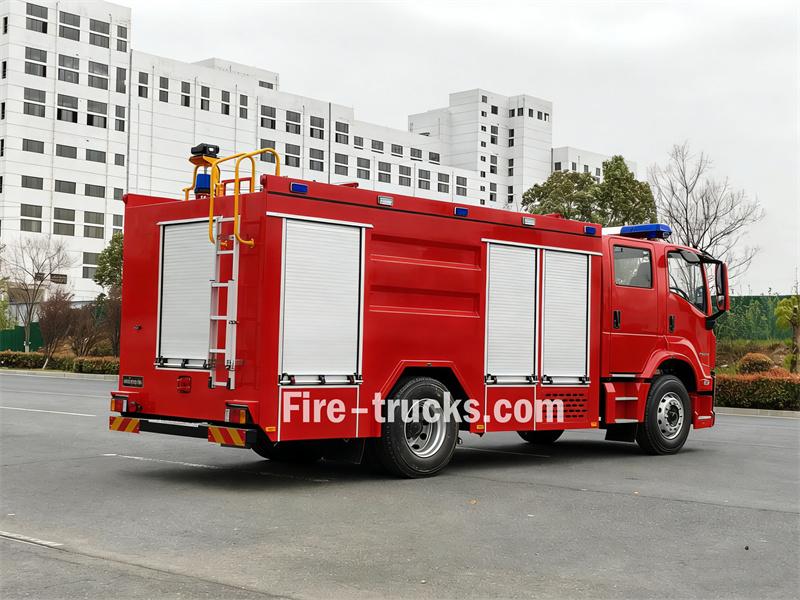

The Isuzu FVZ GIGA 6 cubic meter foam fire truck is based on the Isuzu FVZ GIGA chassis, with a 4500mm wheelbase. It is equipped with an Isuzu 6HK1-TCG60 engine and a Fast 9-speed transmission. The front of the superstructure houses the equipment compartment, the middle section contains a 5000L carbon steel water tank and a 1000L stainless steel foam tank, and the rear is the pump room, equipped with a CB10/40-XZ fire pump, control panel, fire hoses, firefighting equipment, etc. A PL8/32 fire monitor is located on the roof.

  • Truck Chassis:

    ISUZU FVZ GIGA
  • Tanker Capacity:

    5000L water +1000L foam
  • Engine Power:

    300 HP/ 6HK1-TCG60
  • Fire Pump:

    China CB10/40-XZ
  • Pump Flow:

    40L/s
  • Work Pressure:

    1.0 Mpa
  • Fire Monitor:

    China PL8/32
  • Monitor Flow:

    32L/s
  • Monitor Range:

    Water≥60 m,Foam≥48m
Facebook Linkedin Youtube Twitter Pinterest

This article introduces a medium-sized foam fire truck based on the Isuzu FVZ GIGA high-performance chassis. This Banama Isuzu FVZ fire truck mounted foam tanker boasts powerful performance and high functional integration, combining a 5000L water tank and a 1000L stainless steel foam tank. It supports both water and foam firefighting modes and is equipped with a CB10/40 fire pump, PL8/32 fire monitor, and other firefighting equipment. It can remotely and accurately target fire sources with rapid response, making it suitable for rapid firefighting and initial control of fires in urban communities, towns, industrial parks, and common chemical fires.



   ♦ Banama Isuzu FVZ Fire Truck Mounted Foam Tanker ♦

Banama Isuzu FVZ fire truck mounted foam tanker

Working Capacity

 Engine Model

 Wheelbase

 Superstructure

5000L water+1000L foam

 6HK1/ 300HP

 4500mm

★Water tank carbon steel

★Foam tank 304 stainless Steel,

China famous CB10/40-XZ fire pump

 China famous PL8/32 Fire monitor

2025 year brand new



»Ⅰ. Main Features :



★ Isuzu 300HP powerful engine, 100,000 Km without prblem.

★ Isuzu FVZ GIGA 4x2 crew cabin,  Europen design

★ China famous CB10/40 fire pump, super reliable

★ Tank capacity can be customized
  • Isuzu FVZ GIGA 6 cbm foam fire truck
  • Isuzu FVZ GIGA 6CBM foam fire fighting truck
  • Isuzu GIGA 6000L water foam fire rescue truck

 » Ⅱ.Product Parameter :


ISUZU FVZ GIGA 6000L foam water fire truck

General

Work capacity

5000L water tank,1000L foam tank

Truck chassis

Isuzu FVZ GIGA 4X2

Engine Power

300 HP/ Isuzu 6HK1-TCG60

Fire pump

CB10/40-XZ

Chassis

Drive Type

4X2

Transmission

FAST 9-shift, manual

Wheelbase

 4500mm

Tire

Front 385/65R22.5,rear 315/80R22.5,6+1wheel





Fire pump

Model

CB10/40-XZ

Pressure

1MPa

Max working pressure

1.100MPa

Max allowable inlet pressure

0.4MPa

Flux

40L/s

Max suction height

7m

Rated speed

2825±50r/min

Water diversion time

35s

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/32

Flow

32L/s

Rated working pressure

0.8MPa

Max working pressure

1.0MPa

Range

Water

60m

Foam

48m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

Fire hose reel

JPSC2.5-25 30m,2.50MPa

Suction tube

125*2m,4pic

 Standard  configuration

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……


-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)




Chassis System

Model: Isuzu FVZ GIGA series dedicated chassis.



Wheelbase: 4500mm.



Engine: Equipped with a genuine Isuzu 6HK1-TCG60 diesel engine, 300HP/221Kw, 7790ml displacement.



Transmission: Matched with a Fast 9-speed manual transmission. The gears are reasonably set, with a wide speed ratio range and efficient power transmission.



Banama Isuzu FVZ GIGA 6 cbm foam fire truck



» Ⅲ. Fire Pump system :

Fire Pump:

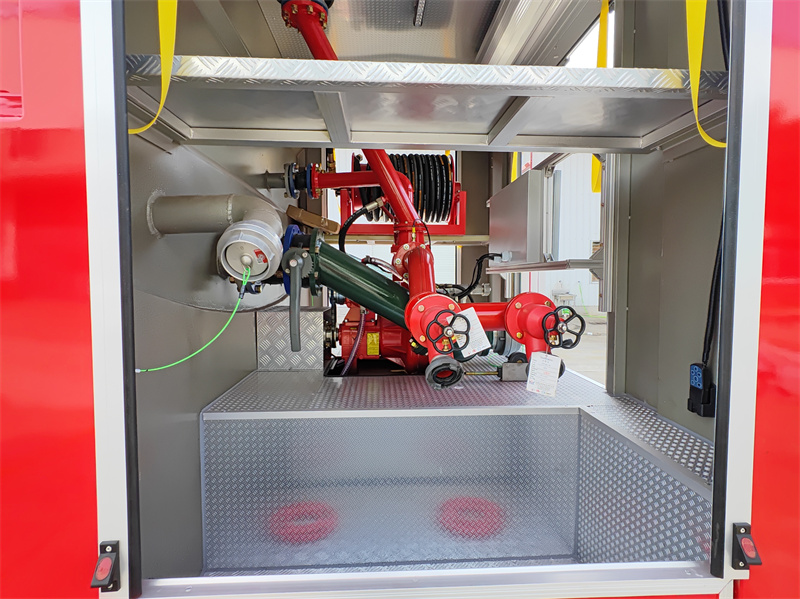

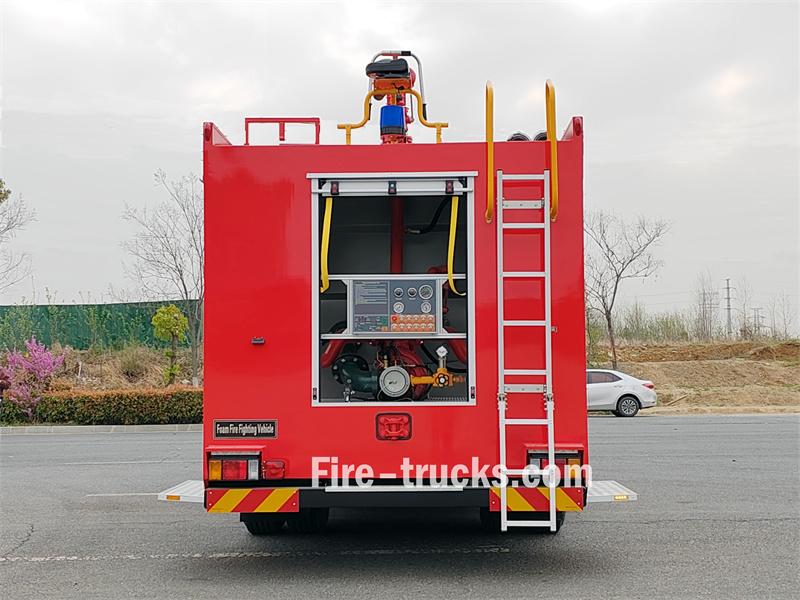

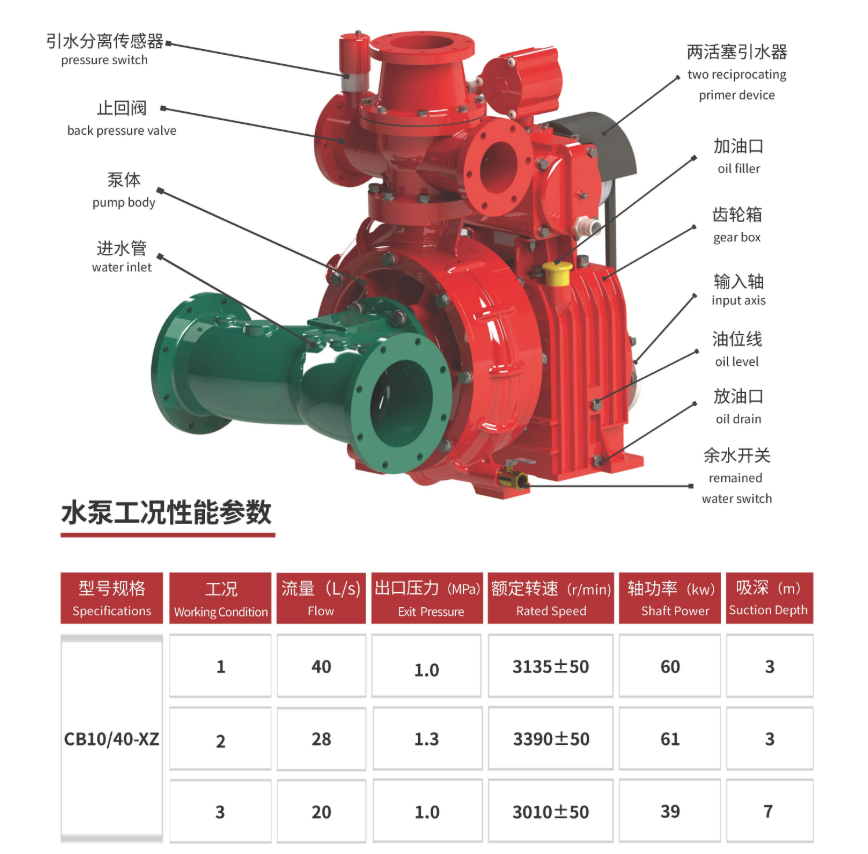

 The tail pump room integrates a CB10/40-XZ type fire pump with a rated flow rate of 40L/s@1.0MPa and a maximum suction depth of 7m. It features stable and reliable performance, suitable for both medium-pressure long-distance water supply and conventional low-pressure firefighting operations.



Integrated foam proportioning system with a mixing ratio of 6% is also included, suitable for Class B foam concentrates.





CB10/40-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/40-XZ

40L/s

1.0MPa

1.100MPa

0.4MPa

  • CB10/40-XZ fire pump
  • CB10/40-XZ fire pump
  • CB10/40-XZ fire pump

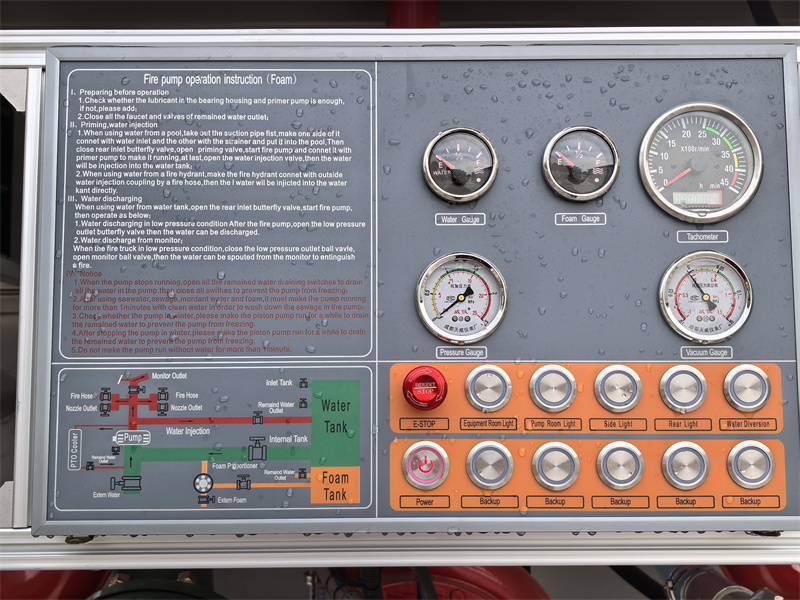

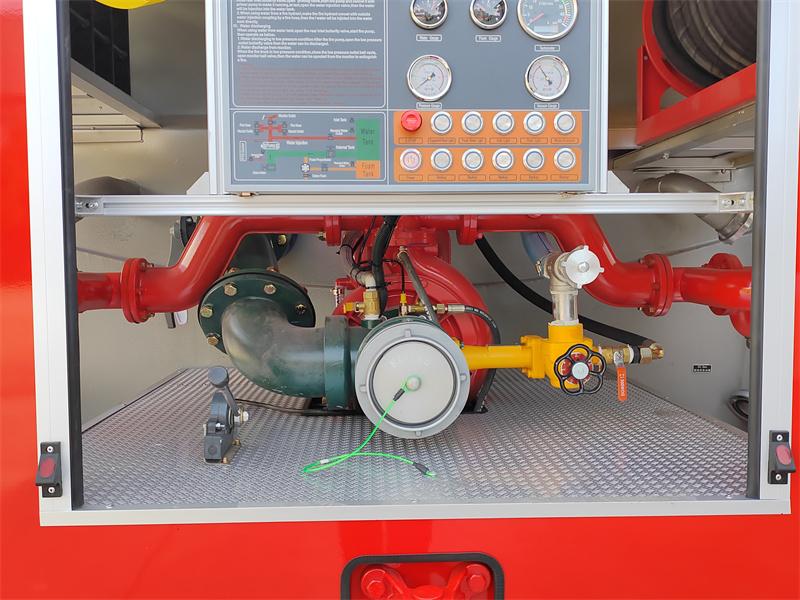

Control panel: Integrates tachometer, vacuum gauge, pressure gauge, foam level gauge, water level gauge, operating instructions, pipeline diagram, PTO indicator light, equipment box light, vacuum pump switch, external light switch, main power switch, electronic throttle control, emergency stop switch and other buttons.





Control panel



» . Fire Monitor system :

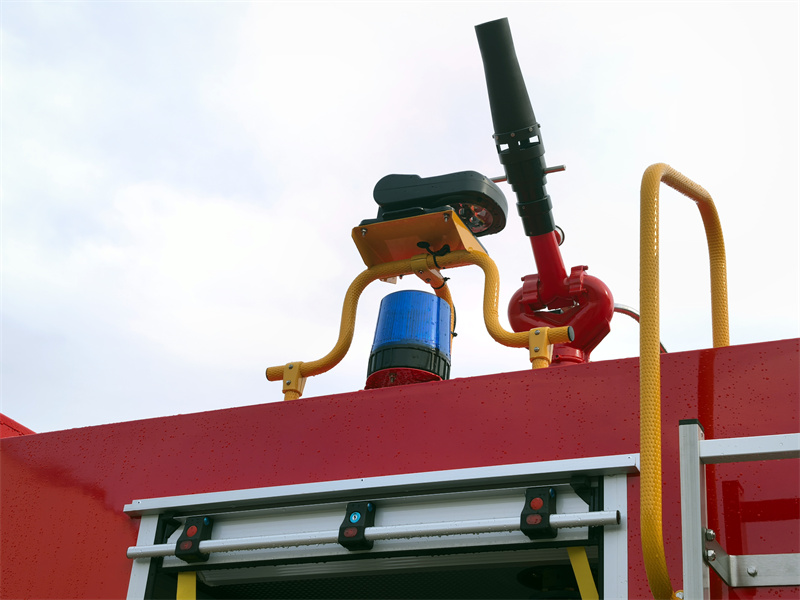

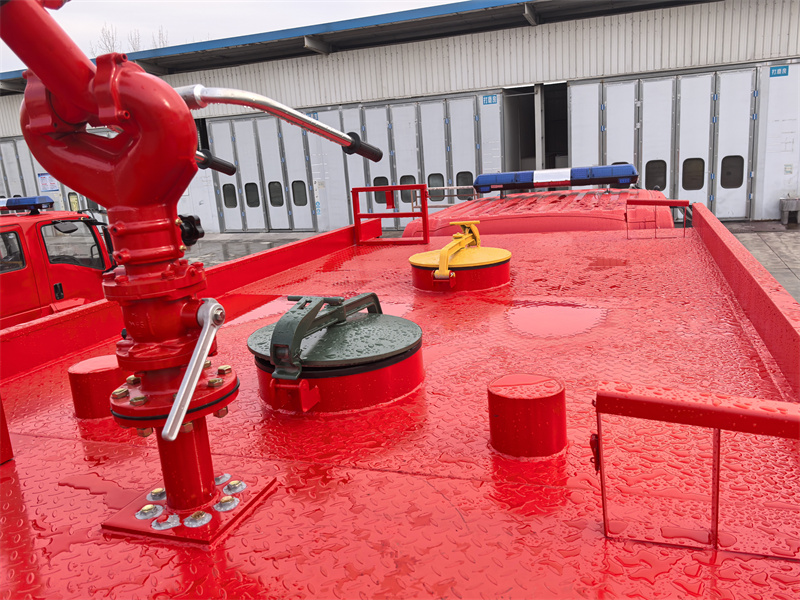

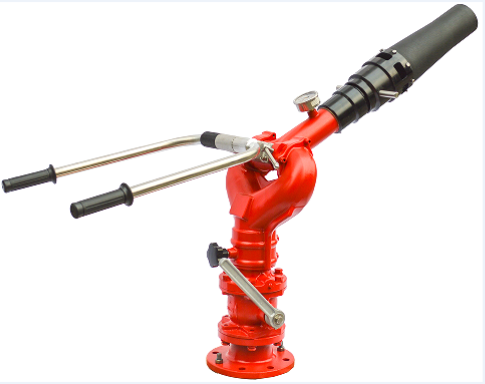

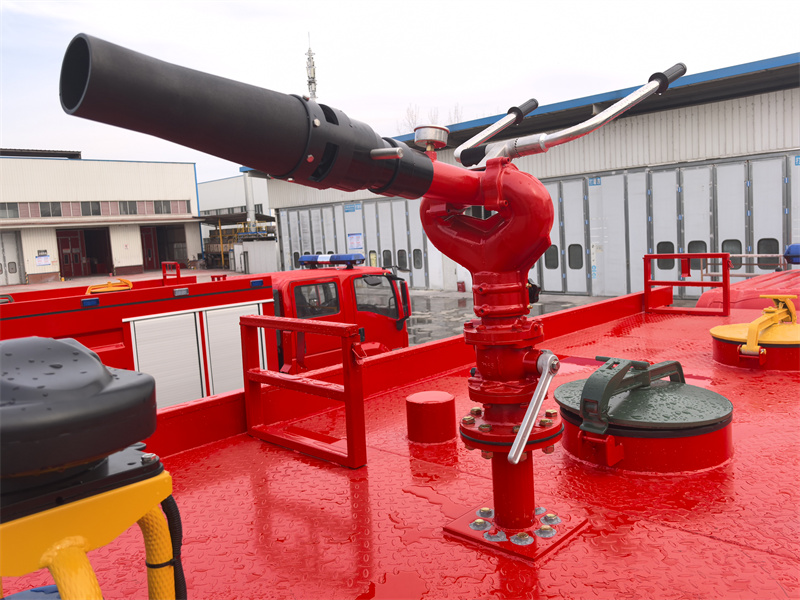

A PL8/32 type fire monitor is mounted on the top of the vehicle, with a flow rate of 32L/s@0.8MPa, an elevation range of -45° to +70°, and a 360° horizontal rotation. This monitor has a large flow rate and long range, and can achieve multiple spray modes such as direct current and mist.



PL8/32 fire monitor

PL8/32 fire monitor

Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/32 32L/s

Water ≥60m,

foam ≥48m

0.80MPa -45°~+70°
0~360° 23kg

  • PL8/32 fire monitor
  • PL8/32 fire monitor
  • PL8/32 fire monitor





» .Firefighting Equipment:



Equipment Storage: The front equipment room features a fully enclosed aluminum alloy roller shutter door design, allowing for the organized storage of various firefighting equipment, such as fire hoses, fire axes, shovels, picks, fire extinguishers, fire suits, and hose bridges, facilitating quick access for firefighters.



Equipment Room

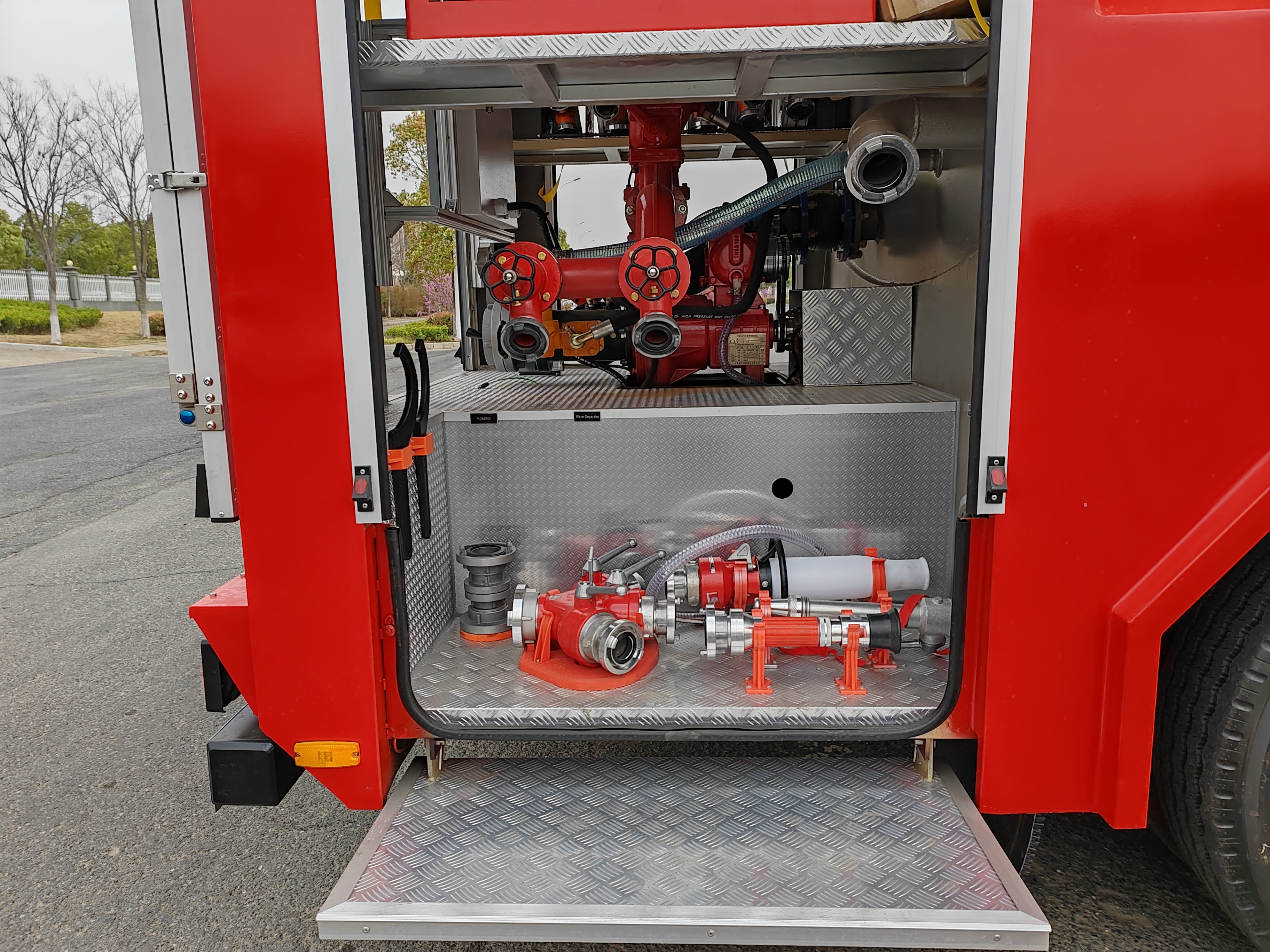

The pump room is also equipped with fire hoses, reels, nozzles, foam guns, water collectors, distributors, and filters.



Firefighting Equipment



Firefighting Equipment



» .Technical Design:



 POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

ISUZU FVZ GIGA 6000L foam water fire truck technical drawing



» .Preshippment Test:

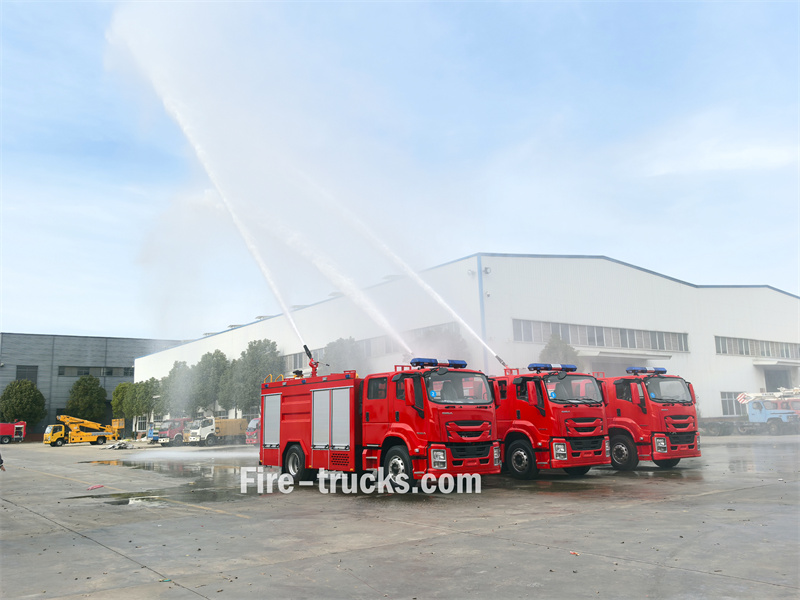

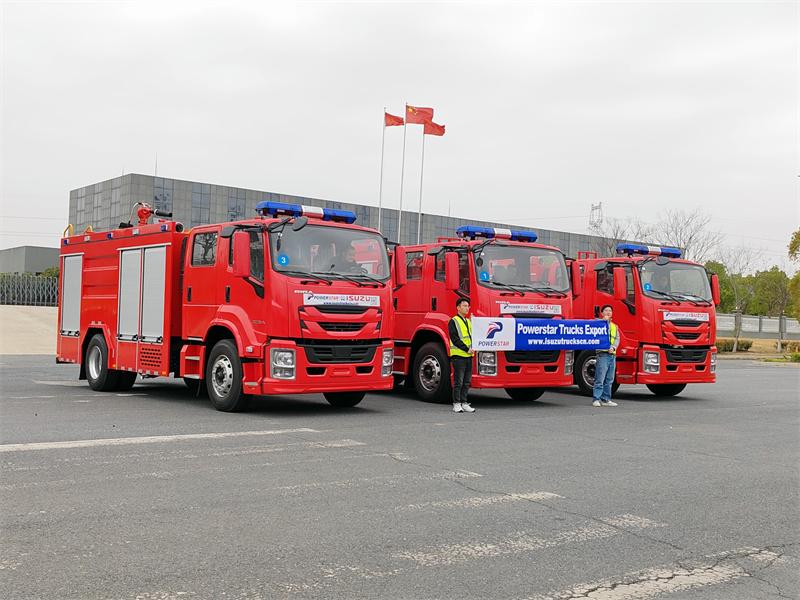

Before delivering the Banama Isuzu FVZ 6HK1 engine fire tender from our factory, we conducted a factory inspection of the fire truck, including rainwater testing, performance testing of the fire pump and fire monitor, and a final inspection of the welding process, paint, and other aspects.

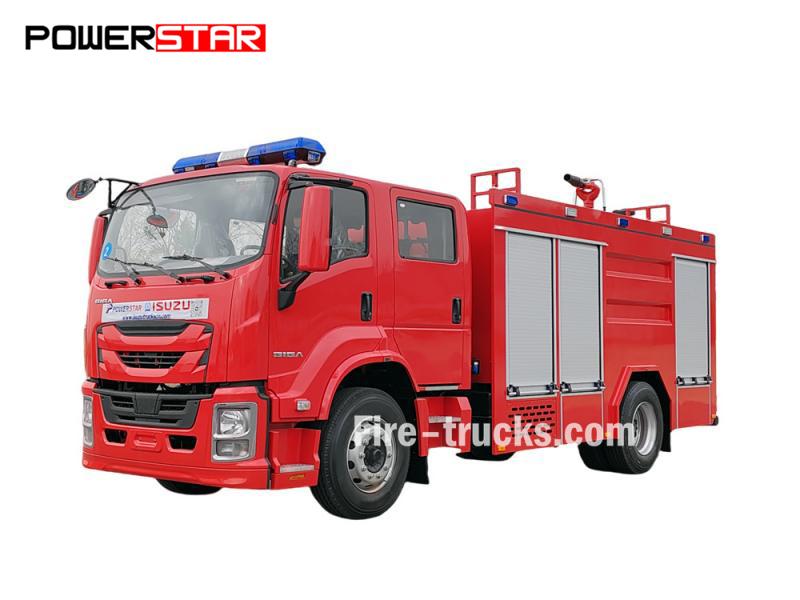

Banama Isuzu FVZ 6HK1 engine fire tender



» . Application scenarios:

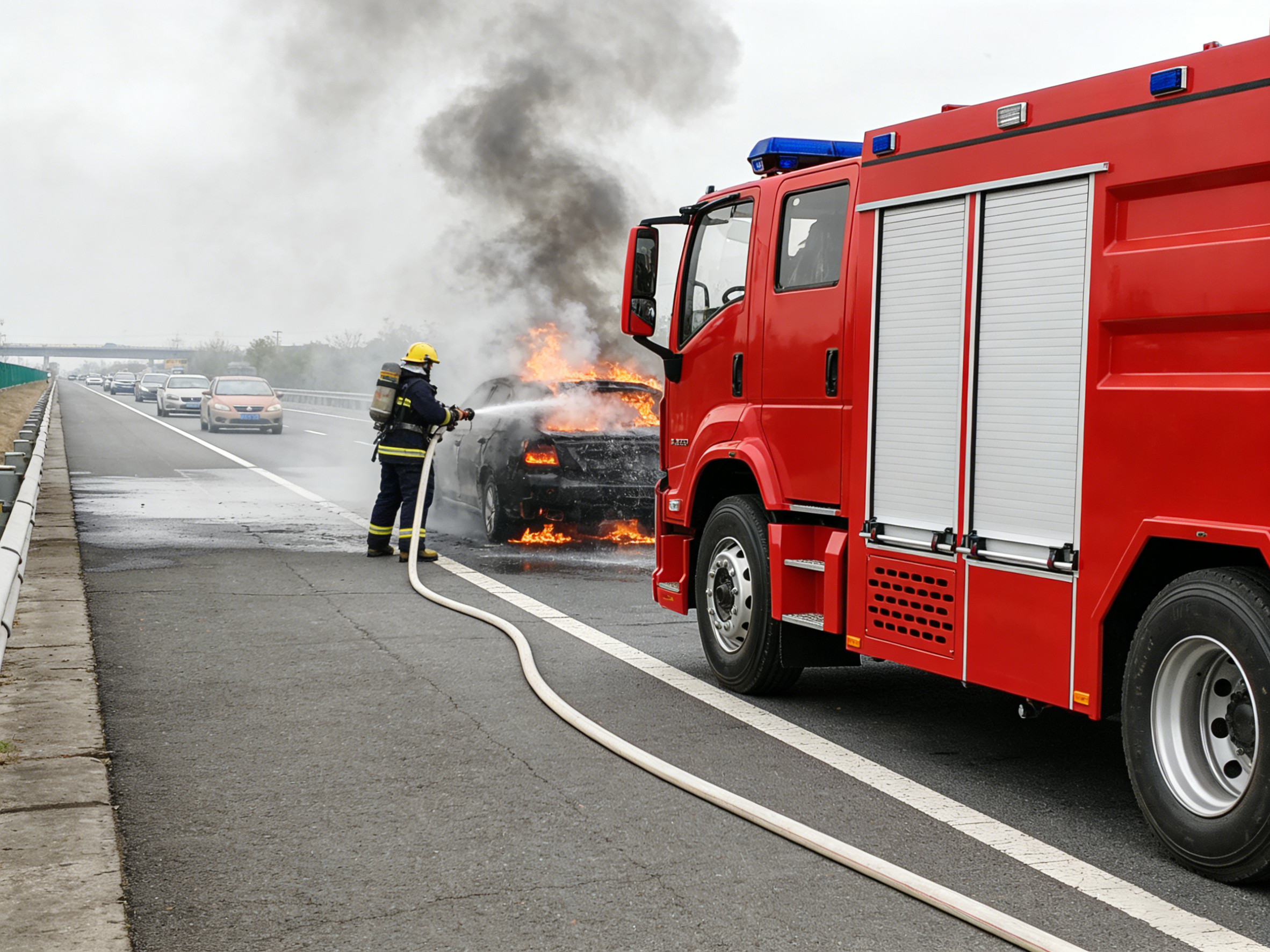

 In the African market, the Banama Isuzu FVZ GIGA 6 cbm foam fire truck has become a core piece of equipment for fire and rescue operations due to its reliable performance and adaptability. Its powerful 300-horsepower engine, 6-cubic-meter foam tank, high-performance CB10/40 fire pump, and PL8/32 fire monitor together form a strong fire prevention line in urban and forest areas, reducing fire damage.

  • Banama Isuzu FVZ GIGA 6 cbm foam fire truck
  • Banama Isuzu FVZ GIGA 6 cbm foam fire truck
  • Banama Isuzu FVZ GIGA 6 cbm foam fire truck
