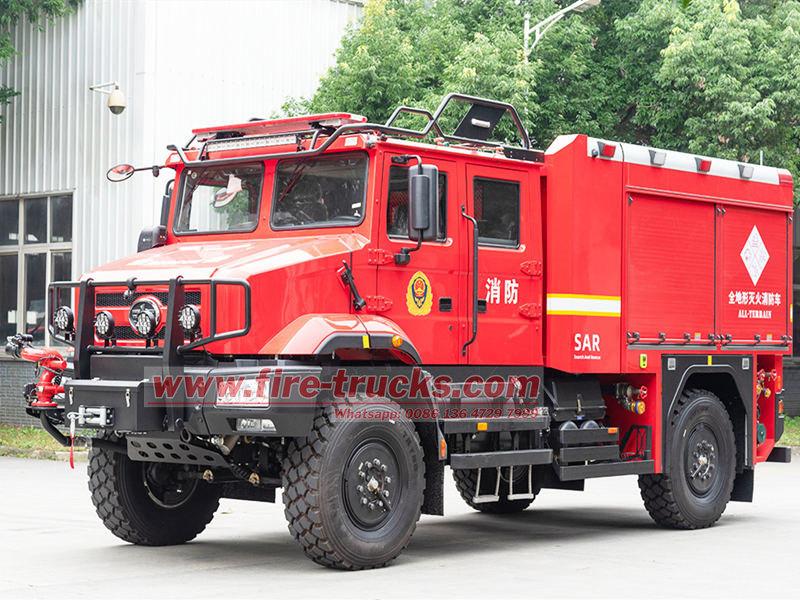

The FAW 4×4 All-Terrain Fire Truck is a professional firefighting vehicle designed for extreme environments. Built on the FAW 4×4 all-terrain chassis, it is equipped with a 350-horsepower diesel engine and an automatic transmission, featuring a full-time four-wheel drive system. It can operate in temperatures ranging from -40°C to 45°C and at altitudes of up to 5,000 meters. The vehicle is fitted with a 2,000L stainless steel water tank, a CB10/30 fire pump with a flow rate of 30L/s, and a PS8/20W fire monitor with a range of 45 meters. Additionally, it includes an 8-ton front winch and an automatic tire inflation-deflation system, delivering exceptional off-road performance and intelligent control. It is particularly suitable for firefighting and rescue missions in complex terrains such as forests and mountains.
Truck Model:
PT5130GXFSGCATanker Structure:
Stainless steel water tankWork capacity :
2000 litersWheelbase:
4300 mmAxle drive:
4×4Engine Power:
350HPEngine Model:
CA6DL6-35E68Fire Pump:
CB10/30Fire Monitor:
PS8/20WRemark:
PP tank is optional
The FAW 4×4 All-Terrain Fire Truck is a professional firefighting vehicle designed for extreme environments, capable of performing firefighting and rescue missions in challenging conditions such as mountains, deserts, earthquakes, and floods. The vehicle is modified based on FAW 4×4 all-terrain off-road chassis, with overall dimensions of 7,440 × 2,550 × 3,250 mm and a gross weight of 12,900 kg, featuring left-hand drive. Its unique full-time four-wheel drive system, combined with large 395/85R20 14PR off-road tires, grants the vehicle exceptional terrain adaptability, with a maximum gradient of over 60%, a trench-crossing width of 75 cm, a vertical obstacle clearance of 60 cm, and a wading depth of up to 1.5 meters. Notably, this fire truck is equipped with an automatic tire inflation-deflation system that adjusts tire pressure in real-time based on road conditions, significantly improving mobility on complex surfaces like sand and mud.
The FAW 4×4 All-Terrain Water Tender is powered by a CA6DL6-35E68 diesel engine, an 8.57-liter powerplant compliant with Euro VI emission standards, delivering a maximum power output of 261 kW (350 hp). The engine utilizes advanced turbocharging technology and a common-rail fuel injection system, ensuring robust performance even in high-altitude, low-oxygen environments. It is paired with a 9-speed automated manual transmission that offers smooth shifting and ease of operation, significantly reducing driver workload in complex terrains.
As a professional firefighting vehicle, the FAW 4×4 fire engine is equipped with a comprehensive firefighting system. Its 2,000-liter stainless steel water tank is constructed from high-quality materials and includes a manhole, overflow/pressure relief devices, a liquid level sensor, and a drainage port to ensure safe and reliable water supply. The CB10/30 standard-pressure fire pump has a rated flow of 30L/s, an operating pressure of 1.0 MPa, a suction depth of 7 meters, and a startup time of less than 50 seconds, enabling rapid deployment for firefighting operations. The PS8/20W fire monitor operates at 0.8 MPa, with a water jet range exceeding 45 meters, 360° horizontal rotation, and a vertical elevation range of -35° to 70°, offering flexible operation and wide coverage. This system is particularly suited for long-range, high-altitude firefighting missions and can quickly replenish water from external sources in arid regions to sustain prolonged operations.
The FAW 4×4 Off-road Firefighting Truck excels in environmental adaptability. It can operate reliably in extreme temperatures ranging from -40°C to 45°C, making it ideal for firefighting needs in both frigid and scorching regions. Its high-altitude performance is equally impressive, maintaining stable operation at altitudes above 5,000 meters, making it an optimal firefighting solution for plateau areas.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
|
Vehicle basic specifications |
||
|
Overall dimension |
7440*2550*3250mm |
|
|
GVW |
12900kg |
|
|
Curb weight |
10800kg |
|
|
Chassis brand |
FAW |
|
|
Traction type |
4*4, left hand drive |
|
|
Approach/departure angle |
38°/18° |
|
|
Front/rear overhang |
1100/1590 mm |
|
|
Max. driving speed |
100 km/h |
|
|
Chassis specifications |
||
|
Chassis model |
CA2130J2K |
|
|
Cab |
Double row, 1+1+4 seats |
|
|
Wheelbase |
4300 mm |
|
|
Front/rear wheel track |
2060/2085 mm |
|
|
Tire specification |
395/85R20 14PR |
|
|
Tire quantity |
4+1 units |
|
|
Engine |
Engine model |
CA6DL6-35E68 |
|
Emission standard |
Euro 6 |
|
|
Displacement |
8570ml |
|
|
Output |
261kw |
|
|
Horse power |
350hp |
|
|
Gear box |
Automatic gearbox |
|
|
Brake system |
Full air brake, power steering, spring brake, exhaust brake |
|
|
Axle load |
Front |
5950 kg |
|
Rear |
6950 kg |
|
|
Upper-body specifications |
||
|
Water tank |
Capacity |
2000 liters |
|
Material |
Stainless steel |
|
|
Structure |
1 manhole; 1 overflow/pressure relief device; 1 liquid level sensor; 1 water discharge port. |
|
|
Fire pump |
Model |
CB10/30, normal pressure pump |
|
Rated Flow |
30L/S |
|
|
Pressure |
1.0Mpa |
|
|
Suction depth |
7m |
|
|
Priming time |
≤50s |
|
|
Fire monitor |
Model |
PS8/20W |
|
Pressure |
0.8Mpa |
|
|
Range |
Water ≥45M |
|
|
Rotation angle |
Horizontal 360° |
|
Product Features
Key Features of the FAW 4×4 Fire Tanker Truck:
1. Cold Resistance: Operates in temperatures from -40°C to 45°C.
2. High-Altitude Capability: Functions at altitudes above 5,000 meters.
3. Wide Application: Designed for firefighting and rescue missions in forests, grasslands, and other challenging environments.
4. Superior Mobility: Full-time four-wheel drive with automatic tire inflation-deflation system to handle various complex terrains; maximum wading depth of 1.5 meters.
5. Intelligent Operation: One-touch intelligent firefighting system with wireless remote control capability.
