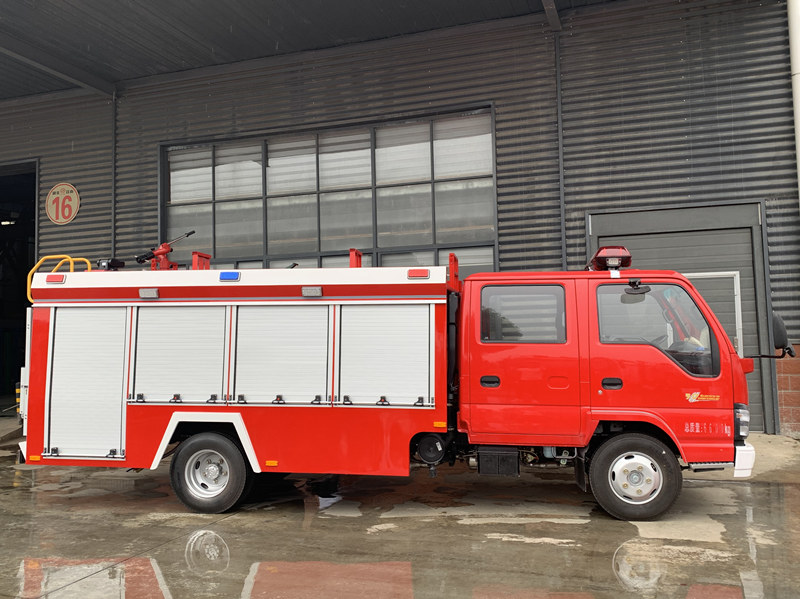

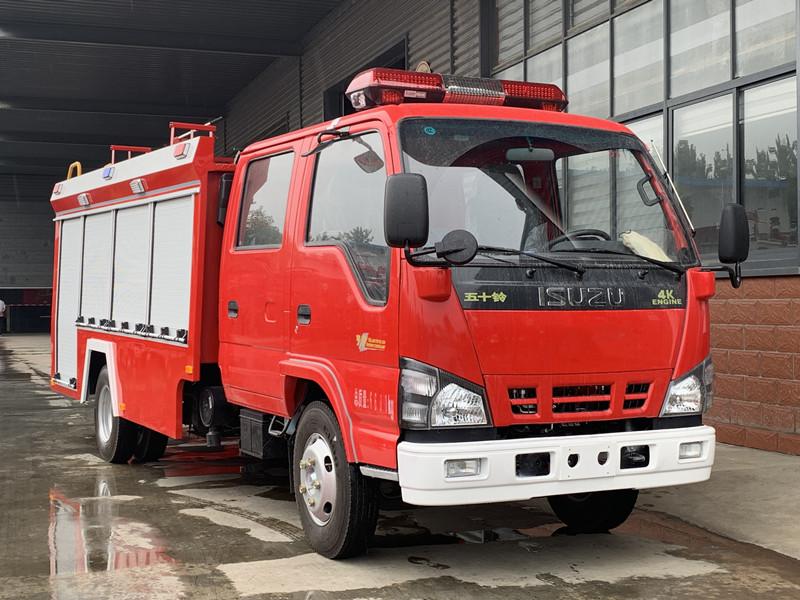

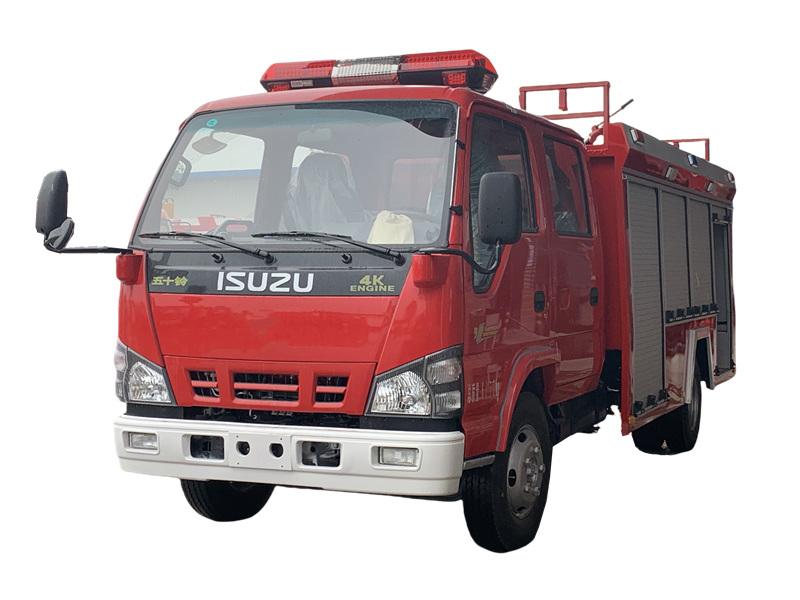

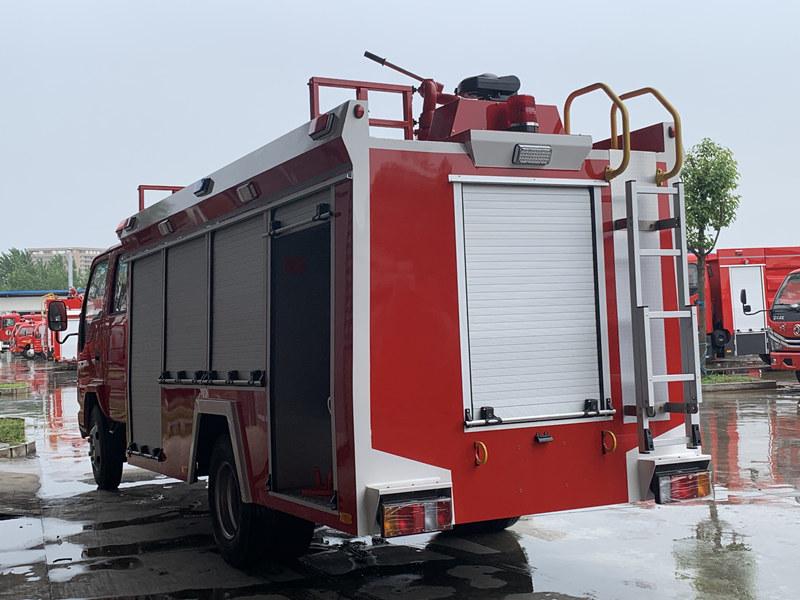

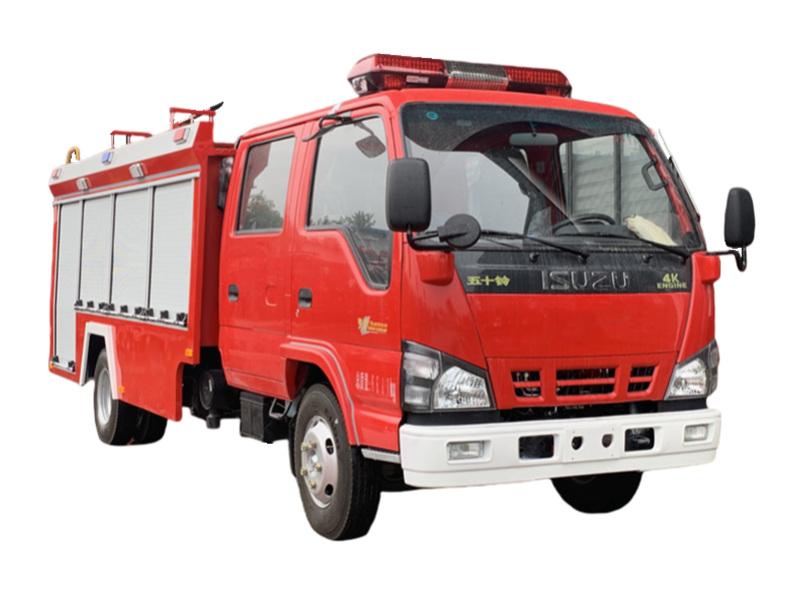

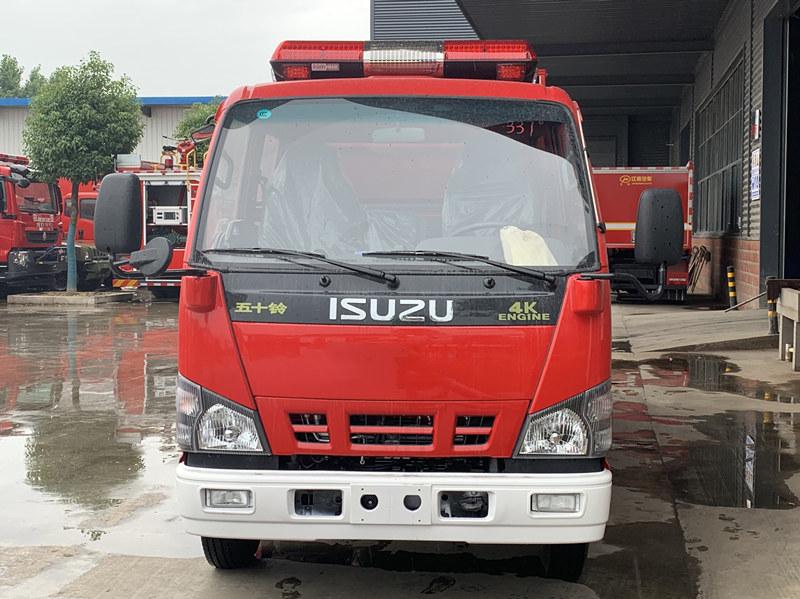

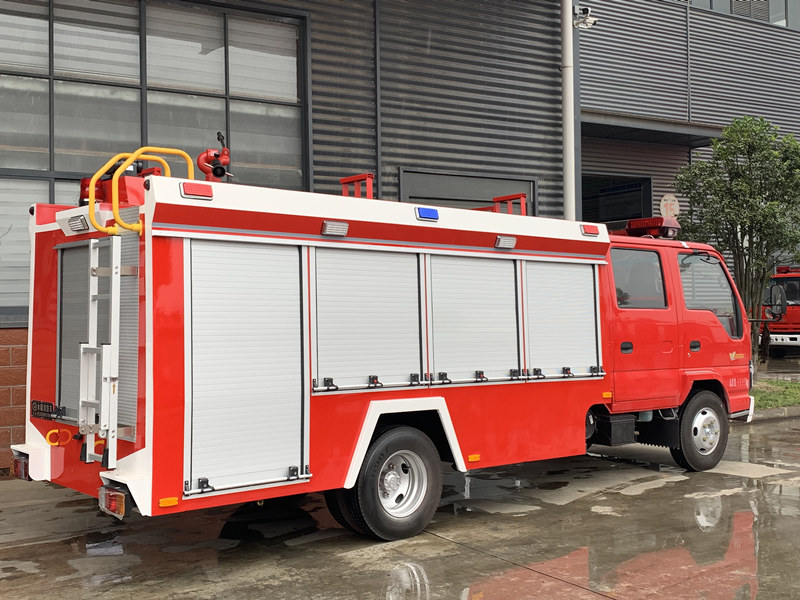

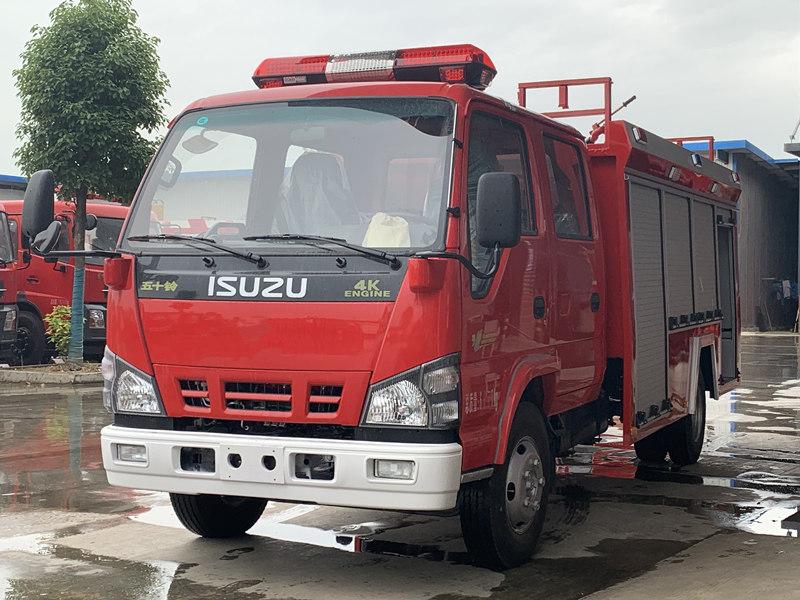

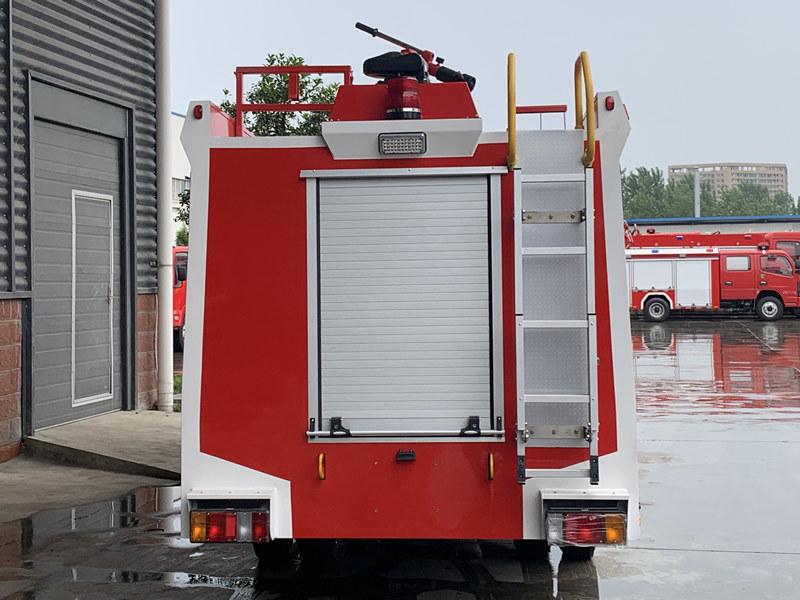

The POWERSTAR 2000L water tank fire truck is modified based on the ISUZU NKR chassis. It features an original ISUZU double-row cabin, with 2+3 seats. The vehicle features equipment compartments on both sides, a water tank in the middle, and a pump room in the rear. The water tank has a capacity of 2000L and is equipped with a CB10/30 fire pump with a rated flow of 30L/s. A PS8/20W vehicle fire monitor is mounted on the roof. This compact, well-equipped, and highly maneuverable vehicle is suitable for use in fire rescue stations, government fire brigades, and corporate fire brigades.
Manufacturer Origin:
Powerstar TrucksWork capacity :
2000LUpper Body material:
Stainless steelProduction time:
40 daysWheelbase:
3360 mmAxle drive:
4×2Engine Power:
120 HPEngine Model:
Isuzu 4KH1CN6LBFire Pump:
CB10/30, 30L/sFire Monitor:
PL8/20 for water jettingRemark:
tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR small fire tanker truck is a lightweight firefighting device that uses water as the extinguishing medium. Designed and manufactured on the ISUZU NKR chassis, it features an original ISUZU double-row cab, power steering, heating and cooling air conditioning, and ABS. This ISUZU mini water fire tender features a 2000L stainless steel water tank, a CB10/30 atmospheric pressure fire pump, and a PS8/20W fire monitor, with a water discharge range of 45 meters. As a mini fire engine truck, it boasts a compact structure, comprehensive features, and high maneuverability, making it particularly suitable for areas with limited access, such as densely populated communities in Southeast Asia, Africa, the Caribbean, and South Asia. Its compact size and maneuverability allow it to navigate narrow roads and meet basic firefighting needs.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU NKR lightweight truck chassis, 4x2, 4x4 and RHD is available
4KH1 model with 120HP or 132HP and 2999cc displacement
2. Tank material: 4mm thick stainless steel for long service time
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/30 centrifugal fire pump, flow rate 30L/s, China top brand
Optional CB10/20, CB10/40 pump. America Darley fire pump is optional
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped foam tank and fire hose reel
Full sets fire fighting rescue tools equipped for convenient working, fire extinguishing and people rescue
A fire truck, also known as a firefighting truck, fire engine, fire pumper truck, is a vehicle designed and manufactured to accommodate firefighters and equipped with various firefighting equipment and extinguishing agents. It is used by firefighters for firefighting, auxiliary firefighting, and fire rescue operations, and can also be used for other emergency rescue purposes. Fire trucks can transport firefighters to disaster sites and provide a variety of tools for their relief efforts. In addition to large fire-fighting equipment such as water tanks, water pumps, and foam fire-fighting devices, POWERSTAR fire trucks are usually equipped with aluminum alloy ladders, water guns, portable fire extinguishers, self-contained breathing apparatus, protective clothing, demolition tools, first aid tools and other equipment, so that they can respond to sudden fires at any time.
» Ⅱ.Product Parameter for ISUZU mini water tanker fire truck:
Vehicle description |
||
Overall dimension |
6100*1960*2660mm |
|
GVW |
7300kg |
|
Curb weight |
4325kg |
|
Chassis brand |
ISUZU |
|
Traction type |
4*2, left hand drive |
|
Chassis description |
||
Chassis model |
QL1070BUH |
|
Cab |

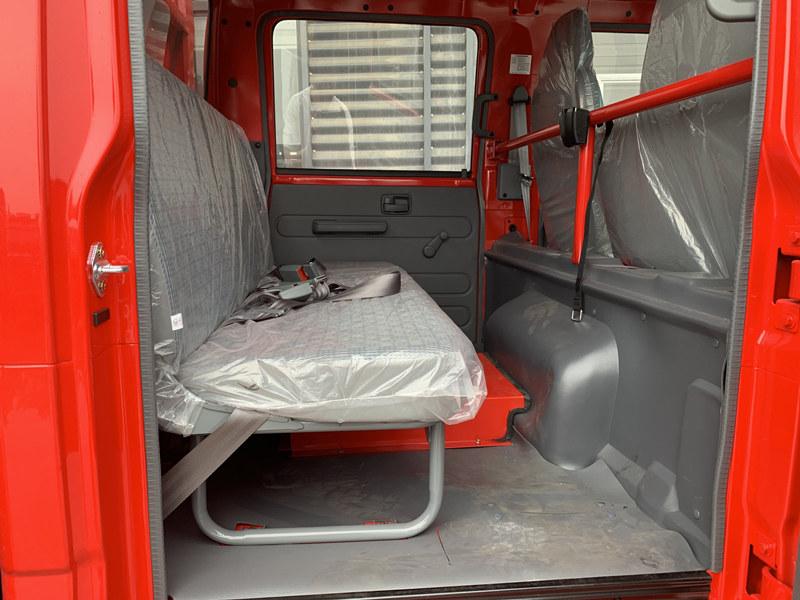

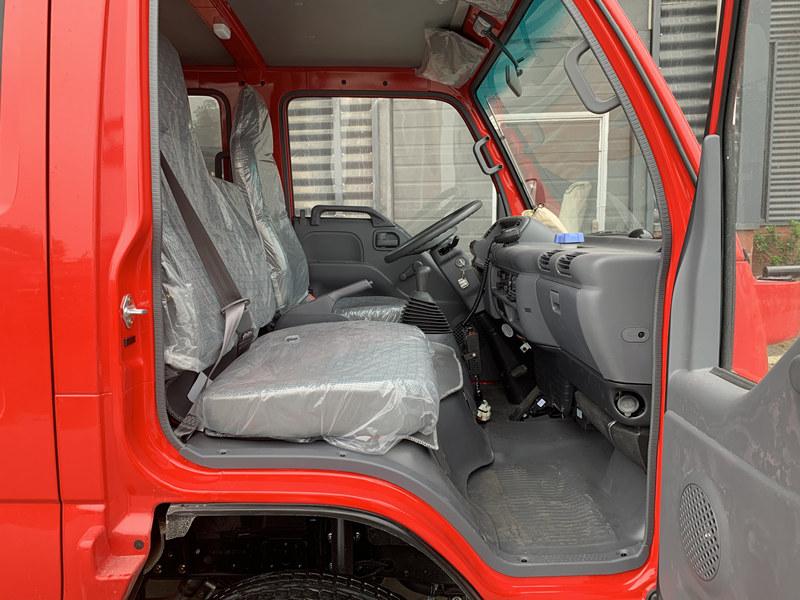

ISUZU original double row cabin, 2+ 3 seats with AC |
|
Wheelbase |
3360mm |
|
Front/rear wheel track |
1504/1425 mm |
|
Front/rear axle load |
2500/4800 kg |
|
Number of leaf springs |
8/6+5 |
|
Tire specification |
7.00R16 |
|
Tire quantity |
6+1 units |
|
Engine |
Engine model |
4KH1CN6LB |
Emission level |
Euro 5 |
|
Max. output |
88kw |
|
Displacement |
2999ml |
|
Horsepower |
120hp |
|
Gear box |
Number of gears |
5 |
Brake system |
Full air brake, power steering, spring brake, exhaust brake |
|
Upper body description |
||
Tanker capacity |
Water tanker |
2000 liters |
Foam tanker |
Optional |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/30, normal pressure pump |
Flow |
30L/S |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Fire monitor |
Model |
PS8/20W |
Pressure |
0.8Mpa |
|
Range |
Water ≥45M |
|
Rotation angle |
Horizontal 360° |
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |
» Ⅲ.Fire Trucks For Shipment:

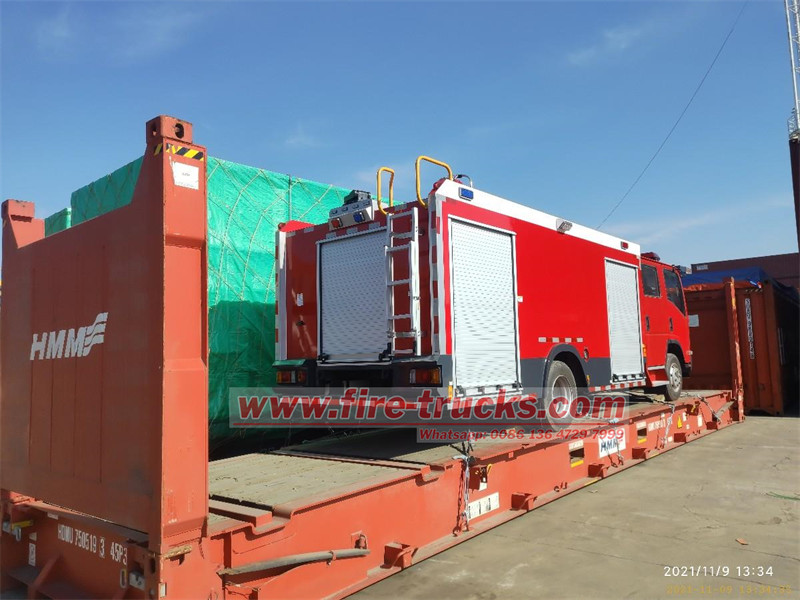

After well tested and examed in our factory, POWERSTAR fire engine will be delivered to China seaport, and the seaport is optional as SHANGHAI, TIANJIN, LIANYUNGANG, QINGDAO, etc based on the latest shipment. And we can choose the Bulk, RORO, Container shipment for delivery, also can wax all trucks to guarantee no rust during long time sea delivery. Customer can choose suitable shipment method according to the dimensions of the fire trucks. Generally, light fire trucks can be fit in 40HC, while medium and heavy-duty firefighting trucks can be transported by RORO, Bulk or 40FT FR.
RORO shipmennt for Fire Trucks:
Bulk shipmennt for Fire Trucks:

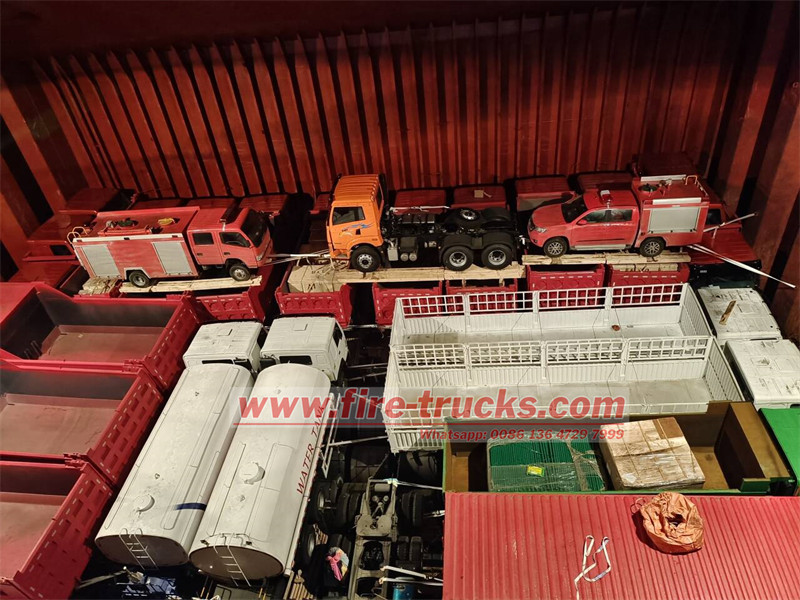

Container shipmennt for Firefighting Trucks:
