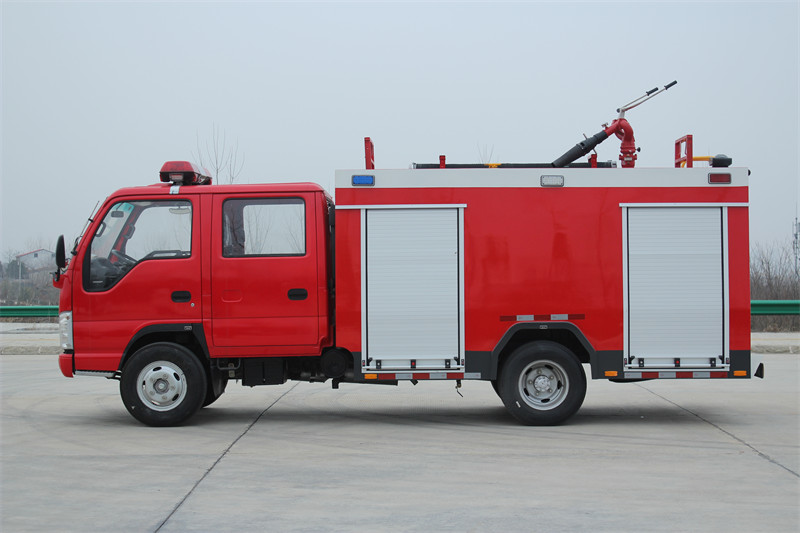

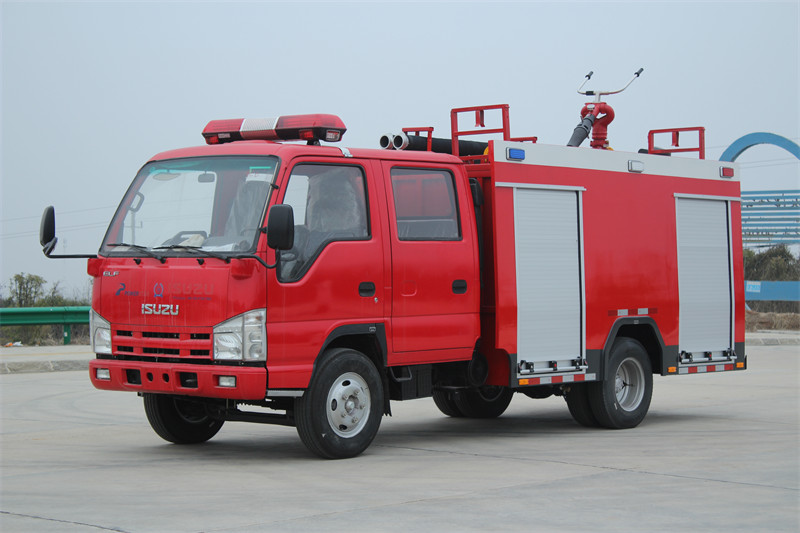

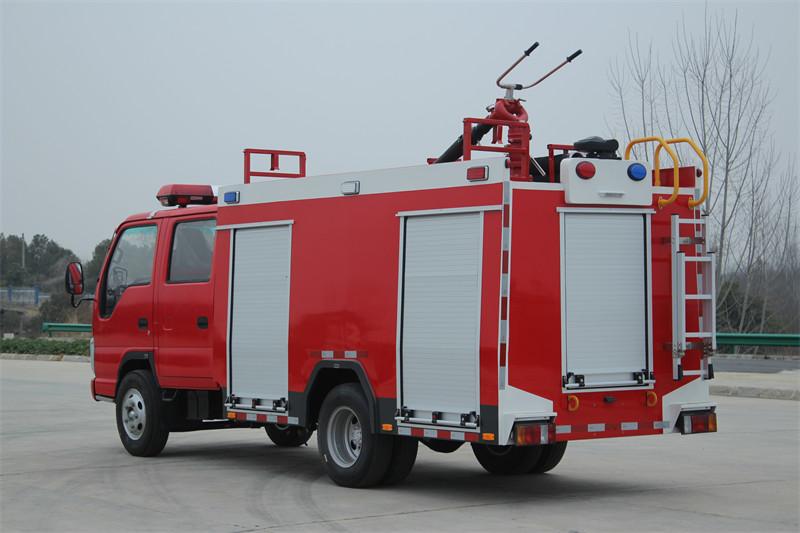

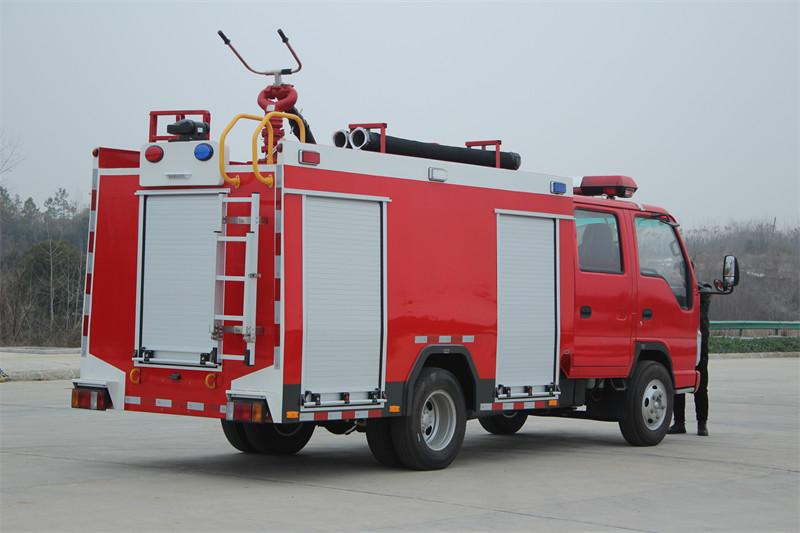

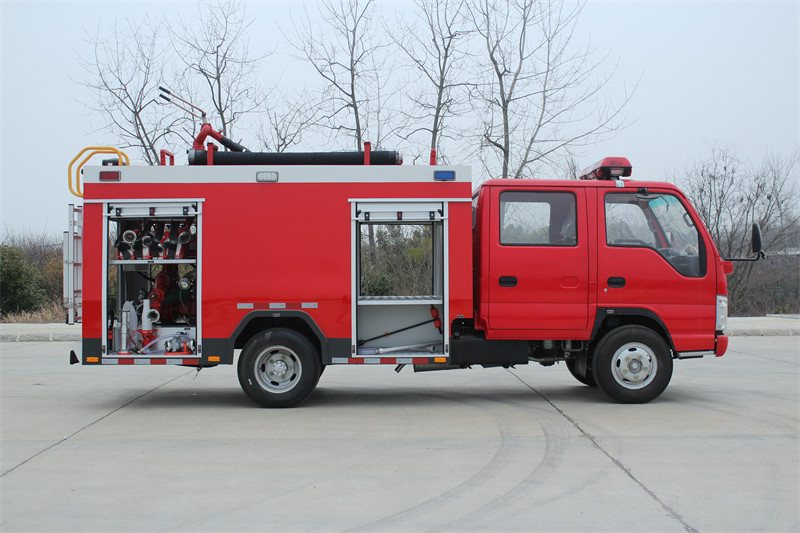

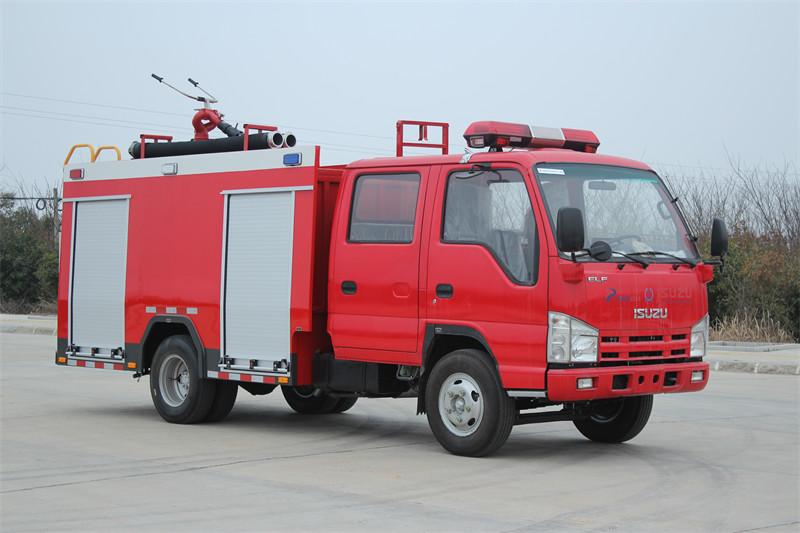

POWERSTAR Mini Foam Fire Truck is modified from the ISUZU NKR chassis. It consists of a crew compartment and a body. The crew cabin is an original double-row design, accommodating 2+3 people. The front part of the body houses the water tank and equipment compartment, while the rear part contains the pump room. The water tank is made of high-quality carbon steel with a water capacity of 1500kg, and the foam tank is made of stainless steel with a capacity of 1000L. The vehicle is equipped with a CB10/30-XZ fire pump with a rated flow rate of 30L/S, and a PL8/24 vehicle-mounted fire monitor is installed on the roof. This vehicle is characterized by its high maneuverability, excellent handling, and easy maintenance. It can be widely used by public fire brigades, factories, mines, enterprises, communities, docks, and other places to combat general material fires.
Manufacturer Origin:
Powerstar TrucksWork capacity :
1500L +1000LUpper Body material:
Carbon steel and stainless steelProduction time:
45 daysWheelbase:
3360 mmAxle drive:
4×2Engine Power:
120 HPEngine Model:
Isuzu 4KH1CN6LBFire Pump:
CB10/30, 30L/sFire Monitor:
PL8/24 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD driveISUZU 2500L Tanker Fire Truck is a water and foam multi-functional fire rescue vehicle designed and manufactured by POWERSTAR on the ISUZU NKR light-duty chassis, primarily used for firefighting and emergency rescue operations. Its tank has a total volume of 2.5 cubic meters, and the vehicle has a curb weight of 7300kg. It is powered by a 4KH1CN6LB diesel engine, reaching a maximum speed of 90km/h. The vehicle is equipped with a CB10/30 normal pressure fire pump and a PL8/24 water-foam dual-purpose fire monitor, enabling firefighting operations while in motion. The equipment compartment features an aluminum alloy roller shutter door design, equipped with a flip-up step and a rear ladder, as well as a fire equipment box and various demolition tools. The ISUZU NKR Foam Fire Tender is characterized by its high maneuverability, excellent handling, and easy maintenance, making it particularly suitable for fire rescue operations in narrow areas.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: ISUZU NKR light-duty chassis, 4x2, 4x4 for option
4KH1 model with 120HP or 132HP and displacement 2999cc
ISUZU ELF wide cabin with 3 seats is optional
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Carbon steel water tank+stainless steel foam tank, customized tank volume
4. Fire Pump: CB10/30 centrifugal fire pump, flow rate 30L/s, working pressure 1.0Mpa
PL8/24 water-foam dual fire monitor, flow rate 24L/s, water range up to 60m, foam range up to 45m
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
High-pressure hose reel is optional for washing the vehicle or extinguish the fire at close range

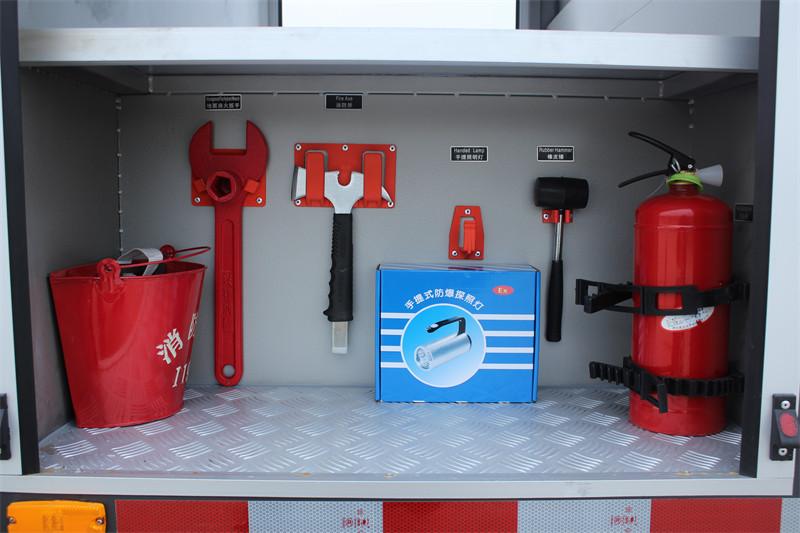

Full sets fire fighting and rescue tools equipped for convenient working, fire extinguishing and people rescue
Foam fire truck is a mobile firefighting technical equipment used for firefighting, auxiliary firefighting, or fire rescue operations, also known as a foam fire engine, foam tender fire truck. It combines the functions of a water tank fire truck and a foam fire truck, featuring a large-capacity water storage tank for combating general material fires with water, as well as a foam mixing system for extinguishing oil and chemical fires with foam. This type of firefighting truck has a wide range of applications and can play a crucial role in various fire accidents, safeguarding people's lives and property.
» Ⅱ.Product Parameter for Isuzu mini water foam fire engine:
Vehicle basic specifications |
|
Overall Dimension |
6220×1960×2840mm |
Tank Capacity |
Water 1500L, foam 1000L |
Engine Output |
120Hp |
Max Speed |
90km/h |
Front / Rear Axle Load |
2.5T / 4.8T |
Approach / Departure Angle |
24/ 13° |
Allowable Cab Passengers |
2+3 |
Chassis Specification |
|
Model |
ISUZU NKR |
Manufacture |
lSUZU |
Engine Model |
4KH1CN6LB |
Engine Output |
120Hp |
Displacement |
2999 ml |
Emission |
Euro 6 |
Wheelbase |
3360 mm |
GVW |
7300kg |
Transmission |
MSB,5 forward and 1 reverse |
Driving Cab |
|
Form |
2 door crew cab |
Passenger |
2 |
Steering Wheel |
Left Hand Drive |
Equipment |
Control box for alarm and alarm lamp PTO switch and indicator Additional power source and air course indicator Jacklight and strong flashing light indicator |
Body |
|
Equipment Room |
Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate. |
Crew room |
Crew person room is in the middle of truck |
Equipment room |
Aluminum alloy structure |
Pedal |
Every shutter door has an overturn pedal. |

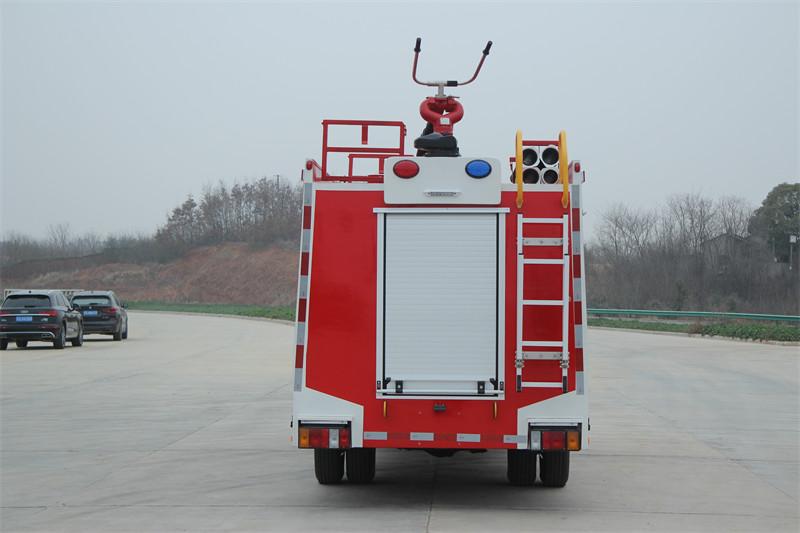

Ladder |
on the backside body |
Water and foam Tank |
|
Tank capacity |
Water: 1500L, foam: 1000L |
Material |
Water tank: Carbon steel with 4mm thickness Foam tank: Stainless steel 304 material. |
Tank fixing |
Fixed on chassis frame |
Manhole |
One manhole with diameter of 500 mm on each tank, with quick locking/opening device |

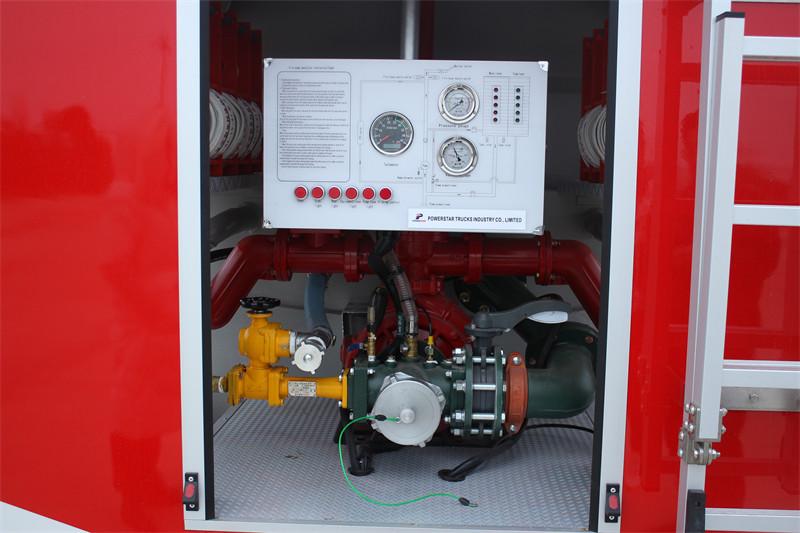

Fire Pump |
|
Fire pump model |
CB10/30 |
Water flow rate |
30L/S |
Rated pressure |
1.0MPa |
Maximum suction depth |
7m |
Diversion device |
Self-contained slide pump |
Diversion time |
≤50s |

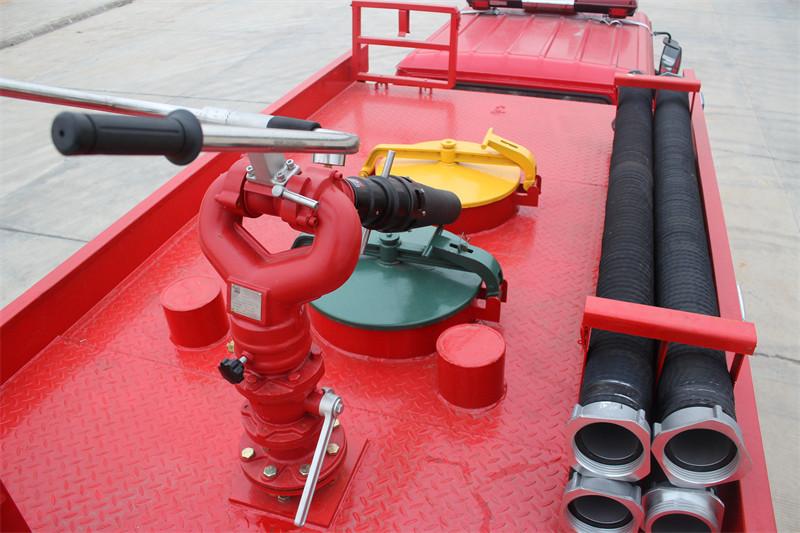

Fire Monitor (water & foam) |
|
Fire monitor model |
PL8/24 |
Flow rate |
24L/s |
Rated pressure |
0.8 Mpa |
Range |
water≥60m, foam≥45m |
Rotating Angle |
360°Horizontal Rotation |
Max. Pitch / dip angle |
pitch angle≤-30° dip angle≥+70° |
» Ⅲ.Factory Testing:

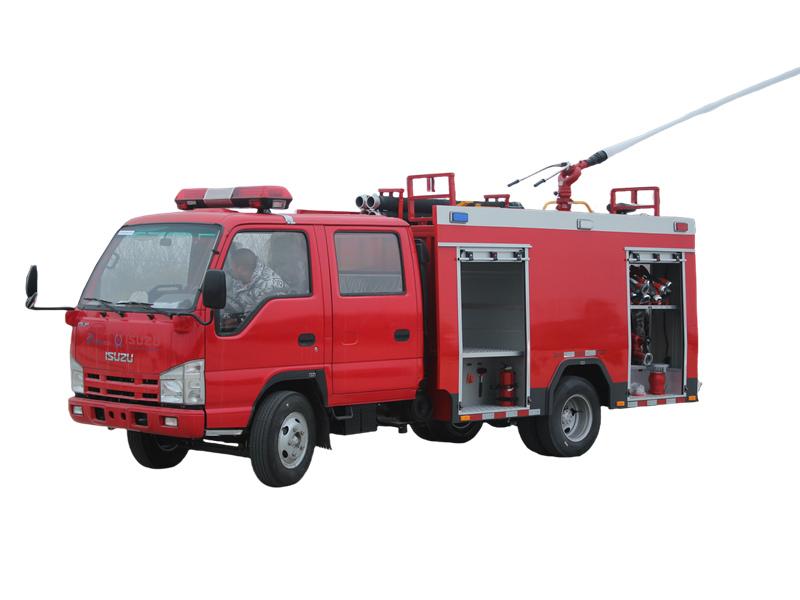

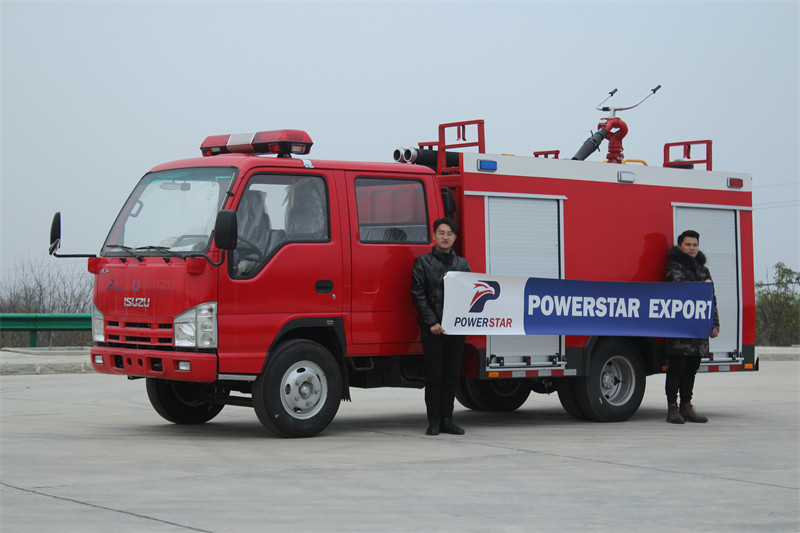

POWERSTAR Engineer test Isuzu foam fire engine before shipment

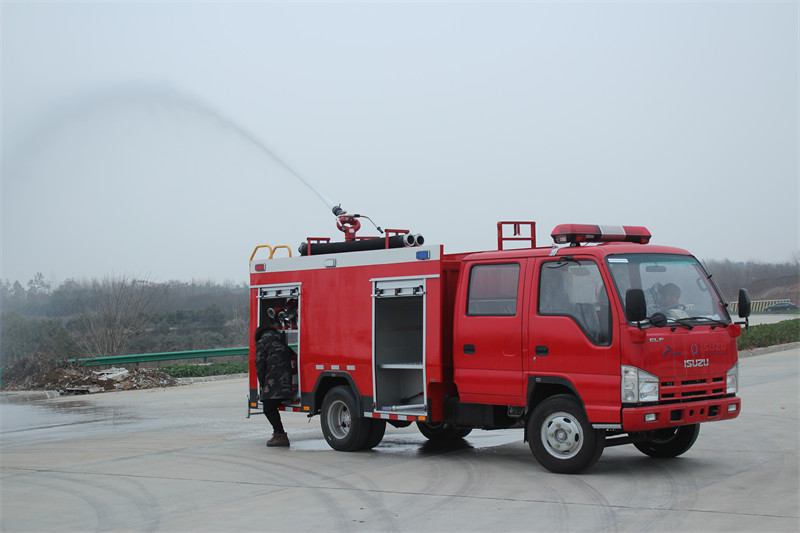

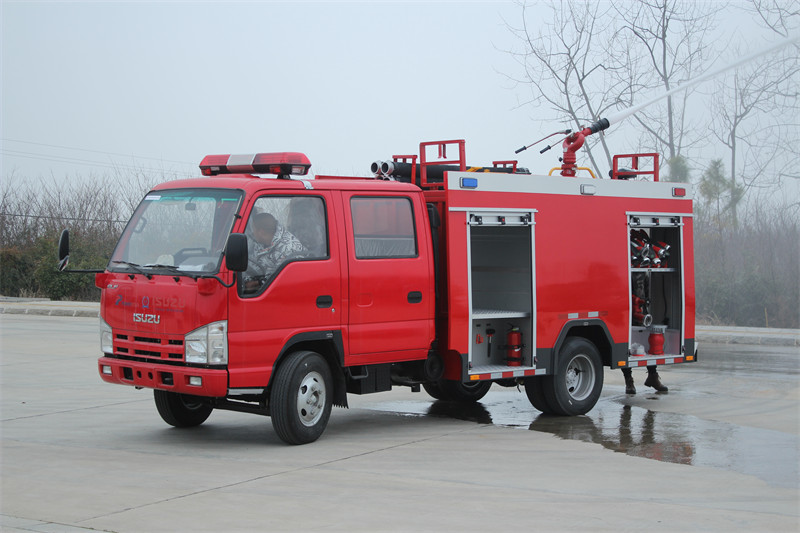

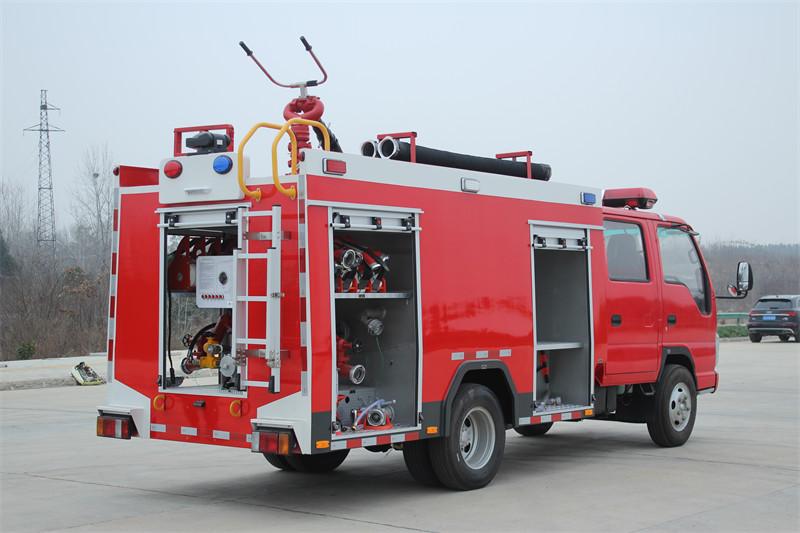

Isuzu mini water foam fire truck testing before delivery
Isuzu fire tanker truck ready for SHANGHAI seaport for delivery
ISUZU NKR foam tender fire truck ready for delivery to Shanghai seaport
