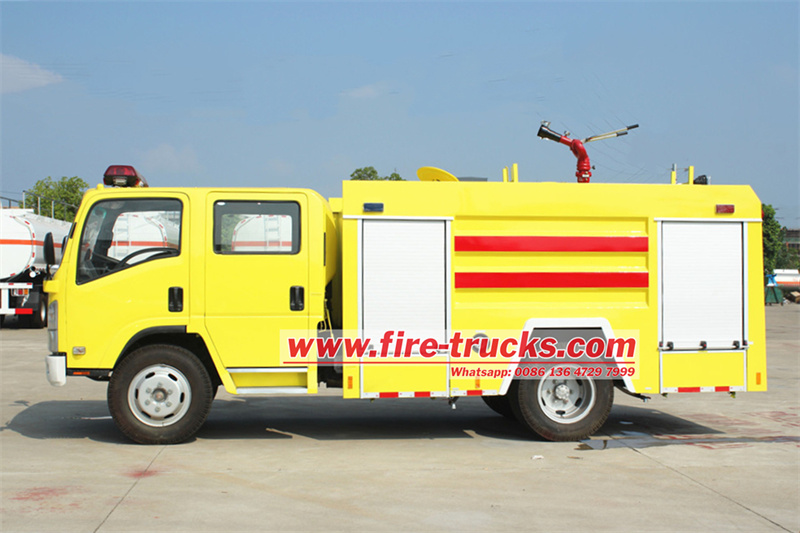

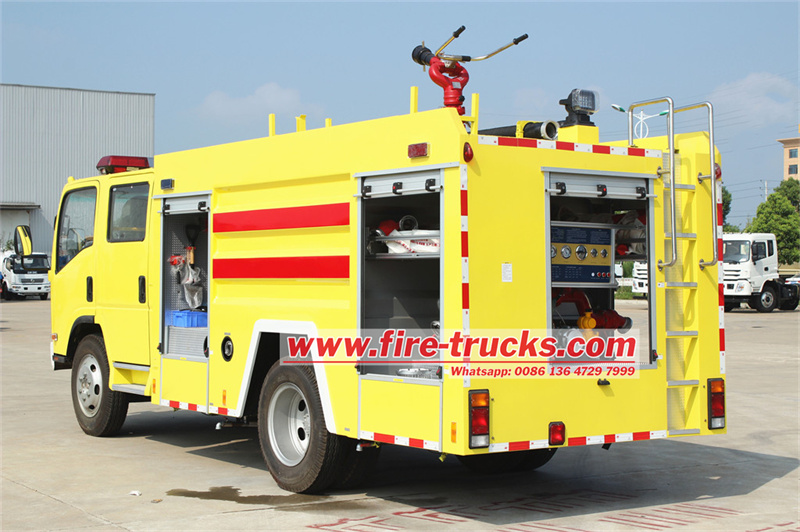

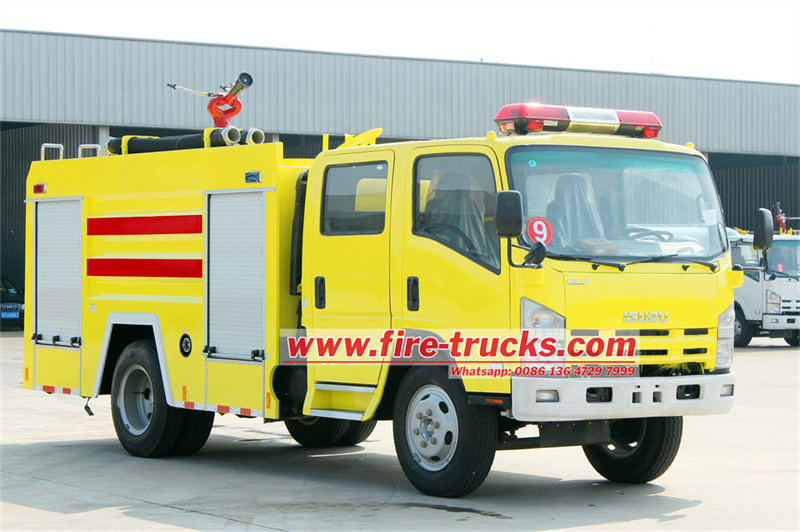

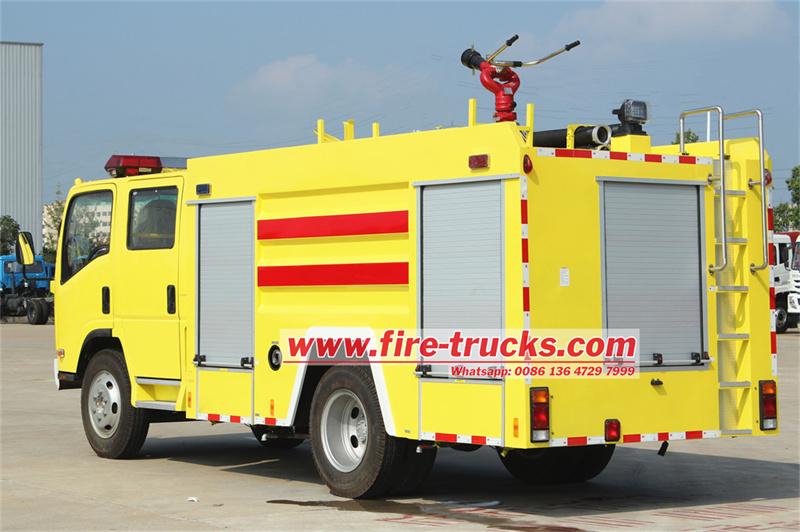

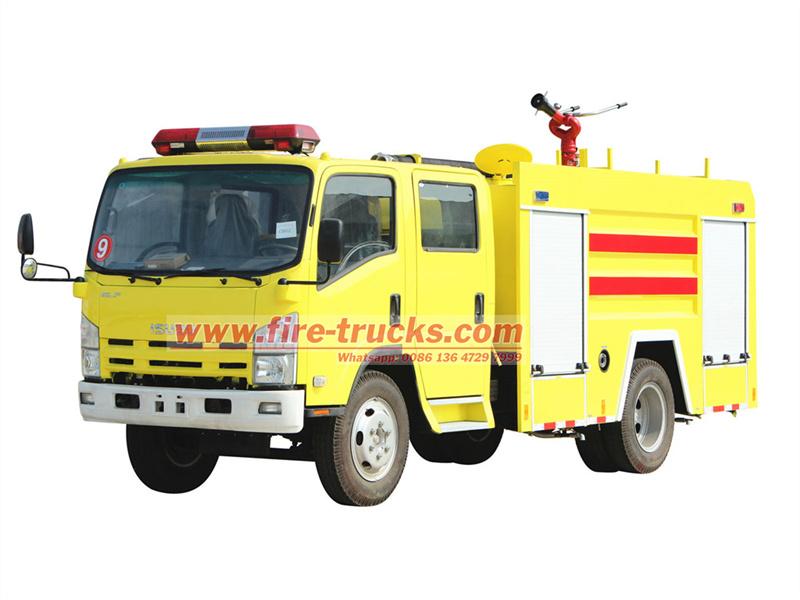

Isuzu NPR 190HP fire water tanker

Isuzu NPR 190HP fire water tanker

The Isuzu NPR water fire truck is built on the sturdy ISUZU NPR light-duty chassis. It combines excellent power and environmentally friendly emissions. It has high-quality truck body and can challenge all kinds of bad roads. Its equipped with a 4000-liters large-capacity tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu ELF 190HP fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu NPR fire water truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance.

  • Truck Model:

    PST51101SXF
  • Tanker Structure:

    High quality stainless steel
  • Work capacity :

    3000L Water + 1000L Foam
  • Wheelbase:

    4175mm
  • Axle drive:

    4x4
  • Engine Power:

    190HP
  • Engine Model:

    4HK1-TCG61
  • Fire Pump:

    CB10/30, 1600L/min
  • Fire Monitor:

    PL36, Flow Rate 32L/S
  • Remark:

    Stainless tank body, light-duty
Facebook Linkedin Youtube Twitter Pinterest

The Isuzu NPR water fire truck is built on the sturdy ISUZU NPR light-duty chassis. It combines excellent power and environmentally friendly emissions. It has high-quality truck body and can challenge all kinds of bad roads. Its equipped with a 4000-liters large-capacity tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu ELF 190HP fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu NPR fire water truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.

ISUZU NPR fire fighting truck

China best fire fghitng truck

 More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

 24 month quality guarantee term



Specification:



ISUZU NPR fire fighting truck



Isuzu all-drive NPR fire water truck

General

Vehicle Brand

Powerstar TRUCKS

Chassis Model

Isuzu NPR

Overall Dimension

7300 * 2350 * 3150 mm

GVW / Kerb Weight

10,055kg / 5,300kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Model

4HK1

Power

190 HP (139 KW)

Displacement

5197 ml

Emission Standard

Euro 6

Chassis

Drive Type

4X2 (left or right hand drive)

Transmission

6-speed levers with 1 reverse

Wheelbase/No. of axle

4175 mm / 2

Tire Specification

235/75R17.5

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

3,000 L Water tank

1,000L Foam tank

Tanker Material

Stainless Steel

Fire pump

CB10/30, 30L/S

Fire pump location

Center or rear

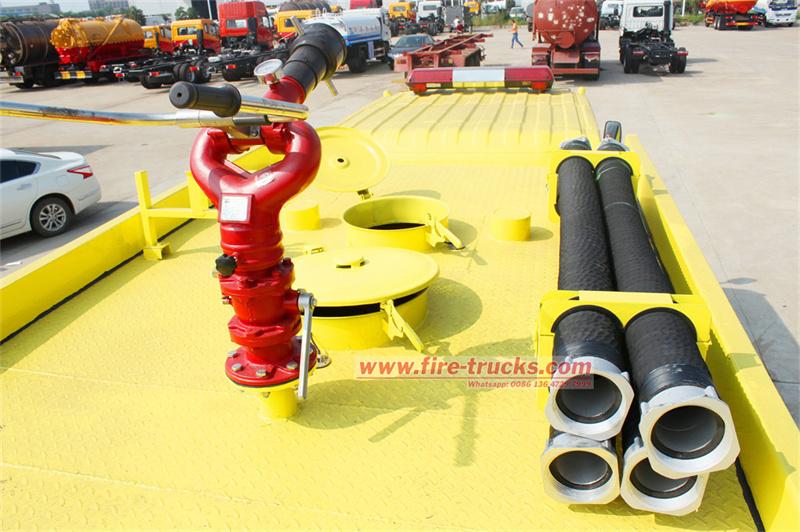

Fire monitor

Water jet distance: ≥55m / Foam jet distance: ≥40m

Control panel

English or Your language

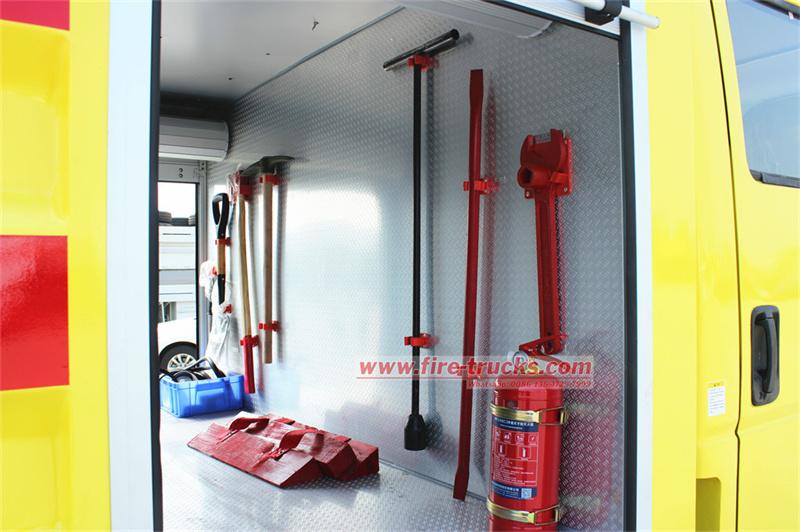

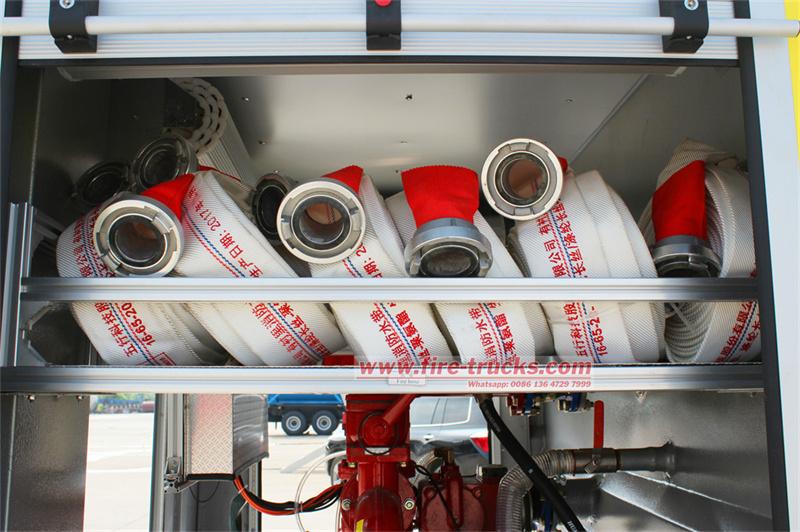

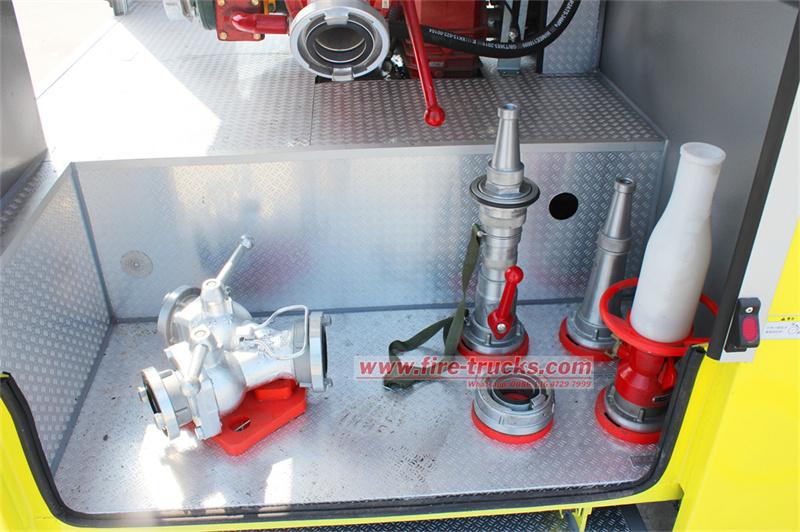

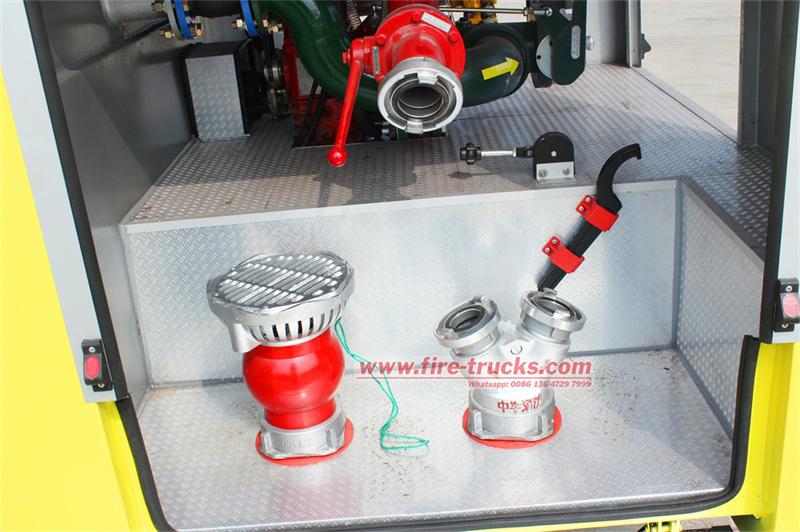

All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** USA or Germany fire pump can be optional



Feature:

  • ISUZU NPR fire fighting truck
    Powerful power system:

    Equipped with a high-power engine(4HK1) to ensure rapid response under complex road conditions.

    Isuzu All-wheel drive system improves passability on rugged or slippery roads.

  • ISUZU NPR fire fighting truck

    Firefighting equipment:

    Large-capacity water tank to meet long-term firefighting needs.

    High-pressure water pump to provide strong water flow and range.

  • ISUZU NPR fire fighting truck

    Strong body structure:

    Adopt high-strength materials to improve impact resistance and fire resistance.

    Roll cage and seat belts to ensure passenger safety.

  • ISUZU NPR fire fighting truck

    Rescue equipment:

    Equipped with hydraulic shears, expanders and other demolition tools for rescuing trapped people.

    Lighting equipment, such as liftable lighting, ensures operation at night or in low-light environments.

  • ISUZU NPR fire fighting truck

    Humanized design:

    Comfortable cab to reduce fatigue from long-term operation.

    Easy-to-operate equipment layout to improve emergency response speed.



 Advantage:

ISUZU NPR fire fighting truck

Tactical advantages of high flow and long range

Large-capacity water storage system:

The 3000L stainless steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

Efficient pump system:

Standard CB10/30 mid-mounted centrifugal pump (30L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 60L/s), water cannon range of 55m (DC)/28m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.

 Maintenance:

ISUZU NPR fire fighting truck

Key points of periodic maintenance

Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).

Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).

Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
