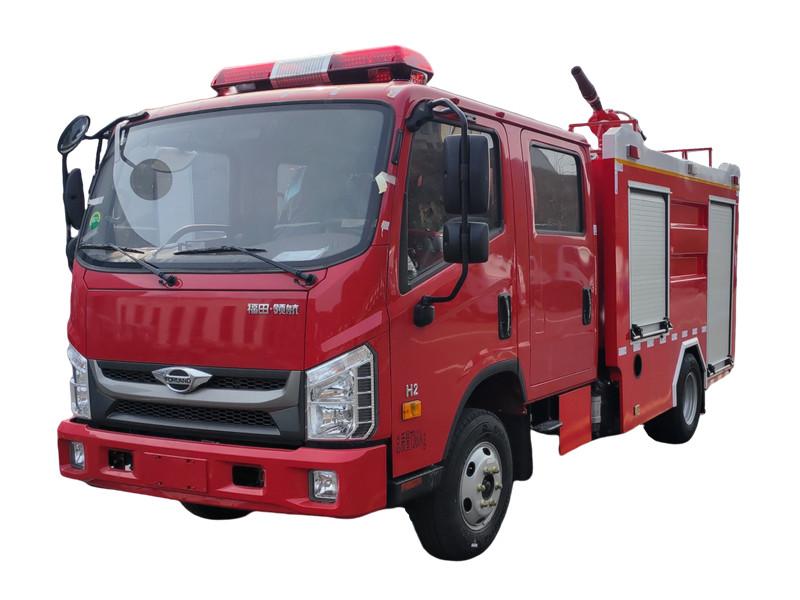

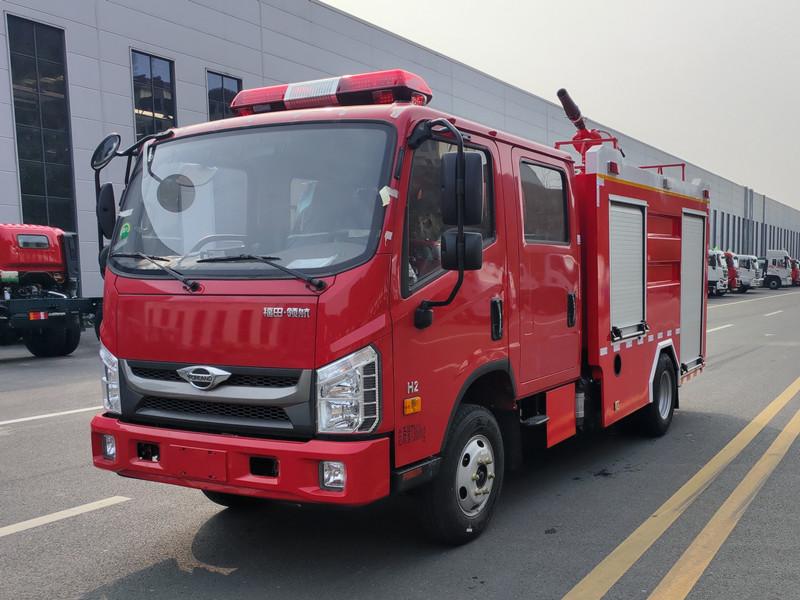

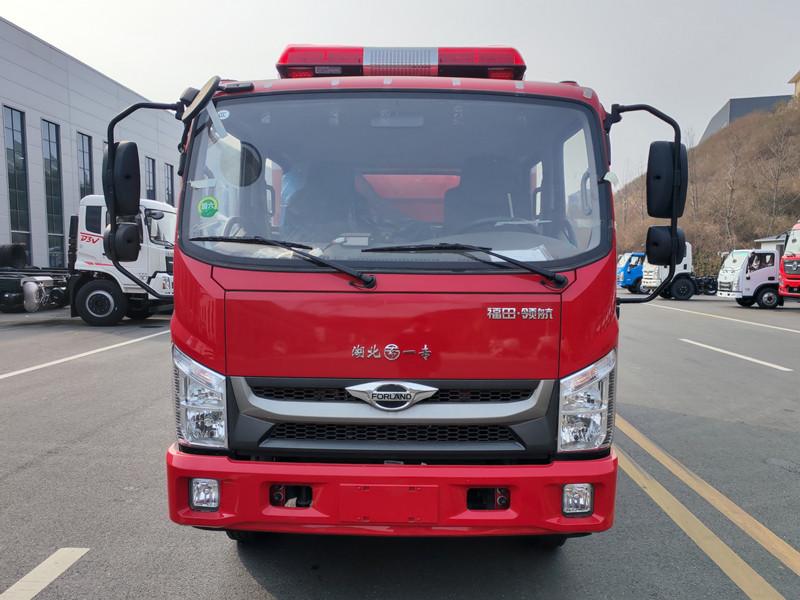

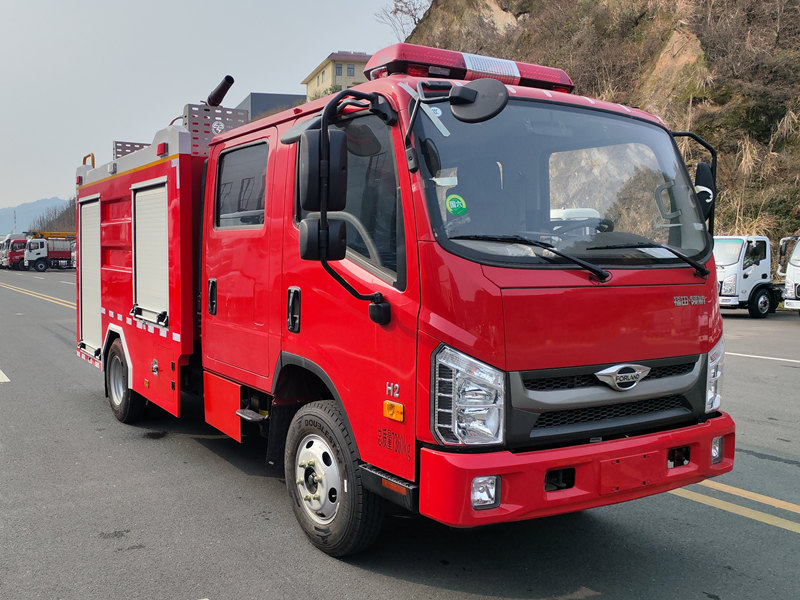

FOTON Light Fire Tanker Truck is built on the BJ1076VEADA-51 chassis, powered by a 130-horsepower diesel engine with a top speed of 95 km/h. With compact dimensions of 6200×1980×2040 mm, it offers strong mobility, making it suitable for operations in narrow roads. Equipped with a 1500-liter carbon steel water tank and a 1000-liter stainless steel foam tank, it features a CB10/30 normal-pressure fire pump (flow rate of 30 L/s) and a PL24 fire monitor (range over 45 meters), enabling rapid response to oil and solid fires. The double-row cabin accommodates six personnel and comes standard with air conditioning, balancing practicality and comfort. It is an ideal choice for firefighting in towns, communities, and industrial areas.
Manufacturer Origin:
Powerstar TrucksWork capacity :
1500L +1000LUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
3360 mmAxle drive:
4×2Engine Power:
130 HPEngine Model:
Q28-130C60Fire Pump:
CB10/30, 30L/sFire Monitor:
PL24 for water and foamRemark:

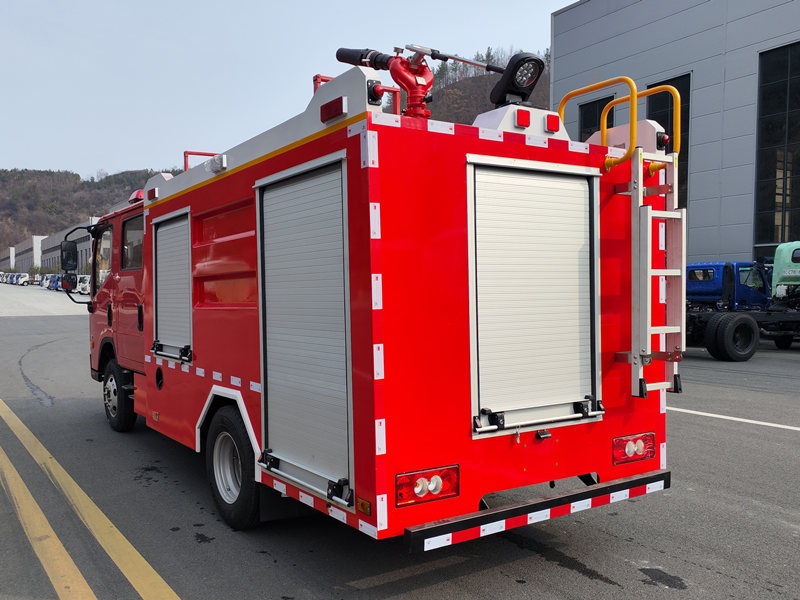

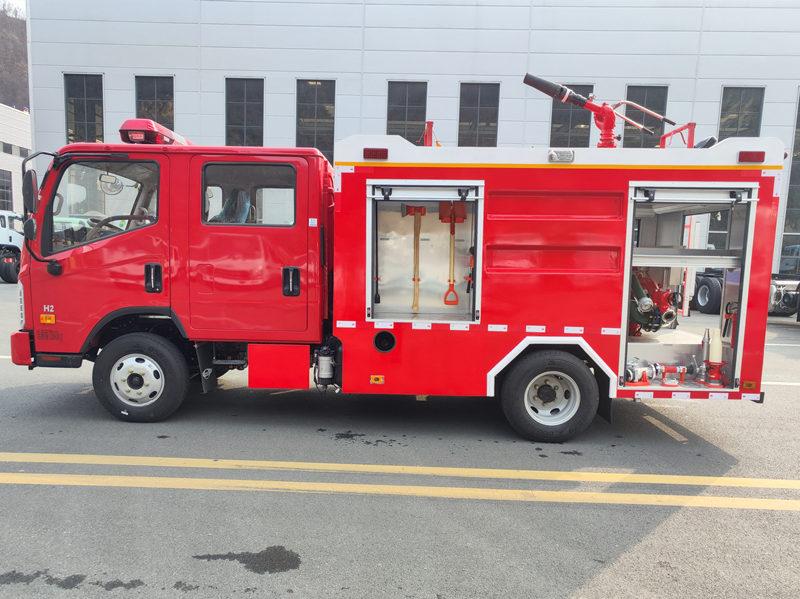

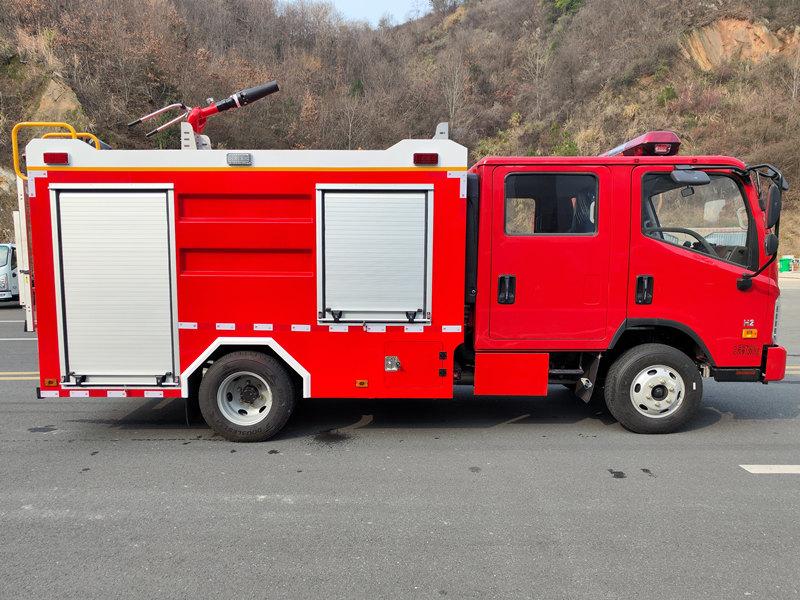

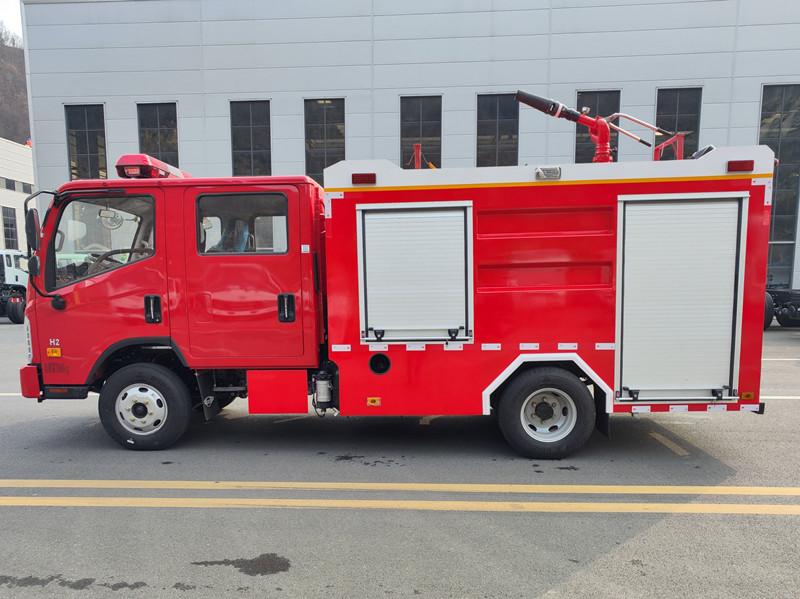

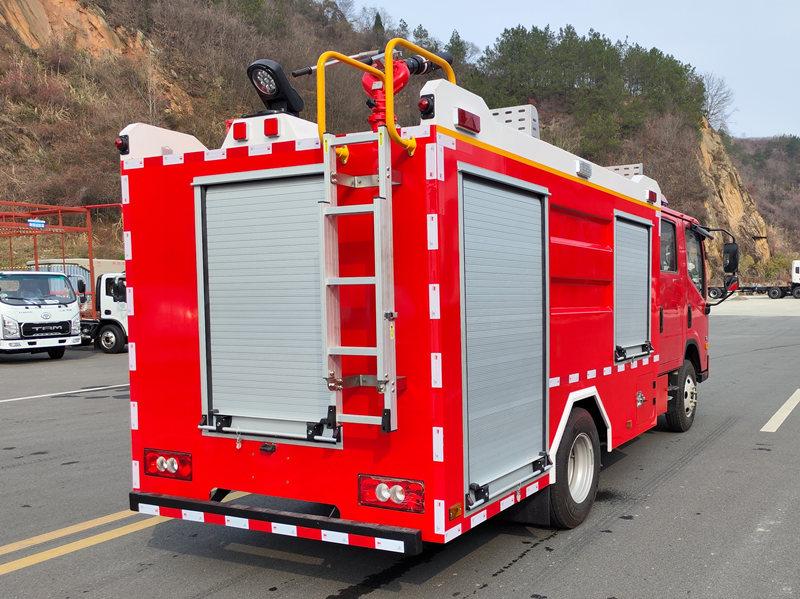

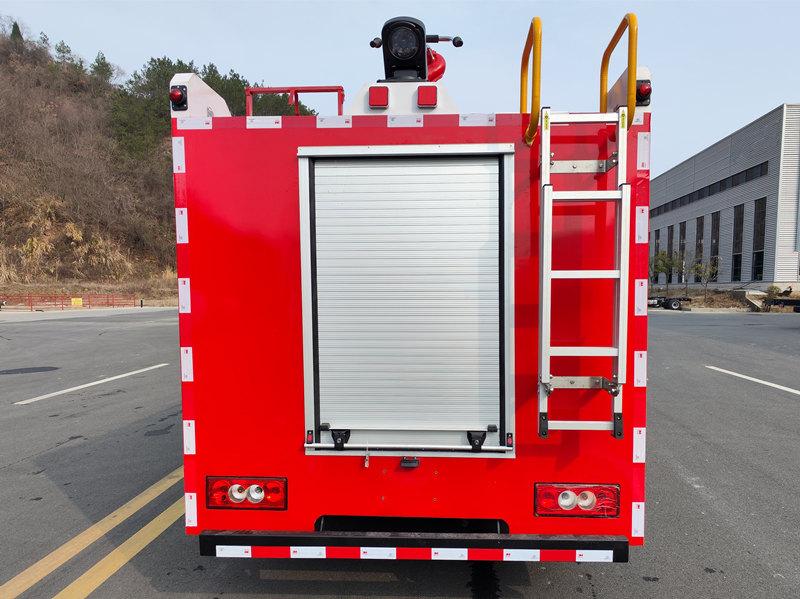

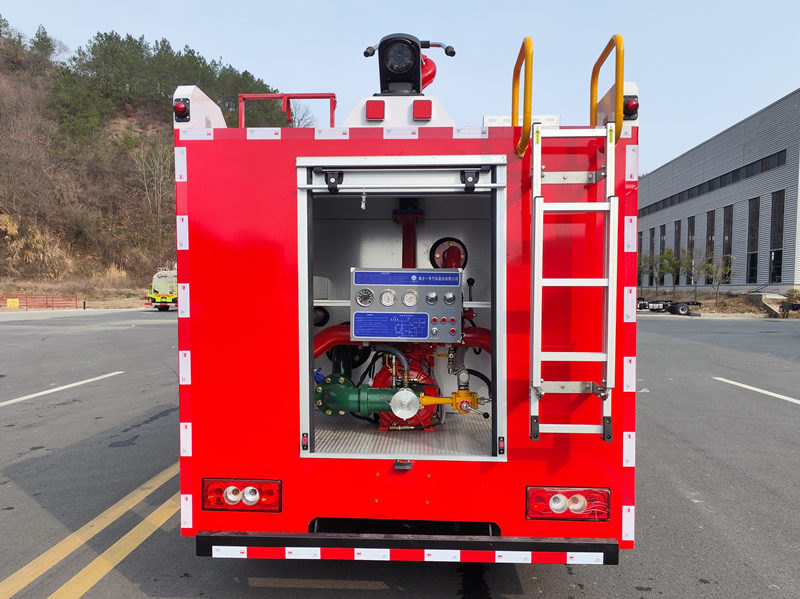

tanker material PP, 4X4, 6X6 drive, RHD drivePOWERSTAR Foam Fire Truck modified based on the BJ1076VEADA-51 chassis, adopting the original double-row crew cabin design, capable of carrying 3+3 firefighters. The body layout is scientifically designed, with equipment compartments on both sides, a carbon steel water tank (1500 kg capacity) in the middle, and an integrated pump compartment at the rear, along with a stainless steel foam tank (1000L capacity). The vehicle is equipped with a CB10/30 normal-pressure fire pump and a PL24 dual-purpose fire monitor, supporting both water and foam fire suppression systems for efficient extinguishing of oil and general material fires. As a lightweight firefighting apparatus, the FOTON mini foam tanker fire truck emphasizes mobility and ease of operation, with low maintenance costs. Its compact size makes it suitable for narrow streets, widely applicable in public fire brigades, industrial plants, communities, docks, and other settings. It is an ideal choice for initial fire response and special rescue scenarios, combining practicality and cost-effectiveness.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: FOTON truck chassis, 4x2, 4x4 and 6x4 model
Q28-130 diesel engine with 130HP and 2800cc displacement
2. Tank material: 4-6mm thick carbon steel water tank, stainless steel is optional
stainless steel foam tank, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam tank volume
4. Fire Pump: CB10/30 centrifugal fire pump, flow rate 30L/s, working distance over 40m
Optional CB10/20 fire pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
Mini water&foam tank fire truck is a compact, multi-functional firefighting vehicle integrating both water and foam tanks, typically with a water capacity of 1-3 tons and a foam capacity of 500-1500L. Its advantages include a small size, high mobility, and suitability for complex environments such as narrow streets, factories, and communities. Easy to operate and quick to respond, it can rapidly reach fire scenes to control initial-stage fires. With both water and foam firefighting capabilities, it is suitable for Class A (solid fires) and Class B (liquid fires). Small foam firefighting trucks are primarily used in urban old districts, townships, industrial parks, airports, oil depots, and other locations, particularly ideal for extinguishing small oil fires, electrical fires, and general material fires. They serve as perfect supplements to large fire trucks, covering areas where larger vehicles cannot operate efficiently.
» Ⅱ.Product Parameter for FOTON mini foam tender fire truck:
VEHICLE SPECIFICATION |
|
Vehicle model |
FOTON Foam Tanker Fire Truck |
Chassis brand |
FOTON |
Chassis model |
BJ1076VEADA-51 |
Traction system |
4*2 |
GVW (kg) |
7360 |
Curb weight(kg) |
4180 |
Rated Load(kg) |
3000 |
Overall dimensions (mm) |
6200*1980*2040 |
Wheel base (mm) |
3360 |
Allowable passengers in cab |
3+3 |
Steering wheel |
LHD |
ROW |
Double rows |
Max speed(km/h) |
95 |
Electric system |
24Volts |
CHASSIS SPECIFICATION |
|
Engine MODEL |
Q28-130C60 |
Engine Power(HP) |
130 |
Emission standard |
Euro 6 |
Displacement (ml) |
2800 |
Engine type |
4-cylinder, water cooling, direct injection, turbocharged, inter cooled |
Gearbox |
Manual, 5-speed |
Air conditioner |
Standard |
Tires |
7.00R16, 6tires + 1spare |
TANKER SPECIFICATION |
|
Water tanker |
1500L (carbon steel) |
Foam tanker |
1000L (stainless steel) |
Standard configuration |
DN460 manhole with fast locking/opening, automatic pressure relieving device . 2units DN65 water inlets with cover. |
FIRE PUMP SPECIFICATION |
|
Type |
Normal pressure fire pump |
Model |
CB10/30 |
Pressure |
1.0 Mpa |
Flow Rate |
30 L/S |
Max Section Depth |
≥7m |
Water Suction Time |
≤45S |
FIRE MONITOR SPECIFICATION |
|
Model |
PL24 |
Rotary Angle |
360°horizontal rotation |
Elevation Angle |
≥+45° |
Depression Angle |
≤-15° |
Flow Rate |
24L/S |
Range distances |
Water ≥45m; Foam ≥40m |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

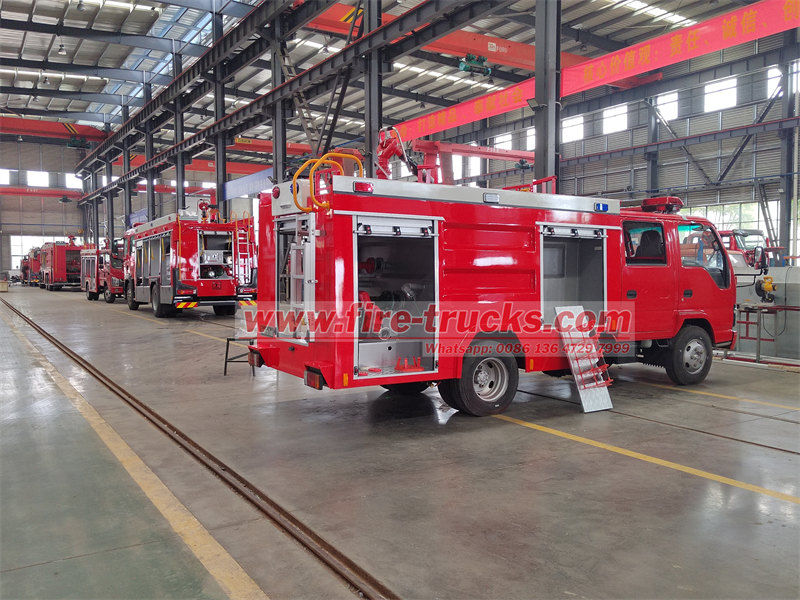

2. Skilled workers for production:

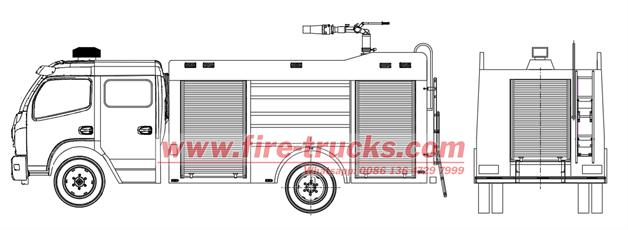

POWERSTAR firefighting truck technical drawing help for producing guidance, skilled workers modify to double cabin, installed the Sandwich PTO, CB10/30 fire pump, PL8/24 fire monitor, water and foam tanks, Pump in and Pump out valves, lighting system, also full Aluminium alloy decoration.
3. Prepare full fire fighting equipment:
Fire engine truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
