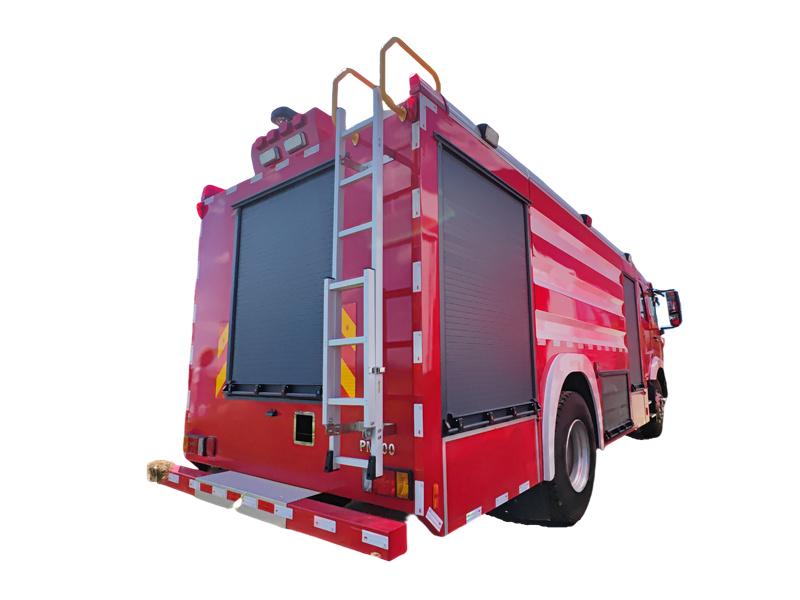

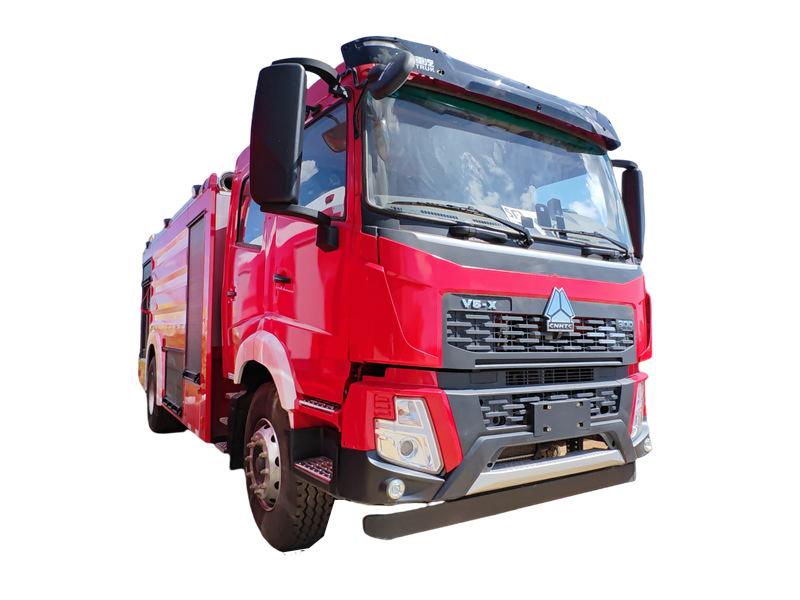

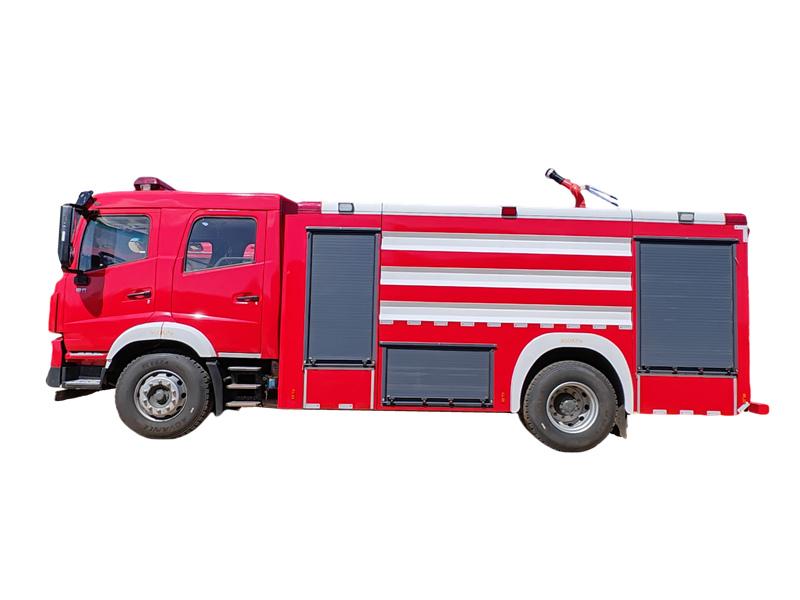

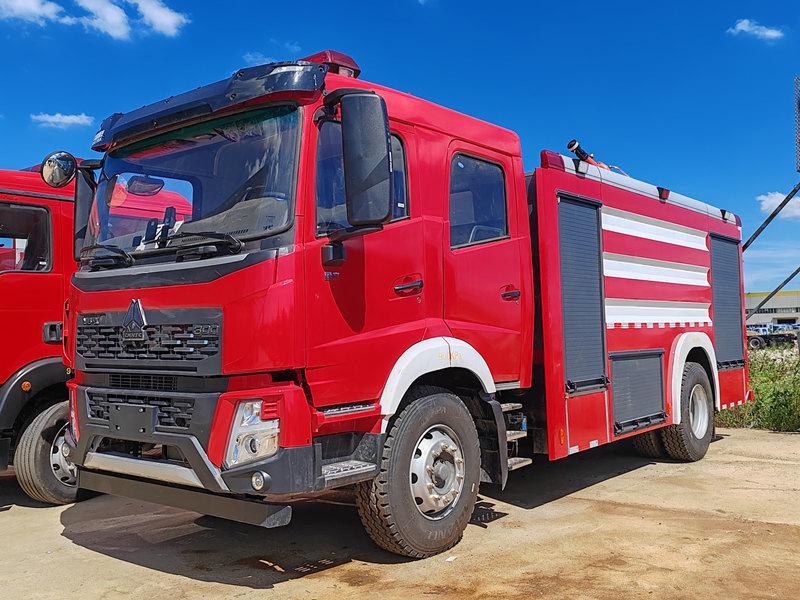

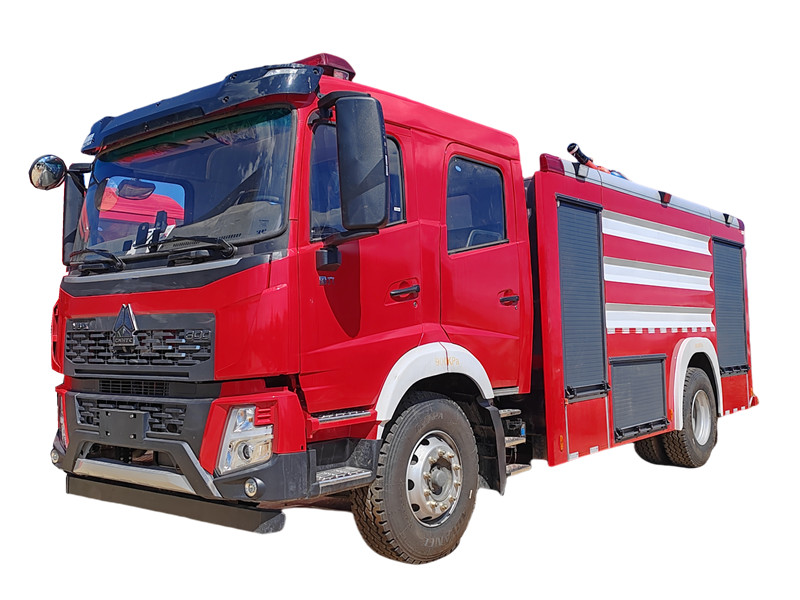

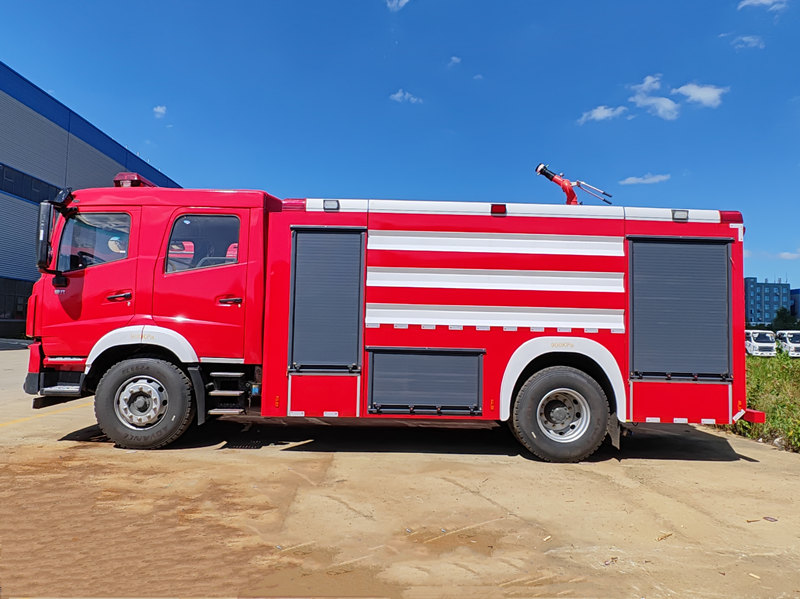

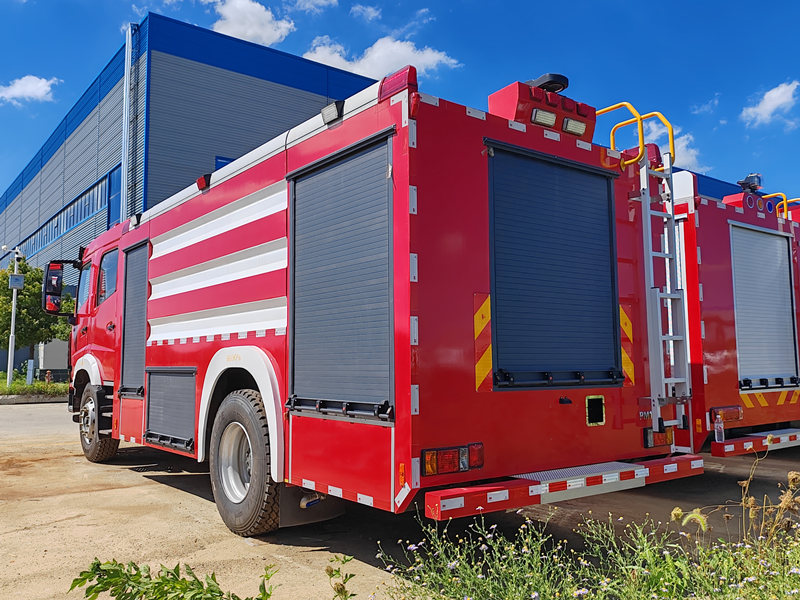

The POWERSTAR foam fire truck is a professional firefighting vehicle modified on the SINOTRUK 4×2 chassis. It is equipped with a CB10/70 normal-pressure fire pump, a 8000L carbon steel water tank, a 2000L stainless steel foam tank, an integrated foam mixing system, and a PL8/64 fire monitor. Capable of efficiently extinguishing oil and chemical fires, it also functions as a water tanker, independently delivering water or foam mixture. Widely used in high-risk environments such as petrochemical plants, airports, and ports, it serves as a core rescue asset for both urban and industrial firefighting.
Manufacturer Origin:
Powerstar TrucksWork capacity :
8000L +2000LUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
4500 mmAxle drive:
4×2Engine Power:
300 HPEngine Model:
WP7H300E62Fire Pump:
CB10/70, 70L/sFire Monitor:
PL8/64 for water and foamRemark:
tanker material PP, 4X4, 6X6 drive, RHD driveThe PST5204GXFPM70 foam tanker fire truck is built on a SINOTRUK 4×2 chassis. It is equipped with a CB10/70 normal-pressure fire pump, a 8000L carbon steel water tank, a 2000L stainless steel foam tank, a foam mixing system, foam guns, a PL8/64 fire monitor, and other firefighting equipment, enabling independent fire suppression. This SINOTRUK foam firefighting truck is particularly effective against petroleum-based fires and can supply water or foam mixture to fire scenes. It is commonly deployed by petrochemical facilities, oil terminals, airports, and municipal fire brigades.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: SINOTRUK truck chassis, 4x2, 6x4 and 8x4 model is optional
WEICHAI WP7H300 engine, 300HP with 6.8L displacment
2. Tank material: 4mm thick carbon steel water tank
4mm thick stainless steel foam tank
3. Tanker body: 8000 liters water tank+2000 liters foam tank, tank capacity cusotmized as requirement
4. Fire Pump: CB10/70 centrifugal fire pump, flow rate 70L/s, working distance over 75m
Optional CB10/80, CB10/100 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
Foam fire truck, also known as water-foam firefighting truck, foam tender fire truck, foam fire engine, is a specialized firefighting vehicle designed to extinguish liquid fires such as oil and chemical fires. It is equipped with a foam liquid tank, a proportioning mixing system, and a discharge device, which generates fire-suppressing foam by mixing air and water to efficiently cover the burning surface and cut off oxygen. Additionally, it retains the basic functions of a water tanker, making it suitable for high-risk locations like petrochemical facilities and airports.
» Ⅱ.Product Parameter for SINOTRUK foam tanker fire truck:
Vehicle description |
||
Overall dimension |
8360*2510*3550mm |
|
GVW |
20300kg |
|
Curb weight |
10550kg |
|
Chassis brand |
SINOTRUK |
|
Traction type |
4*2, left hand drive |
|
Chassis description |
||
Chassis model |
ZZ5214V6 |
|
Cab |
Double row, 2+ 4 seats with AC |
|
Wheelbase |
4500 mm |
|
Tire specification |
12.00R20 |
|
Tire quantity |
6+1 units |
|
Engine |
Engine model |
WP7H300E62 |
Max. Net Power |
216 KW |
|
Hose power |
300HP |
|
Emission standard |
Euro 6 |
|
Displacement |
6.8 L |
|
Rated speed |
2100 rpm |
|
Gear box |
Number of gears |
6 |
Brake system |
Full air brake, power steering, spring brake, exhaust brake |
|
Axle |
Front |
6500 kg |
Rear |
12600 kg |
|
Suspension |
Front |
Leaf spring |
Rear |
Leaf spring |
|
Up-parts description |
||
Tanker capacity |
Water tanker |
8000 liters |
Foam tanker |
2000 liters |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/70, normal pressure pump |
Flow |
70L/S |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Fire monitor |
Model |
PL8/64 |
Pressure |
0.8Mpa |
|
Range |
Water ≥75M, Foam ≥70M |
|
Rotation angle |
Horizontal 360° |
|
Other configuration |

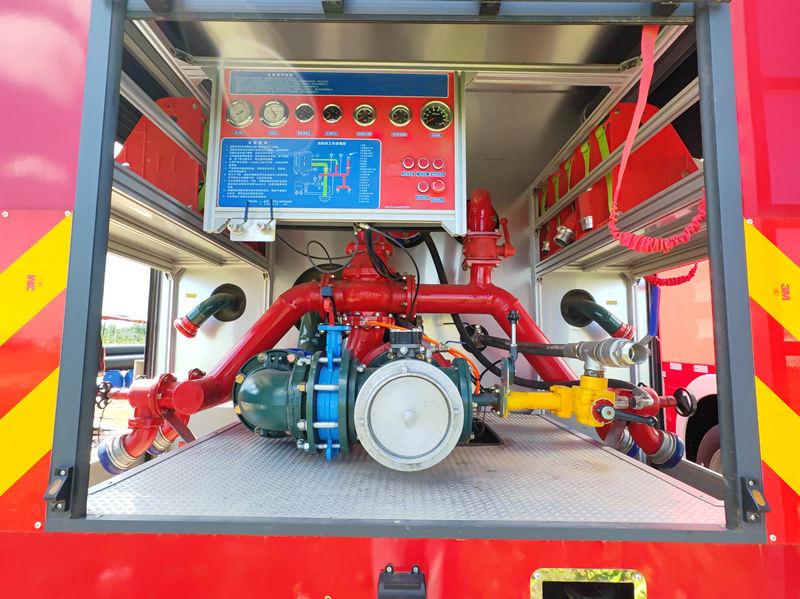

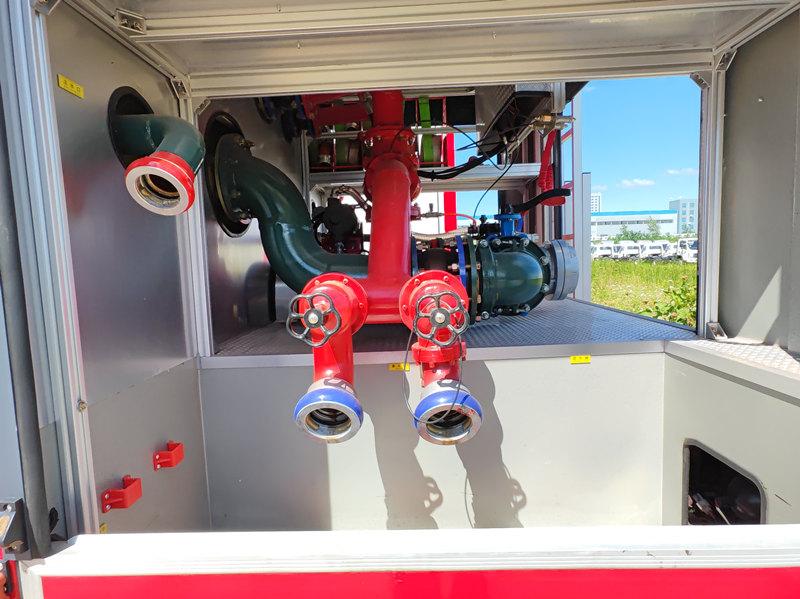

Equipped with sandwich PTO, pipeline system; |
» Ⅲ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the water + foam + dry powder tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.
2. Skilled workers for production:

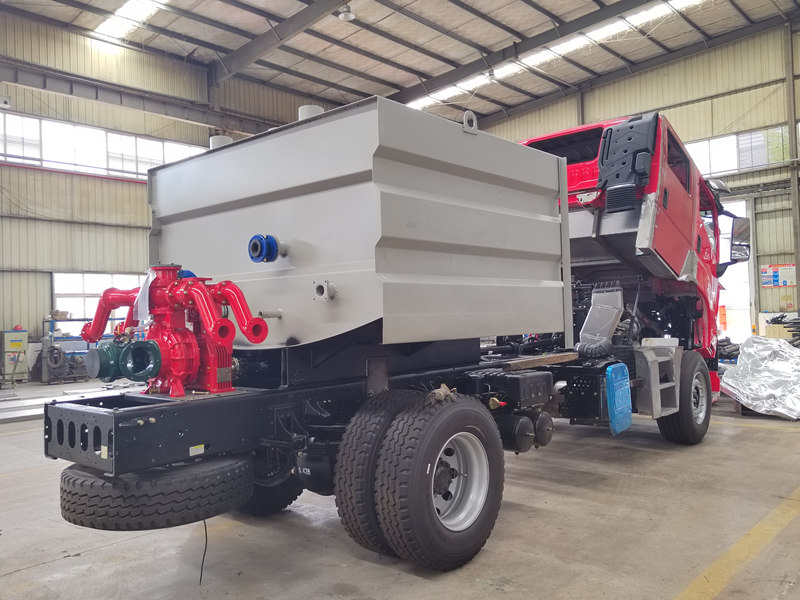

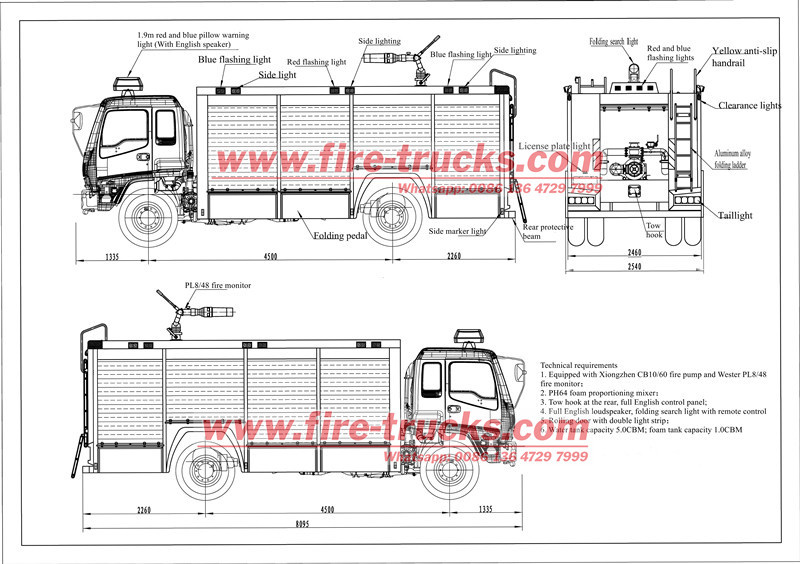

SINOTRUK fire truck technical drawing help for producing guidance, skilled workers modify to double cabin, installed the Sandwich PTO, CB10/70 fire pump, PL8/64 fire monitor, Pump in and Pump out valves, lighting system, also full Aluminium alloy decoration.
3. Prepare full fire fighting equipment:
Fire truck equipped with all necessary fire extinguishing tools and equipment
![]() |
![]() |
