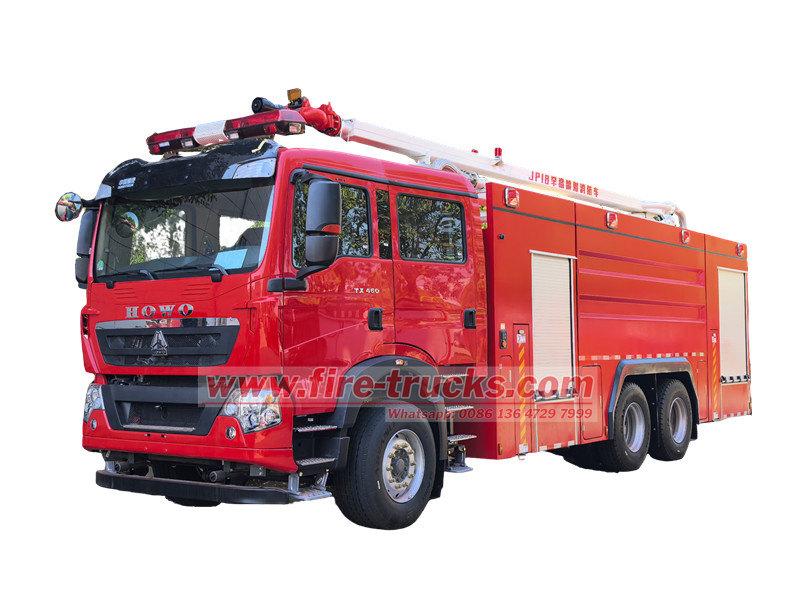

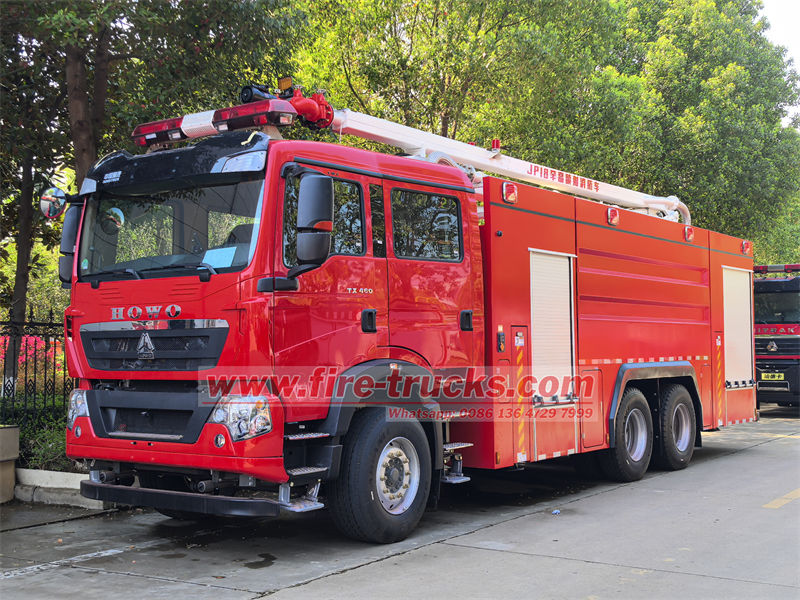

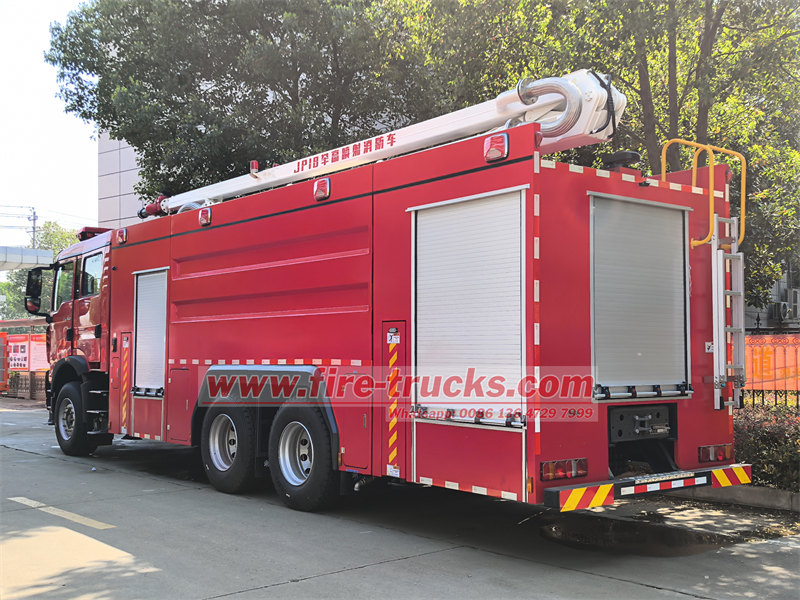

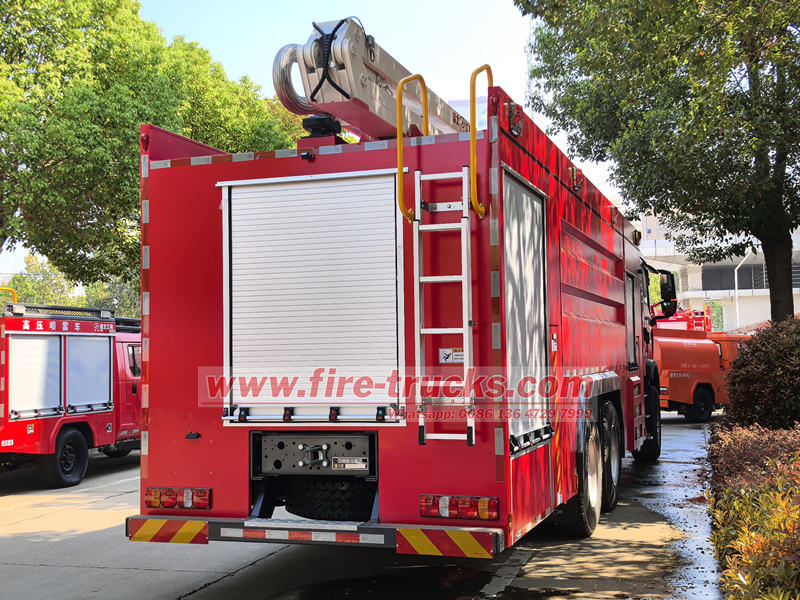

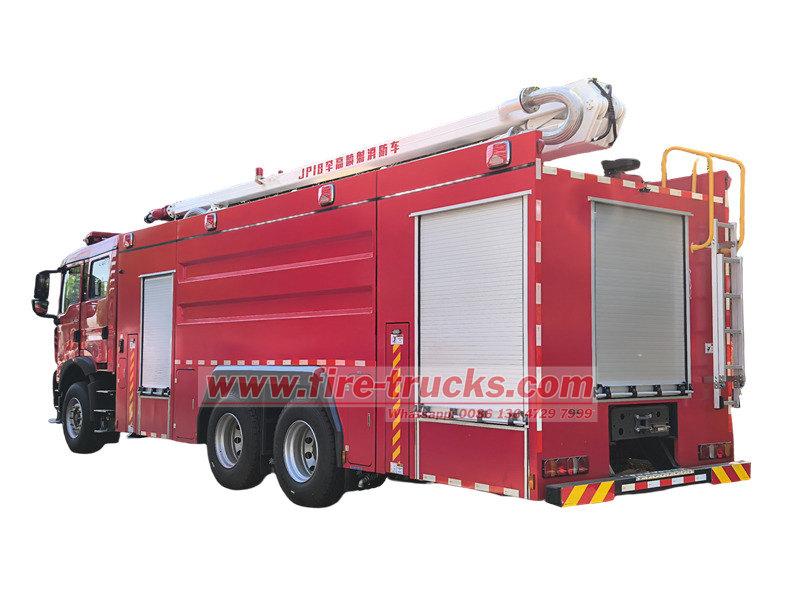

The HOWO 18-meter Tower Fire Truck is a versatile firefighting vehicle built on a Sinotruk HOWO 6×4 chassis, combining water tanker, foam truck, and high-reach monitor functions. It features a fully hydraulic, 360° rotating folding boom system, enabling precise firefighting at heights up to 18 meters. Equipped with a high-capacity CB10/100 fire pump (100L/s flow rate) and a dual-purpose water/foam monitor, it delivers powerful, long-range fire suppression. Ideal for industrial complexes, high-rise buildings, and oil fires, its advanced electro-hydraulic controls ensure stable, rapid deployment. With reinforced steel construction and safety-focused design, it offers reliable performance for urban, industrial, and emergency firefighting operations.
Manufacturer Origin:
Powerstar TrucksWork capacity :
10000L +2000LUpper Body material:
Stainless steelProduction time:
60 daysWheelbase:
4300+1400 mmAxle drive:
4×2Engine Power:
460 HPEngine Model:
MC11.46-61Fire Pump:
CB10/100, 100L/sFire Monitor:
PLKD8/80 for water and foamRemark:
Tanker material PP, 4X4, 6X6 drive, RHD drive is optionalThe HOWO Water Tower Fire Truck is a new type of firefighting vehicle that integrates the functions of a water tanker, foam truck, and elevated fire monitor into one. It is built on the modified Sinotruk HOWO 6×4 chassis. The boom of this vehicle is fully hydraulically driven, features 360° rotation, and consists of two folding arms, making it a multifunctional firefighting vehicle with advanced domestic capabilities. Equipped with the renowned Chinese CB10/100 high-flow fire pump, it delivers a rated flow of 100L/s. The roof-mounted fire monitor can discharge both water and foam. The HOWO aerial tower fire truck boasts advanced performance, smooth operation, excellent fine-tuning capabilities, strong firefighting capacity, safe and reliable operation, and cutting-edge features such as wired remote control.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:

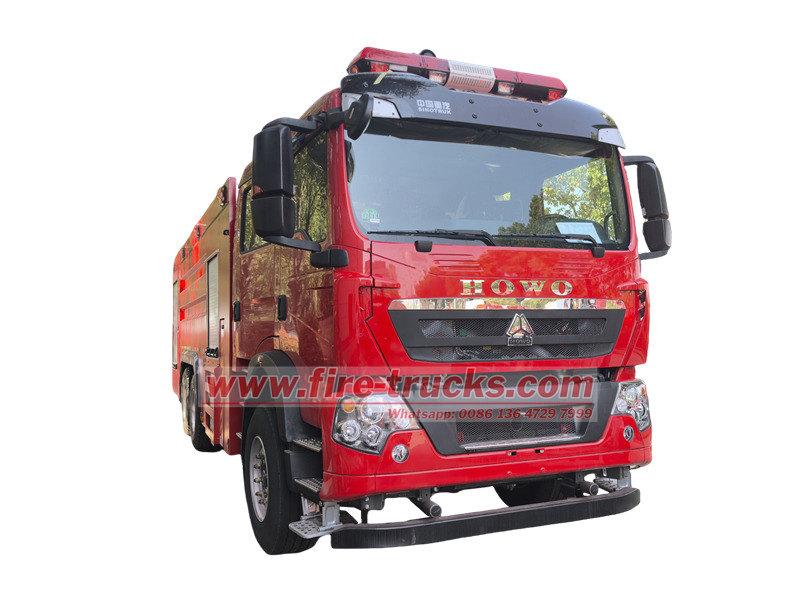

1. Truck Chassis: SINOTRUK fire truck chassis, 6×4 drive model

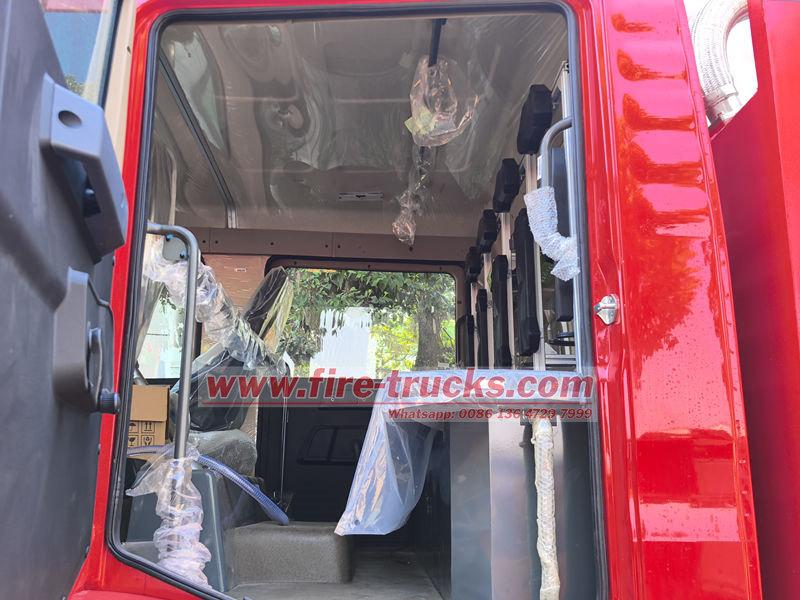

Double row cabin, with a seating capacity of 2+4 crew members.Electric tilting system, power-adjustable mirrors, electric windows, central locking system, and four-point full-floating cab suspension.
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose

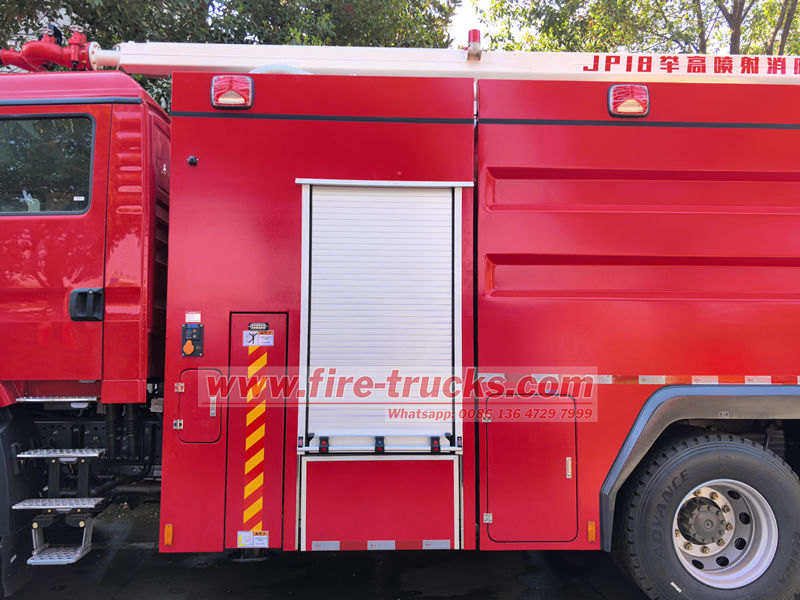

3. Tanker body: 10000 liters Water + 2000 liters foam tank
4. Fire Pump: Model CB10/100-TB, with a displacement of 6,000 liters per minute; suction depth exceeding 7 meters; priming time under 50 seconds; equipped with an advanced computer-controlled automatic pressure stabilization device.

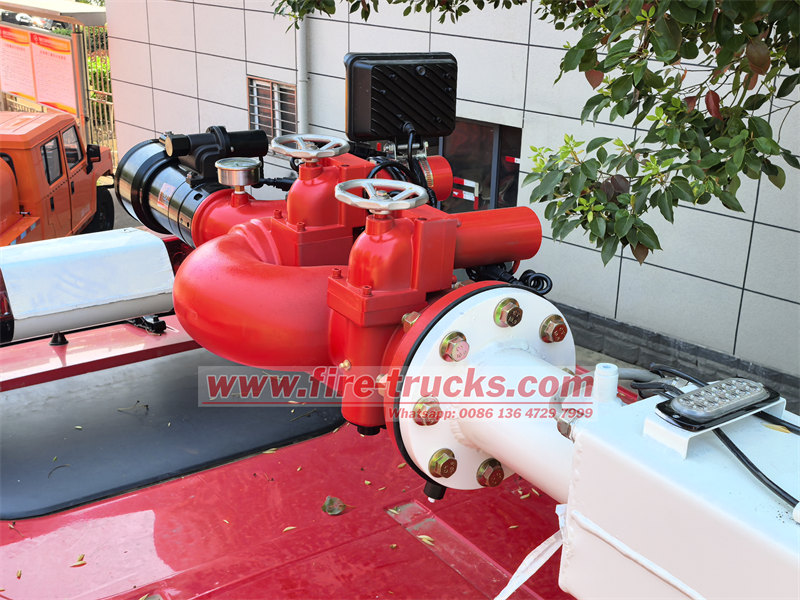

5. Special design: PLKD8/80 dual-purpose fire monitor (water/foam), featuring an aluminum alloy nozzle, cast iron body, and electric remote control system.
» Ⅱ.Product Parameter for HOWO aerial tower fire truck:
Chassis specifications
Item |
Unit |
Paramters |
||
Driving Performance Parameters |
Overall dimensions(L×W×H) |
mm |
10700×2550×3960 |
|
Maximum speed |
km/h |
100 |
||
Minimum turning diameter |
m |
22 |
||
Maximum climbing ability |
% |
40 |
||
Braking distance (fully loaded, initial braking speed 30 km/h) |
m |
9 |
||
Approach angle / Departure angle |
° |
15/ 8 |
||
Front overhang / Rear overhang |
mm |
1500/3200 |
||
Wheelbase |
mm |
4300+1400 |
||
Front wheel track |
mm |
2110 |
||
Rear wheel track |
mm |
1830/1830 |
||
Number of leaf springs |
|
10/12 |
||
Tire specification |
|
315/80R22.5 |
||
Number of tires |
|
10+1 |
||
Cab seating capacity |
|
2+4 |
||
Mass Parameters |
Gross vehicle weight |
kg |
32500 |
|
Curb weight |
kg |
20050 |
||
Fire extinguishing agent rated load |
Water |
kg |
10000 |
|
Foam |
kg |
2000 |
||
Chassis |
Model |
|
ZZ5357TXF |
|
Drive configuration |
|
6×4 |
||
Manufacturer |
|
SINOTRUK |
||
Engine |
Model |
|
MC11.46-61 |
|
Displacement / Power |
mL/kw |
10581/341 |
||
Emission standard |
|
Euro 6 |
||
Manufacturer |
|
SINOTRUK |
Upper body specifications
Item |
Unit |
Parameter |
|||
Working Performance |
Rated working height |
m |
18 |
||
Maximum working radius |
m |
9 |
|||
Fire pump |
Model |
|
CB10/100 |
||
Rated flow |
L/s |
100 |
|||
Rated pressure |
MPa |
1.0 |
|||
Suction depth |
m |
7 |
|||
Priming time |
s |
≤50 |
|||
Fire Monitor |
Water-foam dual-purpose monitor |
Model |
|
3482+5177 |
|
Rated flow |
L/s |
80 |
|||
Rated pressure |
MPa |
1.0 |
|||
Range |
m |
≥75 |
|||
Monitor head swing range |
Up/Down |
|
-30°~+70° |
||
Left/Right |
|
≥340° |
|||
Boom |
Luffing range |
Lower boom (relative to horizontal) |
|
0~+80° |
|
Lower boom relative to upper boom |
|
0~150° |
|||
Boom operation time (fully extended, luffing to max angle, slewing to 90°) |
s |
<150 |
|||
Outrigger deployment time |
s |
<40 |
|||
Boom slewing speed |
r/min |
1~2 |
|||
Outrigger span (longitudinal × transverse) |
mm |
6000×2950 |
» Ⅲ.Product Details & Advantages:
1. Rapid & Stable Elevated Firefighting
The HOWO 18m water tower features elevated firefighting capabilities, with outriggers and boom movements that are both steady and swift, allowing for quicker deployment.
2. Advanced Safety & Reliability
The vehicle is designed with advanced technology and ensures high-quality safety and reliability, with key technical performance parameters reaching leading China standards.
3. Precision Electro-Hydraulic Control
The truck adopts high-performance electro-hydraulic proportional control technology and hydraulic transmission, ensuring smooth, reliable, and user-friendly operation.
4. High-Strength Folding Boom Design

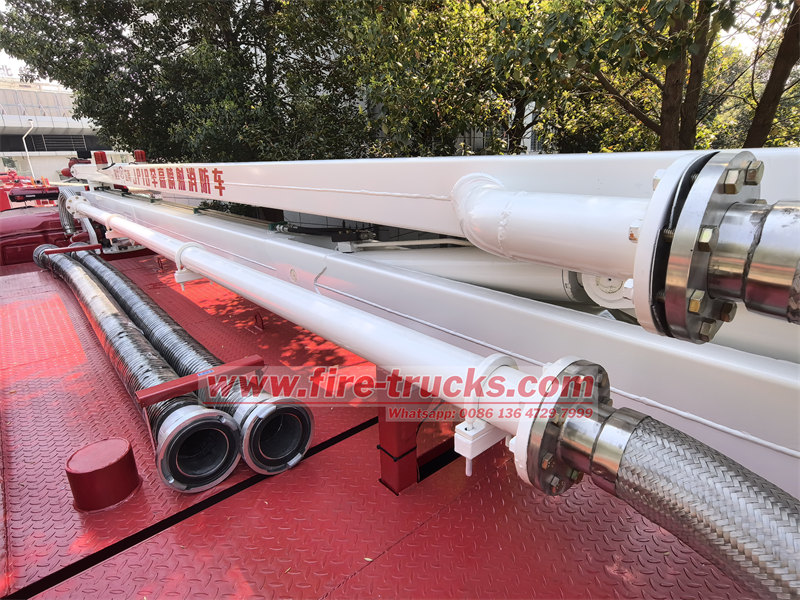

It utilizes a folding boom structure. The lower arm can elevate within an 80° range, while the lower and upper arms can achieve a 150° elevation range. The boom cross-section adopts a quadrilateral box structure, welded from high-strength steel.
5. Smooth Rotation with Buffering Technology

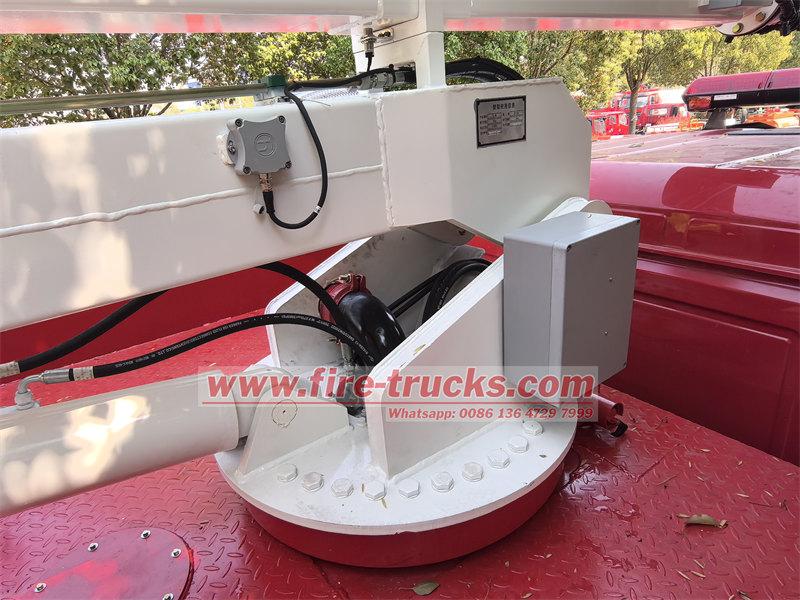

The boom rotation features a buffering function. The rotation mechanism employs a worm gear structure, and the hydraulic system is equipped with cushioning valves, ensuring smooth and reliable start-up and braking with excellent fine-tuning performance.
