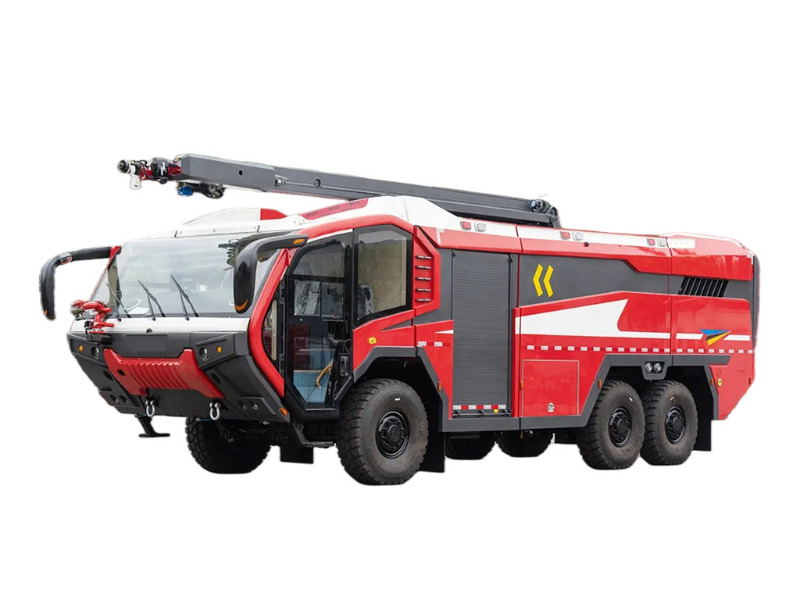

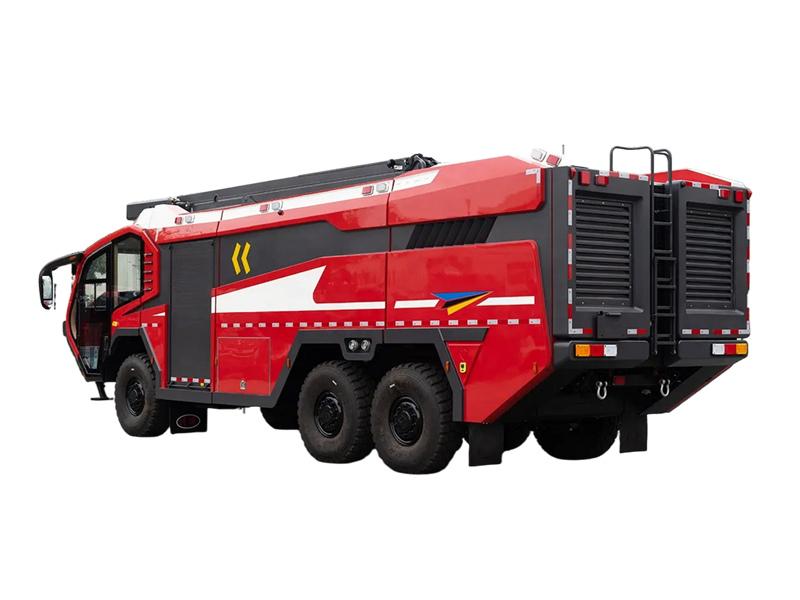

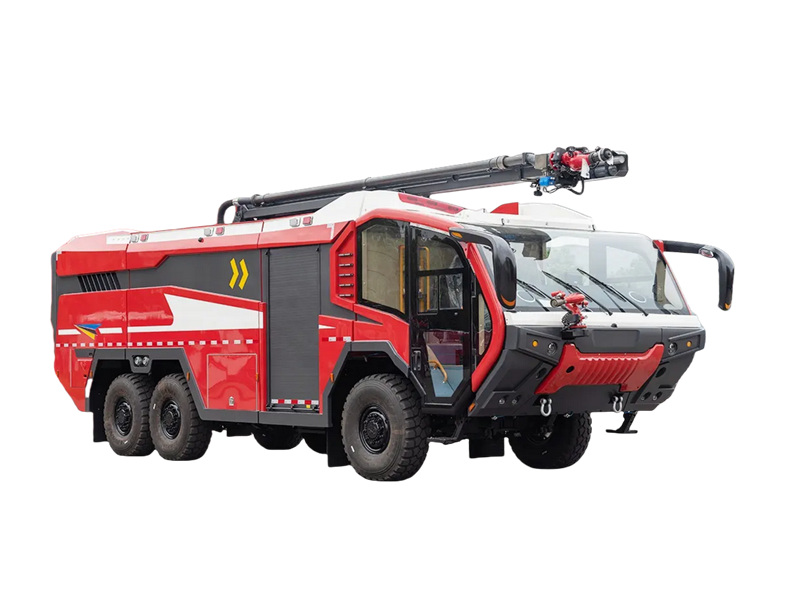

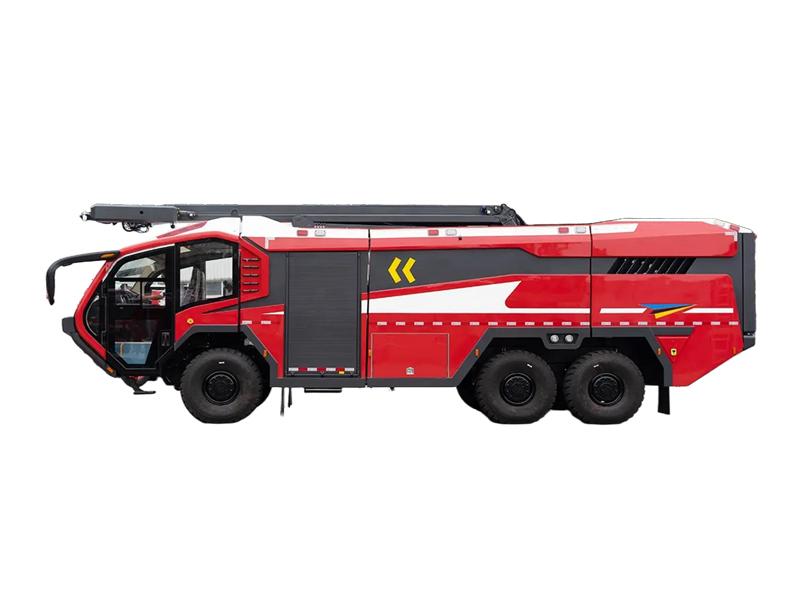

The PT5360GXFKD is a rapid intervention firefighting vehicle (ARFF) specifically designed for airports, equipped with powerful firefighting capabilities and high mobility. The vehicle has an overall dimension of 11700mm × 3000mm × 3850mm, a full load weight of 39,000 kg, and can carry 5 crew members (including the driver). It has a maximum speed of 115 km/h and adopts a 6×6 drive configuration with a wheelbase of 4800mm + 1400mm, ensuring rapid response and stable operation on airport runways. The vehicle is powered by an engine with a rated power of 566 kW, providing strong power support to ensure it can quickly reach the accident site in emergencies.
Truck Model:
PT5360GXFKDTanker Structure:
PP composite materialWork capacity :
12000L water, 1500L foamWheelbase:
4800mm+1400mmAxle drive:
6×6Engine Power:
566 KWEngine Model:
V8Fire Pump:
100L/sFire Monitor:
80L/sRemark:
Electric remote control
The Aircraft Rescue and Firefighting Vehicle (ARFF) is a specialized firefighting vehicle designed for airports, primarily used to respond to fire incidents that may occur during aircraft takeoff and landing. It is the first firefighting and rescue vehicle to arrive at the scene of an aircraft accident. Compared to the main foam firefighting vehicle, the rapid intervention vehicle has a relatively smaller capacity but is faster and more agile. Before the main foam vehicle arrives at the accident site, it reaches the scene first, initiating firefighting efforts to control the fire and prevent it from spreading.
The PT5360GXFKD AFRR truck is specifically designed for such scenarios, with performance that meets or exceeds the highest requirements of the International Civil Aviation Organization (ICAO) and the National Fire Protection Association (NFPA) for airport firefighting vehicles. It can carry approximately 12,000 liters of water and 1,500 liters of firefighting foam, with a water pump flow rate of 6,000 liters per minute and an electric remote-controlled water cannon range of up to 80 meters. The vehicle features a mid-mounted steering wheel layout, a width of over 3 meters, and can accelerate from 0 to 100 km/h in just about 30 seconds when fully loaded, with a top speed of 115 km/h. It can even perform firefighting operations while chasing a taxiing aircraft.
Compared to ordinary fire trucks, ARFF vehicles have significant differences. First, ARFF vehicles require extremely high mobility and rapid response capabilities to reach the scene within the critical time frame of an aircraft accident. Second, ARFF vehicles have more complex and powerful firefighting systems, capable of handling fuel fires, electrical fires, and ordinary fires simultaneously. Additionally, ARFF vehicles have a more compact body design, allowing them to maneuver flexibly on airport runways, while being equipped with advanced lighting and warning systems to ensure efficient operation at night or in low-visibility conditions. The PT5360GXFKD is an advanced ARFF model that meets these requirements.
● 24 months long guarantee time assurance
● OEM customized service, print your company logo
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
Product Specifications
|
Vehicle basic parameters |
|
|
Model |
PT5360GXFKD |
|
Overall Dimension |
11700mm×3000mm×3850mm |
|
Full Load Weight |
39000kgs |
|
Number of the Crew |
5 (include driver) |
|
Max. Speed |
115km/h |
|
Drive Type |
6*6 |
|
Wheelbase |
4800mm+1400mm |
|
Rated Power |
566 kW |
|
Superstructure parameters |
|
|
Cabin |
|
|
Structure |
Single row cabin with 2 doors |
|
Seats |
5 seats with 3-point safety belt |
|
Standardized Sub-frame |
|
|
Material |
High-strength rectangular tube made of special steel |
|
Performance |
The liquid tank and the sub-frame are connected by elastic connecting seats |
|
Compartment |
|
|
Material |
High-strength aluminum alloy profiles |
|
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
|
Roller Shutter Door |
|
|
Material |
Aluminum alloy profiles with anodized surface |
|
Structure |
With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
|
Lighting System |
|
|
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
Strobe Light |
Mounted on the both sides of the compartment |
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
|
Fire Extinguishing System |
|
|
Fire Pump |
|
|
Flow Rate |
100L/s @ 10bar |
|
Priming Method |
Automatic |
|
Suction Height |
7 m |
|
Priming time |
≤80s |
|
Location |
mid-mounted |
|
Fire Monitor |
|
|
Flow Rate |
80L/s @ 10bar |
|
Range |
Water ≥ 80 m; Foam ≥ 75m |
|
Location |
top of boom |
|
Control Method |
Electric remote control |
|
Horizontal Rotation Angle |
0°~330° |
|
Pitch Rotation Angle |
-15°~60° |
|
Liquid Tank |
|
|
Capacity |
12000L water, 1500L foam |
|
Material |
PP composite material |
|
Structure |
Two Tank Manhole; Two Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
|
Dry powder system |
|
|
Dry powder volume |
250 kg |
Features and Functions of ARFF Vehicles
1. Rapid Response: ARFF vehicles are equipped with powerful powertrains and high-performance engines, enabling them to respond quickly to emergencies and reach the accident site promptly.
2. Large Water Supply: ARFF vehicles are typically equipped with large-capacity water tanks and high-power water pumps, providing a substantial water supply to extinguish fires rapidly.
3. Foam System: In addition to water, ARFF vehicles are equipped with foam systems that generate abundant foam for fire suppression, isolating fire sources and preventing fire spread.
4. Dry Powder Fire Extinguishing Agent: ARFF vehicles can also carry dry powder fire extinguishing agents to combat specific types of fires, such as oil fires.
5. Flame Detection: ARFF vehicles are equipped with advanced flame detection systems that can quickly identify fire sources and guide firefighters to extinguish them accurately.
6. Rescue Equipment: ARFF vehicles are typically equipped with life-saving gear, such as rescue ropes and stretchers, to facilitate personnel rescue operations.
7. Emergency Lighting: ARFF vehicles are also equipped with powerful emergency lighting systems to ensure effective rescue and firefighting operations at night or in adverse weather conditions.
The ARFF fire truck, built on the Titan T26 chassis, has a total weight of 26 tons. It is equipped with a Scania 16-liter V8 engine, model DC16 386, delivering a maximum power output of 770 horsepower. In the field of emergency rescue, this fire truck is undoubtedly a crucial piece of equipment for firefighting and rescue teams. Its outstanding performance and powerful capabilities will play a significant role in safeguarding people's lives and property.
