HOWO 4×4 Fire Truck is a professional firefighting vehicle built on the basis of SINOTRUK HOWO 4×4 off-road chassis. It is equipped with a high-quality fire pump, a 6-cubic-meter water tank, and a 2-cubic-meter foam tank, along with a fire monitor capable of jetting water up to 70 meters and a modular equipment compartment. Powered by a 380-horsepower engine, featuring a part-time four-wheel drive system and off-road tires, this vehicle demonstrates outstanding all-terrain mobility. Designed specifically for challenging firefighting scenarios such as forests, petroleum-related fires, geological disasters, and narrow urban areas, it serves as a rapid-response mobile firefighting equipment.
Manufacturer Origin:
Powerstar TrucksWork capacity :
3000L water +2000L foamUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
310 HPEngine Model:
WP10.310E40Fire Pump:
CB10/60, 60L/sFire Monitor:
PL8/48 for water and foamRemark:

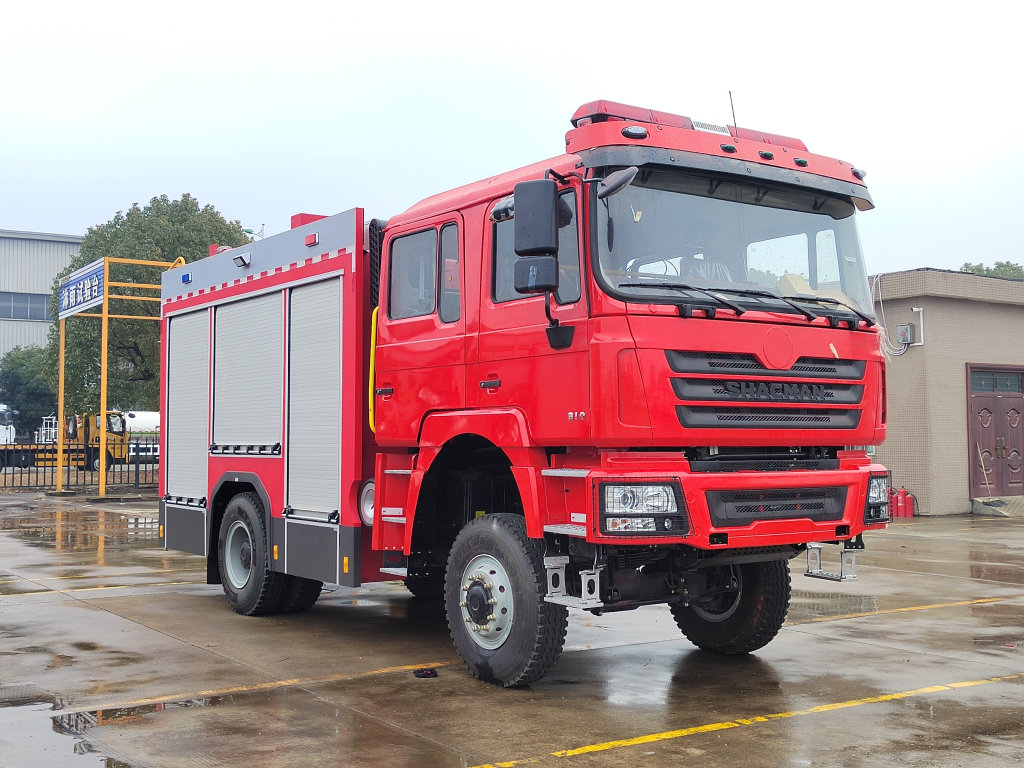

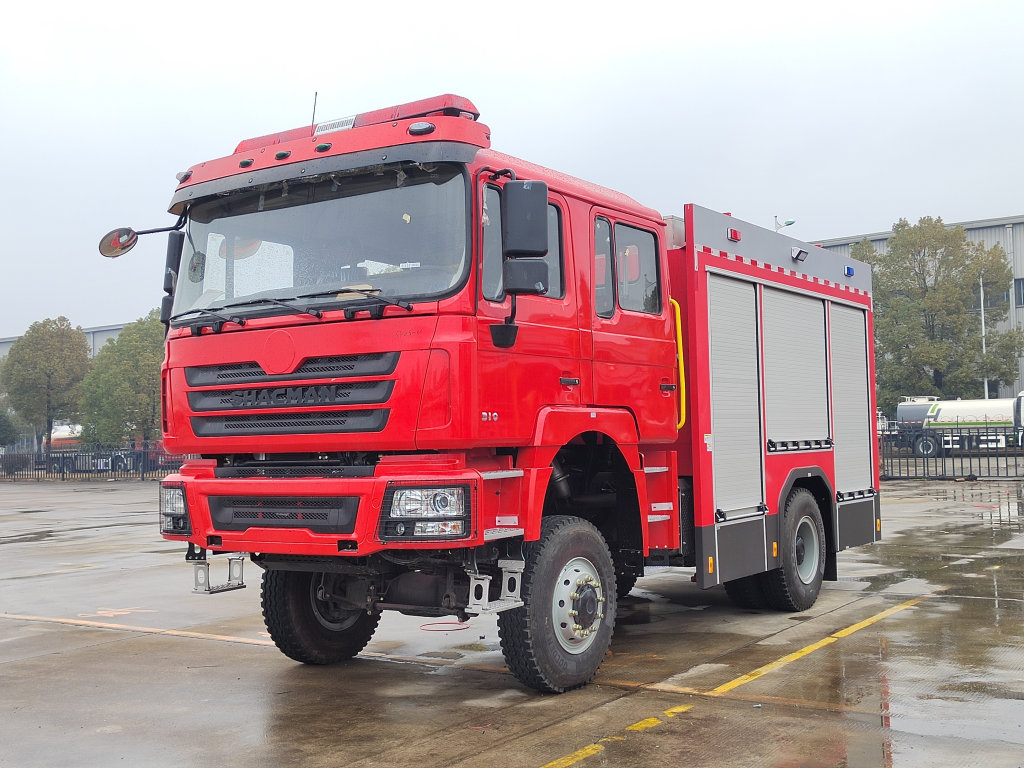

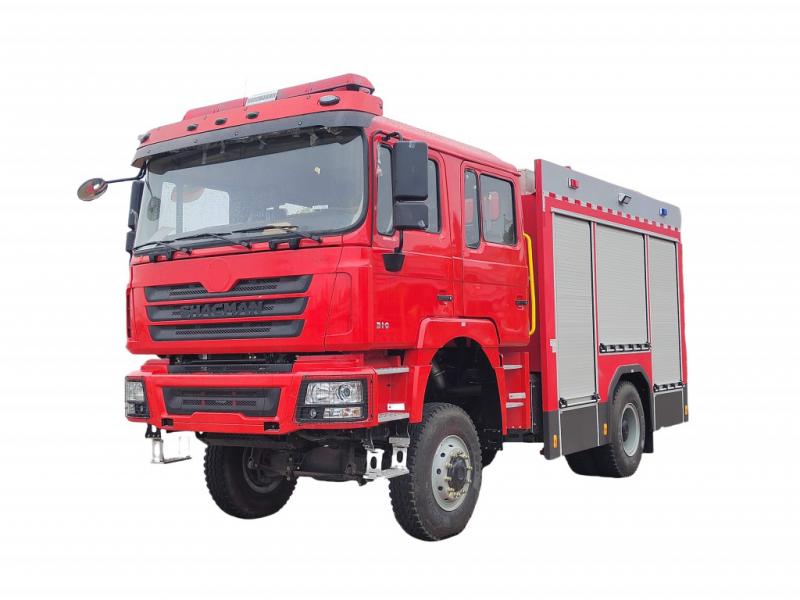

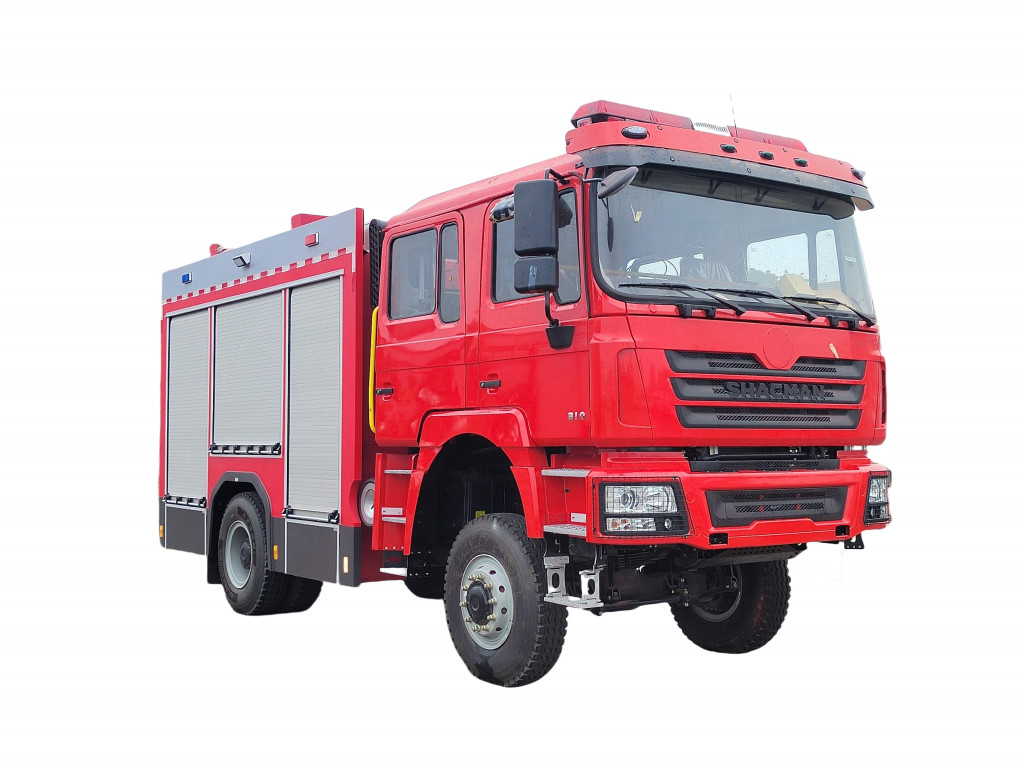

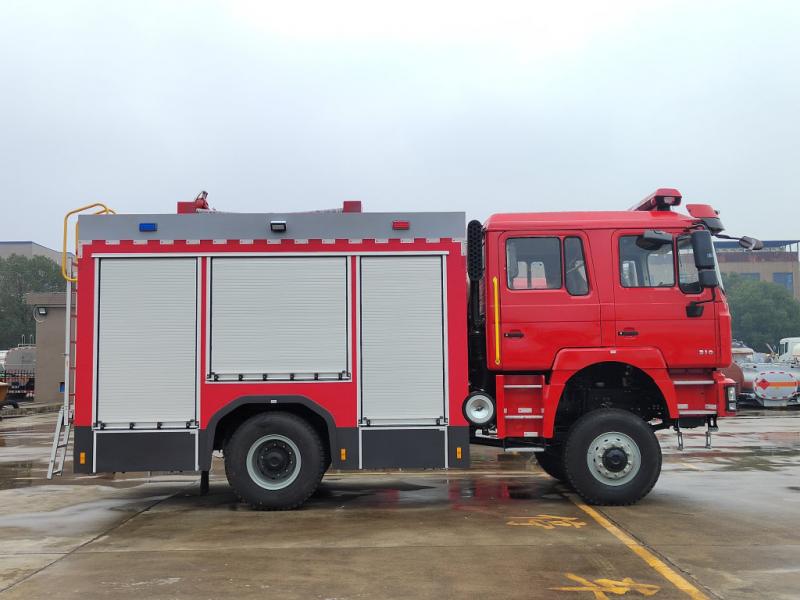

tanker material PP, 4X4, 6X6 drive, RHD driveShacman 4x4 AWD military fire trucks, also called as Shacman Fire resuce , with its powerful power, superior off-road performance and ultra-high reliability, is widely used in firefighting and emergency rescue scenarios in a variety of complex environments.It is suitable for rapid response to forest fires, capable of traversing rugged terrain to perform fire scene reconnaissance, establish containment zones, and treat casualties.
Equipped with independent suspension and a disconnecting drive axle, it has a maximum wading depth of 0.8 meters and a vertical cross-country capability of 0.4 meters, making it suitable for extreme terrain such as mud and steep slopes.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Truck Chassis: SHACMAN heavy-duty truck chassis, 4×4 drive, with excellent off-road performance
WEICHAI engine with 310HP or 400HP and displacement 9726cc
HW19710 gearbox, 10-speed forward and 2 reverse
2. Tank material: carbon steel water tank and stainless steel foam tank, 4mm thickness
stainless steel water tank, aluminum alloy or PP tank can be customized
3. Tanker body: Tank capacity can be desinged as required, dry powder tank is optional

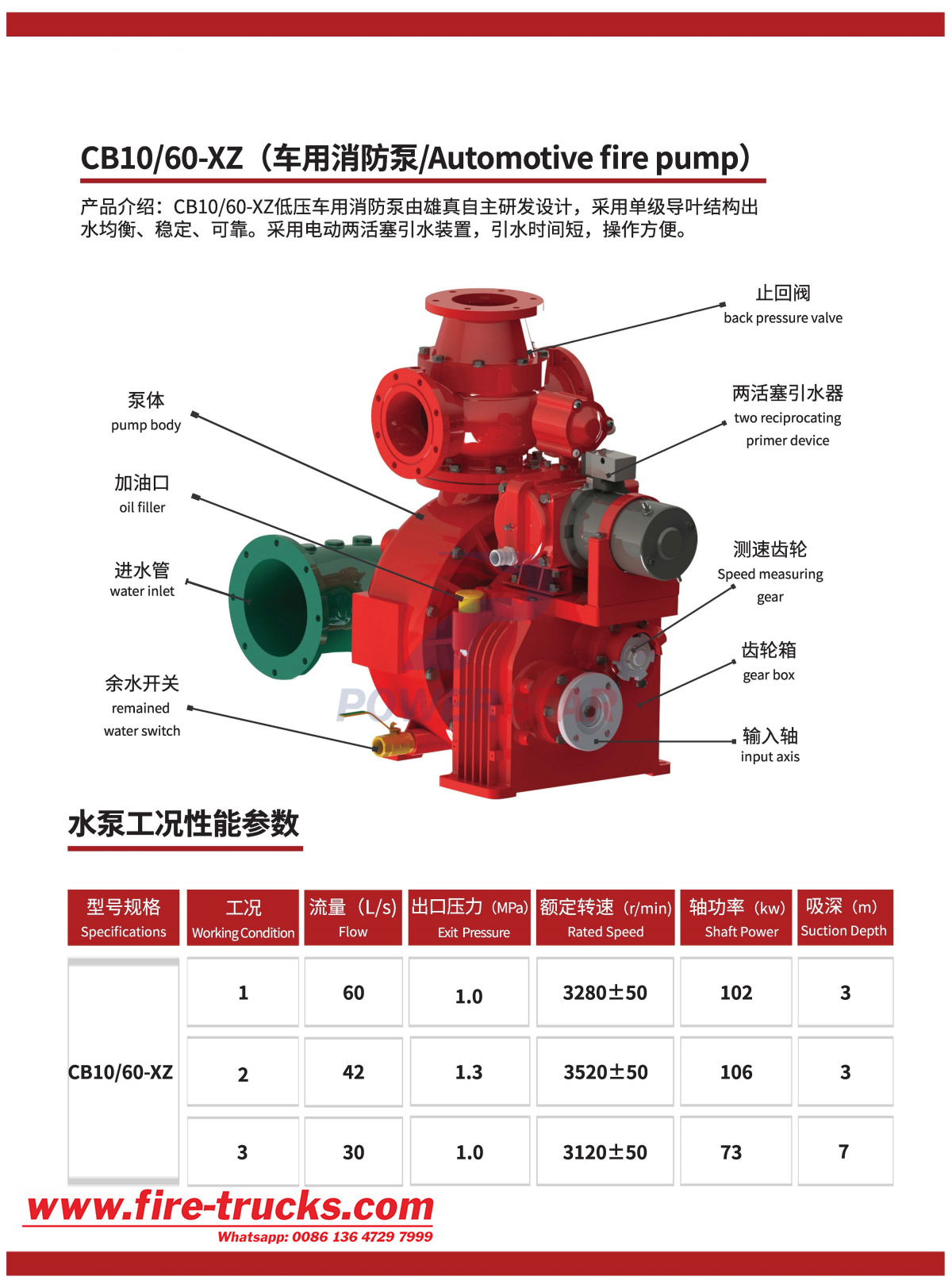

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working pressure 1.0Mpa
PL8/48W fire monitor, 360° rotation, water range is up to 70m
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

HOWO 4×4 Firefighting Truck is a specialized fire rescue vehicle with off-road capabilities, built on the SINOTRUK HOWO 4WD chassis. It is equipped with a high-power fire pump, water tank, foam tank, fire monitor, and modular rescue equipment. This vehicle is suitable for various scenarios including forest firefighting, petroleum exploration, geological disaster rescue operations, and fire suppression in narrow urban areas. It can be configured with multiple types of firefighting systems such as water, foam, and dry powder.
» Ⅱ.Product Parameter for Shacman 4x4 4WD tender fire truck:
| Name | 4x4 AWD Shacman Water tank fire fighting truck | |
| Chassis Model/ manufacturer | SHACMAN 4X4 Military heavy chassis | |
| Cab | cabin With Air-condition, | |
| Overall dimension (L*W*H) | 8800*2400*3000mm | |
| Total mass(KG) | 18000Kg | |
| Rated payload | 8000Kg | |
| Kerb weight | 8300Kg | |
| Front /rear suspension | 1180/1840mm | |
| Fuel type | Diesel oil | |
| Engine | Model | WEICHAI WP10.310 |
| manufacturer | WEICHAI ENGINE | |
| Rated power | 228kw/ 310HP | |
| Displacement | 9726ml | |
| Fuel Type | Diesel oil | |
| Driving type | 4*4 | |
| Wheel base | 4500mm | |
| Front/ rear tread | 1831/1640mm | |
| Type & size of tyre | 12.00R20 | |
| The number of tyre | 6+1(spare tire) | |
| Max speed | 95Km/h | |
| Technical parameter of fire fighting body | ||
| Liquid tanker | Volume |
3000L water tank 2000L Foam tank |
| Material | high quality carbon steel plate, anti-rust treatment inside. |
|
| Fire fighting pump | Model | CB10/60 |
| Pressure: | 1.0Mpa | |
| Flux: | 60L/s | |
| Suction depth | :≥ 7m | |
| Suction time | ≤35s | |
| Fire fighting nozzle | Model: | PL48 |
| Range | ≥ 65m | |
| Horizontal rotation angle | 360 º | |
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck | |
| Spare parts list | ||
| No. | Name | units |
| 1 | Electric siren | 1 |
| 2 | Emergency lamp | 1 |
| 3 | Fire axe | 1 |
| 4 | Fire hook | 1 |
| 5 | Fireman ladder | 1 |
| 6 | Medium pressure water gun | 1 |
| 7 | Fire fighting Nozzle | 1 |
| 8 | Fire hoses(B/S System) (65mm, 20m) | 4 |
| 9 | Suction pipe(100mm-2m) | 4 |
| 10 | Water Filter(100mm) and guide rope | 4 |
| 11 | Suction pipe wrench(100mm) | 4 |
| 12 | Fire hydrant wrench | 2 |
![]() |
![]() |
![]() |
![]() |

» Ⅲ.Product Details & Advantages:
Urban and Special Environment Firefighting
It is suitable for rapid response fire trucks, equipment fire trucks, and communication command vehicles, and is used for rapid rescue in complex scenarios such as urban high-rise buildings and underground spaces.
Equipped with three differential locks (inter-axle and inter-wheel) and 14.00R20 off-road tires, it ensures maneuverability in harsh road conditions such as deserts and snow.
Emergency Command and Logistics Support
Integrated with duty office, communication monitoring, and 4G image transmission systems, it supports mobile command and material transportation, making it suitable for frontline dispatch at disaster sites. Some models can be customized as medical rescue or emergency communication vehicles to meet diverse needs.

2. Independent crew cabin
With an independent crew cabin, can accommodate up to eight firefighters.

3. Rear SCBA seat
The crew cabin with all seats equipped with seat belts. The rear seats are detachable and include brackets for breathing apparatus.

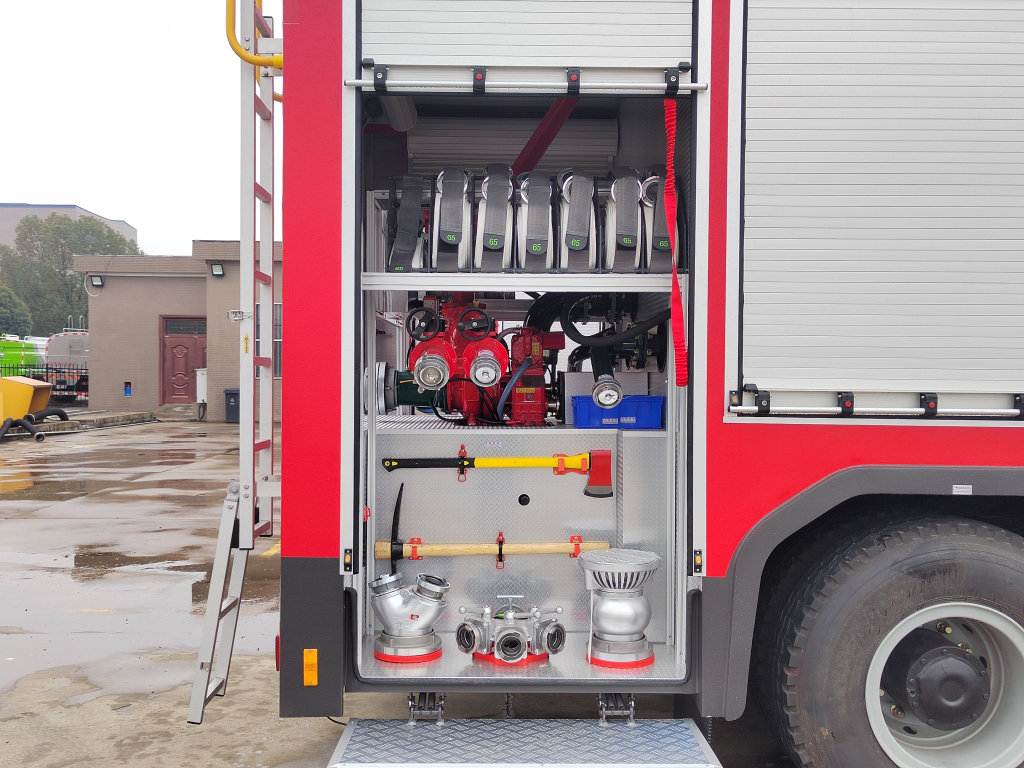

4. Pump room with control panel
Pump room at the rear of the vehicle, with aluminum alloy roller shutters on both sides and the rear. With interior lighting, storage space for commonly used equipment.
5. Firefighting hose reel
The truck is equipped with hose reel with 30m length and 32mm diameter, and the flow is up to 120L/min.

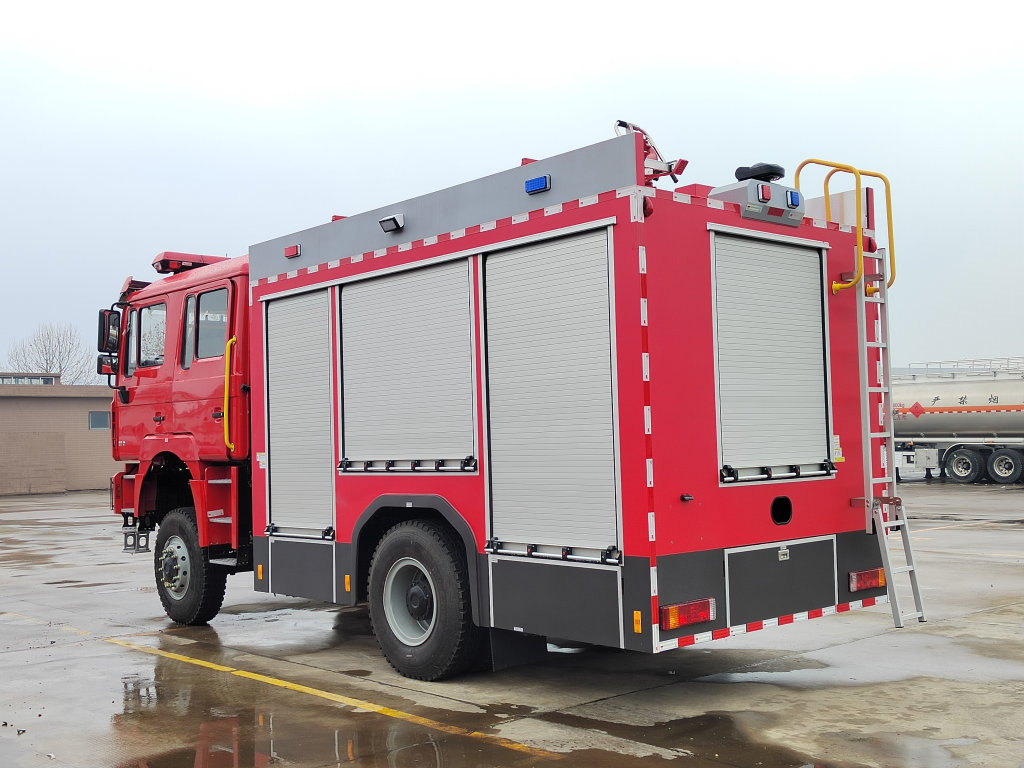

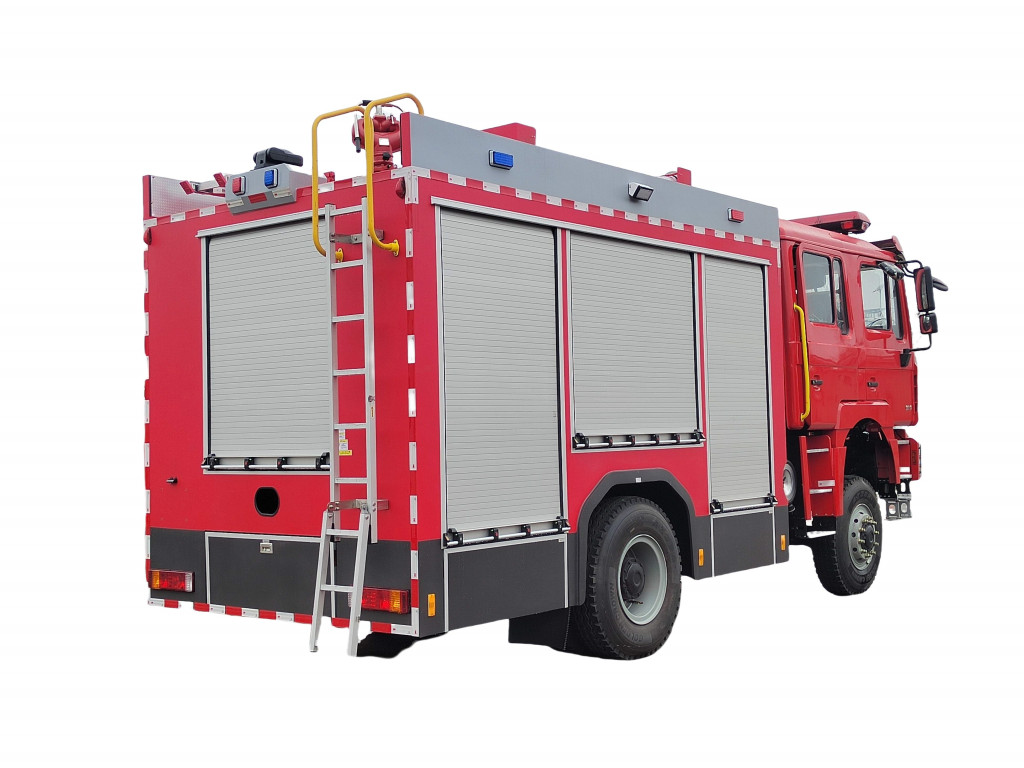

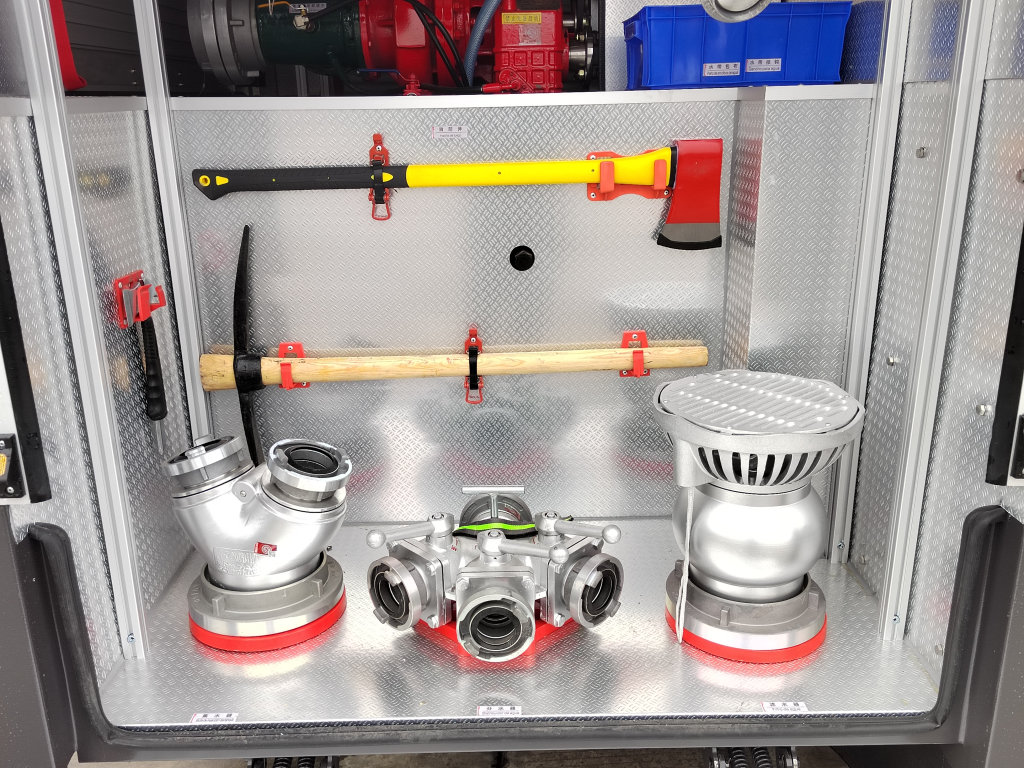

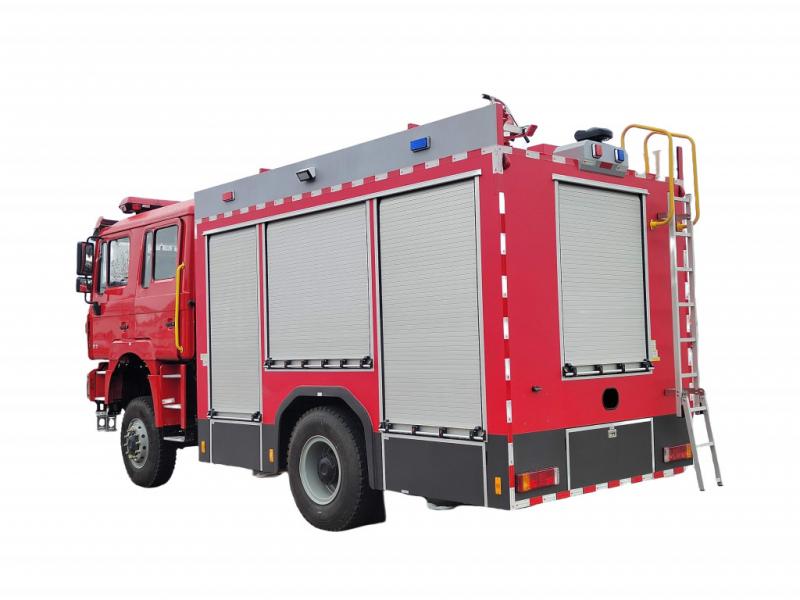

6. Fire truck tanker body with full sets fire fighting tools
R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color


1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
