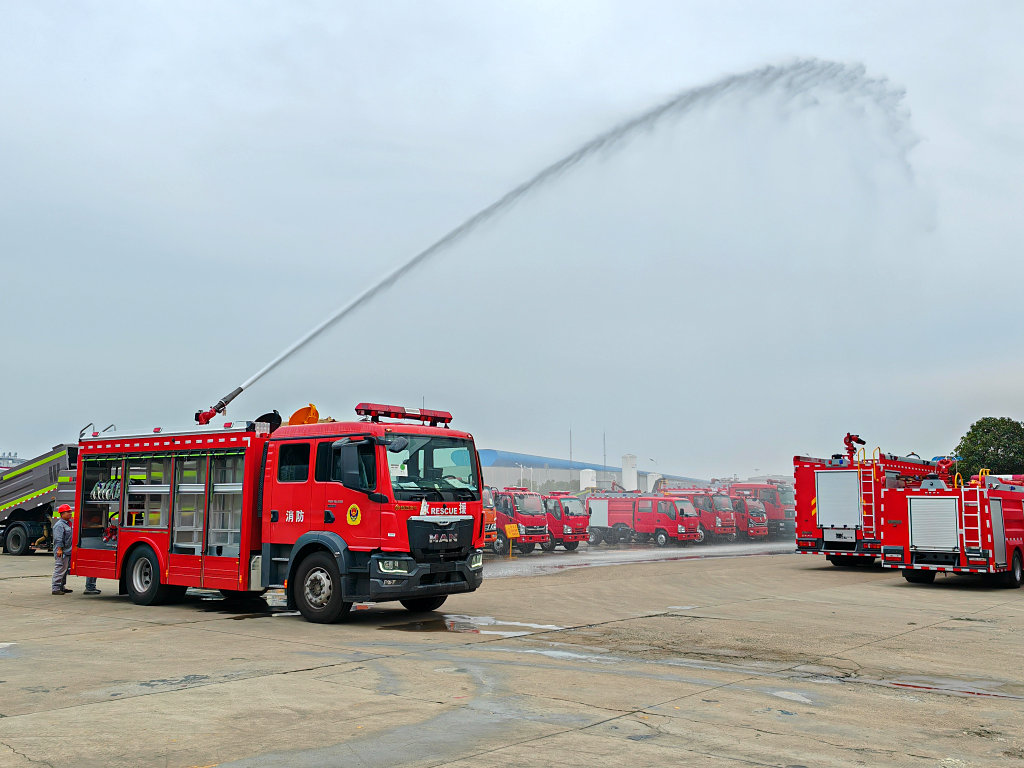

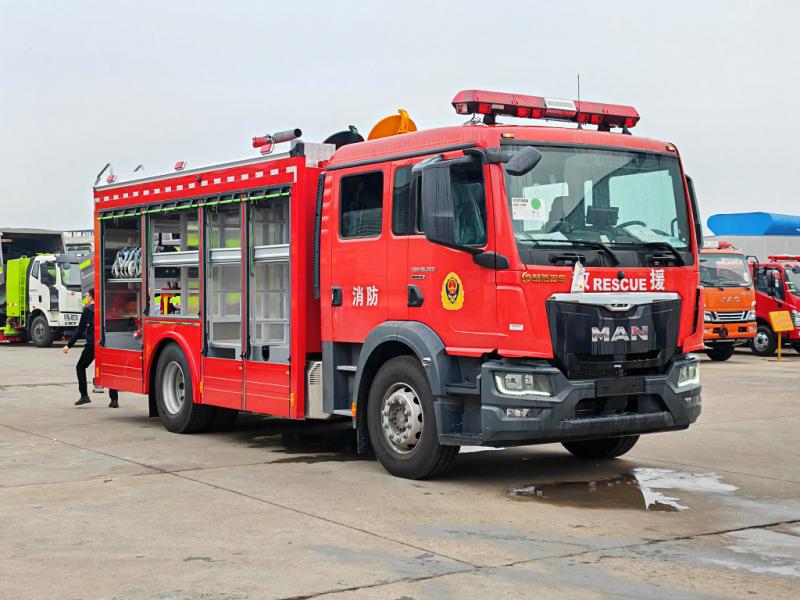

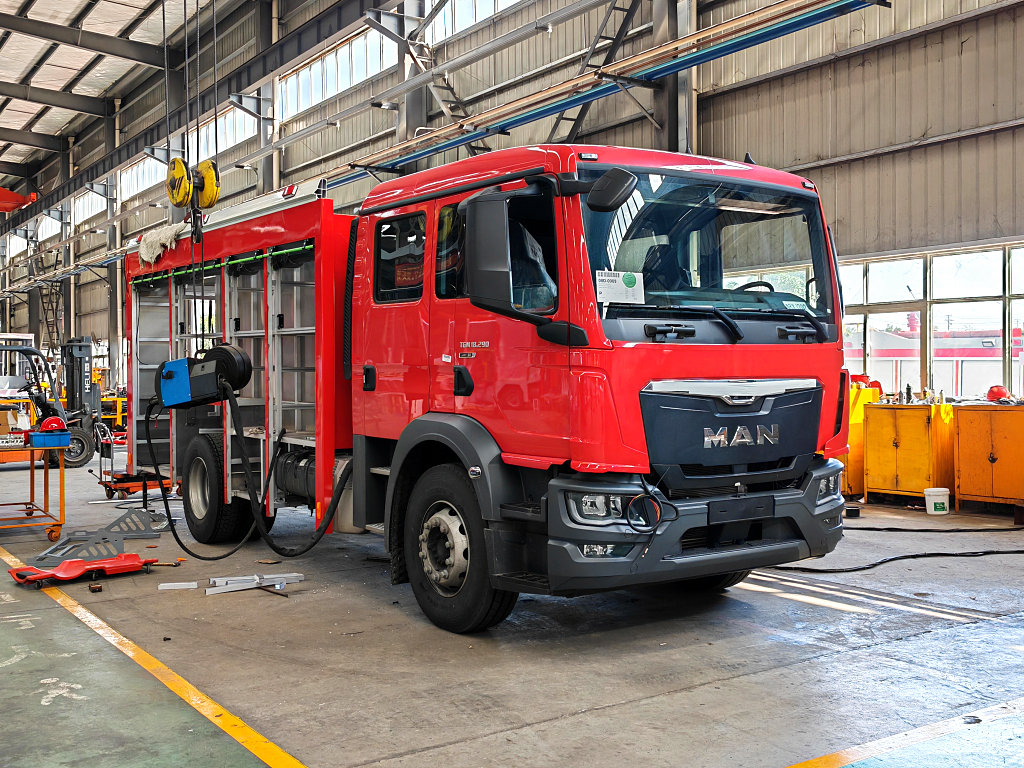

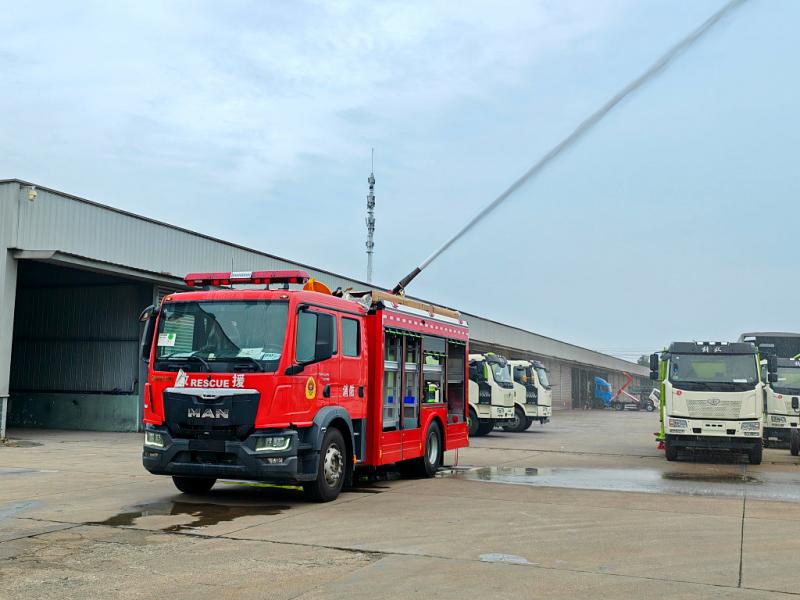

The MAN TGM 18.290 Fire Fighter Truck, also called as MAN emergency rescue fire truck is mainly used for emergency rescue operations in large and medium-sized cities and densely populated areas. Equipping the public security fire brigade with this truck enhances the brigade's combat effectiveness and makes a positive contribution to the standardization and modernization of the fire brigade. It can be equipped with various emergency rescue equipment, including detection, warning, rescue, demolition, lighting, and personal protective equipment, according to user needs.
Manufacturer Origin:
Powerstar TrucksWork capacity :
8000L waterUpper Body material:
stainless steelProduction time:
60 daysWheelbase:
4600 mmAxle drive:
4×2Engine Power:
290 HPEngine Model:
D0836Fire Pump:
CB10/100, 100L/sFire Monitor:
PL8/64 for waterRemark:

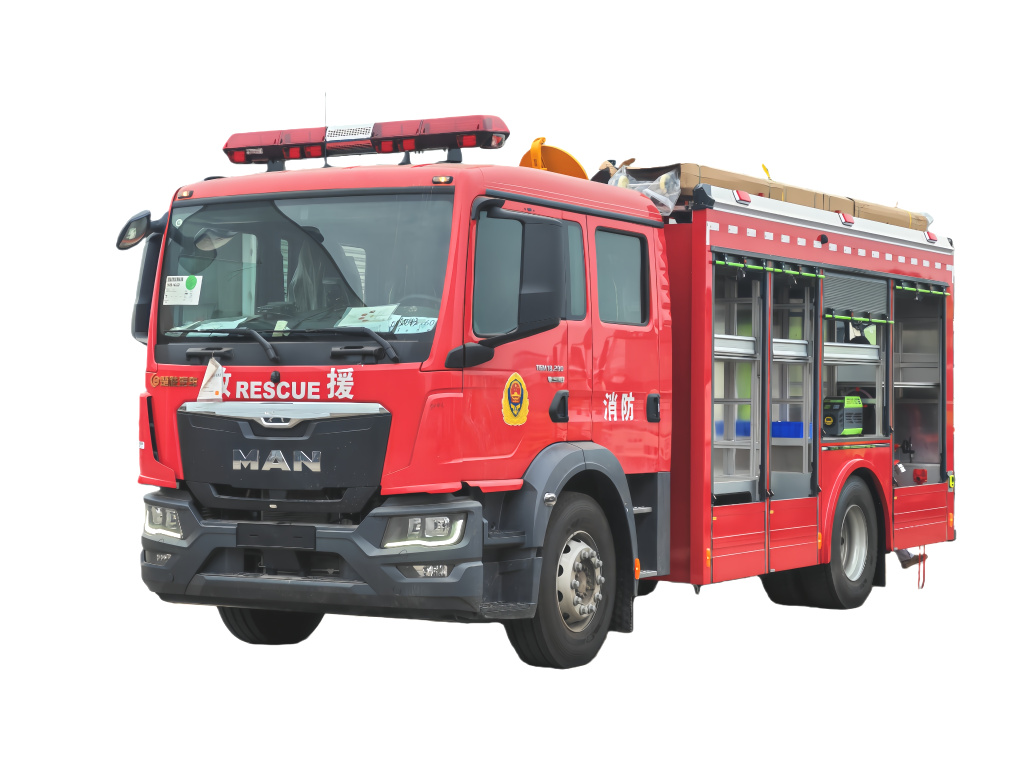

tanker material PP, 4X4, 6X6 drive, RHD driveThe Benin MAN TGM 18.290 Fire Fighter Truck , also called as MAN Rescue fire engine or MAN fire fighting vehicle, is a heavy-duty equipment designed specifically for urban firefighting. It is modified from the MAN TGM 18.290 Class II chassis and equipped with an inline 6-cylinder diesel engine, delivering 216 kW (approximately 290 hp) of power, meeting the China VI emission standards and ensuring efficient power and environmental performance. The overall dimensions are 8985×2510×3600 mm, with a wheelbase of 4725 mm and a maximum speed of 95 km/h, adapting to complex road environments. Its 8-cubic-meter water tank is made of 304 stainless steel and is flexibly connected to the chassis, significantly improving load-bearing stability. The tank integrates a water system, supporting rapid water filling and spraying, resulting in outstanding firefighting efficiency.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1,Power Performance and Emission Standards
Equipped with an inline 6-cylinder diesel engine delivering a maximum power of 290 horsepower, this vehicle offers strong and stable power output and a top speed of 140 km/h, far exceeding the typical performance of similar domestic vehicles.
2,Chassis and Handling Stability
Adopting the MAN TGM 18.290 Class II chassis, it features a compact wheelbase and high ground clearance, ensuring flexible maneuverability on narrow urban roads and in complex terrain.
3,Versatility and Modular Design

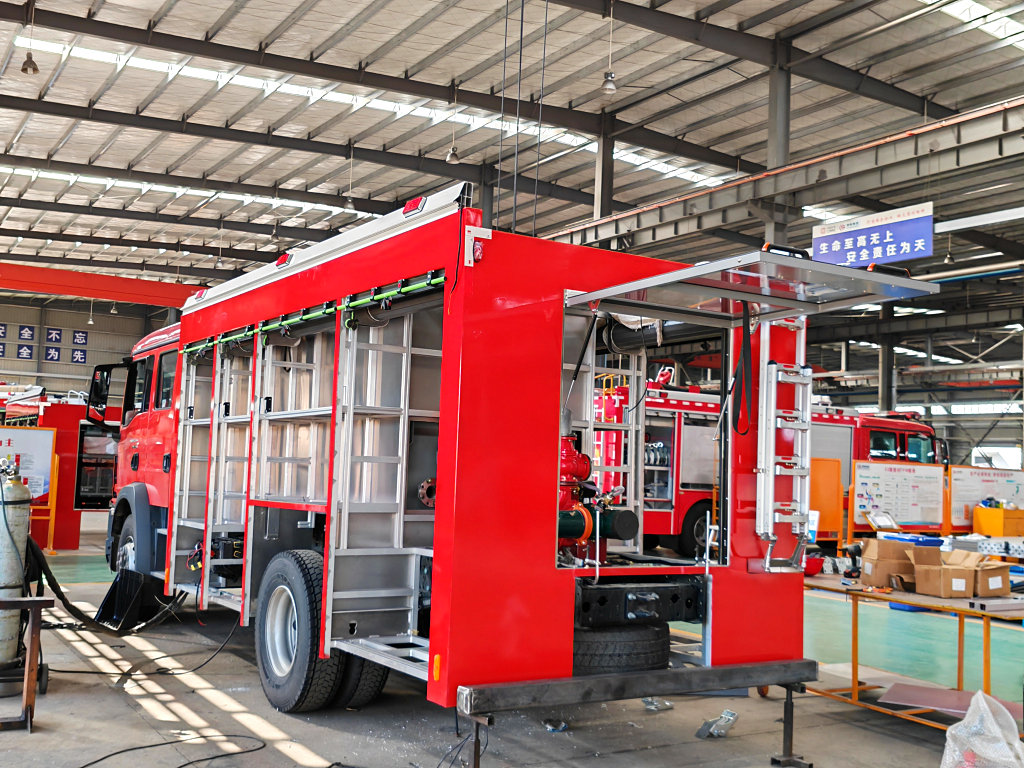

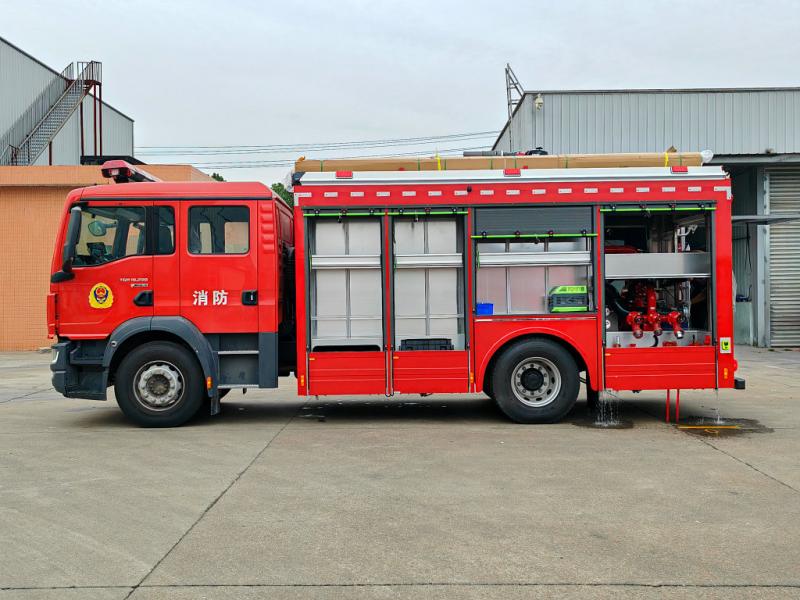

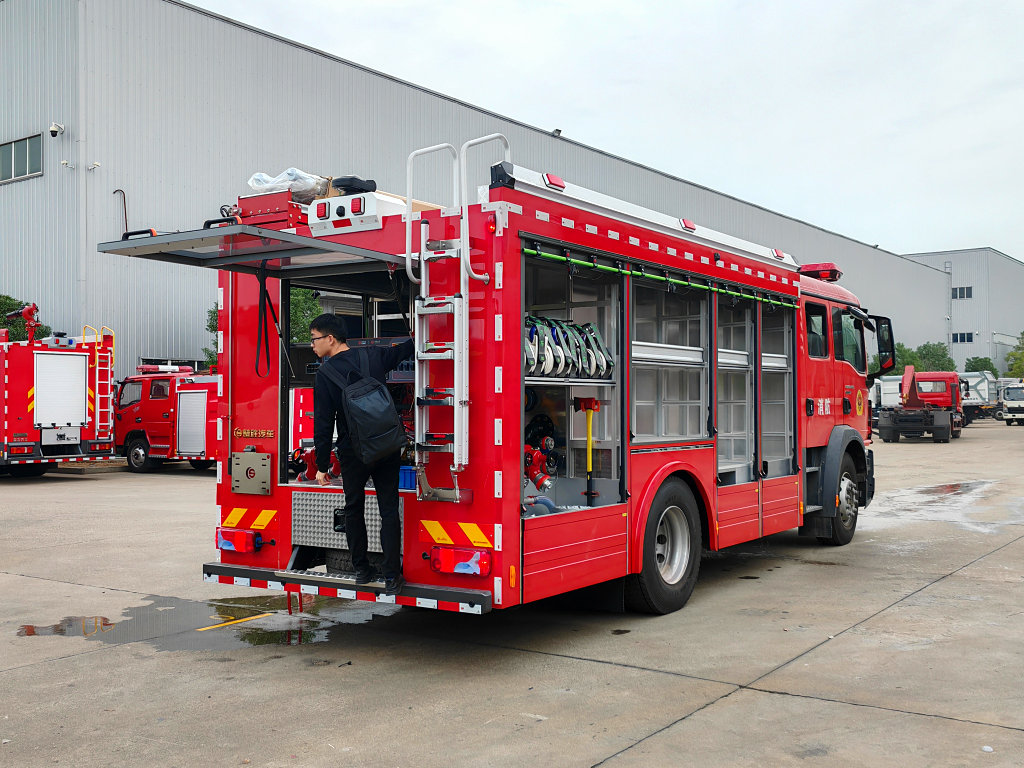

Six lightweight aluminum alloy equipment boxes on each side of the vehicle body adopt a modular layout, allowing for quick access to rescue tools such as demolition, lifting, and lighting.
4,Safety and Comfort Features

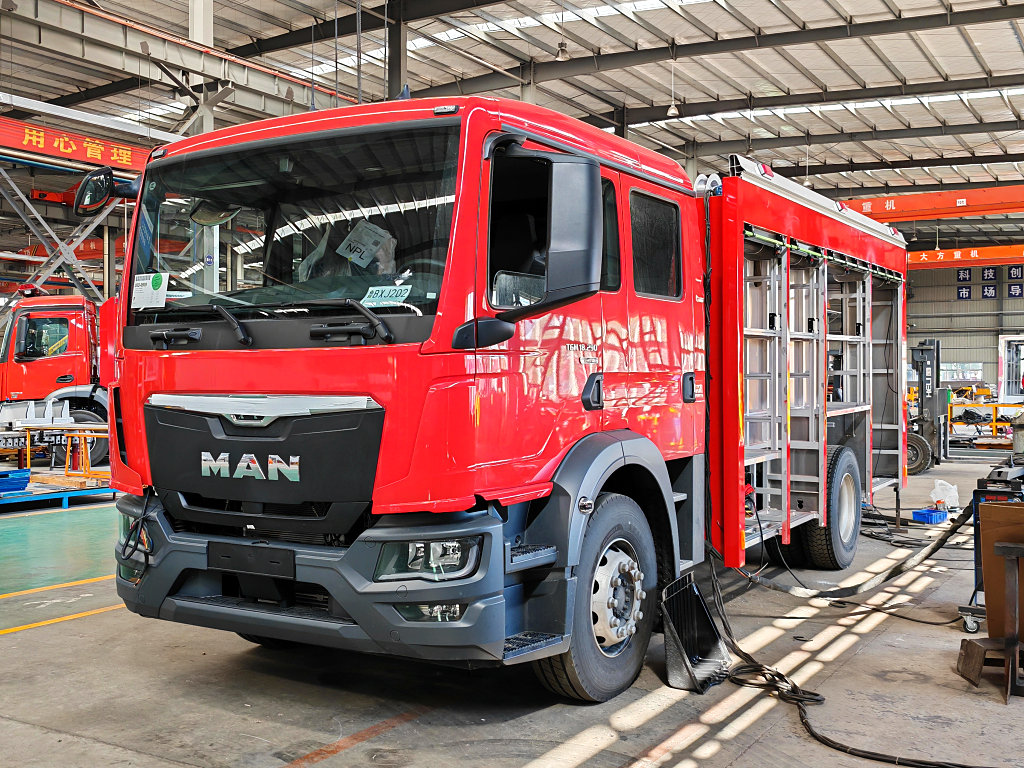

The original double-row cab accommodates six passengers and is equipped with air conditioning, power windows, and automatic lighting for optimal comfort during extended operations.
The Germany MAN Rescue Special Fire Truck functional design balances practicality and safety. The cab features an original double-row structure, accommodating 2 drivers and 4 firefighters, and is equipped with air conditioning, power windows, and an automatic lighting system, optimizing passenger comfort. The vehicle features six lightweight aluminum alloy equipment boxes on both sides, with a modular layout for easy storage of rescue tools such as demolition and lifting equipment. The roller shutter door design ensures convenient access to the equipment. In terms of safety features, it is equipped with a Mairmac 70kN winch, a 360° rotating lighting system, and a Palfinger 9.5-ton-meter folding boom crane, enhancing its disaster scene rescue capabilities. Furthermore, rearview mirrors and ground-view mirrors provide all-around visibility, while ABS braking system and anti-skid coating further ensure operational safety.
This Germany MAN Rescue Special Fire Truck is suitable for rescue operations in high-rise buildings, oil fires, and traffic accidents. It uses a small amount of water with strong penetration, significantly reducing the risk of reignition. Its compact wheelbase and high ground clearance ensure flexible movement in narrow areas; the modular equipment boxes support customized equipment options, such as cutting tools or ventilation devices, meeting diverse mission requirements. As a mainstay of urban firefighting, the MAN TGM 18.290 water tanker fire truck, with its reliable performance and multi-functional design, serves as a solid barrier protecting lives and property.
» Ⅱ.Product Parameter for MAN TGM 18.290 water fire truck:
| Descriptions | parameter | |||
General |
Truck model: | MAN TGM 18.290 | ||
| GVW/Curb weight | 19000kg/11250kg | |||
| Rate of load | 8000kg | |||
| Overall size | 8350×2500×3540 | |||
cab |
Details |
Flat head, double-row, four doors, elect window, wiper, Manual tilt cab,2+4 seat, 4 Set of safety belt in the back seats. the back of rear occupant seat is provided with 4 air respirator fixing frame, and shock-proof device, in front of about 1.2 meters high has elaborate safety railing, In addition to the original vehicle equipment, installation of 100W alarms, rotary lamp switch, Power take-off control switch, lamp switch and indicator light, The cab top is mounted with long row red blue alarm lamp. |
||
| Air conditioner | Yes | |||
| Operation Command system | Yes | |||
Chassis |
Drive type | 4X2 Left hand drive | ||
| Fuel type: | Diesel | |||
ENGINE |
Manufacturer | MAN | ||
| Model | D0836LFLBG | |||
| power | 216kw/290hp | |||
| Displacement | 6871ml | |||
| Emission standard | Euro 6 | |||
| Engine type | Inline six cylinder,, four-stoke, water-cooled, turbocharged directly inject | |||
| Shift box | ZF Brand 9-speed Forwarder with 2 Reverse | |||
| Brake | Air brake | |||
| Wheelbase | 4600mm | |||
| Tire specification | 12.00R20 | |||
| Tire number | 6+1 | |||
| Max speed | 90km/h | |||
| Paint color | Red and White painted | |||
| Angle of Approach/Departure | 16/10 | |||
| Front /Rear Suspension | 1500/2650 | |||
| Front/Rear Wheel track | 2041/1830 | |||
Axle |
MAN 7T front axle loading, Drum brake, ST16 16T rear axle payload, Central deceleration + wheel deceleration steel stamping and welding axle housing single drive axle | |||
Special configuration |
Water Tank & Foam tanker parameter |
Water tank Capacity:6500L,Foam tank 1500L Structure: welded steel , equipped with vertical and horizontal anti-swing plate. Equipment : 1 person Manhole with quick-locking and opening device An overflow device A level indicator A sewage outfall , manual valve control |
||

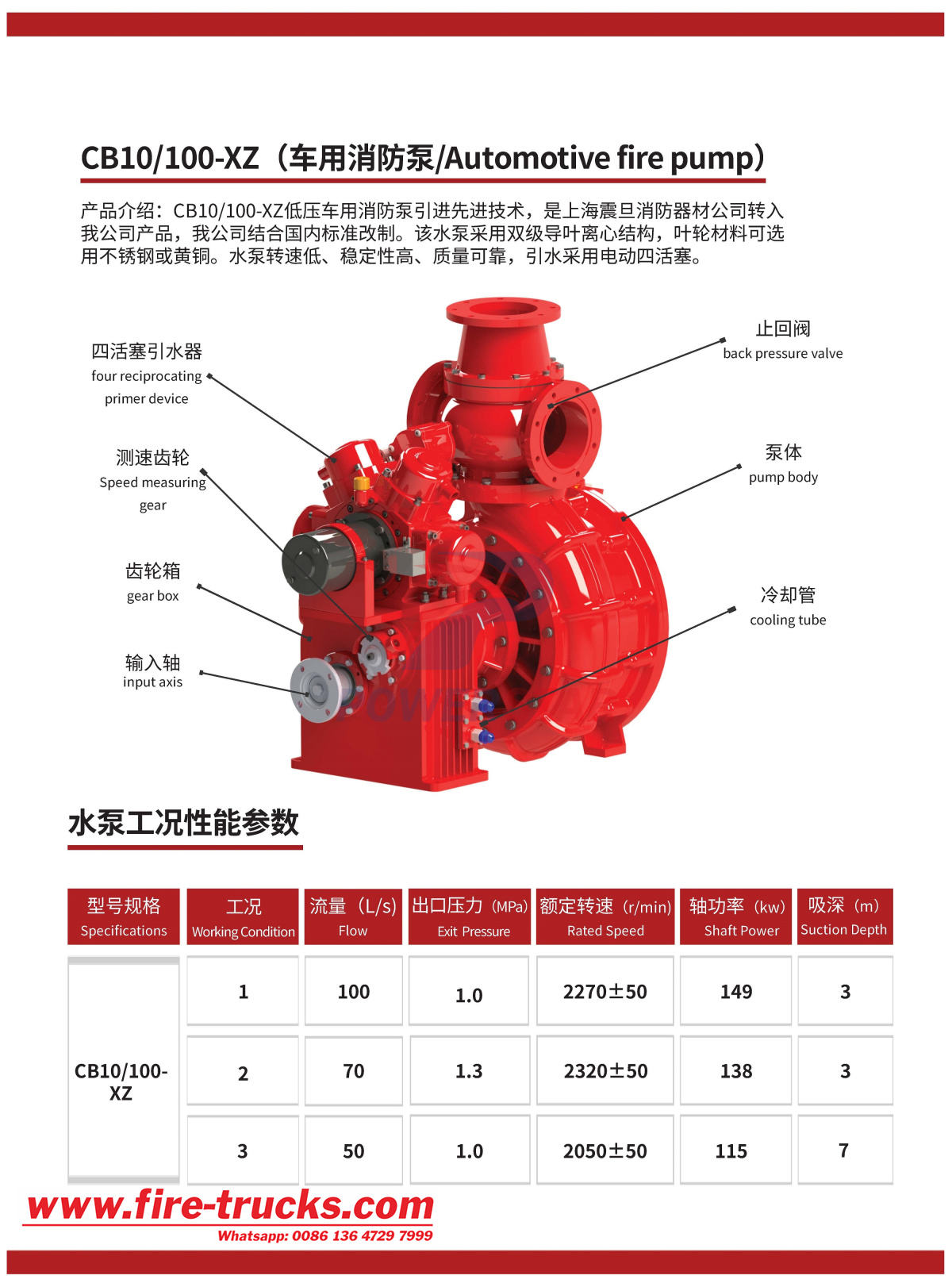

| 1,Fire Pump: Mounted in the truck rear, normal pressure fire pump: CB10/100 Leading water time ≤ 50s, within water depth 7m Low pressure flow:100L/s/1.0Mpa 2,pipeline system: Suction pipe: Equipped with a backward way pipe DIM:135mm,the water from then tank into the pump, installed a DIM 135MM manual butterfly valves, tank connection with pump. Suction culvert: it fit water inlet at the rear of pump DIM 150mm,connect the suction pipe, connect way is Bluetooth connect button. Water pipeline: At both side of pump have 4x65mm dim ball control outlet Middle pressure water. 1x100mm dim cannon pipeline, flexible joints,100mm ball control. Injection line :fit Dim 50mm circulating water pipe, through the pump directly inject water to the tank. Fit 2x80mm dim injection line on both side of truck. Drain water: In order to protect the pump and ball valve, fit the drain water valve at the lowest place. Cooling pipes: for PTO to deal with complex situations of work, fit cooling pipes and control valve. 3, The power take off (PTO) MODEL : sandwich Manipulation : solenoid valve control Cooling: Forced adjustable water-cooled Lubrication: splash oil lubrication 4,Fire water-Foam monitor Model: PL48 flow: 48L/S, Water range ≥ 65m Foam range≥ 55m, Rotary angle: 360°horizontal. 5,The instrument panel and board equipment: Instrument panel located in the vehicle rear pump chamber, with a control panel and provided with adequate lighting; all the control handle, switch, indicating lamp nearby have metal corrosion formed Chinese identification; water pipeline layout and operation steps illustrate, using metal corrosion plate fixed in the proper position. All illustration plate and signs are persistent and high adhesion, which can withstand influence due to temperature and climate change caused; 10 years will not fall off or illegible. Liquid level, Tachometer; pressure gauge; vacuum pressure gauge; oil temperature gauge; voltmeter; pump speed regulating device,20V power switch, pneumatic control valve switch. 6,Tool and pump store house Material: Skeleton made of high quality steel, mask checkered aluminum oxide bonding structure. Structure: All steel welded frame structure, around three sides is Aluminum alloy doors, fit flip-slip pedals, can stand a man working. |
||||
| Spare part and tool in equipment boxes of truck | Its satisfy all of normal used | |||
| 2,SPARE PART and TOOLS OF UPLOADING | ||||||
| No. | Part name | Q't | UT | |||
| 1 | Suction hose(4m) | 2 | PC | |||
| 2 | Water filter | 1 | PC | |||
| 3 | Fire hose type(13-65-20m) | 6 | PC | |||
| 4 | Fire hose type(20-65-20m) | 4 | PC | |||
| 5 | Fire hose type(13-80-20m) | 2 | PC | |||
| 6 | Fire hose type(20-80-20m) | 2 | PC | |||
| 7 | Water thief | 1 | PC | |||
| 8 | Water collector(Bayonet) | 1 | PC | |||
| 9 | Adapter 65/80 or 80/65 | 2 | PC | |||
| 10 | Hose wrapper | 4 | PC | |||
| 11 | Hose protector | 2 | PC | |||
| 12 | Hose hook | 4 | PC | |||
| 13 | Ground hydrant wrench | 1 | PC | |||
| 14 | Underground hydrant wrench | 1 | PC | |||
| 15 | Suction hose wrench | 2 | PC | |||
| 16 | Try power fire extinguisher | 1 | PC | |||
| 17 | Fire bucket | 1 | PC | |||
| 18 | Straight hose nozzle | 1 | PC | |||
| 19 | Multifunctional hose nozzle | 1 | PC | |||
| 20 | Middle pressure hose reel | 1 | PC | |||
| 21 | Middle pressure hose reel gun | 1 | PC | |||
| 22 | Fire Axe | 1 | PC | |||
| 23 | Iron arrows | 1 | PC | |||
| 24 | Iron spade | 1 | PC | |||
| 25 | Pickaxe flat tip type 4kg | 1 | PC | |||
| 26 | Fire hammer | 1 | PC | |||
![]() |
![]() |
![]() |
![]() |
» Ⅲ.Product Details & Advantages:
1,Excellent off-road maneuverability: MAN TGM series fire truck Featuring a 4x2 drive system, high ground clearance, and a short wheelbase, it adapts to complex terrain and is suitable for both urban and wilderness rescue operations.
2,Compact and efficient design: Based on the MAN TGM chassis, the short wheelbase and flat-top cab expand equipment space and enhance maneuverability in congested areas.
3,High reliability and durability: Designed for all-weather operation, it offers excellent mechanical stability and fatigue resistance, ensuring continuous operation in high-intensity missions.


4,Versatile modification potential: Its modular structure allows for rapid adaptation to various firefighting vehicles, allowing for flexible configuration adjustments and enhanced rescue capabilities.
5,Advanced lighting and safety system: Integrated LED headlights and omnidirectional warning lights enhance safety and visibility in low-visibility environments. (AI-generated)
