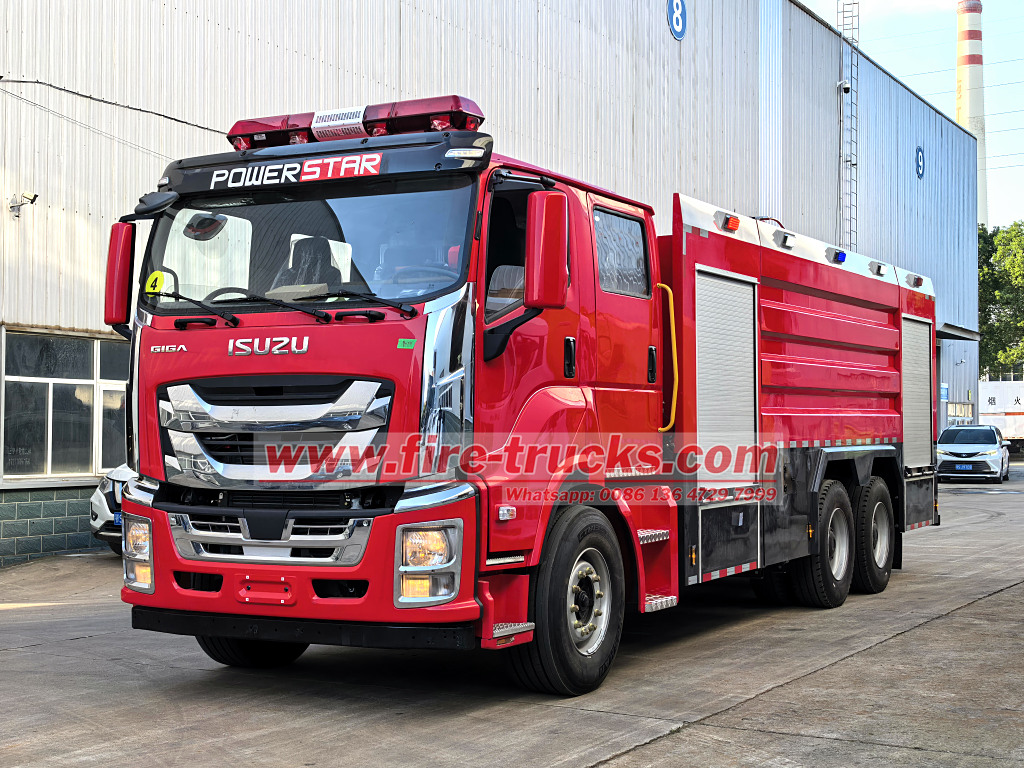

Togo CB10 140 fire pump Isuzu giga Industrial Foam Tender Fire Truck has a foam spray distance of ≥ 60 meters and a water jet range of ≥ 80 meters. This figure is based on the Isuzu Giga heavy duty truck chassis, equipped with a CB10/140 fire pump (140 L/s flow rate) and a P8-64 fire monitor (64 L/s flow rate). Actual range is affected by water pressure, weather conditions (such as wind), and the height of the fire scene, and typically fluctuates between 30 and 85 meters.
Manufacturer Origin:
Powerstar TrucksWork capacity :
6000L +6000LUpper Body material:
Carbon steel+Stainless steelProduction time:
60 daysWheelbase:
4650+1370 mmAxle drive:
6×4Engine Power:
520 HPEngine Model:
Isuzu 6WG1-TCG62Fire Pump:
CB10/140, 140L/sFire Monitor:
PL8/64 for water and foamRemark:

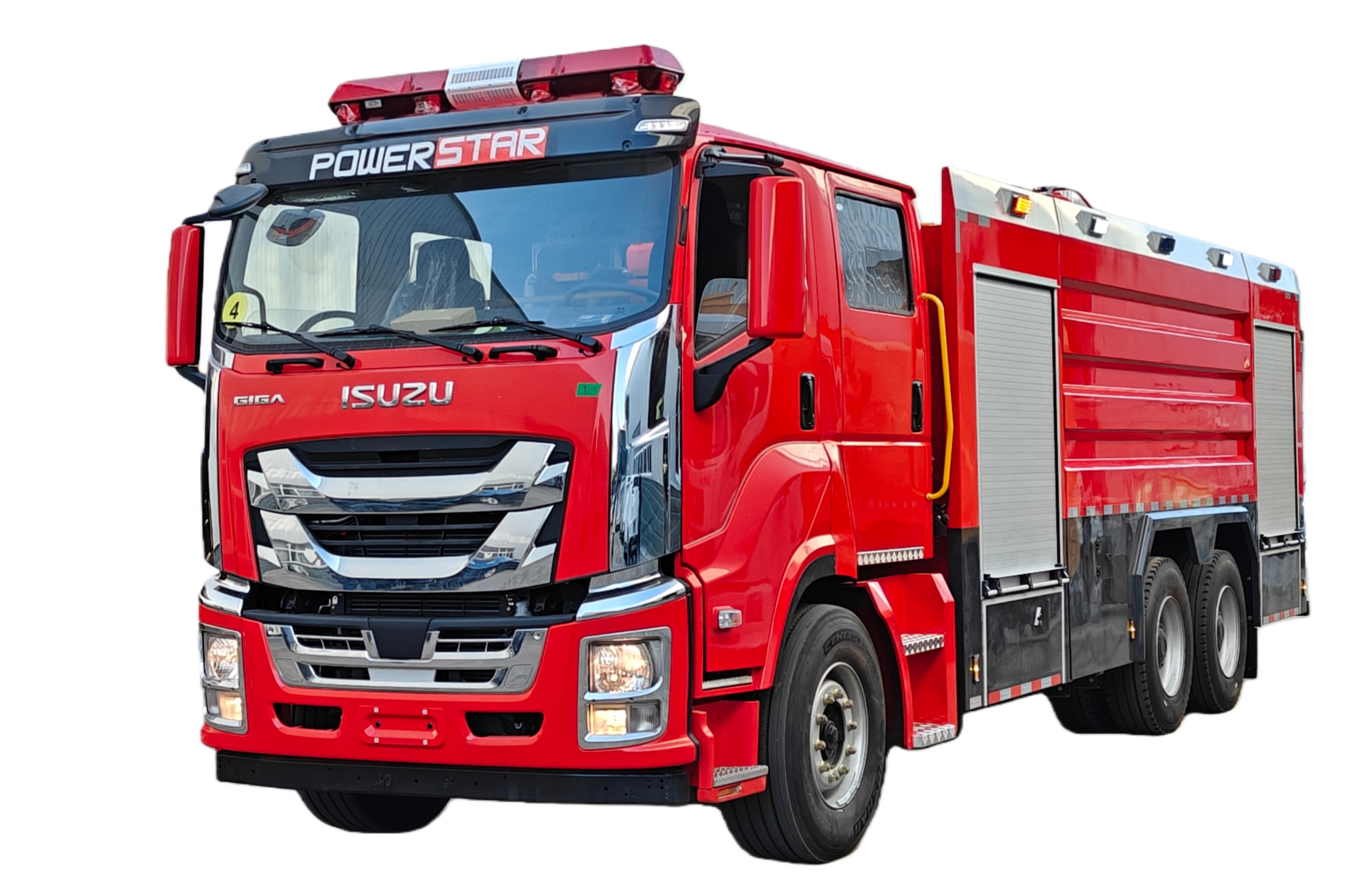

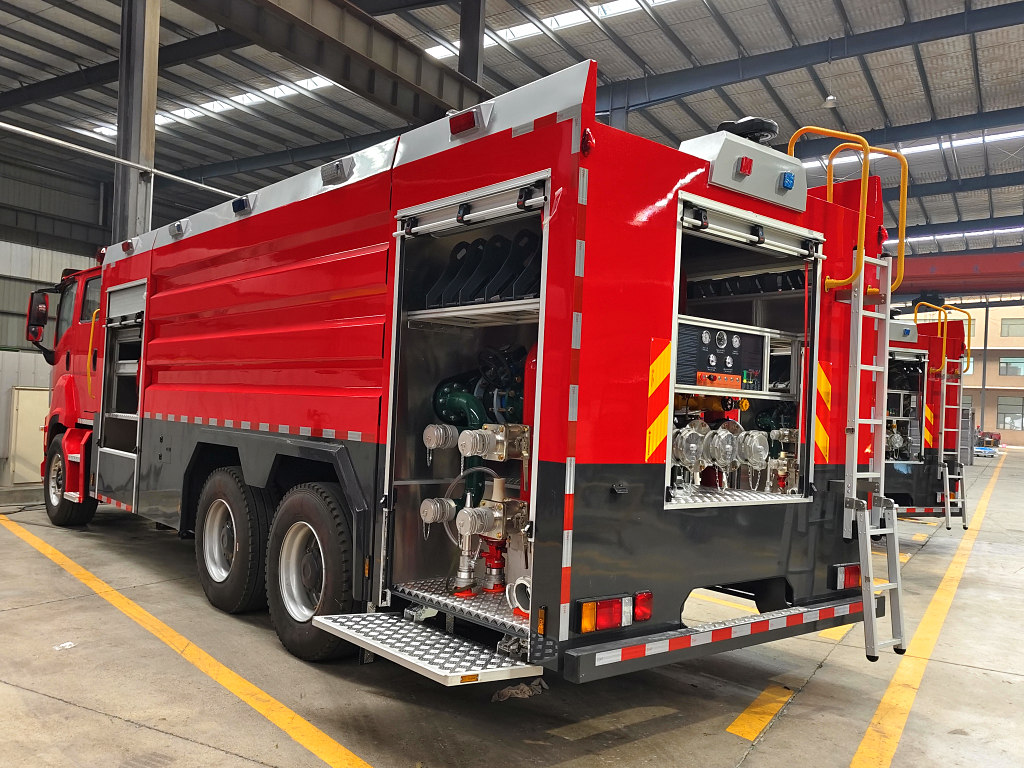

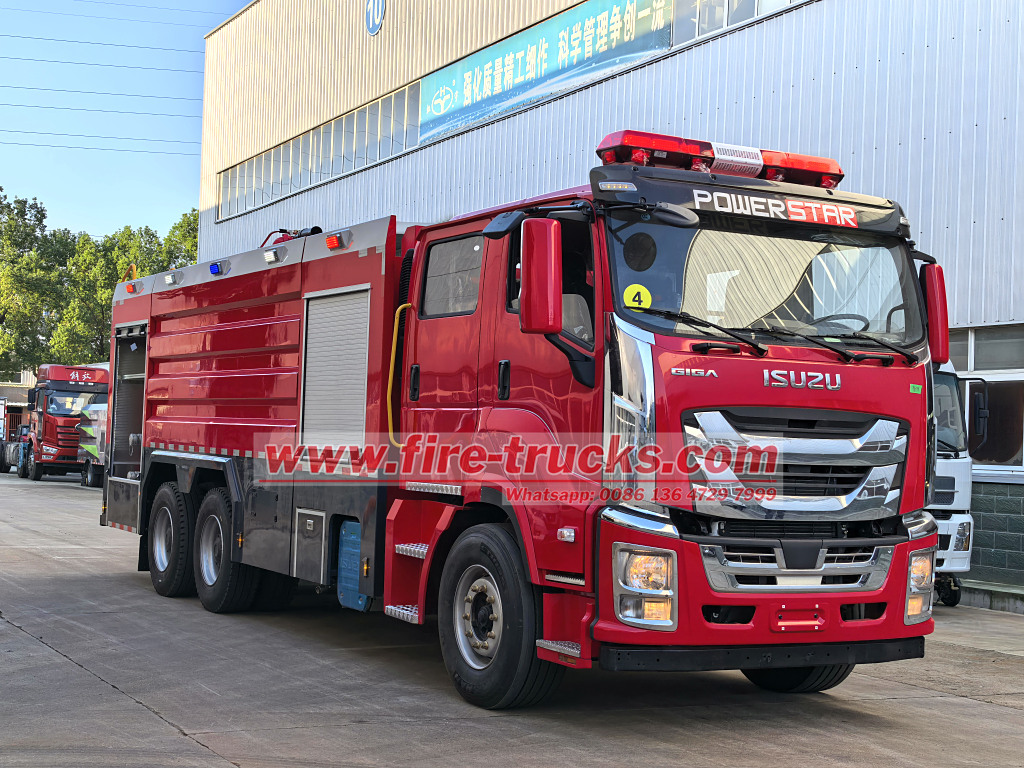

tanker material PP, 4X4, 6X6 drive, RHD driveCB10/140 Fire pump Togo 12,000L Foam Fire Truck on Giga Isuzu, also called as Giga Isuzu foam fire tender or Isuzu giga foam fire vehicles, utilizes the ISUZU GIGA heavy duty chassis and is equipped with an Isuzu 6WG1 engine (520 hp/380 kW). It features 11.00R20 tires and a 4650+1300mm wheelbase, ensuring high maneuverability and load-carrying capacity. The cab features integrated warning lights, a loudspeaker, and red and blue strobe lights, while a 35W rear headlight is installed. The water tank has a capacity of 6000L, and the foam tank has a capacity of 6000L. Both are constructed of high-quality carbon steel or stainless steel, with the tanks positioned centrally. The equipment compartment features a semi-enclosed steel frame structure with fixed/movable internal partitions.

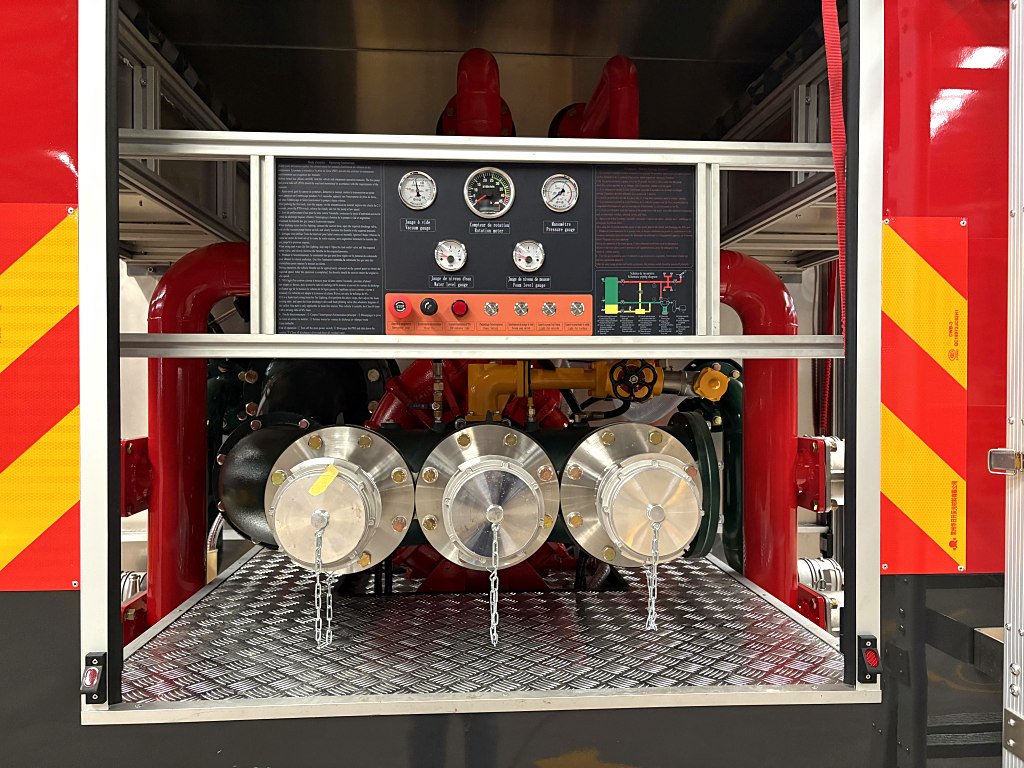

Pump unit: Shanghai Xiongzhen CB10/60 atmospheric pressure pump (60 L/s flow rate), rear-mounted and driven by a power take-off. Spraying system: Chengdu West P48 water monitor (range ≥ 65 meters for water, ≥ 60 meters for foam), supporting a flow rate of 48 L/s.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:

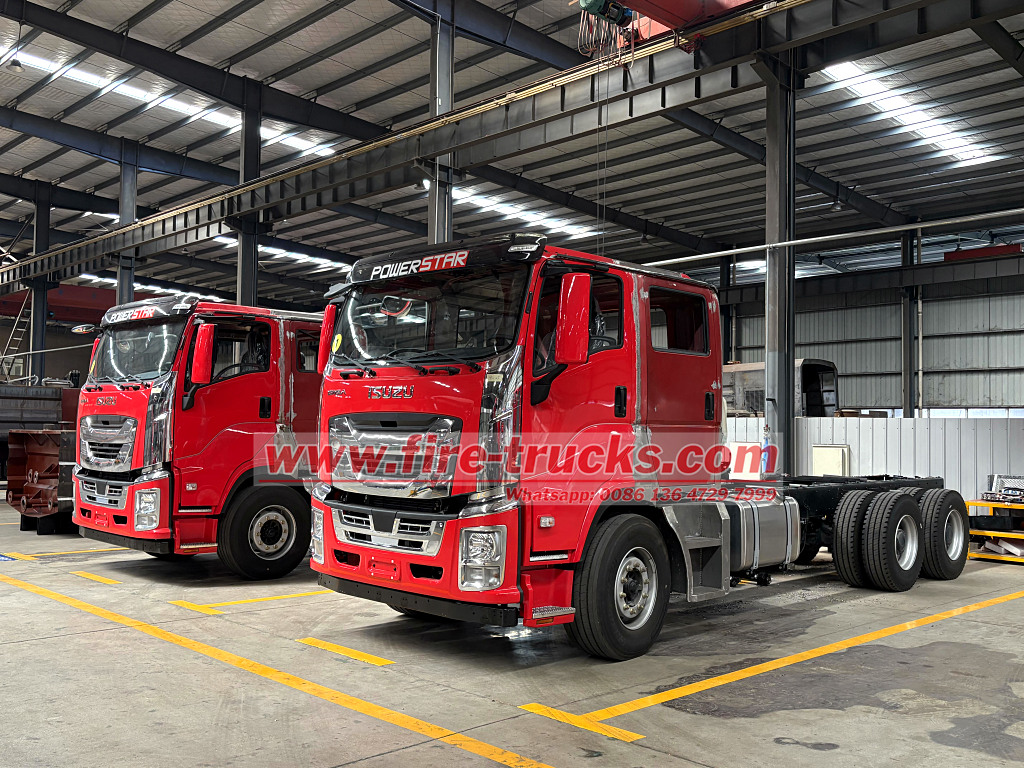

1. Truck Chassis: ISUZU GIGA truck chassis, 4x2, 6x4 and 8x4 model
6UZ1 model with 350HP or 380HP and emission 9839cc
6WG1 model with 420HP, 460HP or 520HP with emission 15681cc.
2. Tank material: 4mm thick carbon steel water tank, stainless steel foam tank
Q345R steel powder tank, PP tank is optional
3. Tanker body: Customized for Water + Foam
4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, normal pressure pump, low pressure pump is optional
Optional CB10/40, CB10/80 pump. Also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue tools equipped for convenient working, fire extinguishing and people rescue



The maintenance cycle for Isuzu 12 cubic meter foam fire trucks is divided into the following tiers based on usage scenarios and service stage:
Daily Maintenance
Daily Inspection: Check the vehicle's appearance, chassis, and upper systems once in the morning and evening. Clean and replenish them promptly after each mission.
Weekly Maintenance: Focus on key components such as the engine and chassis on the depot day, with manufacturer technicians participating.
Periodic Maintenance
First Maintenance: Completed within 3 months or 5,000 kilometers (free of charge).
Routine Maintenance: Completed every 6 months or 10,000 kilometers, including oil changes and filter cleaning.
Harsh Environment Adjustment: Reduced maintenance intervals are required in environments with high temperatures, dust, and other conditions, such as air filter inspections every 10,000 kilometers.
Long-Term Maintenance
2-4 Years: Replace wearing parts such as brake pads and fuel pumps.
4-6 Years: Intensify component aging inspections, such as shock absorbers and pipe seals.
Over 6 years: Increased failure rates require a complete disassembly and inspection of core systems such as the engine and pump. Special Requests
» Ⅱ.Product Parameter for Isuzu GIGA dry powder fire truck:
Our manufacturing experience shows that material integrity is non-negotiable for long-term service. We utilize a precise combination of high-strength Carbon Steel for structural integrity and Stainless Steel 304 for the foam tank. This dual-material choice is deliberate—it ensures the structural body resists fatigue while protecting the foam agent from corrosion, a common failure point in lesser-quality apparatus.
| SN | Title | Model,Specification,Value | |
| 1 | General | Truck Brand | ISUZU GIGA |
| 2 | Vehicle Size(L*W*H) | 9530×2500×3500 | |
| Drive type | 6*4 LHD | ||
| G.V.W | 35000kg | ||
| Tank Capacity |
6000L Water 6000L Foam |
||
| 3 | Cab | Cab Capacity | 2+4 |
| 4 | Seat set | 2+4(two people in the front row (including the driver) and four in the back) | |
| 5 | Air Conditioner | Have | |
| 6 | Chassis | Drive Type | left |
| 7 | Fuel Type | Diesel | |
| 8 | Power | 520hp | |
| 9 | Emission Standard | Euro 5 | |
| 10 | Wheelbase(mm) | 5100+1370 | |
| 11 | Tire size | 10.00R20 | |
| 12 | Tyre number | 10+1 | |
| 13 | Maximum speed | 95 | |
| 14 | Transmission | 9JS119T-B | |
| 15 | Paint | red | |
| 16 | Front axle/ Rear axle | 9T/13T*2 | |
| 17 | Fuel type | Diesel | |
| SN | Title | Model,Specification,Value |
| 1 | Volume | water:6000L, foam:6000L |
| 2 | Material of tank and thickness | High quality carbon steel plate |
| 3 | Structure | Steel plate welded type, internal anti - swash plate |
| 4 | Equipment |
2 population hole, with a quick locking and opening device
2 overflow device
2 level indicator
2 outlet, manual control valve
|
| 5 | Technical requirements | Comply with the relevant provisions of GA39 |

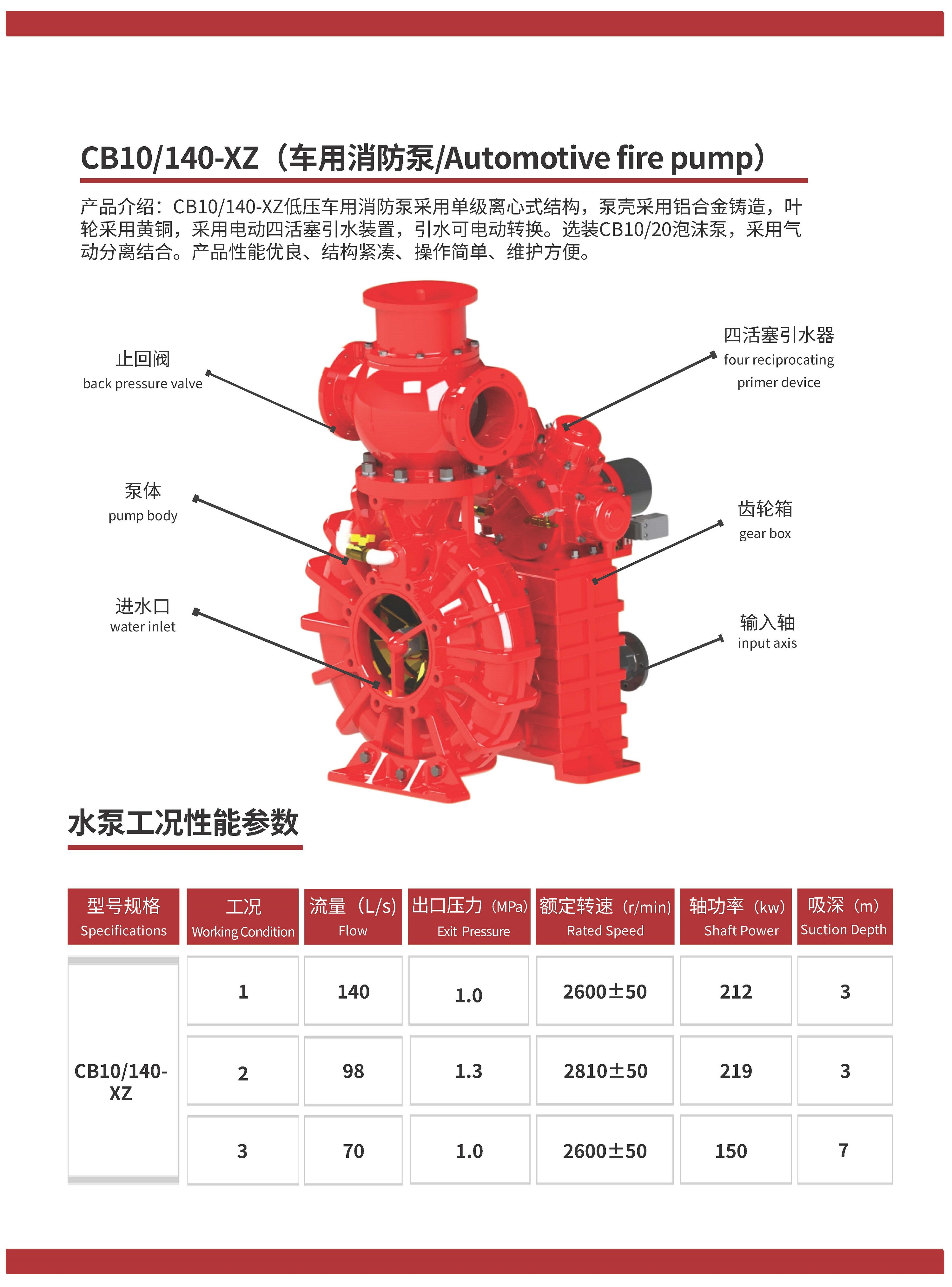

| 6 | Fire pump Model | CB10/140 |
| 7 | Flow | 140L/s |
| 8 | pressure | 1.0Mpa |
| 9 | Water diversion time | ≤50s |

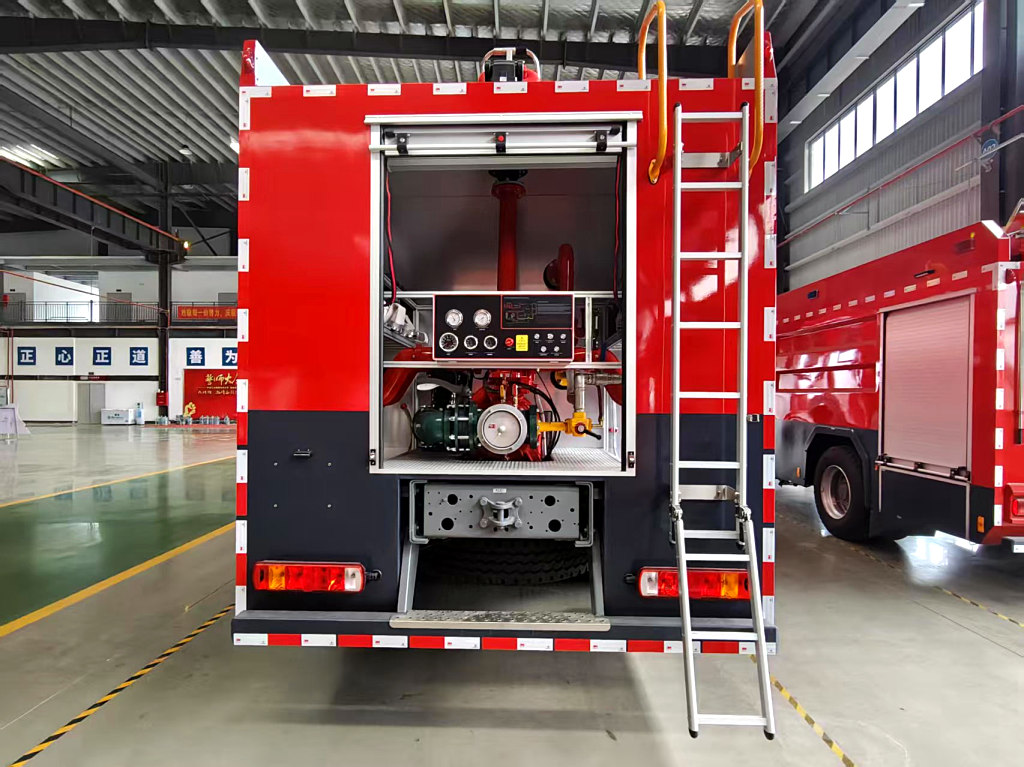

| 10 | Type of installation | rear-mounted |
| 11 | fire monitor Model | PL8/64 |
| 12 | fire monitor Range | range of water more than 80m |
| 13 | fire monitor Turning Angle | The level is greater than 270 degrees, and the pitch is -15 to 45 degrees. |
| 14 | Front water gun | Yes |

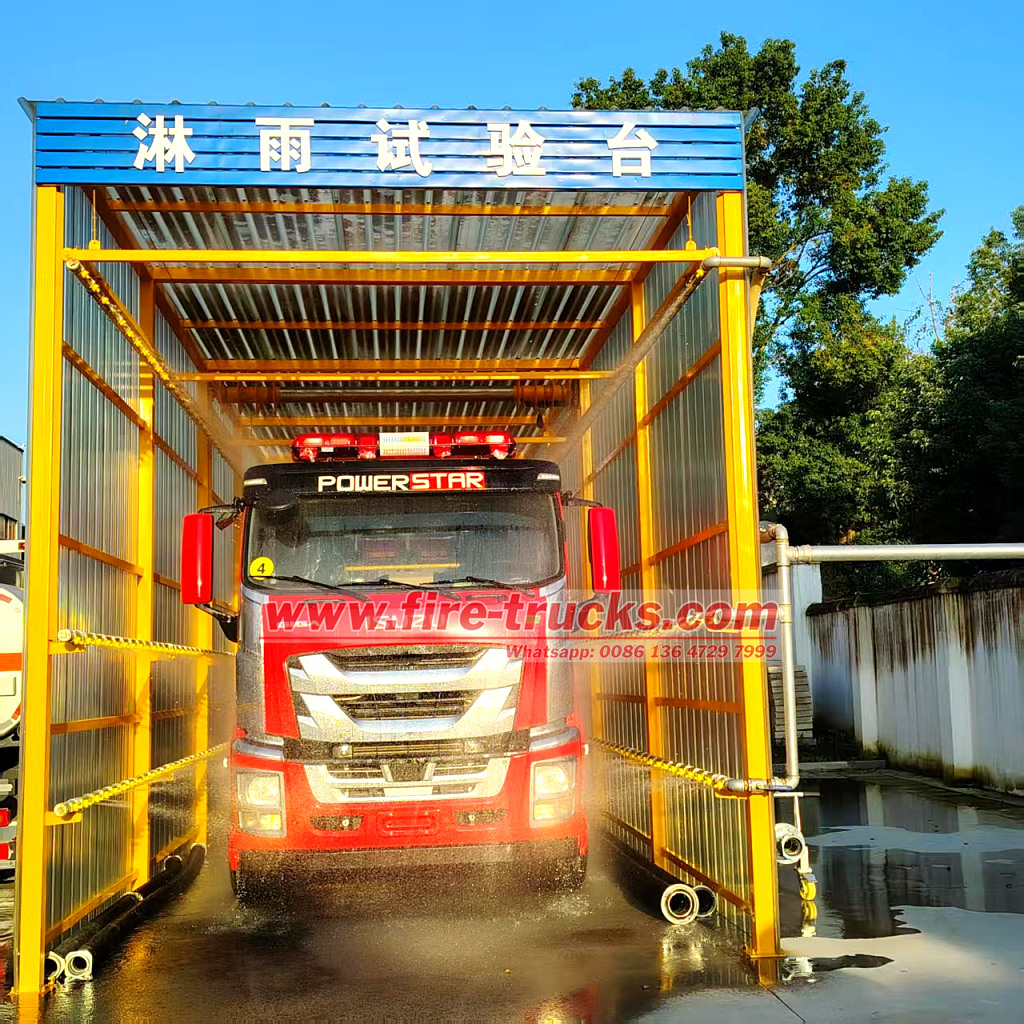

» Ⅲ.Factory Testing:
