HOWO 4×4 Fire Truck is a professional firefighting vehicle built on the basis of SINOTRUK HOWO 4×4 off-road chassis. It is equipped with a high-quality fire pump, a 6-cubic-meter water tank, and a 2-cubic-meter foam tank, along with a fire monitor capable of jetting water up to 70 meters and a modular equipment compartment. Powered by a 380-horsepower engine, featuring a part-time four-wheel drive system and off-road tires, this vehicle demonstrates outstanding all-terrain mobility. Designed specifically for challenging firefighting scenarios such as forests, petroleum-related fires, geological disasters, and narrow urban areas, it serves as a rapid-response mobile firefighting equipment.
Manufacturer Origin:
Powerstar TrucksWork capacity :
2500L water +500L foamUpper Body material:
Carbon steel and stainless steelProduction time:
60 daysWheelbase:
3815 mmAxle drive:
4×2Engine Power:
190 HPEngine Model:
ISUZU 4HK1Fire Pump:
CB10/30, 30L/sFire Monitor:
PL20 for water and foamRemark:

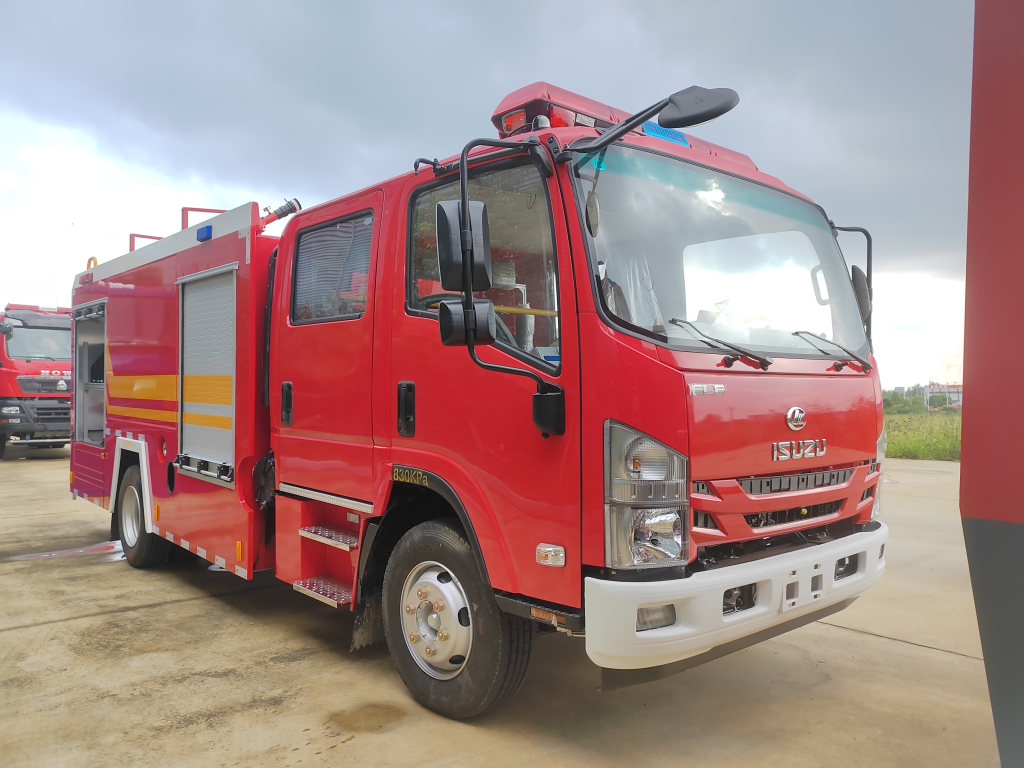

tanker material PP, 4X4, 6X6 drive, RHD driveCB10/30 Fire pump rescue truck ISUZU, called as Isuzu foam fire engine or Foam rescue fire vehicle Isuzu, as a medium-sized firefighting vehicle, the 3-cubic-meter foam fire truck combines maneuverability and firefighting effectiveness, making it suitable for small- to medium-sized fires and complex terrain scenarios.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Features:
1. Carrying Capacity
Water Tank Capacity: 2.6-3 cubic meters (e.g., Dongfeng models have a tank size of 1800 × 1220 × 1230 mm)
Foam Tank Capacity: 1-3 cubic meters, capable of carrying a 3%-6% mixed foam solution
2. Powertrain
Chassis Model: Mostly ISUZU chassis,
Engine Power: 85-150 kW
Maximum Speed: 90 km/h, Emission Standards: China V or China VI
3. Pump Performance
Fire Pump Flow: 30 L/s (e.g., CB10/30 pump flow:30 L/s, pressure: 1.0 MPa)
Foam Mixing Accuracy: ±1%, supports dual-use water/foam spraying
4. Operational Specifications
Range: Water monitors have a maximum range of 70 meters, while foam monitors have a slightly lower range
Continuous Operation Time: 4-8 hours, depending on the agent capacity and fire scene requirements
5. Additional Features
Fire Fighting Equipment: Standard equipment includes air foam guns, hoses, and suction hoses. Some models also include PS8/20 fire monitors.
Protective Structure: The tank is welded carbon steel with built-in anti-sway panels and a non-slip roof design.
How to operat Isuzu CB10/30 rescue foam fire truck?
To operate a 3 cbm Isuzu NPR foam fire truck, first check the condition of the foam liquid, water tank, and chassis. After starting, connect the water source and adjust the foam concentration using a proportioning mixer (such as the PL32). Once the fire is under control, close the valve and drain any remaining water. Maintenance priorities include flushing the pump and mixer with clean water after each use, regularly lubricating the power take-off (PTO), checking the foam liquid quality, and applying antifreeze treatment in cold weather. In the event of a malfunction, prioritize clearing any blockage or testing the proportioning accuracy to ensure the equipment is always ready for use.

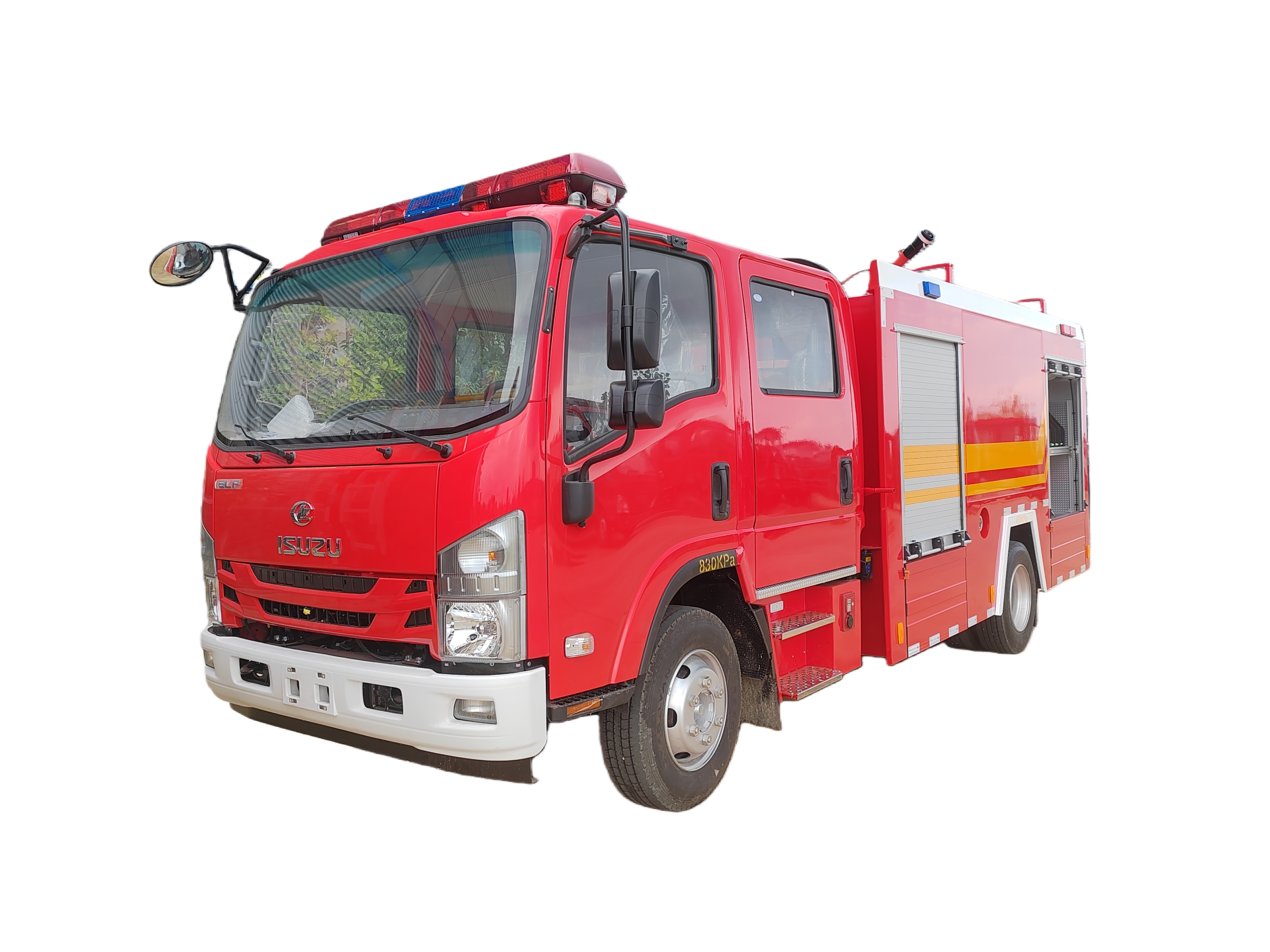

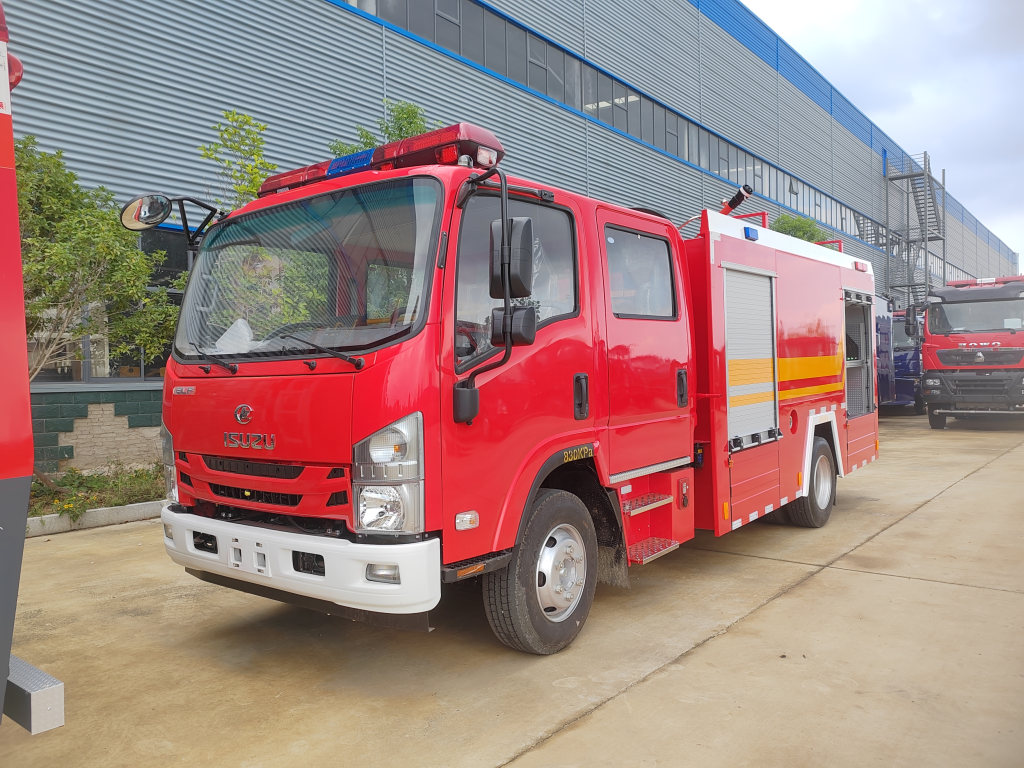

» Ⅱ.Product Parameter for ISUZU NPR 4X2 190HP tender fire truck:
Chassis Specification | |||||
Truck model | PST5100GXFQ2 | ||||
Cab | ISUZU NPR/700P CABIN | ||||
Driving Type | 4*2 Left hand driving | ||||
Max Speed (km/h) | 95 | ||||
Overall dimension(mm) | 6360*2000*2740 | ||||
GVW( kg) | 11000 | ||||
Mass in working order ( kg) | 4175 | ||||
Wheelbase(mm) | 3815 | ||||
F/R track base (mm) | 1504/1425 | ||||
F/R overhang (mm) | 1015/1890 | ||||
Approach/Departure Angel | 24/14 | ||||
Tire | 235/75R17.5 (6+1) | ||||
Clutch | Single-plate dry diaphragm spring clutch | ||||
Steering | Hydraulic steering with power assistance | ||||
Gear box | MLD 6-speed | ||||
Bridge | Front axle | 5T | |||
Rear axle | 6T | ||||
Enging | Model | 4HK1 | |||
Fuel Type | Diesel fuel | ||||
Type | Water-cooled four-stroke,, direct injection, turbocharged | ||||
Exhaust(ml) | 5200 | ||||
Max output power/rotate speed (hp /rpm ) | 190/2600 | ||||
Max torque/rotate speed(N.m/rpm) | 290/1500-2900 | ||||
Braking system | Service Brake | Air brake | |||
Park Brake | Spring energy | ||||
Eletric system | 24v | ||||
Upper-Body specification | |||||
Tank |
Structure | Welding, there is clapboard inner. | |||
Material | Water Tank | High quality carbon steel plate, anti-rust treatment | |||
Capacity |
Foam Tank | 500L | |||
Water Tank | 2500L | ||||
Equipment box | Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed. |
||||
pump room | on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||||
Special Parts Parameter |
Fire Pump | Type | Normal pressure fire pump | ||
Model | CB10/30 | ||||
Flux | 30L/S | ||||
Pressure | 1.0Mpa | ||||
Fire Monitor | Type | For water and foam | |||
Model | PS20 | ||||
Flux | 20L/S | ||||
Pressure | 1.0Mpa | ||||
Additional drive system | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||||
Additional operation system | PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on | ||||
Additional cooling system | The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating | ||||
Additional Electrical system system |
warning light ,warning sirens | ||||
Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge | |||||
Fire lights, pump room lights, equipment box lights | |||||
Additional instrumentation |
pressure gauge | ||||
speedometer | |||||
level gauge | |||||
vacuum gauge | |||||
Carriage | Carriage is made of high quality steel and Aluminum embossed sheet | ||||
Rolling shutter door | Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||||
color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. |
» Ⅲ.Product Details & Advantages:

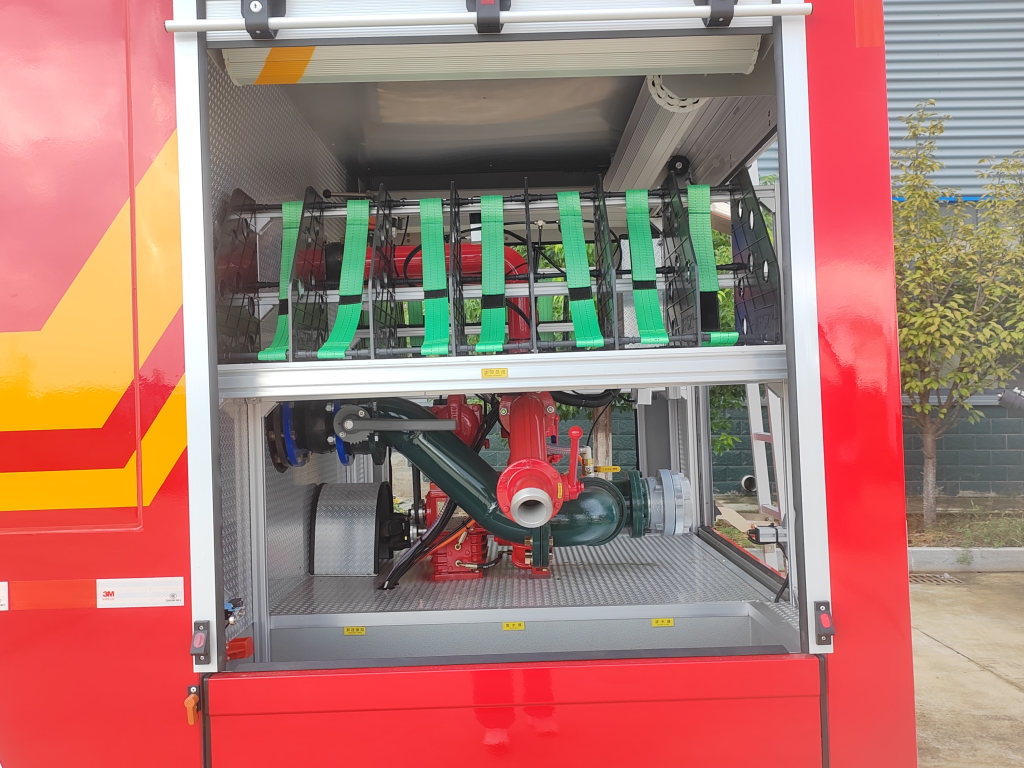

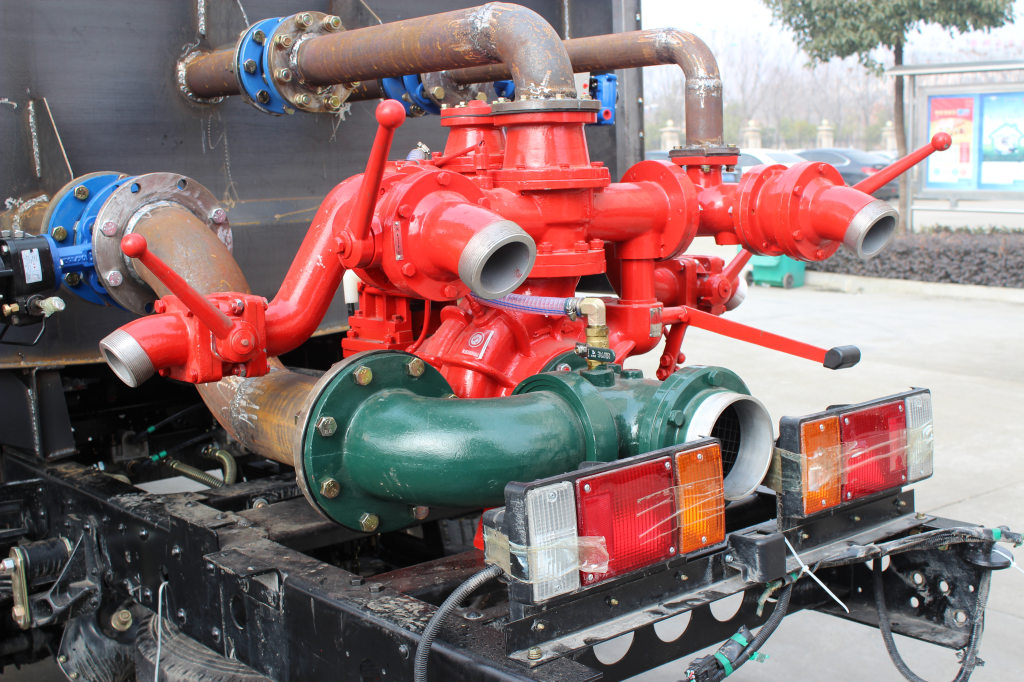

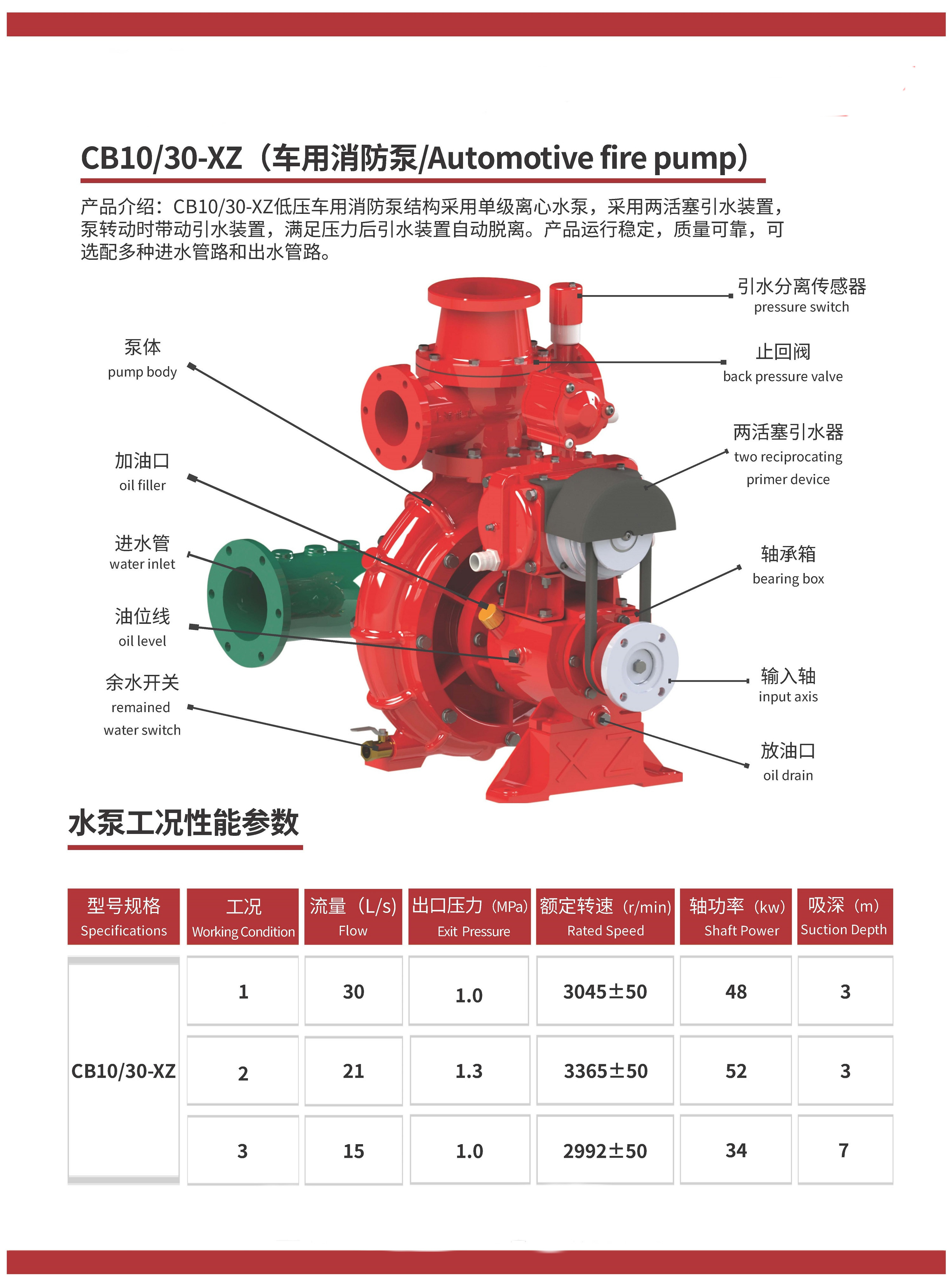

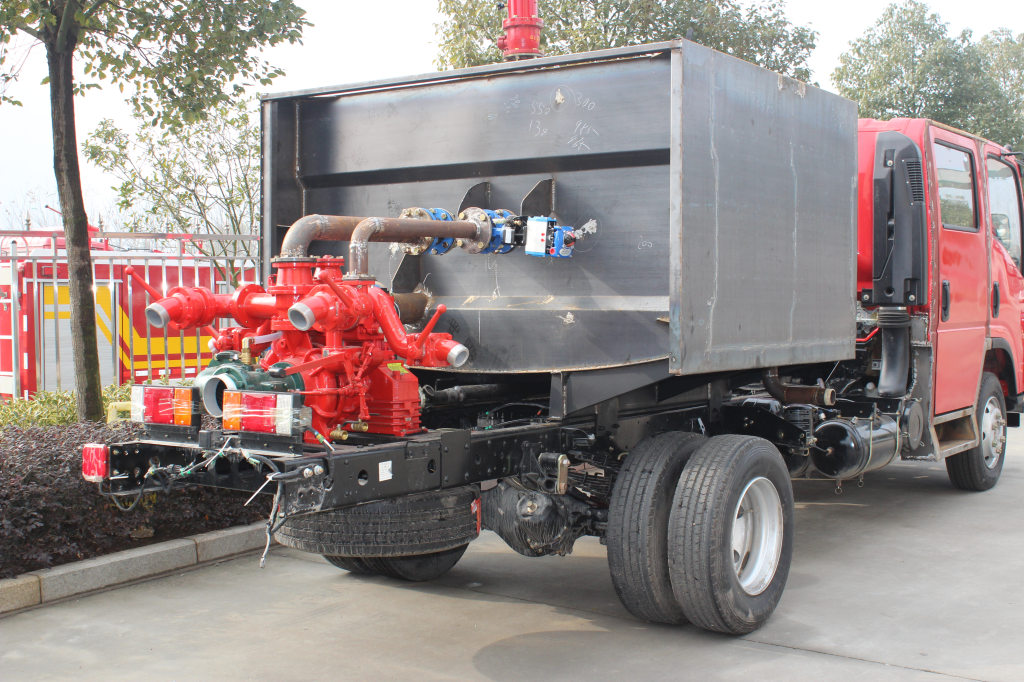

CB10/30 fire pump details

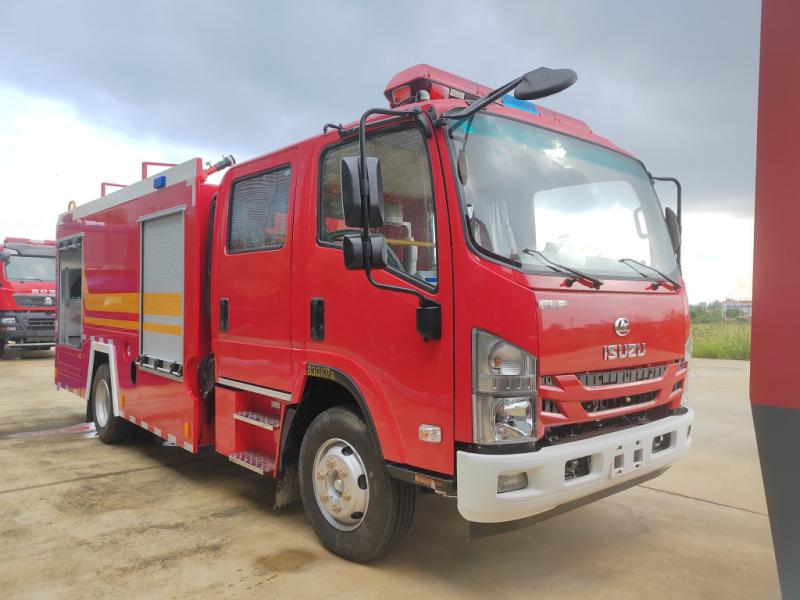

1. ISUZU NPR Double Chassis

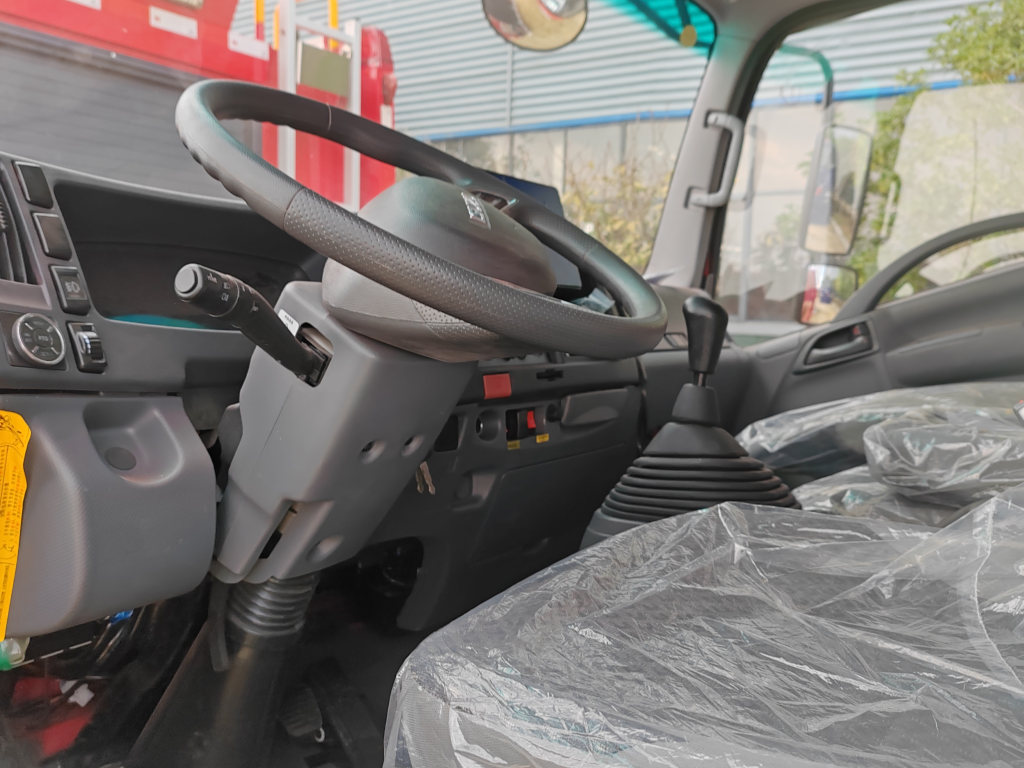

ISUZU NPR cabin, with A/C, power assisted, central lock, power window and doors, multifunctional steel wheel, Multifunctional LCD instrument panel, ect

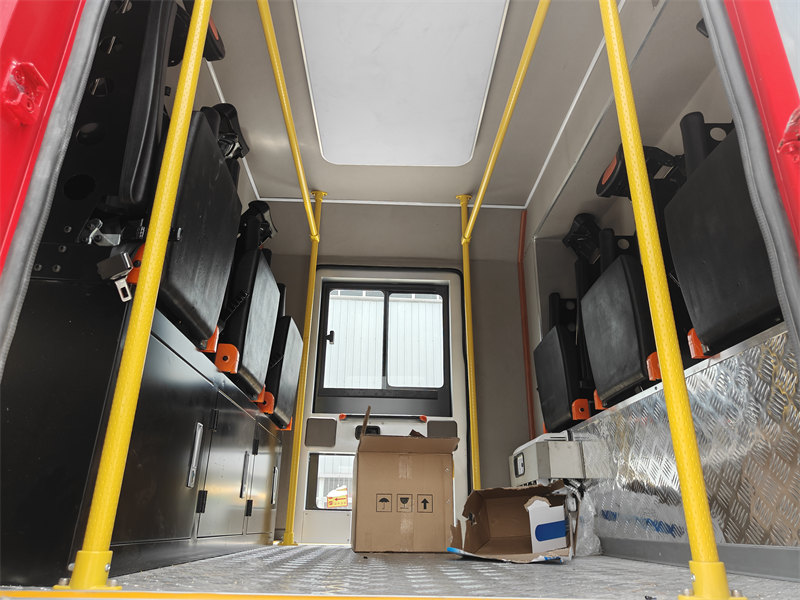

2. Independent crew cabin
With an independent crew cabin, can accommodate up to eight firefighters.
3. Rear SCBA seat
The crew cabin with all seats equipped with seat belts. The rear seats are detachable and include brackets for breathing apparatus.

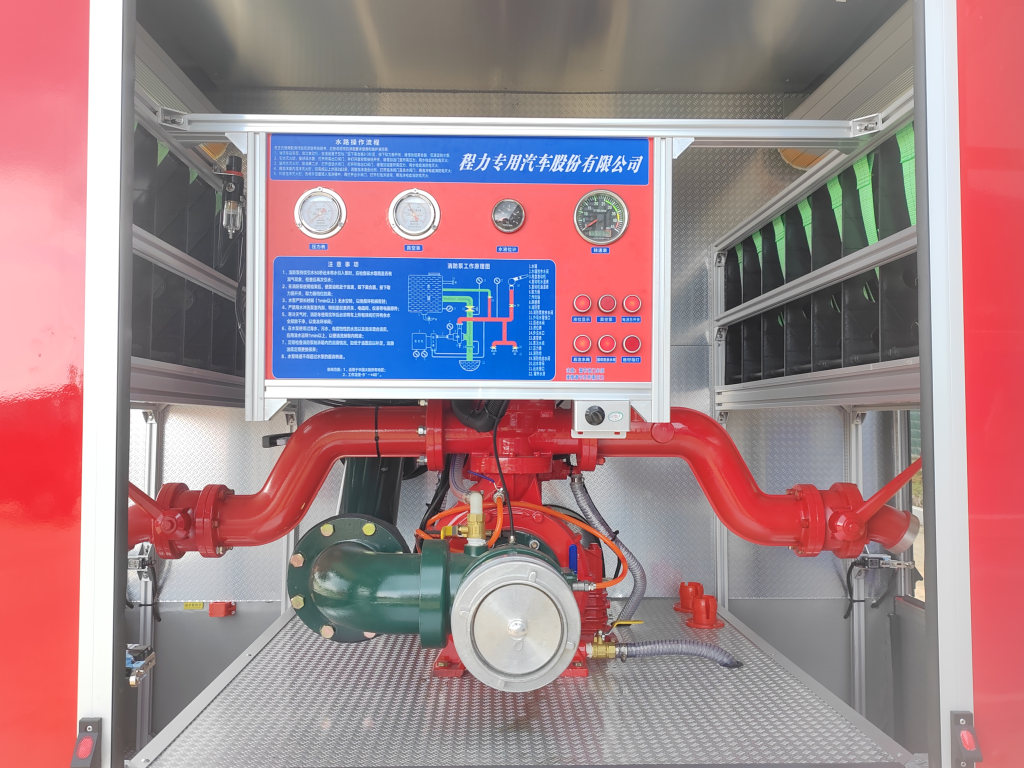

4. Pump room with control panel
Pump room at the rear of the vehicle, with aluminum alloy roller shutters on both sides and the rear. With interior lighting, storage space for commonly used equipment.

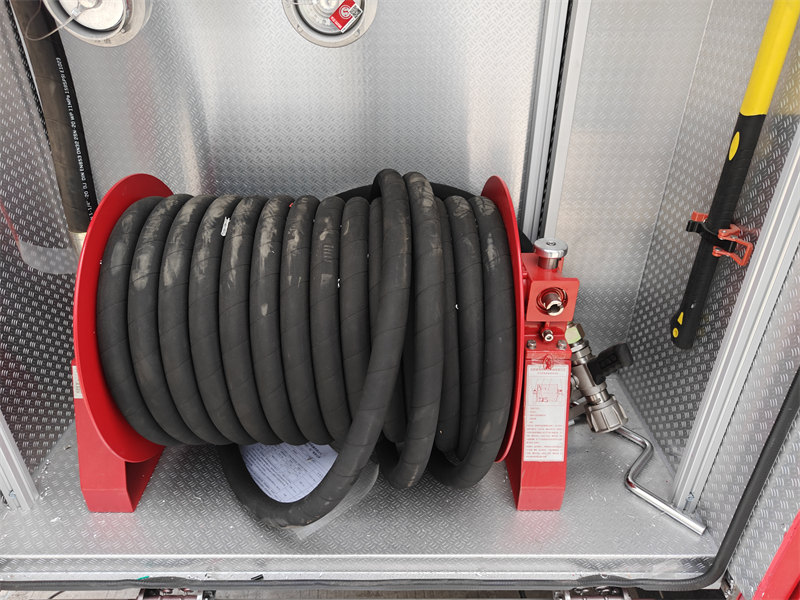

5. Firefighting hose reel
The truck is equipped with hose reel with 30m length and 32mm diameter, and the flow is up to 120L/min.

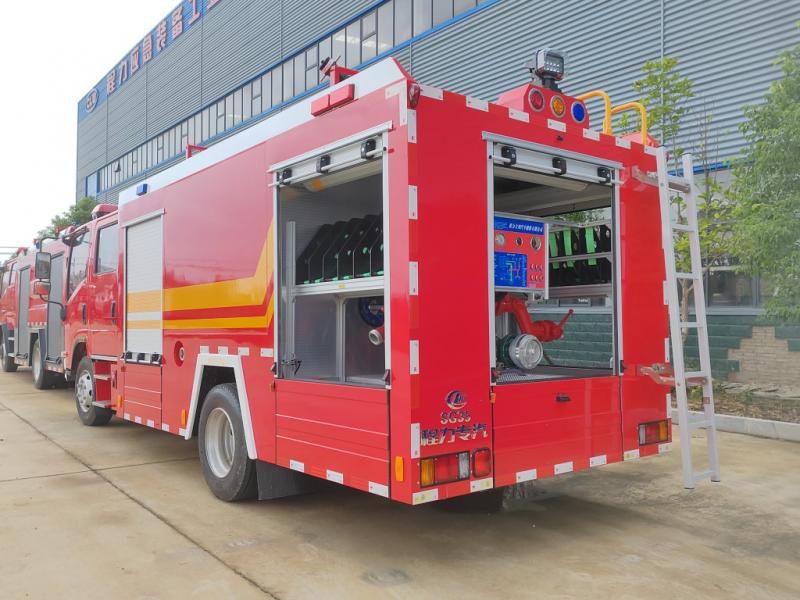

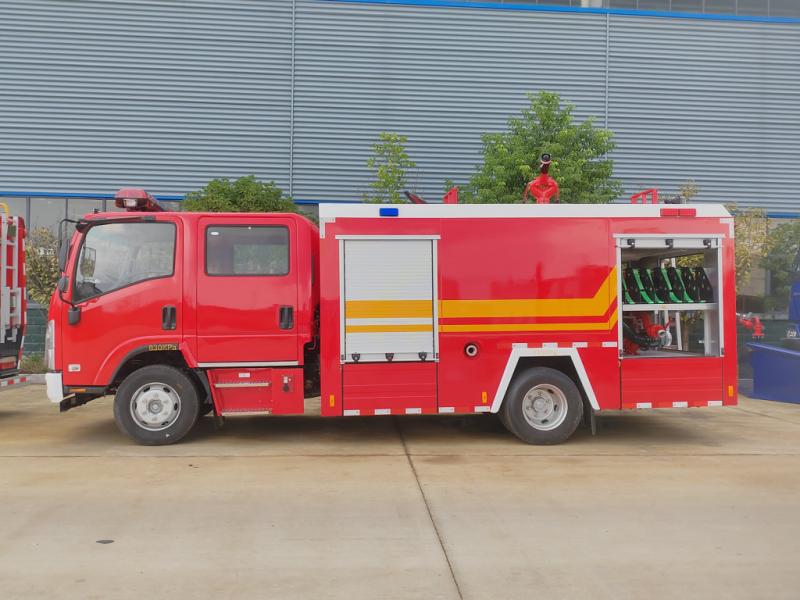

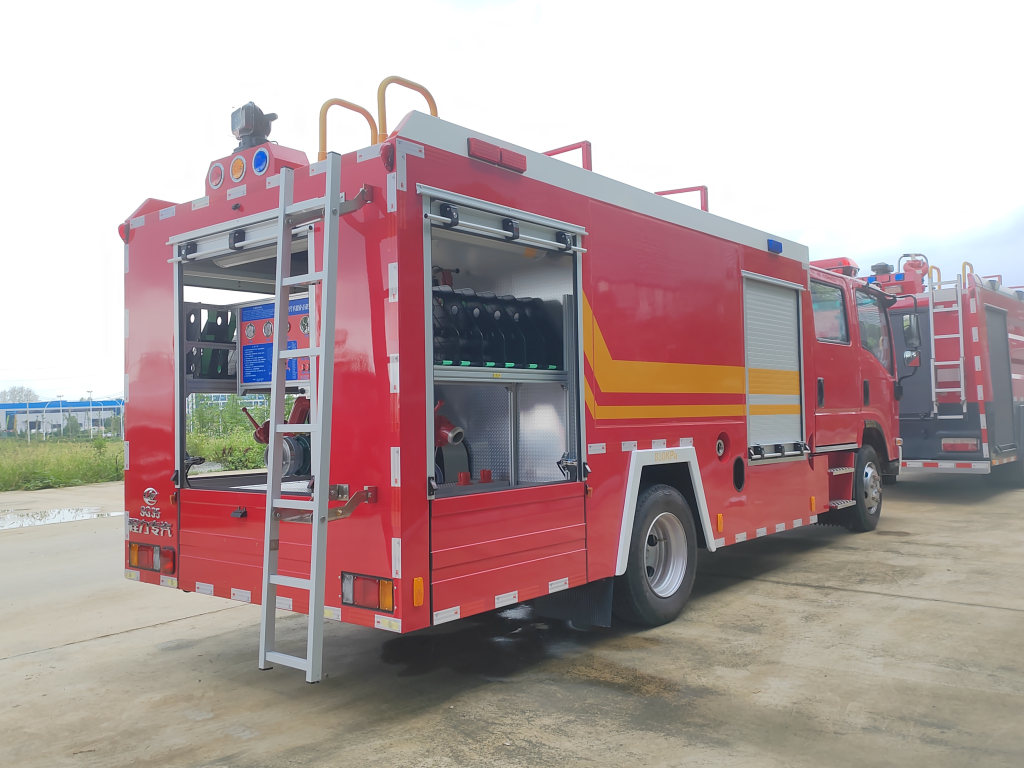

6. Fire truck tanker body with full sets fire fighting tools
R03 RAL3000 painting, Aluminium alloy decoration for fire fighting toosl convenient storage, LED light for red blue and white color
