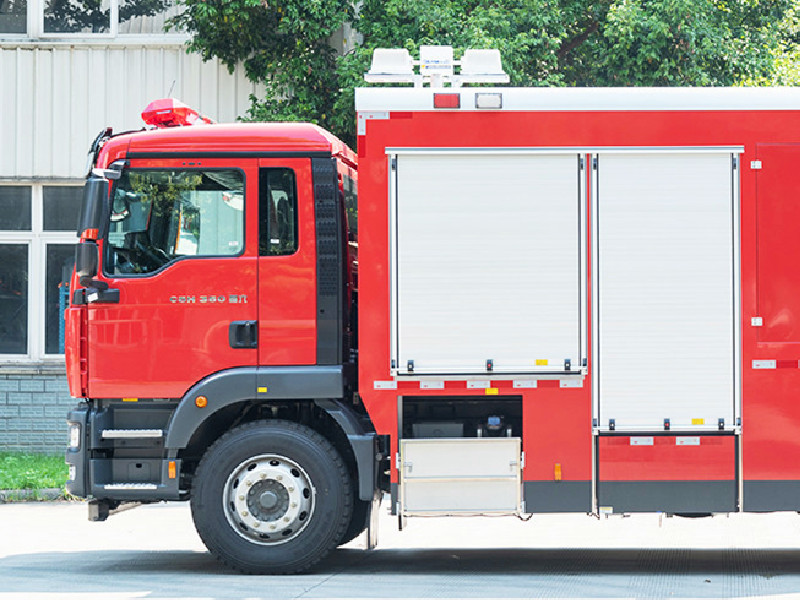

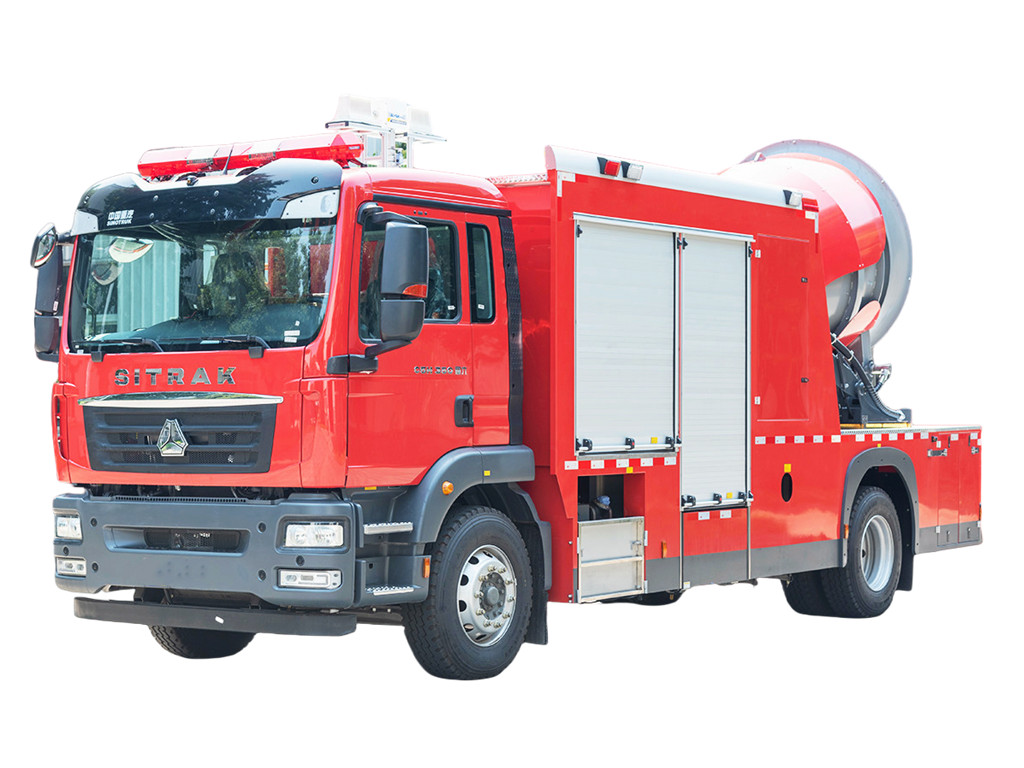

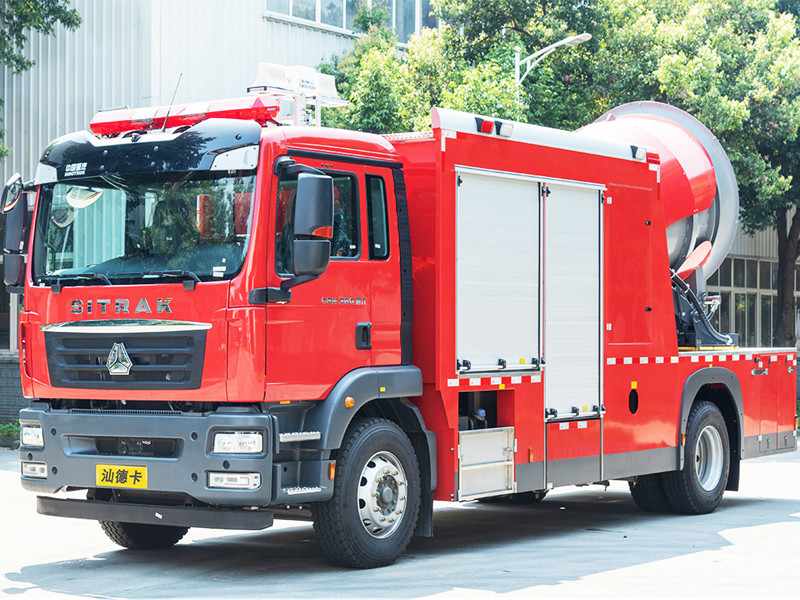

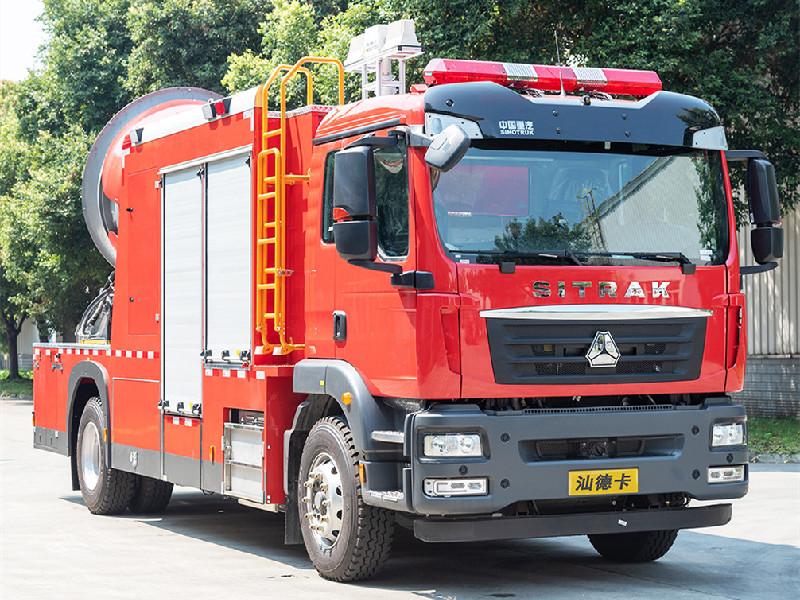

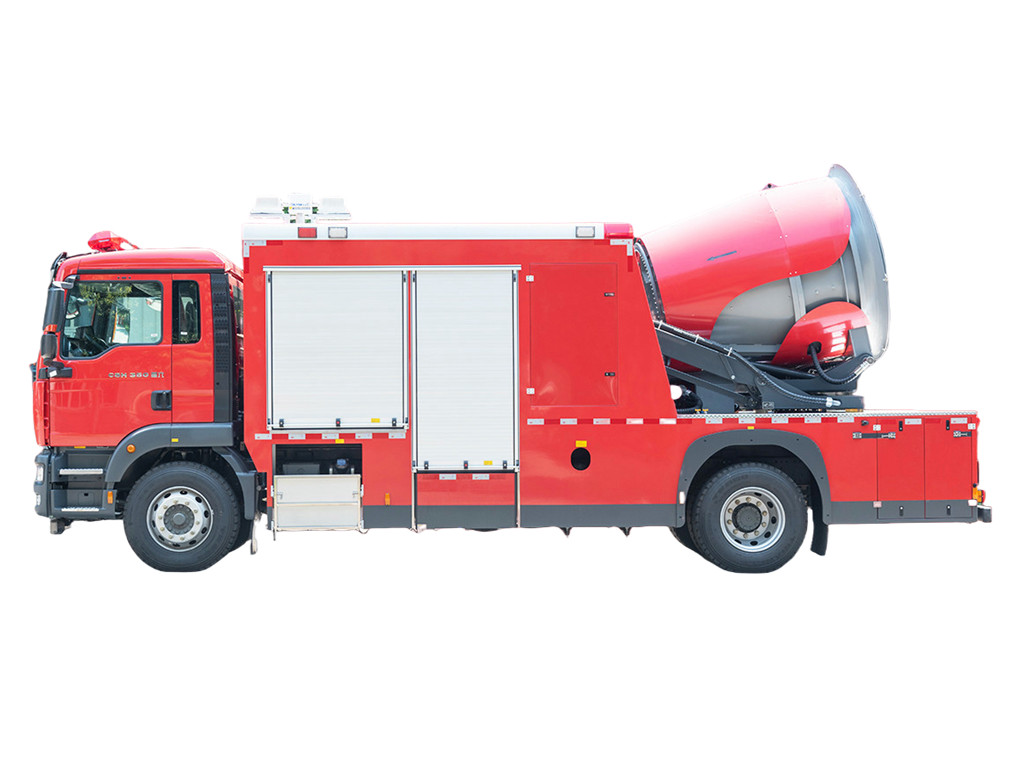

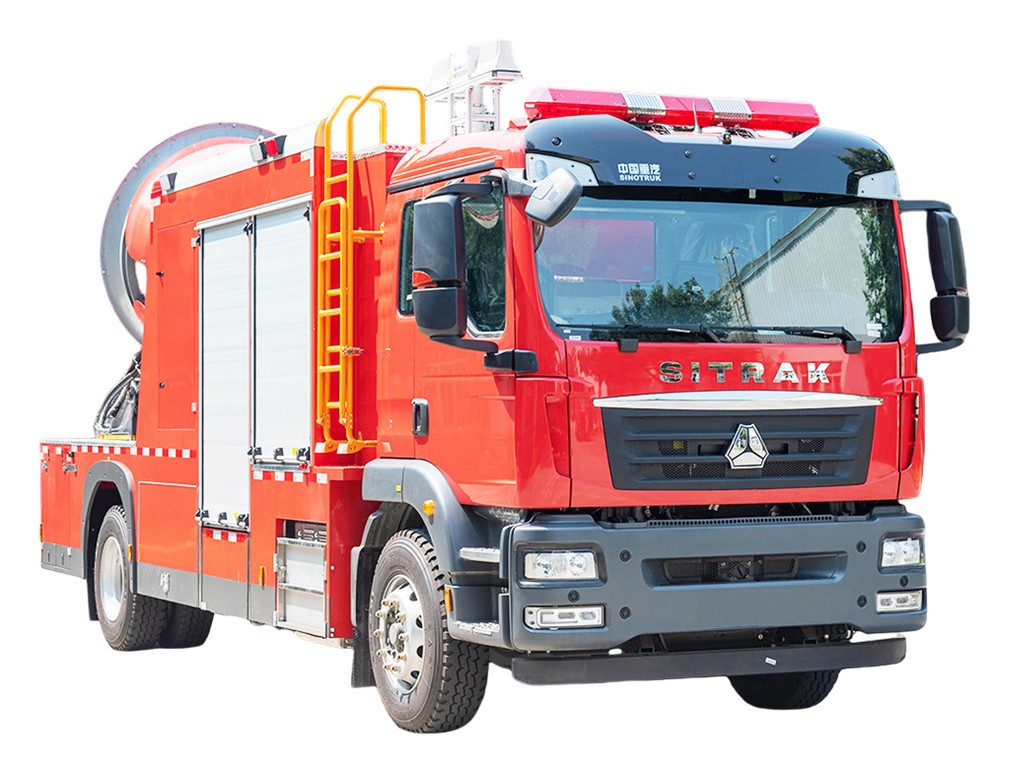

Sinotruk 4×2 smoke exhaust and rescue fire truck is a multifunctional firefighting vehicle developed by Sinotruk based on its special chassis technology. It is mainly used for smoke exhaust, emergency rescue and fire extinguishing operations at the fire scene. Sitrak smoke exhaust fire engine is modified on the basis of 4x2 fire truck chassis, single cabin with 2 seats, 5200mm wheelbase, equipped with SINOTRUK MC07H.35-60 engine, 350HP, Euro 6 model with 7.36L emission, SINOTRUK 10-speed gearbox, mounted with 2000L clean water tanker, the front compartment of the fire tanker body is equipped with a hydraulic lifting lighting system, which is used to control the lifting and lowering lights on the top of the fire truck and monitor the voltage and current frequency of the generator. At rear platform equipped with heavy duty smoke exhaust, with capacity Positive pressure 200000m³/h and negative pressure 50000m³/h.
Truck Model:
PT5160GXFTanker Structure:
Aluminum Alloy Fire Tanker BodyWork capacity :
2000L water tankerWheelbase:
5200mmAxle drive:
4x2, LHDEngine Power:
350HPEngine Model:
SINOTRUK MC07H.35-60Fire Pump:
CB10/30Fire Monitor:
NULLRemark:
Rear mounted smoke exhaust deviceHowo Rescue Fire Truck is a powerful and reliable vehicle designed to respond to fire emergencies with speed and efficiency. And the Sinotruk Sitrak Smoke Exhaust Rescue Fire Truck and other type rescue fire engine has become an important representative of domestic fire trucks, which equipped with advanced firefighting equipment and technology, including fire pumps, fire monitor, hose pipeline, and rescue tools, the Sinotruk Rescue Firefighting Truck is capable of quickly extinguishing fires, smoke exhaust and providing assistance in rescue operations. With a spacious and well-equipped original sinotruk cabin, it ensures that firefighters have the necessary tools and space to effectively carry out their duties. The sinotruk smoke exhaust vehicle robust construction and high-performance capabilities make it an essential asset for fire departments and emergency response teams. The Sinotruk 4x2 Mobile smoke exhaust Firefighting Rescue Truck is utilized in various scenarios, including firefighting, rescue operations, handling hazardous material incidents, providing emergency medical services, and ensuring safety at public events.
Howo Smoke Exhaust Fire Rescue Truck is a reliable and powerful firefighting vehicle that is equipped with advanced features and technologies to combat fire emergencies. The technical rescue fire truck is designed to provide quick and effective firefighting solutions to different types of fire accidents, making it an indispensable asset for firefighting departments across the world. The Sinotruk Rescue Fire Fighting Truck is built on a sturdy SITRAK 4x2 truck chassis that can withstand heavy loads and tough conditions. lt is powered by a high-performance diesel engine MC07H.35-60 with 257KW / 350HP and emission 7.36L that delivers superior power and efficiency, meet highest standard EURO 6 emission. The super powerful truck enabling the rescue fire truck to reach the site of the emergency quickly. The truck is also equipped with advanced firefighting technology, such as water and foam tanks, high-pressure water pumps, and hydraulic platforms, to help firefighters combat fire emergencies effectively.
● 30 years experience on fire rescue truck designing
● Professional sales team which will help you to choose suitable truck.
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Sinotruk Sitrak Smoke Exhaust Rescue Fire Truck Vehicle Parameters
|
|||
General
|
Vehicle Model
|
PT5160GXF
|
|
|
Vehicle Brand
|
POWERSTAR
|
|
|
Chassis Brand
|
SINOTRUK SITRAK(ZZ5206N501GF1)
|
|
|
Overall Dimension(mm)
|
8950×2500×4050
|
|
|
GVW/Curb Weight(kg)
|
16000/10200
|
|
Chassis Parameters
|
|||
Cab
|
Cab Seat
|
2+1
|
|
|
Air Conditioner
|
YES
|
|
Engine
|
Fuel Type
|
diesel
|
|
|
Engine Model
|
MC07H.35-60
|
|
|
Engine Brand
|
SINOTRUK
|
|
|
Power(kw/hp)
|
257/350
|
|
|
Displacement(l)
|
7.36
|
|
Emission Standard
|
Euro 6
|
||
Chassis
|
Drive Type
|
4*2
|
|
|
Transmission
|
10 speed, Manual
|
|
|
Wheelbase(mm)
|
5200
|
|
|
Tyre Specification
|
12.00R20
|
|
|
Tyre No.(pcs)
|
6+1 Spare tire
|
|
|
Max Speed(km/h)
|
95
|
|
|
Paint
|
Red
|
|
Smoke Exhaust Fire Truck Water Tank Structure Parameters
|
|||
Water Tank Volume
|
2000L
|
Tank Material
|
Stainless Steel SS304
|
Tank Thickness
|
4/3/3mm
|
Fire pump
|
CB10/30
|
Fire monitor
|
NULL
|
Color and Logo
|
Optional
|
Standard Configuration
|
Chassis,sub frame, van body,national standard equipment box, 25 units national standard fire-fighting equipment,fire pump(CB10/60 according to the capacity), fire gun(PL48 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank.
|
||

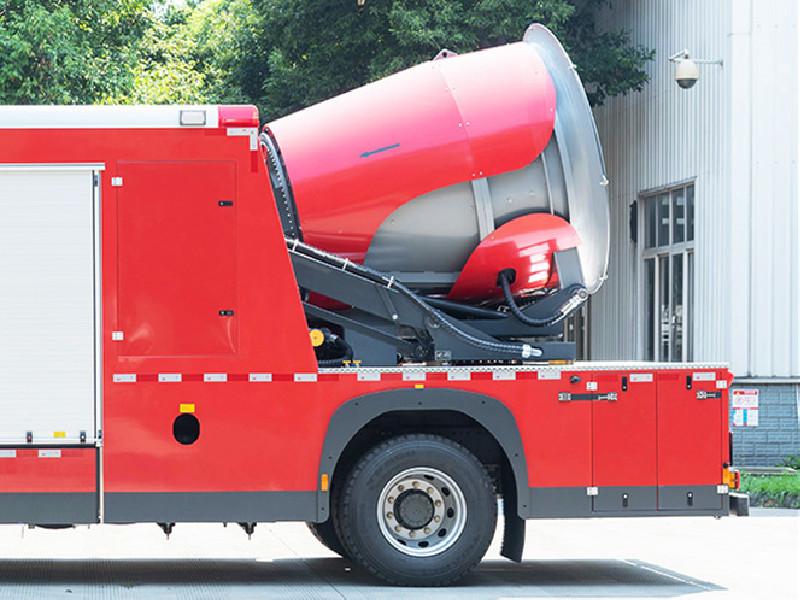

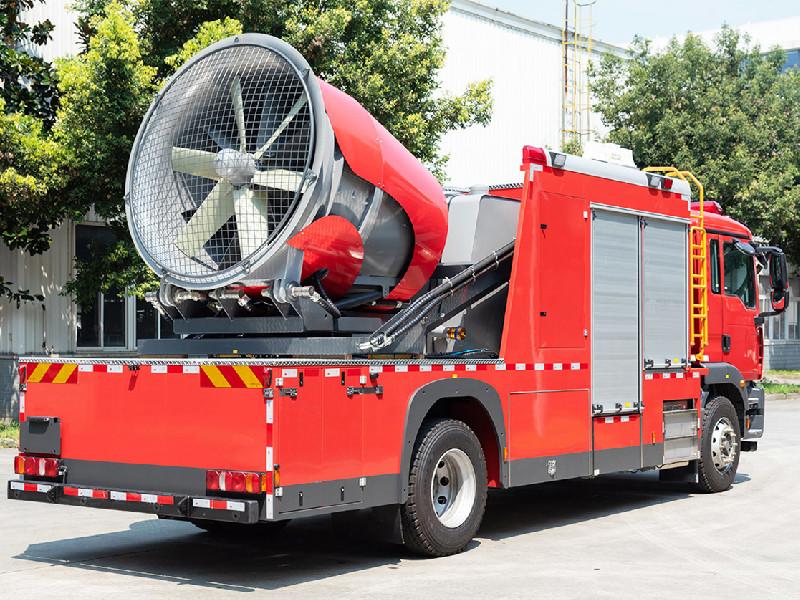

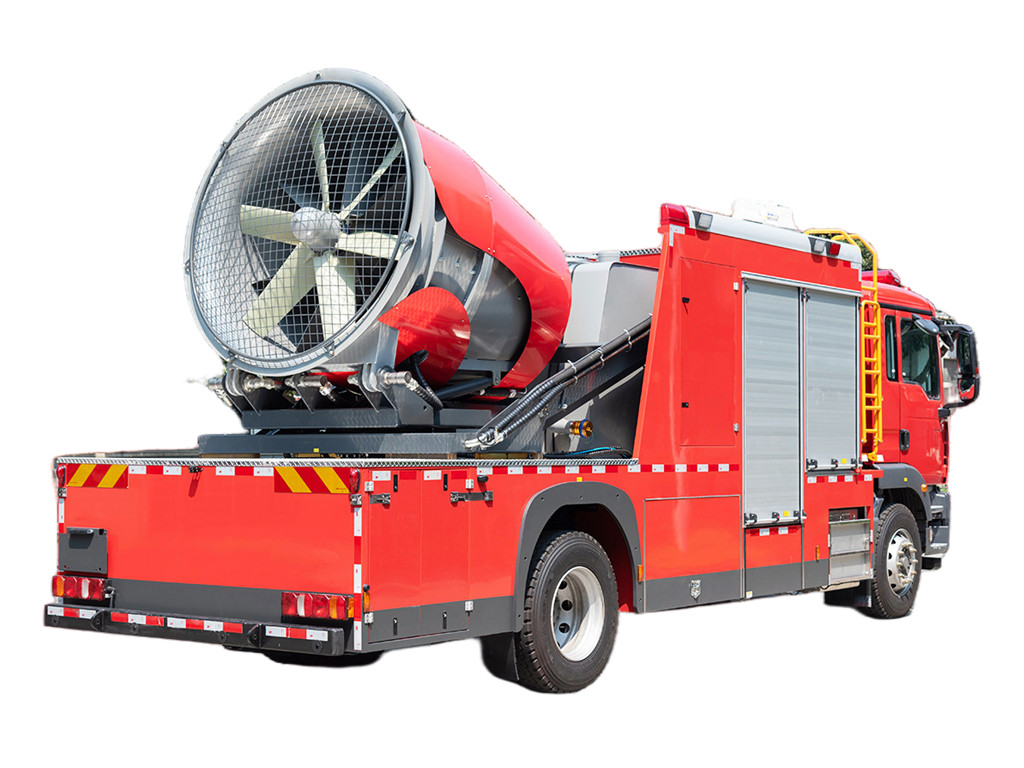

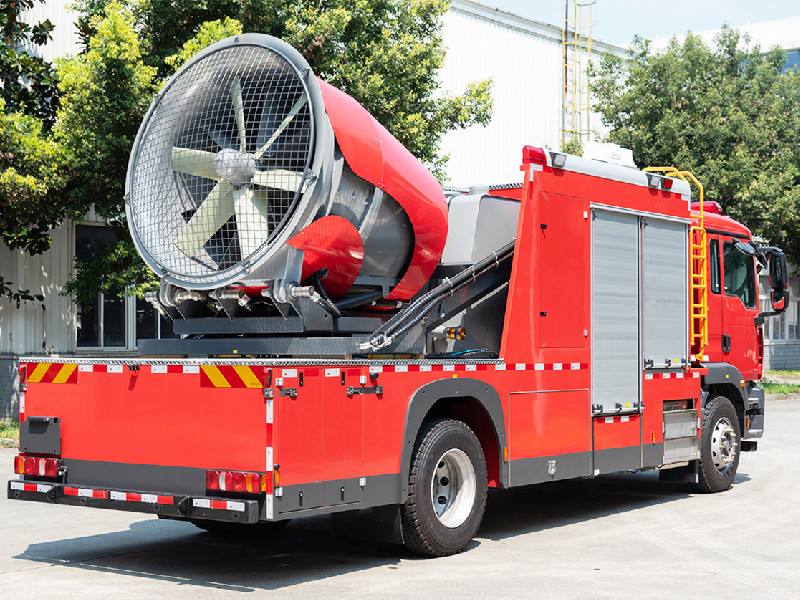

Smoke Exhaust Device
|
Heavy duty type mounted at rear of fire truck platform
Flow Rate: Positive pressure 200000m³/h, negative pressure 50000m³/h
|
Here below is the basic components and advanced features typically in Sinotruk SITRAK Smoke Exhaust Firefighting Truck:
Water Tank : Sinotruk Technical Rescue Fire trucks are equipped with a water tank to carry 2000L water to the scene of a fire. The size of the tank can vary depending on the truck’s intended use and capacity, and matched working with the smoke exhaust fan.
Fire Pump: Fire trucks are fitted with a pump system to pressurize and distribute water from the tank through hoses and nozzles. The fire pump model is CB10/30, and can vary in size and capacity to be build on different type fire engine.
Hose Reels and Nozzles: Firefighting trucks are equipped with hose reels and nozzles for directing water onto the fire. These hoses can be mounted on the truck or stored in compartments for easy access.
Ladders: Most rescue fire trucks are equipped with ladders for accessing elevated areas such as buildings or rooftops. These ladders mainly aluminium alloy material, some can be fiberglass for insulation working, model may be telescopic or extendable and can vary in length depending on the truck’s specifications.
Emergency Lighting and Sirens: HOWO Fire trucks are equipped with emergency lighting and sirens to alert other vehicles and pedestrians and to provide visibility at the scene of a fire. Also can be mounted with hydraulic lifting type lighting device, with remote control box and working height can be 7.6m.
Specialized Equipment: Depending on the specific needs of the fire department, fire trucks may be equipped with specialized equipment such as foam CAFS systems for fighting chemical fires, hydraulic tools for vehicle extrication, or hazardous materials response gear.
Characteristic advantages for fire truck smoke extraction system:
1. Positive pressure air supply changes the direction of the fire site.
2. Solve the problem of smoke extraction in underground tunnels, subways and other places.
3. The remote control system ensures the safety of personnel.
4. Negative pressure ventilation positive pressure air supply positive pressure smoke exhaust maximum smoke exhaust flow ≥ 590,000
m3 /h.
5. Widely used in oil and gas fields, airport tunnels, chemical enterprises, etc.
6. The smoke exhaust device can be powered by truck chassis engine, also can by independent diesel engine or generator.
Item
|
Technical Specification
|
Place of Origin
|
CHINA
|
Brand Name
|
POWERSTAR
|
Model Number
|
PTXFPY01
|
Product Name
|
Fire engine smoke extraction system
|
Material
|
Metal
|
OEM
|
OEM Service
|
MOQ
|
1 Set
|
Design needs to provide
|
Corresponding vehicle chassis parameters
|
power
|
The diesel engine
|
Maximum smoke discharge
|
Positive pressure 200000m³/h, negative pressure 50000m³/h
|
