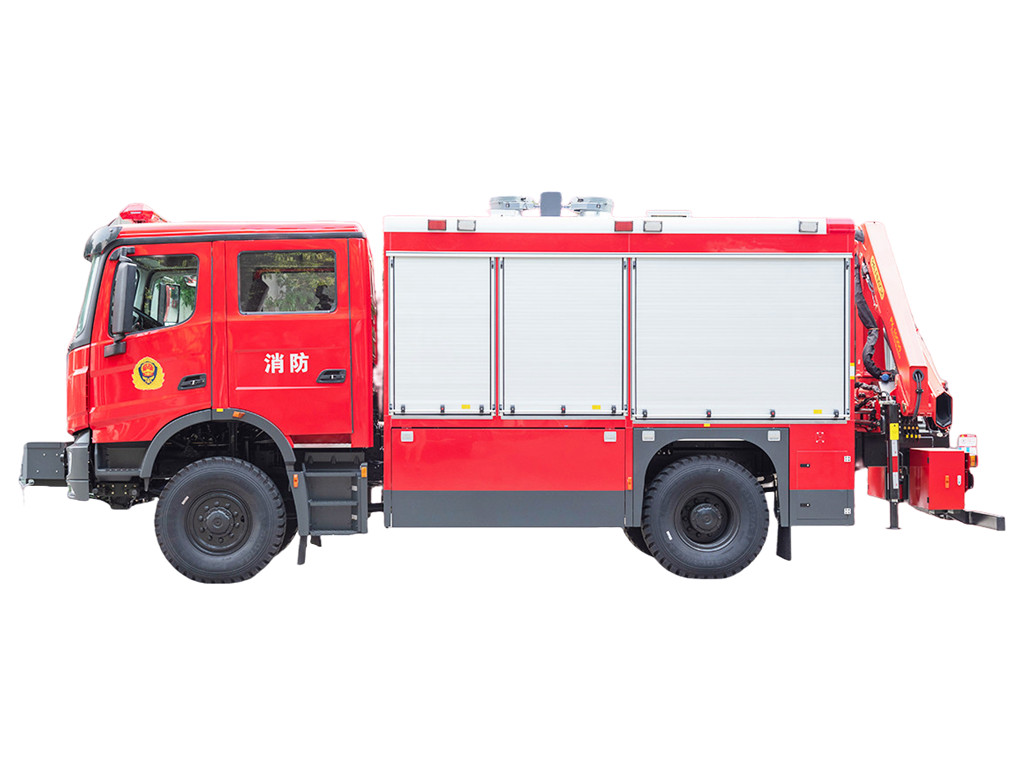

BEIBEN 1929 offroad fire rescue truck

BEIBEN 1929 offroad fire rescue truck

China North Benz 4x4 all terrain fire rescue truck is designed based on BEIBEN 1929 offroad truck chassis and used for firefighting and rescue tasks in complex terrain environments. Original V3 new cabin with half sleeper, equipped with WP10.290E32 diesel engine, 290HP and emission 9726cc, meet Africa emission requirement. Drive type 4×4 full time all wheel drive with three differential locks matched for all terrain working and cover all road conditions, also equipped with 12.00R24 tires for tough road condition. The BEIBEN 1929 rescue fire fighting truck is equipped with various fire rescue equipment, and widely used in fire brigades to respond to various natural disasters and emergencies etc.

  • Truck Model:

    PT5160GXFBB
  • Tanker Structure:

    Aluminum Alloy Structure
  • Work capacity :

    5700kg Palfinger SPK10000 folding crane
  • Wheelbase:

    4600 mm
  • Axle drive:

    4×4 All Terrain
  • Engine Power:

    290 HP
  • Engine Model:

    WP10.290E32
  • Fire Pump:

    Optional
  • Fire Monitor:

    Optional
  • Remark:

    Optional BEIBEN V3 cabin or NG80B cabin
Facebook Linkedin Youtube Twitter Pinterest

Beiben V3 left-hand drive 4x4 all-wheel drive 1929 rescue fire truck is a domestic Beiben fire truck that integrates off-road capabilities, multi-functional rescue and efficient fire extinguishing, suitable for complex urban environments and outdoor rescue scenes. Its design reflects the comprehensive advantages of domestic fire trucks in power, cost and adaptability, and meets the needs of modern fire rescue for mobility and versatility.

China North Benz fire rescue truck is a specialized vehicle designed to transport and provide the equipment necessary for technical rescue. Beiben Fire Engine can be customized and designed to carry an array of special equipment such as the jaws of life, wooden cribbing, generators, winches, hi-lift jacks, cranes, cutting torches, circular saws and other forms of heavy equipment unavailable on standard trucks.  This capability differentiates them from traditional pumper fire trucks or ladder fire trucks designed primarily to carry firefighters and their entry gear as well as on-board water tanks, hoses and equipment for fire extinguishing and light rescue.  Most Mercedes Benz technology rescue fire trucks lack on-board water tanks and pumping gear, owing to their specialized role. The customized Beiben 1929 offroad rescue fire apparatus is typically operated by a rescue squad, but in some areas it may be integrated with emergency medical services or fire departments.

Beiben 4x4 wildland rescue fire engine



● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service



BEIBEN 1929 offroad fire rescue truck Parameters
Dimensions Length/mm 9000
Width/mm 2500
Height/mm 3950
Wheelbase/mm 4600
Front/Rear Thread/mm 1835/1640
Approach/Departure Angle/° 33/26
Chassis Brand BEIBEN
Driven Mode 4x4, LHD
Front Axle Load/kg 7500
Rear Axle Load/kg 13000
Braking System Air Break
Tyre 12.00R24
Gear Box 9 forwards 2 backward
Max Speed/ km/h 95
Beam Cross Beam
Cab 3+3 passengers
Engine Model WEICHAI WP10.290E32
Horsepower/HP 290
Displacement/L 9.726
Max Torque 1160N·m
Speed at Max Torque/rpm 1200~1600
Fire Fighting System
Fire Pump Model CB10/80
Flow/ L/s 80
Pressure/MPa 1.0
Water Suction Time/s Less than 25(when height is 7m)
Installation Mode Rear-mounted
Fire Monitor Model PS80
Pressure/MPa 1.0
Flow/ L/s 80
Range/m More than 70
Horizontal Rotating Angle/° 360
Pitching Rotating Angle/° -30~80
Operation Mode Manual
Pipeline Systems Internal Inflow Pipe One pc φ125mm pipe with one  pc φ125mm flygate
External Inflow Pipe Installed behind the pump, φ125mm, with 4 pcs 2m water suction pipes
Water Outlet Pipe -Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves
-One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
Water Injection Pipe -One pc φ50mm internal water injection pipe
-One pc φ65mm external water injection pipe
Cooling Water Pipe Equipped with stainless steel ball valve
Drain Pipe In the lowest position of the pipe
Water Tank Loading Capacity/kg 3000
Material Quality Stainless Steel #304 Plate
Thickness Baseboard and Endplate: 4mm
Side plate and top plate: 3mm
Structure Welded Type, Anti-swing Plate Inside
-One Manhole, with fast lock & unlock device
-One Overflow Device
-One Level Indication Device
-One Drain Hole, controlled by manual valve
Electrical System -Above the driving room are lightbar & 12V/60W fire scene light
-Above both sides of the vehicle are two flash lights
-100W alarm light
-Switches of all the lights, alarms and pumps on the control panel.
Foam Tank Structure Connected
Capacity/kg 1000
Material Quality
Base: Side Plate: Anti-swing Plate 4:4:3

Other Detail
-One Manhole, with fast lock & unlock and
pressure-release device
-One Overflow Device: DN50mm
-One Drain Hole with ball valve: DN40

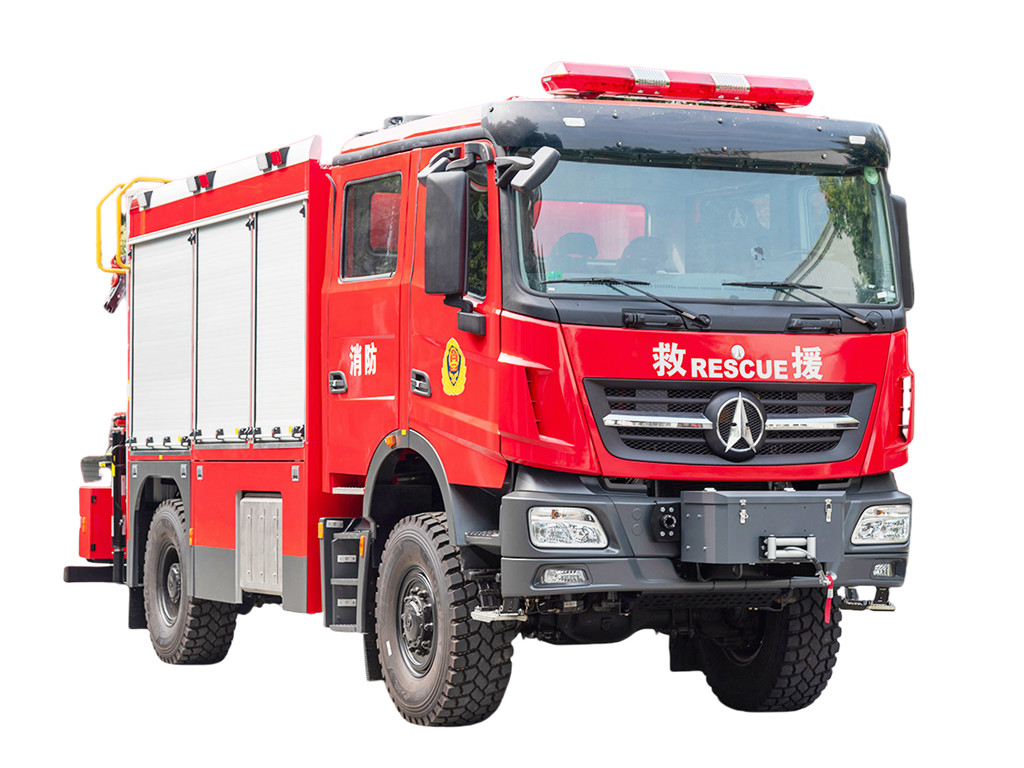

Beiben V3 all terrain fire rescue truck

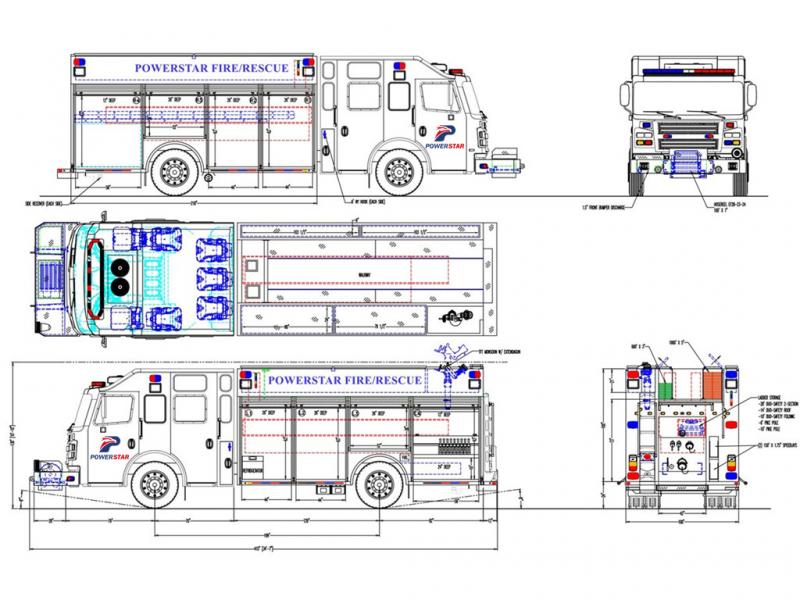

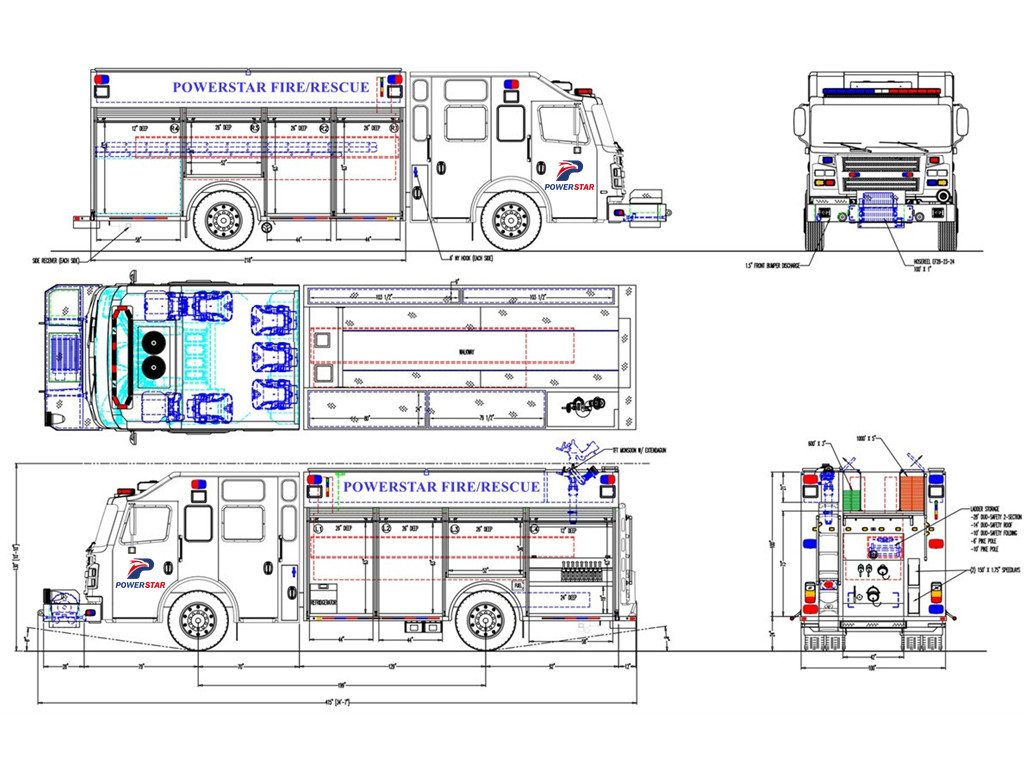

Beiben 1929 fire rescue technical drawing

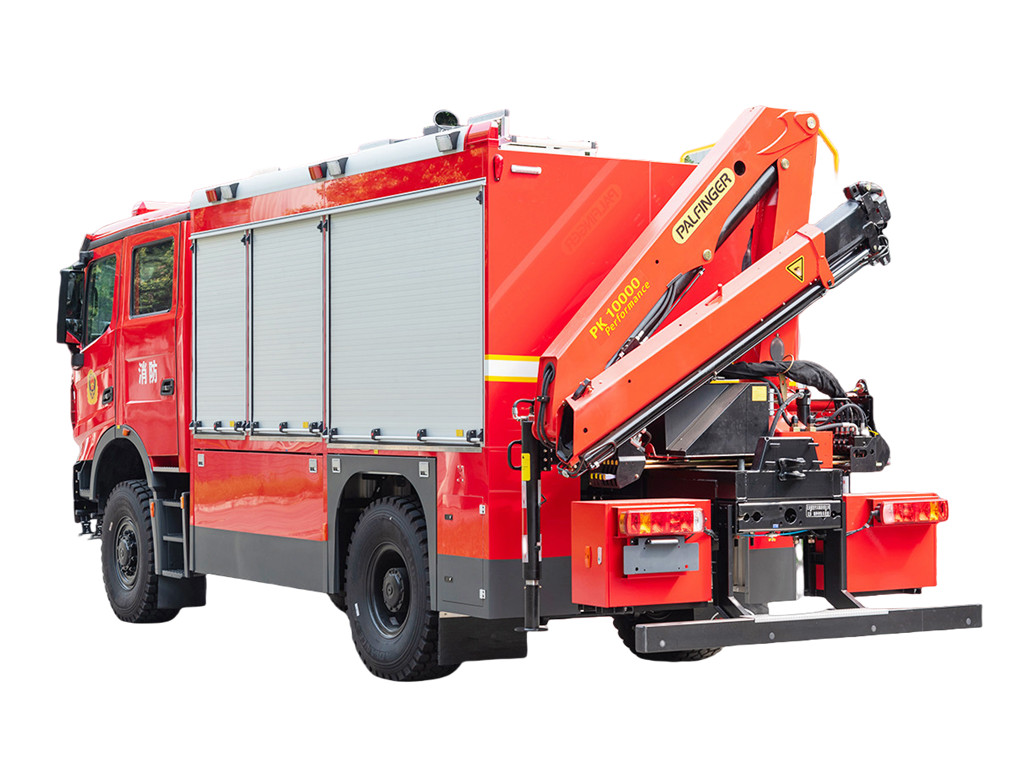

BEIBEN 1929 Rescue Special Fire Truck with Winch & Crane & Generator & Telescopic Light:

Beiben V3 fire truck is developed based on China north benz V3 series 1929 offroad 4x4 truck chassis, and the upper body modification is completed by POWERSTAR TRUCKS. Whici is a well-known domestic fire truck manufacturer, focusing on the production of high-performance fire rescue vehicles. Drive form of Beiben 1929 fire engine is 4x4 all-wheel drive design shows that the vehicle has strong off-road and complex terrain passing capabilities, suitable for urban narrow roads, mountainous areas or outdoor rescue scenarios.

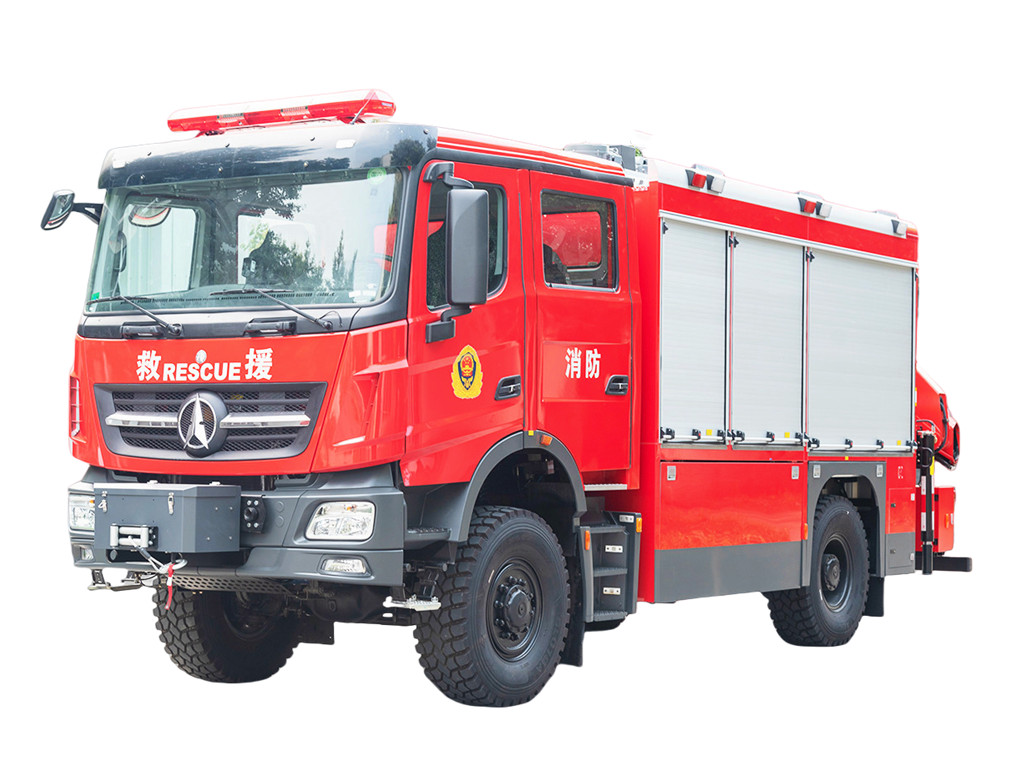

China benz 1929 offroad fire rescue apparatus



The Beiben 4x4 AWD fire rescue truck system and professional off-road tires enable it to flexibly pass through complex terrains such as sand, mountains, stairs, etc., especially suitable for areas that are difficult for fire trucks to enter, such as old urban blocks and scenic spots. The Beiben 4x4 fire department truck equipped with front independent suspension and rear leaf spring design to balance the adaptability to complex road conditions and load requirements. At the same time, it is equipped with ABS anti-lock braking system and air brake system to ensure the safety of emergency braking. As a rescue fire truck, Beiben rescue fire engine also equipped with demolition tools (such as hydraulic expanders, cutting machines), air respirators, telescopic ladders, etc. to meet the rescue needs of traffic accidents, building collapses and other scenes.

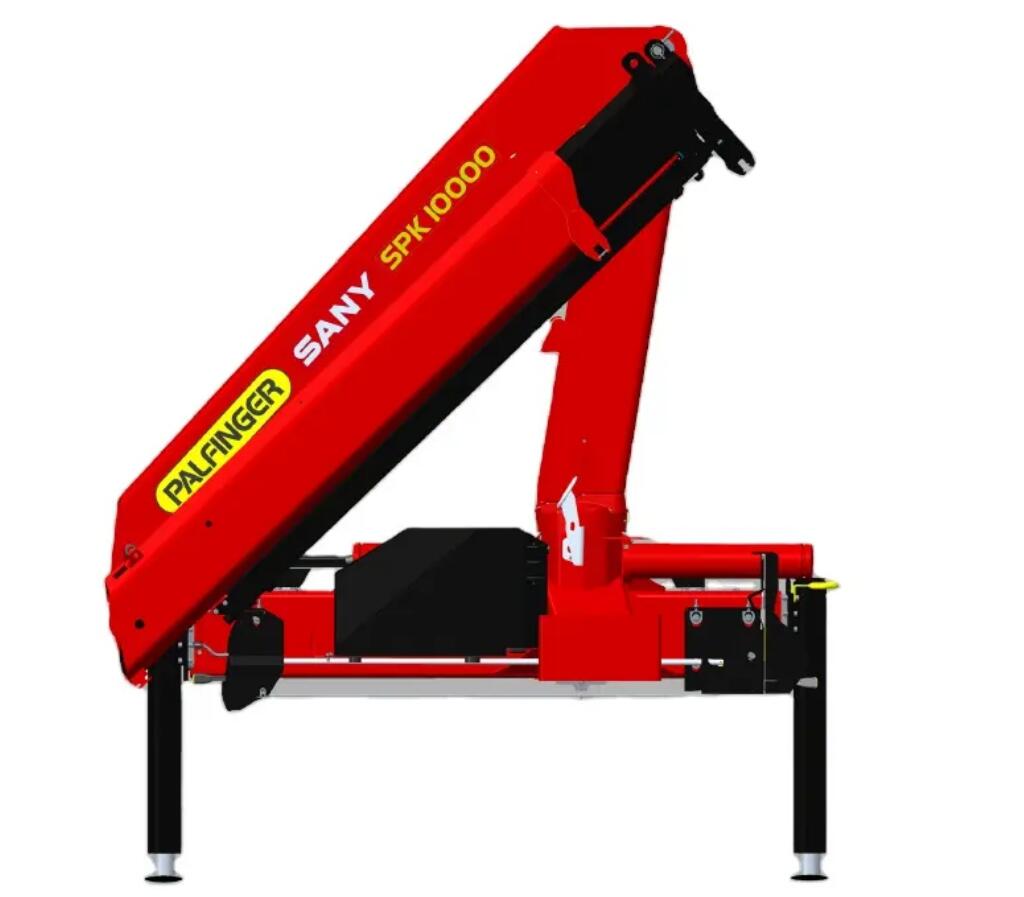

Palfinger SPK10000 folding arm boom crane
Basic Data for Palfinger Folding Boom Crane SPK 10000
Max. lifting moment [mt] 9.5
Max. lifting capacity [kg] 5700
Max. hydraulic outreach [m] 12.4
Max. hydraulic outreach lifting
capacity [kg] 590
Max. number of extension boom 4 (C)
Slewing angle [°] 400
Slewing moment [mt] 1.2
Max. stabilizer spread [mm] 4870
Std. stabilizer spread [mm] 4870
Fitting space required [mm] 657
Width folded [mm] 2500
Max. operating pressure [bar] 315
Recommended pump capacity [l/min] 30 - 45
Dead weight standard crane [kg] 1031

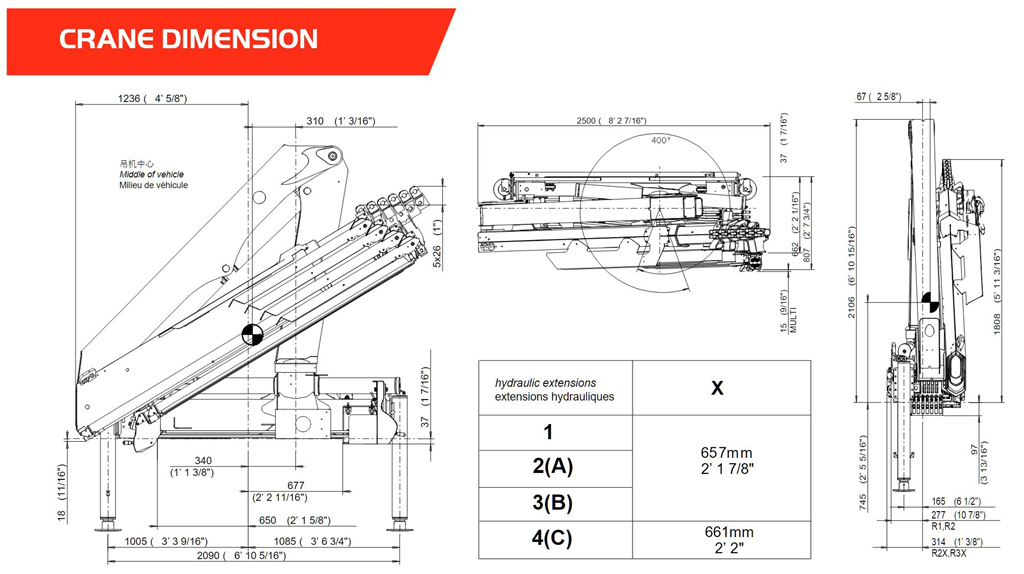

Technical specification for Palfinger SPK10000 crane

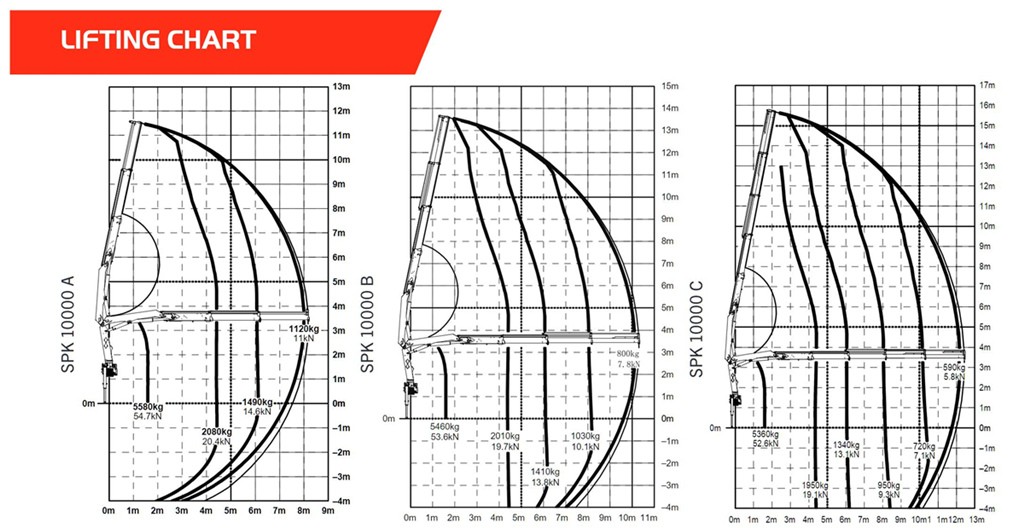

Palfinger SPK10000 folding arm boom crane Lifting Chart



Palfinger SPK10000 folding arm boom crane advanced features



POWERSTAR  Fire Rescue Trucks can be popular choices for incident command vehicles, national and local law enforcement, rehab, Hazmat incidents, light & air, urban search and rescue, and more. Furthermore, many fire rescue vehicles can be outfitted based on their target environmental setting, such as municipal, industrial, or natural. These configurations, determined by the operational agency and district, and worked out with the manufacturing company, provide a plethora of options for storage, response, equipment, size, and more.

The appearance of fire trucks in most areas is red, but there are also some areas where the appearance of fire trucks is yellow, white, gray and blue, some special fire trucks, which usually have alarm bells and sirens, warning lights and flashing lights on top. Common types of fire trucks include water tanker, foam fire truck, pump fire truck, aerial platform fire truck, ladder fire truck, etc. With certifications from renowned organizations such as ISO, 3C, SGS and BV, these fire rescue trucks meet international standards for quality and safety, providing peace of mind for our customers and ensuring compliance with regulations in various regions, including Philippines, Cambodia, Laos, Saudi Arabia, Dubai, DR Congo, Tanzania, Ethiopia, South Africa, Russia and Kazakhstan.



Beiben 1929 V3 offroad wildland fire truck
