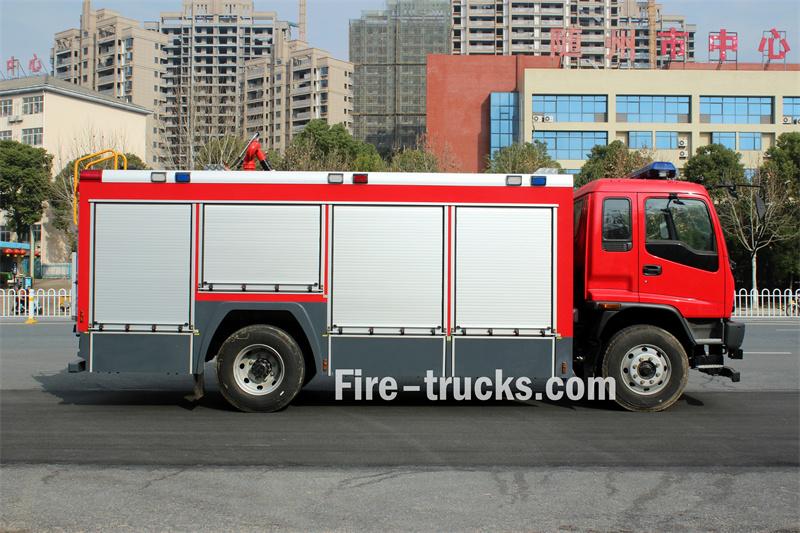

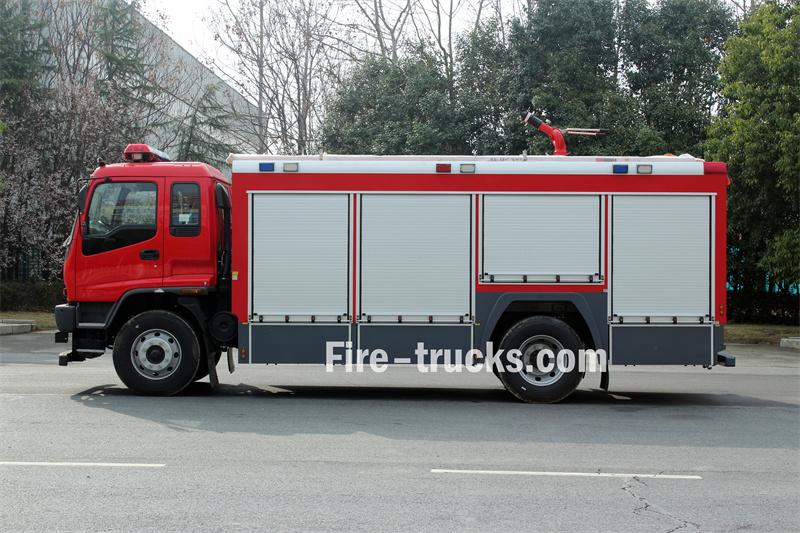

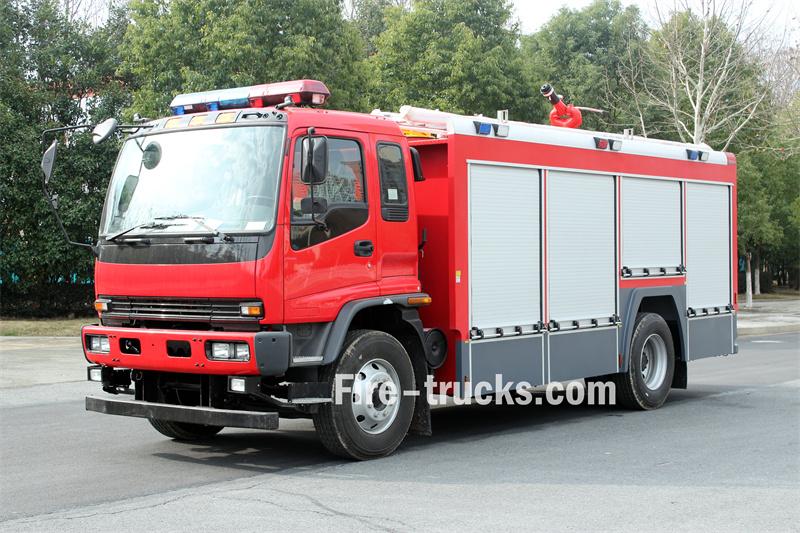

This Albania Isuzu FVR 6HK1 engine fire tender is a medium-sized main battle fire truck built on the Isuzu FVR 4×2 chassis. It is equipped with a 6HK1 engine and a Fast gearbox, ensuring reliable power. A 5-cubic-meter water tank and a 1-cubic-meter foam tank meet diverse firefighting needs. It integrates a CB10/60 fire pump with high flow rate, a PL8/48 fire monitor with long range and adjustable angle for precise targeting of fire sources, fire hoses and other auxiliary firefighting equipment, as well as various breaching and rescue equipment in the equipment compartment, providing strong support for rescue operations.



   ♦ Albania Isuzu FVR 6HK1 Engine Fire Tender ♦

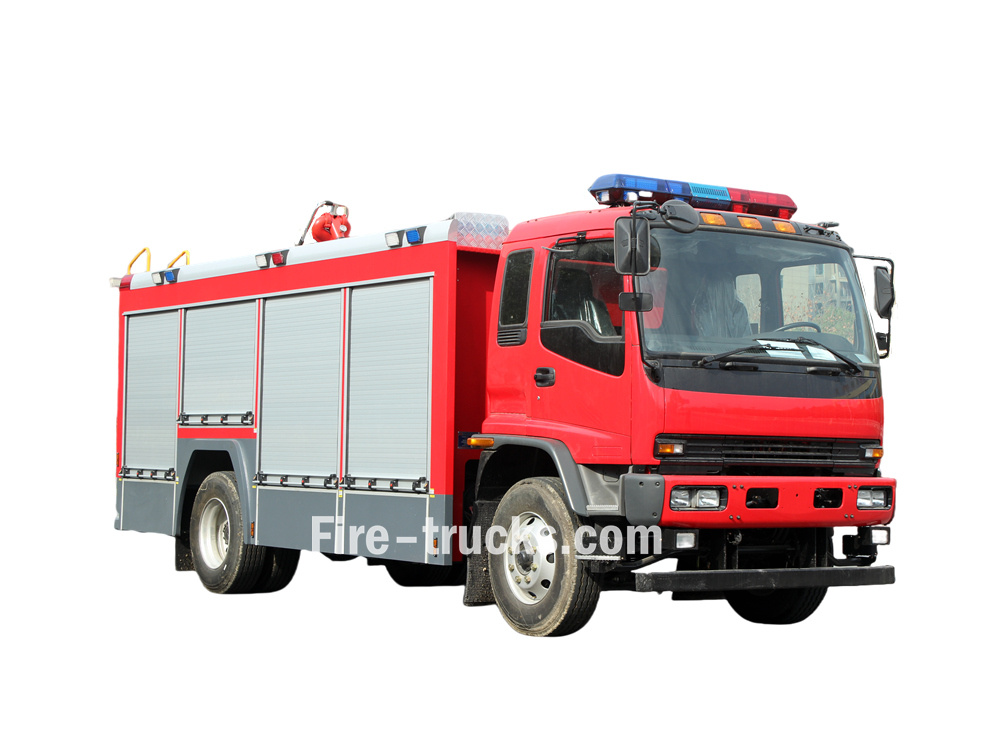

 Albania Isuzu FVR 6HK1 engine fire tender

Working Capacity

 Engine Model

 Wheelbase

 Superstructure

5000L water+1000L foam

6HK1/ 240HP

4500mm

★Water tank carbon steel

★Foam tank 304 stainless Steel

China famous CB10/60-XZ fire pump

 China famous PL8/48 Fire monitor

2025 year brand new



»Ⅰ. Main Features :



★ Isuzu 6HK1 240HP powerful engine, 100,000 Km without prblem.

★ Isuzu FVR GIGA 4x2 crew cabin,  Europen design

★ China famous CB10/60 fire pump, super reliable

★ Tank capacity can be customized

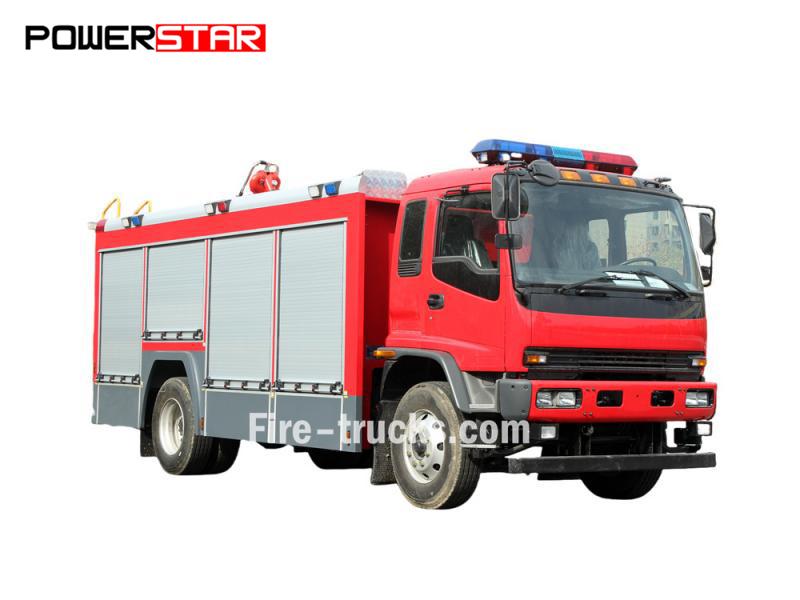

  • Albania Isuzu FVR GIGA 6cbm foam fire truck
  • Isuzu FVR GIGA 6000L water foam fire rescue truck

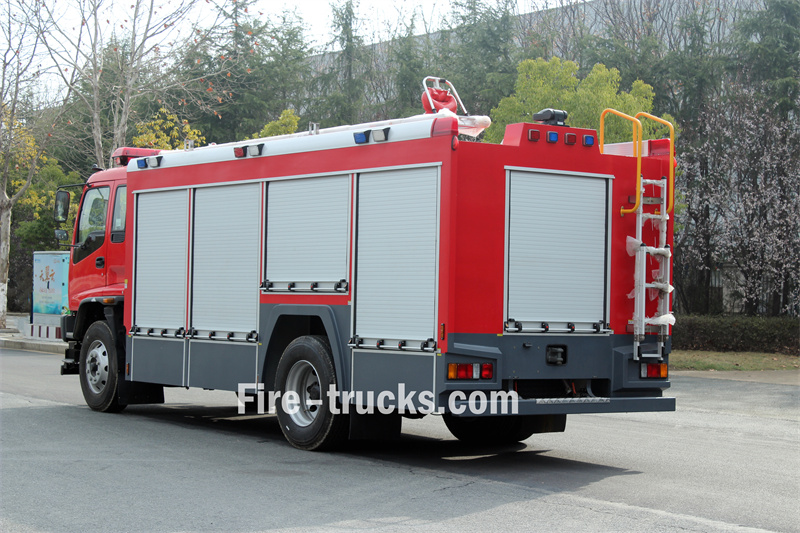

  • Isuzu GIGA 6CBM foam fire fighting truck

 » Ⅱ.Product Parameter :

ISUZU FVR GIGA 6000L foam water fire truck

General

Work capacity

5000L water tank,1000L foam tank

Truck chassis

Isuzu FVR GIGA 4X2

Engine Power

240 HP/ Isuzu 6HK1-TCL

Fire pump

CB10/60-XZ

Chassis

Drive Type

4X2

Transmission

FAST 8-shift, manual

Wheelbase

4500mm

Tire

295/80R22.5,6+1wheel





Fire pump

Model

CB10/60-XZ

Pressure

1MPa

Max working pressure

1.232MPa

Max allowable inlet pressure

0.4MPa

Flux

40L/s

Max suction height

7m

Rated speed

3286±50r/min

Speed ratio

1:1.178

Water diversion time

≤50s

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.61.4MPa

Flow range

1664L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PL8/48

Flow

32L/s

Rated working pressure

0.8MPa

Max working pressure

1.0MPa

Range

Water

70m

Foam

60m

Pitch rotation

- 45+70°

Horizontal rotation

0360°

 Standard  configuration

All standard accessories: Fire hose, filter, coupling, wrench, water /foam gun, basic tool kit, English manual……


-----Tanker materialCarbon steel, stainless steel, aluminum alloy, PP material
-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand
-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)




Chassis:

Type:Isuzu FVR GIGA 4x2 Euro 5 cab chassis, 4500mm wheelbase



Engine:   Isuzu 6KH1-TCL 240hp/175kW engine, 7.79L displacement



Transmission:Fast 8-speed manual transmission, multiple gears, reasonable gear ratio range



Cabin:Double-row cab, accommodating 2+3 passengers. Excellent visibility, equipped with air conditioning, ABS, etc.





» Ⅲ. Fire Pump system :

The pump room is equipped with a CB10/60-XZ type fire pump. This pump is a medium-low pressure fire pump with a rated flow of 60 liters/second @ 1.0MPa and a high outlet pressure. It can meet the needs of long-distance, high-flow-rate spraying of vehicle-mounted water cannons and can also supply water to multiple water cannon positions simultaneously.



CB10/60-XZ fire pump

Fire Pump Model

Flow

Pressure

 Max Working Pressure

Max Allowable Inlet Pressure

CB10/60-XZ

60L/s

1.0MPa

1.232MPa

0.4MPa

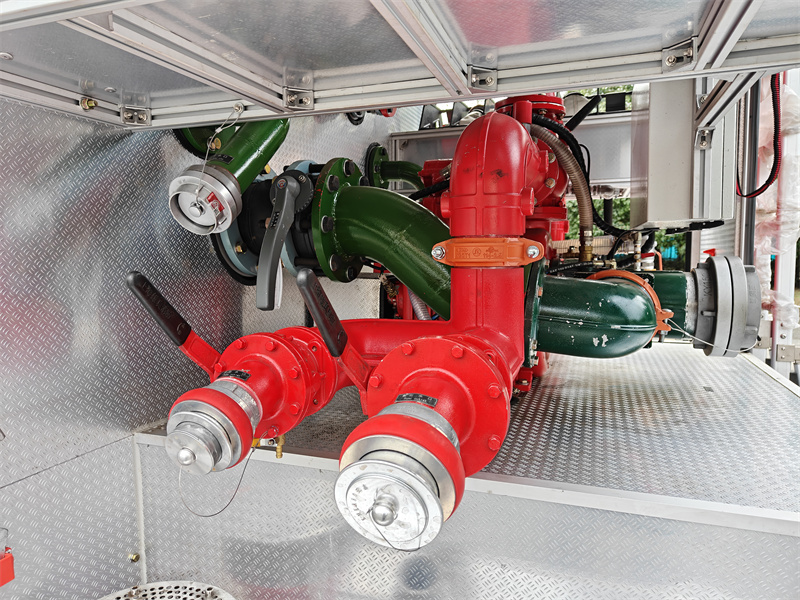

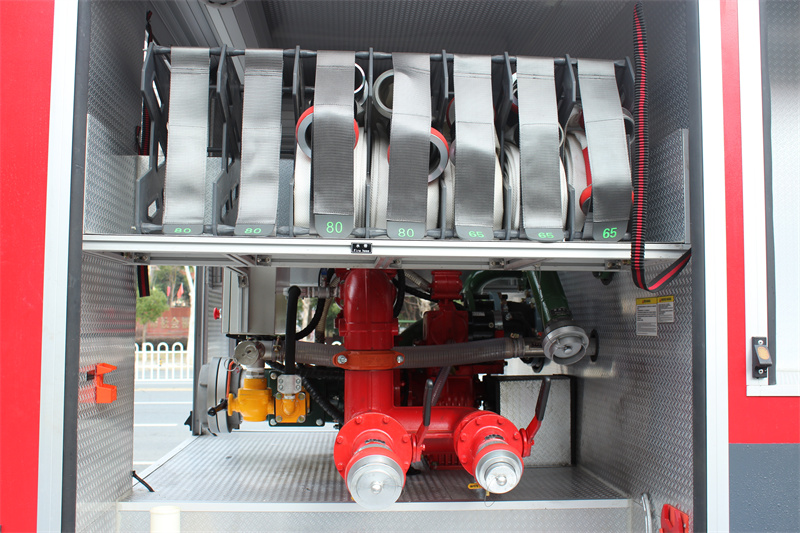

  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump
  • CB10/60-XZ fire pump

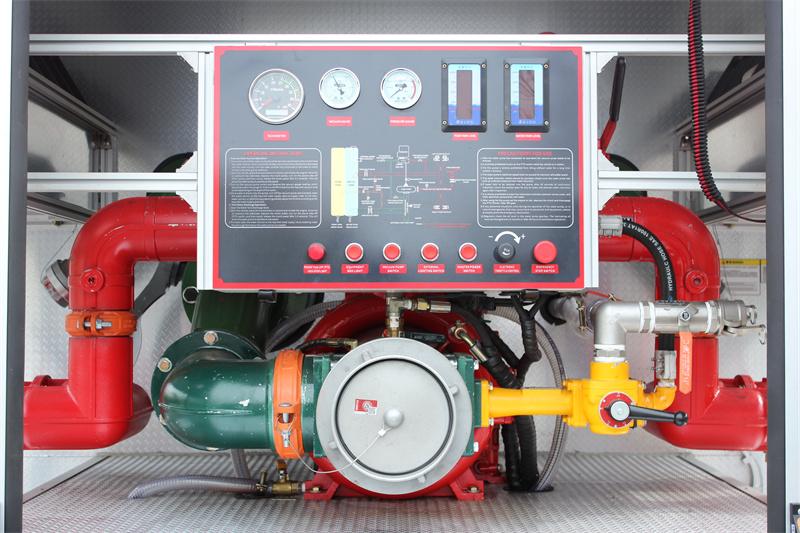

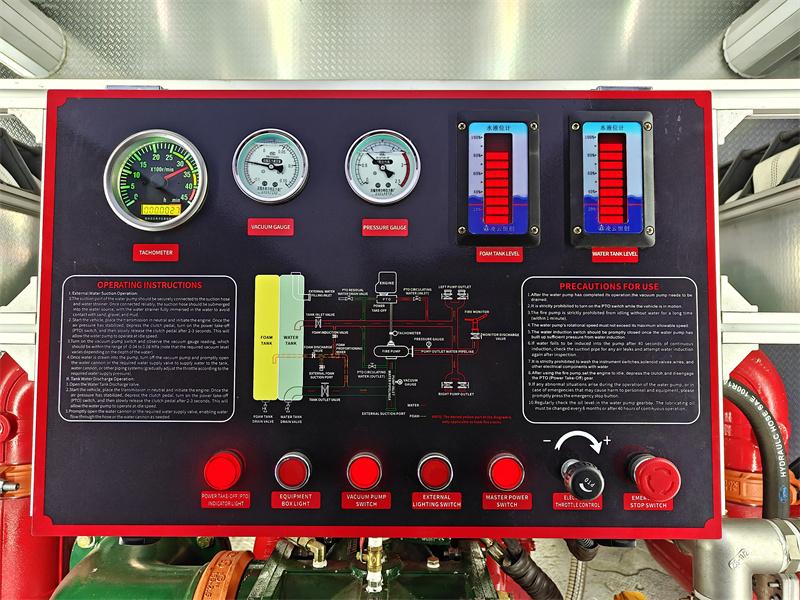

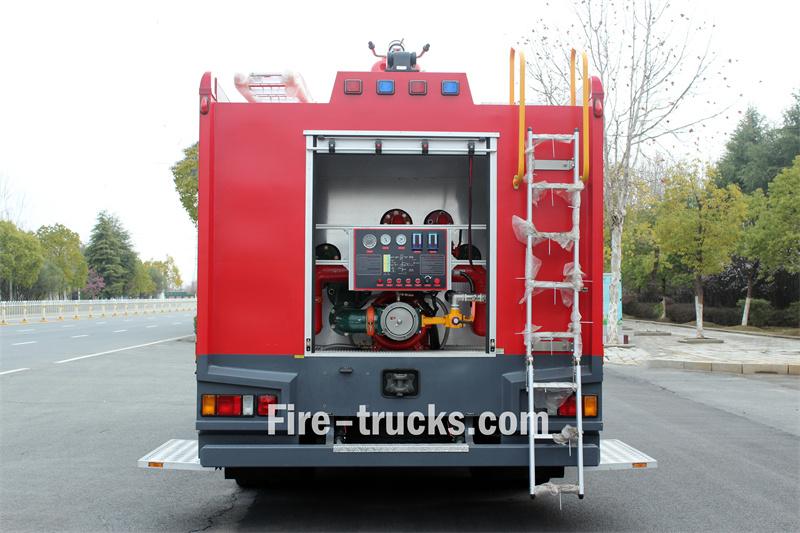

Control panel: Integrates tachometer, vacuum gauge, pressure gauge, foam level gauge, water level gauge, operating instructions, pipeline diagram, precautions, PTO indicator light, equipment box light, vacuum pump switch, external light switch, main power switch, electronic throttle control, emergency stop switch, and other buttons.



Control panel



» . Fire Monitor system :

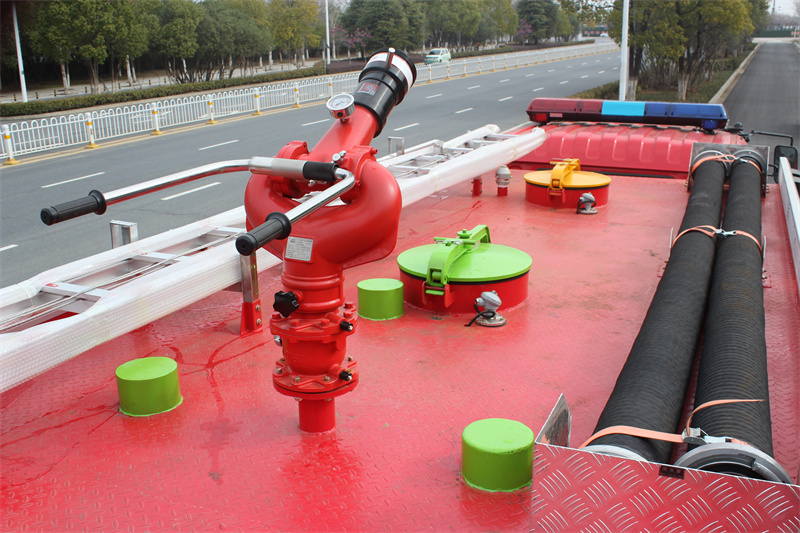

A PL8/48 type foam/water dual-purpose fire monitor is mounted on the roof. With a flow rate of 48L/s at 0.8MPa, it features long range, high flow rate, and adjustable spray angle, enabling long-range, precise targeting of fire areas.

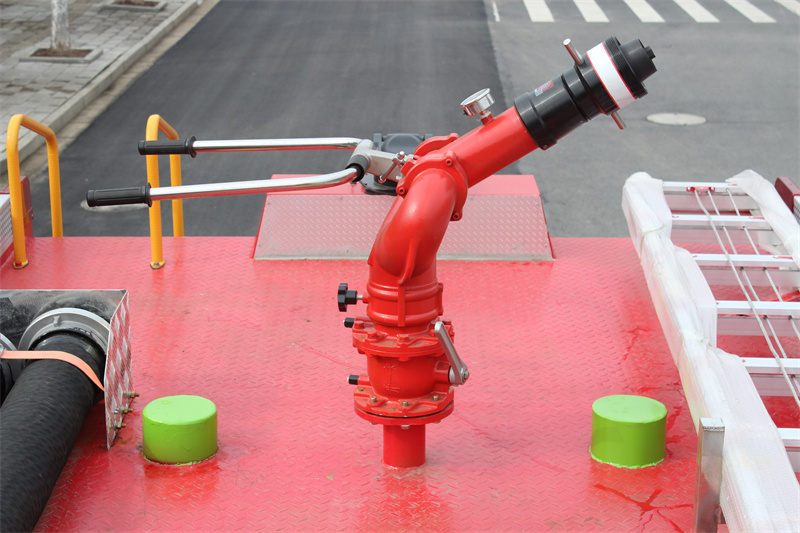

PL8/48 fire monitor



Fire Monitor Model Flow Range Rated Pressure Pitch Rotation Horizontal rotation Weight
PL8/48 48L/s

water ≥70m,

foam ≥60m

0.80MPa -45°~+70°
0~360° 27kg

».Technical Design:



 POWERSTAR R & D Department for design:

100% customized appearance, design the water + foam tanker capacity, fire fighting tools storage box, also the whole truck size can be customized.

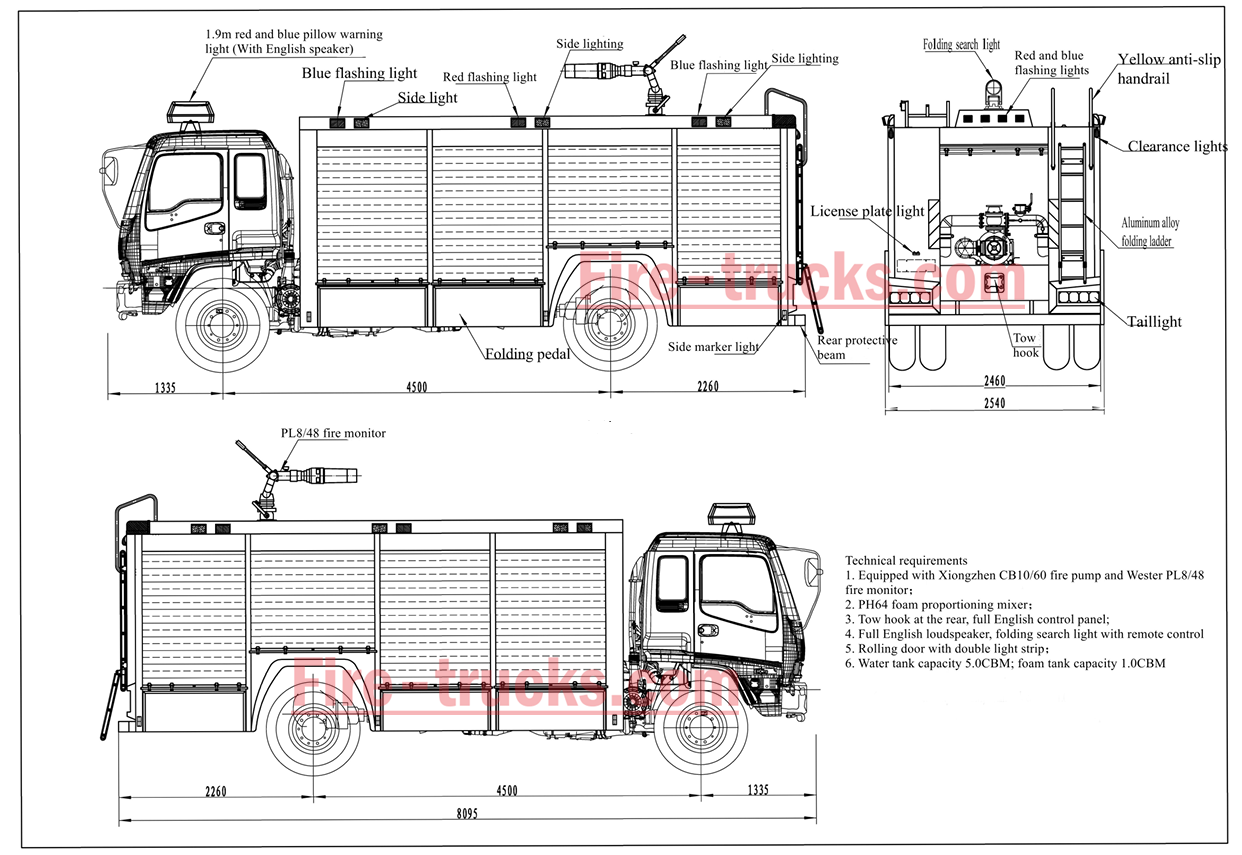

ISUZU FVR 6000L foam water fire truck technical drawing

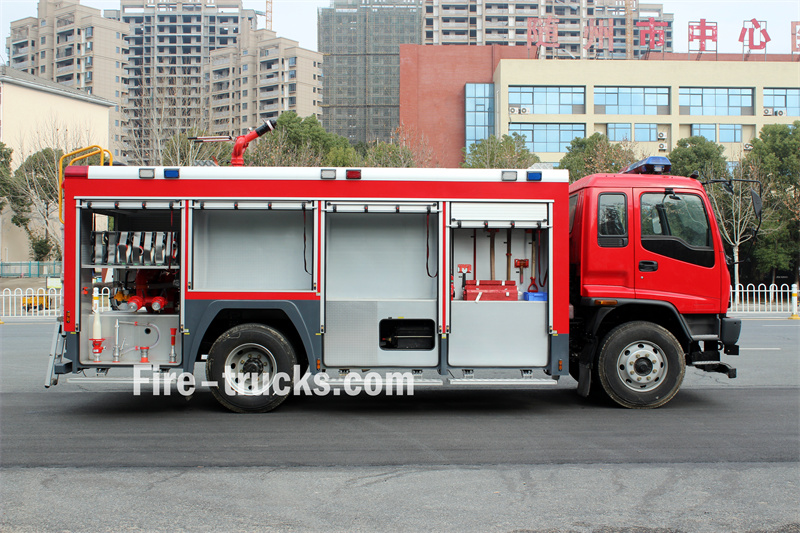

» .Equipment Storage:

1. Both sides of the tank are designed as equipment storage compartments, rationally divided to neatly store various firefighting equipment, such as fire hoses, fire axes, shovels, picks, fire extinguishers, fire suits, and hose bridges, for easy access by firefighters.



2. The pump room is also equipped with fire hoses, water guns, foam guns, water collectors, water distributors, and water filters.

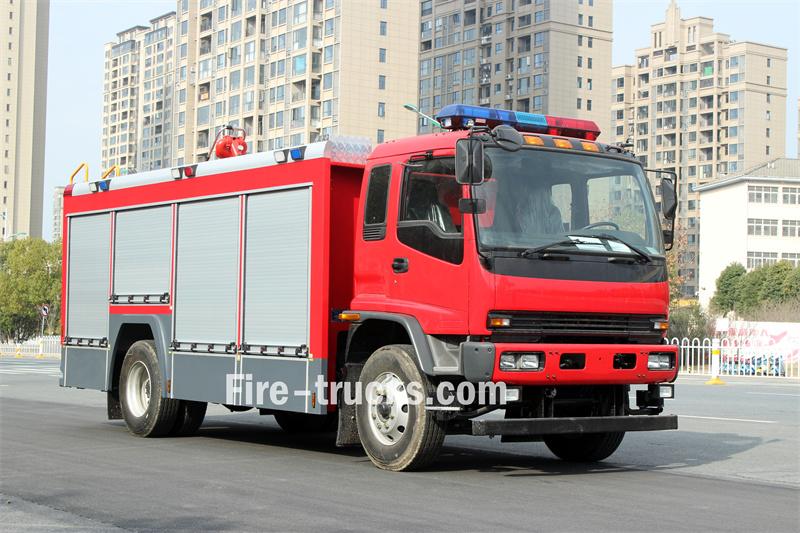

Albania Isuzu FVR GIGA 6m³ foam water fire truck

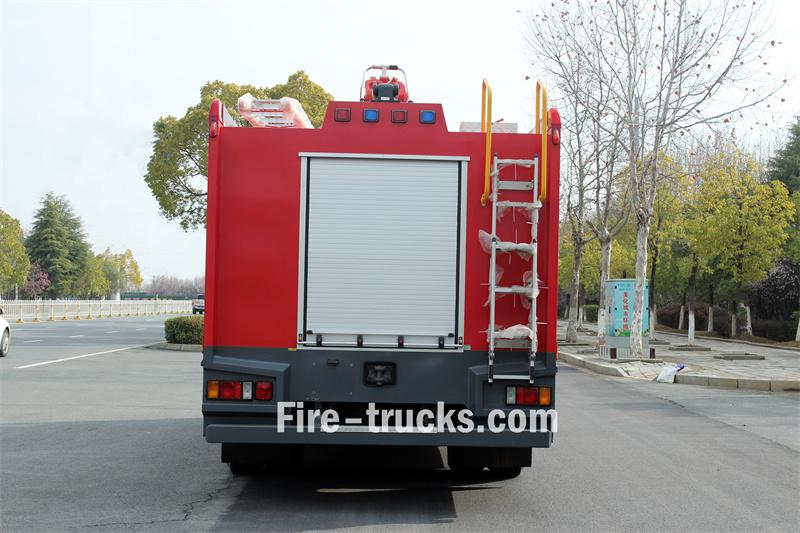

Isuzu FVR GIGA 6m³ foam water fire truck

» .Preshippment Test:

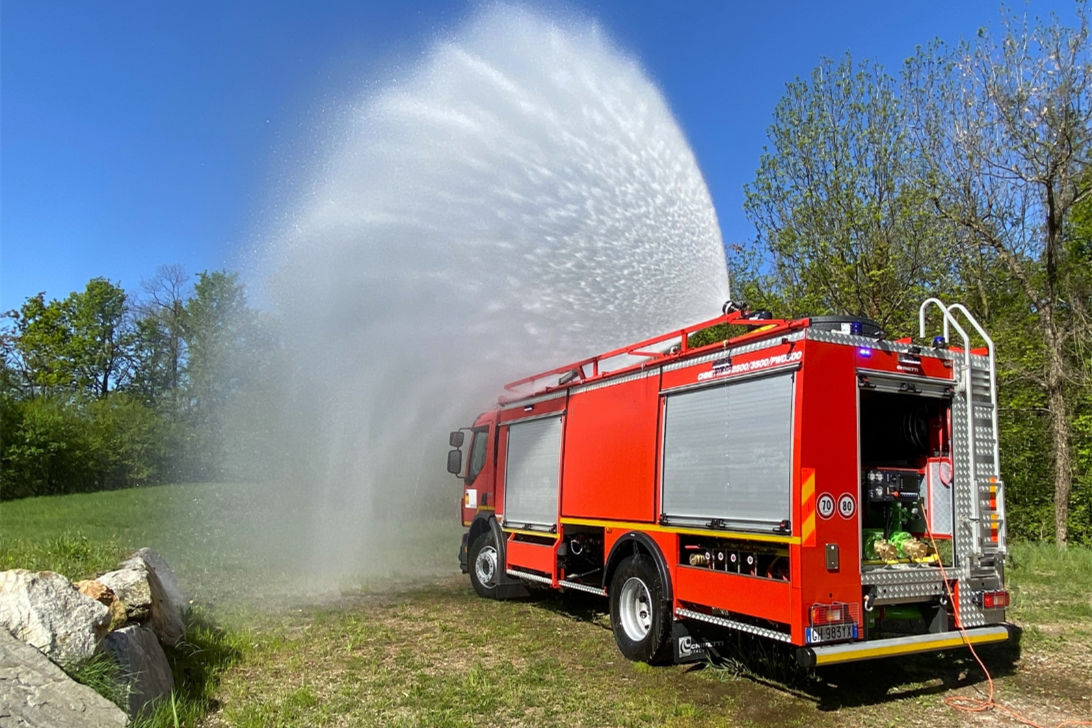

Before delivering the Albania Isuzu FVR GIGA 6cbm foam fire truck from our factory, we conducted a factory inspection of the fire truck, including rainwater testing, performance testing of the fire pump and fire monitor, and a final inspection of the welding process, paint, and other aspects.

Isuzu GIGA 6000L foam fire fighting truck



Isuzu GIGA 6cbm foam fire engine
